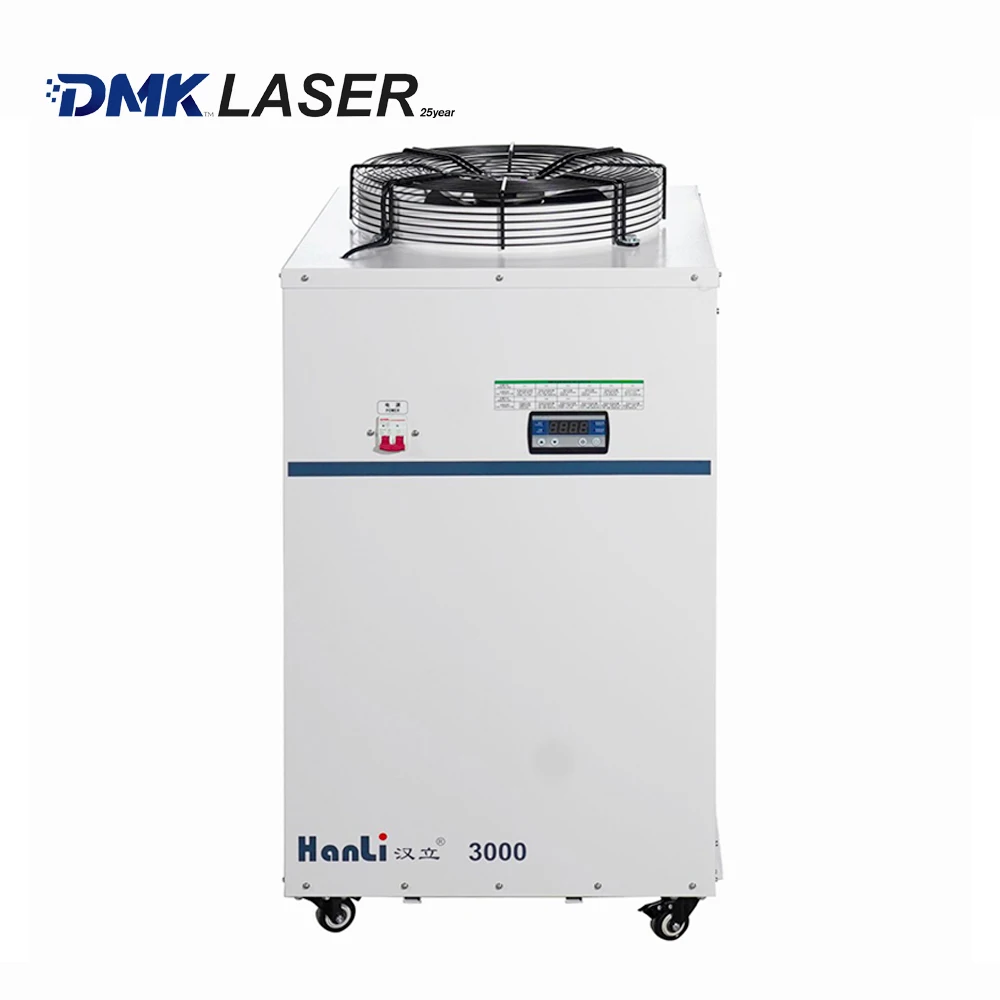

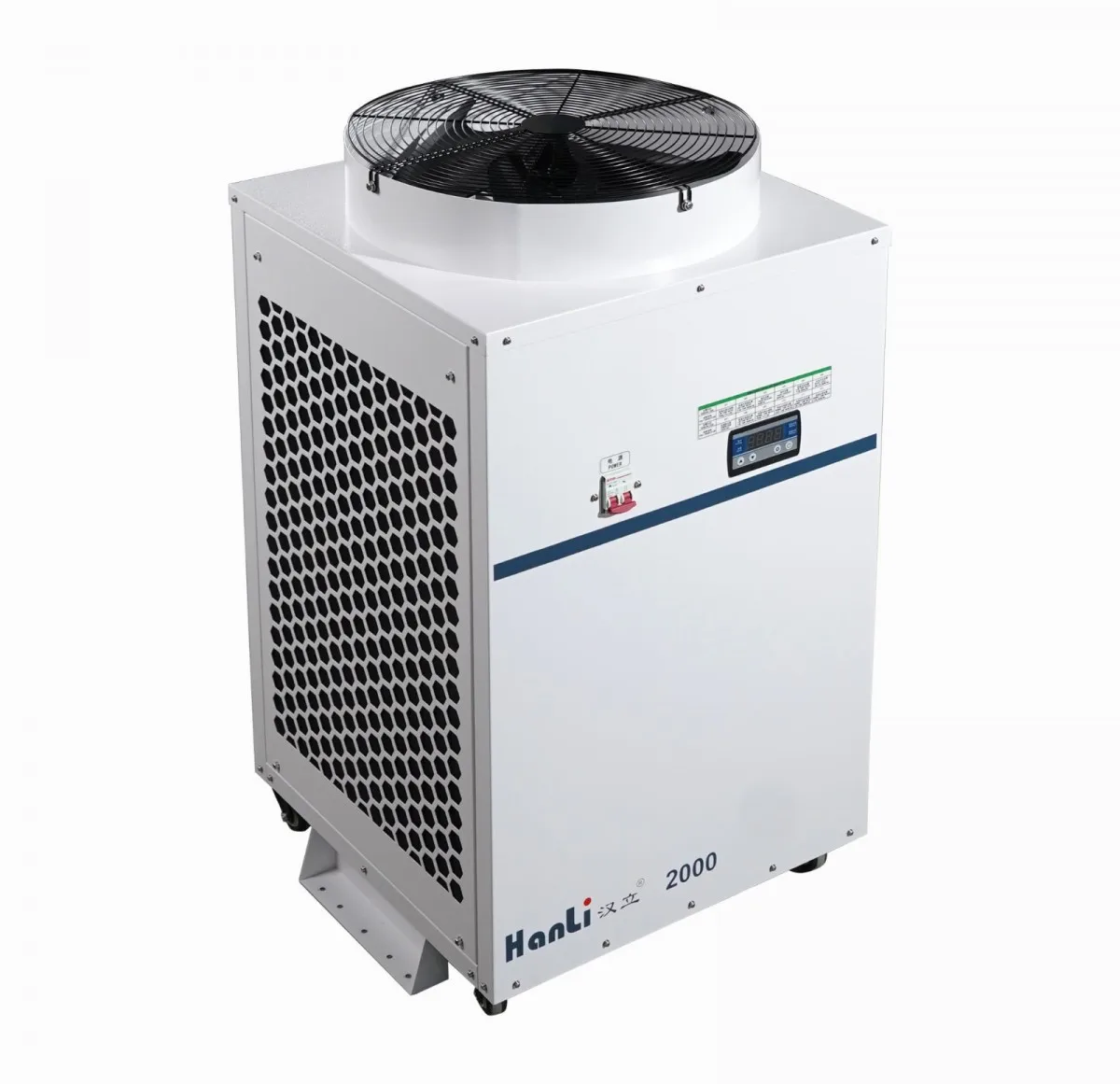

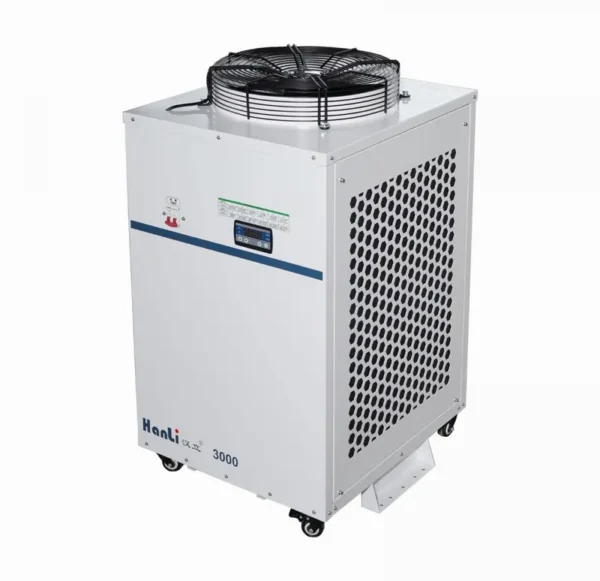

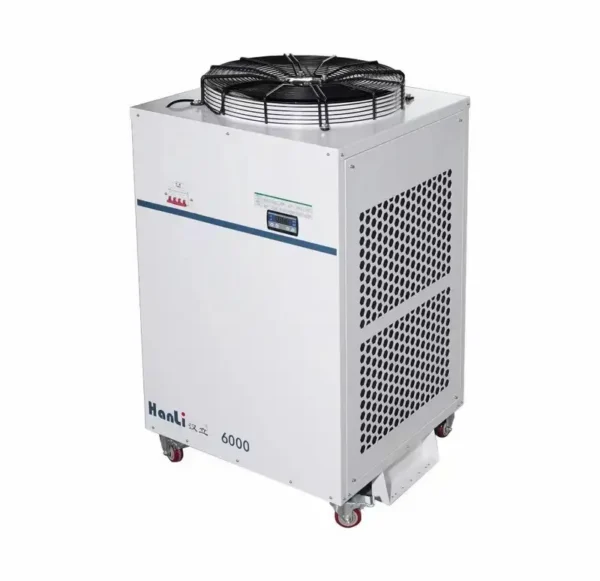

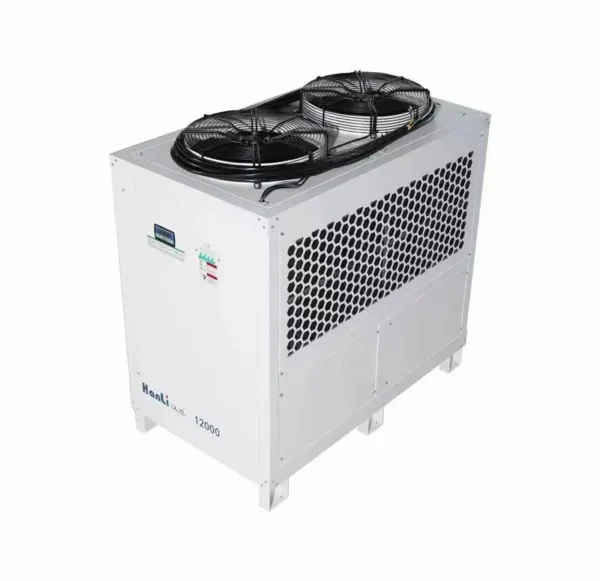

Hanli Chiller, 1500W, 2000W, 3000W, 6000w

Manufactured by Wuhan Xionghao Electronics Technology, this hanli chiller is documented here exactly as the factory publishes it. Supplier profile: 6 years on the platform, factory-assessed. Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Hanli Chiller

• Warranty: 2 Years
• Place Of Origin: Hubei, China
• Laser Level Special Features: Green Line
• Single Package Size: 75X60X110 cm
• Weight (Kg): 100
• Single Gross Weight: 100.0 kg

Technical Specifications

Product Details

Products Description

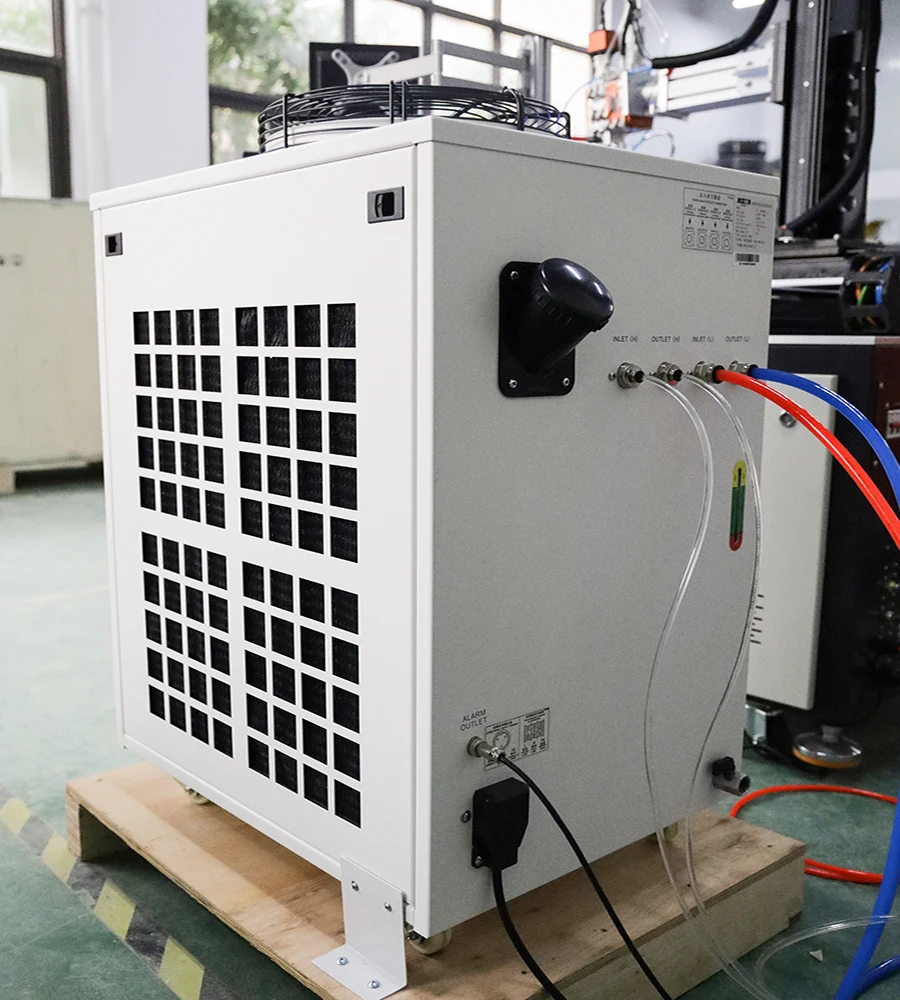

This product is designed and manufactured for laser cutting, laser welding, laser engraving, laser marking, laser printing and other equipment using laser processing. It can provide two cooling cooling media for the above application scenarios, one is low temperature coolant, which is used to cool the fiber laser, and the other is normal temperature coolant which is used to cool the fiber laser cutting head.

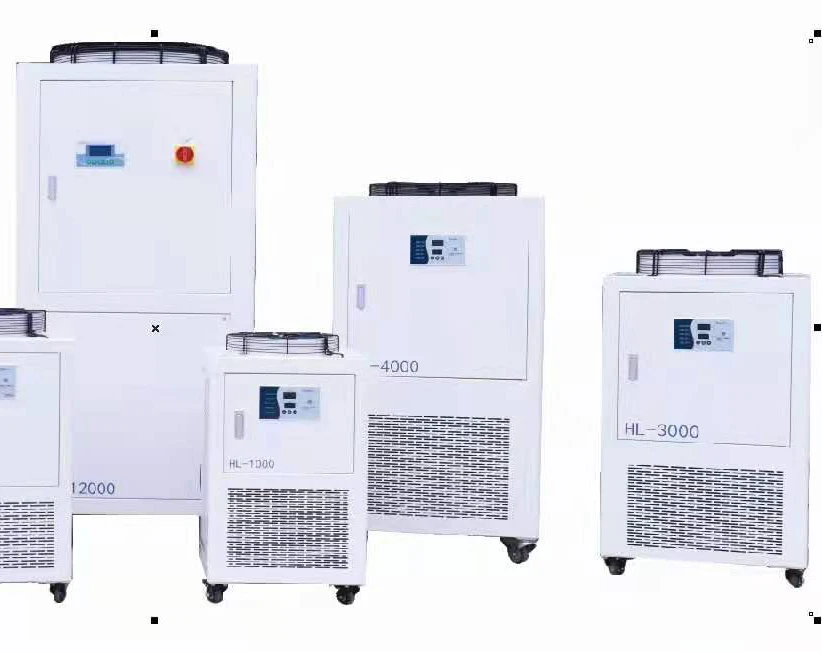

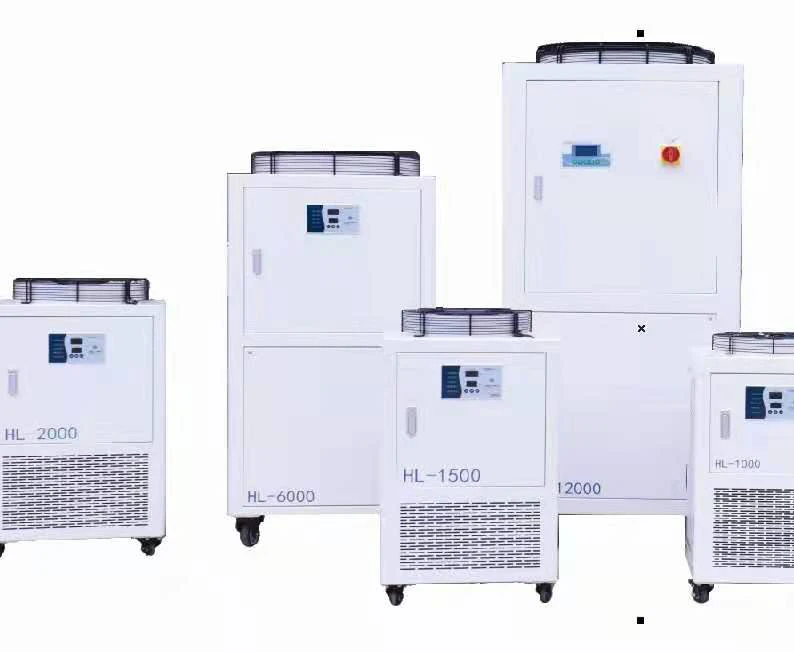

Product Paramenters

No	Equipment model	Power supply	Power (kW)	Coolants	Fluorine injection(kg)	Lift (m)	Rate of flow (m3/h)	Weight(kg)	Equipment size (mm)
1	HL-1000- QG2/2	220V 50Hz	1.7	R410A	0.36	38.5	2	58	590 * 500 * 860
2	HL-1500- QG2/2	220V 50Hz	2.3	R410A	0.50	47.5	2	66	630 * 510 * 920
3	HL-2000- QG2/2	220V 50Hz	2.4	R410A	0.65	47.5	2	76	650 * 530 * 980
4	HL-3000- QG2/2	220V 50Hz	3.1	R410A	1.00	48.5	4	93	790 * 560 * 1050
5	HL-4000- QG2/2	220V 50Hz	5.0	R410A	1.20	58.5	4	105	850 * 630 * 1225
6	HL-6000- QG2/2	380V 50Hz	8.4	R410A	1.90	58.5	4	130	820 * 700 * 1410
7	HL-8000- QG2/2	380V 50Hz	11.0	R410A	2.30	68.0	8	200	860 * 720 * 1480
8	HL-12000- QG2/2	380V 50Hz	14.0	R410A	2.70	68.0	8	220	1100 x 810 x 1880
9	HL-15000- QG2/2	380V 50Hz	15.0	R410A	1.8 x 2	68.0	8	310	1500 x 800 x 1630

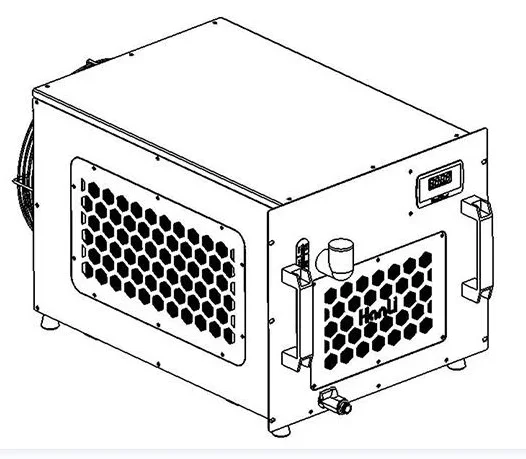

10	SCH-1500	220V 50Hz	1.7	R410A	0.38	38.5	2	50	800 * 490 * 430

For More Details

1. Optional environmentally friendly refrigerant; 2. The temperature control accuracy can reach ±0.5℃; 3. The intelligent thermostat of the laser chiller has two temperature control modes, which are suitable for different use occasions; it has a variety of settings and fault display functions; 4. Dual temperature and dual control mode to meet the different cooling needs of the fiber laser body and lens; 5. With multiple alarm protection functions: compressor delay protection; compressor over-current protection; water flow alarm; temperature over-high/low alarm

Application

for laser cutting

for laser welding

Our Advantages

Our company is located in Wuhan Optics Valley and has more than 20 years of laser industry experience

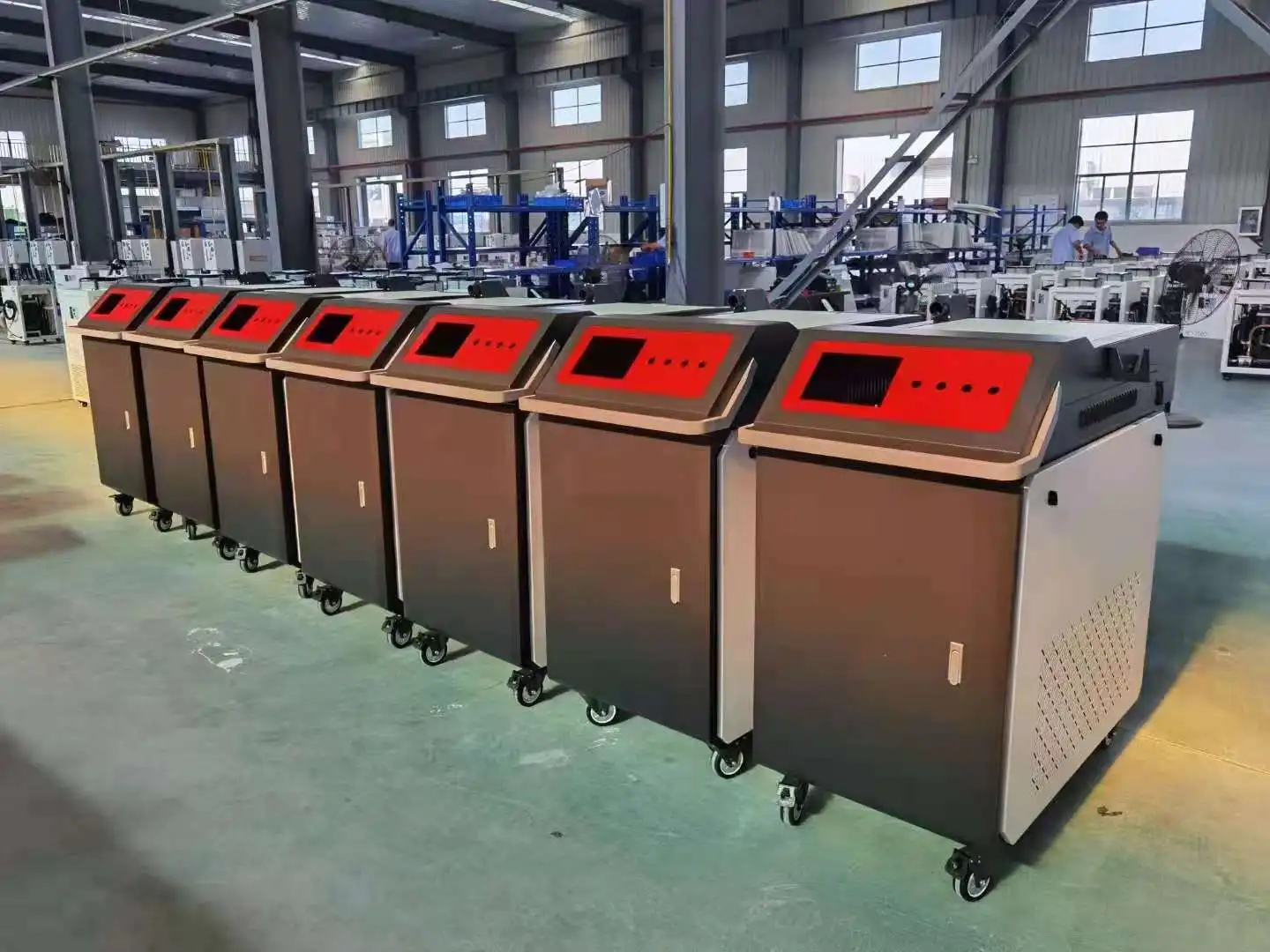

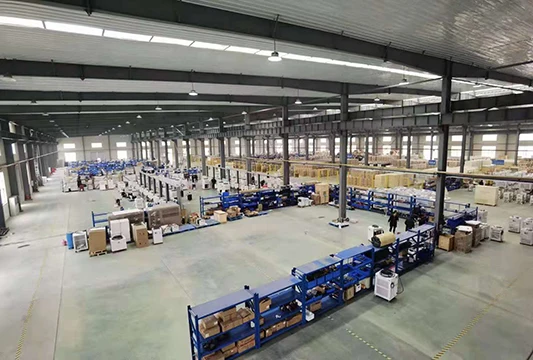

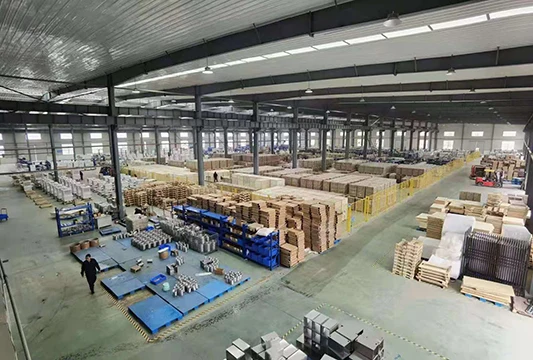

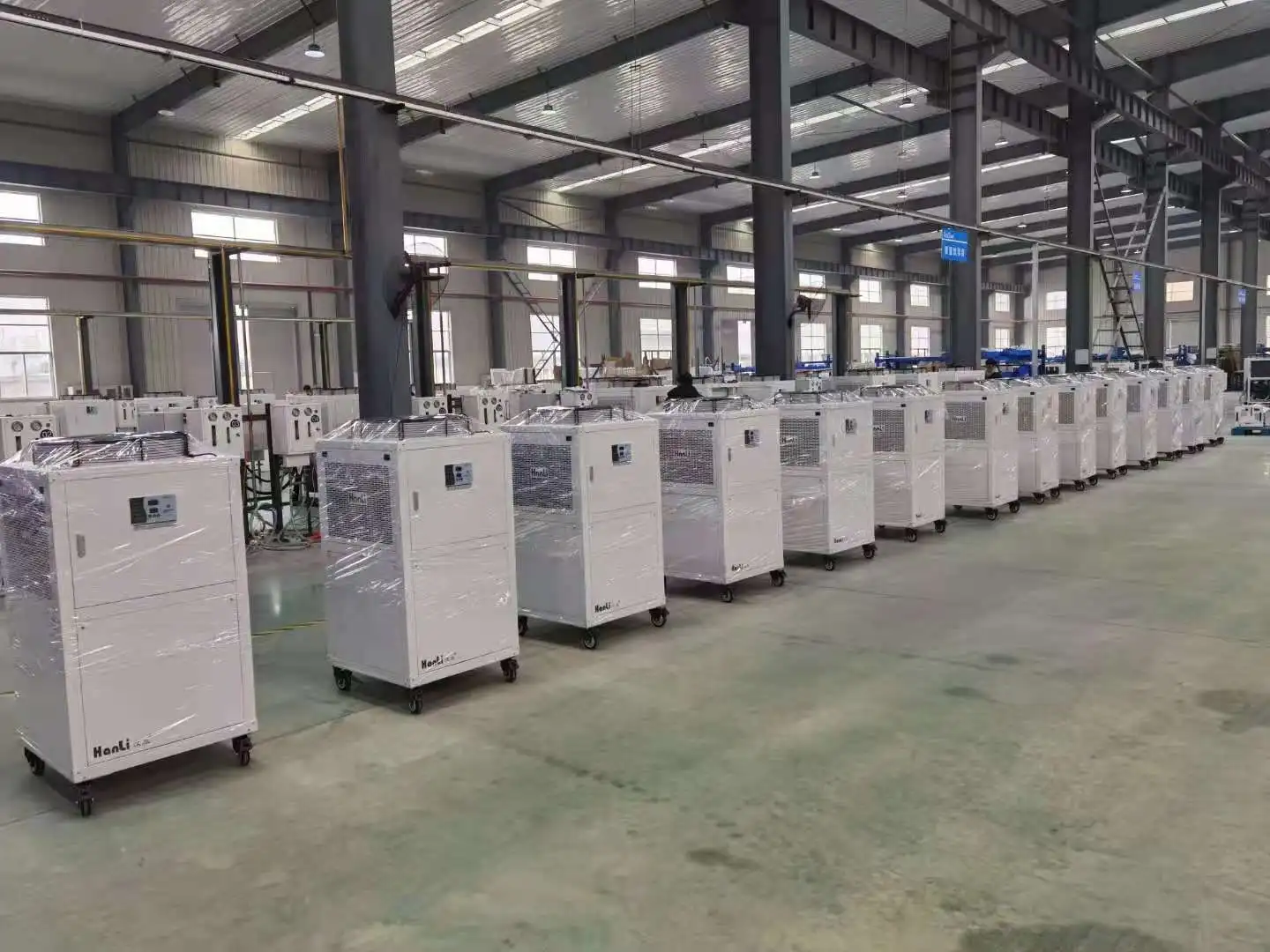

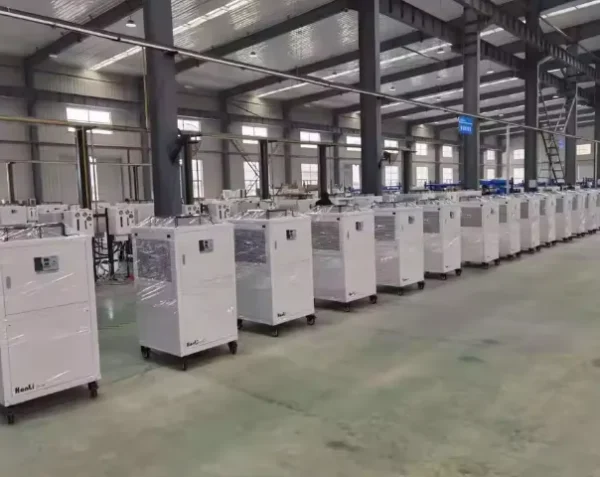

Standardized production line

Annual production volume reaches more than 200,000 units

Company Profile

Contact Us

FAQ

Q: How can I choose the most suitable machine?

A: In order to recommend you the most suitable machine model, please let us know the following details:
1.What is your material?
2.The size of material?
3.The thickness of material?

Q:When I got this machine,but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q:If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.

Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this hanli chiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
