Wuhan Xionghao Electronics Technology lists this air cooled water chiller with its own published specification, unedited. Supplier profile: 6 years on the platform, factory-assessed. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Cooled Water Chiller
- Operating Voltage: Dc 24V
- Warranty: 1 Year
- Place Of Origin: Hubei, China
- Application: Industrial Cooling Solutions
- Spare Parts Type: chiller
- Accessory Type: cooling-water machine
Technical Specifications
| Spare Parts Type | chiller |
|---|---|
| Wavelength | None |
| Operating Voltage | Dc 24V |
| Accessory Type | cooling-water machine |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Condition | New |
| Place Of Origin | Hubei, China |
| Weight (Kg) | 100 |
| Brand Name | TEYU |
| Working Temperature Range | 7°-50° |
| Dimension(L*W*H) | 95*84*136cm |
| Application | Industrial Cooling Solutions |
| Product Name | chiller |
| Used For | laser machine |
| Selling Units | Single item |
| Single Package Size | 80X80X120 cm |
| Single Gross Weight | 100.0 kg |
Product Details

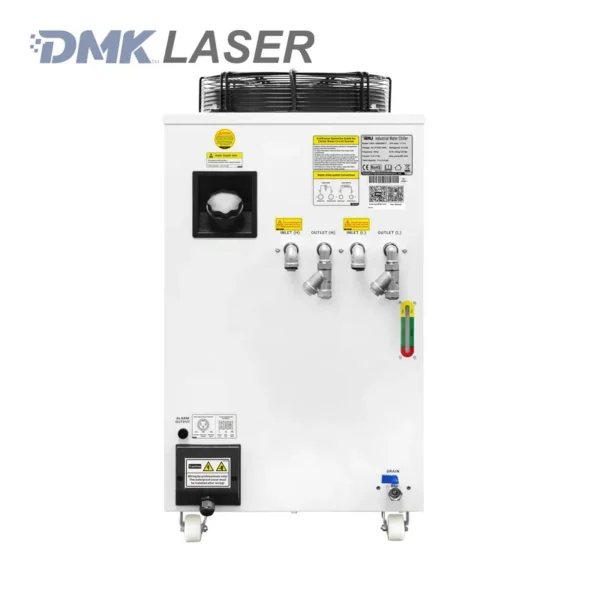

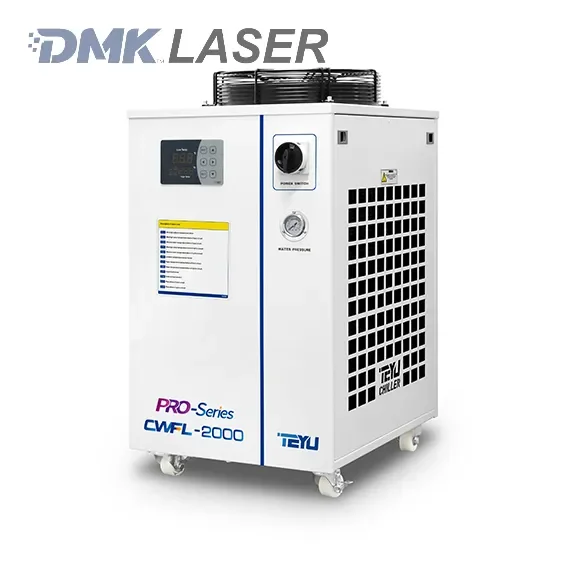

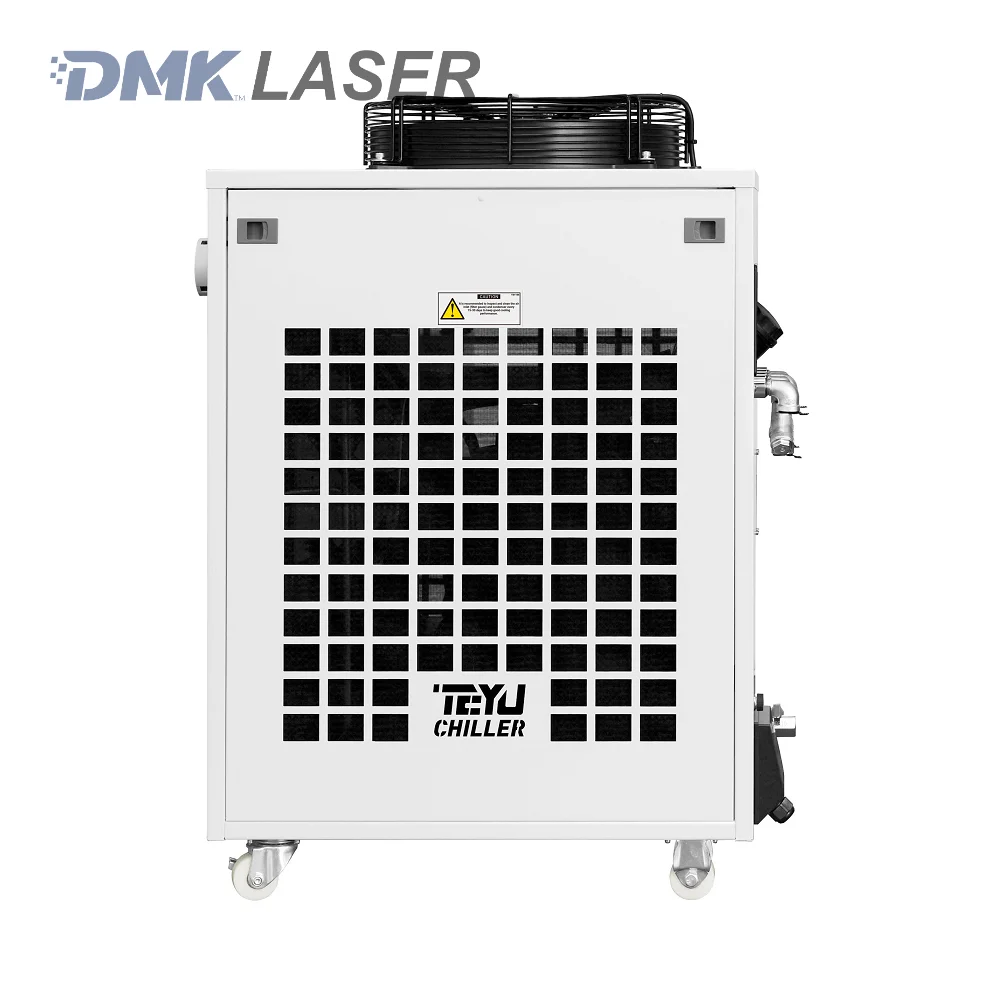

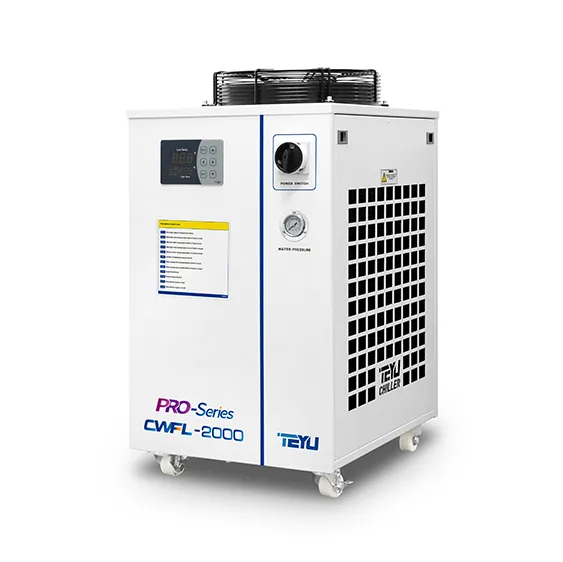

TEYU air-cooled water chiller
other equipment using laser processing.
fiber laser cutting head.

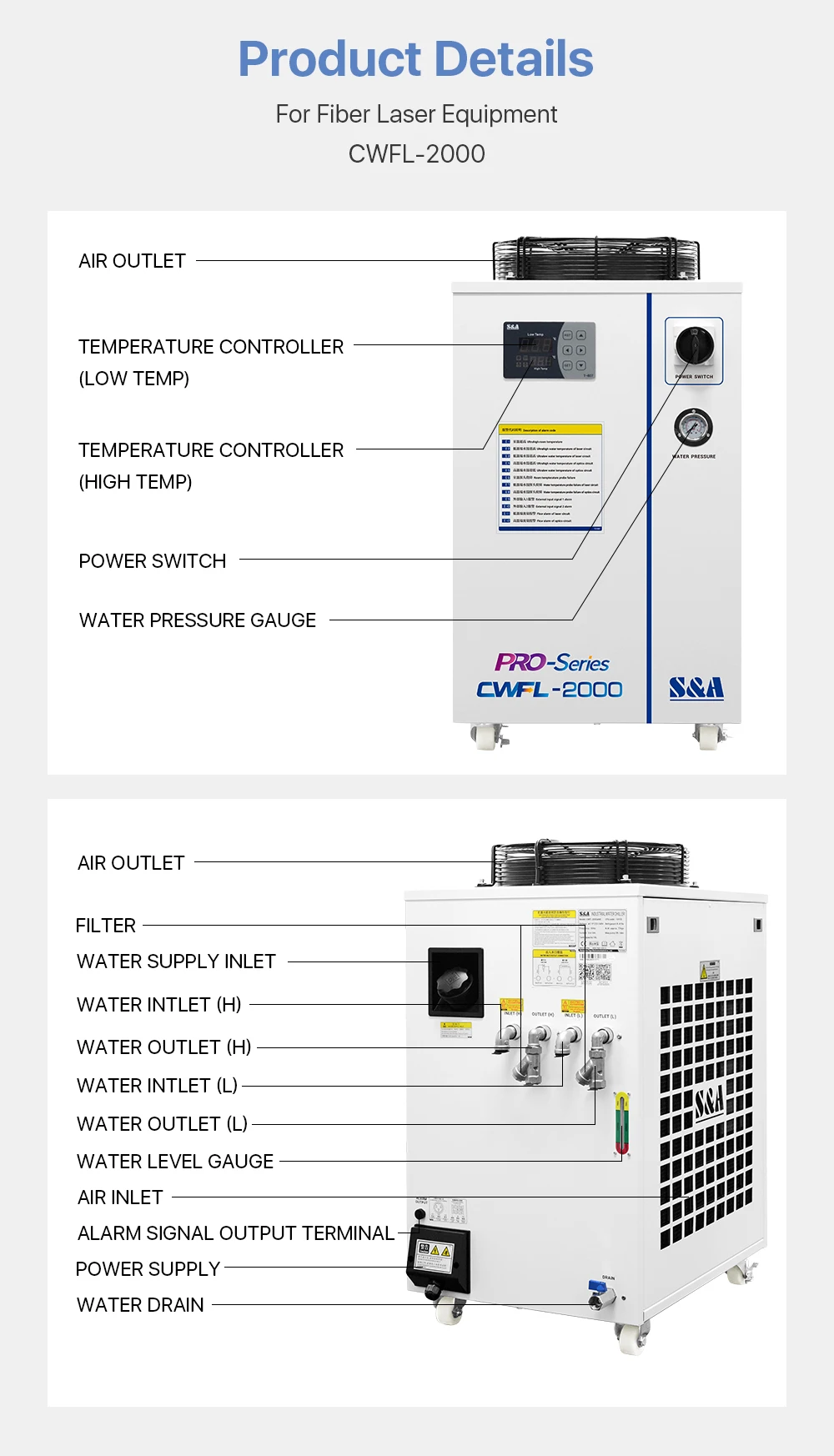

CWFL-2000 chiller Product Features
* Active cooling
* Temperature stability: ±0.5°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410A
* User-friendly controller interface

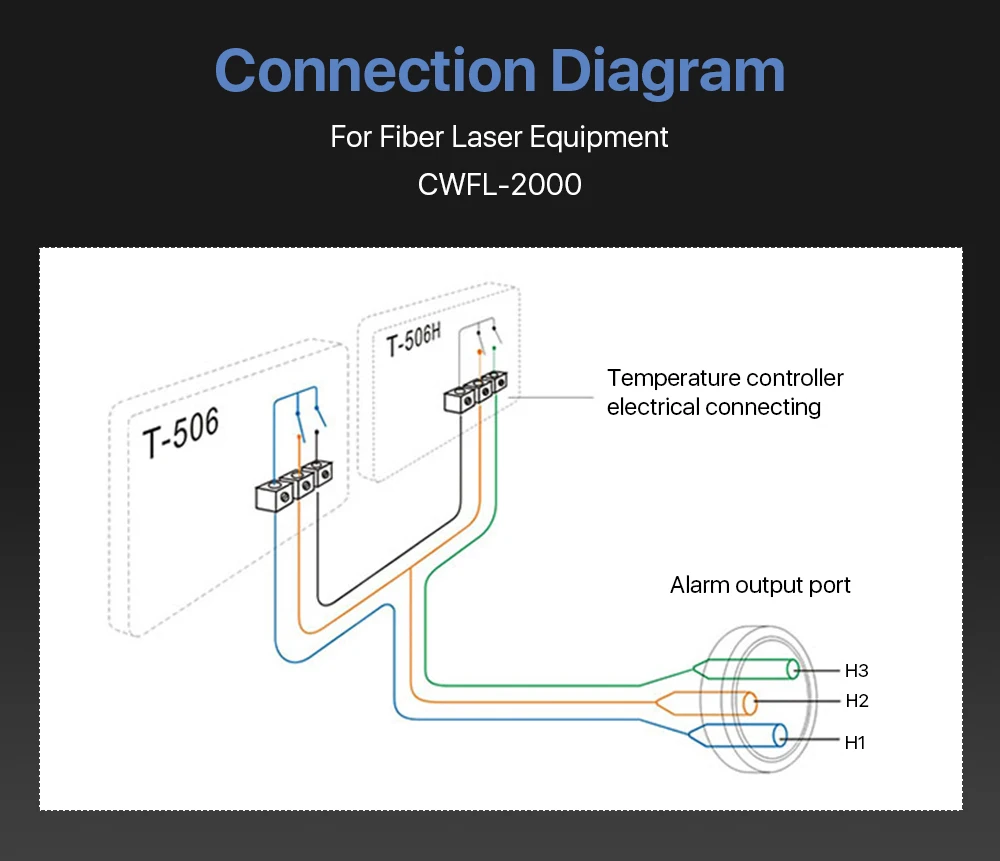

* Integrated alarm functions

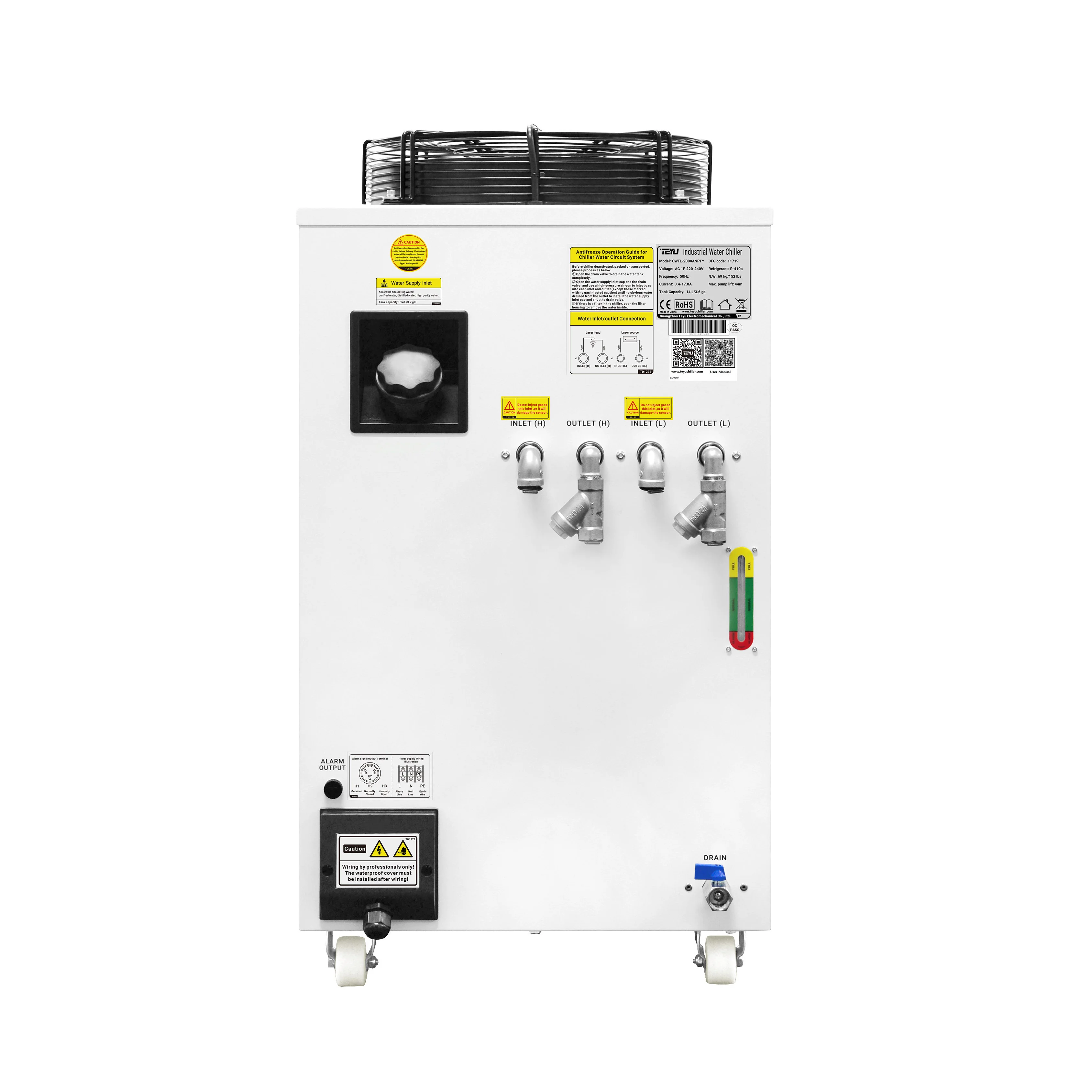

* Back mounted fill port and visual water level
* Optimized for high performance at low temperatures
* Ready for immediate use
Model | CWFL-2000ANP | CWFL-2000BNP | |
Voltage | AC 1P 220V-240V | ||
Frequency | 50HZ | 60HZ | |
Current | 3.6-18A | 3.9-16.9A | |
Compressor Power | 3.03KW 3.08HP | 3.38KW 3.16HP | |
Nominal Cooling Capacity | 23440Btu/h 6.87KW 5907Kcat/h | 22946Btu/h 6.73KW 5782Kcat/h | |
Electric Assisted Power | 600W+600W | ||
Refrigerant | R-22/R-410a | ||
Refrigerant Charge | 1800g | 1750g | |
Precision | ±0.5℃ | ||
Reducer | Capillary | ||
Pump Power | 0.55KW | 0.75KW | |
Tank Capacity | 15L | ||
Inlet And Outlet | Rp1/2” | ||
Max Pump Lift | 44M | 53M | |
Rated Flow | 2L/Min+＞15L/Min | ||

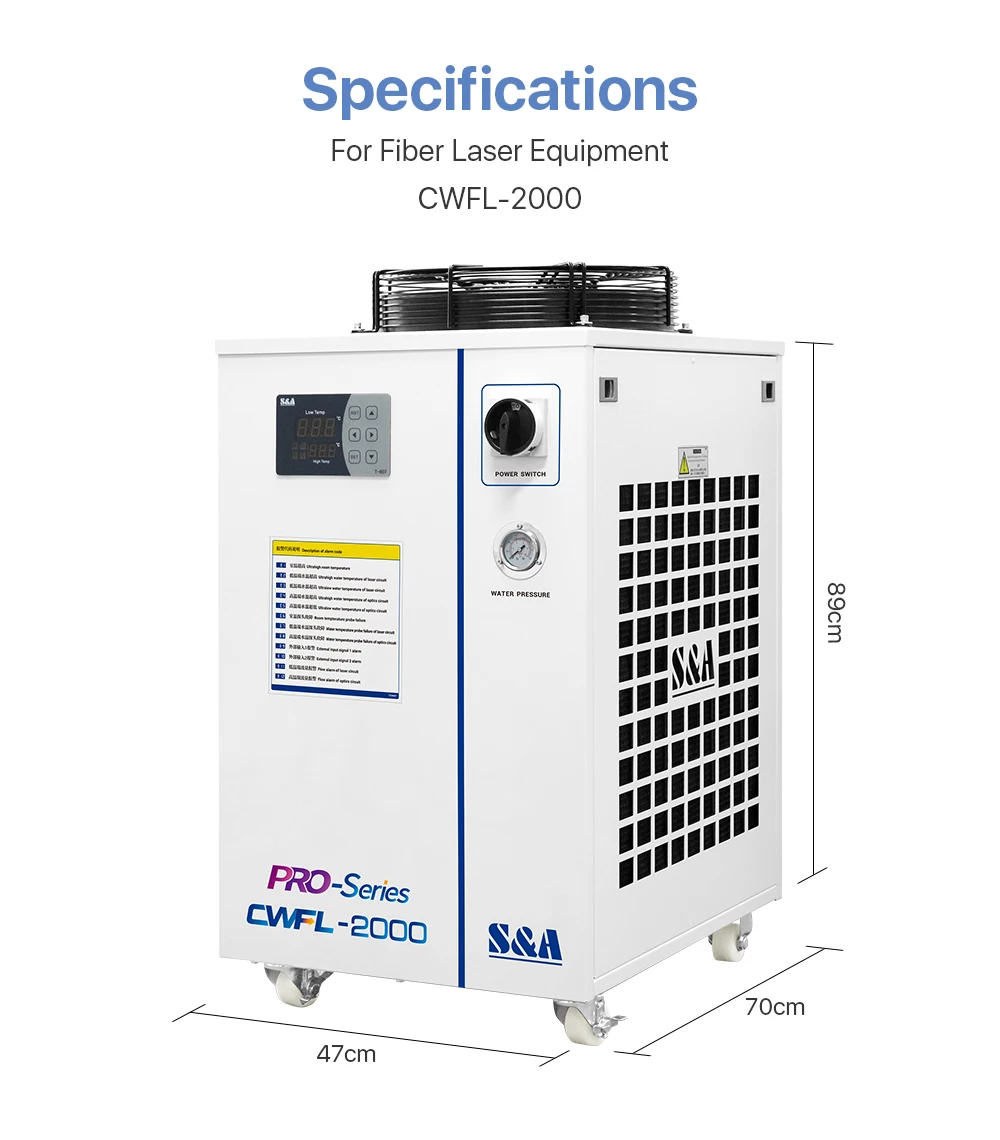

Dimension | 70*47*89cm（L*W*H） | ||
Package Dimension | 74*61*104cm（L*W*H） | ||
1.What is your material?
2.The size of material?
3.The thickness of material?
Q:When I got this machine,but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q:If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.

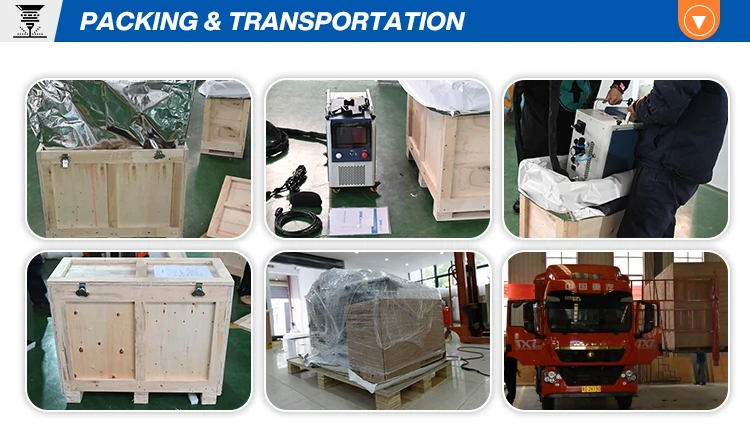

Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air cooled water chiller be supplied for my local voltage?
The standard configuration is Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

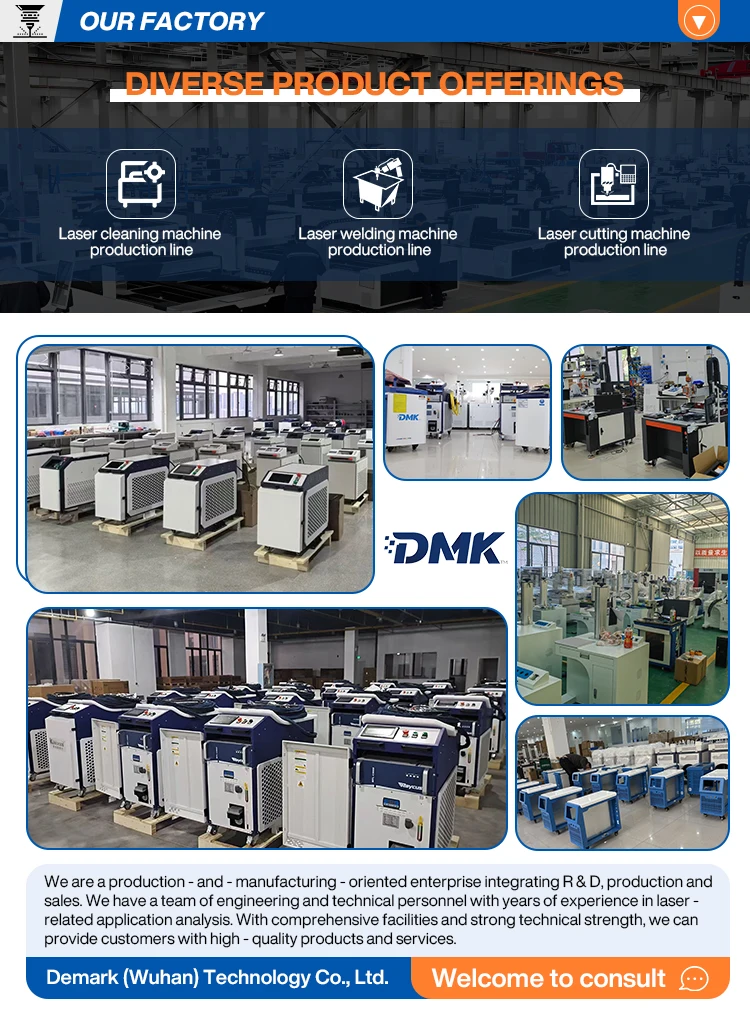

About the Manufacturer
This product is produced by Wuhan Xionghao Electronics Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Wuhan Xionghao Electronics Technology Co., Ltd. range on HVACR Nexus.
