Key specification for this heat pump: 6KW 8KW 10KW 12KW 14KW 16KW, power source Electric, Gas, Solar. Everything below is reproduced from the factory data sheet. Made by Changsha Dongzhi E-Commerce Co., Ltd. (1 year on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Heat Pump
- Model Number: KFXRS
- Power Source: Electric, Gas, Solar
- Heating Capacity: 6KW 8KW 10KW 12KW 14KW 16KW
- Housing Material: Stainless Steel
- Refrigerant: R290
- Noise Level: ≤66dB(A)
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 6KW 8KW 10KW 12KW 14KW 16KW |
| Energy Efficiency Rating | Class A+++ |
| Application | Car, Commercial, Garage, Industrial, Outdoor, Household, Hotel |
| Refrigerant | R290 |
| Storage / Tankless | Storage |
| Compressor | EVI DC Inverter Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving, High Efficiency, Safe |
| Power Source | Electric, Gas, Solar |
| Warranty | 1 Year |
| After-Sales Service Provided | Onsite Installation, Free Spare Parts, Return and Replacement, Overseas Call Centers, Field Maintenance and Repair Service |
| Operating Language | English |
| Private Mold | Yes |
| Packaging Types | Corrugated Box |
| Place Of Origin | Shandong, China |
| Brand | KWIKOT Powered by Haier |
| Model Number | KFXRS |

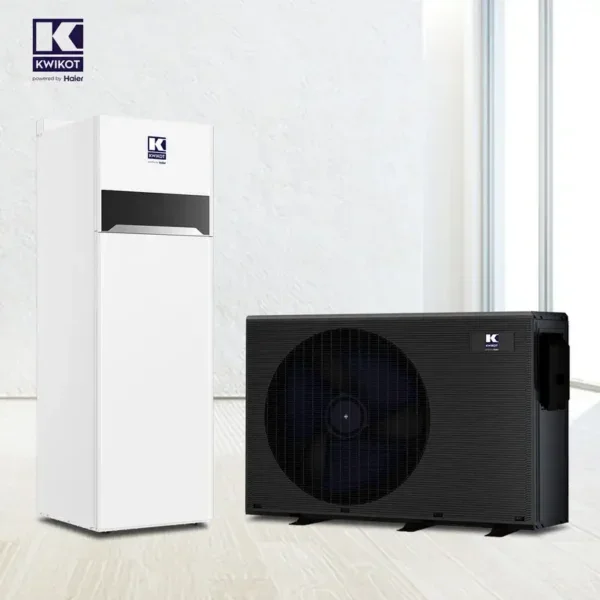

| Product Name | EVI DC Inverter R290 Air Source Air to Water All in one Heat Pump |
| Function | House Heating Cooling Hot Water |
| Keyword | Air To Water Heat Pump |
| Ambient Temperature | Minus 30~43 Degree |
| Noise Level | ≤66dB(A) |
| Model Name | LinkWarm-All in one |
| Selling Units | Single item |
| Single Package Size | 155X54X108 cm |
| Single Gross Weight | 205.0 kg |
Product Details
Details Images
Indoor Unit | ||||||
Model | KAWM06(12)-200CE-AW1(GN) | KAWM10(12)-T200CE-AW1(GN) | KAWM14(16)-T200CE-AW1(GN) | |||
Maximum pump head (m) | 9 | 9 | 10 | |||
Electric heating power (kW) | 3 | 6 | 6 | |||
Expansion tank (L) | 8 | |||||
Display | TFT | |||||
Tank capacity (L) | 200 | |||||
Maximum water pressure (Mbar) | 1 | |||||
Heat exchange area (m2) | 1.8 | |||||
Tank electric heating | 3 | |||||
Insulation layer (Thickness/Material) | 50mm/polyurethane | |||||
Hot water temperature range in heat pump mode (°C) | 25-85 | |||||
Heating hot water temperature range (°C) | 30~85 | |||||
Maximum domestic water temperature (°C) | 85 | |||||
Cooling water temperature range (°C) | 5~25 | |||||
Domestic water connection (G) | 1" | |||||
Connection heating pipe diameter (G) | 1" | |||||
Heat pump (main unit) connection (G) | 1" | |||||
Electrical connection (V/Hz) | 230/50 | |||||
Waterproof type | IPX4 | |||||
Dimensions, unpacked (mm) | 1800×610×610 | |||||
Power source (V/Hz) | 220/50 | 380/50 | 380/50 | |||
Outdoor Unit | ||||||||||||||||||
Type | Model | KAWM06-ND2-H(GN) | KAWM08-ND2-H(GN) | KAWM10-ND2-H(GN) | KAWM12-ND2-H(GN) | KAWM10-TND2-H(GN) | KAWM12-TND2-H(GN) | KAWM14-TND2-H(GN) | KAWM16-TND2-H(GN) | |||||||||
Power source | Power source (V/Ph/Hz) | 220 | 380 | |||||||||||||||
Heating | Rated heating output (kW) | 6 | 8 | 10 | 12 | 10 | 12 | 14 | 16 | |||||||||
35°C Energy efficiency class | Energy efficiency class | A+++ | ||||||||||||||||
55°C Energy efficiency class | Energy efficiency class | |||||||||||||||||
Refrigerant | Refrigerant | R290 | ||||||||||||||||
Environment temperature | Heating (°C) | -30~35 | ||||||||||||||||
Cooling (°C) | 10~50 | |||||||||||||||||
Domestic hot water (°C) | -30~50 | |||||||||||||||||
Heating (°C) | 25~85 | |||||||||||||||||
Cooling (°C) | 5~25 | |||||||||||||||||
Domestic hot water (°C) | 30~65 | |||||||||||||||||
Compressor | Type | DC inverter | ||||||||||||||||
Draught fan | Type | DC inverter | ||||||||||||||||
Outdoor unit | Outdoor unit dimensions(mm) | 1260×430×780 | 1260×430×780 | 1300×520×780 | 1300×520×950 | |||||||||||||
Safety Craftmanship
To deal with the R290 refrigerant which is combustible, we have adopted silver brazing welding technology to ensure stronger
welding and avoid leakage.
welding and avoid leakage.
Safety Component
Refrigerant separator can quickly discharge the refrigerant from the water system in case of leakage and prevent it from entering
the water system and indoor space. At the same time, a fully sealed control cabinet is used to avoid potential fire hazards and
provide strong protection for user safety.
the water system and indoor space. At the same time, a fully sealed control cabinet is used to avoid potential fire hazards and
provide strong protection for user safety.
Integrated Easy Installation
Company Profile
Established in 1984.Haier Group owns three listed companies, including Haier smart Home, which is part of the Fortune Global 500. Qingdao Haier New Energy Appliance co., Ltd., a holding company under Haier Smart Home,specializes in air-source heat pumps,heat pump water heaters, and other innovative energy-efficient products. In December 2015, DongZhi embarked on a new era as it became part of Haier, marking a transformative milestone inits history.This partnership combines DongZhi's legacy of excellence with Haier's cutting-edge technology, enabling the brand to deliver enhanced product experiences to global users.
FAQ
Q1:Can you print logo on products? A1:Yes, You just need to send us your logo. Q2:Can you give me a discount? A2:We will give you a discount according to your order quantity. Q3:How can we guarantee quality? A3: Always a pre-production sample before mass production; Always final Inspection before shipment. Q4. What can you buy from us? A4: Heat pump water heater, air source heat pump, inverter heat pump, EVI heat pump, instant electric water heater, storage electric water heater, solar water heater, gas water heater, etc. Q5. Why should you buy from us not from other suppliers? A5: Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11 global production base Q6:How about the payment ways? A6:Ali pay is the first option and priority for the payment.We can also accept payments via T/T, L/C, D/P, D/A, MoneyGram, credit card, Western Union, cash, escrow, etc.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $3200 / piece
- 50–199 piece: US $3100 / piece
- 200–499 piece: US $3000 / piece
- 500+ piece: US $2900 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heat pump?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
