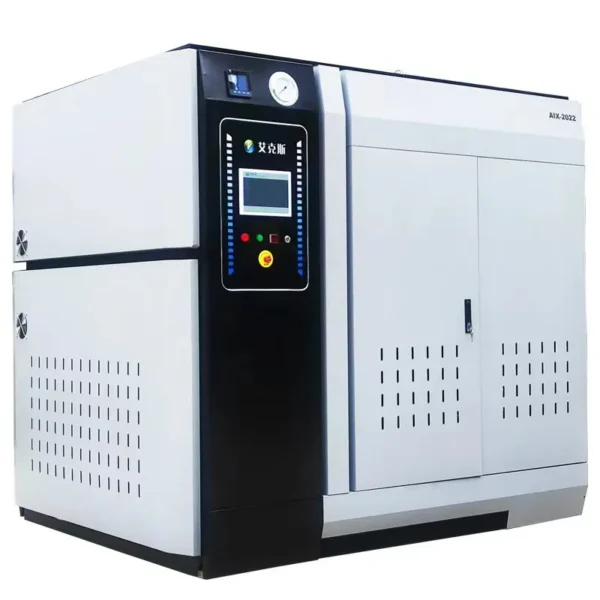

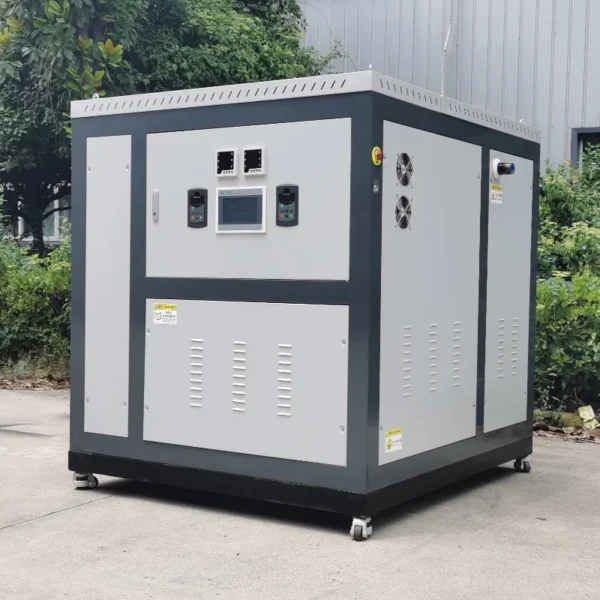

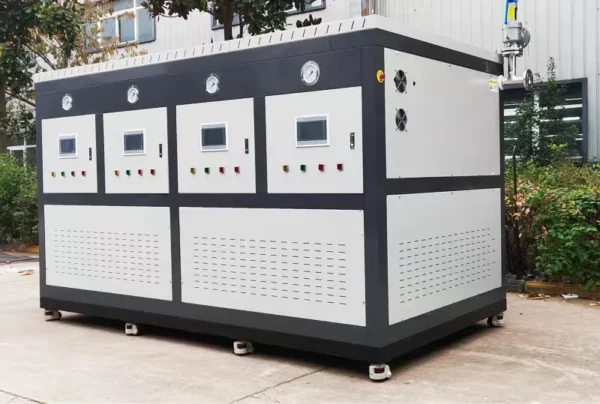

Heating Steam Generator, Natural Circulation, 1 Year

This heating steam generator is listed with the manufacturer’s full published specification — type Natural Circulation, warranty 1 Year. It is produced by Henan Taiguo Boiler Products Co., Ltd., a verified supplier of 16 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Heating Steam Generator

• Warranty: 1 Year
• Place Of Origin: Henan, China
• Application: Industry Steam
• Type: Natural Circulation
• Type Of Boiler: Vertical boiler
• Single Package Size: 60X50X50 cm

Technical Specifications

Product Details

Product Description

Technical Paramet

Model speci fications	DZZQ-36	DZZQ-72	DZZQ-144	DZZQ-216	DZZQ-360	DZZQ-504	DZZQ-720	DZZQ-1080	DZZQ-1400
Rated power (kW)	36	72	144	216	360	504	720	1080	1400
Rated current (A)	54	108	216	324	540	756	1080	1620	2160
Voltage frequency (V/HZ)	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Electric heating efficiency (%)	≥95	≥95	≥95	≥95	≥95	≥95	≥95	≥95	≥95
Number of heating tube groups (group))	2	2	4	6	10	14	20	30	40
Working pressure (Mpa)	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0
Evaporation (kg/h)	50	100	200	300	500	700	1000	1500	2000
Air outlet/ sewage outlet (DN)	25/40	25/40	25/40	25/40	40/40	50/50	50/50	65/50	65/50
Auxiliary control function	Automatic control + remote control
Product weight (kg)	85	150	318	450	750	1000	1300	2100	2600
Appearance size (m)	0.8*1.0*1.6	0.8*1.0*1.7	1.4*1.4*1.7	2.0*1.6*1.7	1.4*1.4*1.7	1.6*1.6*1.7	2.6*1.6*1.7	3.7*1.6*1.8	4.5*1.6*1.8

Applications: textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood process-ing, clothing,laundry, etc.

Henan Taiguo Boiler Product Co., Ltd., With more than 50 years of manufacturing experience, is a professional manufacturer,engaged in the research, development, production, sales and service of steam boiler, hot water boiler, hot oil boiler, and hot air boiler.

Product production adopts technologies such as cutting, rolling plates, drilling, and cylindrical welding. We obtained ISO 9 0 0 1, ISO 1 4 0 0 0 1, C E, SGS, EAC certification. Our boilers are sold to 108 countries around the world, and I sincerely hope to cooperate with you!

FAQ

Q1:How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2：Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet

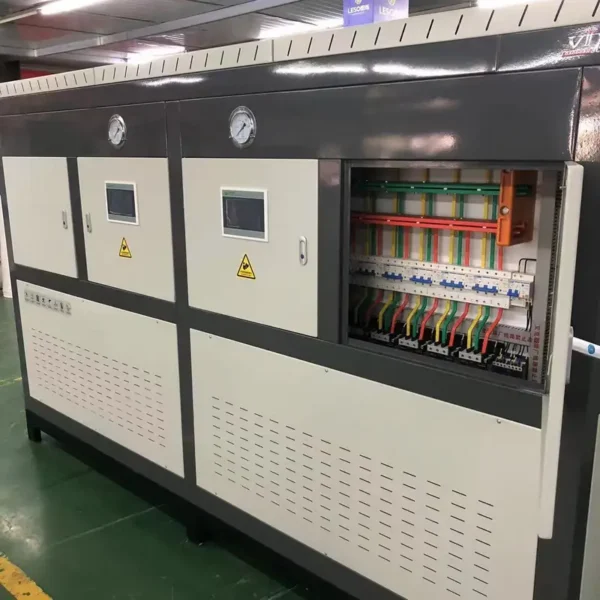

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

Dear friend,you can contact us through my contact information or send us inquiry directly.

Click "Send Inquiry" or "Chat Now"!

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $2250 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this heating steam generator?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Taiguo Boiler Products Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Henan Taiguo Boiler Products Co., Ltd. range on HVACR Nexus.
