Heating tube — 220 V, 380 V, 230 V, heating capacity fast heater. The complete factory specification follows. Made by Shenzhen Xinjingzhi Machinery Parts Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Heating Tube
- Power Source: Electric
- Power: 3kw/6kw/9kw/12kw/15kw/18kw/Customized
- Voltage: 220 V, 380 V, 230 V
- Heating Capacity: fast heater
- Material: Stainless Steel
- Warranty: 1 Year
Technical Specifications
| Type | Immersion Heater |
|---|---|
| Power Source | Electric |
| Voltage | 220 V, 380 V, 230 V |
| Material | Stainless Steel |

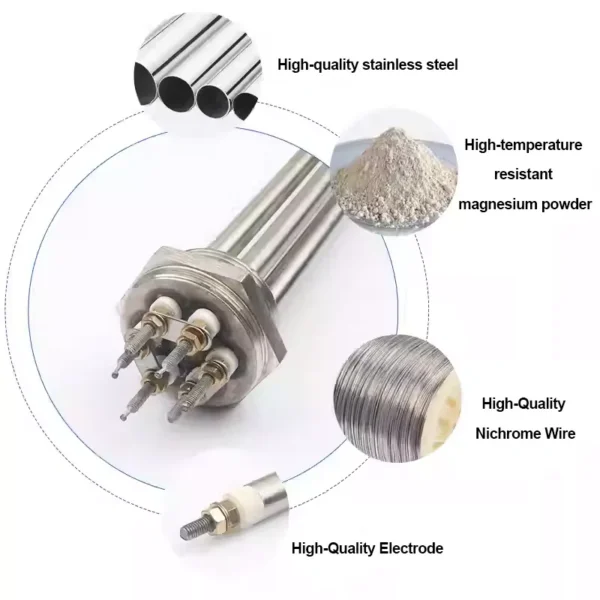

| Core Components | heating wire |
| Key Selling Points | Long Service Life |
| Temperature Range | High-Temperature |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | fast heater |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2 |
| Brand Name | TKG |
| Dimension(L*W*H) | customize |
| Working Temperature Range | 1 – 1000 |

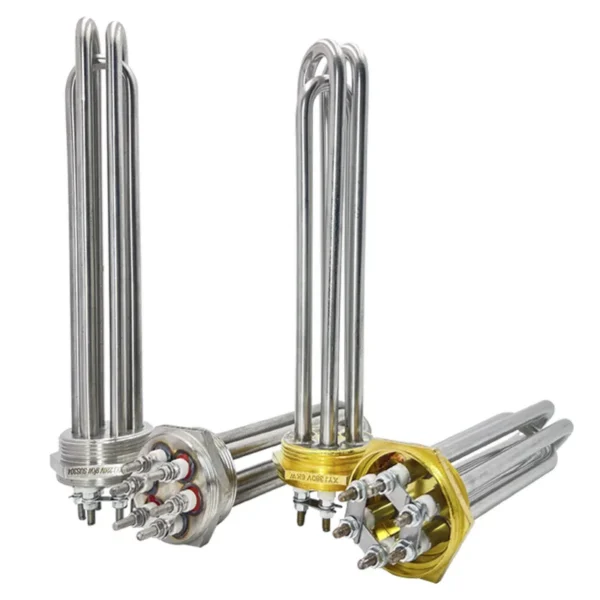

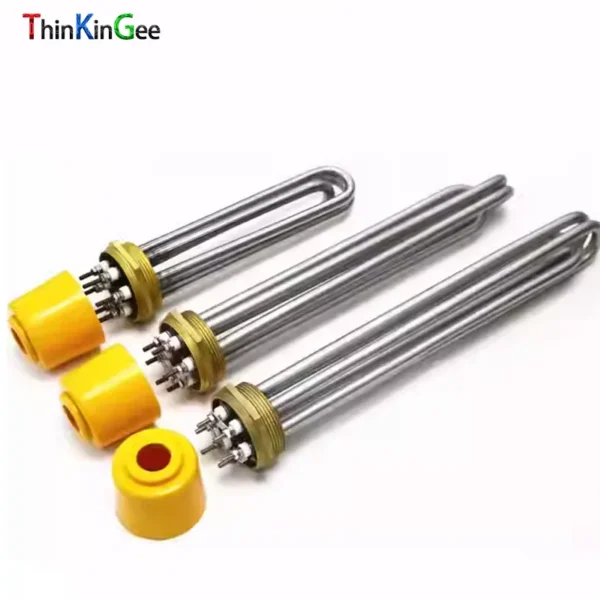

| Product Name | Flange immersion heater |

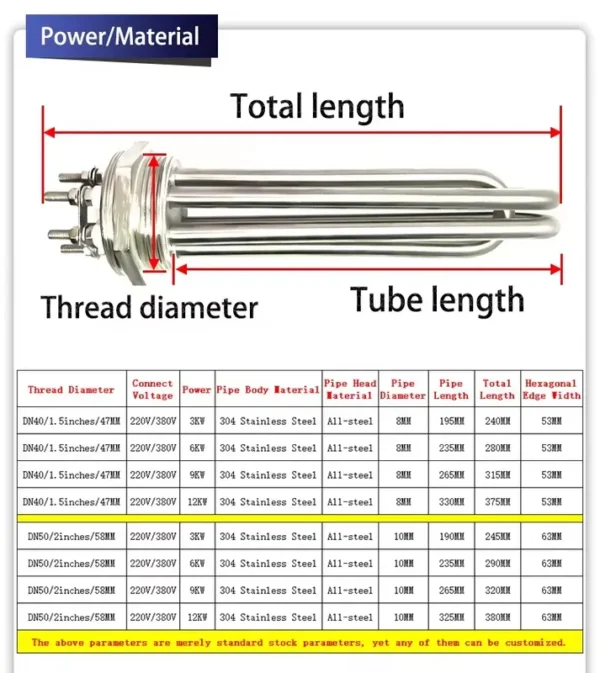

| Tube Diameter | 8mm,10mm,12mm,14mm/Customized |
| Power | 3kw/6kw/9kw/12kw/15kw/18kw/Customized |
| Immersion Length | 10mm to 6000mm as customer’s demand |

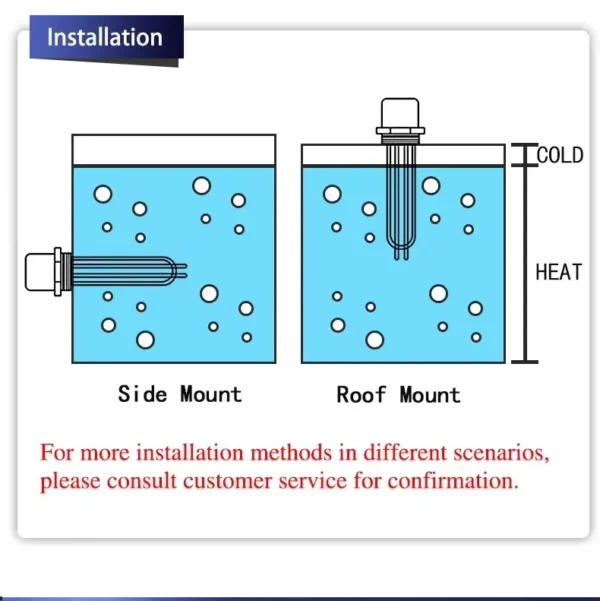

| Application | Oil/water/boiler, etc |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
fluid to quickly reach the desired temperature and ensure optimized high performance results.
Product Name | Electric Flange Immersion Heater | ||||||
Sheath Material | Stainless steel 304, 316L, 310S,Copper, Titaninum, incoloy800, incoloy840 | ||||||
Voltage | 12V~600V/Customized | ||||||
Power | 3kw/6kw/9kw/12kw/15kw/18kw/Customized | ||||||
Tube Diameter | 8mm,10mm,12mm,14mm or customized | ||||||
Screw Thread | NPT / BSP Thread 1'' 1 1/4'' 1 1/2'' 2'' 2.5'' 3'' | ||||||
Round Flange Size | DN50 DN80 DN100 DN120 DN150 DN200 etc | ||||||
Square Flange size | 2.5'' x2.5'', 3'' x 3'' or customized | ||||||
Terminal Cover Material | Stainless steel, Plastic | ||||||
Maximum leakage current (cold) | ≤ 0.5 mA | ||||||
Insulation resistance (cold) | ≥ 500 MΩ | ||||||
Certification | CE, ROHS | ||||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–998 piece: US $29 / piece
- 999+ piece: US $19 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heating tube?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the heating tube be supplied for my local voltage?
The standard configuration is 220 V, 380 V, 230 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
