Mixed flow fan — 220V/50Hz, power source Electric. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.
This mixed flow fan is listed with the manufacturer’s full published specification — voltage 220V/50Hz, power source Electric, blade material Plastic. It is produced by Foshan Brespalin Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Mixed Flow Fan
- Model Number: AM100, AM150, AM200, AM250, AM315
- Power Source: Electric
- Voltage: 220V/50Hz
- Blade Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 220V/50Hz |
|---|---|
| Mounting Type | Duct Fan |
| Type | Duct Axial Fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | Plastic |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | OEM acceptable |
| Model Number | AM100, AM150, AM200, AM250, AM315 |
| Selling Units | Single item |
♦ Ball bearing motor.
♦ Large air flow.
♦ High Pressure, high efficiency
♦ Duct air pressurization.
♦ Stable long service life
♦ Unique Design.
♦ Low cost.
|
item
|
value
|
|
Type
|
Axial Flow Fan
|
|
Applicable Industries
|
Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction works , Food & Beverage Shops
|
|
Customized support
|
OEM, ODM
|
|
Electric Current Type
|
AC
|
|
Mounting
|
Duct Fan
|
|
Blade Material
|
Plastic
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Brand Name
|
OEM acceptable
|
|
Model Number
|
AM100
|
|
Voltage
|
220V/50Hz
|
|
Warranty
|
1 Year
|
|
After-sales Service Provided
|
Online support
|
|
Product Name
|
Mixed Flow Inline Duct Fan for Air Booster of HVAC
|
|
Power
|
40/38 W
|
|
Air Volume
|
200/150 cbm/h
|
|
Voltage
|
220 V
|
|
Frequency
|
50 Hz
|
|
Main Material
|
Plastic
|
|
Noise
|
30/25 dB
|
|
Static Pressure
|
180/130 Pa
|
|
Speed
|
Low / High (Double Speed)
|
|
Duct Size
|
100/125 mm, 4/5 inch Inline Duct Extractor
|
|

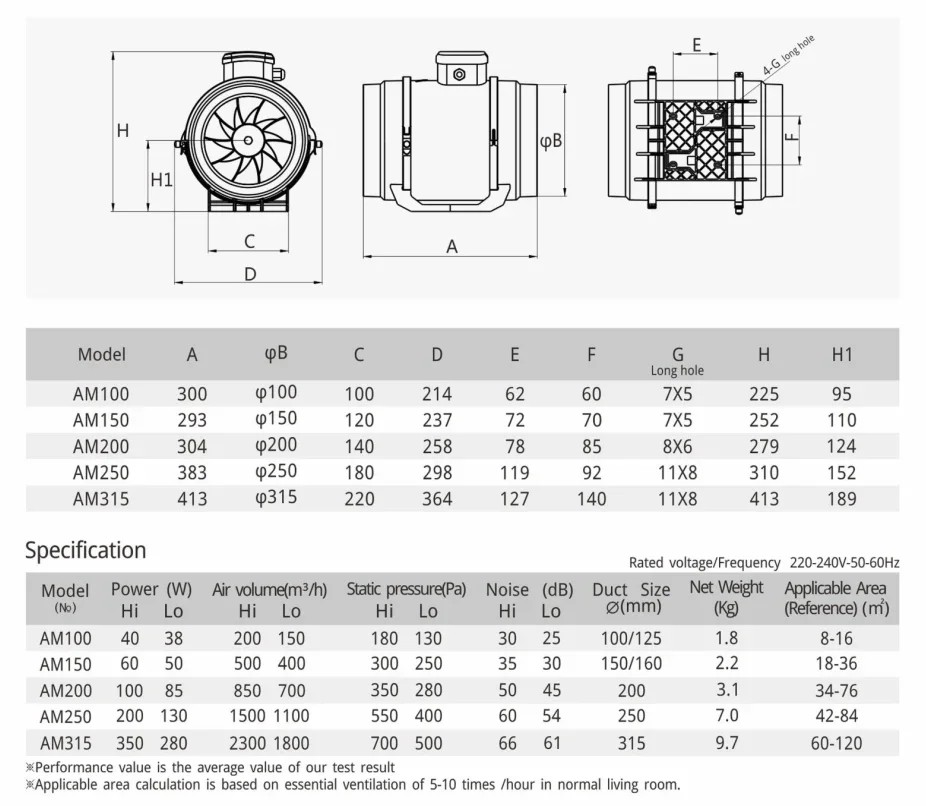

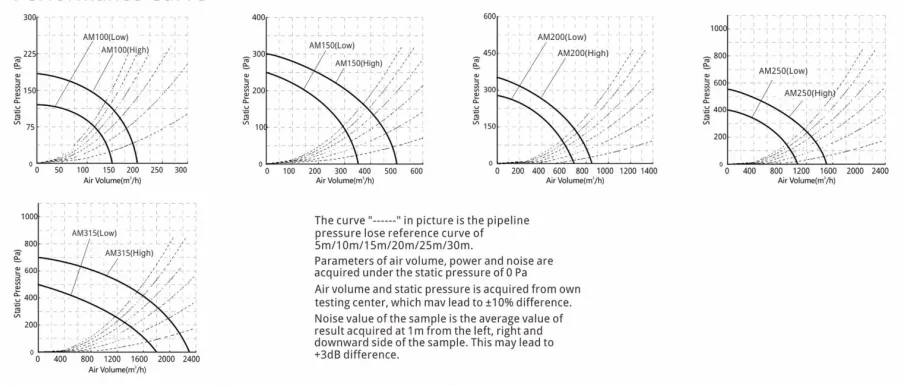

Model
|
Power
(w)
|
Air Volume
(m³/h)
|
Static Pressure
(Pa)
|
Noise
(dB)
|
Duct Size
(mm)
|
Net Weight
(kg)
|
Applicable Area
(㎡)
|
|
AM100
|
40/38
|
200/150
|
180/130
|
30/25
|
100/125
|
1.8
|
8-16
|
|
AM150
|
60/50
|
500/400
|
300/250
|
35/30
|
150/160
|
2.2
|
18-36
|
|
AM200
|
100/85
|
850/700
|
350/280
|
50/45
|
200
|
3.1
|
34-76
|
|
AM250
|
200/130
|
1500/1100
|
550/400
|
60/54
|
250
|
7.0
|
42-84
|
|
AM315
|
350/280
|
2300/1800
|
700/500
|
66/61
|
315
|
9.7
|
60-120
|
We are based in Guangdong, China, start from 2017,sell to Mid East(35.00%),Southeast Asia(18.00%),Domestic Market(16.00%),Southern Europe(8.00%),Western Europe(7.00%),South America(5.00%),North America(5.00%),Oceania(3.00%),South Asia(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Axial Fan,Centrifugal Fan,Purifying Inline Fan,Exhaust Fan,Inline Duct fan
4. why should you buy from us not from other suppliers?
We have 26 years of R&D and Manufacturing experience on air solutions. We have strong experience which ensure you mass productivity and flexible requirements. We have a strong team of R&D who will offer you nice and clear communication for OEM & ODM.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,French
Frequently Asked Questions
What is the minimum order quantity for this mixed flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this mixed flow fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220V/50Hz. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This mixed flow fan is produced by Foshan Brespalin Co., Ltd.. Browse the full Foshan Brespalin Co., Ltd. range on HVACR Nexus.
