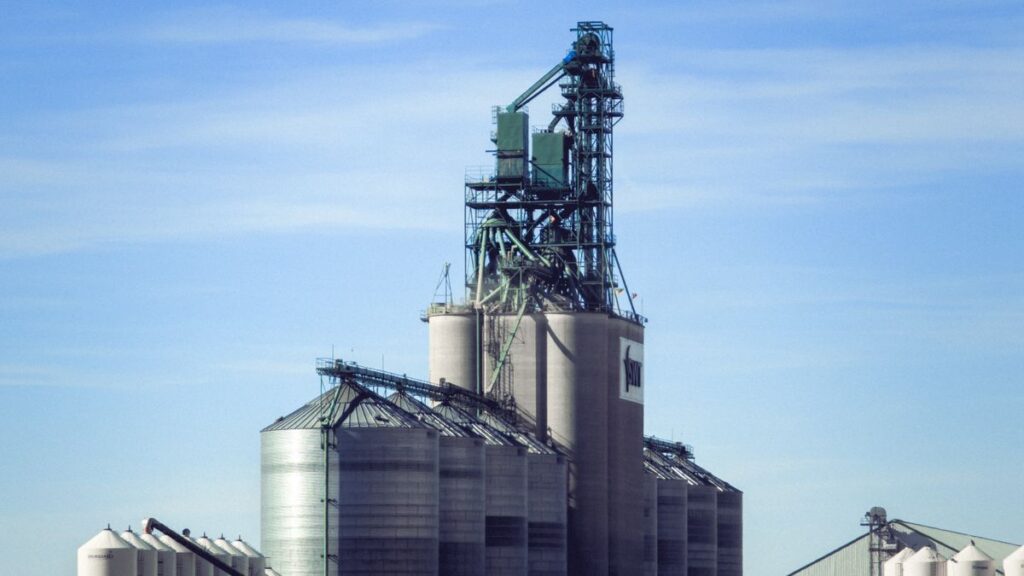

Grain Handling & Dust Extraction

Aspiration and dust control for grain, feed and flour handling — where the dust itself is the explosion hazard and the fan has to move it without becoming an ignition source.

  • 2,242products across this application
  • 693verified manufacturers
  • 5equipment groups

WhatAspiration, drying and dust control

Grain handling ventilation covers three duties: aspiration at transfer points where dust is generated, drying air through the grain mass to bring moisture down to a storage-safe level, and general dust control in the building. They share equipment types but are sized on completely different bases.

WhoWho buys it

Grain elevators and storage terminals, flour and feed mills, oilseed processors, malting plants, and the engineering contractors who build and retrofit them.

WhyWhy grain dust is treated as explosive

Suspended organic dust at the right concentration ignites, and in a confined structure that becomes an explosion — the reason grain elevators have a long and well-documented incident history. Every part of the aspiration system is therefore a potential ignition source: a fan bearing running hot, a metal fragment striking an impeller, or static in ductwork. Equipment for this scenario is selected to eliminate those sources, not merely to move air.

HowSpecifying for dust-laden air

Use radial or paddle-blade impellers throughout the dusty stream — curved blades accumulate deposits that unbalance the rotor and eventually contact the housing. Specify non-sparking materials, bonded and earthed ductwork, and bearing temperature monitoring on continuously running units. Size aspiration on capture velocity at each transfer point rather than on total building volume, and keep drying air separate: that duty is about moisture removal through the grain mass and follows the crop, not the building.

Equipment this application needs

Radial Fans Aspiration & dust extract Radial Fans288 Straight radial blades pass grain dust without building deposits — the defining requirement here. Blowers Drying & conveying air Blowers411 Pushing air through the grain mass and pneumatic conveying between stages. Centrifugal Fans Filtered clean-side extract Centrifugal Fans702 After the filter, where the air is clean, efficiency matters more than deposit tolerance. Axial Flow Fans Building & headhouse ventilation Axial Flow Fans672 General air change in elevator legs and headhouses. Ventilation Fan Parts Bearings, belts & impellers Ventilation Fan Parts261 Abrasive dust makes these consumables; carrying spares avoids stopping intake at harvest.

What to check before you order

Explosion Proof 229
Combustible dust atmosphere. Applies to the whole assembly and to the zone classification of the plant.
Industrial Grade 1,309
Abrasive service with continuous running through the intake season.
High Temperature 351
Drying air duty on the hot side of the system.
380V 1,948
Three-phase for aspiration and drying plant.
Corrosion Resistant 245
Damp grain and fumigants attack standard finishes.

Products for this application

Questions buyers ask

Why are radial fans specified for grain dust rather than centrifugal?
A radial or paddle-blade impeller has straight blades with no pockets for material to lodge in, so dust passes through instead of accumulating. Curved blades are more efficient but collect deposits that gradually unbalance the rotor — which in this application is not just a vibration problem, it is a potential ignition source.
What makes grain dust an explosion risk?
Finely divided organic material suspended in air at the right concentration will ignite from a modest energy source, and inside a confined elevator leg or duct the resulting pressure rise becomes an explosion. This is why ignition-source control — non-sparking materials, bonding and earthing, bearing temperature monitoring — runs through the whole equipment specification.
Is drying air the same system as aspiration?
No, and combining them causes problems. Aspiration captures dust at transfer points and is sized on capture velocity; drying pushes large volumes of tempered air through the grain mass and is sized on moisture removal. They run at different times, have different duties, and should be specified separately.

Related applications

Industrial Plant & Workshop Ventilation Axial, centrifugal and radial fans, blowers and heat rejection for plants where the fan has to deliver its rated volume against real… Greenhouse & Horticulture Climate Control Fan-and-pad cooling, circulation fans, exhaust and heating for protected cropping — sized on air changes and on the crop's vapour pressure deficit,… Poultry & Livestock House Ventilation Tunnel and minimum-ventilation fans, evaporative cooling and house heating built for an ammonia-laden, washdown environment where a ventilation failure is measured in…

Tell us about your grain handling & dust extraction project

Send the duty and site conditions and we will come back with matched equipment, price and lead time from the manufacturers listed here — usually within one working day.
