This high efficient heat pump is published with the manufacturer’s full specification — 230V/1Ph/50-60Hz, power source Electric. Made by Guangzhou Pool World Environmental Technology Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This High Efficient Heat Pump
- Model Number: PD40-CRL-DCF
- Power Source: Electric
- Power Supply: 230V/1Ph/50-60Hz
- Housing Material: Metal or Stainless Steel Optional
- Refrigerant: R32
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A |
| Application | Hotel, Commercial, Household |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Metal or Stainless Steel Optional |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Logo/Graphic Design | Silk Screen Printing, Laser Printing, Hot Stamping, Inkjet Printing, UV Printing, Heat-Transfer Printing, 3D Printing |
| Place Of Origin | Guangdong, China |
| Brand | Pool World |
| Model Number | PD40-CRL-DCF |
| Refrigerant | R32 |

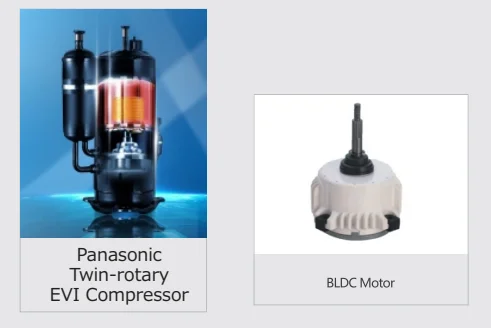

| Compressor | Pana-sonic Twin Rotary Compressor |
| Working Ambient Temperature | -30~43℃ |
| Power Supply | 230V/1Ph/50-60Hz |
| ErP Label | A+++ |
| COP | 4.21~4.62 |
| Function | House Heating Cooling Hot Water |
| Controller | Color Touch Screen + WiFi App Remote Control |

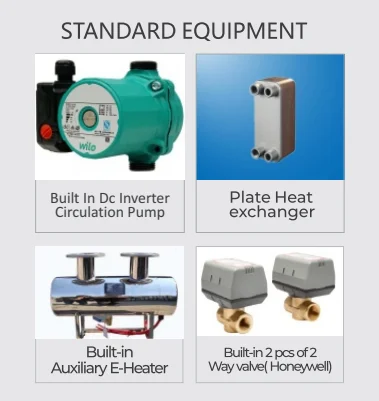

| Heat Exchanger | Plate Heat Exchanger |
| Certification | HP Keymark/TUV Report/CE, etc |
| Selling Units | Single item |
| Single Package Size | 108X48X97 cm |
| Single Gross Weight | 115.000 kg |
Product Details
Products Description

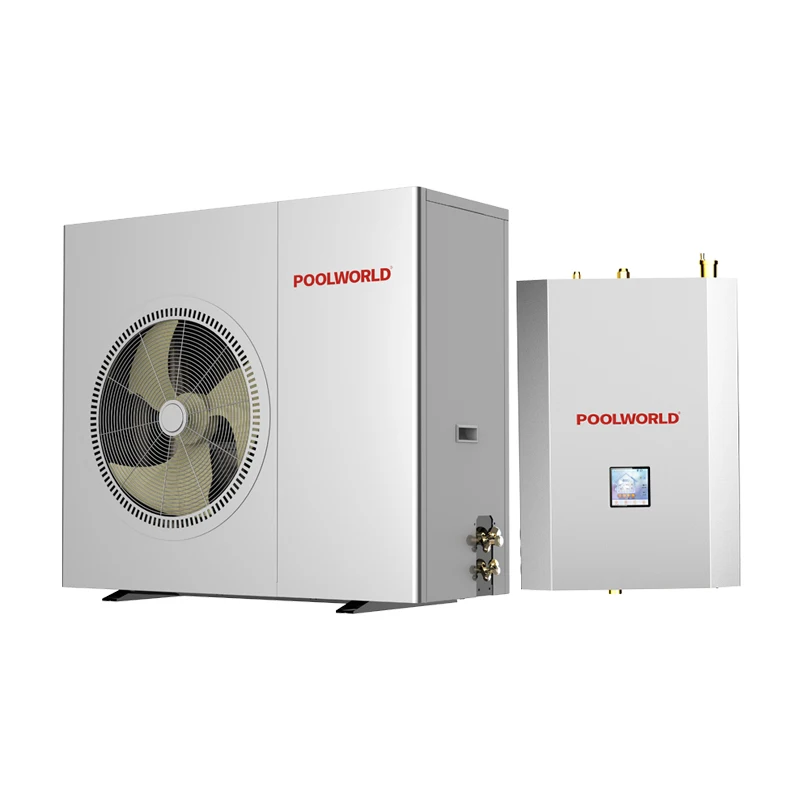

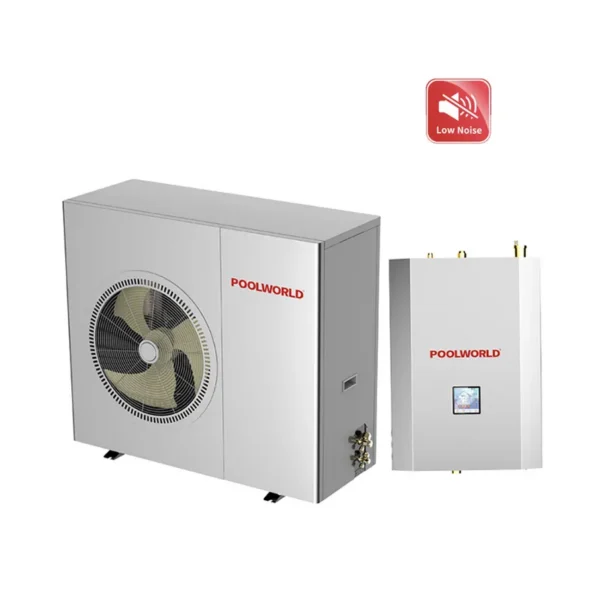

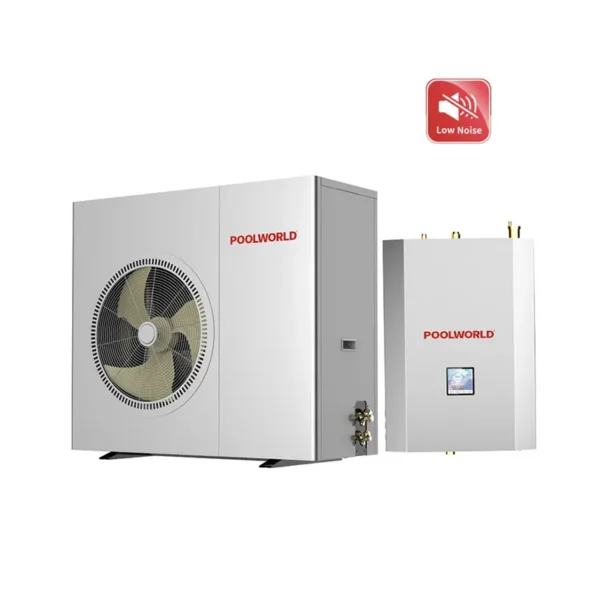

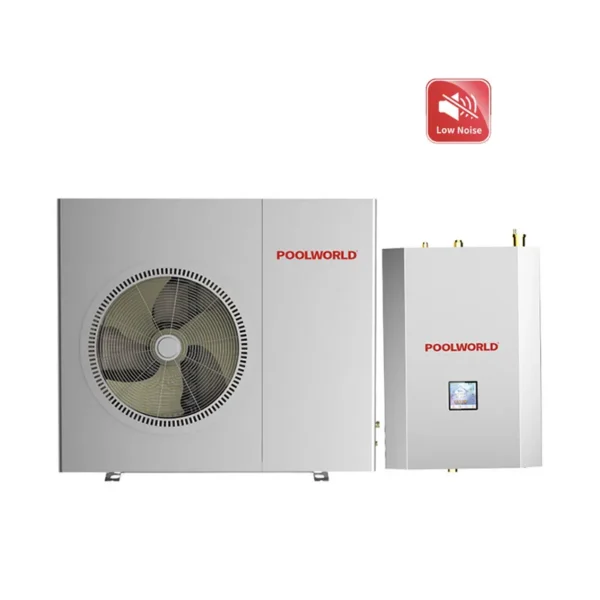

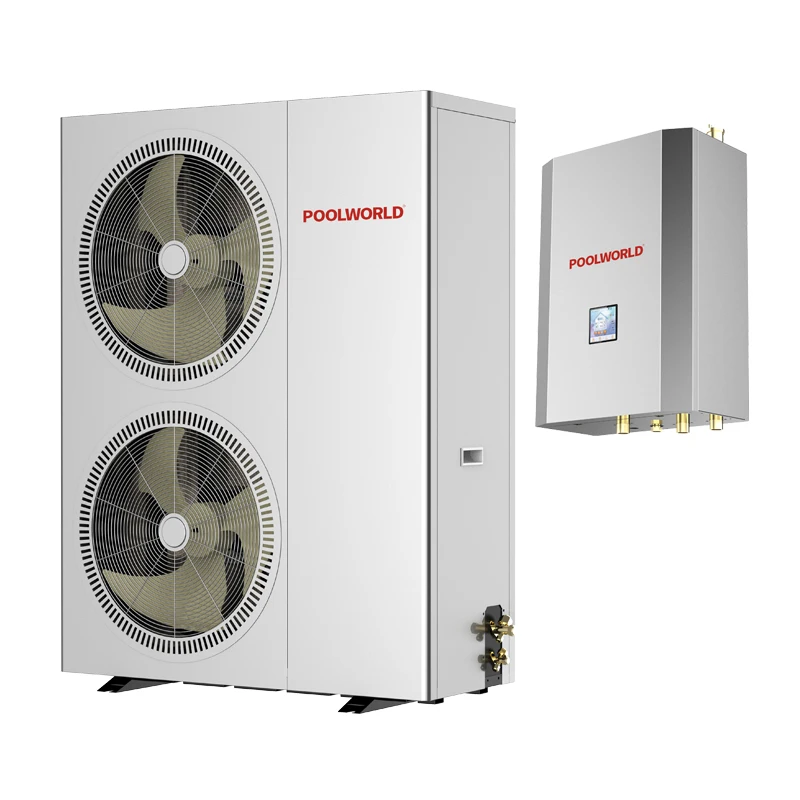

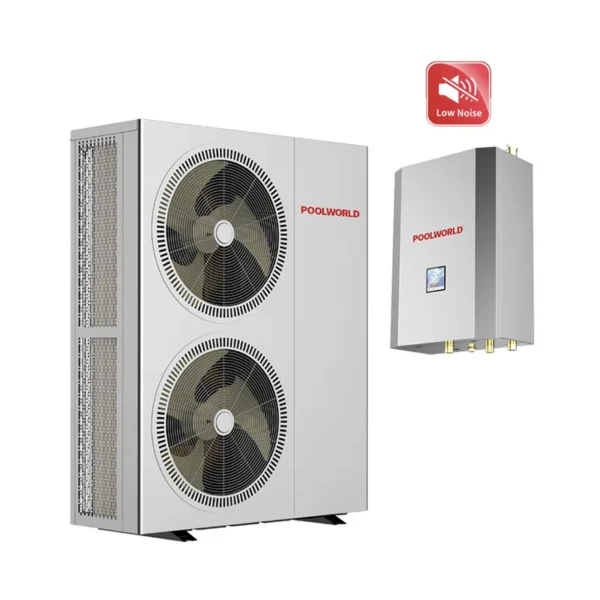

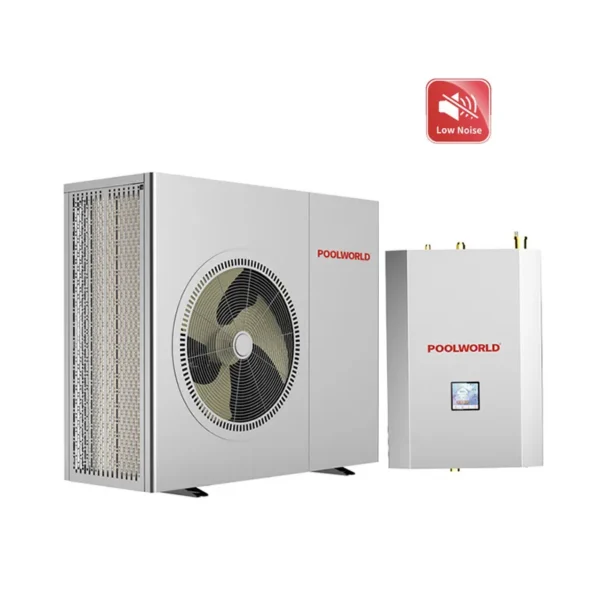

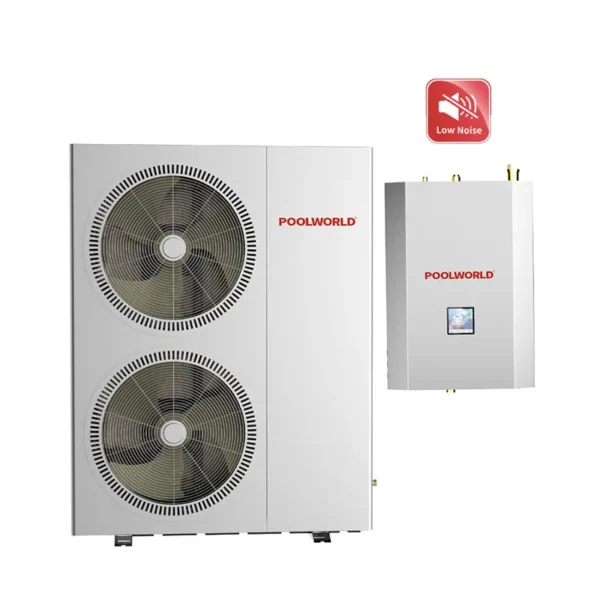

Pool World R32 Split EVI DC Inverter Heat Pump

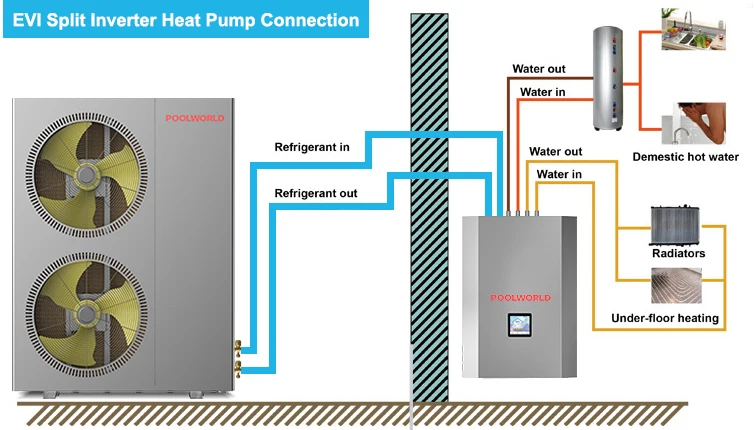

Split design with Indoor unit&Outdoor unit, Easy for installation, Screw-less appearance, Modern compact structure, With advanced remote diagnostic system to make sure R32 Split EVI DC Inverter heat pump an ideal proposition for Owners of House.
FULL INVERTER TECHNOLOGY
Adopting the most advanced low-temperature Enhanced Vapors Injection compressor technology. Split EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pump, it also results in less supplementary heating to cover the full heating demand on the coldest days. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 DC during cold winter time.
The whole series of products are strictly comply with EN14511 standard,EUROVENT Energy efficiency Class A ans SCOP Class A++ (35C),SCOP CLASS A++(55C) With EN14825 standard
The intelligent controller is adopted to realize the linkage control between the heat pump unit and the terminal application end.The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.
Product model | PD40-CRL-DCF | PD60-CRL-DCF | ||||
Heating | Heating Capacity Range (kW) | 6.5~12.6 | 10.5~22 | |||
Heating input Range (kW) | 1.41~2.99 | 2.27~5.2 | ||||
current Range (A) | 6.45~13.7 | 4.06~9.30 | ||||
COP Range | 4.21~4.62 | 4.23~4.63 | ||||
Cooling | Cooling capacity Range (kW) | 4.2~8.2 | 7.2~14.2 | |||
Cooling input power(kW) | 1.30~3.33 | 2.17~5.55 | ||||
current Range (A) | 5.96~15.3 | 3.88~9.93 | ||||
EER Range | 2.46~3.23 | 2.56~3.32 | ||||
DHW | Heating Capacity Range (kW) | 5.5~10.5 | 8.8~17.5 | |||
Heating input Range (kW) | 1.42~3.42 | 2.24~5.61 | ||||
current Range (A) | 6.51~15.7 | 4.01~10.0 | ||||
COP Range | 3.07~3.86 | 3.12~3.93 | ||||
Refrigerant | R32 | |||||
Power supply | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | ||||
Working area | -30～43℃ | |||||
Water pressure drop （kPa） | 25 | 30 | ||||
IP Grade (Level of protection) | IPX4 | IPX4 | ||||
Anti-electric shock Rate | I | I | ||||
Noise (dB(A)) | ≤53 | ≤58 | ||||
Net weight/Gross weight（kg） | 90/100 | 140/155 | ||||
Water Connectione （inch） | 1（DN25) | |||||
Heating Side Water Connection（inch） | 1（DN25) | |||||
Hot Water Side Water Connection （inch） | 1（DN25) | |||||
Body size(W*D*H) (mm) | 1030×475×970/ 720×500×272 | 1000×480×1380/ 720×500×272 | ||||
ErP Level (35°C) | A+++ | A+++ | ||||
ErP Level (55°C) | A++ | A++ | ||||
Compressor Brand | Panasonic | |||||
Four-way valve | Sanhua | |||||
Expansion valve | Sanhua | |||||
Three-way valve | Honywell | |||||
Water Pump Brand | SHIMGE | |||||
Water Head（m） | 9m | 12m | ||||

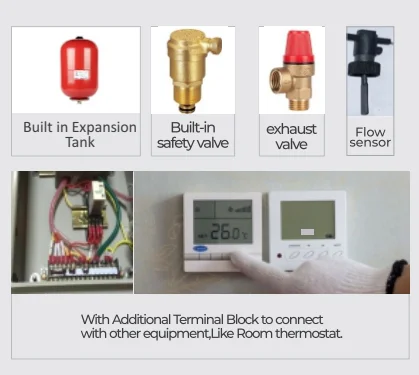

Expansion Tank(L) | 2L | 5L | ||||
Electric Heater(kW) | 3 | |||||
Operating water temperature (℃) DHW | 20~55℃ | |||||
Operating water temperature (℃) heating | 20~50℃ | |||||
Operating water temperature (℃) cooling | 7~35℃ | |||||
Remark: Heating working condition: Inlet water temperature 30℃, Outlet water temperature 35℃, Dry bulb temperature 7℃, Wet bulb temperature6℃. Cooling working condition:Inlet water temperature 12℃, Outlet water temperature 7℃, Dry bulb temperature 35℃, Wet bulb temperature 24℃. DHW working condition: Inlet water temperature 15℃, Outlet water temperature 55℃, Dry bulb temperature 7℃, Wet bulb temperature 6℃ | ||||||
Company Profile
Guangzhou Pool World Environmental Technology Co., Ltd

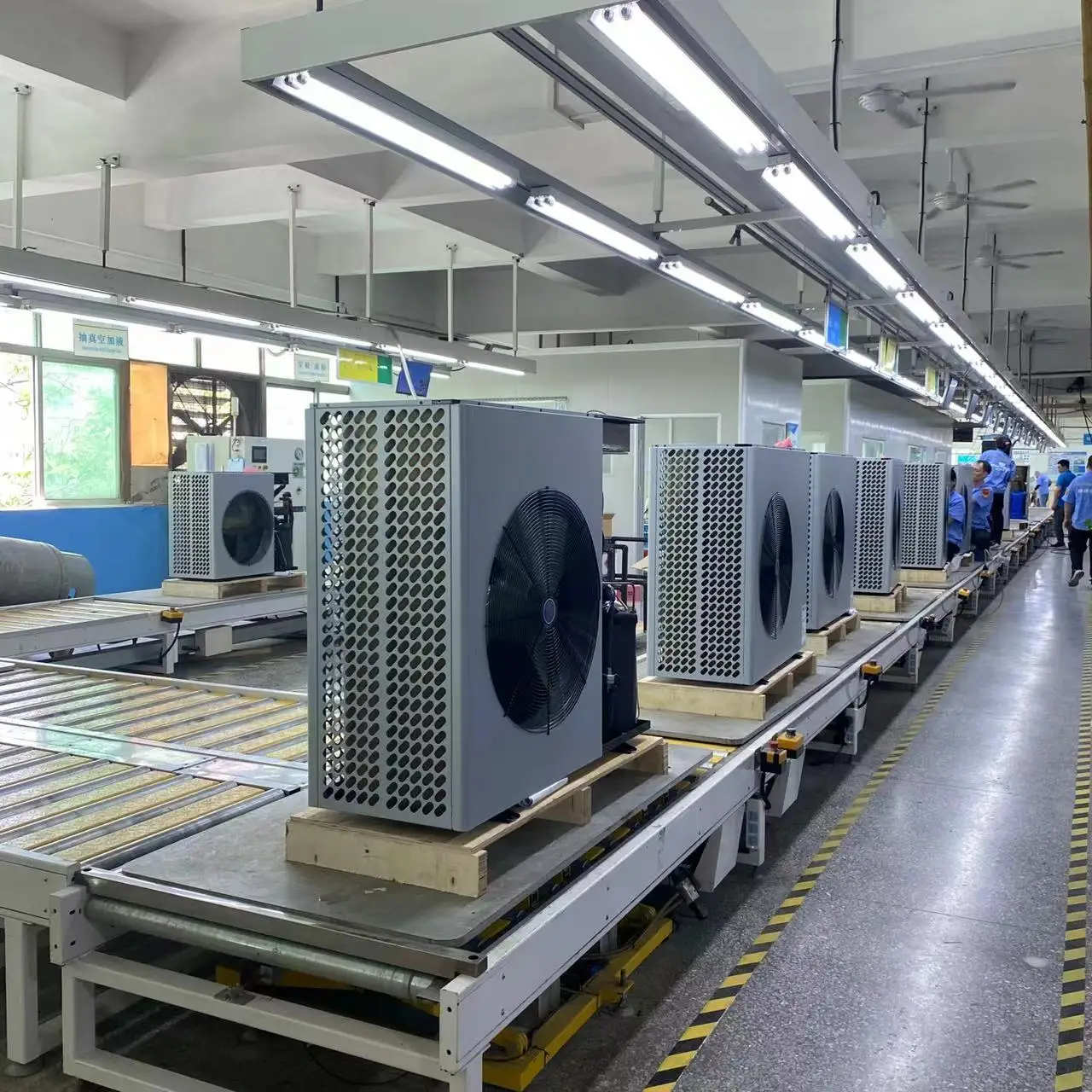

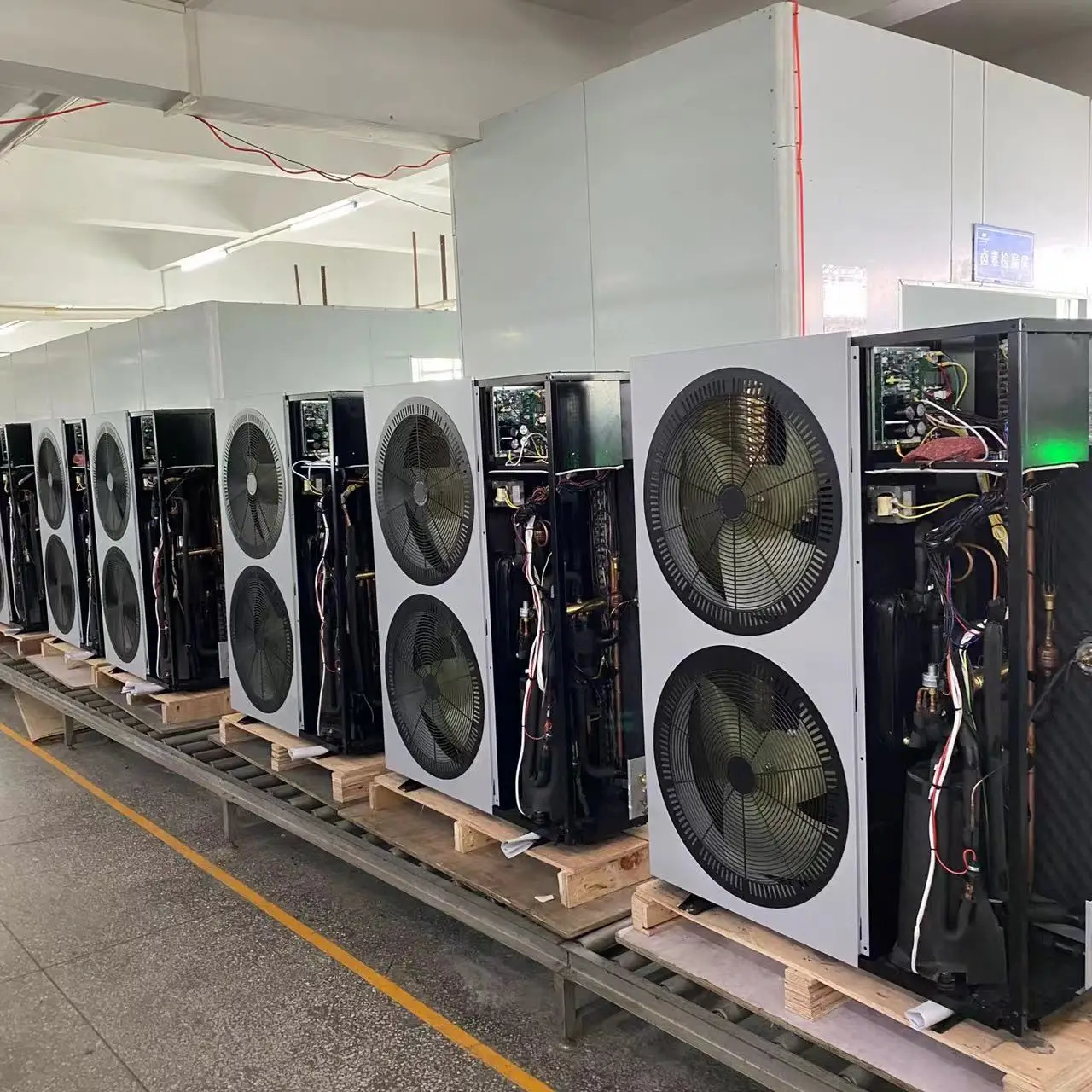

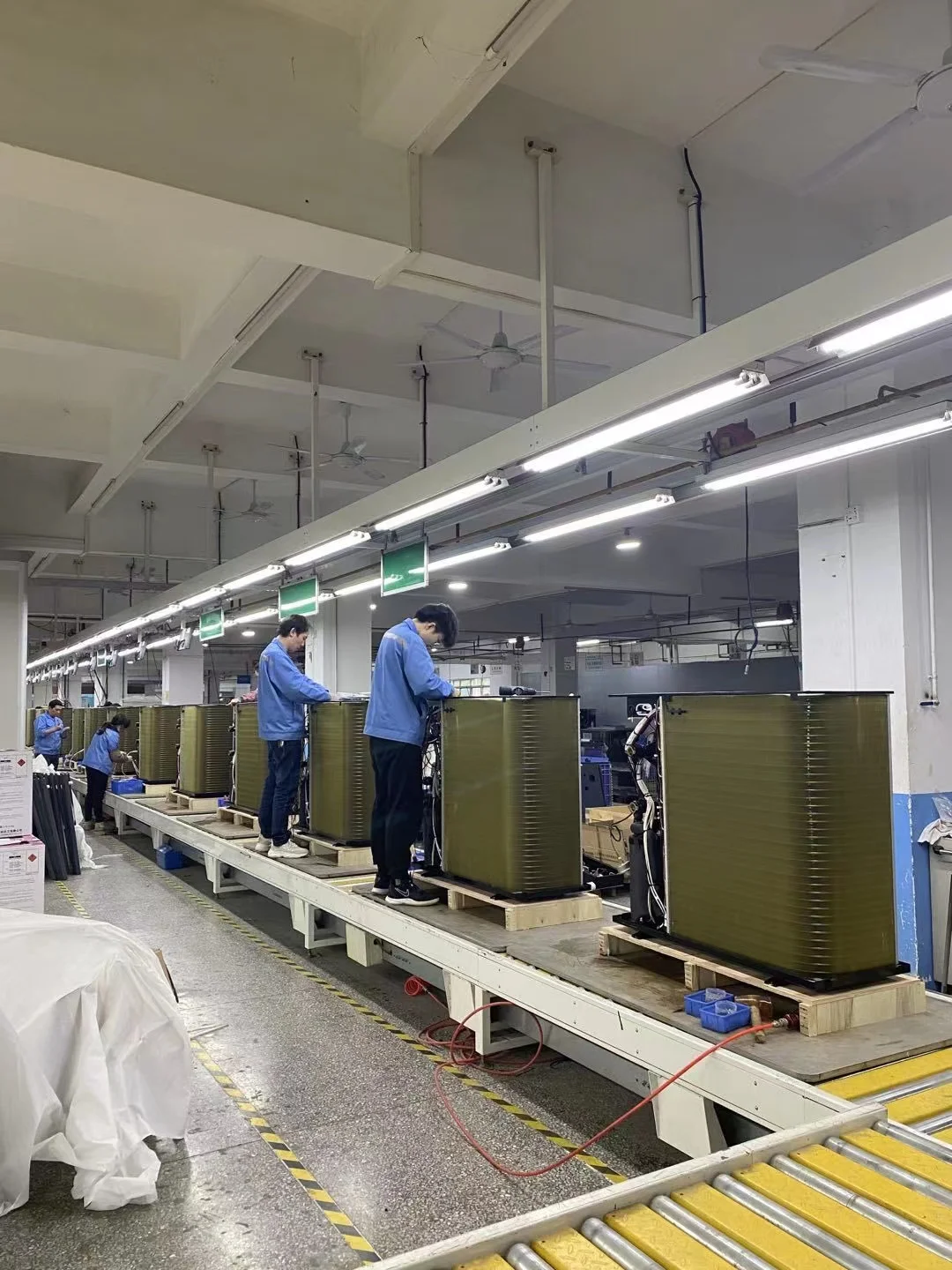

Guangzhou Pool World Environmental Technology Co.,Ltd specializes in heat pump R&D, manufacturing and providing comprehensive energy-saving heating solutions to worldwide market since 2008, our factory is located in Dongguan, China,which respectively manufacture heat pumps including pool heat pumpsHeating&Cooling&DHW Heat Pump etc., covering an area of 30,000 square meters, with 4 international laboratory attained EN14511 certificate(TUV certificated) and more than 50 R&D professional engineers, Pool World has obtained 416 patents, the products were certificated by CE,CB, ROHS, and passed the European EN14825 and EN14511 energy efficiency certificate which is complied strictly based on the latest EHPA requirement,most products are exported to Europe, Southeast Asia, South America, Middle East markets.
With over 13 years export experience,Pool World has the rich experience and the good knowledge with our professional, worldwide and customer oriented team are trained to support our partners in finding the right solution that satisfies their requirements. We are conscious that our customers are the most valuable part of our business. Therefore, we focus on giving the product quality and service that exceeds your expectations, with integrity, professionalism, and a teamwork approach.
We will strive to exceed expectations,boost the enterprise energy conservation and keep promoting the environment protection all the time.
OEM & ODM Support
01. OEM
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.
Pre-sales service
01. EXPO Participation
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.
In-sales service
01. Instant Answer and Model Selection
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.
02. Certificate Application
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.
After-sales service
01. Warranty Service
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.
Client feedback
Recommend Products
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory with 30,000 sq meters modern factory.
A: We are R&D and manufacturer factory with 30,000 sq meters modern factory.
Q: Do you accept OEM & ODM?
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: What support do you offer to clients?
A: We can provide product certification requirements for local markets; provide catalogs,technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: How about the channel management?
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: How about the channel management?
A: We are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer Pool World’s own brand products and services to dealers.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Ordering and Pricing
- Minimum order quantity: 20 piece
- Volume pricing:
- 20–99 piece: US $2285 / piece
- 100–499 piece: US $2185 / piece
- 500+ piece: US $1885 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this high efficient heat pump?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this high efficient heat pump carry?
It is supplied with HP Keymark/TUV Report/CE, etc documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the high efficient heat pump be supplied for my local voltage?
The standard configuration is 230V/1Ph/50-60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Pool World Environmental Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Pool World Environmental Technology Co., Ltd. range on HVACR Nexus.
