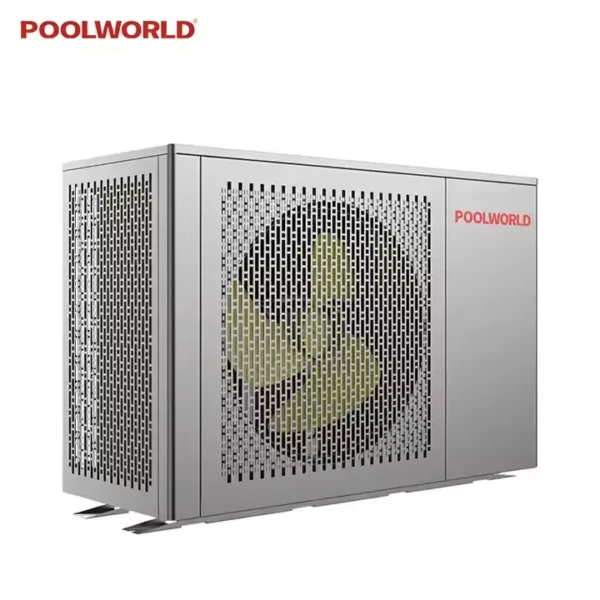

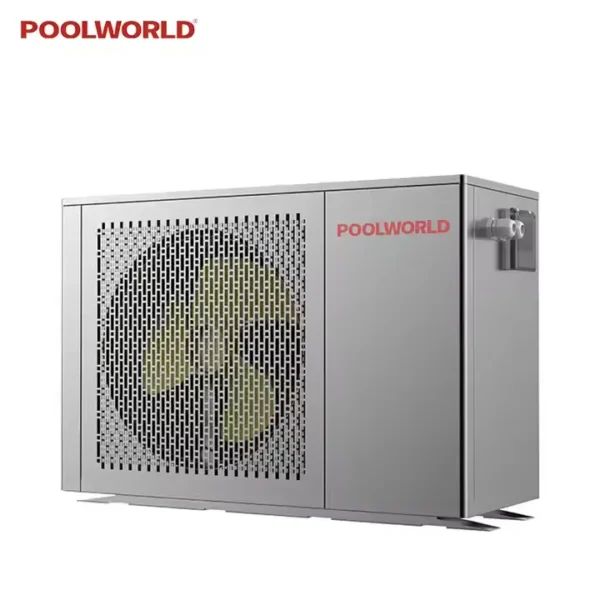

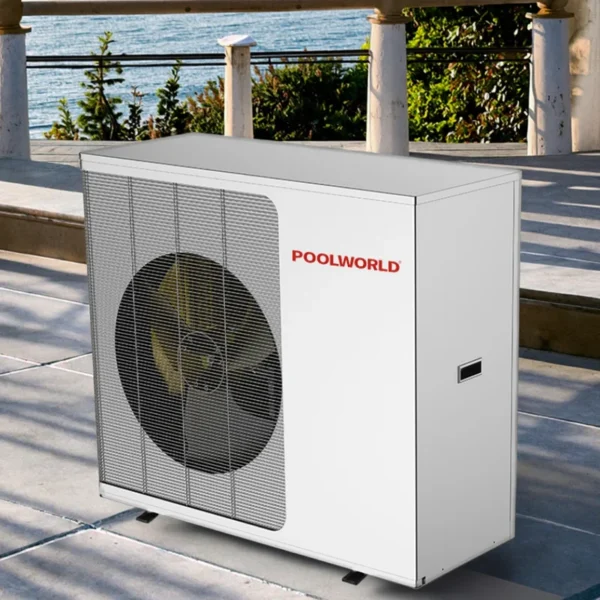

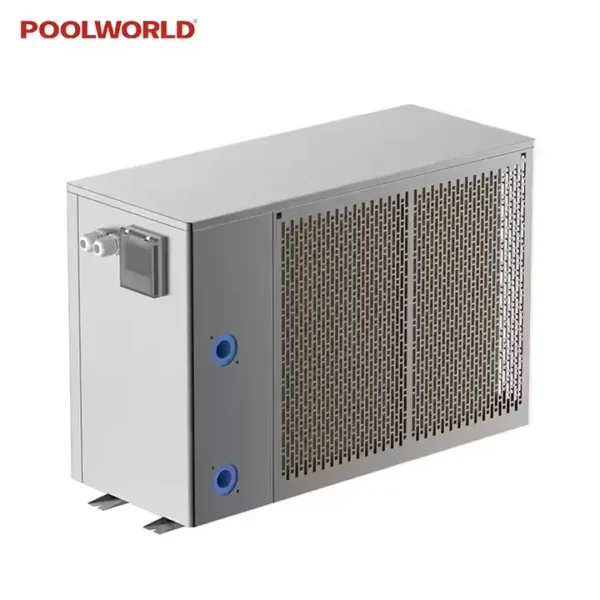

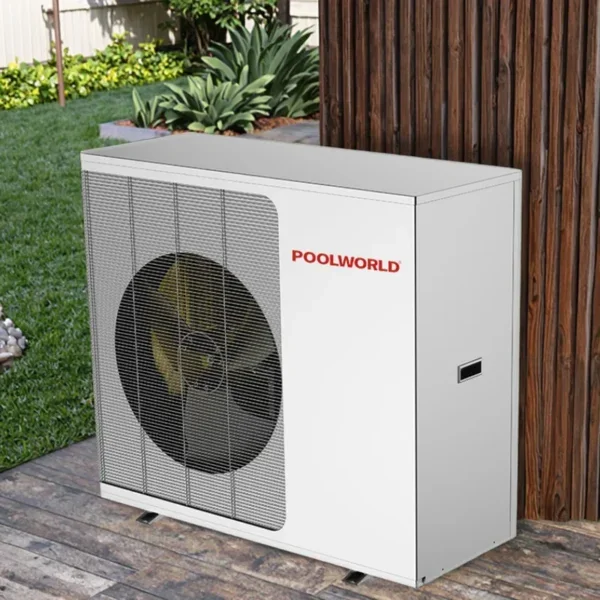

Air source heat pump — power source Electric, material Galvanized Sheet. The complete factory specification follows. Made by Guangzhou Pool World Environmental Technology Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Source Heat Pump
- Model Number: PW10-CY-DCC
- Power Source: Electric
- Housing Material: Galvanized Sheet
- Material: Galvanized Sheet
- Refrigerant: R32
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R32 |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Galvanized Sheet |
| Feature | Eco-Friendly, Energy-Saving |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Place Of Origin | Guangdong, China |
| Brand | Pool World |
| Model Number | PW10-CY-DCC |
| Function | Swimming Pool Heating Cooling |
| Compressor | Copeland |
| Heat Exchanger | Titanium Heat Exchanger |
| COP | 6.5 |
| Heat Source | Air Source 75%+electricity25% |
| Sound Level | 52dB(1m) |
| Material | Galvanized Sheet |
| Evaporator | Finned Tube Heat Exchanger |
| Item | swimming pool heat pump |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
This series is full inverter designed for fast heating of indoor or outdoor swimming pool 15m3 to 100m3,which greatly saves energy and enables you to enjoy swimming without waiting for a long time.
Features:
1.Intelligent full inverter control system. 2.Patented design. 3.Silently operation . 4.Wi-Fi module/Smartphone APP control remotely. 5.Smart operation with heating and cooling mode. 6.Energy saving and Eco-friendly. 7.Speed up heating time. 8.Constant temperature technology. 9.Efficient defrosting system. 10.High/low pressure switch protection.
Our Advantages
SUPER SILENT
The design of the flow channel of the wind field can reduce the noise of the compressors, unit body, etc. in a multiple ways such as elimination, isolation, and suction. There is a shock-absorbing block on the copper pipe to reduce vibration and improve the reliability of the equipment. So in this way, the silent effect of the unit can be improved, as low as 38dB.
SAVE ENERGY & TIME
With a leading and mature full DC inverter technology by Pool World, this series can reach a high COP of 13.4, indicating in a short time heating, customers don't need to wait for a long time to enjoy swimming. In the meanwhile, it saves more energy than ON/OFF units.
APP CONTROL
The Wi-Fi function is built into the control panel. When you want to adjust the temperature of the swimming pool from a certain distance, as long as you configure the network for the unit when you use it for the first time, just click on the APP on your phone, and then you can control it from anywhere on the earth, but you need to make sure that your phone is connected to the Internet, and then you can change the temperature or other settings as needed.
5-BUTTON LCD TOUCH CONTROL PANEL
With the LCD panel, you can get more information about your unit status than the LED panel, and also can change the inner parameters based on your needs.
Product Paramenters
Model | PW10-CY-DCC | PW15-CY-DCC | PW20-CY-DCC | PW30-CY-DCC | PW40-CY-DCC | PW50-CY-DCC | ||||||
Advised pool volume (m3) | 15~30 | 20~40 | 25~50 | 30~60 | 40~75 | 55~100 | ||||||
Operating air temperature (℃) | -7 ~43 | |||||||||||
Performance Condition: Air 27°C, Water 26°C, Humidity 80% | ||||||||||||
Heating capacity (kW) | 7.50~1.92 | 9.50~2.10 | 11.00~2.50 | 14.00~3.15 | 17.00~3.75 | 20.00~4.00 | ||||||
Heating Capacity(Btu) | 25500~6528 | 32300~7140 | 37400~8500 | 47600~10710 | 57800~13090 | 68000~13600 | ||||||
Consumed power (kW) | 1.36~0.15 | 1.73~0.16 | 2.00~0.19 | 2.54~0.24 | 3.1~0.28 | 3.64~0.31 | ||||||
COP | 5.5~12.8 | 5.5~13.1 | 5.5~13.2 | 5.5~13.0 | 5.5~13.4 | 5.5~12.9 | ||||||
COP at 50% capacity | 9.00 | 9.50 | 9.50 | 9.00 | 9.50 | 9.50 | ||||||
Performance Condition: Air 15°C, Water 26°C, Humidity 70% | ||||||||||||
Heating capacity (kW) | 5.80~1.42 | 7.2~1.50 | 8.5~1.65 | 10.7~2.40 | 13.0~2.65 | 15.6~2.85 | ||||||
Heating Capacity(Btu) | 19720~4828 | 24480~5100 | 28900~5610 | 36380~8160 | 44200~9010 | 53040~9690 | ||||||
Consumed power (kW) | 1.28~0.22 | 1.60~0.23 | 1.89~0.25 | 2.38~0.37 | 2.89~0.41 | 3.47~0.44 | ||||||
COP | 4.5~6.5 | 4.5~6.5 | 4.5~6.5 | 4.5~6.5 | 4.5~6.5 | 4.5~6.5 | ||||||
COP at 50% capacity | 5.20 | 5.50 | 5.50 | 5.20 | 5.50 | 5.50 | ||||||
Performance Condition: Air 35℃,Water 28℃, Humidity 80% | ||||||||||||
Cooling capacity (kW) | 4.0 | 5.2 | 6.0 | 7.2 | 8.6 | 10.1 | ||||||
Sound pressure at 1m dB(A) | 38~48 | 38~48 | 40~50 | 42~51 | 43~52 | 43~53 | ||||||
Sound pressure of 50% capacity at 1m dB(A) | 40 | 40 | 41 | 43 | 44 | 44 | ||||||
Sound pressure at 10m dB(A) | 18~25 | 18~25 | 19~26 | 22~27 | 23~30 | 24~31 | ||||||
Heat exchanger | Spiral titanium tube in PVC | |||||||||||
Casing | Metal Casing | |||||||||||
Power supply | 230V/1 Ph/50Hz | |||||||||||
Water Connection (mm) | Φ50 | |||||||||||
Rated input current at air 15℃（A） | 5.6~1.0 | 7.0~1.0 | 8.3~1.1 | 10.5~1.6 | 12.6~1.8 | 15.2~1.9 | ||||||
Advised water flux (m³/h) | 2~4 | 2~4 | 3~5 | 4~6 | 6~9 | 8~10 | ||||||
Water Pressure Drop (max) kPa | 2 | 3 | 4 | 5 | 5 | 6 | ||||||
Net weight/Gross weight（kg) | 48/53 | 50/55 | 53/58 | 62/67 | 67/72 | 67/72 | ||||||
Carton size（mm） | 912*360*610 | 980*370*760 | ||||||||||
Refrigerant consumption（g） | 370g | 470g | 450g | 570g | 750g | 800g | ||||||
Recommend Products
Company Profile
Guangdong Pool World Environmental Technology
Guangdong Pool World Environmental Technology Co.,Ltd specializes in heat pump R&D, manufacturing and providing comprehensive energy-saving heating solutions to worldwide market since 2008, our factory is located in Dongguan, China,which respectively manufacture heat pumps including pool heat pumpsHeating&Cooling&DHW Heat Pump etc., covering an area of 30,000 square meters, with 4 international laboratory attained EN14511 certificate(TUV certificated) and more than 50 R&D professional engineers, Pool World has obtained 416 patents, the products were certificated by CE,CB, ROHS, and passed the European EN14825 and EN14511 energy efficiency certificate which is complied strictly based on the latest EHPA requirement,most products are exported to Europe, Southeast Asia, South America, Middle East markets.
With over 13 years export experience,Pool World has the rich experience and the good knowledge with our professional, worldwide and customer oriented team are trained to support our partners in finding the right solution that satisfies their requirements. We are conscious that our customers are the most valuable part of our business. Therefore, we focus on giving the product quality and service that exceeds your expectations, with integrity, professionalism, and a teamwork approach.
We will strive to exceed expectations,boost the enterprise energy conservation and keep promoting the environment protection all the time.
Certifications
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory with 30,000 sq meters modern factory.
A: We are R&D and manufacturer factory with 30,000 sq meters modern factory.
Q: Do you accept OEM & ODM?
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: What support do you offer to clients?
A: We can provide product certification requirements for local markets; provide catalogs,technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: How about the channel management?
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: How about the channel management?
A: We are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer Pool World’s own brand products and services to dealers.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $752 / piece
- 10–49 piece: US $728 / piece
- 50+ piece: US $669 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air source heat pump?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
