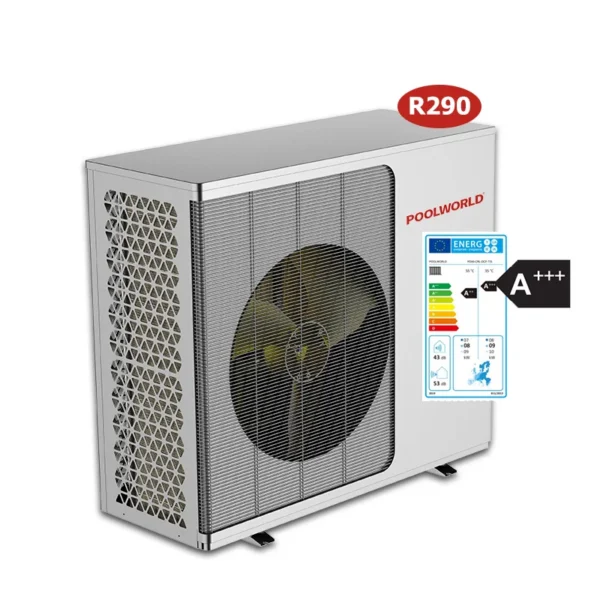

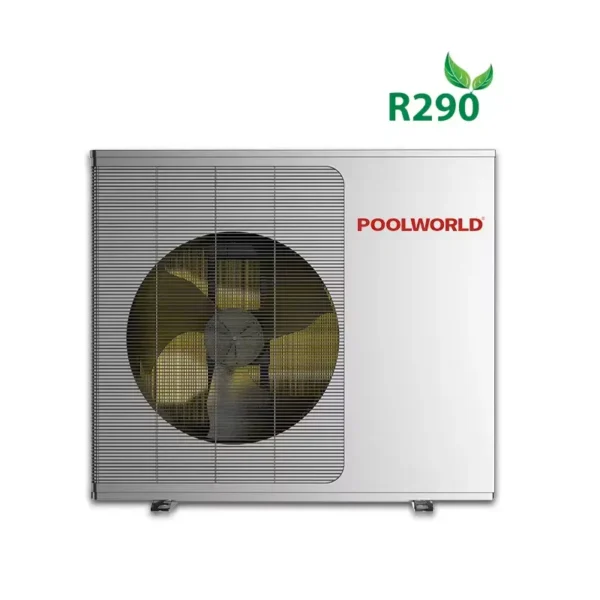

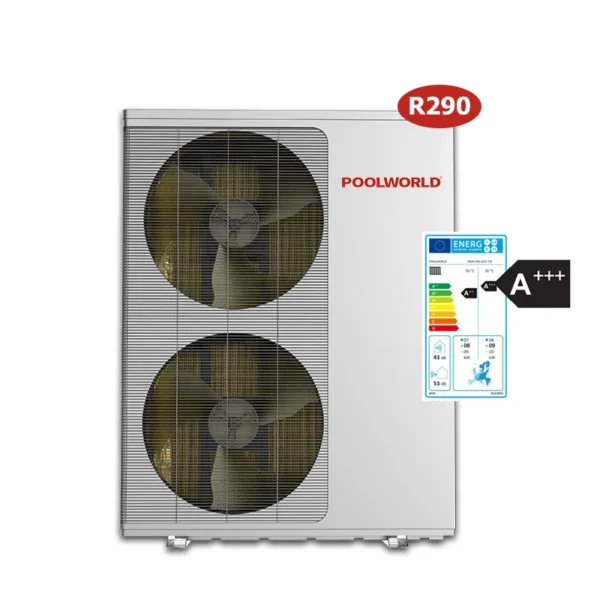

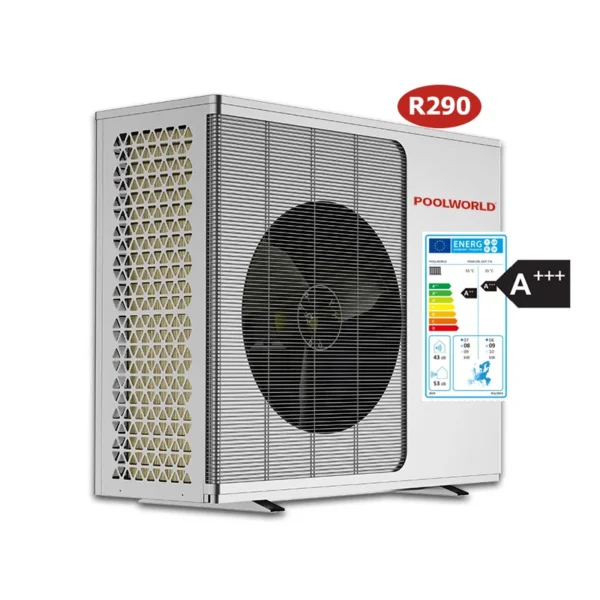

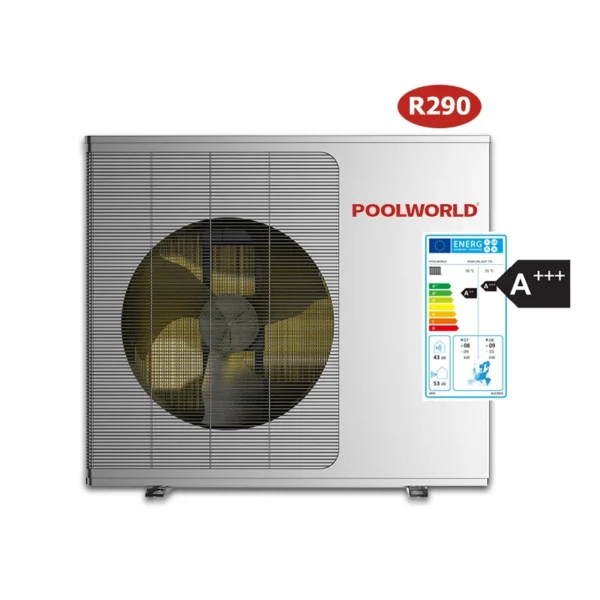

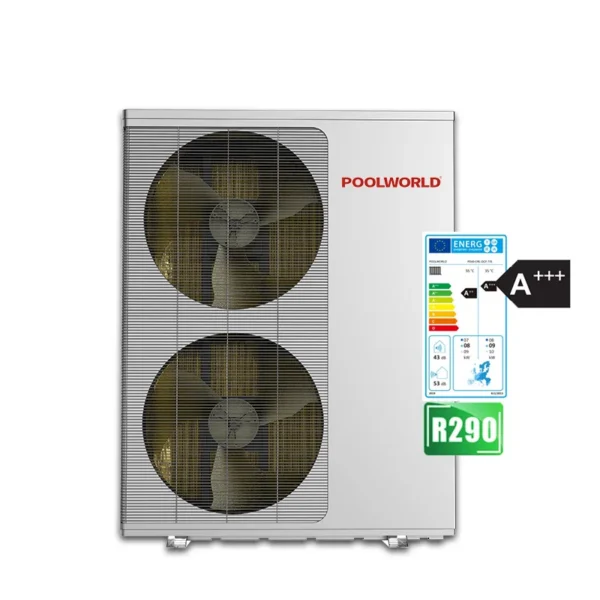

Water Heater, R290, 20kw, Monoblock, Inverter

The water heater listed here carries 230V / 1Ph / 50-60Hz, power source Electric, documented exactly as the manufacturer publishes it. Made by Guangzhou Pool World Environmental Technology Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Water Heater

• Model Number: PD30-CRL-DC-E/S
• Power Source: Electric
• Power Supply: 230V / 1Ph / 50-60Hz
• Housing Material: Metal and Stainless Steel optional
• Refrigerant: R290
• Warranty: 2 Years

Technical Specifications

Product Details

Products Description

New Zero Carbon Solutions

The Most Potential Renewable Energy Alternatives on the Market

Reduce your carbon footprint and help you save 80% on energy consumption

R290 Zero Carbon Refrigerant

R290 refrigerant can be obtained directly from natural gas. Due to its low GWP value, high heat exchange efficiency, good stability, zero carbon emissions, and low charging volume, it is considered by the industry to be the most environmentally friendly and most potential refrigerant in the world.

Eco Heat Series

Thanks to the excellent performance of R290 refrigerant, this heat pump can work stably and efficiently in extremely cold regions of -25°C and output 75°C hot water. Its energy efficiency can reach A+++ at 35°C and 55°C, and the COP is as high as 5.29, which fully guarantees users' needs for heating, cooling and DHW throughout the year, and helps users save the most energy with the least investment.

FEATURES

⑴ Triple supply of heating, cooling and DHW ⑵ Ultra High Efficiency Level A+++ at 35°C and 55°C ⑶ SCOP as high as 5.29 ⑷ Noise as low as 47dB ⑸ Forced heating at -25°C low temp, max outlet water 75°C ⑹ Large 5" LCD touchscreen display with 13 language options ⑺ Support free Wi-Fi and IoT remote control ⑻ Support Rs485, Modbus protocol and cascade function ⑼ Support linkage control with thermostat

Parameter List

Model	PD30-CRL-DC-E/S	PD40-CRL-DC-E/S	PD50-CRL-DC-E/S	PD50-CRL-DC-E	PD60-CRL-DC-E
Heating Condition – Ambient Temp.（DB/WB）: 7/6℃，Water Temp.（In/Out）：30/35℃
Heating Capacity Range (kW)	3.3~8.3	4.5~11.4	5.9~14.8	5.9~14.8	8.8~22.0
Heating Power Input Range(kW)	0.64~2.18	0.85~2.95	1.13~3.83	1.13~3.83	1.68~5.77
COP Range	3.81~5.17	3.86~5.29	3.86~5.22	3.86~5.22	3.81~5.24
DHW Condition-Ambient Temp.（DB/WB）: 7/6℃，Water Temp.（In/Out）：15/55℃
Heating Capacity Range (kW)	3.7~7.4	5.2~10.2	6.6~13.2	6.6~13.2	7.8~17.6
Heating Power Input Range(kW)	0.79~2.10	1.10~2.87	1.41~3.73	1.41~3.73	1.67~5.01
COP Range	3.52~4.69	3.55~4.71	3.54~4.67	3.54~4.67	3.51~4.66
Cooling Condition – Ambient Temp.（DB/WB）:35/24℃，Water Temp.（In/Out）：12/7℃
Cooling Capacity Range (kW)	2.4~5.8	3.3~8.2	4.3~10.8	4.3~10.8	6.2~15.3
Cooling Power Input Range(kW)	0.79~2.19	1.08~3.07	1.39~3.99	1.39~3.99	1.99~5.60
EER Range	2.65~3.04	2.67~3.06	2.71~3.10	2.71~3.10	2.73~3.12
ErP Level (35°C)	A+++	A+++	A+++	A+++	A+++
Refrigerant	R290
Power supply	230V/1Ph/50Hz/60Hz					380V/3Ph/50-60Hz
Diameter of pipe (mm)	DN25	DN25	DN25	DN25	DN25
Max water head(m)	9	9	9	9	12
Noise dB(A)	≤47	≤50	≤52	≤52	≤53
Net Weight (kg)	105	115	160	160	165
Net Dimension (L/W/H) mm	1080×460×820	1080×460×960	1080×480×1060	1080×480×1060	1080×480×1372
Operation Ambient Temp. (℃)	-25~43℃
Operating water temperature (℃)	20~65℃（DHW ）
Operating water temperature (℃)	20~70℃（Heating）
Operating water temperature (℃)	7~35℃（Cooling）

Recommend Products

Company Profile

Guangzhou Pool World Environmental Technology Co., Ltd

Guangzhou Pool World Environmental Technology Co.,Ltd specializes in heat pump R&D, manufacturing and providing comprehensive energy-saving heating solutions to worldwide market since 2008, our factory is located in Dongguan, China,which respectively manufacture  heat pumps including pool heat pumpsHeating&Cooling&DHW Heat Pump etc., covering an area of 30,000 square meters, with 4 international laboratory attained EN14511 certificate(TUV certificated) and more than 50 R&D professional engineers, Pool World has obtained 416 patents, the products were certificated by CE,CB, ROHS, and passed the European EN14825 and EN14511 energy efficiency certificate which is complied strictly based on the latest EHPA requirement,most products are exported to Europe, Southeast Asia, South America, Middle East markets.

With over 13 years export experience,Pool World has the rich experience and the good knowledge with our professional, worldwide and customer oriented team are trained to support our partners in finding the right solution that satisfies their requirements. We are conscious that our customers are the most valuable part of our business. Therefore, we focus on giving the product quality and service that exceeds your expectations, with integrity, professionalism, and a teamwork approach.

We will strive to exceed expectations,boost the enterprise energy conservation and keep promoting the environment protection all the time.

OEM & ODM Support

01. OEM
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.

Pre-sales service

01. EXPO Participation
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.

In-sales service

01. Instant Answer and Model Selection
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.

02. Certificate Application
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.

After-sales service

01. Warranty Service
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.

Client feedback

FAQ

Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory with 15,000 sq meters modern factory.

Q: Do you accept OEM & ODM?
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.

Q: What support do you offer to clients?

A: We can provide product certification requirements for local markets; provide catalogs,technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.

Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.

Q: How about the channel management?

A: We are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer Pool World’s own brand products and services to dealers.

Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.

My friend,if you are interested in our heat pumps,please don't hesitated to send us your inquiry ,we will send you the latest product catalog and price within 1 hour! Pool World is looking forward to cooperating with you!

Ordering and Pricing

• Minimum order quantity: 20 piece
• Volume pricing:
  • 20–99 piece: US $1958 / piece
  • 100–499 piece: US $1858 / piece
  • 500+ piece: US $1658 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water heater?

The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this water heater carry?

It is supplied with CE Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the water heater be supplied for my local voltage?

The standard configuration is 230V / 1Ph / 50-60Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Pool World Environmental Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Pool World Environmental Technology Co., Ltd. range on HVACR Nexus.
