The high speed air motor listed here carries 0.93hp/0.68kW, type Air motor, documented exactly as the manufacturer publishes it. Made by Rudong Hongxin Machinery Co., Ltd. (19 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This High Speed Air Motor
- Model Number: HX2AM-V
- Power: 0.93hp/0.68kW
- Speed@Max. Power: 3000rpm
- No-Load Speed: 3000rpm
- Speed@Max. Torque: 350rpm
- Warranty: 1year
Technical Specifications
| Type | Air motor |
|---|---|
| Maximum Torque | 3.05Nm |
| No-Load Speed | 3000rpm |
| Air Consumption | 30cfm |
| Warranty | 1year |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Jiangsu, China |
| Model Number | HX2AM-V |
| Brand Name | HONGXIN |
| Power | 0.93hp/0.68kW |
| Max. Torque | 3.05Nm/26.10lb.in |
| Speed@Max. Torque | 350rpm |
| Speed@Max. Power | 3000rpm |
| Rotaion | REV |
| Port Size | NPT 1/4 |
| Vanes | 4 vanes available |
| N.W. | 2.8kg |
| Certificate | CE Certificate |
| Packaging Details | foam cartoon, plywood case |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Supply Ability | 100 sets per Month |
Product Details
Product Application
With compressed air as medium and make use of expansion function of it, blade air motor converts pressure energy into mechanical energy.
It can be operated in tough environment which is damp, high temperature, excessive dust or other poor working environment.
So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields, e.g. ship, offshore platform,metallurgy,papermaking and petrochemical industries, etc.

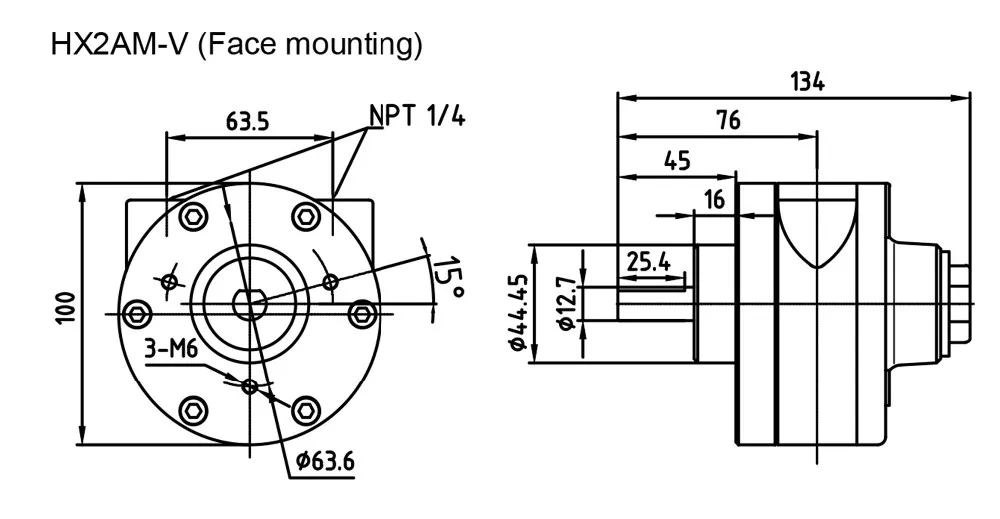

HX2AM-V | ||||||
Operation Date at Max. Power | Power | hp/kW | 0.93/0.68 | |||
Torque | Nm/Ib.in | 2.20/19.50 | ||||
Rotate Speed | rpm | 3000 | ||||
Air Consumption | m³/h | 49.5 | ||||
cfm | 30 | |||||
Maximum Torque | Rotate Speed | rpm | 350 | |||
Torque | Nm/Ib.in | 3.05/26.10 | ||||

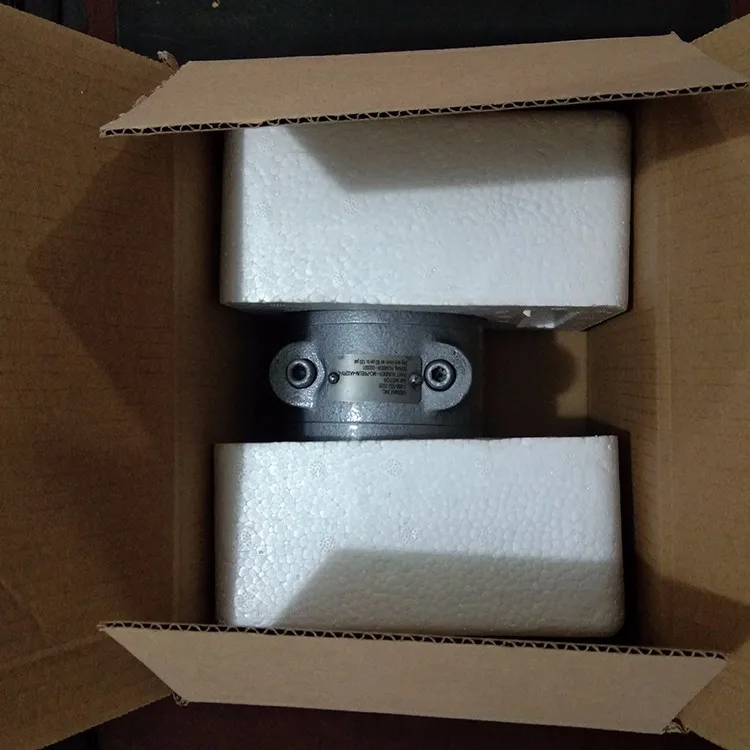

Packaging | ||
Size | 180(L) * 120(W) *120(H)mm | |
Weight | 3KG | |
Packaging Details | Plywood case Plywood is a material manufactured from thin layers or plies of wood veneer that are glued together with adjacent layers.It is an engineered wood from the family of manufactured boards which includes medium-density fibreboard (MDF) and particle board (chipboard). | |
2AM-F110 Vane Air Motor
100% Response Rate
16AM-ARV-2 Vane Air Motor
100% Response Rate
4AM-F110 Vane Air Motor
100% Response Rate
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $165 / set
- 10+ set: US $150 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this high speed air motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this high speed air motor carry?

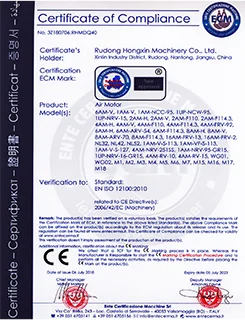

It is supplied with CE Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Rudong Hongxin Machinery Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Rudong Hongxin Machinery Co., Ltd. range on HVACR Nexus.
