High Speed Small Blower, 21kpa, 24V, Brushless

Key specification for this high speed small blower: 36V/24V, blade material Stainless Steel. Everything below is reproduced from the factory data sheet. Made by Ningbo Newthink Motor Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This High Speed Small Blower

• Model Number: NXK36
• Voltage: 36V/24V
• Blade Material: Stainless Steel
• Warranty: 1 Year
• Certification: ISO9001:2015
• Place Of Origin: Zhejiang, China

Technical Specifications

Product Details

Product Description

Specification

Model	NXK36K351ZA21	NXK36L321ZA21
Rated Voltage (VDC）	24	36
Voltage Range (VDC)	20~28	32~40
Max.Input Power (W)	350±5%	320±5%

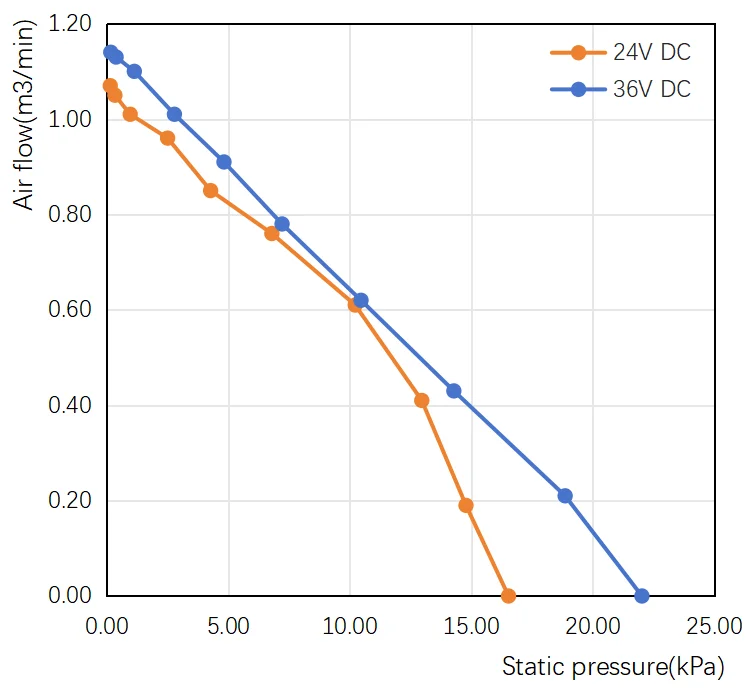

Max. Airflow (m3/min)	1.05±5%	1.14±5%
Max. Static Pressure (kPa)	17±5%	21±5%
Max. Speed (rpm/min)	29000±5%	35000±5%
Insulation Class	A
Protection Class	IP 00
Working Mode	Continuous
Speed control Mode	0～5V DC
Working Environment	Temperature -15～40℃  Humidity 15～85%RH No Condensation
Stock Environment	Temperature -25～45℃ Humidity 15～85%RH Without Condensation

Company Profile

NEWTHINK MOTOR Founded in 2011, It is a manufacturer which specialize in researching and developing brushless motors and blower. The application of products mainly cover vacuum cleaner equipment, home appliance, medical machine, garden instruments, sewing machine and automatic industrial devices etc. Newthink locates in Ningbo city and covers an area of over 5000㎡. Annual output reach to 600,000~800,000 pcs. The production strictly according to ISO9001:2015, and passed CE, RoHS, UL, ETL and etc. The number of patents is more than 30. Nowadays, our motors have been sold in more than 20 countries and regions including the US, Asia, and Europe. Obeying to the creed ”Devoted to technology innovation, define china creation”, Newthink has provided solutions for the overall application of professional, all-inclusive, energy saving and environment friendly brushless motor in wide areas. After many years of engineering practice, products has satisfied the demand of many clients in both overall solutions and key requirement specifications as well as in after sale service. Cooperating with their customers to their best extend and creating extraordinary value to solve application difficulties, Newthink has become the best partner of innumerable client

Certificate

FAQ

1. who are we?
We are based in Zhejiang, China, start from 2011,sell to Domestic Market(70.00%),Western Europe(28.00%),Eastern Asia(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Motor, Blower

4. why should you buy from us not from other suppliers?
Cooperative with skill-full and know-how engineers, Newthink Motor has become one of the important bases in brushless motor manufacture and R&D in China. Brush less motor for vacuum cleaner is compatible with world well-known Enterprises.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Ordering and Pricing

• Minimum order quantity: 100 piece
• Volume pricing:
  • 100–499 piece: US $59 / piece
  • 500–999 piece: US $55 / piece
  • 1000+ piece: US $50 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this high speed small blower?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this high speed small blower carry?

It is supplied with ISO9001:2015 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the high speed small blower be supplied for my local voltage?

The standard configuration is 36V/24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Ningbo Newthink Motor Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Newthink Motor Co., Ltd. range on HVACR Nexus.
