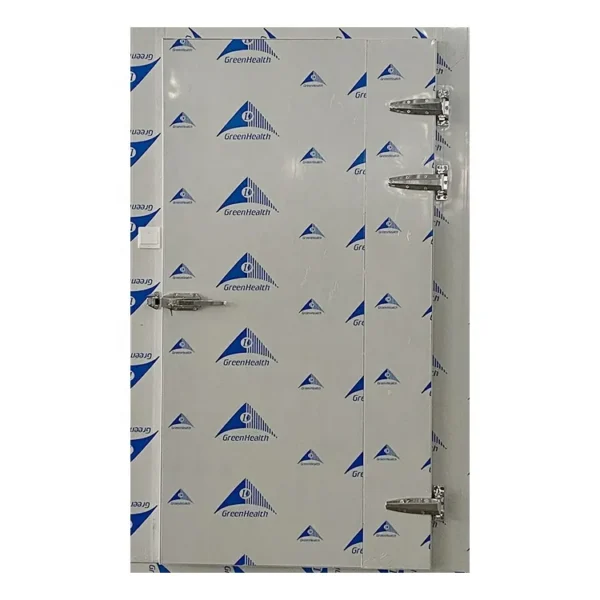

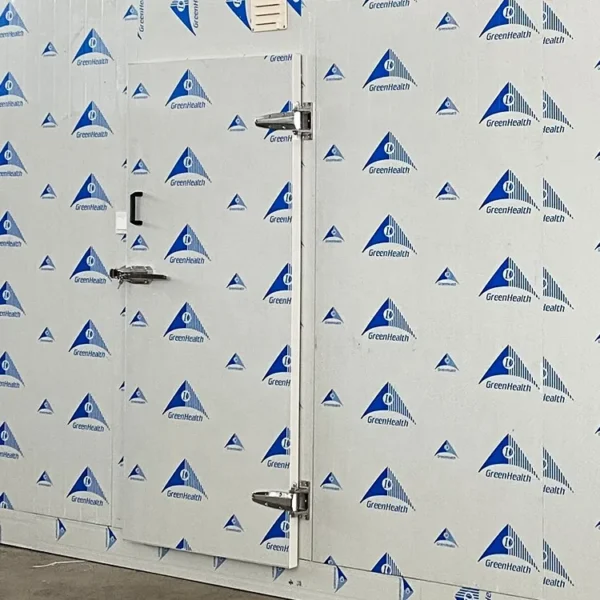

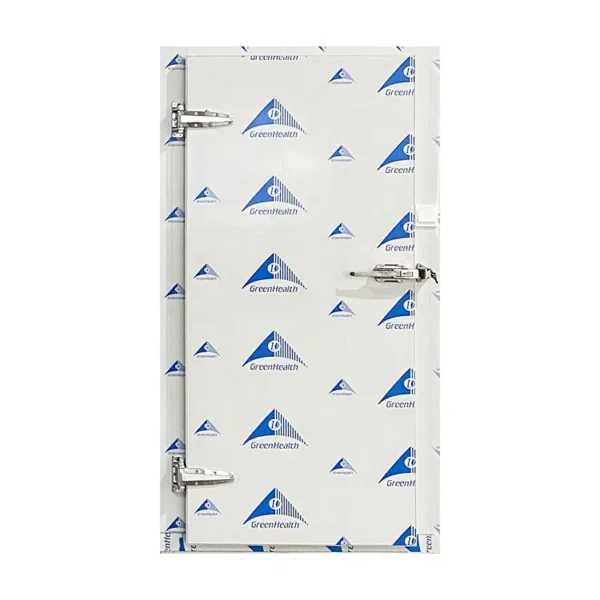

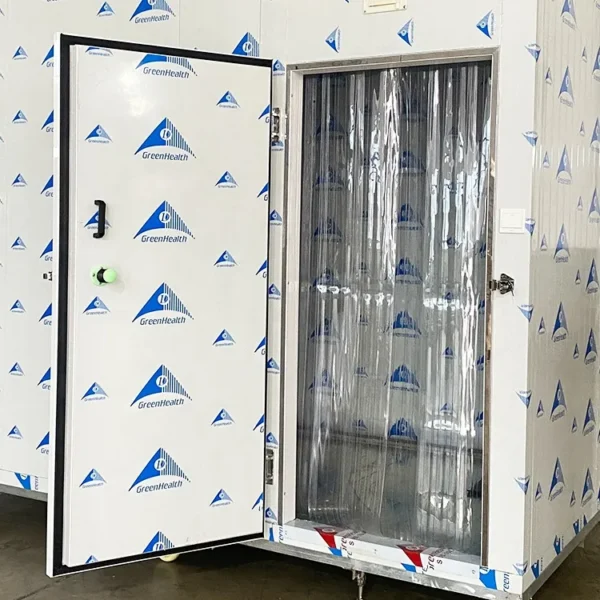

Hinged Door with Heater, 220 V, 1.5kw

Key specification for this hinged door with heater: 220 V, 380 V, 1.5kw. Everything below is reproduced from the factory data sheet. Made by Guangdong Jingu Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Hinged Door With Heater

• Power: 1.5kw
• Voltage: 220 V, 380 V
• Material: Polyurethane Panels
• Surface Material: Color Steel/SS304
• Refrigerant: R-404A
• Noise Level: 50db

Technical Specifications

Product Details

Product Overview

Hinged door is a type of cold storage door widely used in fields such as food, industry, supermarkets and logistics. It features excellent sealing and heat insulation performance and an attractive appearance. It is made by plastic material and surface metal, with environmental PU of high density and fire resistance foaming inside.

Details of cold storage door
Temperature	-45℃~+25℃
Thickness of door panel	75/100/120/150/200mm
Surface materials	color steel, stainless steel, ect.
Inside materials	Environmental PU with high density and fire resistance
Safety lock	For escape from cold room
Sealing strip	Magnetic strips inside soft plastic for good sealing
Electric heating wire	For preventing frosting of low temperature cold room
Observation window	For observing situation inside cold room(Optional)

Product advantage

1. Escape system will keep you safe, you can open cold room door from inside when it is closed.
2. The core material of cold room door is polyurethane, so they have good sealing and insulation performance.
3. It is easy to install cold room door.
4. For cold room with low temperature, cold room door can be equipped with electric heating wire in door frame to prevent frosting.
5. Cold room door can be covered with embossed aluminum steel additionally for longer service life.

Standard hinge door size
Semi-buried door/ fully buried door	0.8*1.8m/0.9*1.8m/1*1.8m/1.2*1.8m
Double-open hinge door	1.5*2m/1.6*2m/1.8*2m

Standard sliding door size	0.8*2m/0.9*2m
		1*2m/1.2*2m/1.3*2m/1.5*2m/1.6*2m
		1.8*2.2m/2*2.5m/2.2*2.5m/2.5*3m

Product Details

Sealing strip

Our cold storage doors feature a high-standard airtight seal. We use a specially shaped rubber strip around the entire door leaf.
This unique design breaks potential cold spots and minimizes heat transfer. The rubber itself is formulated with extreme
cold-resistant additives, keeping it remarkably flexible even at low temperatures ensuring reliable performance and
excellent airtightness.

Hinge

Our heavy-duty hinges and locks are precision high-pressure die-cast from zinc alloy, ensuring exceptional strength and a dramatically extended operational lifespan. For controlled access, our doors feature secure key-operated locks. Only authorized personnel holding the corresponding key can unlock the door, ensuring strict management of cold room entry.

Safety Lock

Our cold storage doors feature an internal emergency-push device, allowing workers to instantly open the door from the inside – even when externally locked – preventing accidents during critical situations.

The bright green emergency knob is glow-in-the-dark, instantly visible in total darkness. Trapped personnel can quickly locate it to activate the escape mechanism.

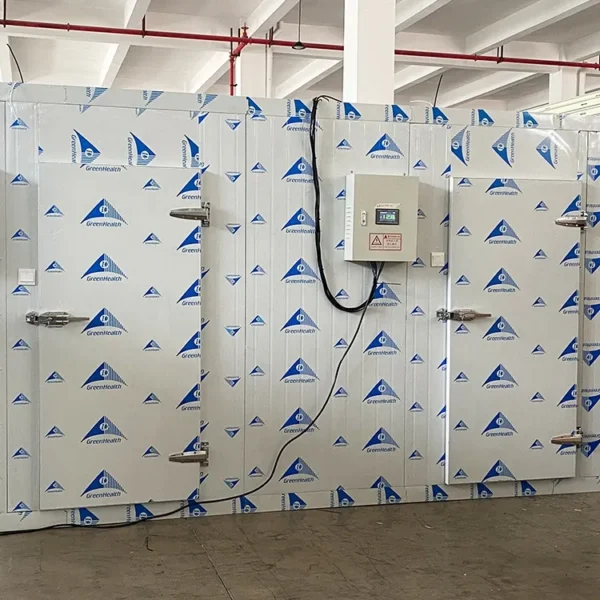

Case Showcase

These are some of the cold storage door case displays we have done

You just need to tell us your situation and we will recommend a suitable cold storage door for you.

Product packaging

Real packaging photos

The product offers a variety of packaging methods and strictly adheres to export packaging standards to ensure the safety of your goods during transportation!

Company Profile

FAQ

1. Can your factory provide samples?

– No. We do not provide samples.

2. What is the MOQ?

– The MOQ of our products is 1 set.

3.What is the delivery period?

– The delivery time is generally 10-20 working days .

4. What are the payment?

– T/T.

5. How long is the warranty?

– The warranty period is 1 years.

Contact me！！！！

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $300 / set
  • 10–19 set: US $280 / set
  • 20+ set: US $260 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this hinged door with heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 YEAR warranty. Spare parts and technical support remain available after the warranty period.

Can the hinged door with heater be supplied for my local voltage?

The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangdong Jingu Refrigeration Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Jingu Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
