The cold room storage listed here carries 380 V, 220 V, power 800 – 1000W, > 1000W, documented exactly as the manufacturer publishes it. Made by Guangdong Jingu Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cold Room Storage
- Power: 800 – 1000W, > 1000W
- Voltage: 380 V, 220 V
- Panel Material: Polyurethane Insulation Panels
- Steel Material: stainless steel, color steel
- Refrigerant: R-404A
- Noise Level: 40-60dB
Technical Specifications
| Compressor Brand | Copeland, Other |
|---|---|
| Refrigerant | R-404A |
| Voltage | 380 V, 220 V |
| Power | 800 – 1000W, > 1000W |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Noise Level | 40-60dB |
| Feature | Solar, Container |
| No. Of Doors | Customized |
| Solar Or Not | Without Solar Panel |
| Video Outgoing-Inspection | Provided |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Gearbox, PLC, Pump, Engine, Other |
| Key Selling Points | Competitive Price |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 700 |
| Brand Name | Jingu |
| Dimension(L*W*H) | Customized |
| Product Name | Cold Room Freezer for Meat Chicken Vegetables Fish Cold Storage |
| Usage Of Cold Room | Fruits, Vegetables, Meat, Beef, Fish, Seafood, bread, etc. |
| Panel Material | Polyurethane Insulation Panels |
| Thickness Of Panel | 50mm, 75mm, 100mm, 120mm, 150mm, 200mm |
| Steel Material | stainless steel, color steel |
| Floor Of Cold Storage Freezer | galvanized plate, stainless steel, anti-skidding aluminum |
| Door Type | Swing door, Sliding door, Hinged door, Lifting door |
| Condenser Type | Fnv / Fnh (Air Cooled, Water Cooled, Evaporative) |
| After-Sales Service Provided | Video Technical Support |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Overview
Cold Room Size | Can be customized | ||||||
Insulation Agent | PU | ||||||
Fire resistance level | B1/B2 | ||||||
Panel Connection Type | Cam Lock | ||||||
Density | 40~42kg/m³ | ||||||
Voltage/Frequency | 220V/50Hz, 60Hz, 380V~420/50Hz | ||||||
Temperature | 0~10℃/-10~-18℃/-18~-22℃/-35℃ | ||||||

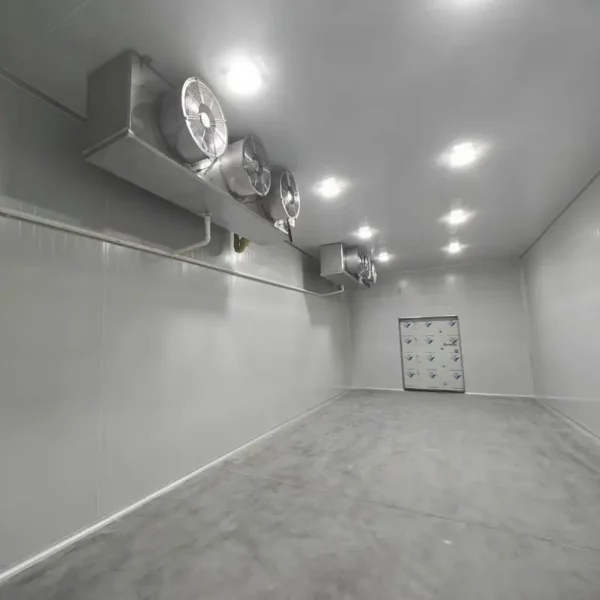

Walk in Cold Room
For professionals seeking commercial refrigeration solutions, selecting a high-performance walk-in cooler is critical for operational success. Ideal for restaurants, hotels, supermarkets, food factories, pharmaceutical and chemical companies, our units combine reliability with energy efficiency to meet precise storage requirements and industry compliance standards.
Our customizable cold room designed for multi-industry applications. To ensure optimal preservation for:
• Food Sector: Meat, seafood, dairy, vegetables, fruits • Pharmaceutical: Vaccines, blood products, medicines • Industrial: Chemical compounds, laboratory materials
Applicable Products
Vegetables
Fruits
Chicken
Meat
Fish/Seafood
Ice Cream
Product Details

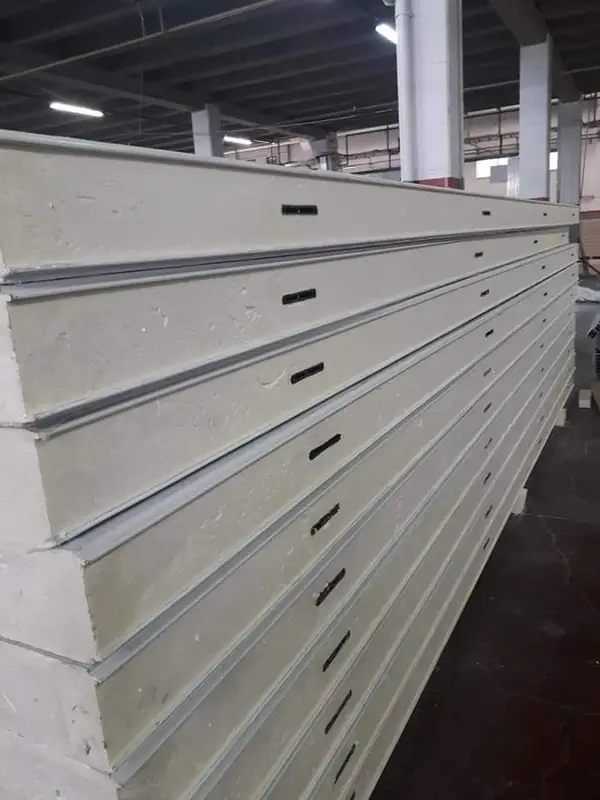

PU Cold Room Panel
Feature | Wind Resistance/Good Thermal Preservation Energy Saving and Fire Resisting/Sound Insulation Water Proof Moisture Proof | ||||||
Thickness | 50mm 75mm 100mm 120mm 150mm 200mm | ||||||
Width | Standard: 1000mm | ||||||
Length | Maximum 10 meter without connection | ||||||
Surface material | color steel, 304 stainless steel | ||||||

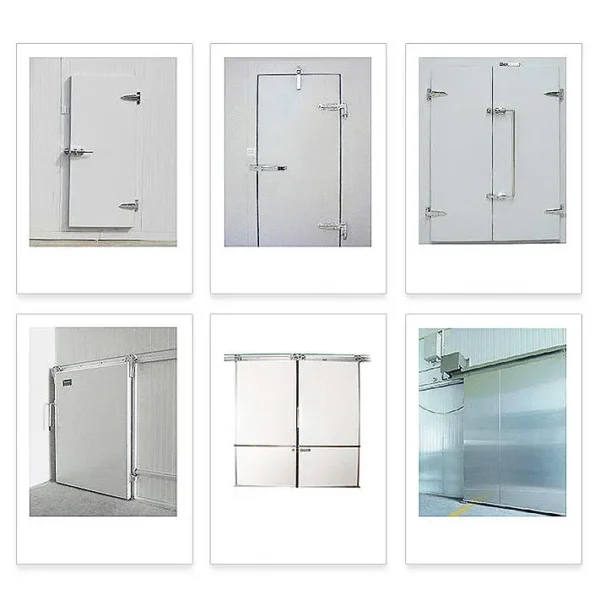

Cold Room Door
Hinged door | Standard size:0.8*1.8m, size can be customized, width≤1.2m | ||||||
Sliding door | Standard size:1.2*2m, size can be customized | ||||||
Double Swing door | width＞1.2m, double door is more durable | ||||||
Condensing Unit
Compressor brand | Copeland | Bitzer | Panasonic | Emerson | |||
Type | Air-cooled | Water cooling | Fully enclosed | Semi-enclosed | |||
Applicable refrigerant | R22 / R404a / R410a / R448a (Not included) | ||||||
Feature | imported compressor, low noise, long service life good refrigeration, Environment friendly | ||||||

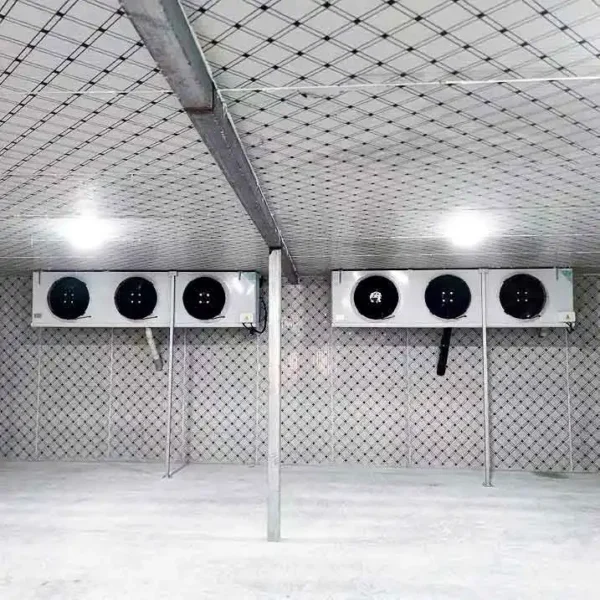

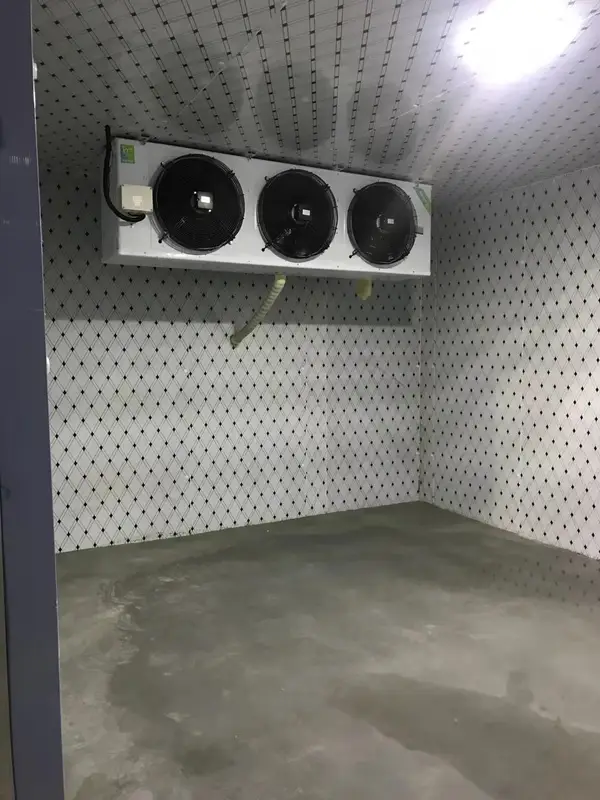

Air Cooler/Evaporator
DL-Series | +10℃~-5℃, for vegetable and fruit | ||||||
DD-Series | -10℃~-18℃, for meat | ||||||
DJ-Series | -20℃~-25℃, for seafood/fish/ice cream/ice cube | ||||||
Feature | fast cooling speed, large wind power, long service life, low power consumption | ||||||
Electrical box
The Fully Automatic Control Electrical Box is independently designed and developed by our company.
It features PLC Automatic Control and LCD screen touch control, allowing for easy temperature adjustment, safer and more durable!
Customer Feedback

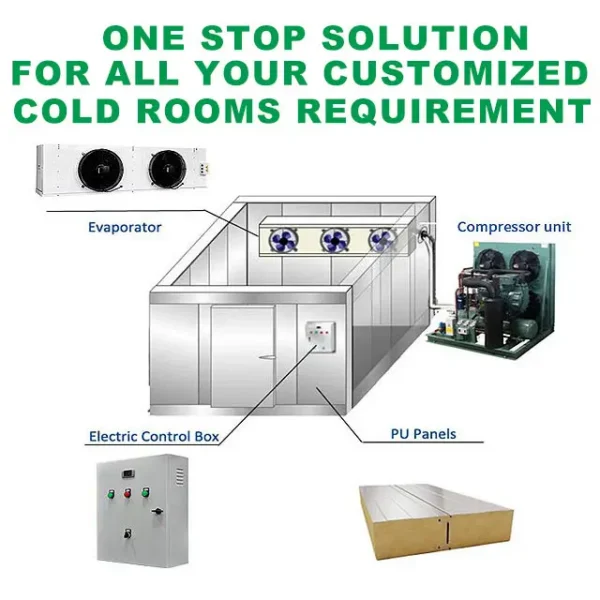

Customized Service
In order to offer you the exactly product and price, pls let me know these information as follows :
1. What is the cold room dimensions ? Length × Width × height
2. What kind of food to store ? To understand the temperature and products
3. Which country to use the cold room ? To understand the voltage requirements
4. EXW/CIF/FOB/DDP price ?
Product Packaging
The product offers a variety of packaging methods and strictly adheres to export packaging standards to ensure the safety of your goods during transportation!
Best Selling Products
Company Profile
Guangdong Jingu Refrigeration Equipment Co., Ltd. is a subsidiary of Guangdong Green&Health Group. The group was established in 2004 and is an enterprise integrating the research and development, manufacturing and sales of refrigeration equipment. The factory is located in Daze Town, Xinhui District, Jiangmen City, Guangdong Province. The total investment of the factory is 350 million yuan, covering an area of approximately 120,000 square meters. There are 300+ employees and over 50+ technical experts. Specializing in the production of refrigeration equipment such as cold storage rooms, cold storage panels, refrigeration units, and air curtain cabinets.
Certifications
Exhibition
FAQ
1. Can your factory provide samples?
– No. We do not provide samples.
2. What is the MOQ?
– The MOQ of our products is 1 set.
3. What is the delivery period?
– The delivery time is generally 20-30 working days .
– The delivery time of customized voltage products is 35-40 working days.
4. What are the payment?
– T/T.
5. How long is the warranty?
– The warranty period is 1 years.
→ Click here to contact me!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $3288 / set
- 3–5 set: US $2988 / set
- 6+ set: US $2688 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold room storage?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cold room storage be supplied for my local voltage?
The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
