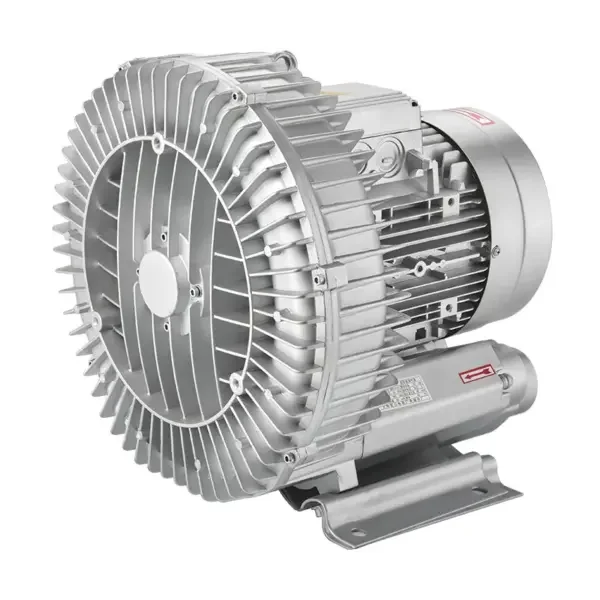

This ring blower is published with the manufacturer’s own specification, unedited. Send your target quantity and destination for a firm quotation with current lead times.
This ring blower is listed with the manufacturer’s full published specification. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Product descriptions from the supplier
| application | Family Homes, Industrial Boilers, Industrial Utilities | pressure | High Pressure |
| warranty | one year | voltage | Three-phase 380V |
| place of origin | Zhejiang, China | customized support | OEM |
| power source | Electric | structure | Single-stage Pump |
| model number | Fl-7500SC | horsepower | 7500W |
| motor | 100% Copper | Structure | Single stage |
| Standard or Nonstandard | Standard | Max airflow | 57kpa |
| Max vacuum | -51kpa | Speed | 2800r/min |
Product Description
| Type |
Voltage (V) |
Rated Current (A) |
Maximum Positive Pressure (Kpa) |
Maximum Vacuum (-Kpa) |
Maximum Flow (m³/h)
|
Rotaryspeed (r/min) |
Weight (kg) |

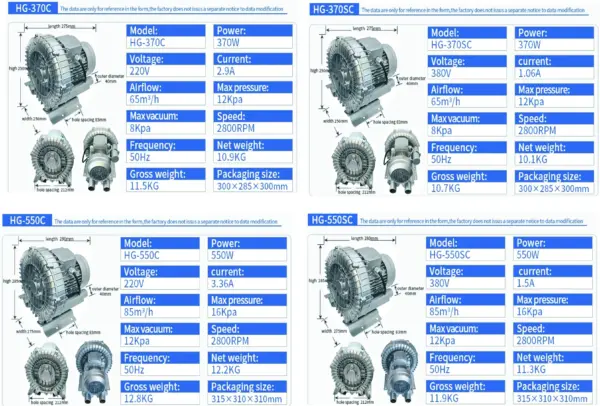

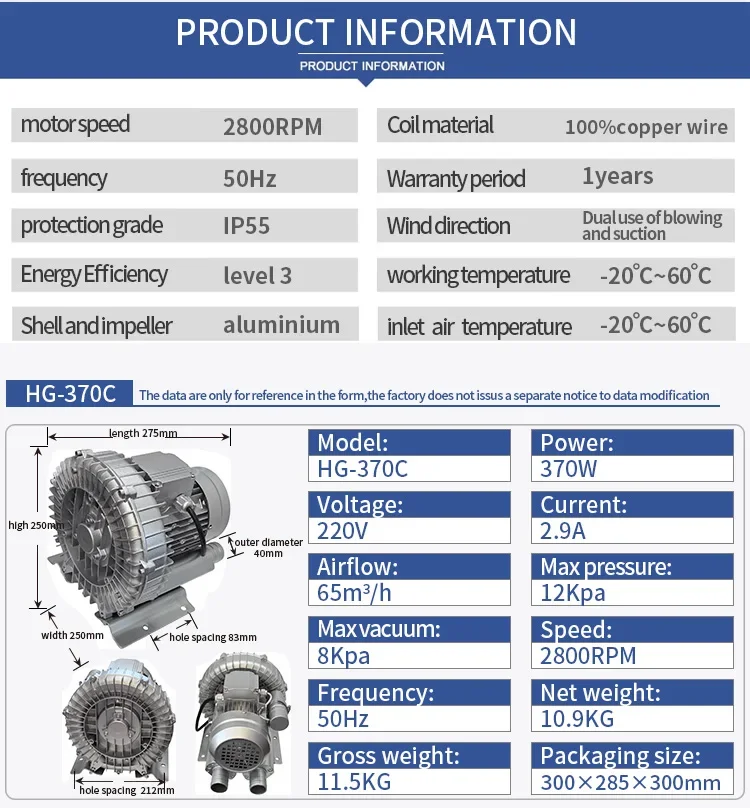

| HG-370C | 220 | 2.9 | 12 | 8 | 65 | 2800 | 11.5 |

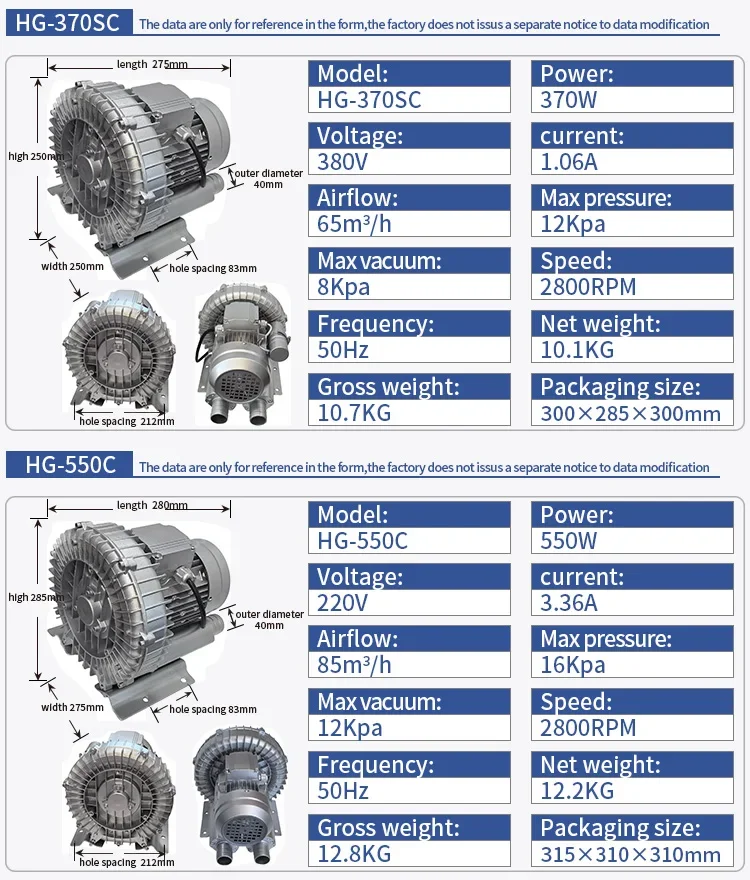

| HG-370SC | 380 | 1.06 | 12 | 8 | 65 | 2800 | 10.7 |
| HG-550C | 220 | 3.36 | 16 | 12 | 85 | 2800 | 12.8 |
| HG-550SC | 380 | 1.50 | 16 | 12 | 85 | 2800 | 11.9 |

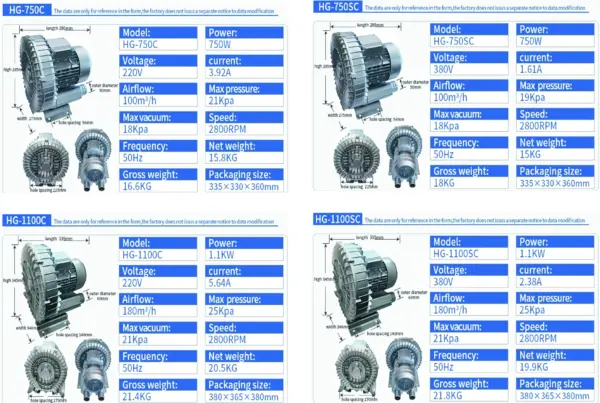

| HG-750C | 220 | 3.92 | 21 | 18 | 140 | 2800 | 16.6 |

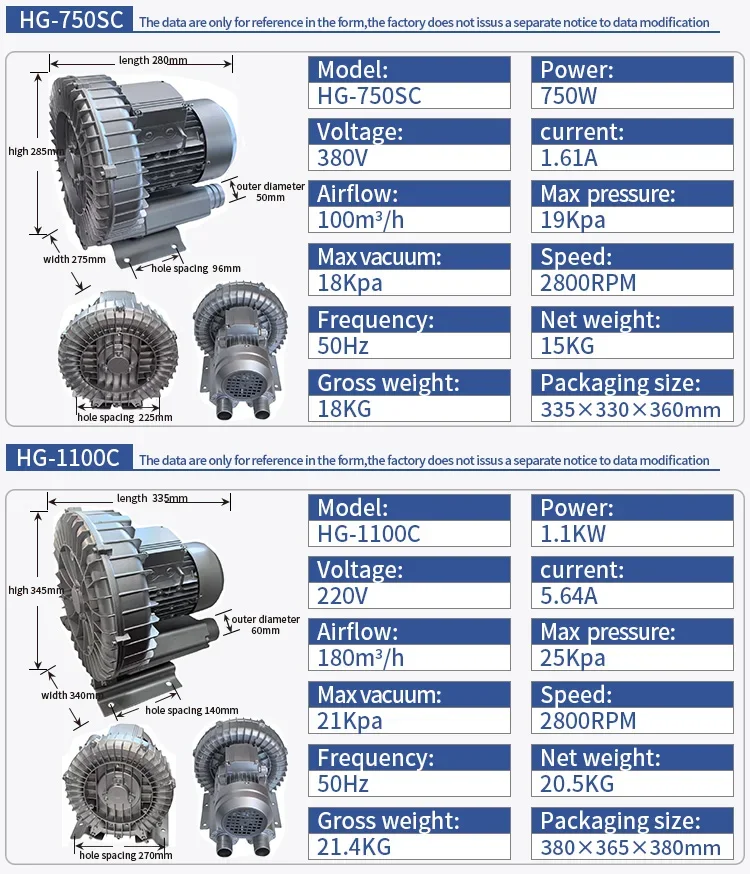

| HG-750SC | 380 | 1.61 | 19 | 18 | 140 | 2800 | 15.8 |
| HG-1100C | 220 | 5.64 | 25 | 21 | 180 | 2800 | 20.5 |

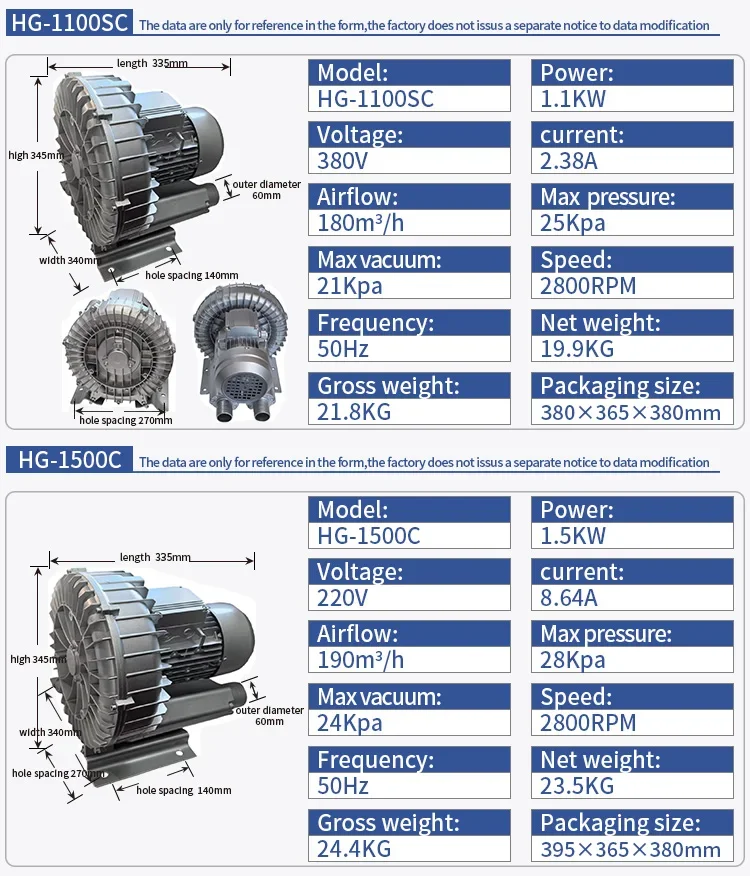

| HG-1100SC | 380 | 2.38 | 25 | 21 | 180 | 2800 | 19.9 |

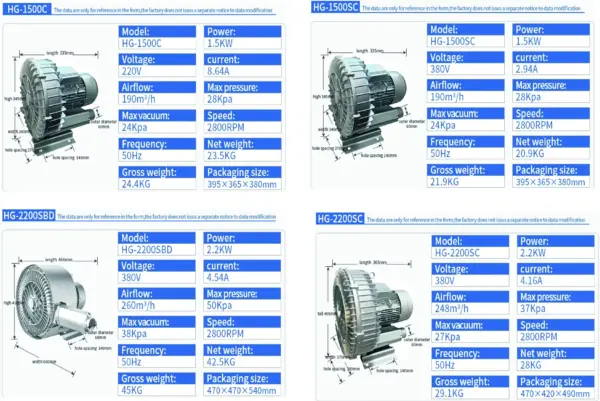

| HG-1500C | 220 | 8.64 | 28 | 24 | 250 | 2800 | 24.4 |

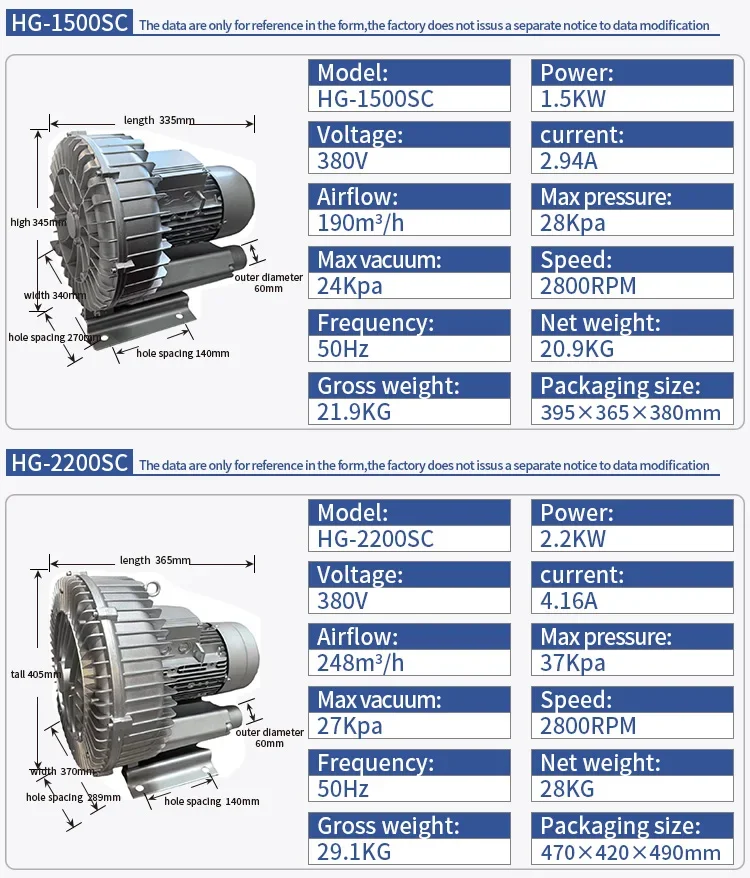

| HG-1500SC | 380 | 2.94 | 28 | 24 | 250 | 2800 | 21.9 |
| HG-2200SC | 380 | 4.16 | 37 | 33 | 310 | 2800 | 29.1 |

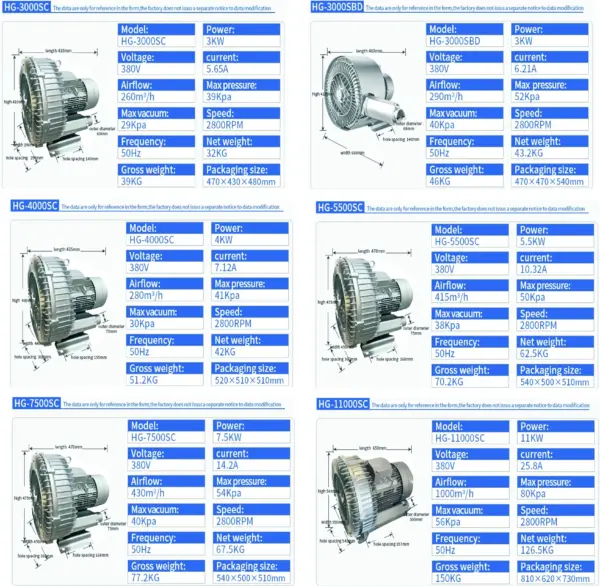

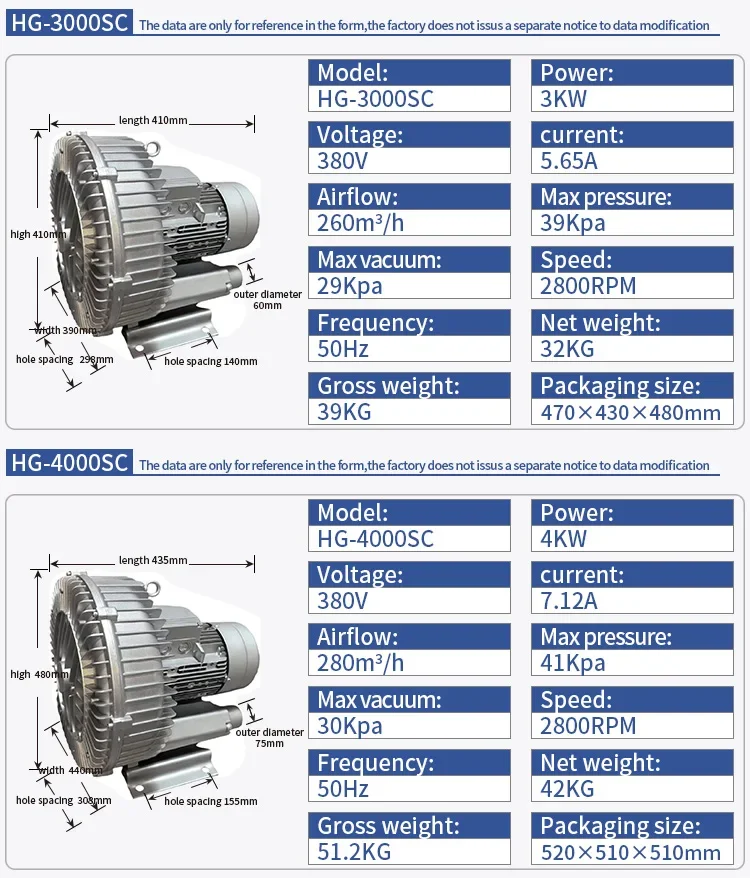

| HG-3000SC | 380 | 5.65 | 39 | 34 | 350 | 2800 | 39 |
| HG-4000SC | 380 | 7.12 | 41 | 30 | 400 | 2800 | 51.2 |

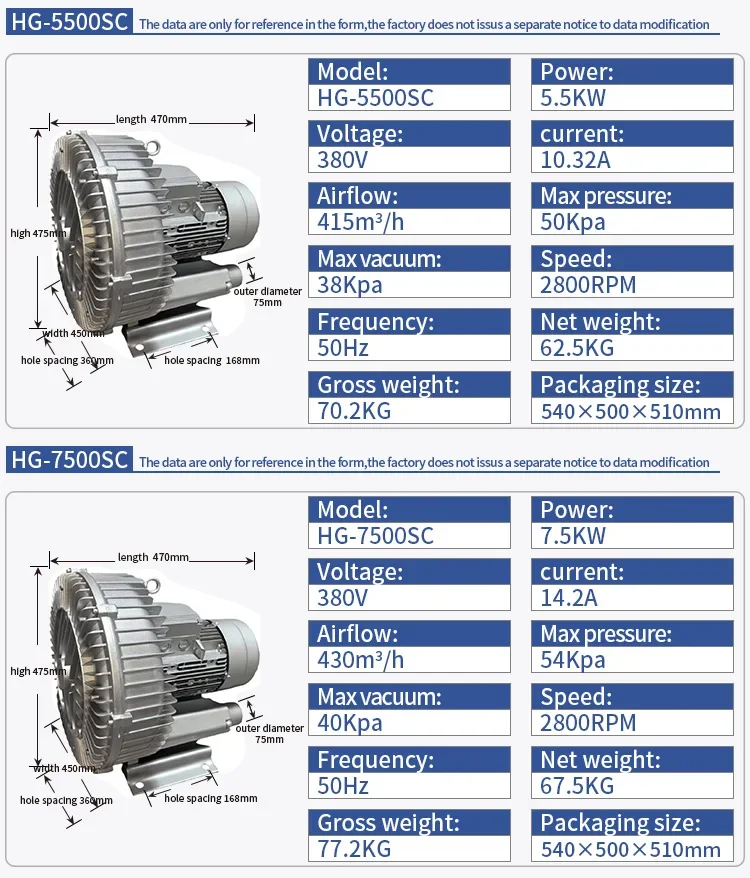

| HG-5500SC | 380 | 10.32 | 54 | 49 | 480 | 2800 | 68.2 |
| HG-7500SC | 380 | 12.56 | 57 | 51 | 500 | 2800 | 72.2 |

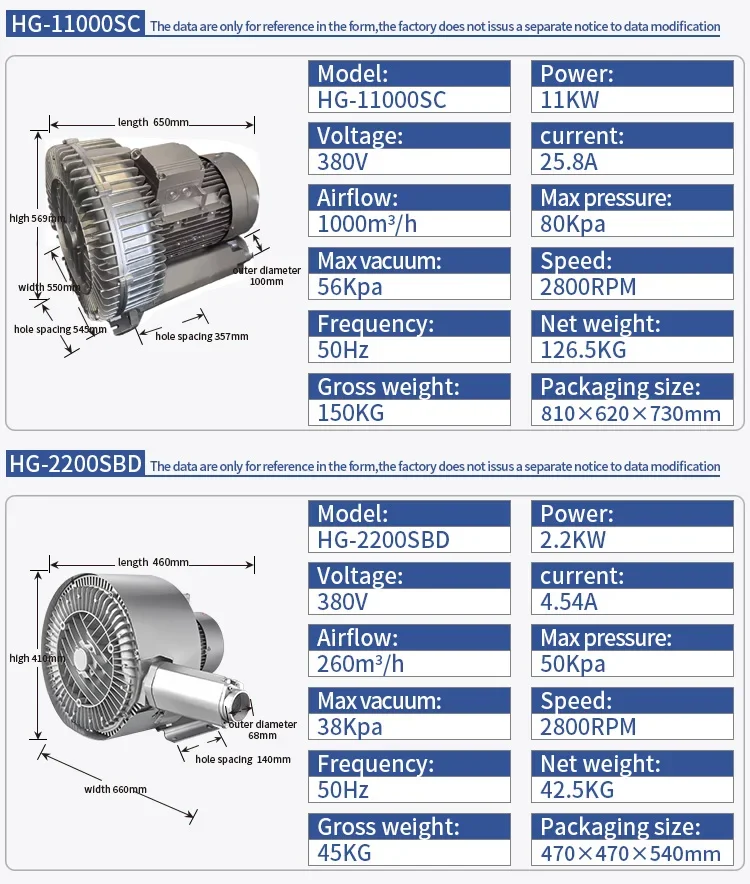

| HG-11000SC | 380 | / | 80 | 56 | 1000 | 2800 | 150 |
Frequently Asked Questions
What is the minimum order quantity for this ring blower?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
