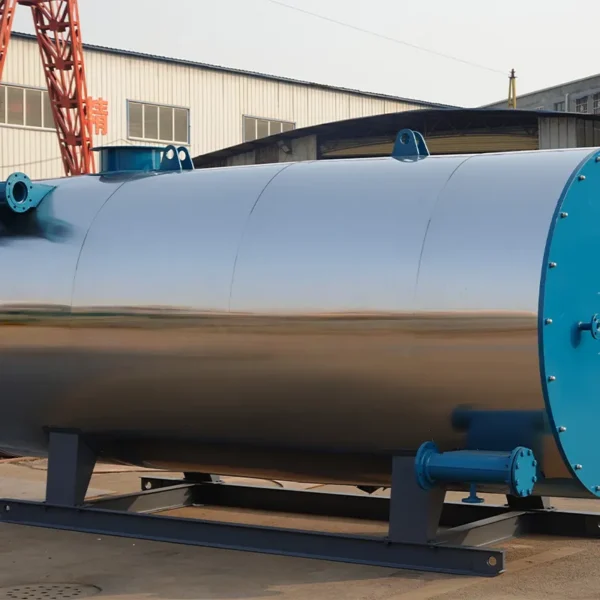

Hot Water Boiler, 500kg, 1000kg, 1mw, 3mw

This hot water boiler is published with the manufacturer’s full specification — material Q345R steel plate, type Natural Circulation. Made by Henan Zhongtai Boiler Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Hot Water Boiler

• Boiler Horsepower: 32 to 715 HP
• Steam Capacity: 0.5 to 10 ton per hour
• Material: Q345R steel plate
• Warranty: 2 Years
• Place Of Origin: Henan, China
• Application Field: Textile, Garment, Food & Beverage, Chemical & Oil, Washing, Paper

Technical Specifications

Product Details

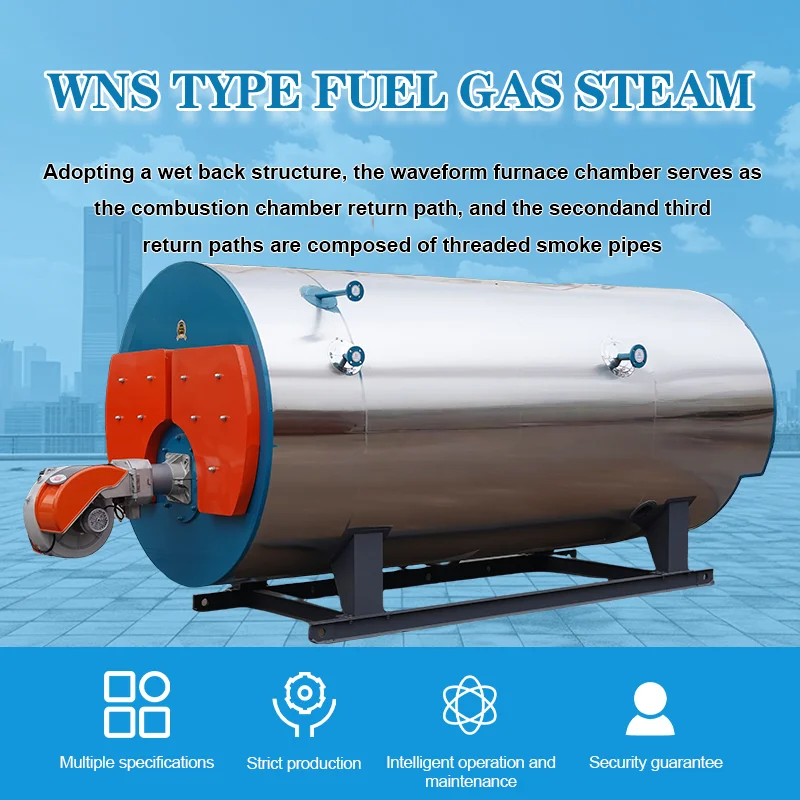

Technical Parameters of WNS horizontal fuel gas steam boiler

Item/Model	WNS0.5-1.0-YQ	WNS1.0-1.25-YQ	WNS2.0-1.25-YQ	WNS3.0-1.25-YQ	WNS4.0-1.25-YQ	WNS6.0-1.25-YQ	WNS8.0-1.25-YQ	WNS10-1.25-YQ
Rated Steam Pressure(MPa)	1	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Rated steam temperature（℃）	180	194	194	194	194	194	194	194
Feedwater Temperature（℃）	20	20	20	20	20	20	20	20
Thermal efficiency（%）	≥93	≥93	≥93	≥93	≥93	≥93	≥93	≥93
Body Hearing Area	17	27	50	88	117	171	204	258
Fuel Consumption Natural Gas(m³/h)	39	79	157	236	314	471	629	786
Fuel Consumption Liquid gas(m³/h)	31	63	126	189	251	377	503	629
Fuel Consumption City Gas(m³/h)	83	165	330	495	660	990	1320	1650
Fuel Consumption Light diesel(kg/h)	32	65	129	194	259	388	518	647
Fuel Consumption Heavy oil(kg/h)	33	66	132	198	264	396	528	660
Transport reference weight(T)	2.5	5.4	8.06	10	12.43	15.5	22	26.55
Transport reference dimension(L)	3300	4180	4300	5170	5600	6300	6580	7300
Transport reference dimension(W)	1500	1720	1900	2000	2150	2250	2620	2860
Transport reference dimension(H)	1700	2050	2400	2500	2640	2700	3120	3400
Rmark	All The Above Values Are Calculated Based On The Low Level Heating Value Of Natural Gas 8,400kcal/Nm³, Low Level Heating Value Of Liquefied Gas 10,500kcal/Nm³, Low Level Heating Value Of City Gas 4,000kcal/Nm³, Low Level Heating Value Of Light Oil 10,200kcal/Kg, And Low Level Heating Value Of Heavy Oil 10,000kcal /Kg. The Parameters Are Changed Due To Technical Innovation, And The Factory Parameters Are Subject To The Actual Drawing.

Henan Zhongtai Boiler Co., Ltd.

Henan Zhongtai Boiler Co., Ltd. Is A Professional Boiler Equipment Manufacturer Integrating Boiler Research And Development, Production, Sales, Installation And After-Sales Service. Founded In 2011, The Headquarters Of Zhongtai Boiler Is Located In Taikang County Industrial Agglomeration Zone, Zhoukou City, Henan Province. Zhongtai Has Passed The Iso9001 Quality System Certification And Possesses Leading Competitiveness In The Industry. Our Main Products Include Oil And Gas Boilers, Biomass Boilers, Electric Heating Boilers, Thermal Oil Boilers, Circulating Fluidized Bed Boilers, Heat Recovery Boilers, Steam Generators, Etc., Covering Eight Major Categories, 23 Product Series And Over 230 Models, Which Are Widely Used In Food Processing, Brewing, Chemical, Pharmaceutical, Textile, Building Materials And Other Industries. The After-Sales Service Of Henan Zhongtai Boiler Co., Ltd. Is Carried Out In Accordance With The New "Three Guarantees"Regulations Of The State And Provides Comprehensive Engineering After-Sales Service. In More Than 30 Provinces And Over 100 Cities Across The Country, We Implement Professional Service Concepts And Are On Standby Throughout The Process. We Will Track, Maintain And Service The Product Quality And Engineering Issues, As Well As Upgrade And Transformation Issues, With The User At The Center, To Ensure All Problems Are Resolved Smoothly. We Will Provide Quality Service For New And Old Customers As Our Responsibility, We Sincerely Welcome Customers To Consult And Discuss Business Cooperation!

1. How to get a detailed and exact offer?
Please let us know your required steam capacity, working pressure or steam temperature, fuel type. Then our sales-engineer will send you the detailed and exact offer.
2. How long does it take to get the boiler ready?
Usually our company have new stocks, we can manage the shipping within 1-3days. But you please contact us salesman to confirm in advance.
3. Can you assist us to do the installation and operation training?
Yes, our company will provide the drawings and operation manual. Also our engineer can provide the technical supports online.
4.Delivery time?
We have brand new inventory products, usually shipped within 1-3 days. Please contact the sales engineer to confirm the specific time.
5.Service life?
The design lifespan of the boiler is 16-26 years.
6.Does it support factory inspection?
Welcome to visit the factory at any time!
7.Warranty policy?
2-year warranty, lifetime maintenance of the host (not include damages caused by human factors）

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $2099 / set
  • 2+ set: US $1888 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this hot water boiler?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
