Hot Water Boiler, Liquid Level Sensor, CE

The hot water boiler listed here carries type Liquid Level Sensor, certificate CE, RoHS, documented exactly as the manufacturer publishes it. Made by Shenzhen Xingkechuang Technology Co., Ltd. (4 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Hot Water Boiler

• Supply Voltage: DC5-24V
• Warranty: 3 Years
• Place Of Origin: Guangdong, China
• Application: water and liquid detection
• Features: easy for installation,sensitive
• Type: Liquid Level Sensor

Technical Specifications

Product Details



Product Description



Overview:

The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chip, which breaks through the influence of container wall thickness and realizes a true non-contact type of liquid level height in a closed container Detection. The liquid level sensor (probe) is installed on the upper and lower sides of the outer wall of the container to be measured (the high and low levels of the liquid level). The non-metallic container does not need to be opened, and the installation is simple and does not affect production. It can detect the liquid level of various liquid toxic substances, strong acids, strong alkalis and various liquids in high-pressure airtight containers. The liquid level sensor has no special requirements for the material of the liquid medium and non-metallic container, and can be widely used. XKC-Y25-XXX series products are specially developed for non-metallic container liquid level detection. This series of liquid level sensors are divided into four signal output control methods, namely high and low level output interface, NPN output interface, PNP output interface, RS485 Output interface; the four signal output modes correspond to the following four models:

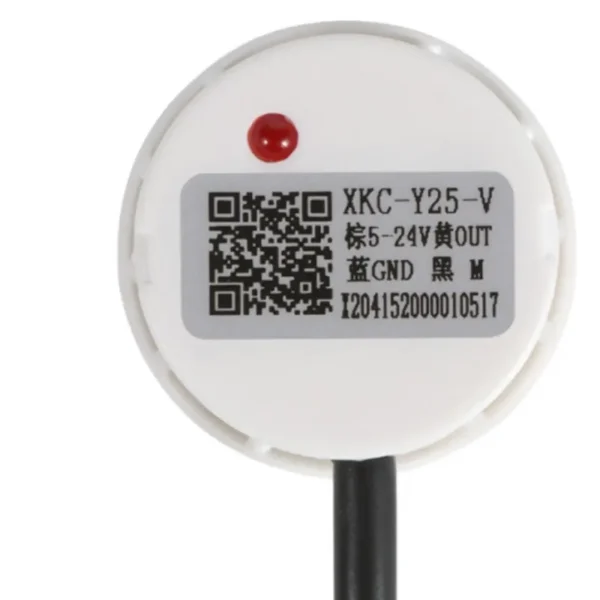

1	XKC-Y25-V	Hign and low level output
2	XKC-Y25-NPN	NPN output
3	XKC-Y25-PNP	PNP output
4	XKC-Y25-RS485	RS485 output



Product Features:

1. XKC-Y25-XXX non-contact liquid level sensor is suitable for non-metallic containers. The product detects the liquid through the detection signal through the non-metallic container and the outer wall of the pipeline, without direct contact with the liquid, and will not be subject to strong acid, Corrosion damage caused by corrosive liquids such as strong alkalis is not affected by scale or other debris, and it can be completed to detect whether there is liquid inside the container or pipeline.

2. It can support high and low level output, NPN, PNP signal output (please refer to the manufacturer's instructions when selecting the model).

3. The detection liquid level is accurate and stable, and cold, hot and boiling liquids can be detected.

4. Pure electronic circuit structure, non-mechanical working mode, stable performance and long lasting service life.

5. High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with all 5-24V power adapters on the market.

6. It has a wide range of application and strong sensing capability. It can penetrate and detect the liquid level in various non-metallic containers, such as plastic, glass, ceramics and other containers. The sensing distance (container wall thickness) can reach 20mm; liquid, powder, Particles can be detected.

7. Open collector output mode, wide voltage range (5-24V), suitable for connecting various circuits and product

applications.



Product Applications:

The intelligent non-contact liquid level sensor uses the inductive capacitance of water to detect the presence of liquid.

When there is no liquid close to the sensor, the sensor has a certain static capacitance to the ground due to the presence of distributed capacitance on the sensor. When the liquid level is slow When the sensor is slowly raised, the parasitic capacitance of the liquid will be coupled to the static capacitance of the sensor, making the capacitance value of the sensor larger. The changed capacitance signal is then input to the control IC for signal conversion, and the changed capacitance is converted into a circuit signal The MCU calculates and judges the degree of the change in the analog quantity. When the change exceeds a certain threshold, it is considered that the liquid level has reached the sensing point.





Company Information



Xingkechuang Technology has been concentrating on R&D, production and sales of sensors products since 2013,as well as applications and testing of smart products. Xinkechuang has successfully built an outstanding independent R&D team and has obtained a series of original patents and industry-related certifications. Our main original patented products include: non-contact liquid level sensor, intelligent non-contact liquid level controller, active infrared sensor, ultrasonic sensor, laser ranging sensor, temperature sensor, gas sensor, wireless controller multi-point liquid level controller and Infrared liquid level intelligent controller, etc. As an international and diversified sensor manufacturer and customized solutions provider, By providing superior products and professional technical solutions for customers in China and all around the world,Xinkechuang has become one of the most influential innovative technology companies in the industry







Our Services

Manufacture & Customization Solutions:

Non-contact liquid level sensor, intelligent non-contact liquid level controller, diffuse reflection infrared sensor, ultrasonic sensor, laser ranging sensor, temperature sensor, gas sensor, wireless controller, multi-point liquid level controller.



Applications & Industries Served Scopes:

Medical equipment, home appliances, plant protection drones, sewage treatment equipment, smart cities, smart public toilets, smart advertising machines, robot obstacle avoidance, smart trash cans, disinfection machines, sweeping robots, cleaning equipment, milk equipment, chemical plants, new energy car, charging pile etc.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this hot water boiler?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this hot water boiler carry?

It is supplied with CE, RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the hot water boiler be supplied for my local voltage?

The standard configuration is DC5-24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
