This hvls ceiling fan is published with the manufacturer’s full specification — 220 V, 110 V, 380 V, blade material Aluminum Alloy. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Hvls Ceiling Fan
- Model Number: ADF-42
- Voltage: 220 V, 110 V, 380 V
- Blade Material: Aluminum Alloy
- Noise Level: 30.0-34.0db
- Speed: 63rpm
- Warranty: 3 Years
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 220 V, 110 V, 380 V |
| Speed | 63rpm |
| Blade Material | Aluminum Alloy |
| Blade Diameter | 14 ft |
| Noise Level | 30.0-34.0db |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM, OBM |
| Control Method | Control Box |
| Core Components | Motor, Gear, Bearing, Gearbox, Engine, Other |
| Place Of Origin | Shanghai, China |
| Brand Name | AIPUKEJI |
| Model Number | ADF-42 |
| No.S Of Blade | 6PCS |
| Fan Diameter | 4.2M/14FT |
| Frequency | 50HZ/60HZ |
| Weight | 70kg |
| Height | ≥1200mm |
| RPM(MIN/MAX) | 0-63RPM |
| Package | Wooden Cases |
| Color | Silver |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
How we got our start?
It started with a Big idea; that high-volume, low-speed (HVLS) airflow was the key to making spaces more comfortable and efficient. The HVLS Fan Company combined quality design with size, and it didn't take long for people to notice and to rebrand the company: as upstart innovator Aipu Fans.
It started with a Big idea; that high-volume, low-speed (HVLS) airflow was the key to making spaces more comfortable and efficient. The HVLS Fan Company combined quality design with size, and it didn't take long for people to notice and to rebrand the company: as upstart innovator Aipu Fans.
What makes our product unique?
The key component of everything we make has no serial number or barcode, yet you'll find it in everything we ship: Pride. Pride in how we work and what we make; we devise and develop, test and retest, to ensure our fans are unequaled in quality, unmatched in durability and unrivaled in performance.
The key component of everything we make has no serial number or barcode, yet you'll find it in everything we ship: Pride. Pride in how we work and what we make; we devise and develop, test and retest, to ensure our fans are unequaled in quality, unmatched in durability and unrivaled in performance.
Product Description
More Than a Name It started with a big idea in engineering: that the combination of size and quality design could fundamentally change what ceiling fans could accomplish. That high-volume, low-speed (HVLS) airflow—an entirely new concept—was the key to making spaces more comfortable and efficient. Because the “HVLS Fan Company” thought big, it didn’t take long for people to notice the impact our products had on facilities or for them to rebrand the company the way they saw us: as upstart innovator Aipu HVLS Fans. Proven by our products’ performance, what started as a big idea became a workplace revolution and is now best practice for designers, managers, and business owners across every imaginable industry and application. Go to work, hit the gym, or enjoy a night on the town and chances are you’ll see a BAF keeping the peace smoothly and silently. From factories to homes and everywhere in between, Big Ass fans deliver comfort, style, and energy savings that make life and work more enjoyable.
Specification

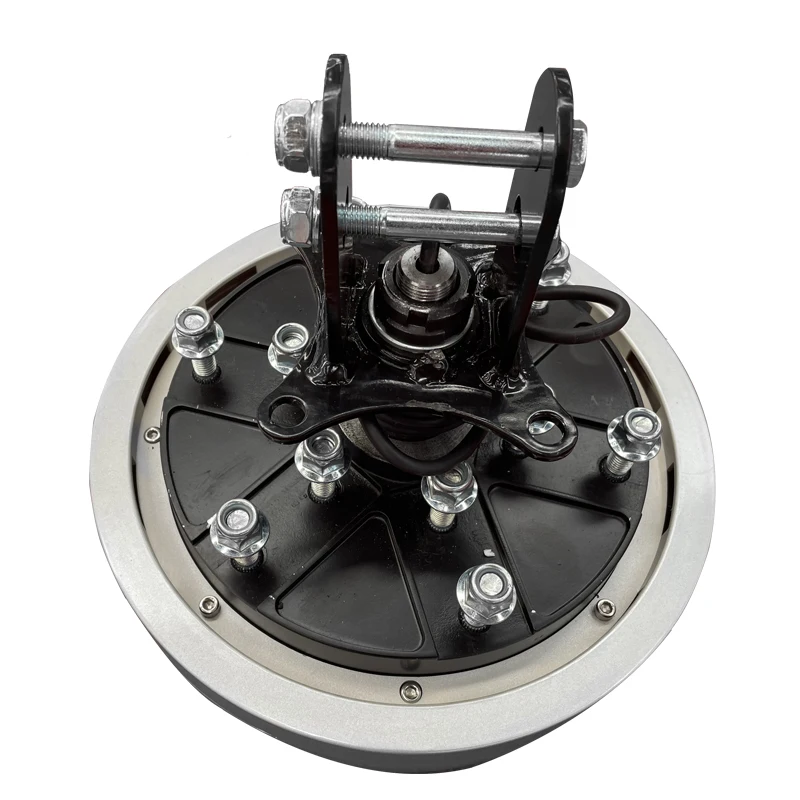

Permanent magnet brushless motor
The fan adopts permanent magnet brushless motor, which has high power efficiency and power factor.Fully enclosed structure, no
transmission gear wear and transmission gear noise, no lubrication, maintenance free.
Permanent magnet motor is built-in high insulation enamel coil, super magnetic steel body, high temperature resistance bearing.
Super torque, large load operation, good temperature rise, smooth operation, very quiet.
High power density, compact size and light weight.
transmission gear wear and transmission gear noise, no lubrication, maintenance free.
Permanent magnet motor is built-in high insulation enamel coil, super magnetic steel body, high temperature resistance bearing.
Super torque, large load operation, good temperature rise, smooth operation, very quiet.
High power density, compact size and light weight.

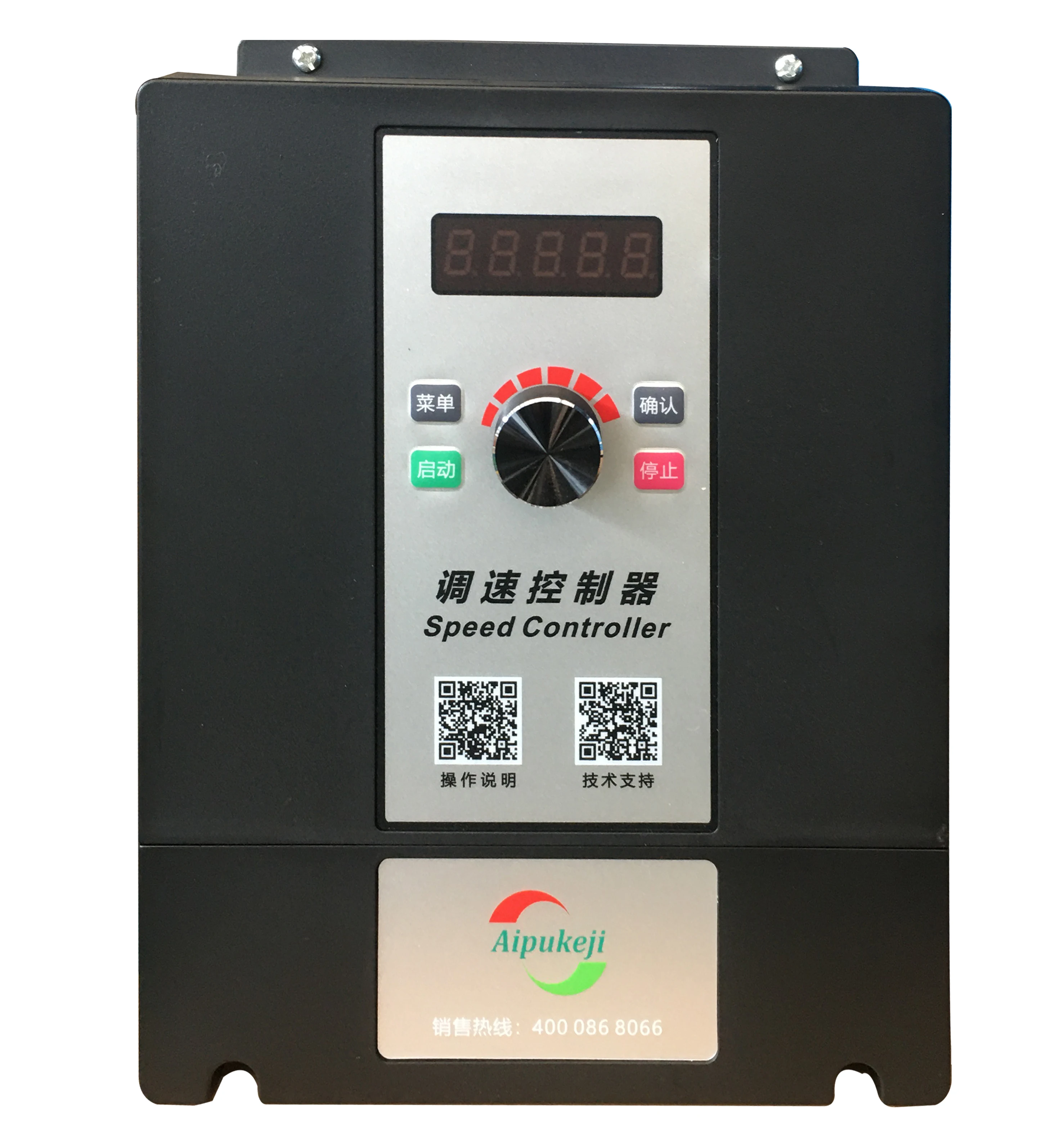

Control System – VFD Controller
Apply the vector variable frequency control methods with the smart technology. Adopts the famous brand inverter " Kewo".
Well-adapted power environment.
Power supply phase failure protection, over voltage protection, over current protection, poerload protection, output phase loss
protection, output ground protection, over temperature protection, signal disconnection.
Well-adapted power environment.
Power supply phase failure protection, over voltage protection, over current protection, poerload protection, output phase loss
protection, output ground protection, over temperature protection, signal disconnection.

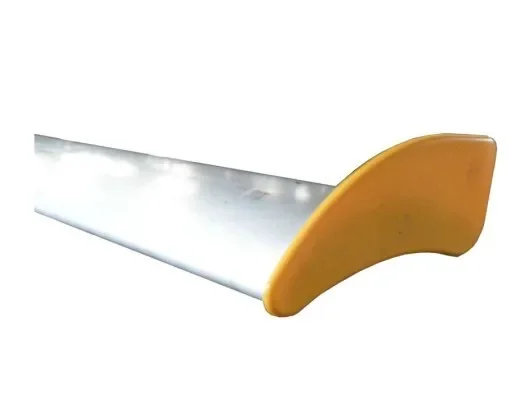

Aero Aluminum Blade
at a high temperature of nearly 200 degree, a film of 70 ± 5 um is formed on the surface of fan blade, which is smooth, delivate,
beautiful and easy to clean.Color of blade can be customized according to requirement.
Customized support | OEM, ODM |
Blade Material | Aluminum Alloy |
Mounting | Ceiling Fan |
Place of Origin | China |
Shanghai | |
Brand Name | AIPU KEJI |
Power | 0.5KW |
Voltage | 110V/220V |
Warranty | 3 years |
No.s of Blade | 6PCS |
Fan Diameter | 4.2M/14FT |
Frequency | 50HZ/60HZ |
Weight | 70kg |
Height | 1200mm |
RPM(MIN/MAX) | 0-63RPM |
Package | Wooden Cases |

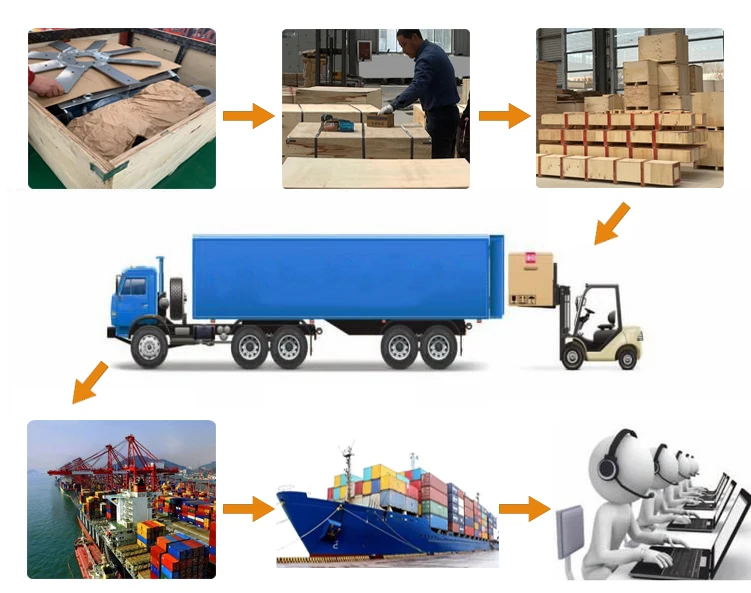

Packing & Delivery

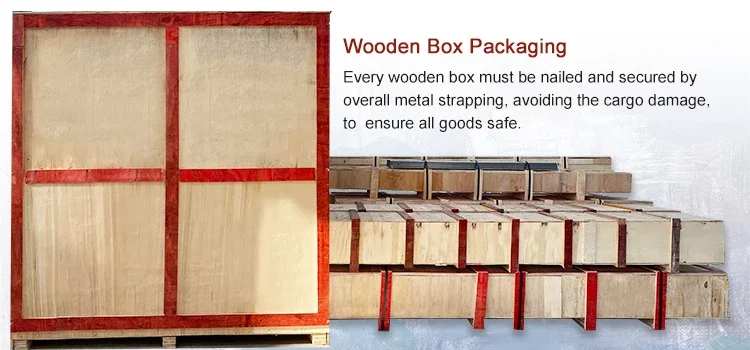

One fan is to be packed into two sea-worthy wooden cases.
1) Blade Case 20*20*121CM
2) Motor Case 44*30*36CM
1) Blade Case 20*20*121CM
2) Motor Case 44*30*36CM
Company Profile

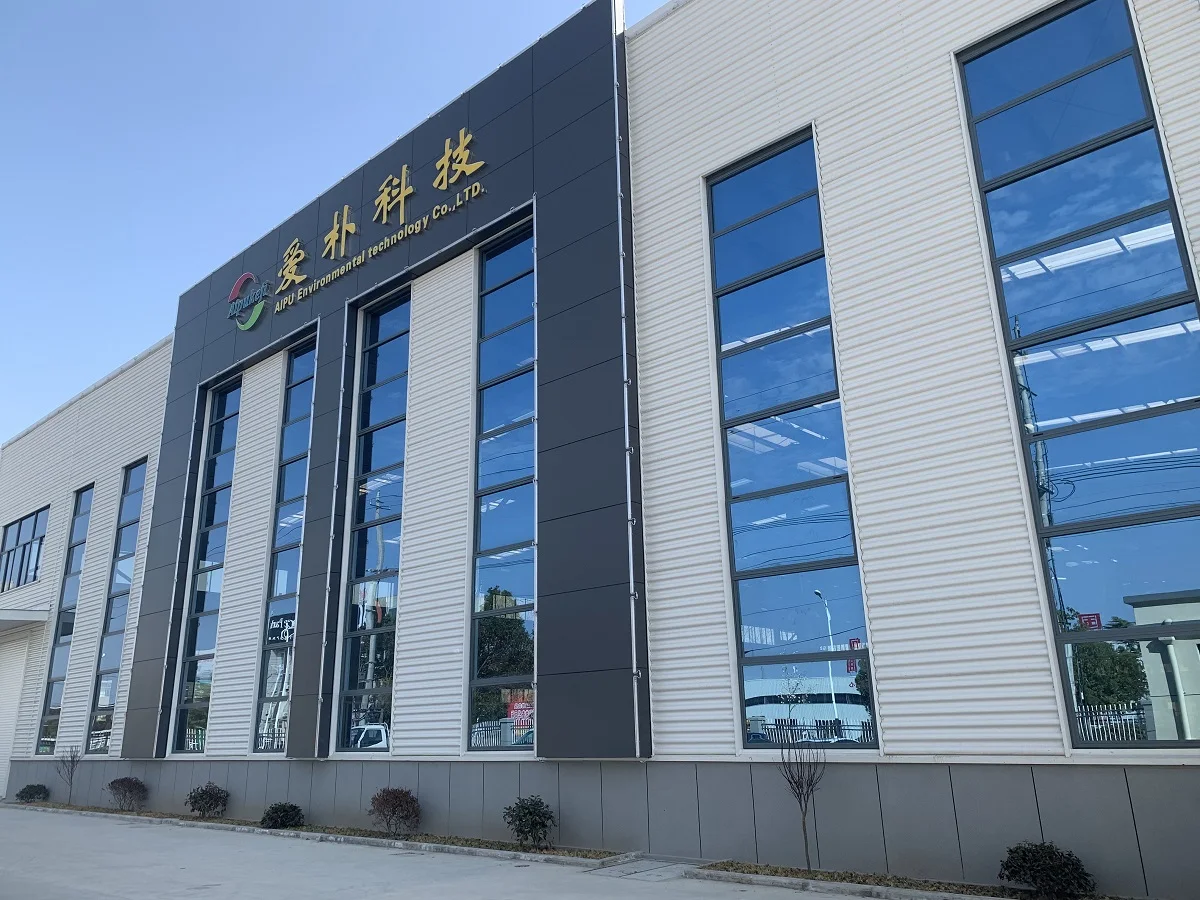

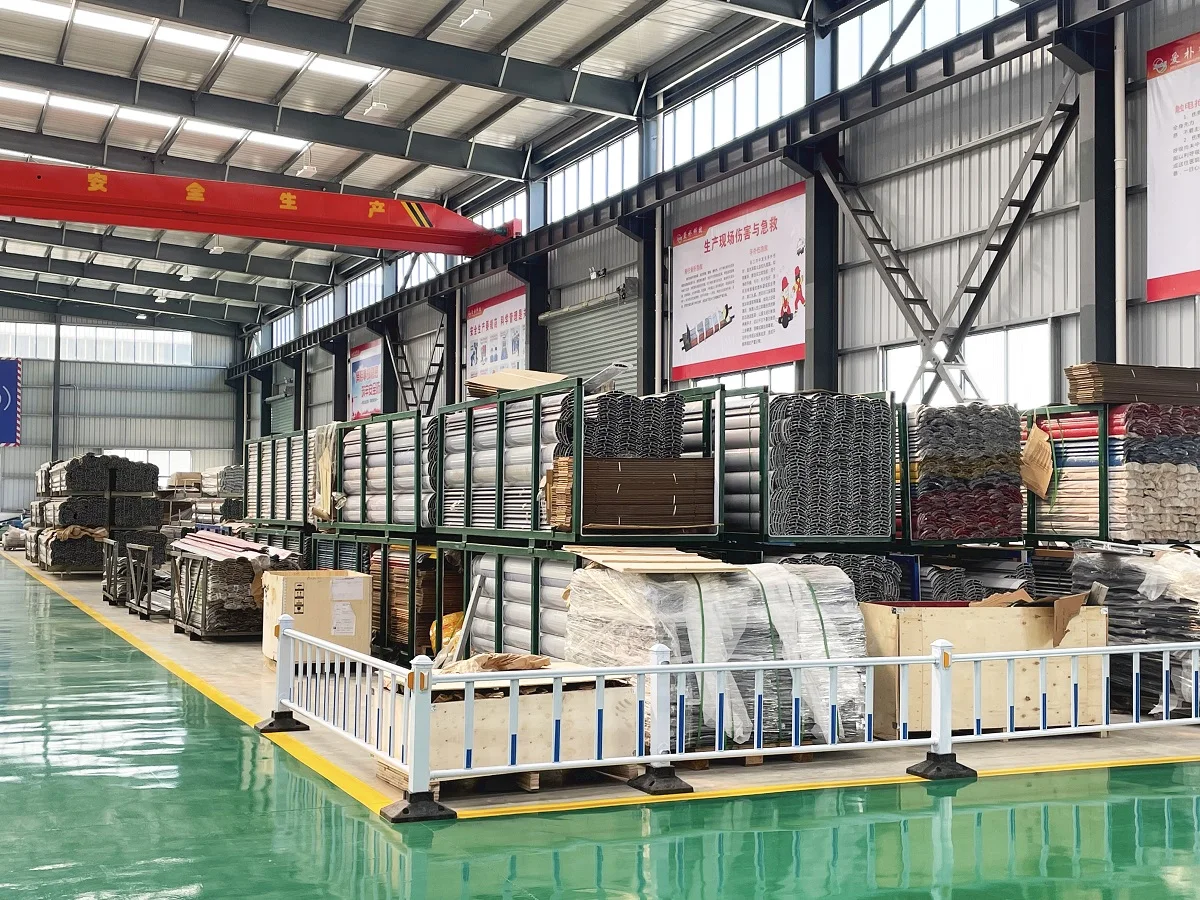

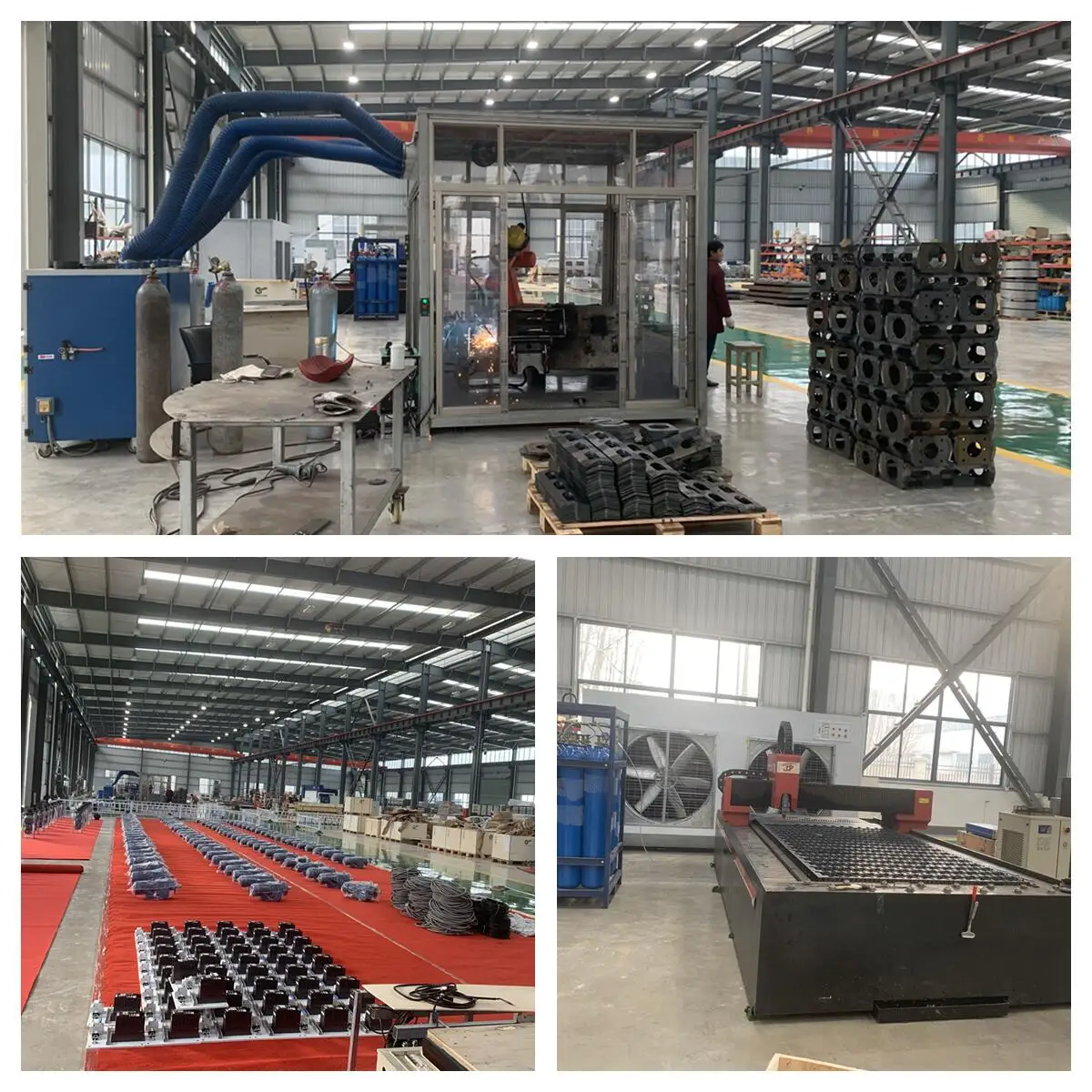

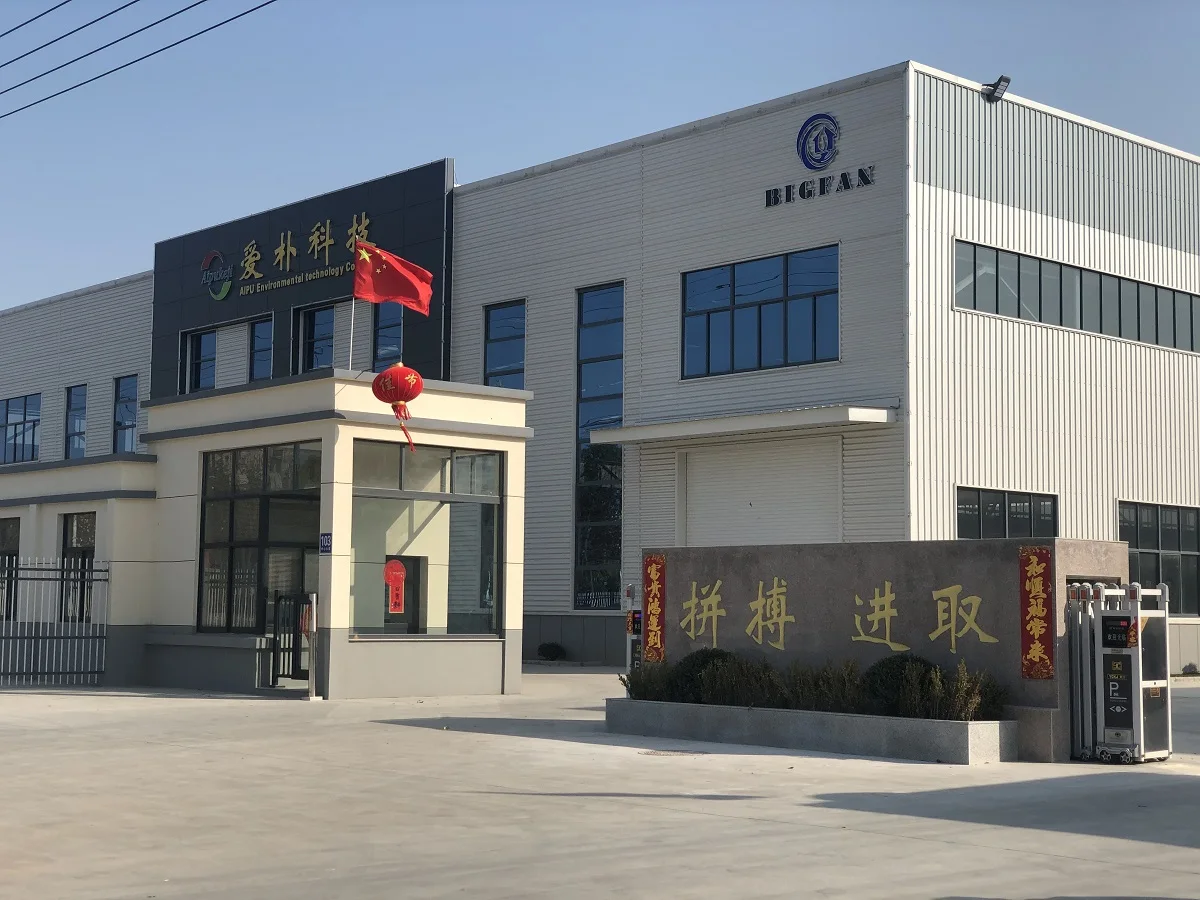

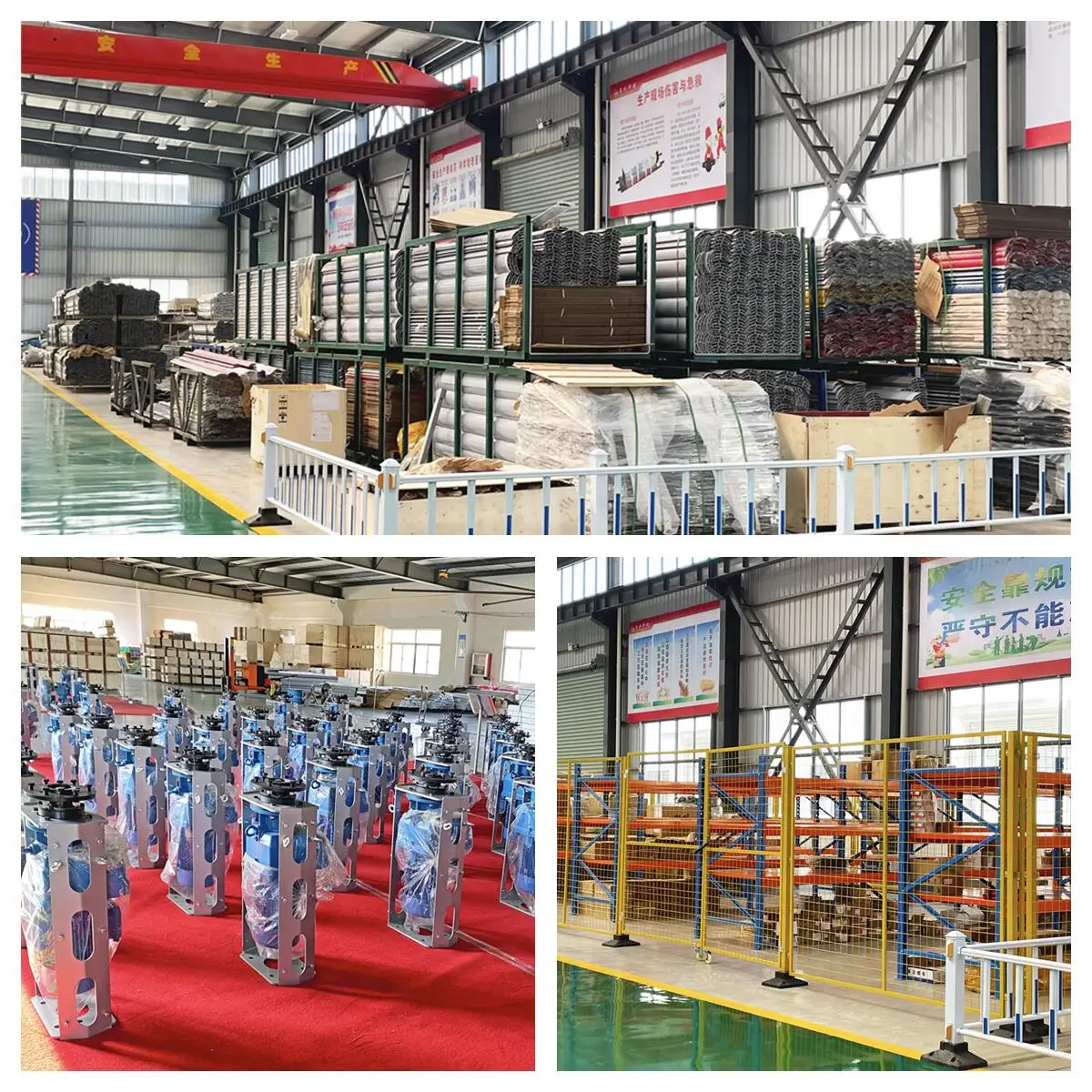

Shanghai Aipu Ventilation Equipment Co.,Ltd was established in 2008. China top one HVLS ceiling fan manufacturer and exporter with more than 11 years export experience. Our factory own a professional R&D team, production, sales and after-sales service team. Covers 8000m2 for production area,. We are the world's leading manufacturers of HVLS(High Volume Low Speed) fans ,commercial ceiling fan, portable fan and pedestal fan which are used in big warehouses, factories, distribution center, shopping malls, auditorium etc. We also have 2000m2 for office, storage area in Jiangsu and Guangzhou, with convenient, cheap and fast transportation. Aipu Fans–your best choice to improve ventilation solutions!
FAQ
Q: Are you the factory?
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.
Q: Where does your fan use in?
A: The fan is widely used in commercial spaces to ventilate and cool, like gyms, stadium, fitness clubs, restaurants, halls etc.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 3-5 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the qualitys.
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.
Q: Where does your fan use in?
A: The fan is widely used in commercial spaces to ventilate and cool, like gyms, stadium, fitness clubs, restaurants, halls etc.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 3-5 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the qualitys.
If you have any needs, welcome to send us your inquiry. We'll do our best to make all your needs satisfied!!!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $405 / set
- 10+ set: US $385 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this hvls ceiling fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the hvls ceiling fan be supplied for my local voltage?
The standard configuration is 220 V, 110 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Aipu Ventilation Equipment Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shanghai Aipu Ventilation Equipment Co., Ltd. range on HVACR Nexus.
