Hydrogen Booster Pump, H2, MRI

This hydrogen booster pump is published with the manufacturer’s full specification — voltage 0, power source Pneumatic. Made by Jinan ODMT Fluid Control Equipment Co., Ltd. (3 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Hydrogen Booster Pump

• Model Number: 0
• Power Source: Pneumatic
• Horsepower: 0
• Power: pneumatic
• Voltage: 0
• Warranty: 3 Years

Technical Specifications

Product Details

Introduction

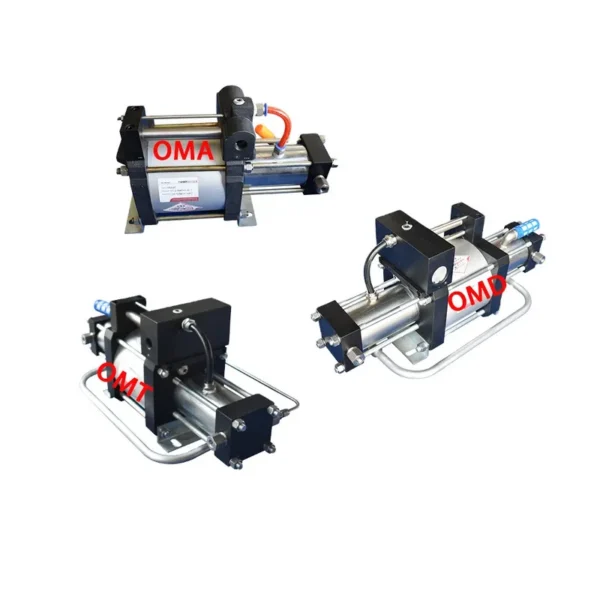

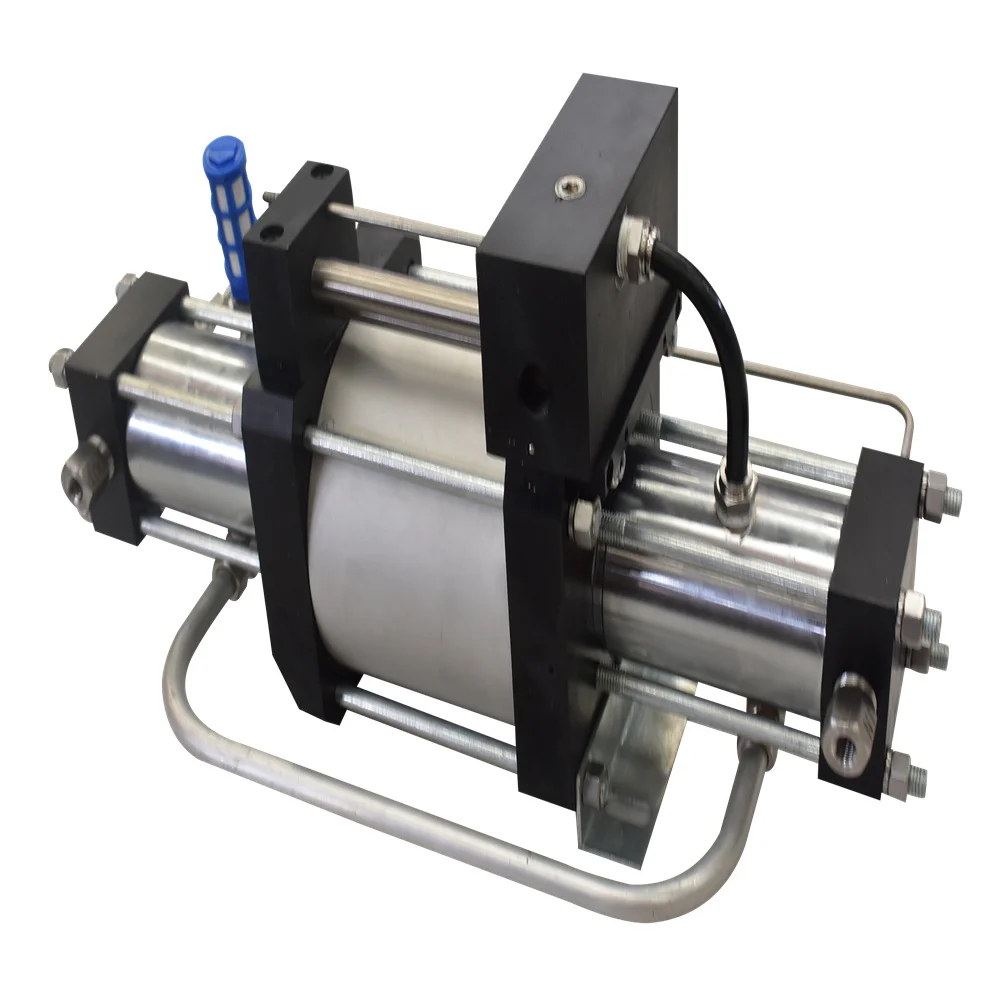

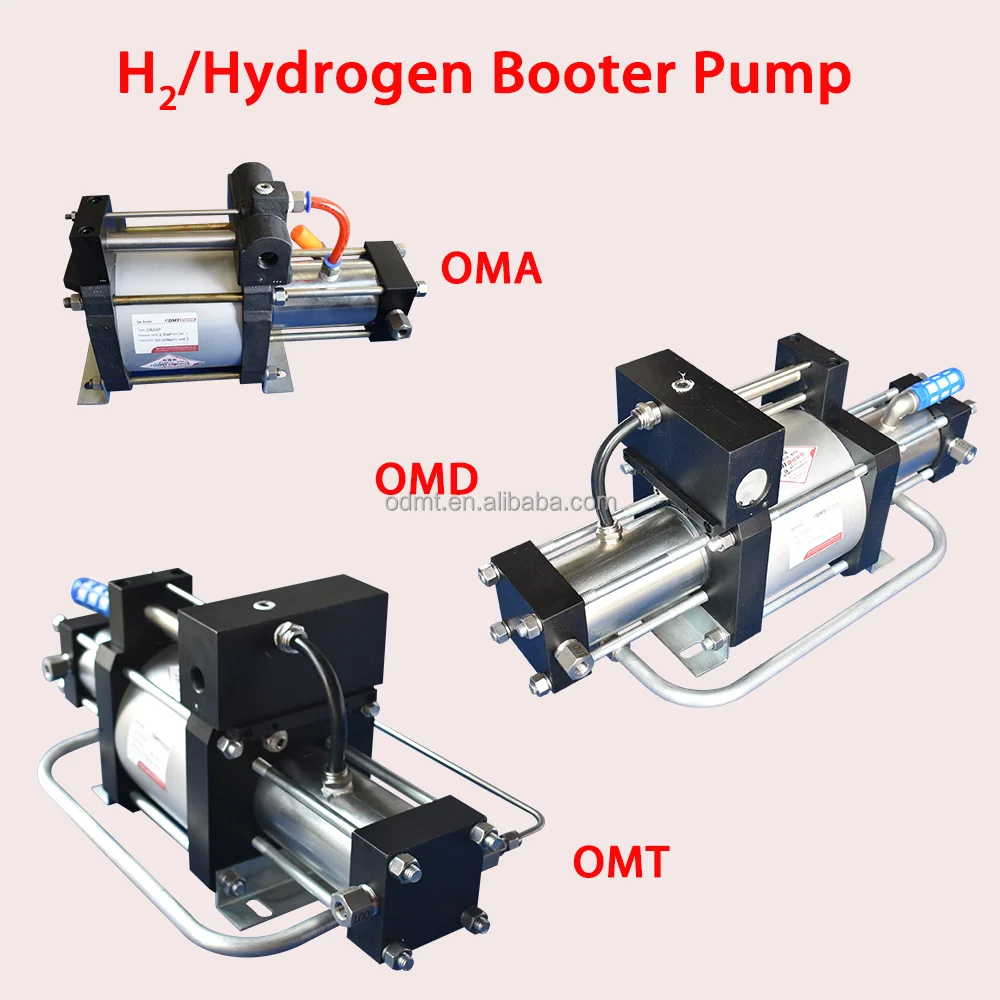

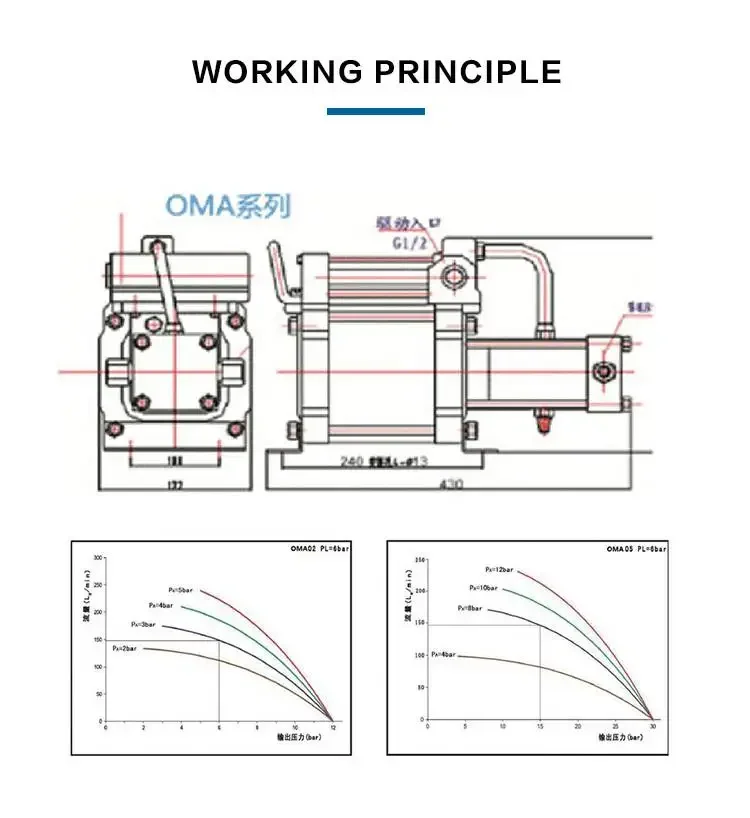

OMA/OMD/OMT-Series Hydrogen booster pump

This series of pump uses single pneumatic non-equilibrium gas distributing valves to move to and fro automatically. The drive parts of the pump are made of aluminum alloy or stainless steel. The full set of sealing parts is imported. The maximum drive
pressure is 10bar. We suggest customers use air pressure≤8bar to ensure long lifespan of the pump.
The diameter of the drive piston is 160mm. This pump is single acting. The pump heads can cool the exhaust air.

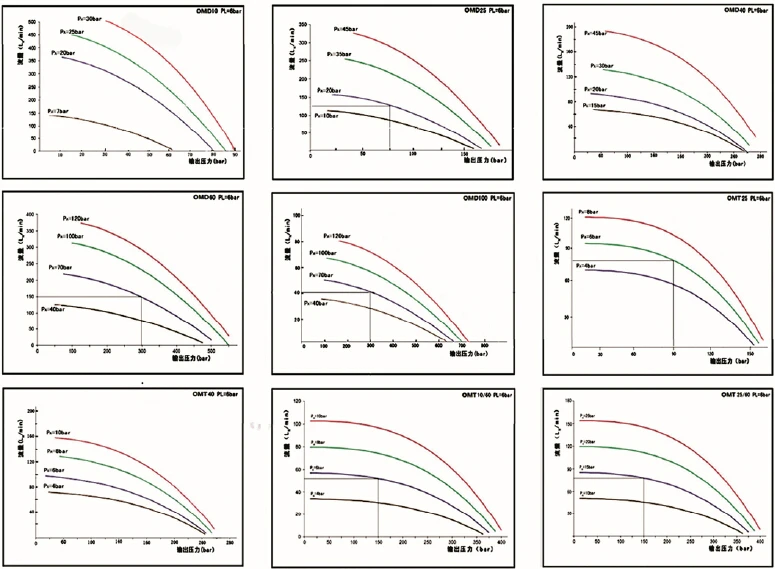

Product Paramenters

(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)

Model	PressureRatio	Min inlet pressure (bar)	Max inlet pressure(bar)	Max outlet pressure(bar)	Outlet Pressure Calculate Formula PB	Inlet size	Outlet size	Max flow L/Min (PL=6 bar)
OMA02	2:1	1.7	16	16	2PL	ZG1/2''	ZG1/2''	412@PA-6
OMA05	5:1	3.5	40	40	5PL	ZG1/2''	ZG1/2''	169@PA-6
OMA10	10:1	5.5	80	80	10PL	ZG1/4''	ZG1/4''	196@PA=20
OMA25	25:1	10	200	200	25PL	ZG1/4''	ZG1/4''	81@PA=20
OMA40	40:1	15	320	320	40PL	ZG1/4''	ZG1/4''	40@PA=20
OMA60	60:1	25	480	400	60PL	ZG1/4''	ZG1/4''	61@PA=40
OMA100	100:1	35	800	800	100PL	ZG1/4''	ZG1/4''	39@PA=40

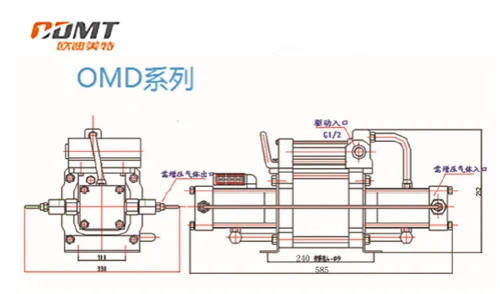

Type	Pressure ratio	Min. Gas Inlet Pressure PA(bar)	Max. Gas Inlet Pressure PA(bar)	Max. Allowed Outlet Pressure PB(bar)	Outlet Pressure Calculate Formula PB	Gas Inlet	Gas Outlet	Max. Flow Ln/min @PL=6bar
OMD10	10:1	5 bar	80 bar	80 bar	10PL+PA	ZG1/4	ZG1/4	372@PA=6
OMD25	25:1	10bar	200bar	200bar	25PL+PA	ZG1/4	ZG1/4	154@PA=20
OMD40	40:1	15bar	320bar	320bar	40PL+PA	ZG1/4	ZG1/4	92@PA=20
OMD60	60:1	25bar	480bar	480bar	60PL+PA	ZG1/4	ZG1/4	115@PA=40
OMD100	100:1	35bar	800bar	800bar	100PL+PA	ZG1/4	ZG1/4	74@PA=40

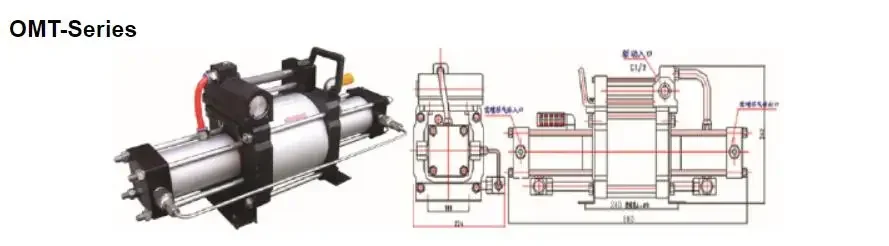

Type	Pressure ratio	Min. Gas Inlet Pressure PA(bar)	Max. Gas Inlet Pressure PA(bar)	Max. Allowed Outlet Pressure PB(bar)	Outlet Pressure Calculate Formula PB	Gas Inlet	Gas Outlet	Max. Flow Ln/min @PL=6bar
OMT40	40:01:00	0.1bar	10bar	320bar	40PL+6PA	ZG1/4’’	ZG1/4’’	124@PA=8
OMT10/60	10:1/60:1	0.1bar	10bar	480bar	60PL+6PA	ZG1/4’’	ZG1/4’’	84@PA=8
OMT25/60	25:1/60:1	0.1bar	25bar	480bar	60PL+2.5PA	ZG1/4’’	ZG1/4’’	80@PA=15
OMT100	100:01:00	0.1bar	10bar	800bar	100PL+10PA	ZG1/4’’	ZG1/4’’	63@PA=8

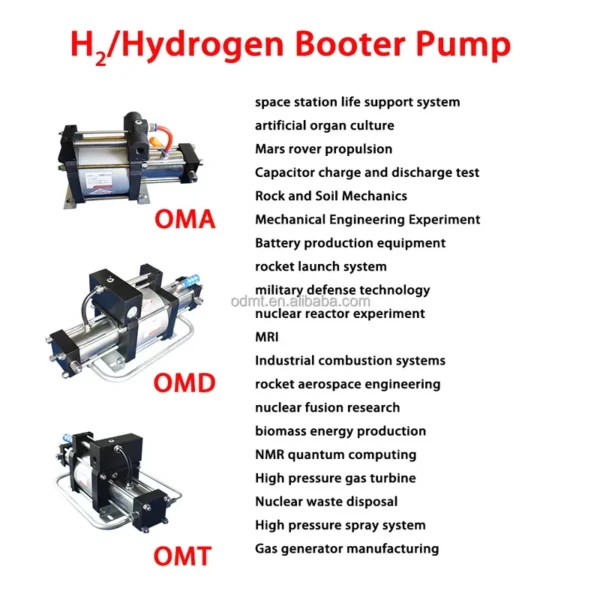

Application

100 application scenarios and industries

number	industry
1	Fuel cell vehicle manufacturing
2	Hydrogen fuel station construction
3	Hydrogen storage and transportation
4	laboratory research
5	aerospace industry
6	Semiconductor manufacturing
7	Metal processing and smelting
8	chemical production
9	Medical device manufacturing
10	Energy storage and conversion
11	Power system backup power
12	Food and Beverage Packaging
13	Textile industry
14	Chemical Analysis and Experiments
15	Automotive fuel cell system
16	Solar and wind energy storage
17	MRI equipment
18	Compressed air energy storage system
19	Deep sea probes and submersibles
20	Power Industry
21	Environmental testing and monitoring
22	Natural Gas Substitution and Blending
23	rocket propulsion system
24	Boiler combustion in power plant
25	Microelectronics Manufacturing
26	Oil and gas extraction
27	Ship power system
28	High performance gas chromatograph
29	Turbine and engine testing
30	Flame testing and simulation
31	geological exploration and mining
32	Refrigeration and air conditioning systems
33	rocket engine test
34	Gas and city gas
35	Pipeline pressure maintenance
36	Nuclear Industry
37	Hydrogen injection system
38	High pressure natural gas injection
39	High Altitude Instruments and Equipment
40	Ultra high vacuum system

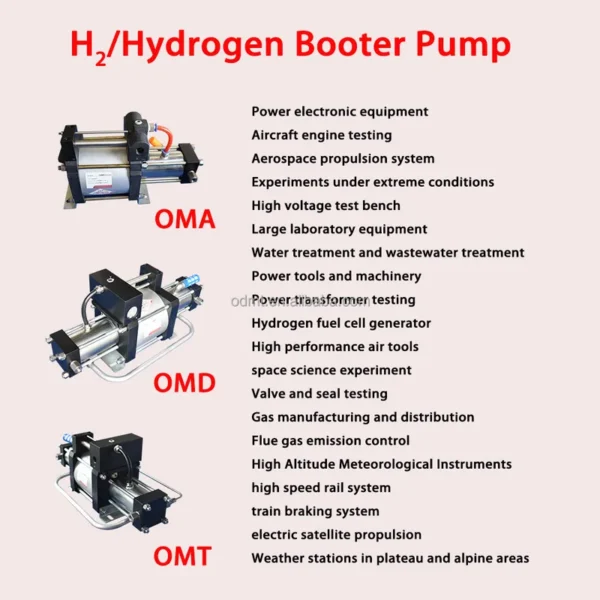

41	Power electronic equipment
42	Aircraft engine testing
43	Aerospace propulsion system
44	Experiments under extreme conditions
45	High voltage test bench
46	Large laboratory equipment
47	Water treatment and wastewater treatment
48	Power tools and machinery
49	Power transformer testing
50	Hydrogen fuel cell generator
51	High performance air tools
52	space science experiment
53	Valve and seal testing
54	Gas manufacturing and distribution
55	Flue gas emission control
56	High Altitude Meteorological Instruments
57	high speed rail system
58	train braking system
59	electric satellite propulsion
60	Weather stations in plateau and alpine areas
61	robot technology
62	Nuclear power plant fuel manufacturing
63	Electron beam welding system
64	Turbocharger testing
65	Microgravity environment experiment
66	gas chromatography mass spectrometry
67	Spectroscopic instrument calibration
68	aircraft fuel system
69	Hydraulic system testing
70	High voltage laboratory research
71	gas injection oil recovery
72	agricultural equipment
73	Hydrogen battery storage system
74	Noise and vibration testing
75	NMR spectroscopy
76	High temperature gas phase reactor
77	satellite propulsion system
78	aircraft hydraulic system
79	High pressure combustion test
80	High temperature heat treatment
81	space station life support system
82	artificial organ culture
83	Mars rover propulsion
84	Capacitor charge and discharge test
85	Rock and Soil Mechanics
86	Mechanical Engineering Experiment
87	Battery production equipment
88	rocket launch system
89	military defense technology
90	nuclear reactor experiment
91	MRI
92	Industrial combustion systems
93	rocket aerospace engineering
94	nuclear fusion research
95	biomass energy production
96	NMR quantum computing
97	High pressure gas turbine
98	Nuclear waste disposal
99	High pressure spray system
100	Gas generator manufacturing

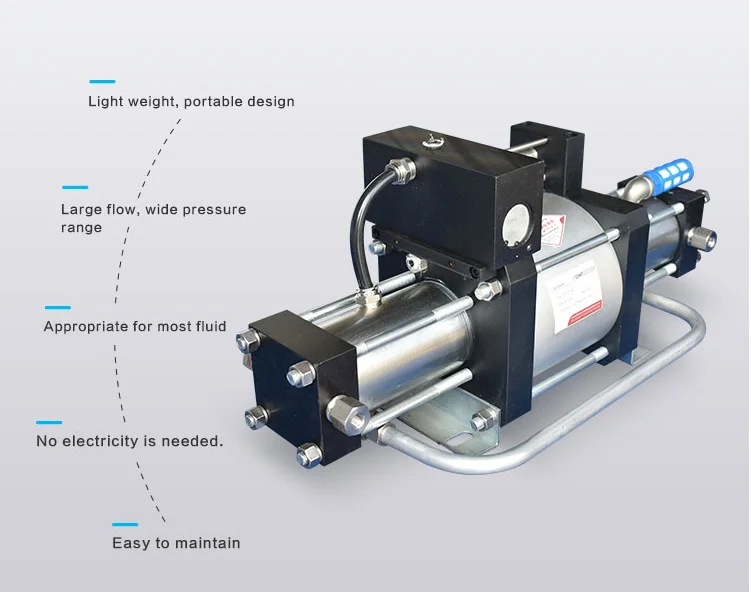

Product Advantages

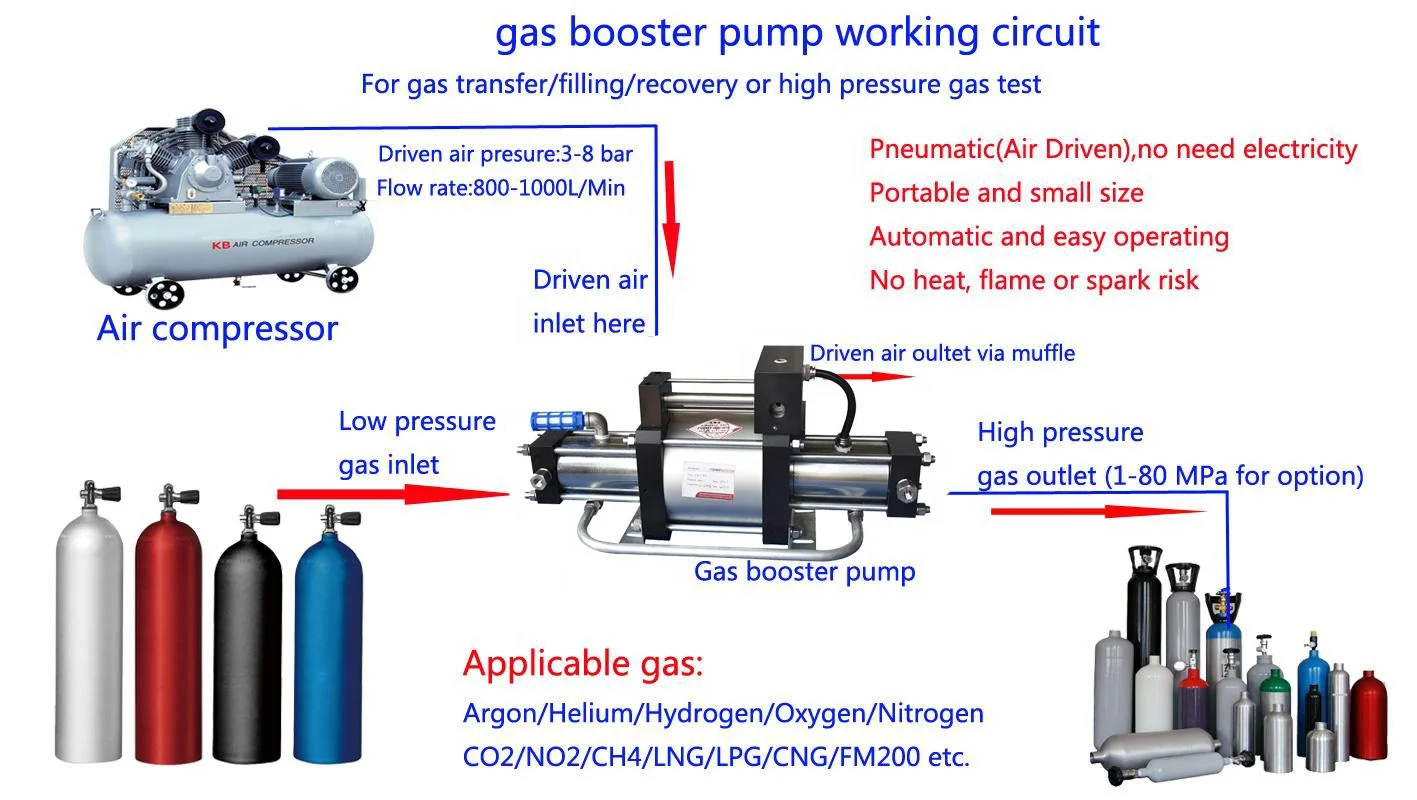

1.Compressed Air driven – no electricity required (connect to normal air compressor)
In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar
2.No airline lubricator required
3. Hydrocarbon free-Separation between air drive and gas booster sections
4.Wide range of models with different ratios
5.Built-in-cooling unit inside each models
6.Easy to install, operate and maintain
7. High quality seals, long life service available
8. Gas drive, No heat,flame or spark risk and explosion proof
9.Automatic pressure holding, whatever the cause of the pressure drop, the pump will automatically start, keep the loop pressure constant
10. All components of the contact with the gas are made of aluminum or stainless steel

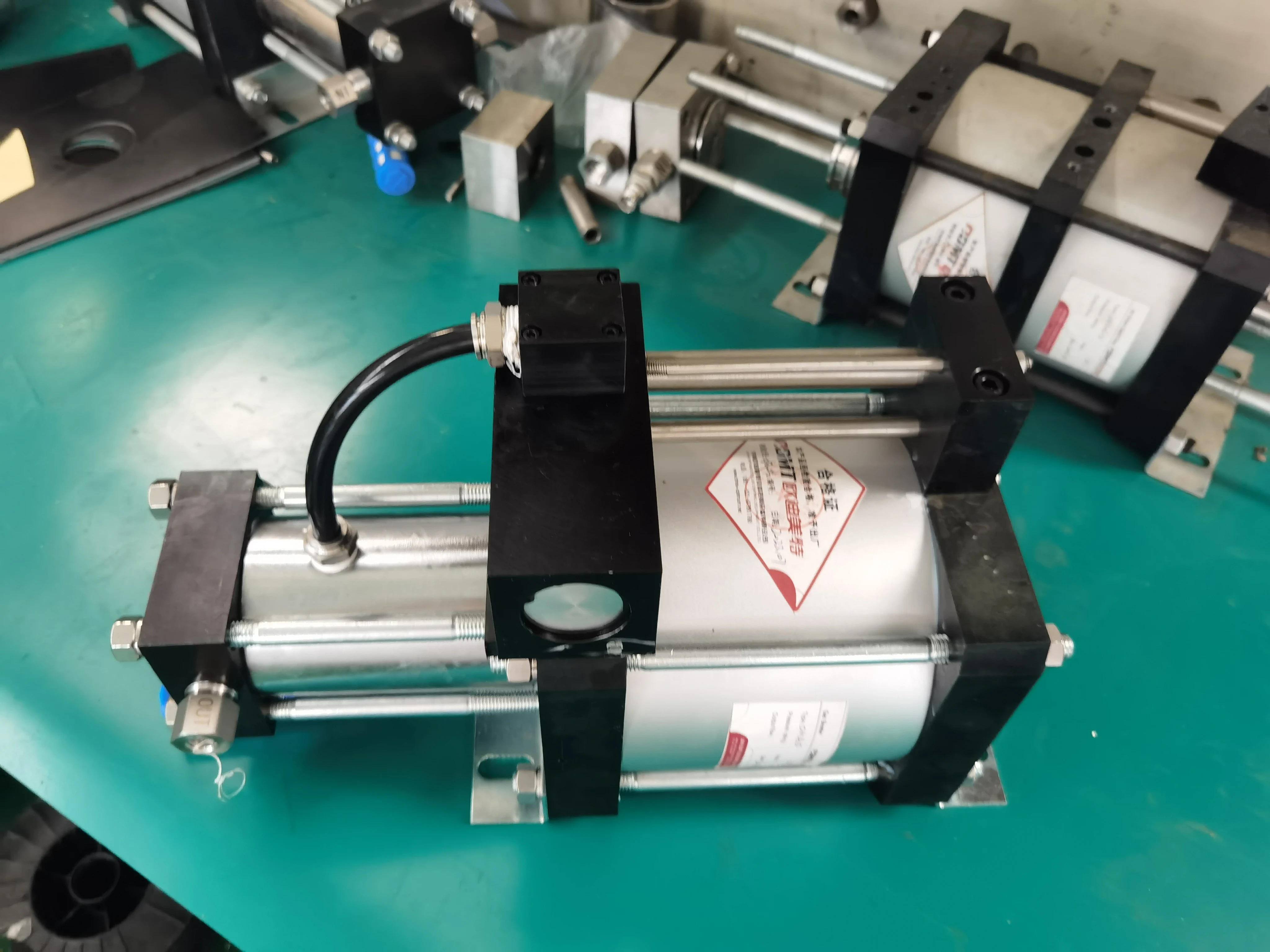

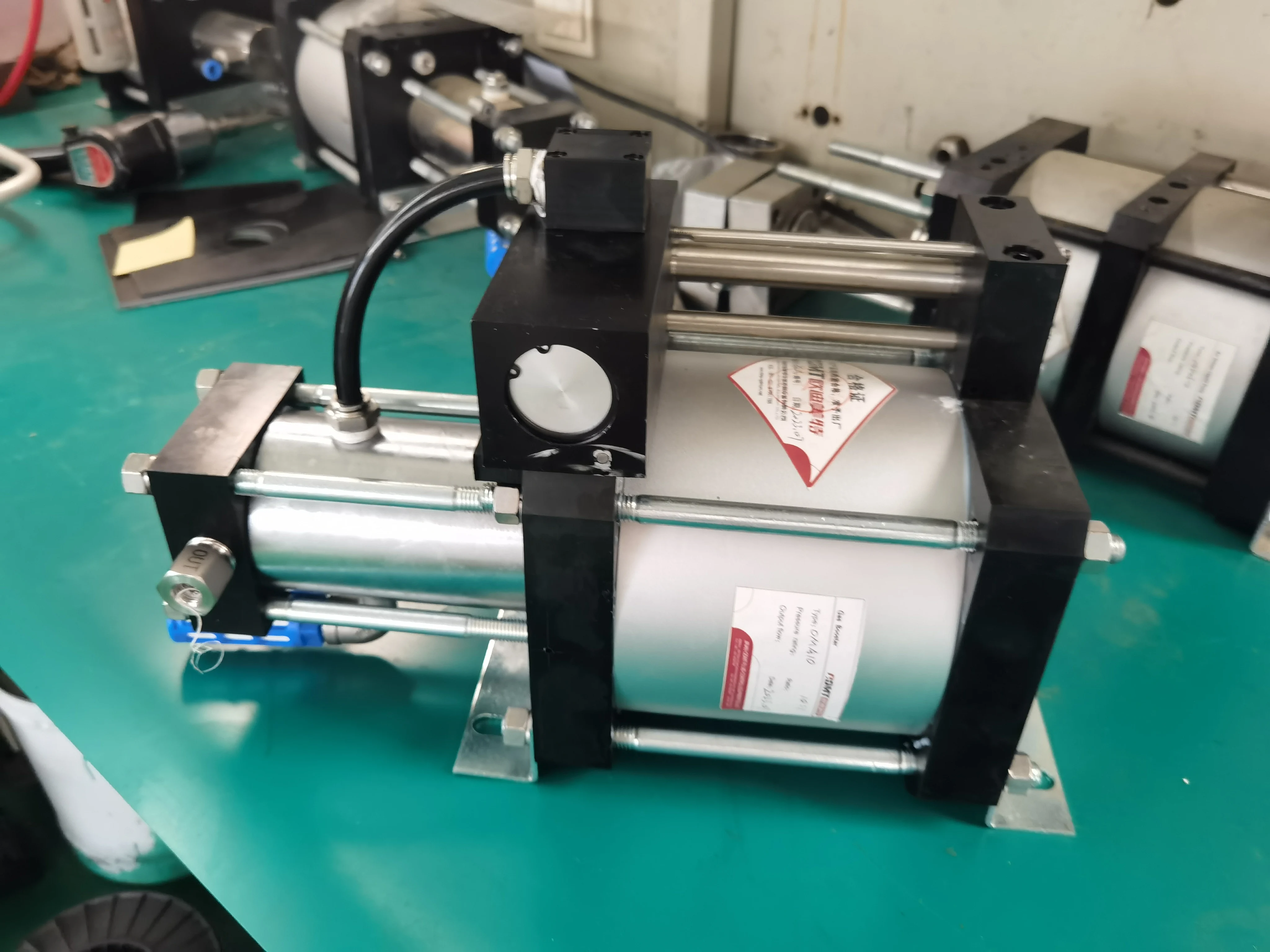

Details Images

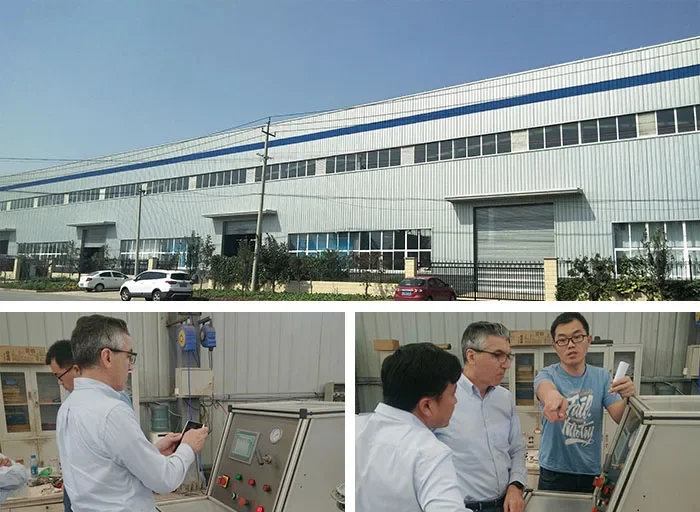

Company Profile

Packing & Delivery

FAQ

Q1: What's your main products of your company?
A1: We specialized in all kinds of machines ,such as engine stand Hydraulic press riveting machine test bench brake riveting machine and so on .

Q2: Where is our factory located? How can I visit there?
A2 : Add： Opposite to Quanfu Village Arch, Taohuayuan Road, Ping'an Street, Changqing District, Jinan, Shandong Province

Q3: What is your trade terms?
A3 : FOB, CFR and CIF all acceptable.

Q4: What's the Payment Terms ?
A4 : T/T ,50% initial payment when order ,50% balance payment before shipment ;Irrevocable LC at sight .

Q5: What's the MOQ?
A5: 1 set .(Only some low cost machines will be more than 1 set )

Click now to get your free quote！！！

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this hydrogen booster pump?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this hydrogen booster pump carry?

It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the hydrogen booster pump be supplied for my local voltage?

The standard configuration is 0. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jinan ODMT Fluid Control Equipment Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jinan ODMT Fluid Control Equipment Co., Ltd. range on HVACR Nexus.
