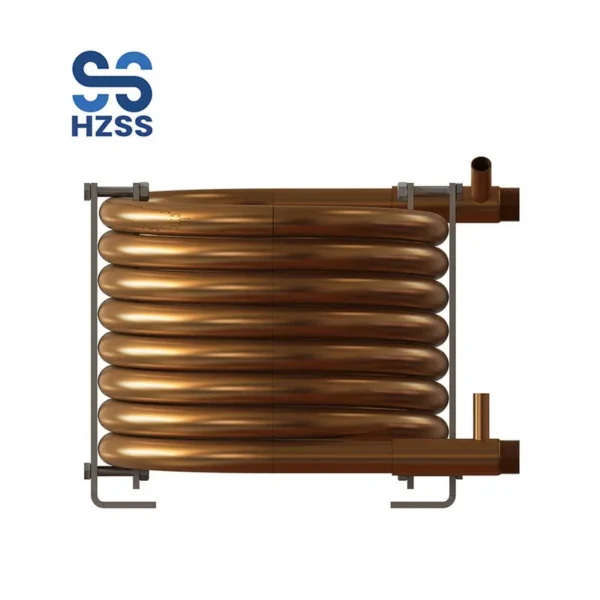

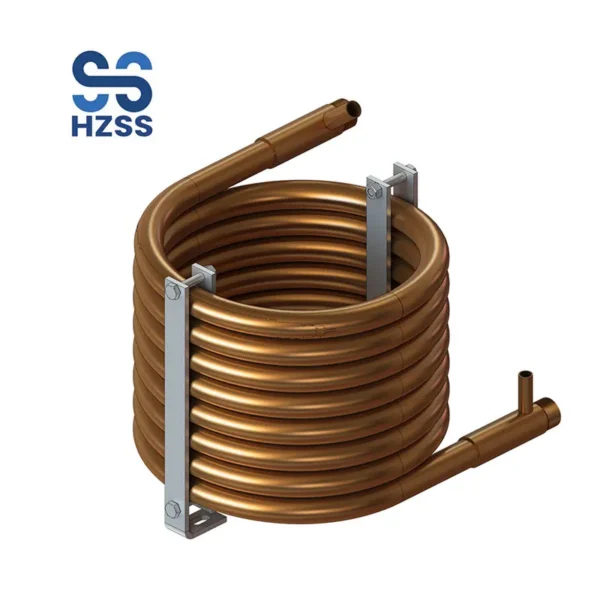

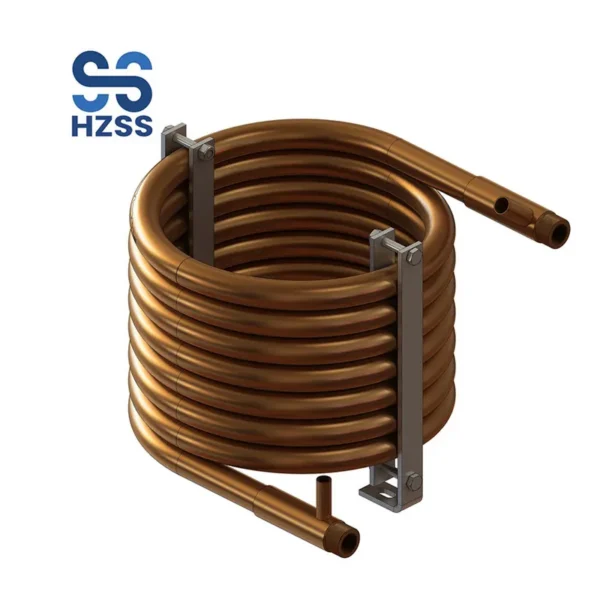

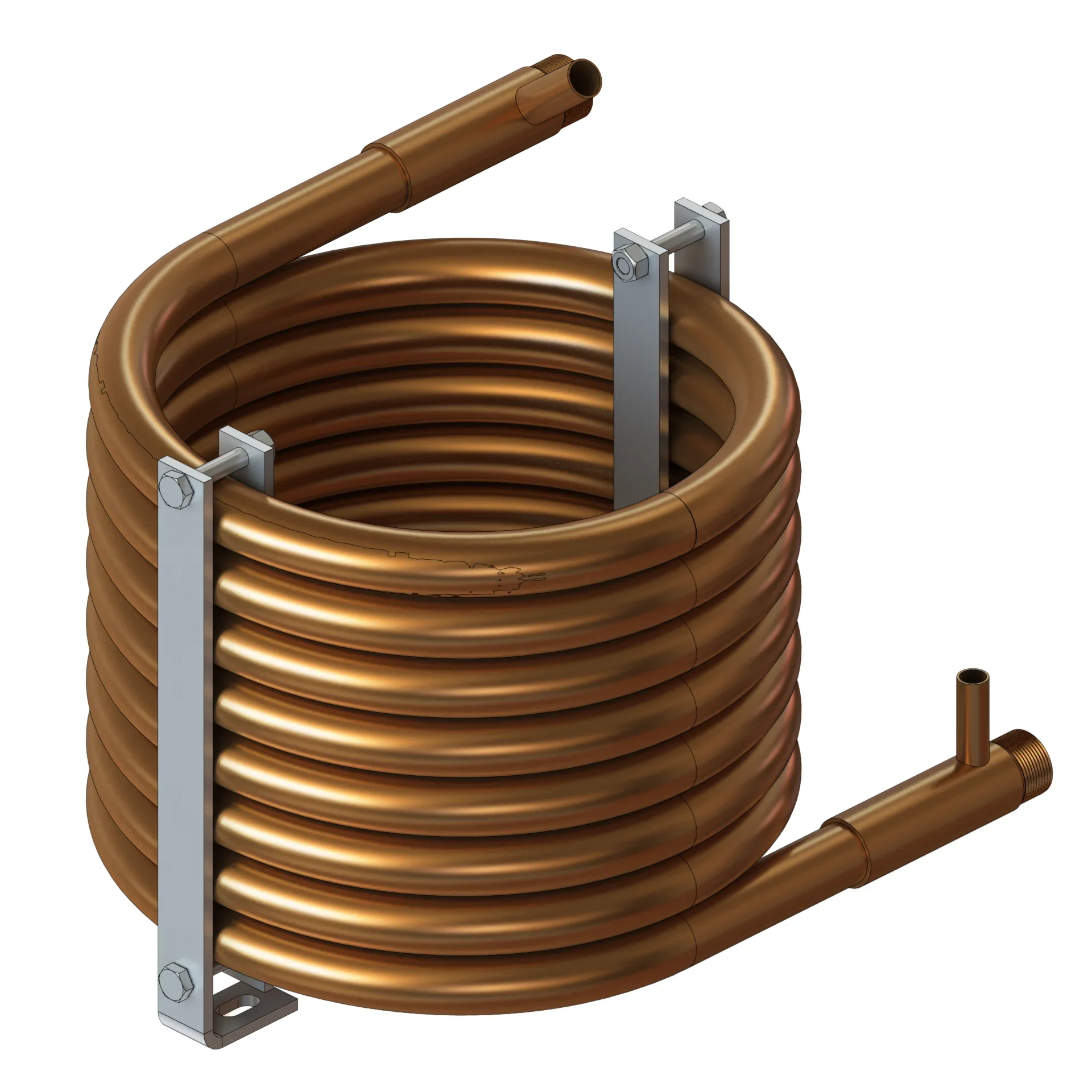

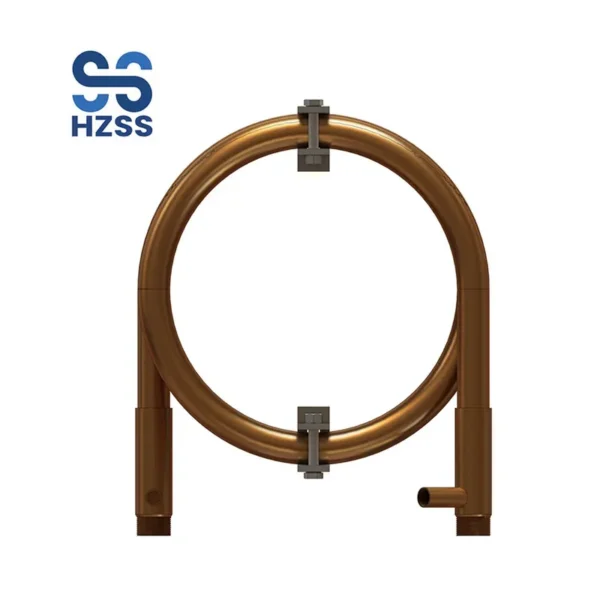

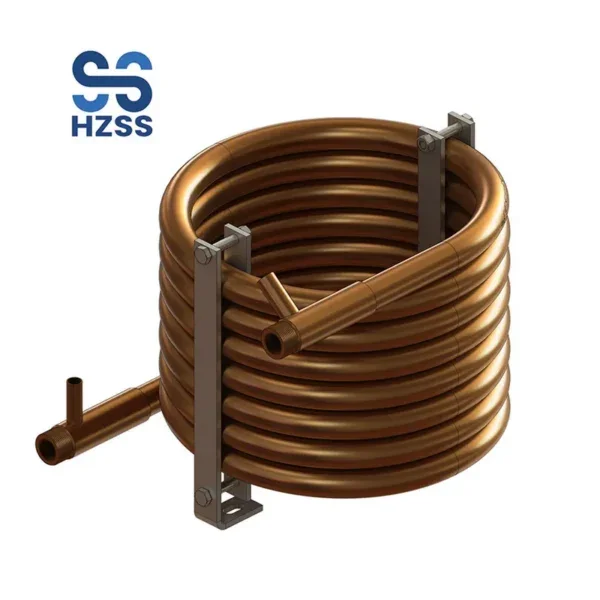

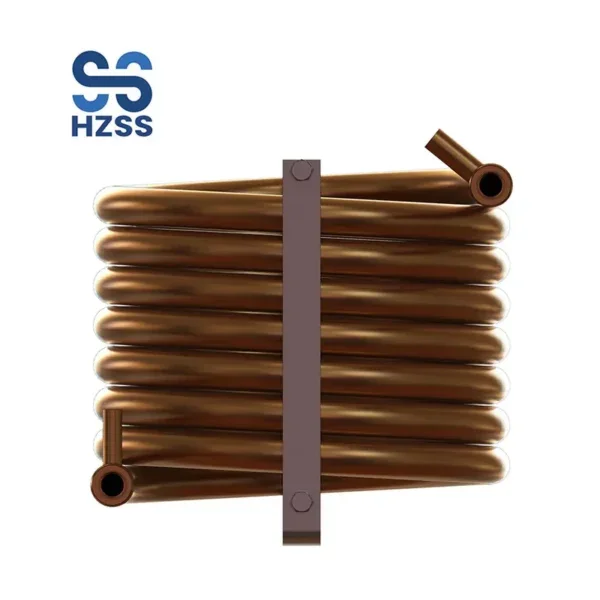

Spiral heat exchanger — 110V/220V/380V, power 0.5~100 Kw(0.67~134.10hp). The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Spiral Heat Exchanger
- Model Number: SS-0050TT
- Power(W): 0.5~100 Kw(0.67~134.10hp)
- Voltage: 110V/220V/380V
- Material: Copper or stainless steel or Titanium or cupronickel
- Tube Material: Copper
- Warranty: 1 Year
Technical Specifications
| Voltage | 110V/220V/380V |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life, Patented Product, Energy Saving |
| Place Of Origin | Zhejiang, China |
| Power(W) | 0.5~100 Kw(0.67~134.10hp) |
| Brand Name | HZSS |
| Model Number | SS-0050TT |
| Maximum Working Pressure | refer to details |
| Dimension(L*W*H) | as drawing |
| Product Name | Heat Exchanger |
| Material | Copper or stainless steel or Titanium or cupronickel |
| Application | Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
| Feature | High Efficiency, Low Cost, Low Noise Level |
| Heat Exchanger | High Efficient Heat Exchanger |
| Product Type | Heating Equipment |
| Brand | HZSS |
| Tube Material | Copper |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| After Warranty Service | Online Service |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model | Refrigerant Inlet OD mm | Refrigerant Outlet OD mm | Water Connection OD mm | Length mm | Width mm | Height mm | A mm | B mm | C mm |
SS-0050 | 9.52 | 9.52 | 16 | 252 | 171 | 109 | 146 | 41 | 60 |
SS-0075 | 9.52 | 9.52 | 16 | 252 | 171 | 109 | 146 | 41 | 84 |
SS-0100 | 9.52 | 9.52 | 16 | 252 | 171 | 133 | 146 | 41 | 108 |
SS-0150 | 9.52 | 9.52 | 16 | 338 | 258 | 123 | 230 | 51 | 95 |
Ordering and Pricing
- Minimum order quantity: 10 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this spiral heat exchanger?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the spiral heat exchanger be supplied for my local voltage?
The standard configuration is 110V/220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hangzhou Shenshi Energy Conservation Technology Co., Ltd., based in China. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hangzhou Shenshi Energy Conservation Technology Co., Ltd. range on HVACR Nexus.
