This ice machine is published with the manufacturer’s full specification — 380 V, 25kw. Made by Shandong Zeren Mechanical Equipment Co., Ltd. (4 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machine
- Model Number: 1ton/Hours, 2ton/Hours, 3ton/Hours, 5ton/Hours
- Power: 25kw
- Voltage: 380 V
- Ice Storage Capacity: convention
- Material: SS 304L/316L
- Refrigerant: R507, R404A
Technical Specifications
| Ice Shape | tube ice |
|---|---|
| Ice Size(Kg) | 22-35mm |
| Ice Storage Capacity | convention |
| Voltage | 380 V |
| Power | 25kw |
| Refrigerant | R507, R404A |
| Compressor Brand | Copeland, Bitzer, RefComp |
| Key Selling Points | Automatic, High-Accuracy, Easy To Operate, Competitive Price, Other, High Productivity, Famous Brand Low Voltage Components, Remote Monitoring, Long Service Life, Patented Product, Energy Saving, Low Maintenance Cost, Famous Brand Motor |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Compressor, Evaporator, Control panel, Evaporator, PLC |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 2000 |
| Brand Name | Zeren |
| Model Number | 1ton/Hours, 2ton/Hours, 3ton/Hours, 5ton/Hours |
| Dimension(L*W*H) | various |
| Product Name | 5 ton Ice Tube Machine |
| Cooling Way | Air Cooling / Water Cooling |
| Ice Type | Tube Shape |
| Material | SS 304L/316L |
| Usage | Industral |
| Feature | Fast Making |
| Certification | CE Certificate |
| After Warranty Service | Within One Year |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

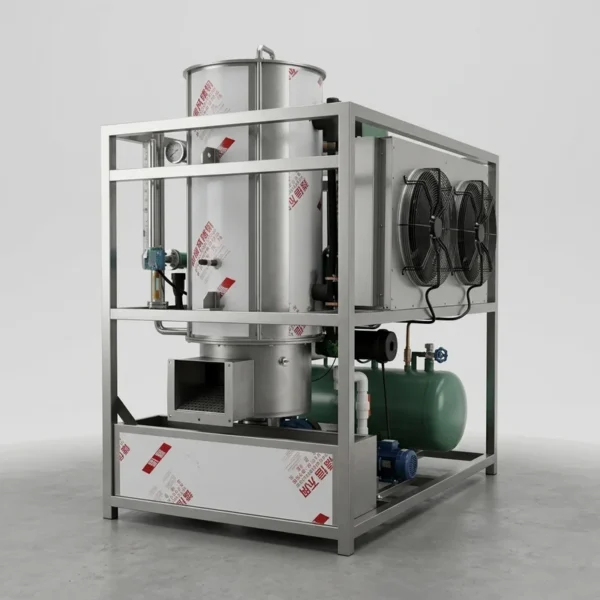

Tube ice machine
Primarily produces cylindrical tube ice with an outer diameter of 22-45 mm and a length of 20-60 mm (customizable). The ice is transparent or semi-transparent, featuring high hardness, low water content, and slow melting rate. The ice-making principle involves circulating water through the outer surface of vertical evaporator tubes; the refrigeration system cools the tubes, the water film on the tube surface to freeze into hollow cylindrical ice. After reaching the preset thickness, hot gas defrosting is activated to separate the tube ice from the evaporator, and the ice falls into the ice storage bin via gravity.Features a modular and compact design, with the main body constructed from food-grade 304/316 stainless steel, meeting international food safety standards. Core components adopt international standard parts, often equipped with high-efficiency scroll or semi-hermetic reciprocating compressors from well-known brands such as Danfoss and Copeland, as well as air-cooled/water-cooled condensers and precision reducers. It is compatible with various environmentally friendly refrigerants such as R404A, R507A, and R134a. Supports fully automatic control, enabling one-button start/stop, automatic ice making, defrosting, and ice storage, eliminating the need for frequent manual intervention. Suitable for long-term, high-load ice-making needs in scenarios such as food processing, beverage brewing, and cold chain logistics.
Product Paramenters
Model | Capacity (Ton/24hours) | Cooled Mode | Compressor Power(KW) | Dimension L*W*H(mm) |
ZRT0.5T | 0.5Ton | Air | 3.5KW | 1300*1100*1800mm |
ZRT1T | 1Ton | Air | 4.5KW | 1500*1300*1900mm |
ZRT2T | 2Ton | Air | 8.9KW | 1600*1400*2100mm |
ZRT3T | 3Ton | Air | 12.5KW | 1700*1500*2300mm |
ZRT5T | 5Ton | Air/Water | 23.5KW | 1800*1500*2500mm |
ZRT10T | 10Ton | Air/Water | 33.5KW | 1900*1600*2900mm |
ZRT15T | 15Ton | Air/Water | 44.5KW | 2000*1600*3500mm |
ZRT20T | 20Ton | Air/Water | 64.0KW | 2100*1700*4000mm |
ZRT25T | 25Ton | Air/Water | 76.5KW | 2300*1800*5000mm |
ZRT30T | 30Ton | Air/Water | 93.5KW | 2500*2000*6000mm |
ZRT30T | 40Ton | Air/Water | 120KW | 2800*2200*7500mm |
ZRT50T | 50Ton | Air/Water | 150.0KW | 3000*2500*9000mm |
Manufacturing Technique
Application
Ice machines are widely used across the food service, hospitality, retail, food processing, industrial, and marine sectors. In
restaurants, bars, hotels, and supermarkets, they provide a reliable supply of ice for beverages, food preservation, and product display. In seafood and meat processing, ice is essential for temperature control and freshness maintenance during storage and transport. Bakeries, central kitchens, and food manufacturing facilities rely on ice for rapid cooling and process temperature management. Industrial applications include concrete cooling, chemical mixing, and textile production, where ice is used to regulate heat and maintain quality. For the marine industry, particularly distant-water fishing vessels, ice machines enable long-duration preservation of catches at sea, ensuring freshness upon return to port. Cold chain logistics and long-haul transportation also depend on ice for sustained low-temperature protection of perishable goods. From daily commercial operations to heavy-duty industrial and marine environments, ice machines deliver efficient and consistent cooling solutions across global markets.

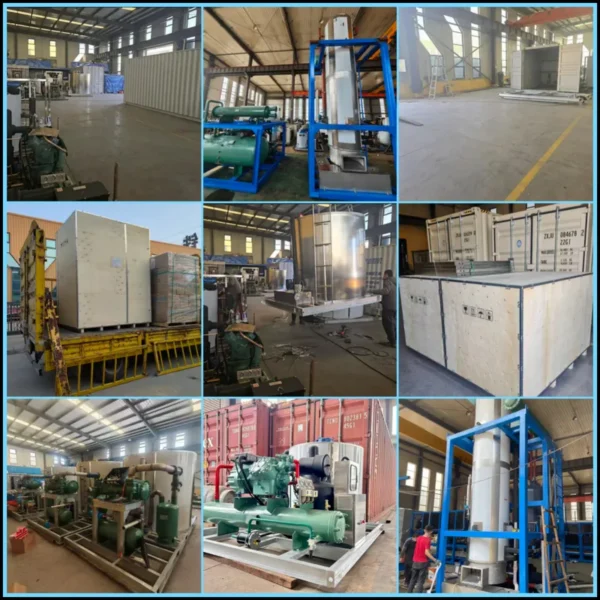

Our Factory
ABOUT ICE ZR
Shandong Zeren Machinery Equipment Co., Ltd. was established in 2022 and is a high-tech enterprise that integrates ice making technology research and development, production and manufacturing, sales and services.
The company's headquarters is located in Jinan, Shandong, known as the beautiful "World Spring Water Capital". The workshop covers an area of 12000 square meters and has 6 ice making equipment production lines, multiple horizontal and vertical machine lathes, with an annual output value of over 70 million yuan. The main products are freshwater flake ice machines, seawater flake ice machines, flake ice machine evaporators, tube ice machines, strip ice machines, container type fully automatic ice storage and delivery systems, etc. The daily production capacity ranges from 350KG to 100T, and the products are widely used in large commercial chain supermarkets, poultry slaughtering, deep processing of meat and aquatic products, chemical dyes, mine cooling, concrete construction, offshore fishing, indoor and outdoor ski resorts, hotels and catering industries at home and abroad.
The Zeren series ice makers not only occupy a significant position in domestic and foreign commercial chain supermarkets, poultry slaughtering, meat and seafood deep processing, but also are exported to more than 20 countries and regions such as Central Asia, Southeast Asia, Australia, South America, the Middle East, and Africa, and have won unanimous praise from domestic and foreign customers.WHY ICE ZR ?
Boasting a professional R&D team of over 30 seasoned engineers, ZR MACHINERY’s Technology Research & Development Department has always been at the forefront of industry trends. We are committed to continuous technological innovation, focusing on optimizing core performance metrics—such as boosting equipment capacity, reducing energy consumption, and minimizing water usage—to deliver more efficient, cost-effective, and eco-friendly ice-making solutions. To further enhance our innovation capabilities and leverage cutting-edge academic resources, we have established long-term strategic cooperation with Shandong University, a prestigious top-tier university in China renowned for its expertise in mechanical engineering and industrial technology. Through the synergy of industrial practice and academic research, our R&D efforts have yielded remarkable results: to date, ZR MACHINERY (Zeren) has secured more than 30 patents in the ice machine industry, covering key technologies including energy-saving refrigeration systems, intelligent control modules, and high-capacity ice production structures. These patents not only demonstrate our strong technical strength but also ensure that our products maintain a competitive edge in terms of performance, reliability, and sustainability.
Customer Photos
Certifications
FAQ
1.How to achieve temperature control?

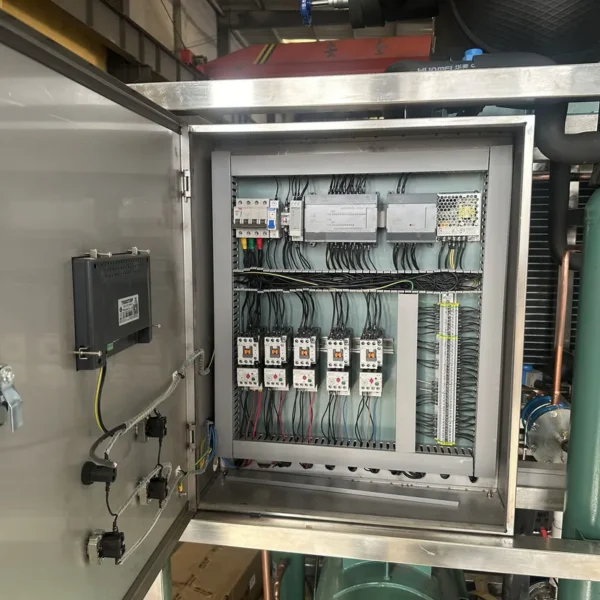

The PLC or digital displayer is connected to the PT100 temperature sensor installed on the tank through the signal line to control the temperature.
2.How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
4. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
5.Do you provide after-sales service?
Yes,we could provide after-sales service.We have many professional engineers, they can go to your place and teach your person installation and brewing.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $7999 / set
- 10+ set: US $7600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machine carry?
It is supplied with CE Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
