Ice Machine, 500kg, 440V, 1ton

Ice machine — 440V,380V,220V, capacity 1ton. The complete factory specification follows. Made by Shandong Yinuo Refrigeration Engineering Co., Ltd. (3 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Ice Machine

• Power: 5 kW
• Voltage: 440V,380V,220V
• Ice Storage Capacity: 100kg, 200 kg, 300 kg, 500kg, 1000 kg
• Capacity: 1ton
• Material: Stainless Steel 304
• Refrigerant: R404A, R507

Technical Specifications

Product Details

1~50ton Flake Ice Machines

We have supplied flake ice machines to clients from over 100 countries worldwide.

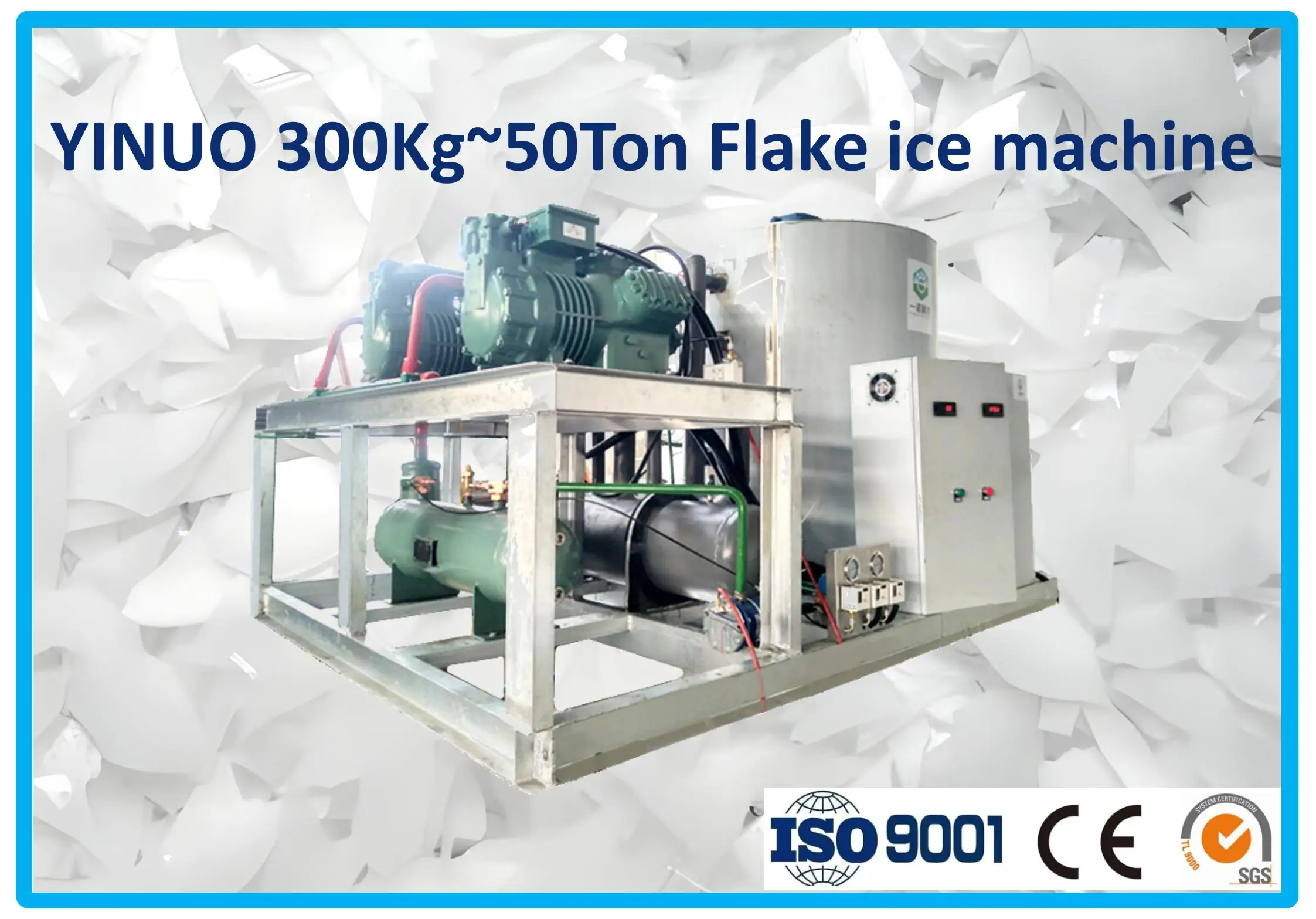

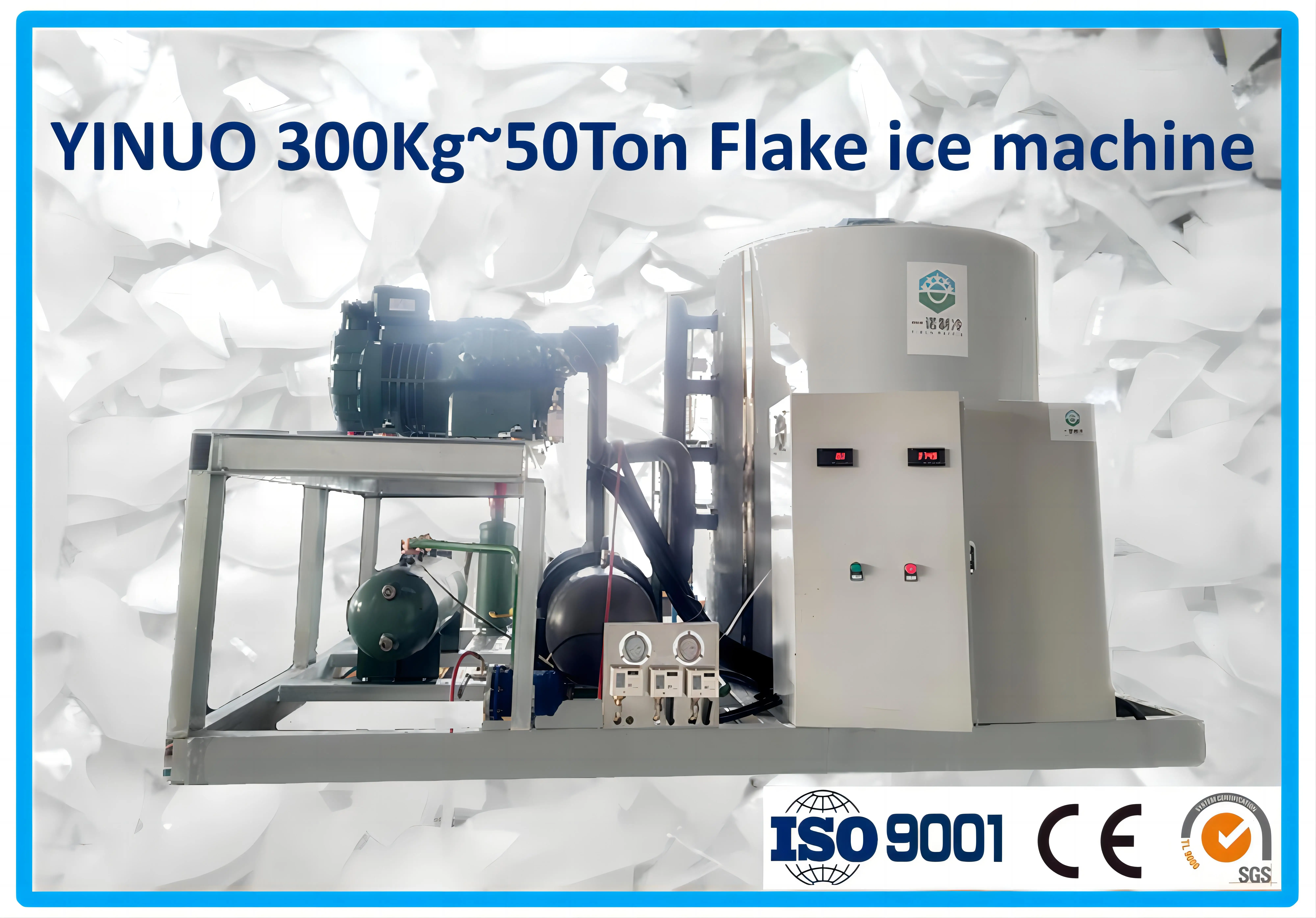

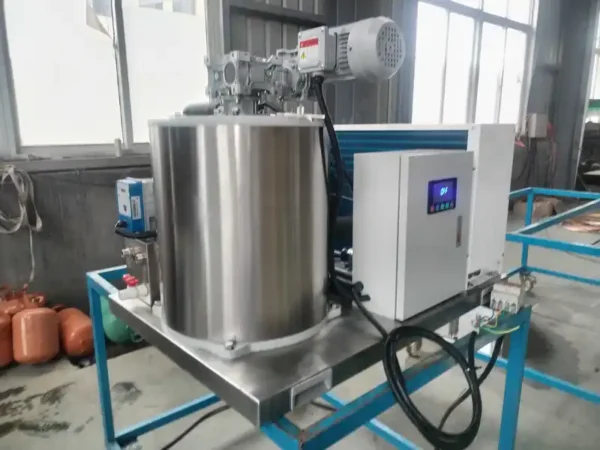

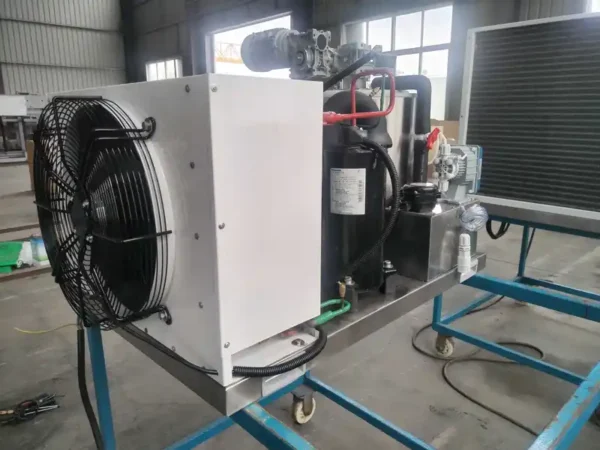

Product Description-YINUO YNF Series Flake Ice Machine

YINUO YNF series Flake ice machines are widely used in:

Flake ice plant,Seafood processing,Shrimp processing,Fish processing,Keeping fresh,Meat processing,Fishery,Slaughterhouse,Seafood Market,Supermarket,

Bar,Restaurant, Concrete mixing,Chemical cooling,etc.

YINUO Flake Ice Machines are applied in following fields:

Why Choose YINUO YNF Series Flake Ice Machines

YINUO can customize all types voltages of for clients, including:
220V-50HZ-1P,220V-60HZ-1P,220V-60HZ-3P,380V-50HZ-3P,380V-60HZ-3P,
400V-50HZ-3P,440V-60HZ-3P,480V-60HZ-3P,etc.

YINUO YNF Series Flake Ice Machines use global famous refrigeration accessories, including:
Bitzer(GERMANY),Copeland(USA),Danfoss(DENMARK),Refcomp(ITALY),
Hanbell(CHINA),Siemens(GERMANY),Schneider(FRANCE),LS(KOREA),
Emerson(USA),etc.

YINUO process strict ice-making testing for 72 to 96 hours before delivery, and provide an extended 18 month warranty:
We will send testing videos to clients before delivery,and we provide an extended 18 month warranty from delivery date.

Specifications Of YINUO YNF Series Flake Ice Machines

Model	Capacity (Ton/24hours)	Cooled Mode	Compressor Power(KW)	Dimension L*W*H(mm)
YNF0.3T	0.3Ton	Air	3.0KW	1200*700*700mm
YNF0.5T	0.5Ton	Air	4.0KW	1300*800*800mm
YNF1T	1Ton	Air	7.5KW	1350*800*800mm
YNF2T	2Ton	Air	10KW	1750*1100*1100mm
YNF3T	3Ton	Air	8.5KW	1750*1300*1300mm
YNF5T	5Ton	Air/Water	13.5KW	1900*1600*1600mm
YNF10T	10Ton	Air/Water	33.5KW	2800*2000*1900mm
YNF15T	15Ton	Air/Water	44.5KW	3300*2100*2000mm
YNF20T	20Ton	Air/Water	64.0KW	3400*2200*2200mm
YNF25T	25Ton	Air/Water	76.5KW	3700*2200*2500mm
YNF30T	30Ton	Air/Water	93.5KW	3900*2200*2500mm
YNF50T	50Ton	Air/Water	150.0KW	6000*2200*2500mm

YINUO Provides CE, ISO, SGS Certifications

YINUO Package & Delivery

YINUO usually ships ice machines to destination port by sea shipping containers, ice machines will be packaged and fastened properly.

FAQ

1. Can you customize power supply of ice machines for different countries？ A:Yes YINUO can customaize all types of power supply. 2. What shall we do if there is any machine's failure？

A: In 1hour YINUO will give solutions to clients to solve the failure. 3. Can you send your engineer to our city to install ice machines? A:Yes, YINUO can send enigneer to client's city to install the ice machines, clients need pay for the accommodation and the installation cost. 4. Whats the delivery time of your machine? A:Delivery time is10~20 days after advance payment. 5. What‘s the payment method? A:Pay via Alibaba, T/T, LC, In Cash, Western Union, Money Gram.

30% advance payment before production, and balance payment should by paid before delivery.

6. How long is your the warranty time for ice machines? A:YINUO Warranty time is 18 months since the delivery date. 7. how to install the machine ? A:YINUO will supply manual book and video to guide you how to install the machine, and also our service online. YINUO can also send technician to client's city, clients should pay for the round ticket, visa, accommodation, Installation fee 150 USD/day/person. And local labors are necessary to support our technician's.

YINUO sells to over 100 countries

YINUO has supplied the most cost-effective ice machines to clients from over 100 countries worldwide.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $2000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ice machine?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the ice machine be supplied for my local voltage?

The standard configuration is 440V,380V,220V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Yinuo Refrigeration Engineering Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Yinuo Refrigeration Engineering Co., Ltd. range on HVACR Nexus.
