This ice machine is published with the manufacturer’s full specification — 220V/50Hz, capacity 50kgs 24Hours. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ice Machine
- Voltage: 220V/50Hz
- Ice Storage Capacity: 15kg(33.07lb)
- Capacity: 50kgs 24Hours
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: Home
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | 15kg(33.07lb) |
| Voltage | 220V/50Hz |
| Key Selling Points | Automatic |
| Application | Home |
| Warranty | 1 Year |
| Core Components | Motor, Gearbox, PLC |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Not Available |
| Place Of Origin | Jiangsu, China |
| Brand Name | Shenghai or OEM ODM |
| Dimension(L*W*H) | 400*543*720mm(15.75*21.38*28.35in) |
| Product | Ice Machine |
| Compressor | Wanbao |
| Exterior | Stainless Steel Grade 304 |
| Capacity | 50kgs 24Hours |

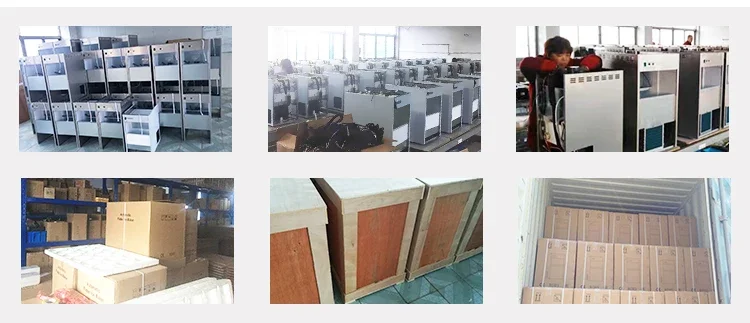

| Packaging Details | For 1 piece, we pack the machine with wooden case outside the carton and the price is EXW price; For FCL order, we use cartons only and the delivery term is FOB Shanghai. |
| Selling Units | Single item |
| Single Package Size | 45X61X78 cm |
| Single Gross Weight | 55.0 kg |
Product Details

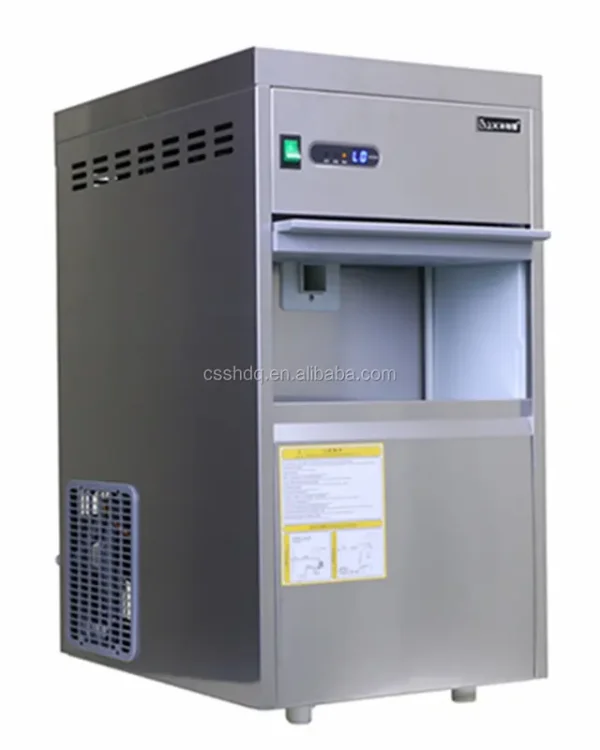

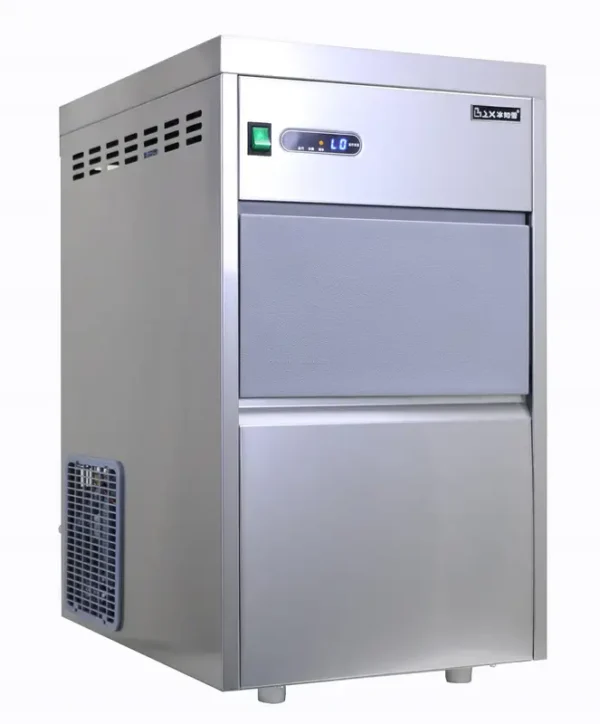

Slush Ice Machine Series Product Specifications:
| Model: | IMS-40 | IMS-50 | ||||
| Ice Making Capacity: Kg/24h | 40Kg/24h | 50Kg/24h | ||||
| Ice Storage: | 15Kg | 15Kg | ||||
| Voltage: | 220V/50Hz or 110V/60HZ (should pay extra charge) | |||||
| Power: | 360W | 380W | ||||
| Cooling type: | Air Cooling | |||||
| Refrigerant: | R134a | |||||
| Water Supply: | Tap Water | |||||
| Net Weight: Kg | 36 | 36 | ||||
| Gross Weight: Kg(Carton) | 39 | 39 | ||||
| Product Dimension: (mm) | 400*540*730 mm | |||||
| Packaging Dimension: (mm) | 470*610*780 mm | |||||
| 20'GP | 135 | |||||
| Stuffing Qty | 40'GP | 285 | ||||
| 40'HQ | 285 | |||||

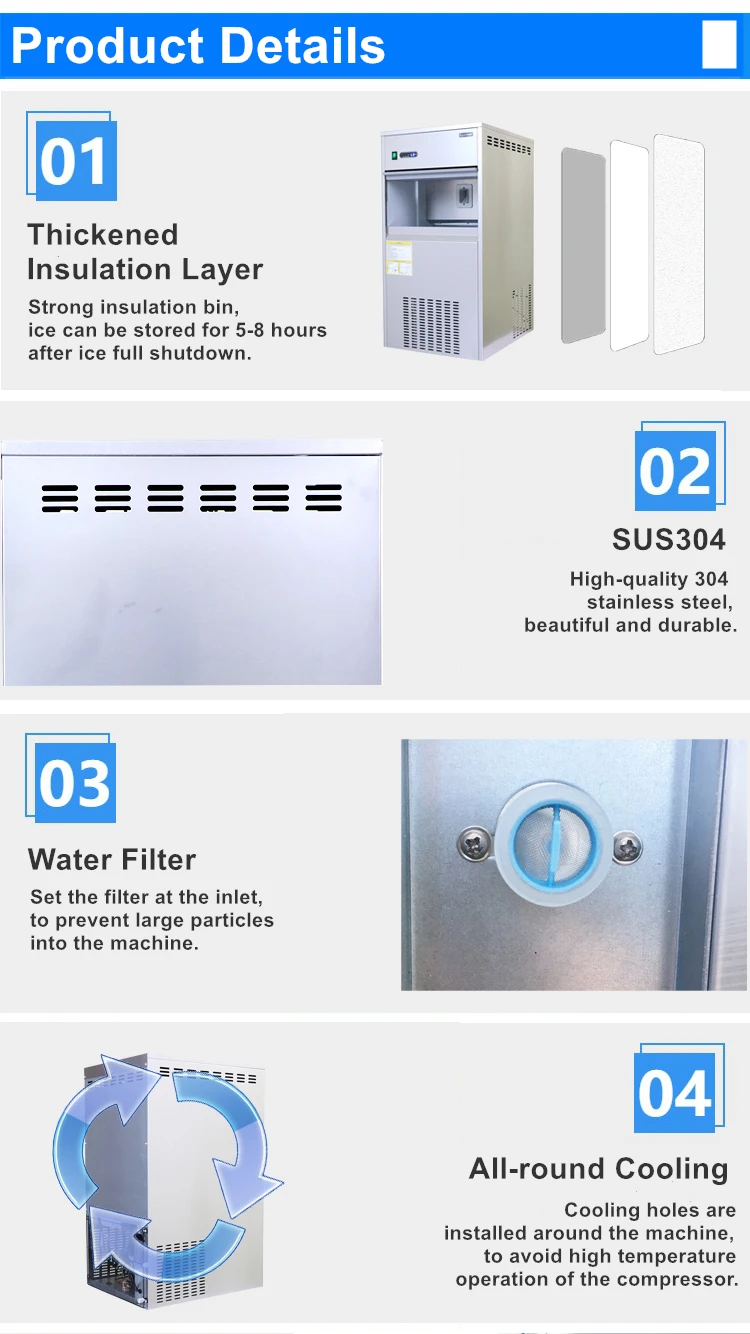

1.High grade stainless steel is used which are anti-corrosive and durable. The compact structure is simple and space-saving.
2.The cabinet are filled with fluoride-free foam thermal cover featuring good insulation effect. The inner liner is food grade plastic. They are both energy-saving and environment-friendly.
3.World famous brand CFC free R134a compressors are used. Major parts and components have passed relevant safety certifications. The product has stable quality and long service life.
4.The ice-making process is fully computer controlled, using imported computer chips to make control reliable and operation easily.

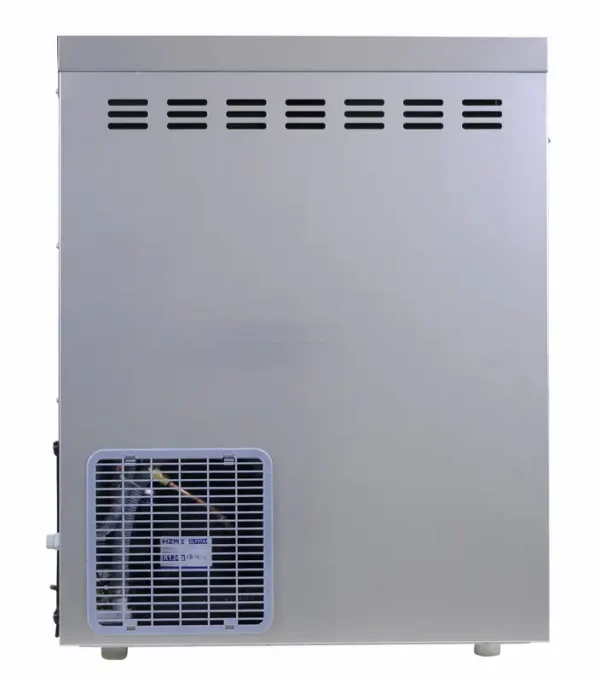

5.The advanced technologies and imported accessories makes noise low, operation smooth and reliable.The ventilation holes and fans are deployed to ensure that motor of reducer can work reliably with high ambient temperature.
6.The patented technology of line of chip ice-making chamber separated from the evaporator which provides the high cooling efficiency and large ice-making capacity.
7.The screw extrusion hob-style ice-making type makes a compact structure,and automatic separation of ice from water. The optimal design of skate blade makes the shape of ice small and practical.
8.The unique float-type water tank water inflow system ensures that there is no residual water.Ice clearance process not needed and no water wasted, saving water and energy.
9.Fully automatic running with ice full display, water shortage display, in operation display and malfunction warning display, etc. for shutdown protection. They will stop automatically in case of ice full or water shortage and start automatically when ice is not full or water supply is resumed.
10.Flake ice cools more quickly than other ice forms,which can infiltrate into narrow space, featuring fast cooling speed, good ice bathing effect.
11.Long-term performance tests and safety electrical tests will be performed before delivery, ensuring excellent performance of the product.
1. What is the Payment Terms?
T/T: 100% for trial order before shipment; 30% in advance as deposit, 70% balance should be paid before shipment(bulk order).
2. What is the delivery time?
Usually, within 7 working days after receiving the payment.
3. Can we put our own logo on the machine?
Yes, we can do OEM for you.
4. What is the warranty?
One year for the whole unit.
5. Is sample order available?
Yes, sample order is acceptable. 6. Do you have oversea aftersale support? No, we don't, but we'll slove according to your feedback and send the spare parts if need.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $561 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

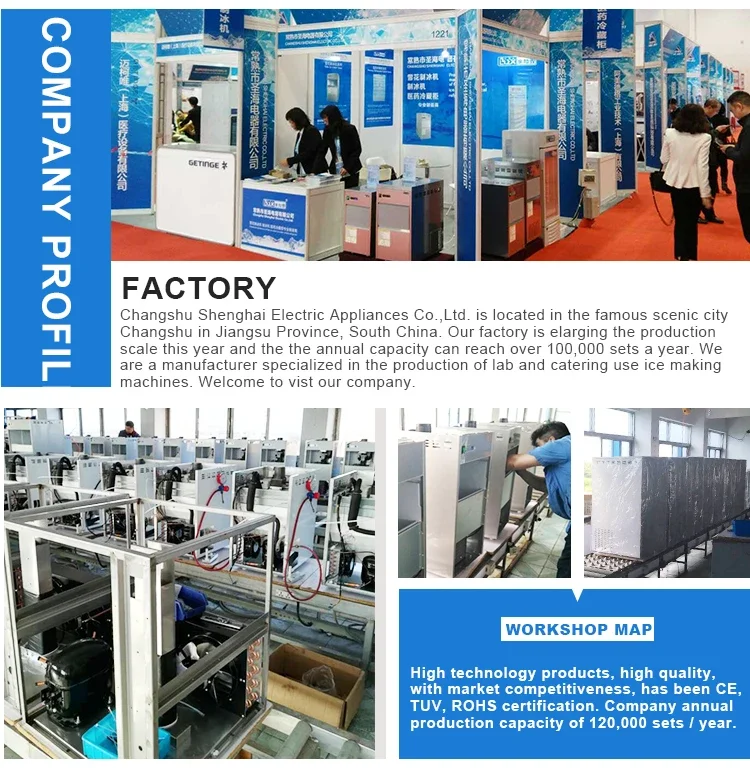

About the Manufacturer
This product is produced by Changshu Shenghai Electric Appliances Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Changshu Shenghai Electric Appliances Co., Ltd. range on HVACR Nexus.
