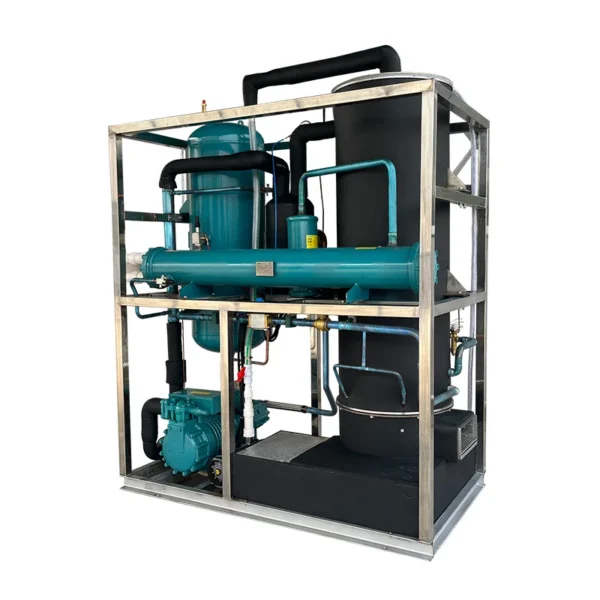

Key specification for this ice machine: voltage 3P/380V/50HZ, refrigerant R404a. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machine
- Cooling Tower Water Pump Power(KW): 1.5
- Cooling Tower Fan Power: 0.75KW
- Voltage: 3P/380V/50HZ
- Ice Storage Capacity: Other
- Refrigerant: R404a
- Warranty: 1 Year
Technical Specifications
| Ice Shape | ICE TUBE |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 3P/380V/50HZ |
| Compressor Brand | Bitzer |
| Key Selling Points | Easy To Operate |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | Motor, Bearing, PLC |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Jiangsu, China |
| Brand Name | FROZCUBE |
| Dimension(L*W*H) | 1800*1000*2300 mm(70.87*39.37*90.55in) |
| Refrigerant | R404a |
| Tube Ice Size | 45*28 |
| Control System | PLC procedure automatic control |
| Cooling Tower Water Pump Power(KW) | 1.5 |
| Cooling Tower Fan Power | 0.75KW |
| Packaging Details | Pallet |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 5 pieces per Day |
Product Details
Product Description
Specification
item | FCPS-05T |
Applicable Industries | Hotels, Food & Beverage Factory, Restaurant, Food Shop, Construction works , Food & Beverage Shops |
Condition | New |
Place of Origin | China |
Jiangsu | |
Brand Name | FROZCUBE |
Ice Shape | ICE FLAKE |
Voltage | 3P/380V/50HZ |
Power | 2600W |
Dimension(L*W*H) | 1860x1700x1530mm |
Weight | 1300KG |
Warranty | 1 Year |
Key Selling Points | Easy to Operate |
Ice storage capacity | 1000kg |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Bearing, PLC |
Application | Commercial |
Details Images
Company Profile
We insist on the spirit of integrity management, keep improving, and have the ability and confidence for each customer to design and produce cold storage projects. We believe that we will work together to create better future by competitive advantages and better service.
FAQ
1. What should I prepare to buy the ice machine from you?
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most European/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe…, Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All FROZCUBE ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
Katherine
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most European/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe…, Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All FROZCUBE ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
Dear friends, don't hesitate to send your inquiry if you are interested!
We would be very glad to be in service for you, as professional ice machine manufacturer in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
We would be very glad to be in service for you, as professional ice machine manufacturer in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
Katherine
MP/Wechat: +86 19502591606
email: dengqiong@frozcube.com.cn
email: dengqiong@frozcube.com.cn
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $15900 / piece
- 5+ piece: US $15800 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 3P/380V/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
