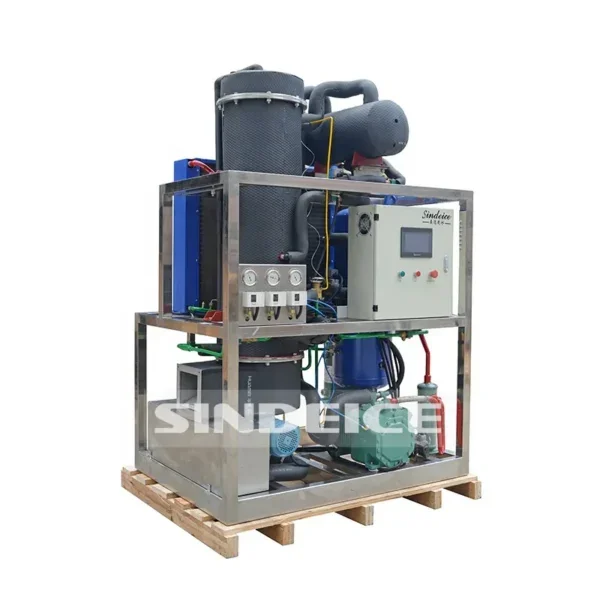

Key specification for this ice machine: 220 V, 440 V, 240 V, 380V50HZ3P, 5.5KW. Everything below is reproduced from the factory data sheet. Made by Shenzhen Sindeice Systems Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ice Machine
- Model Number: SDAF-1T
- Power: 5.5KW
- Power Supply: 3P/220V-440V/50Hz/60Hz(Optional)
- Voltage: 220 V, 440 V, 240 V, 380V50HZ3P
- Ice Storage Capacity: Other
- Material: stainless steel 304
Technical Specifications

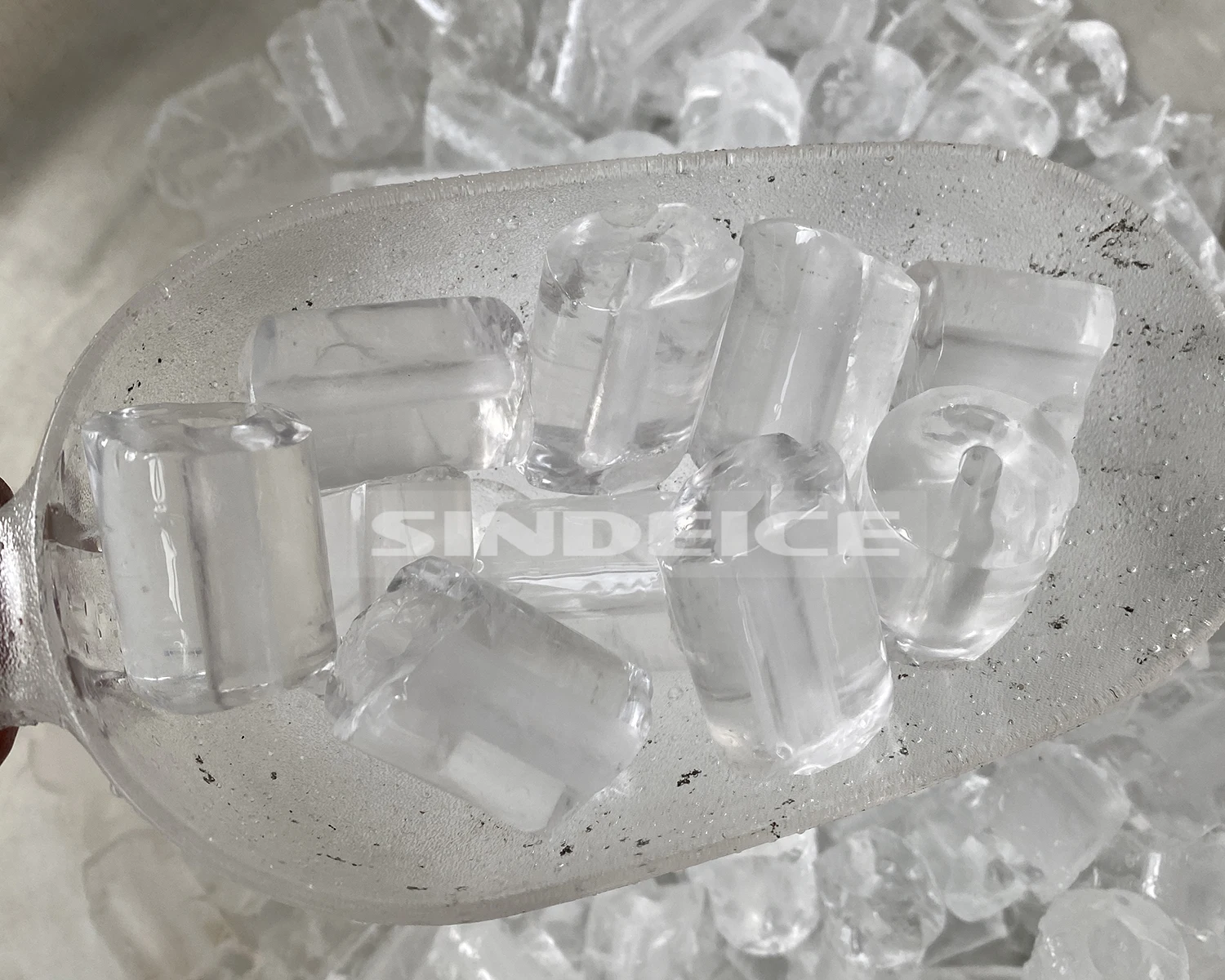

| Ice Shape | tube ice |
|---|---|
| Ice Size(Kg) | 22/28/35mm |
| Ice Storage Capacity | Other |
| Voltage | 220 V, 440 V, 240 V, 380V50HZ3P |
| Power | 5.5KW |
| Refrigerant | R404A |
| Compressor Brand | Bitzer, Copeland, RefComp |
| Key Selling Points | Automatic, High-Accuracy, High Productivity, Easy To Operate, Competitive Price, Patented Product, Long Service Life, Energy Saving, Famous Brand PLC |
| Application | Industrial |
| Warranty | 1.5 year |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Water Pump, Water Cooling System, Water Tank, Compressor, Other |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1000 |
| Brand Name | SINDEICE |
| Model Number | SDAF-1T |
| Dimension(L*W*H) | 1250*1200*1910MM |

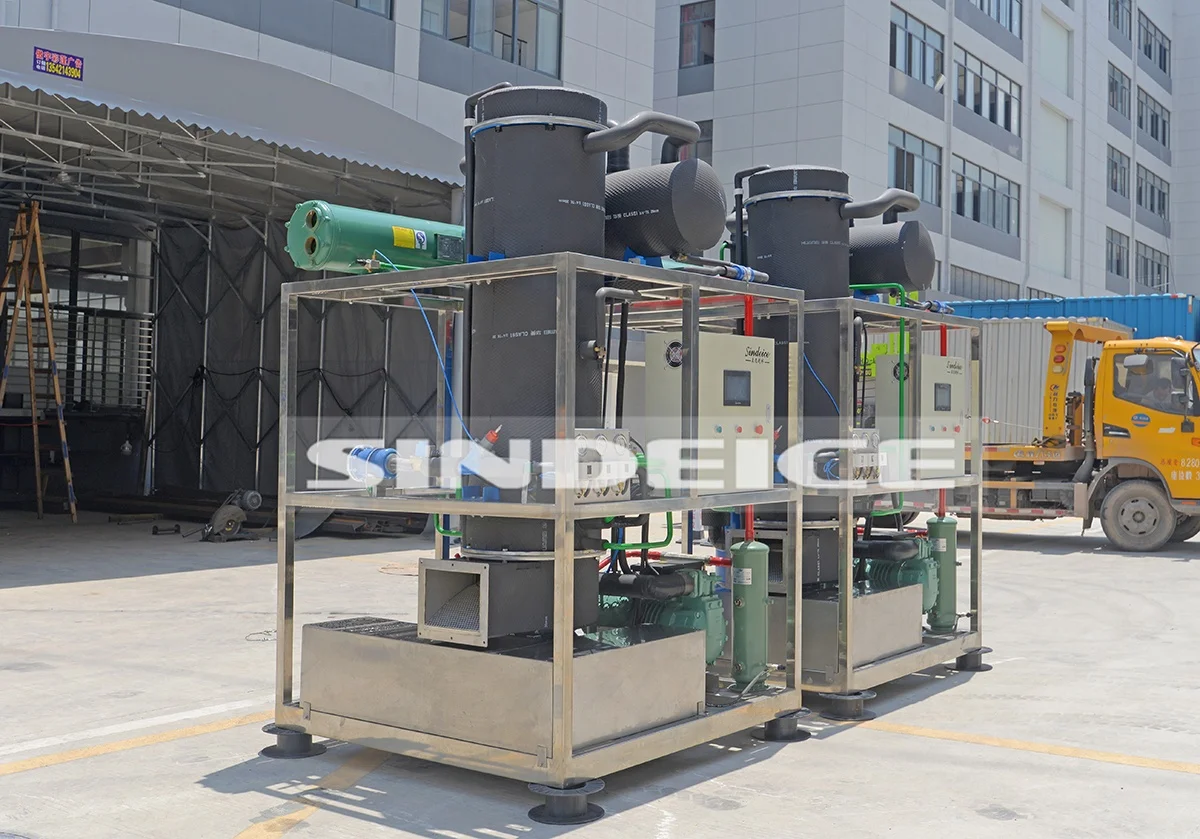

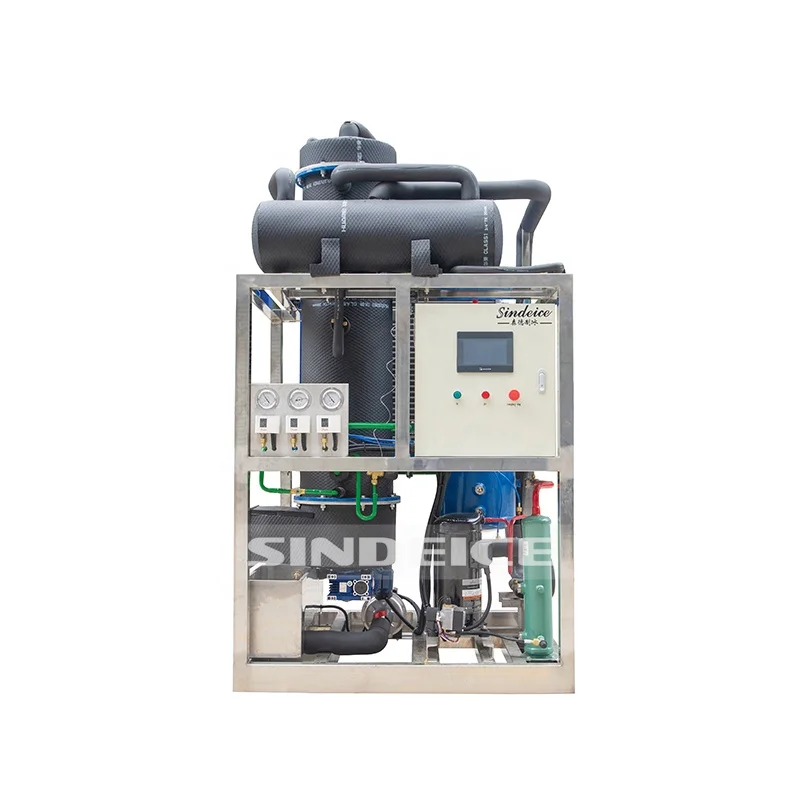

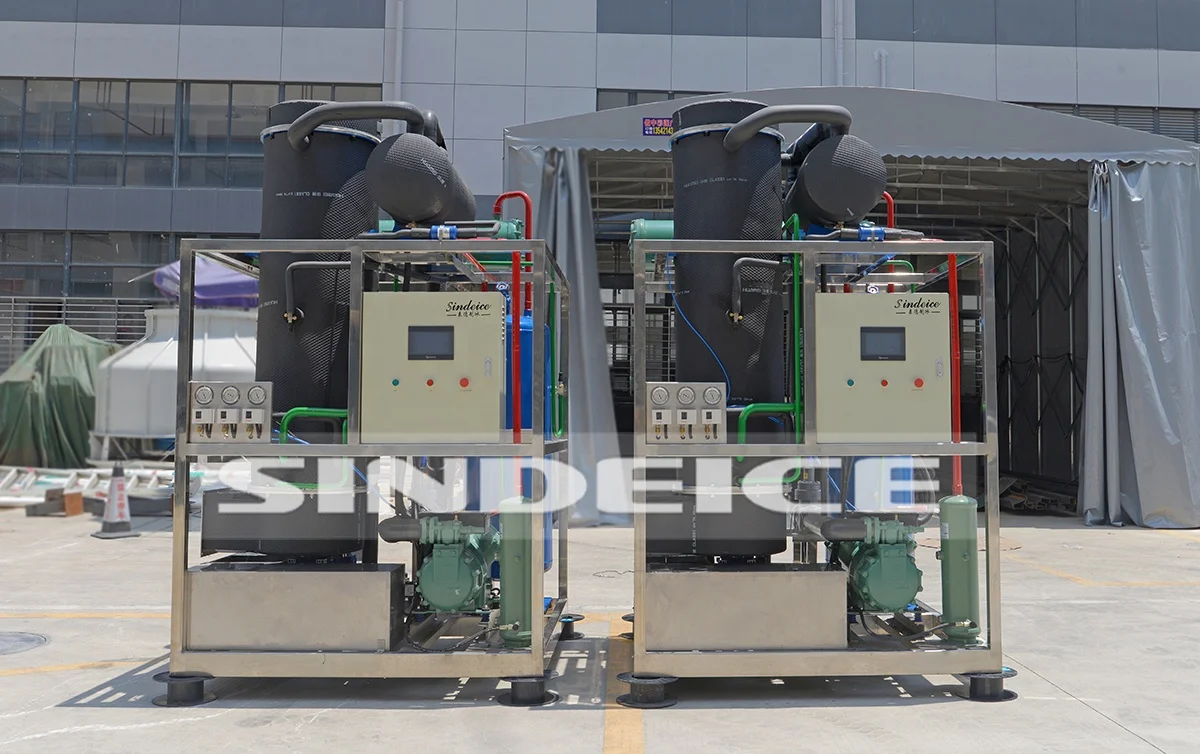

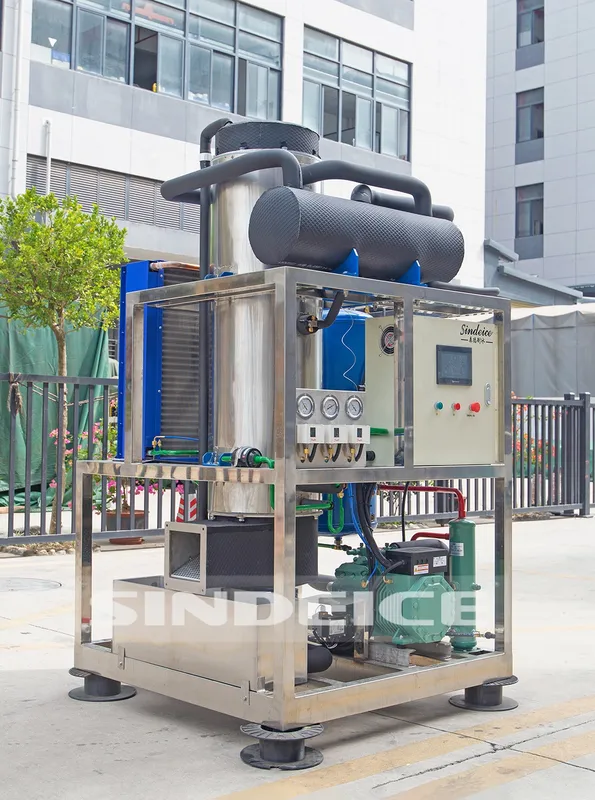

| Product Name | Commercial Tube Ice Machine |

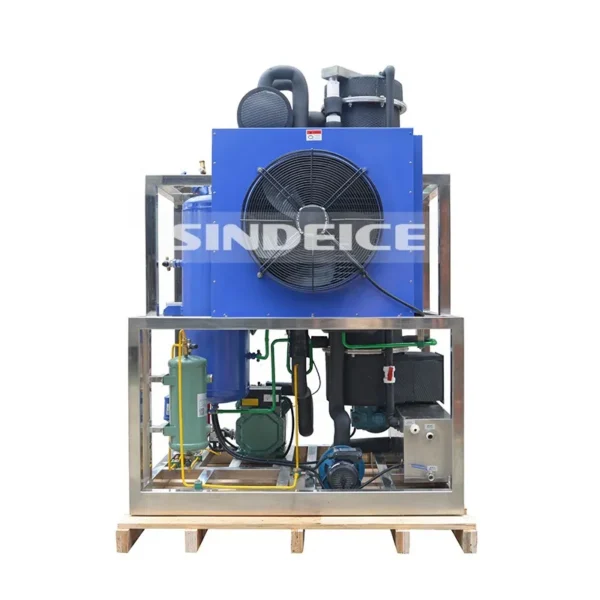

| Cooling Way | Air cooling |
| Material | stainless steel 304 |
| Compressor | Copeland/Bitzer /RefComp |
| Power Supply | 3P/220V-440V/50Hz/60Hz(Optional) |
| Control System | PLC+Touch Screen |

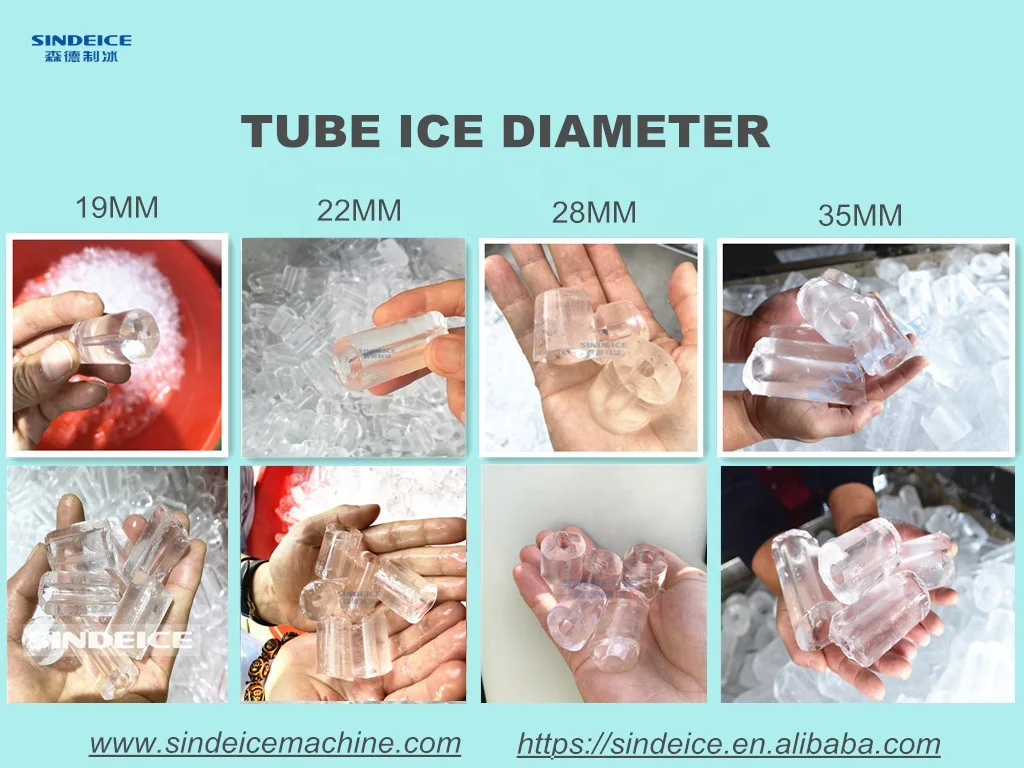

| Ice Diameter | 19/22/28/35mm |
| Certification | CE Certificate |
| Expansion Valve | Danfoss, Denmark |
| Selling Units | Single item |
| Single Package Size | 200X150X140 cm |
| Single Gross Weight | 1000.0 kg |
Product Details
02. Refrigeration Capacity (KW): 7.39
03. Refrigerant R404a
04. Total Power (KW): 5.6
05. Condensing Model: Air Cooling
06. Compressor Power (KW): 4.10
07. Reducer Power (KW): 0.25
08. Circulating Water Pump Power(KW): 0.37
09. Cooling Tower Fan Power(KW): 0.90
10. Power Supply: 380V/3Phase/50Hz
Kindly INQUIRE!

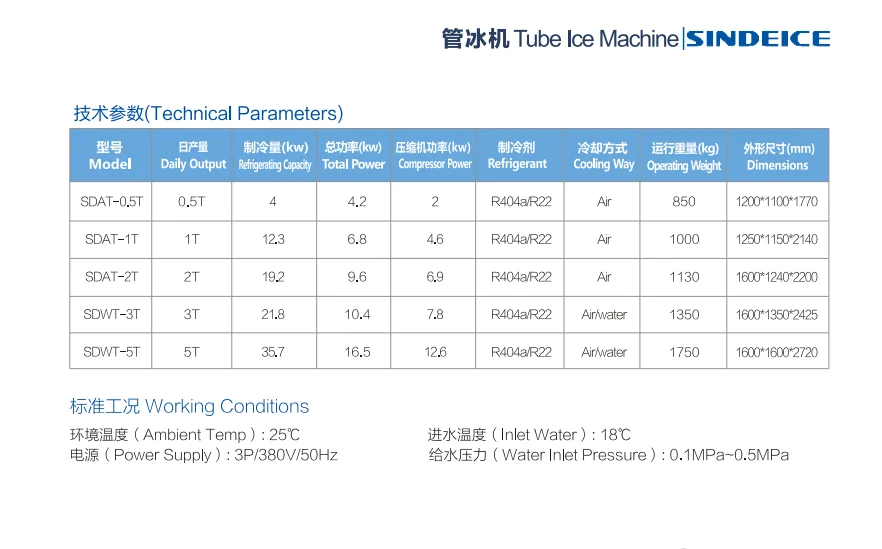

Daily Capacity | 1T | 2T | 3T | |
Compressor | Copeland | Bitzer | RefComp | |
Cooling Way | air cooling | water coolig | water cooling | |
Main Components | SINDEICE/LG/Danfoss |
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–4 unit: US $6000 / unit
- 5+ unit: US $5200 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machine carry?
It is supplied with CE Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machine be supplied for my local voltage?
The standard configuration is 220 V, 440 V, 240 V, 380V50HZ3P. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Sindeice Systems Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Sindeice Systems Co., Ltd. range on HVACR Nexus.
