Key specification for this ice machines: 380v 3p 50 hz, refrigerant r22 r404a r134a r717. Everything below is reproduced from the factory data sheet. Made by Shenzhen Zhongxue Refrigeration Equipment Co., Ltd. (16 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Ice Machines
- Voltage: 380v 3p 50 hz
- Ice Storage Capacity: 1000 kg
- Evaporator Material: sus304,carbon steel
- Refrigerant: r22 r404a r134a r717
- Warranty: 1 Year
- Certification: ce,iso
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | 1000 kg |
| Voltage | 380v 3p 50 hz |
| Key Selling Points | Long Service Life |
| Application | Industrial |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | SHARE |
| Dimension(L*W*H) | 1200*900*930mm |
| Cooling System | copeland scroll |
| Cooling Method | air cooling |
| Electrical Control | schneider ls |
| Control Method | plc |
| Evaporator Material | sus304,carbon steel |
| Refrigerant | r22 r404a r134a r717 |
| Ice Thickness | 1.5-2.2mm |
| Application Condition | 5℃-40℃ |
| Customized Design | available |
| Certification | ce,iso |
| Packaging Details | export wooden case |
| Port Of Dispatch | shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 300 sets per Month |
Product Details

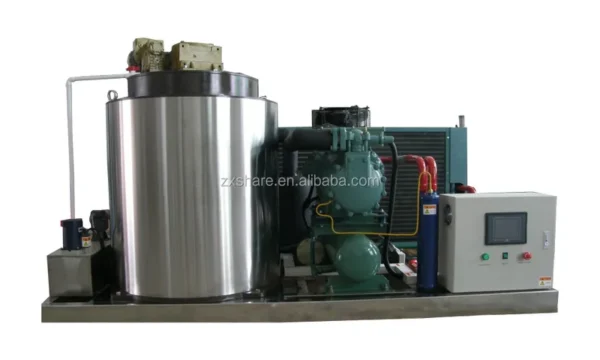

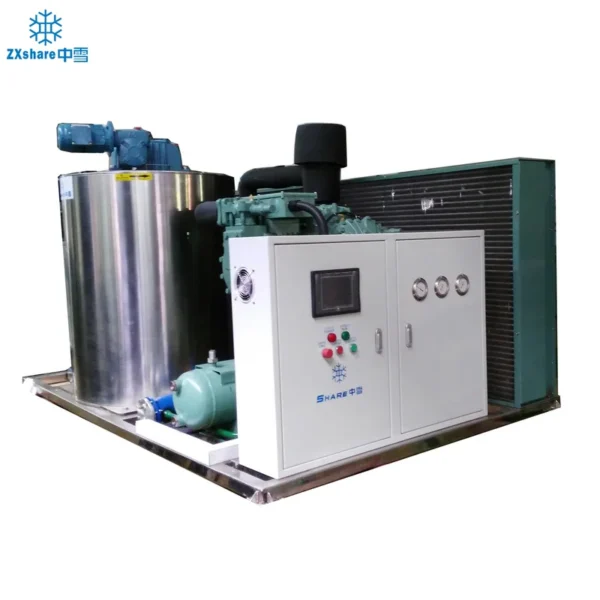

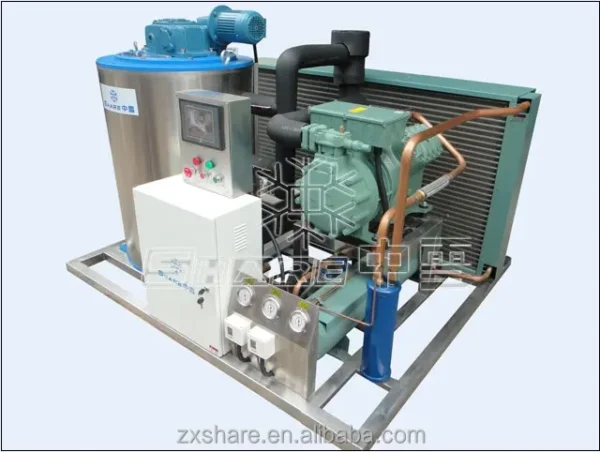

small ice plant machines 0.5ton 1ton 2ton 3ton
features
1.scientific design and many years of engineering experience.
2.high reliability and low break down rate
3.safety and sanitation
the key components of our machine are made of stainless steel sus304 and pure alluminium alloy , the ice produced by our machine is dry ,pure and sanitory.
4.multi cold resources available
5.good adaptability and stable quality
the products can insure good running and normal ice output at the environmental temperature of 5 to 40 celsius .
6.excellent electrol system
the ice machine adopted world famous brands such as Siemens,Schneider,Lg etc. the machine service life is accroding prolonged and the maintenance cost is reduced.
7. simple maintenance and convenient moving.
our machines is designed on basis of modules,so it's spot maintenance is quite simple,easy to remove and replace parts.
parameters
| item | unit | 0.5T | 1.0T | 2.5T | |
| input power | V,P,Hz | 380V,3P,50Hz | 380V,3P,50Hz | 380V,3P,50Hz | |
| rated current | A | 5.4A | 9A | 20A | |
| refrigerant | r404a,r22,r134a,r717 | r404a,r22,r134a,r717 | r404a,r22,r134a,r717 | ||
| flake ice output | kg/day | 500 | 1000 | 2500 | |
| temp. | ambient temp. | °C | 35 | 35 | 35 |
| water temp. | 20 | 20 | 20 | ||
| power | total operating power | kw | 2.67 | 3.75 | 10.3 |
| reducer power | kw | 0.12 | 0.12 | 0.18 | |
| compressor | manufactuer | copeland | copeland | copeland | |
| operating power | kw | 2.25 | 3.12 | 8.8 | |
| condenser | fan power | kw | 0.18 | 0.45 | 1 |
| cooling method | air cooling | air cooling | air cooling | ||
| dimension | ice machine | l*w*h (mm) | 1200*900*765 | 1200*900*930 | 1300*1100*1216 |
| ice container | l*w*h (mm) | 1200*900*1030 | 1200*900*1235 | 1300*1100*1235 | |
| flake ice | thickness | mm | 1.5-2.2 | 1.5-2.2 | 1.5-2.2 |
| temp. | °C | -5 | -5 | -5 | |
| weight | machine weight | kg | 210 | 380 | 480 |
| operating weight | kg | 300 | 450 | 600 | |
| pressure of water supply | PA | 0.1MPa-0.5MPa | 0.1MPa-0.5MPa | 0.1MPa-0.5MPa | |
| installation site | square meter | ≥9 | ≥9 | ≥9 | |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $4000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machines carry?
It is supplied with ce,iso documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380v 3p 50 hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Zhongxue Refrigeration Equipment Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Zhongxue Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
