Key specification for this ice machines: 380V/220V, material Stainless Steel 304. Everything below is reproduced from the factory data sheet. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ice Machines
- Inptut Power: 5.37kw
- Compressor Power: 4.8kw
- Voltage: 380V/220V
- Ice Storage Capacity: Other
- Refrigerting Capacity: 7.0kw
- Material: Stainless Steel 304
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380V/220V |
| Key Selling Points | High-Accuracy |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Shanghai, China |
| Brand Name | BingMa |
| Dimension(L*W*H) | 1100X800X820 |
| Product Name | Freshwater crushed ice maker machine |
| Compressor | Germany Bitzer |
| Cooling Way | Air Cooling/Water Cooling |
| Refrigerant | R22/ R404a |
| Material | Stainless Steel 304 |
| Refrigerting Capacity | 7.0kw |
| Inptut Power | 5.37kw |
| Rated Current | 10.6a |
| Compressor Power | 4.8kw |
| Control Parts | Schneidr+Siemens |
| Packaging Details | Wooden boxes or into container |
| Port Of Dispatch | Shanghai/Guangzhou/Ningbo/Shenzhen/Tianjin |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10 units per Month crushed ice maker machine |
Product Details
Product Details

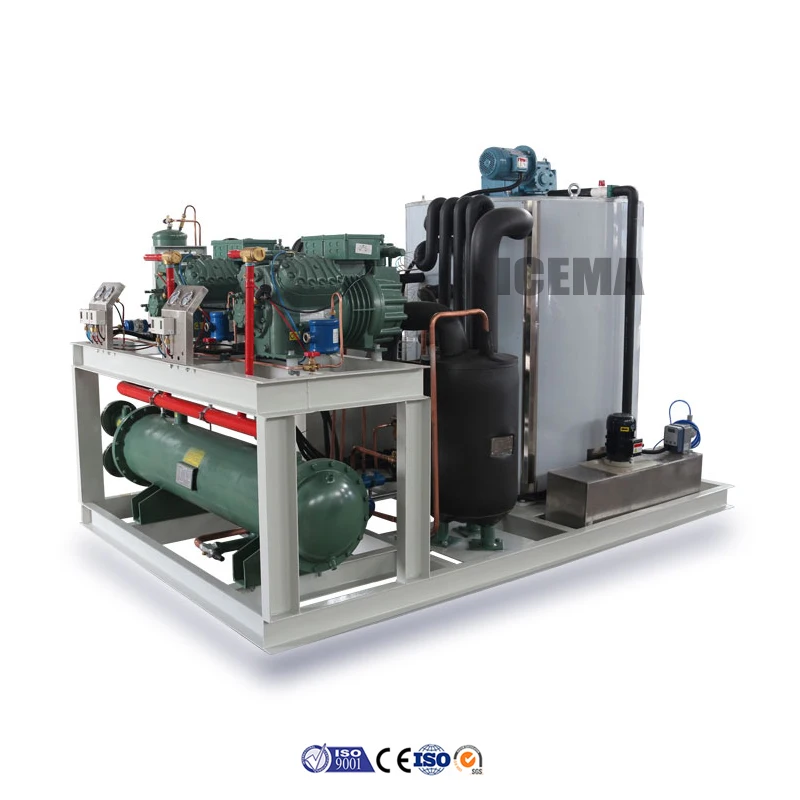

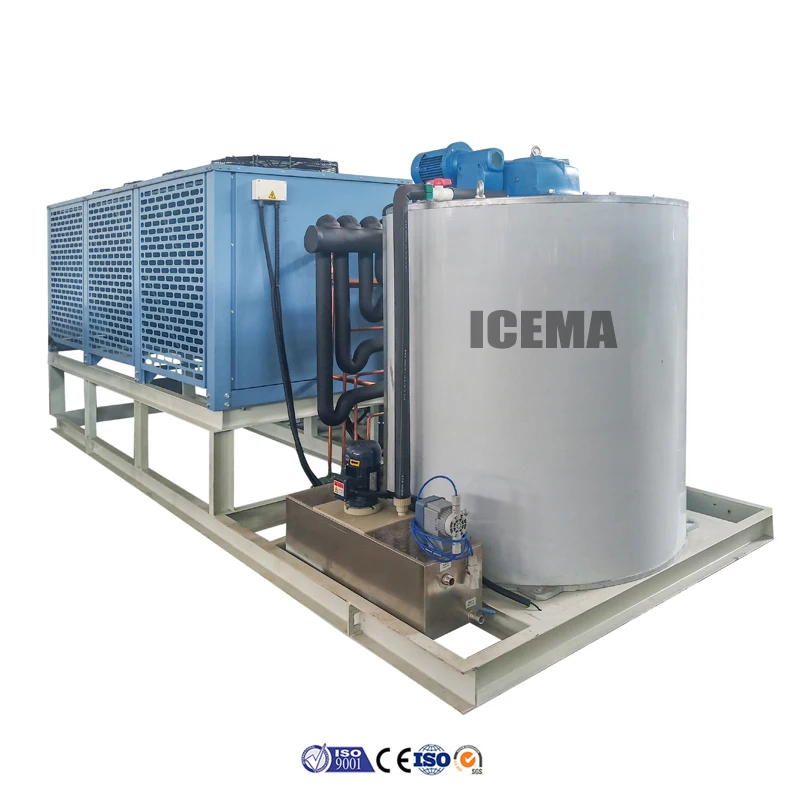

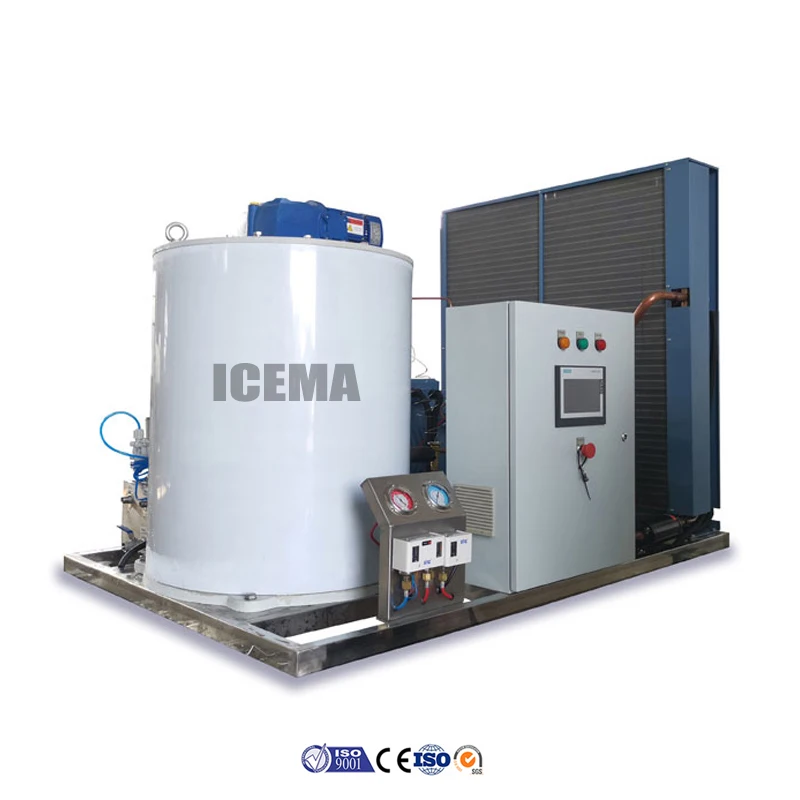

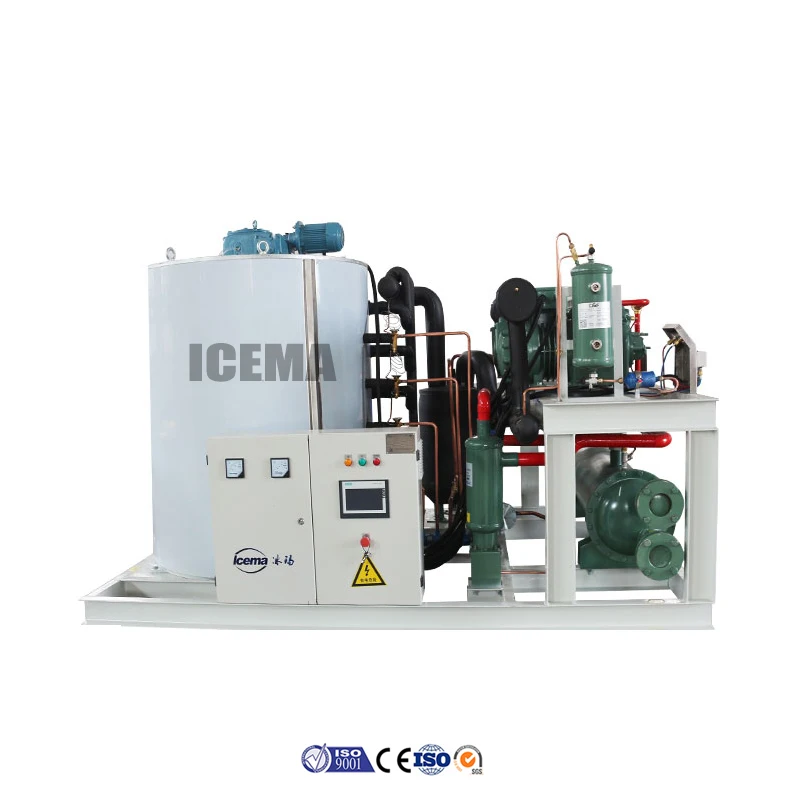

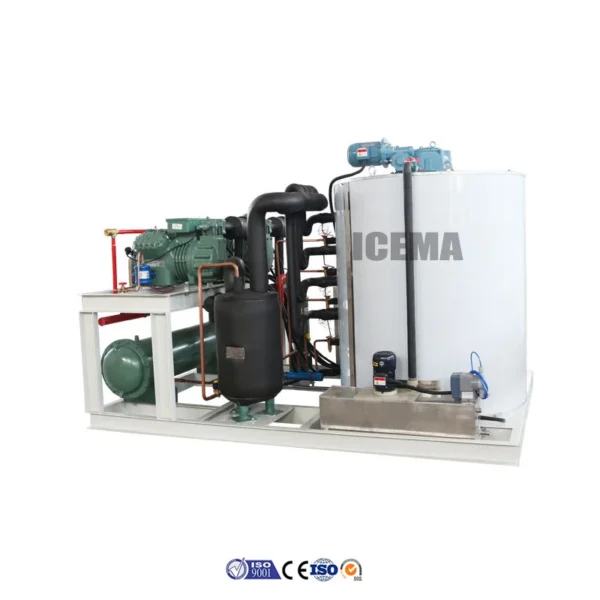

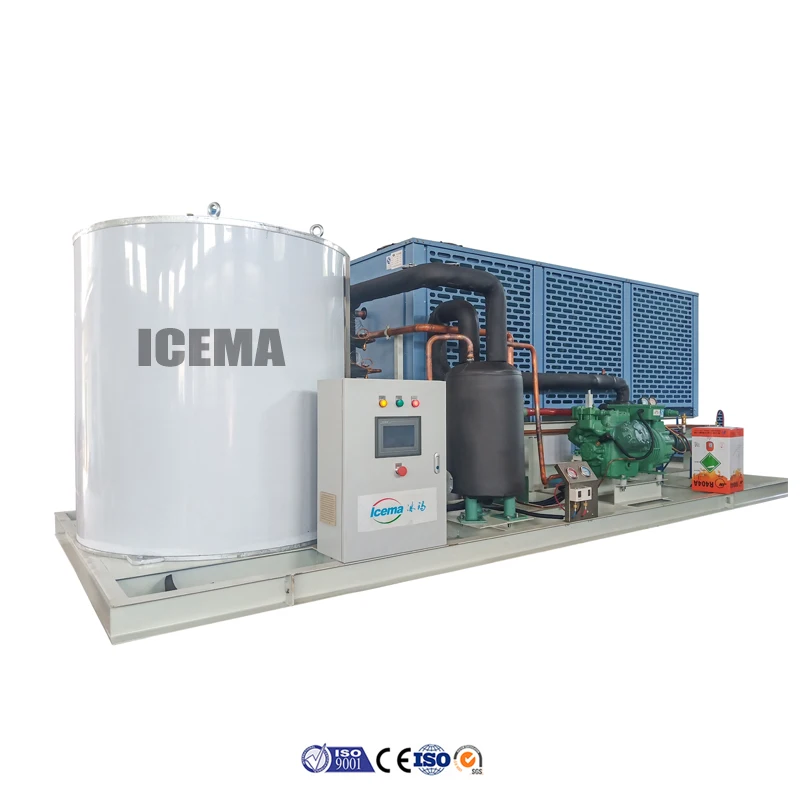

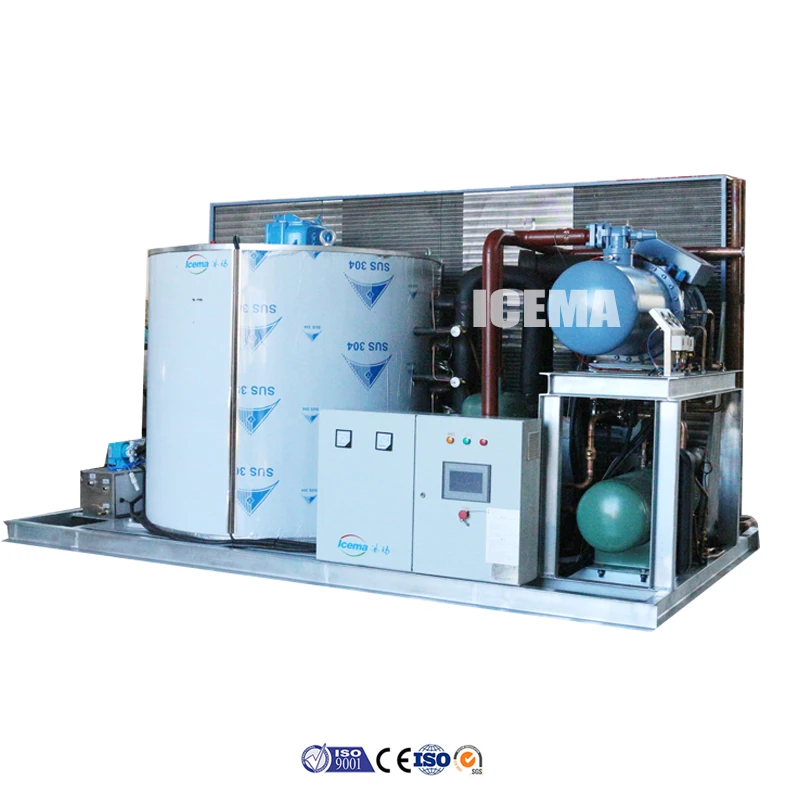

3T FLAKE ICE MACHINE
10T FLAKE ICE MACHINE
15T Flake Ice Machine
20T Flake Ice Machine

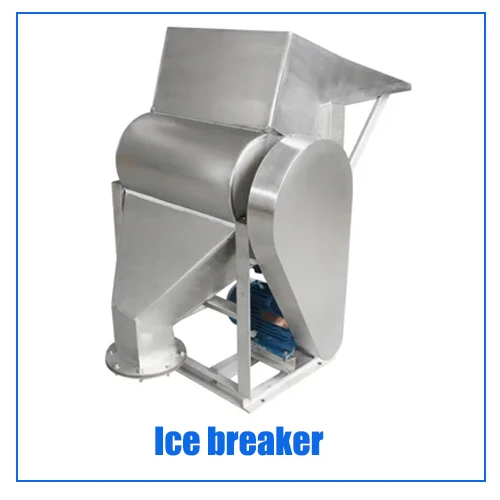

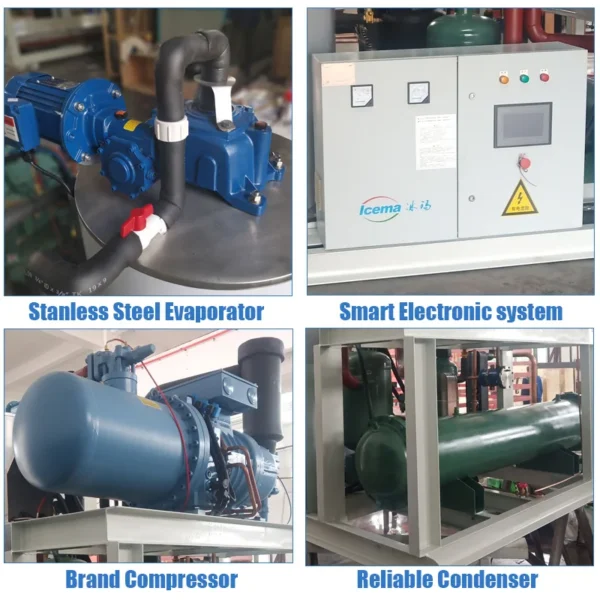

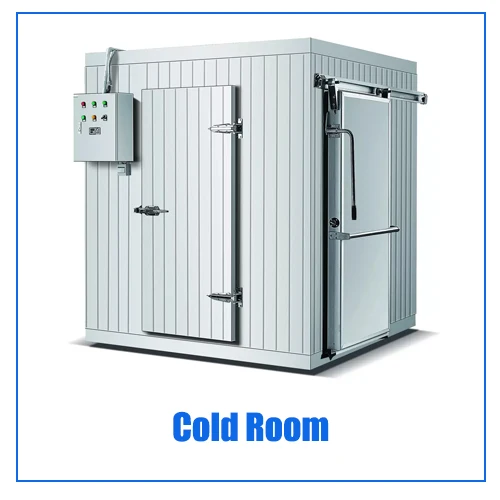

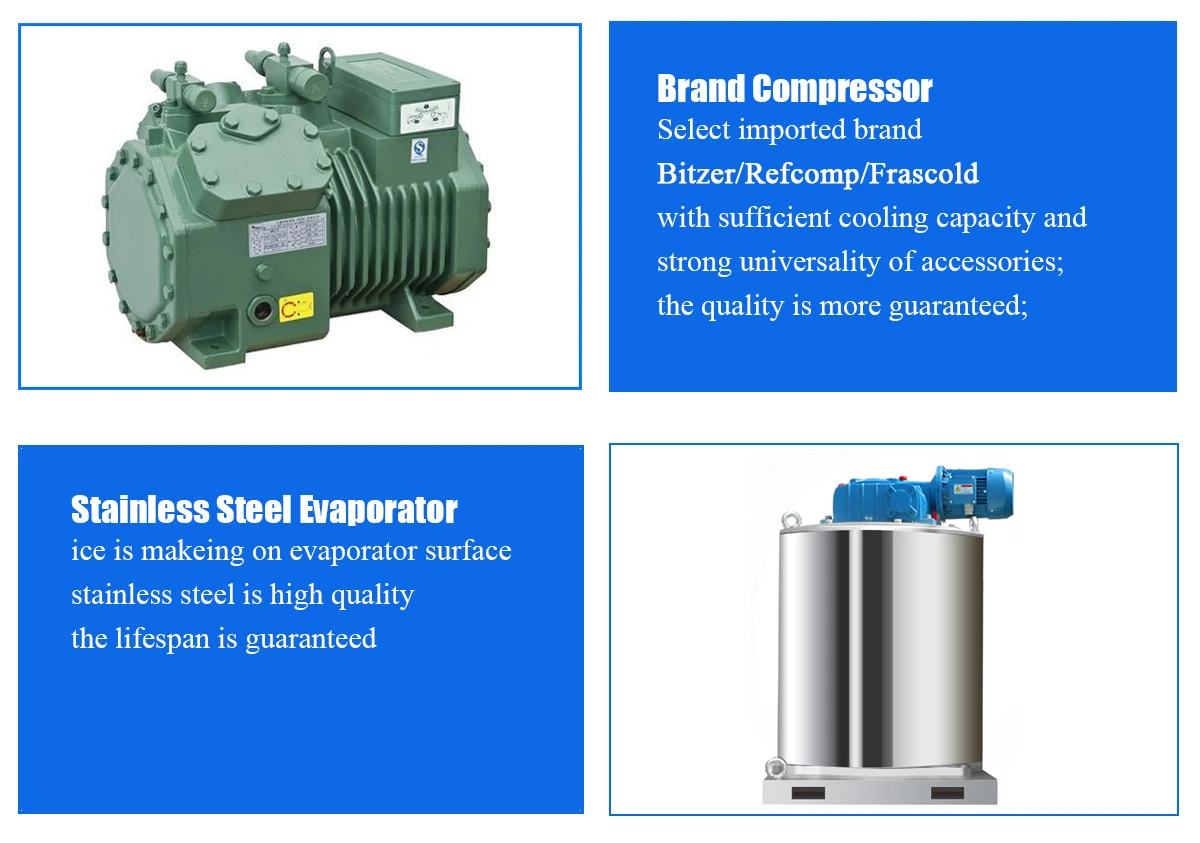

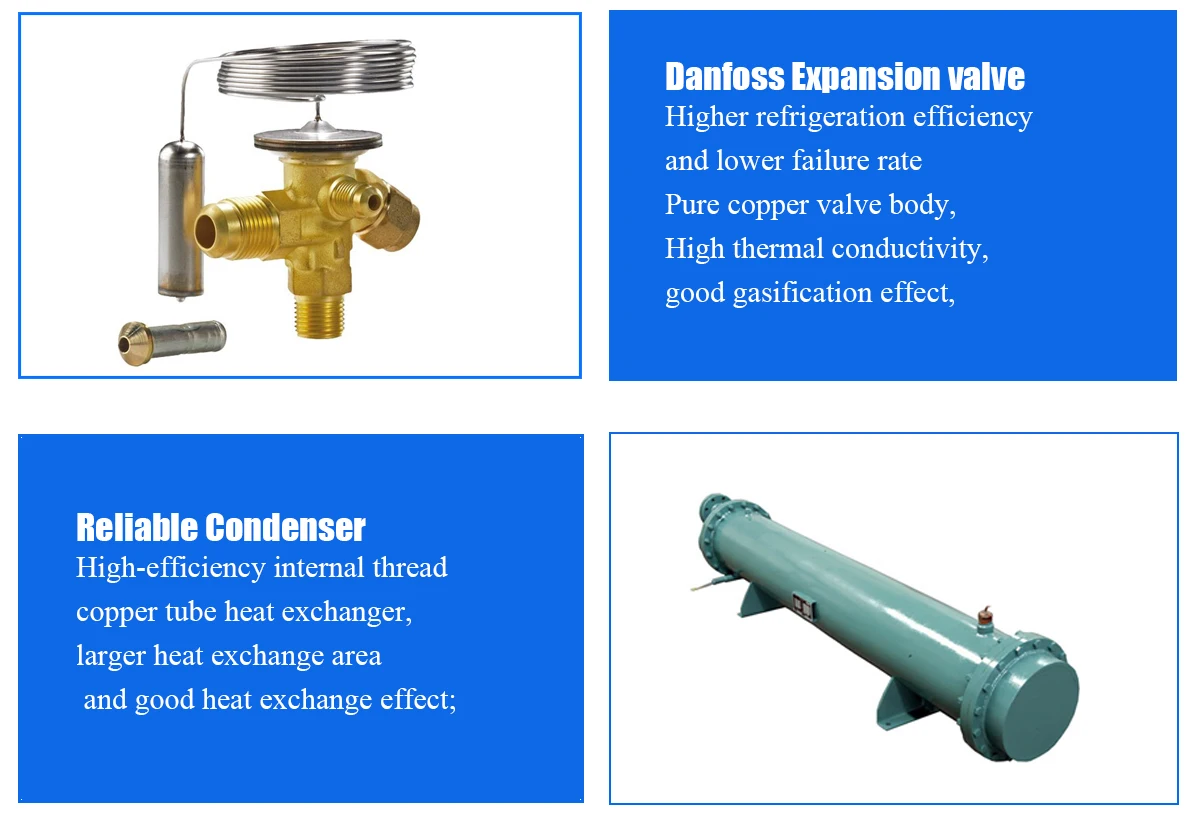

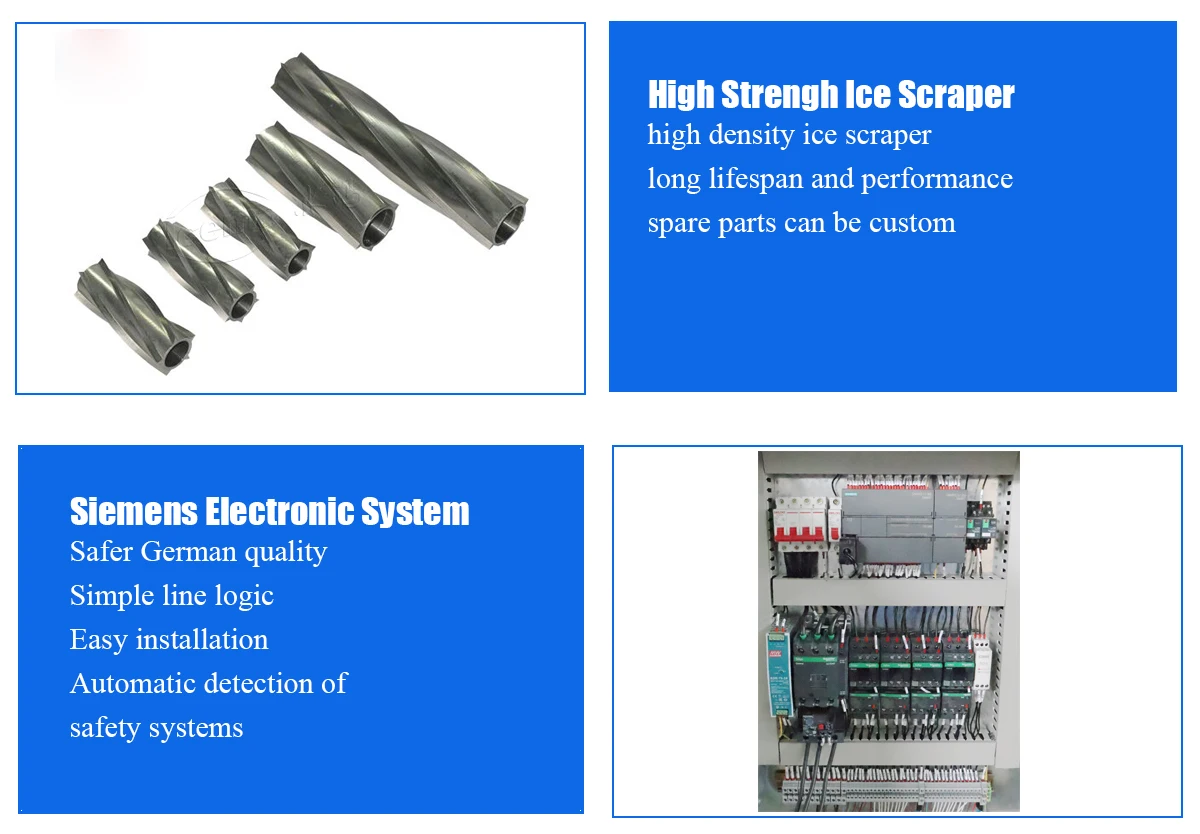

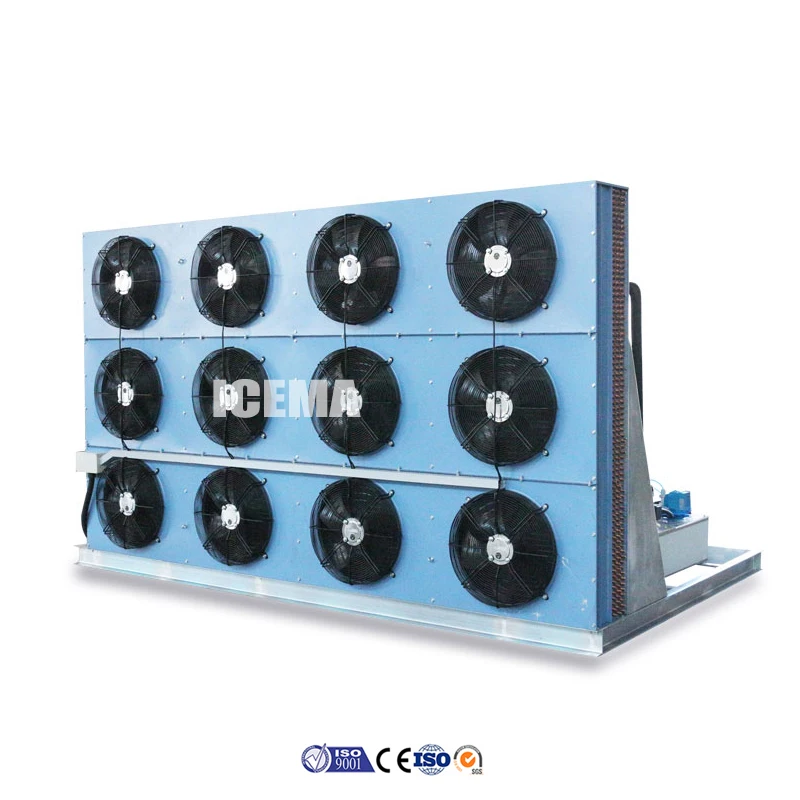

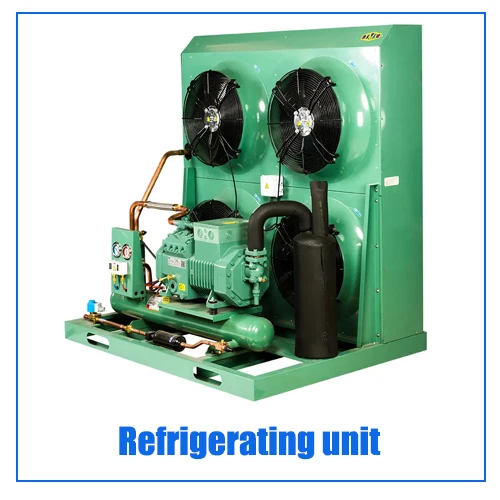

Main Accessories

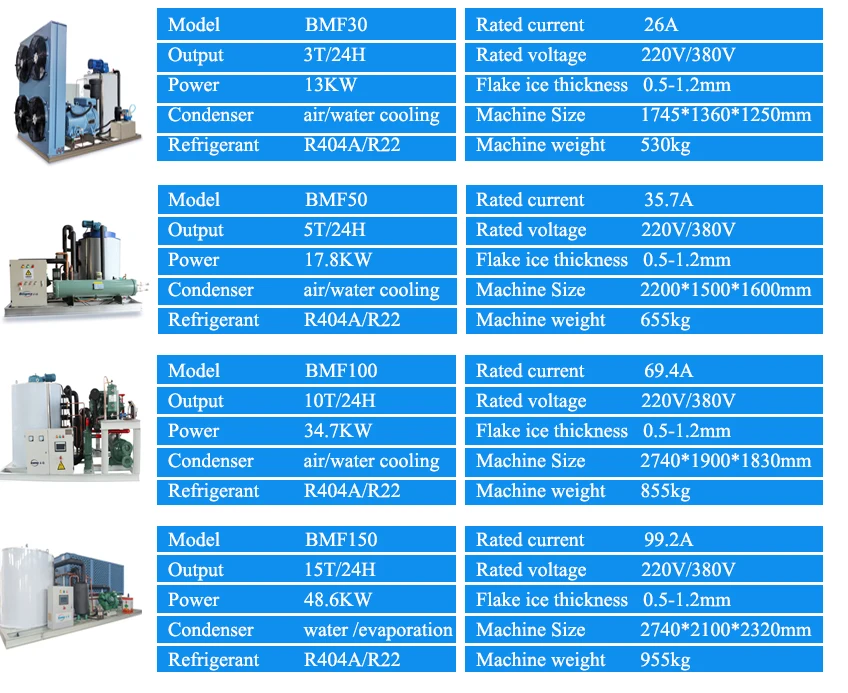

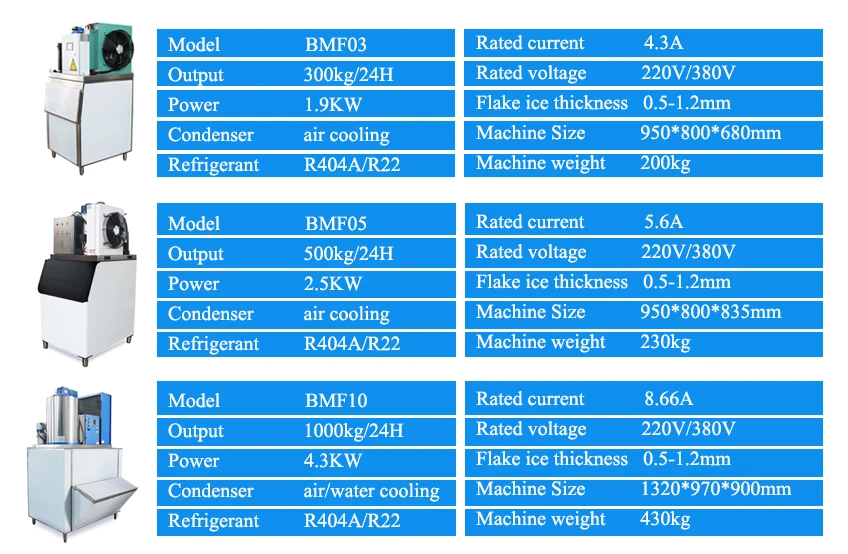

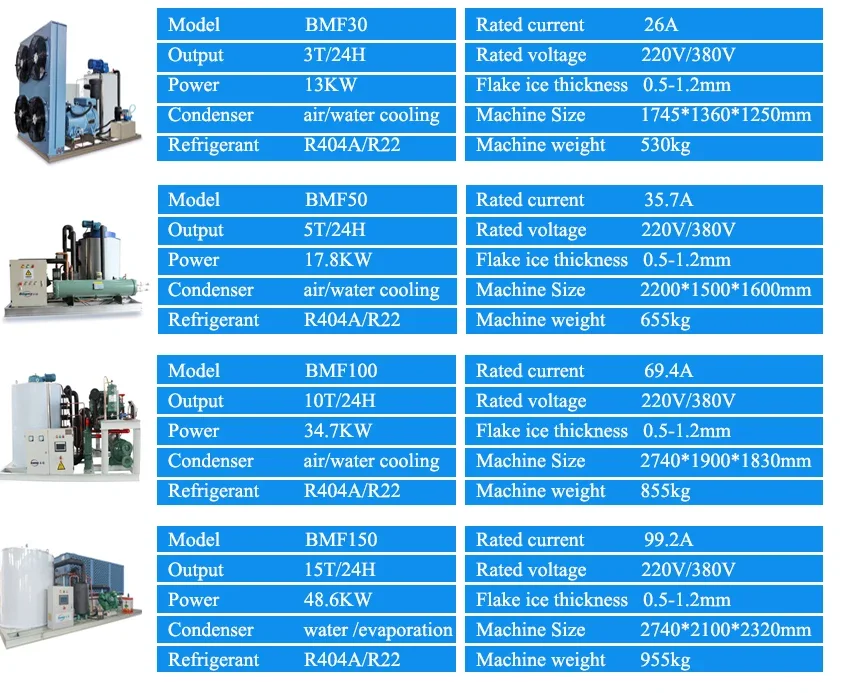

Product Paramenters
Model | Output | Refrigerate Capacity | Total Power | Rated Current | Compressor Power | Refrigerant | Cooling Way | Unit Size L*W*H (mm) |
BMF03 | 0.3T | 2.1KW | 1.9KW | 4.3A | 1.5KW | R22/R404A | Water | 950*800* *680 |
BMF05 | 0.5T | 3.5KW | 2.45KW | 5.6A | 2.1KW | R22/R404A | Water | 950*800* 810 |
BMF08 | 0.8T | 5KW | 3.5KW | 7A | 2.9KW | R22/R404A | Water | 1320*970*850 |
BMF10 | 1T | 6.35KW | 4.33KW | 8.66A | 3.6KW | R22/R404A | Air/ Water | 1320*970*900 |
BMF20 | 2T | 12.9KW | 8.66KW | 17.3A | 5.88KW | R22/R404A | Air/ Water | 1500*1100*1050 |
BMF30 | 3T | 21.5KW | 13KW | 26A | 9.7KW | R22/R404A | Air/ Water | 1745*1360*1250 |
Products Description
Main Features
1. The ice rake machine adopts modular design, which is easy to assemble and maintain;
the parts are processed by CNC machine tools with high precision and avoid welding defects.
2. Using high-precision bearings imported from Japan, the mechanism runs smoothly and has long service life.
3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum.
4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.

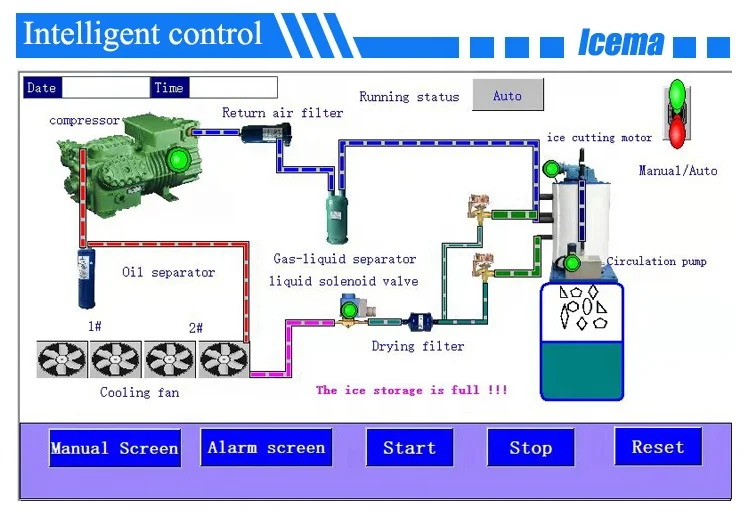

5. Smart electric control screen, simple and easy to use.
6.Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time,which is convenient for maintenance and management and safe production.
3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum.
4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.
5. Smart electric control screen, simple and easy to use.
6.Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time,which is convenient for maintenance and management and safe production.
Flake Ice Applications
The ice flake machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food
preservation, fishery protection, food processing, concrete cooling, etc.
preservation, fishery protection, food processing, concrete cooling, etc.

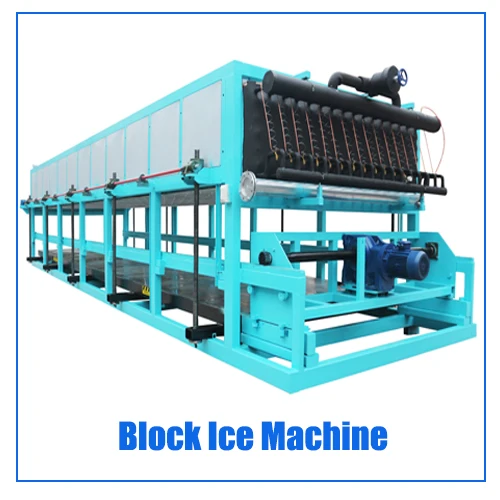

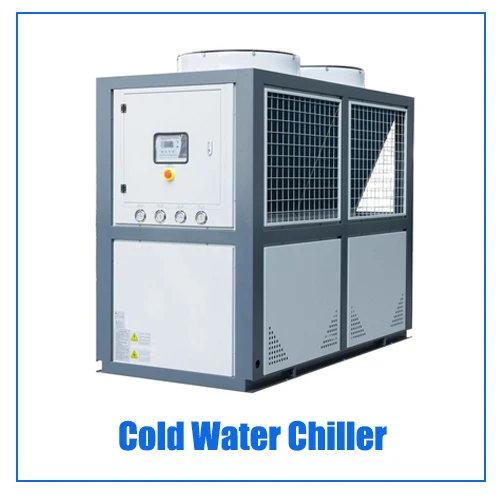

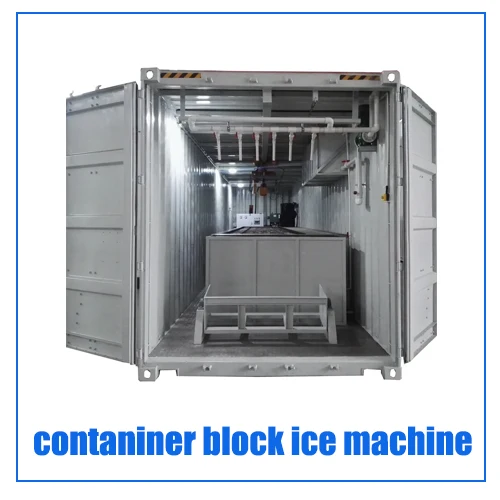

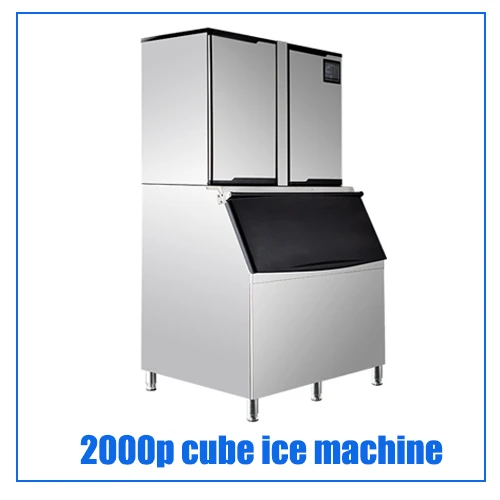

Products catalogues

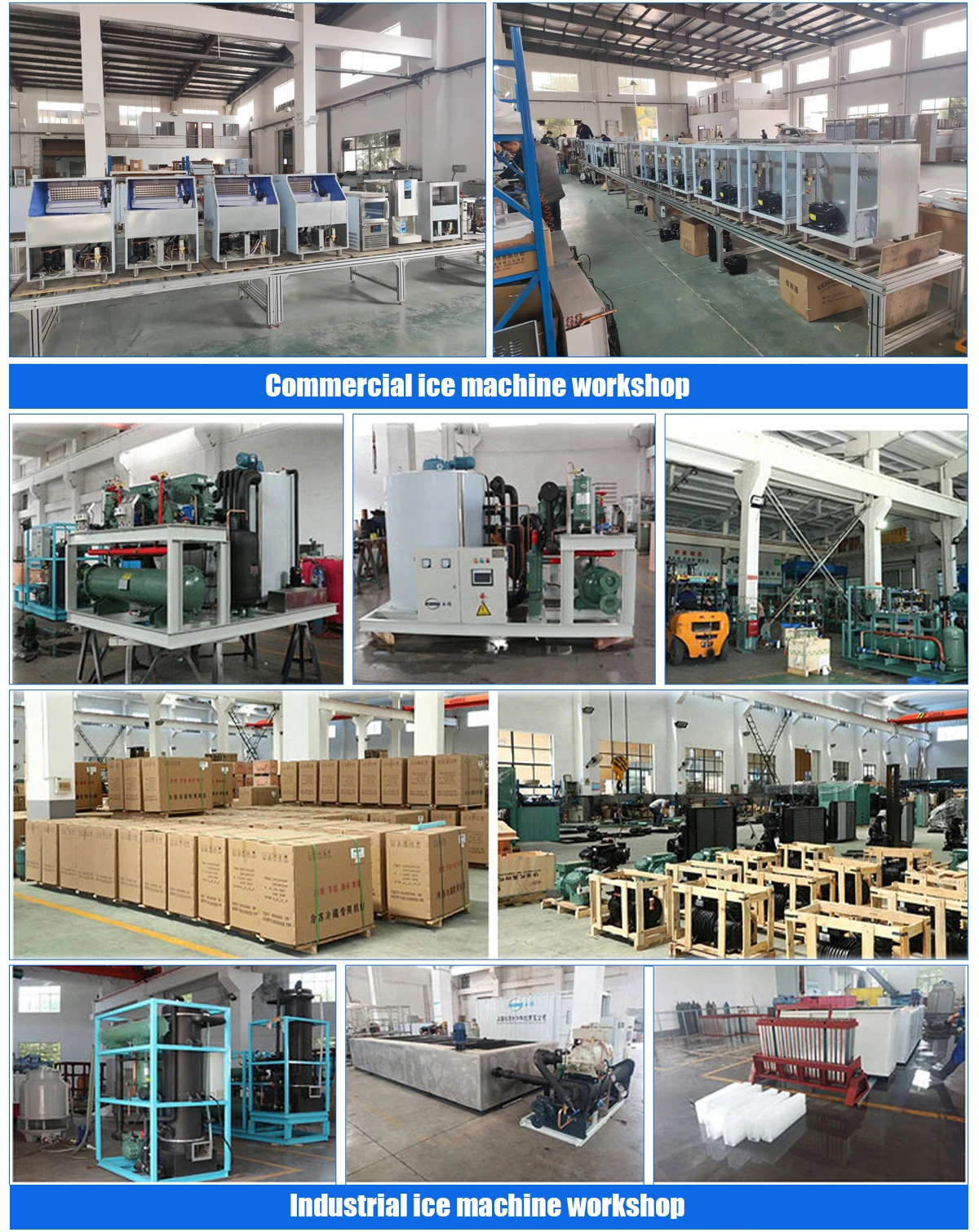

Company Profile
Certification&Partners
FAQ
1. Can I customize the machine?
You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
Product Details
3T FLAKE ICE MACHINE
10T FLAKE ICE MACHINE
15T Flake Ice Machine
20T Flake Ice Machine
Main Accessories
Product Paramenters
Model | Output | Refrigerate Capacity | Total Power | Rated Current | Compressor Power | Refrigerant | Cooling Way | Unit Size L*W*H (mm) |
BMF03 | 0.3T | 2.1KW | 1.9KW | 4.3A | 1.5KW | R22/R404A | Water | 950*800* *680 |
BMF05 | 0.5T | 3.5KW | 2.45KW | 5.6A | 2.1KW | R22/R404A | Water | 950*800* 810 |
BMF08 | 0.8T | 5KW | 3.5KW | 7A | 2.9KW | R22/R404A | Water | 1320*970*850 |
BMF10 | 1T | 6.35KW | 4.33KW | 8.66A | 3.6KW | R22/R404A | Air/ Water | 1320*970*900 |
BMF20 | 2T | 12.9KW | 8.66KW | 17.3A | 5.88KW | R22/R404A | Air/ Water | 1500*1100*1050 |
BMF30 | 3T | 21.5KW | 13KW | 26A | 9.7KW | R22/R404A | Air/ Water | 1745*1360*1250 |
Products Description
Main Features
1. The ice rake machine adopts modular design, which is easy to assemble and maintain;
the parts are processed by CNC machine tools with high precision and avoid welding defects.
2. Using high-precision bearings imported from Japan, the mechanism runs smoothly and has long service life.
3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum.
4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.
5. Smart electric control screen, simple and easy to use.
6.Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time,which is convenient for maintenance and management and safe production.
3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum.
4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.
5. Smart electric control screen, simple and easy to use.
6.Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time,which is convenient for maintenance and management and safe production.
Flake Ice Applications
The ice flake machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food
preservation, fishery protection, food processing, concrete cooling, etc.
preservation, fishery protection, food processing, concrete cooling, etc.
Products catalogues
Company Profile
Certification&Partners
FAQ
1. Can I customize the machine?
You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–1 unit: US $5000 / unit
- 2+ unit: US $4500 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380V/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Icema Refrigeration Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shanghai Icema Refrigeration Technology Co., Ltd. range on HVACR Nexus.
