Key specification for this ice machines: voltage 380/440V, certification GB. Everything below is reproduced from the factory data sheet. Made by THOMSON REFRIGERATION TECHNOLOGY(DALIAN) CO., LTD. (3 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Ice Machines
- Voltage: 380/440V
- Ice Storage Capacity: Other
- Warranty: 1 Year
- Certification: GB
- Place Of Origin: Liaoning, China
- Application: Industrial
Technical Specifications
| Ice Shape | Other |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 380/440V |
| Compressor Brand | Other, Reftech |
| Key Selling Points | Easy To Operate |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Motor, Compressor |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Liaoning, China |
| Brand Name | Reftech |
| Dimension(L*W*H) | ad |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Compressor | 6HP |
| Showroom Location | Viet Nam |
| Certification | GB |
| Marketing Type | Other |
| Selling Units | Single item |
| Single Package Size | 5000X5000X5000 cm |
| Single Gross Weight | 68.0 kg |
Product Details
Key Specifications/Special Features:

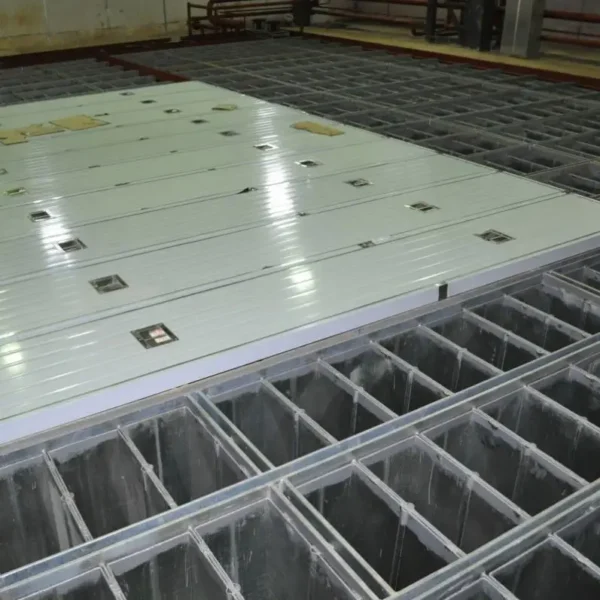

Ice making tank:
A rectangular water tank, welded of steel plates, evaporator coils are mounted as both ends
The inner walls of the tank are welded by pieces of angle steel as frame for placing the frame carrying the ice cans, the tank is filled with bringer of certain concentration
The tank should be wrapped by insulator and moisture barrier around its four sides and under its bottom, to prevents heat from entering the tank
If is covered by a wooden cover (made by the users) ice making tank will be supplied in semi-finished product

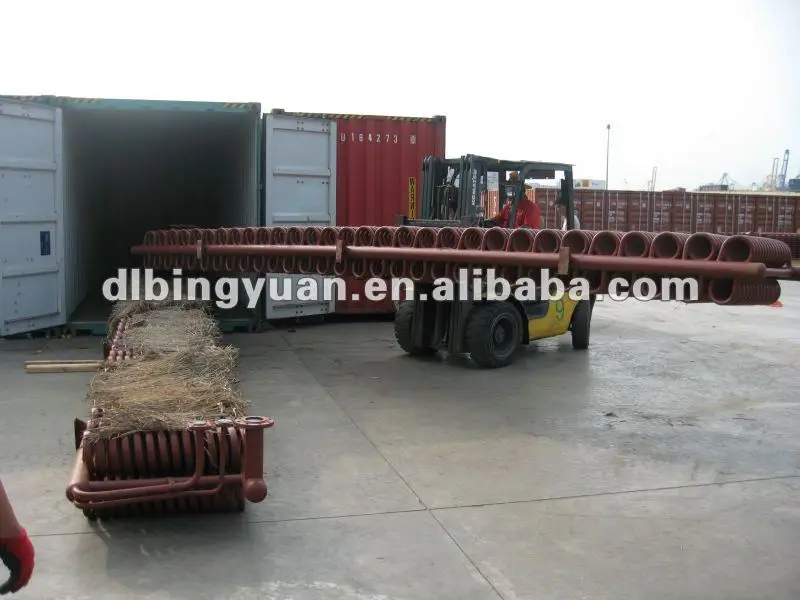

Evaporator coils:

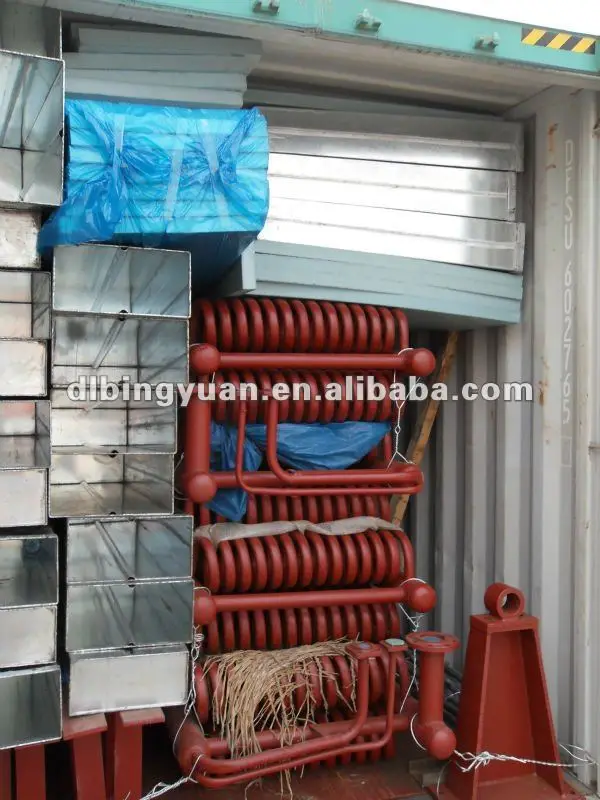

Welded of two main pipes and two rows of spiral pipes and are set within the ice making tank
Liquid ammonia enters the evaporator coils through the throttle valve and absorbs heat from brine, thus resulting in vaporizing liquid ammonia and temperature falling of brine
Vertical agitator:
It is mounted on both sides within the ice making brine in the tank to make brine in the tank to make brine flow rapidly through the space between evaporator coils and ice cans, so as to increase efficiency of heat transfer

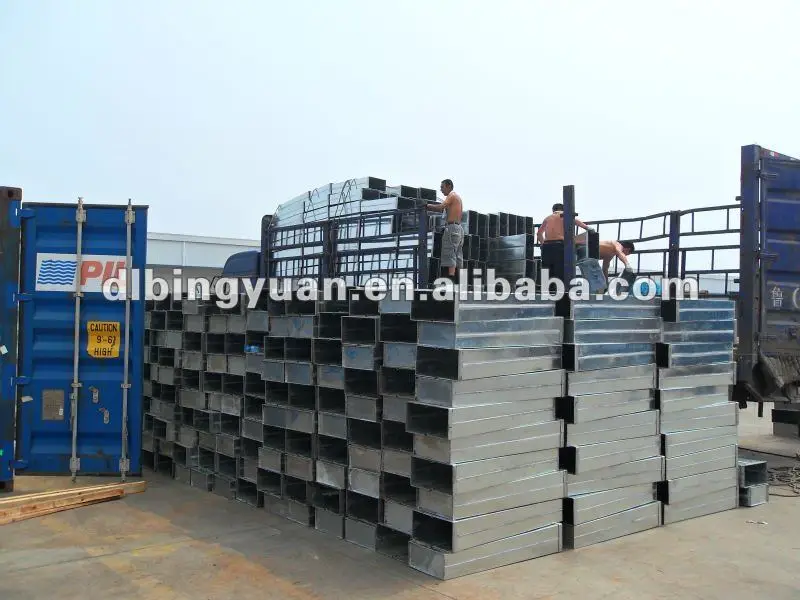

Ice cans:
Made of galvanized steel plate, and is some what taper shaped in order to facilitate the discharge of ice blocks
Top openings of the ice cans are riveted with flat steel in order to get reinforced
Thawing tank:
The tank is an open-type water container filled with water at the temperature of 35-40 degrees Celsius
It is used for melting surfaces of the ice blocks in contact with ice cans, in order to facilitate the discharge of ice blocks from the ice cans

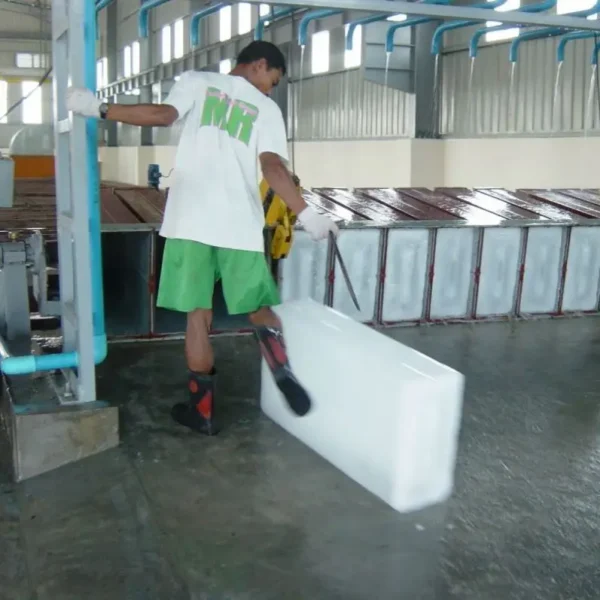

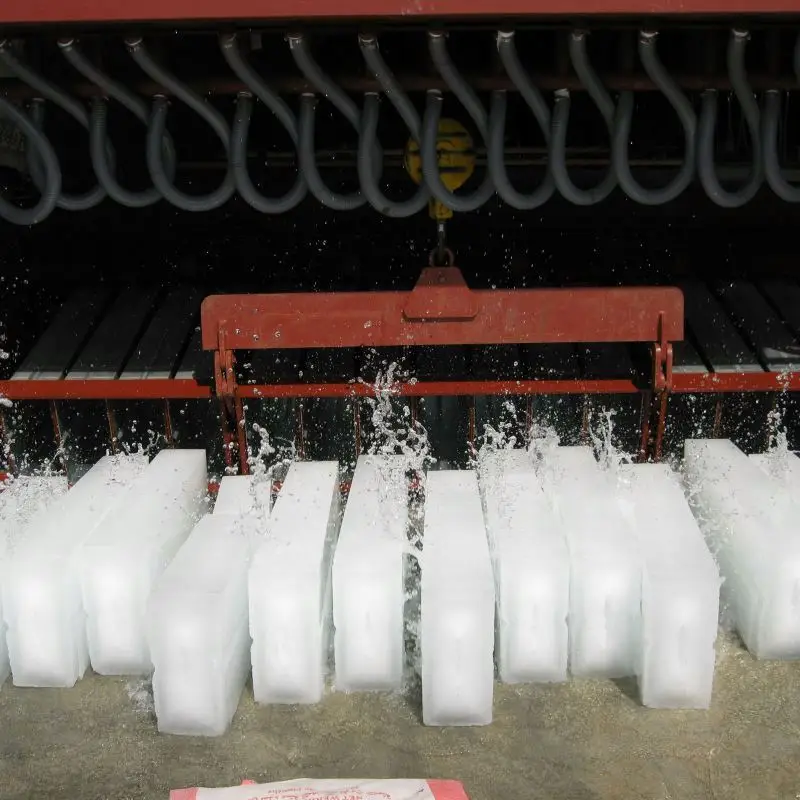

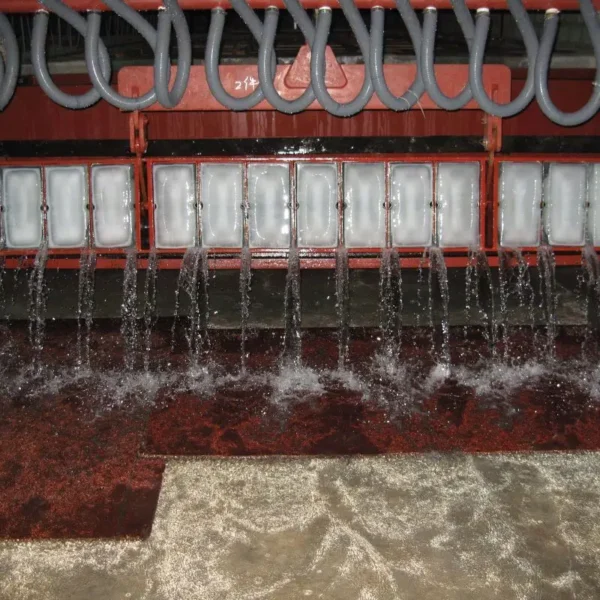

Ice-dumper: frame of L-type supported by its both ends on a bracket, it is used to slant the ice cans for discharging ice blocks

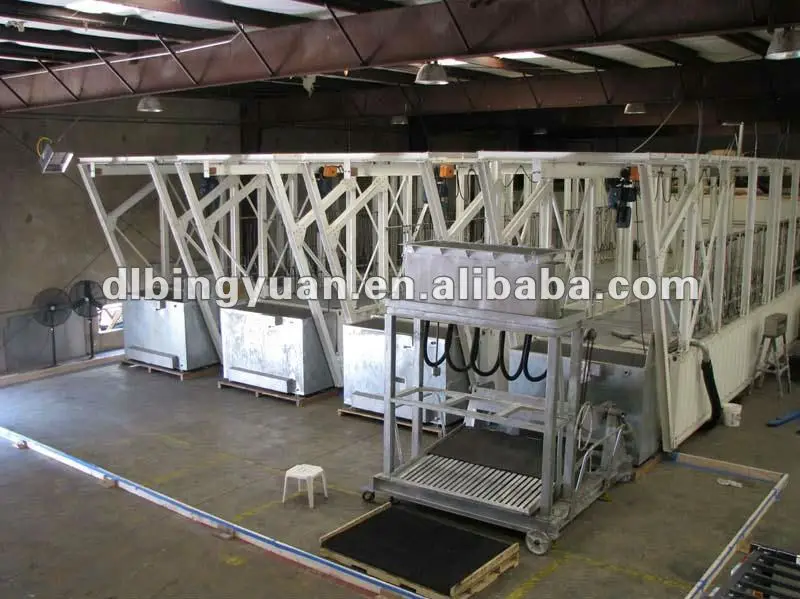

Ice can frame: holding a row of ice cans is put on the ice making tank, it can be lifted up and put into the tank by a double-hook bridge cran
Bingyuan
Block Ice Machine is plug-ready and specially designed for tropical conditions and coastal climate according to ISO/GFRP
1. Special design for the Africa, Middle East and Oceania market, performance well in the hot environment;
2. Adopt stainless steel for the salt water tank and ice moulds, no corrosion and low maintenance;
3. Reasonable and separated design for the structure, save space, easy to install;
4. All dimensions of ice block machine are designed according to international standard size of the container, very easy and convenient for transportation;

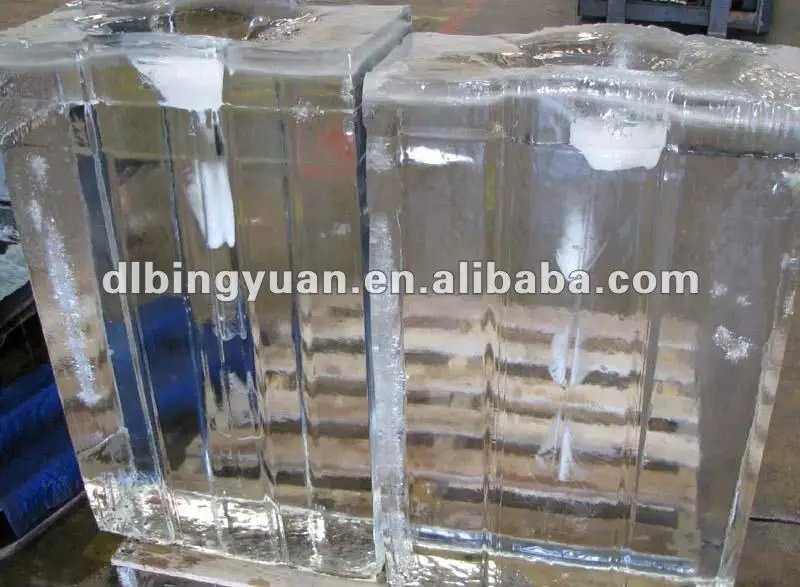

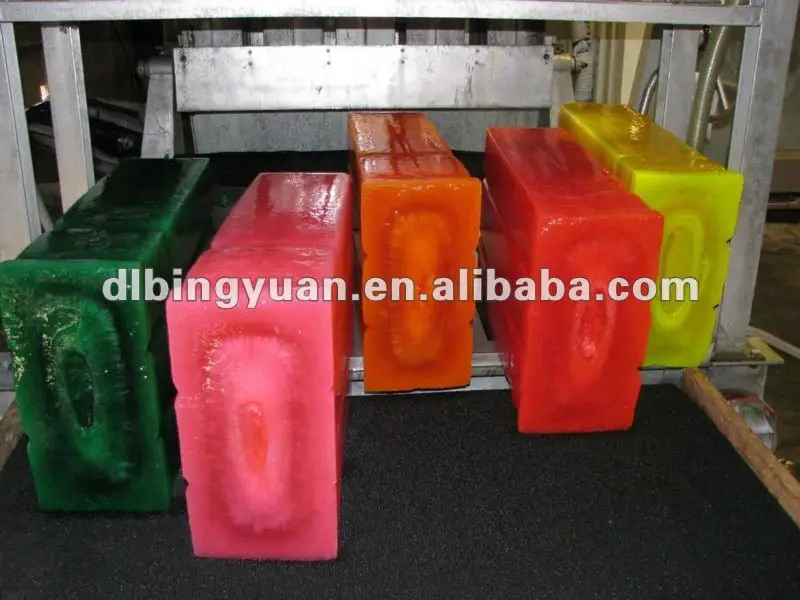

5. Ice block size: 20kg/piece, 25kg/piece, 30kg/piece, 50kg/piece
If you want us send you the quotation, please provide us some basic information, then we can quote you.
1. Area of the lot or sketch of the plant with dimensions
2. Maximum ambient temperature (Dry bulb and wet bulb temperature) and relative humidity
3. Information of the cooling water available (Kind, maximum temperature and quantity)
4. Electric current and frequent available
5. Desired capacity (How many tons per day)
6. Size and weight of an ice block

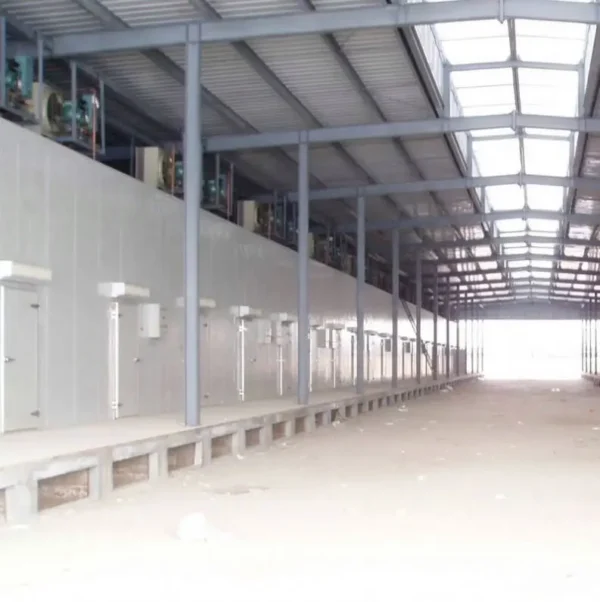

7. Capacity of ice storage room if need
Welcome you come to Dalian and visit our factories here, and establish long-term cooperation with you in the future!

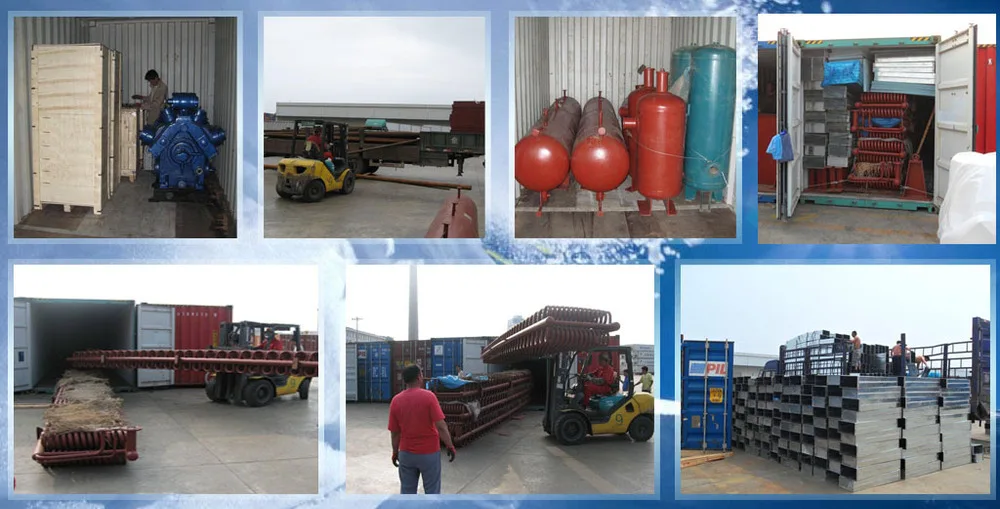

Packing & Shipping
Welcome you come to Dalian and visit our factories here, and establish long-term cooperation with you in the future!
Packing & Shipping
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machines carry?
It is supplied with GB documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380/440V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
