The ice machines listed here carries 220V-480V,3P, capacity 5000KG, documented exactly as the manufacturer publishes it. Made by Guangdong Xueyuan Refrigeration Equipment Co., Ltd. (9 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Ice Machines
- Power: 20KW
- Voltage: 220V-480V,3P
- Ice Storage Capacity: 20KG, 25KG, 30kg, 40kg, 50kg
- Capacity: 5000KG
- Evaporator Inner Material: Aluminum alloy
- Canning Material: SUS304 Staineless Steel
Technical Specifications
| Ice Shape | ICE BLOCK |
|---|---|
| Ice Storage Capacity | 20KG, 25KG, 30kg, 40kg, 50kg |
| Voltage | 220V-480V,3P |
| Power | 20KW |
| Compressor Brand | Other, Bitzer |
| Key Selling Points | Competitive Price |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 5000 |
| Brand Name | Snowland |
| Dimension(L*W*H) | 310*140*750 |
| Compressor | Bitzer |
| Innovative Technology | real-time monitoring online |
| PLC & Touchscreen | Schneider-France |
| Control System | Automatic Control System |
| Evaporator Inner Material | Aluminum alloy |
| Canning Material | SUS304 Staineless Steel |
| Cooling Way | Water cooling |
| Ice Weight | 20KG/25KG/30KG/40KG/50KG |
| Capacity | 5000KG |
| Selling Units | Single item |
Product Details

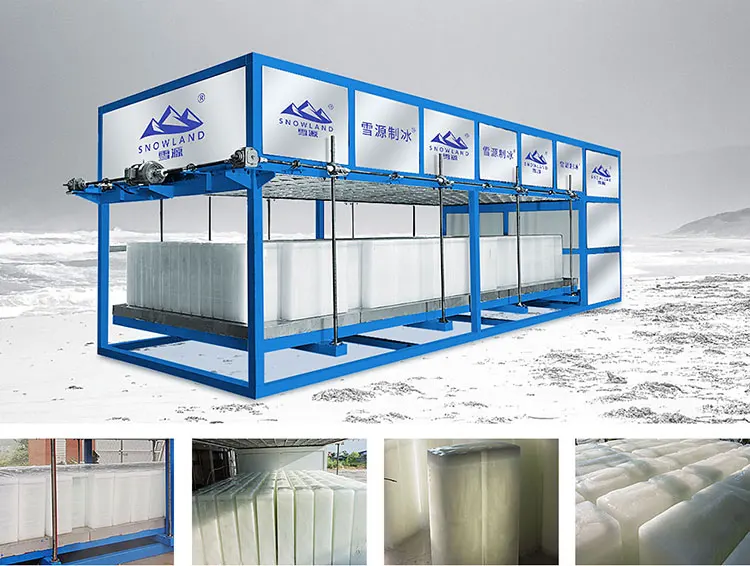

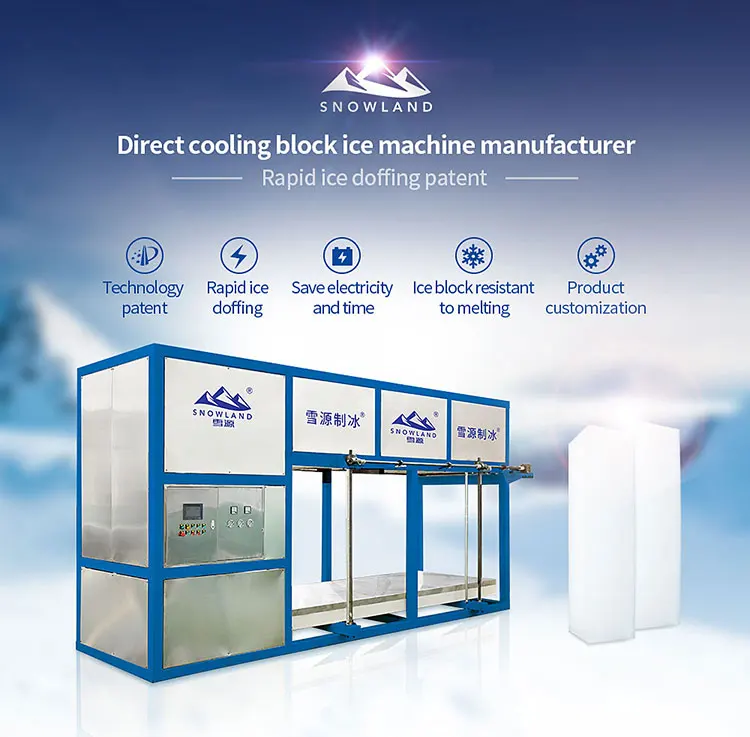

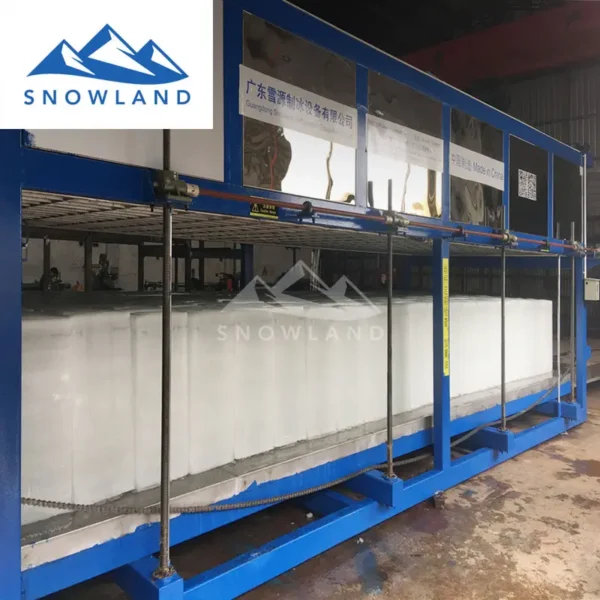

High-end direct cooling ice block making machine expert
1.Rapid ice doffing patent, saving more electricity and time, High output
2.Product customization,on-site installation
3.Real-time monitoring system(Optional)
4.New full automatic control system
5.Fully automatic ice pushing device (optional)
6.Adopting world-famous components
Technical parameters
| Model | Daily output(Ton) | Run Power(Kw) | Ice block piece weight(KGS) | Ice making batch(Times/day) | Machine dimentions(mm) (Take 50kg as an example) |
| ZL-1T-R22W | 1 | 6 | 15 | 3Times/day | L3382*W1440*H2550 |
| ZL-2T-R22W | 2 | 9 | 15 | 3Times/day | L3382*W1440*H2550 |
| ZL-3T-R22W | 3 | 12 | 20 50 | 2Times/day 2Times/day | L3250*W1642*H2550 |
| ZL-4T-R22W | 4 | 16 | 20 50 | 2Times/day 2Times/day | L3250*W1642*H2550 |
| ZL-5T-R22W | 5 | 20 | 20 50 | 2Times/day 2Times/day | L3250*W1642*H2550 |
| ZL-6T-R22W | 6 | 24 | 20 50 | 2Times/day 2Times/day | L3250*W1642*H2550 |
| ZL-8T-R22W | 8 | 32 | 20 50 | 2Times/day 2Times/day | L3250*W1642*H2550 |
| ZL-10T-R22W | 10 | 40 | 20 50 100 | 2Times/day 2Times/day 3Times/2day | L3250*W1642*H2550 |
| ZL-12T-R22W | 12 | 48 | 20 50 100 | 2Times/day 2Times/day 3Times/2day | L10000*W2252*H2550 |
| ZL-15T-R22W | 15 | 60 | 20 50 100 | 2Times/day 2Times/day 3Times/2day | L10000*W2252*H2550 |
| ZL-18T-R22W | 18 | 72 | 20 50 100 | 2Times/day 2Times/day 3Times/2day | L10000*W2252*H2550 |
| ZL-20T-R22W | 20 | 80 | 50 100 | 2Times/day 3Times/2day | L10000*W2252*H2550 |
| ZL-25T-R22W | 25 | 100 | 50 100 | 2Times/day 3Times/2day | L10000*W2252*H2550 |
| ZL-30T-R22W | 30 | 100 | 50 100 | 2Times/day 3Times/2day | L10000*W2252*H2550 |
|
2. Refrigerant: R22/R404A | |||||

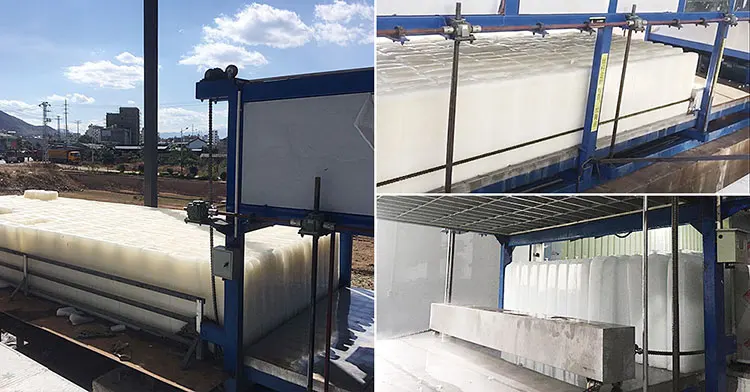

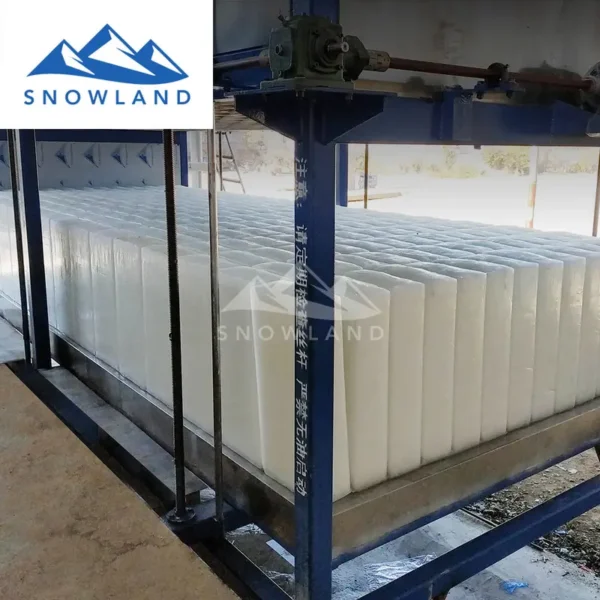

Rapid ice doffing , save time and electricity
Batch ice doffing process save 50% time compared with the traditional direct cooling ice machine, save time. Melting-resistant, higher ice output. Adopt SNOWLAND rapid ice doffing technology shorten the time of ice block falling down, and the advanced measures of thermal insulation greatly save electricity.
Only 50 kilowatt-hours/ton
low ice temperature, melting resistance
With traditional ice doffing technology, fluorine gas circulate in the evaporator, which takes a long time to ice fall down. Block ice temperature will increase, block ice melt easily and more, so it consumes more electricity. However, with the application of SNOWLAND rapid ice doffing technology, it greatly saves ice doffing time, and block ice temperature is lower, so it resistant to melting.
Product customization,on-site installation
SNOWLAND owns a skilled technical team can provide on-site installation and customize according to the block ice size, output capacity and machine configuration according to customer's requirement.
New full automatic control system
SNOWLAND direct block ice machine has complete automatic control functions, not only including compressor high voltage protection, low voltage protection,oil shortage protection, phase sequence protection, compressor module protection,motor overload protection, but also including lifting platform limited protection, automatic watering, automatic ice doffing and other functions.
Adopt world-famous components
SNOWLAND direct cooling block ice machine electrical control uses Schneider's PLC and touch screen, LS electrical components, etc., using Danfoss, Emerson, Faske valve, Bitzer compressor and other brand accessories.

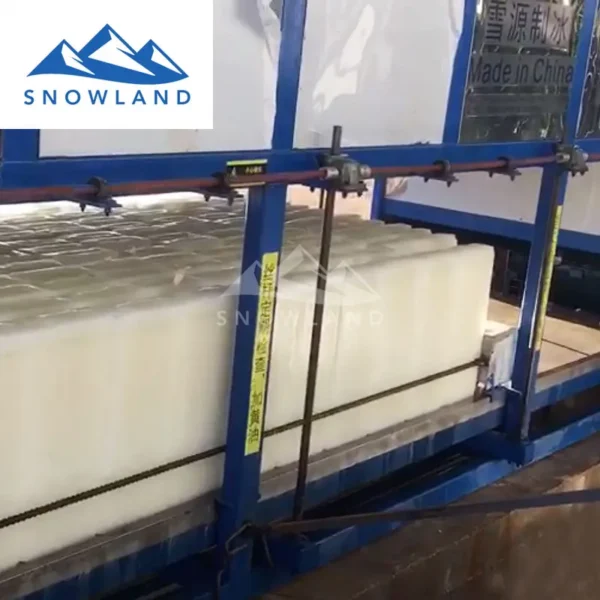

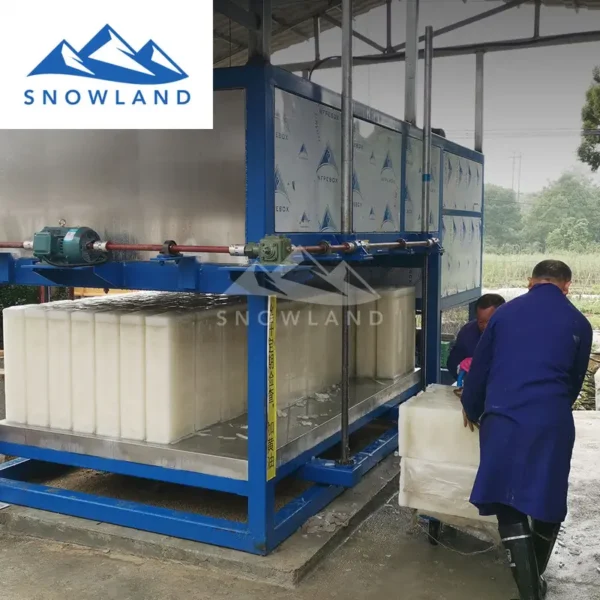

Fully automatic ice pushing device (optional)
Two ways to push the ice, which are controlled by chrain or gear. Easy operation and low labor cost.

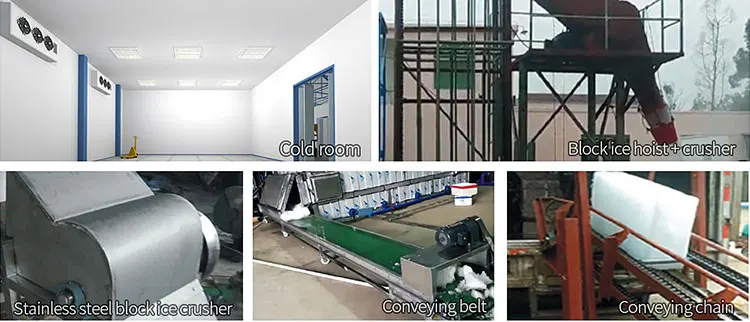

Ancillary equipment (optional)
Including full-automatic ice crusher, water chiller, conveying device and cold room.

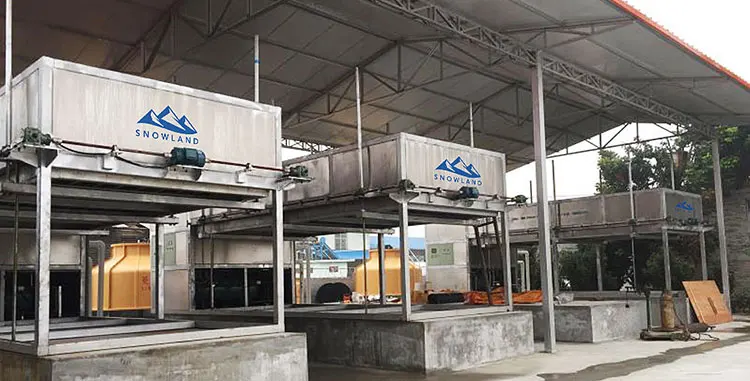

Old salt water ice plant renovation program – Evaporator of direct cooling block ice machine(optional)

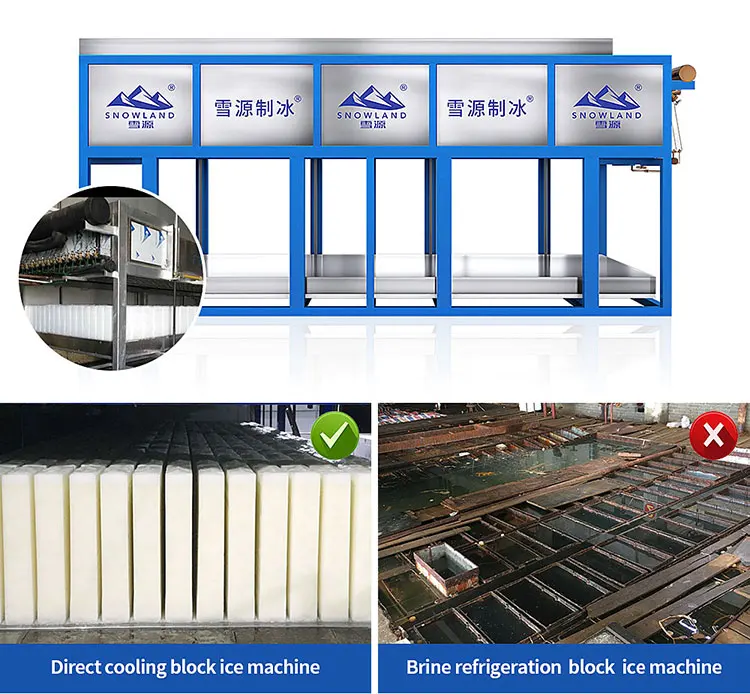

| Comparison between direct cooling block ice machine & traditional brine refrigeration block ice machine | ||
| Direct cooling block ice machine | Brine system block ice machine | |
| Power consumption | 50kWh/ton | 75kWh/ton |
| Clean | Ice is sanitary, clean and edible. | Poor condition, mostly used for preservation and transportation |
| Way of ice doffing | Ice doffing by water or hot fluoride circulation, Short and fast ice freezing and doffing time. Labor cost saving. | Labor operation is needed, and ice freezing time is longer. |
| Area | Take a little area, convenient to transport, low construction cost. | lTake larger area, higher construction cost. |
| Operation cost | Low | High |
| Working life | The material of ice moulds are Aluminum plate, mainframe adopts stainless steel, which is anti-rust and anti-corrosive. | The machine is be corroded and rusted by brine water. Service life is shorter. |

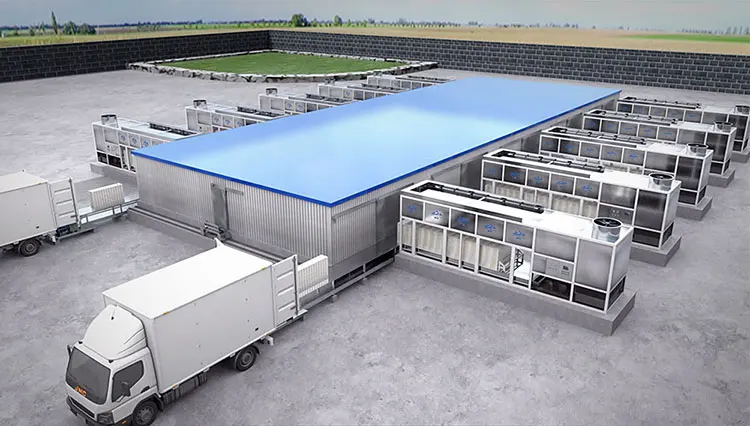

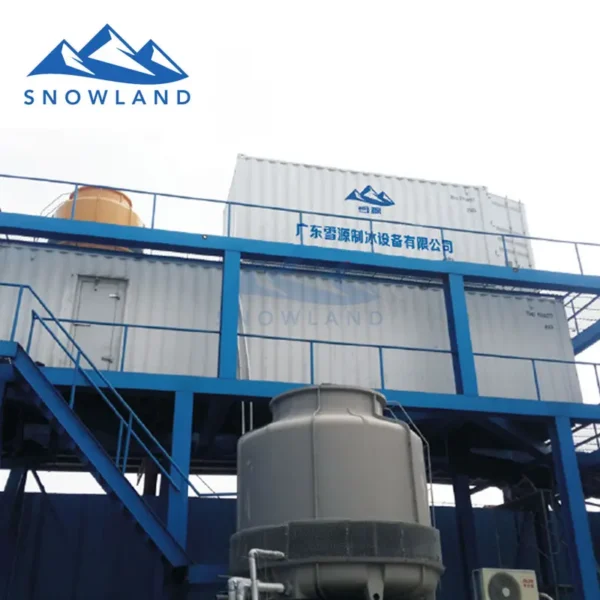

Professional solutions for large-scale full-automatic ice making plant projects (optional)
1.Full automatic making block ice, saving labor cost and time.
2.Power consumption 50 kWh/ton, saving electricity.
3.Full automatic block ice delivering from cold room, loading process.
4.Supply ice storage room, ice crusher and ice conveying system and other accessies.
Wide application
1. Fish, meat, vegetable, fruit keep fresh.
2. Concrete cooling.
3. Industrial usage
4. Supermaket, restaurant goods keep fresh.
5. Aquatic product keep cooling
Packaging & Shipping
1. Standard export standard.

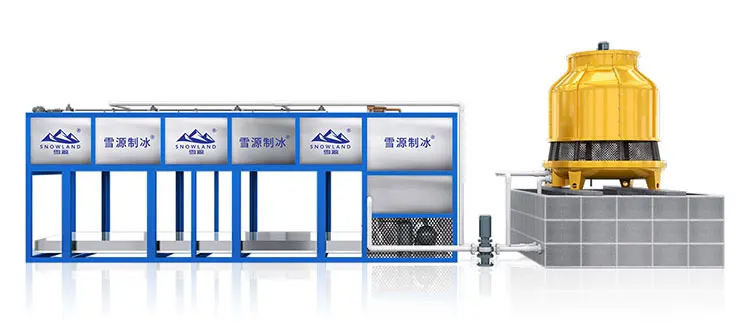

2. A full set of ice machine includes: the unit, cover,cooling tower, water pump and water pipes.
3. The machine come into be used, the customer only need prepare power and water for the machine.
4. All required components for installing the machine will be provided.
5. Cold room is also available.
Company Profile
TIPS :
1. Product customization.
2. Payment term: 100% by T/T. 40% down payment for confirming the order, the balance is to paid off before loading.
3. Delivery: 45 working days after receipt of the deposit.
4. The price should be negotiated and accepted by both parties.
FAQ:
1. Q: Is the ice machine with the refrigerant?
A: Yes, The machine come into be used, the customer only need prepare power and water for it.
2. Q: Are the ice machine tested in your factory?
A: Yes, each ice machine must be strictly tested before its delivery.
Now we (SNOWLAND) want to recruit agents and distributors sincerely from the global. We are welcomed and glad to have you in the same line with us. If you have strong passion for entrepreneurship and ambition, believe our technology and skill, products and service, we (SNOWLAND) hope you become our strategic partners. And we (SNOWLAND) are devoted to provide the best products and service to the global clients with you.
Please contact us at anytime, we'll definately contact you immediately.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $24000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machines be supplied for my local voltage?
The standard configuration is 220V-480V,3P. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
