Key specification for this ice machines: 380V/3P/50HZ(60hz), 1200 W. Everything below is reproduced from the factory data sheet. Made by Focusun Technology (Shanghai) Corporation (19 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Ice Machines
- Power: 1200 W
- Power Supply: 380V/3P/50HZ(60hz)
- Voltage: 380V/3P/50HZ/440v/3p/60hz/220V/3P/60HZ/480V/460V
- Ice Storage Capacity: 25tons
- Refrigerant: R404A eco-friendly gas
- Warranty: 1.5 year
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | 25tons |
| Voltage | 380V/3P/50HZ/440v/3p/60hz/220V/3P/60HZ/480V/460V |
| Power | 1200 W |
| Compressor Brand | Bitzer |
| Key Selling Points | Hot-Slae Ice Machine For Fishery |
| Application | Fishing Industry |
| Warranty | 1.5 year |
| Core Components | Pump, Engine, PLC, Evaporator: The evaporator is the heart, Refrigeration System, Control Panel, Frame and Housing, Condenser |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Jiangsu |
| Weight (Kg) | 800 |
| Brand Name | FOCUSUN |
| Dimension(L*W*H) | L4200mm X W2000mm X H2914mm |
| Power Supply | 380V/3P/50HZ(60hz) |
| Keyword | Flake ice machine for fishing |
| Cooling Way | Water Cooling or Evaporative cooling condenser |
| Control System | Siemens PLC control |
| Refrigerant | R404A eco-friendly gas |
| Model | FIF-200ES |
| Ice Size | 1.5mm~2.2mm |
| Certifications And Compliance | Provided |
| Service And Maintenance Plan | Customizable service and maintenance packages to fit the user’s needs |
| Safety Features | like emergency shutdown systems or safety interlocks |
| Selling Units | Single item |
| Single Package Size | 1X1.5X1 cm |
| Single Gross Weight | 20.0 kg |
Product Details
Products Details
Product Name | Flake ice machine 20tons/day | Other capacities | 1tons to 60tons/day |
Brand | FOCUSUN | Colour | Good-looking blue |
Power supply | 380V/3P/50HZ.. | Place of Product | Shanghai, Jiangsu Focusun factory |
Refrigerant | R404A | Modes of packing | Packed with proective plastic |
Ice storage bin | 20tons to 30tons matched | After sale service | 15 months full warranty |

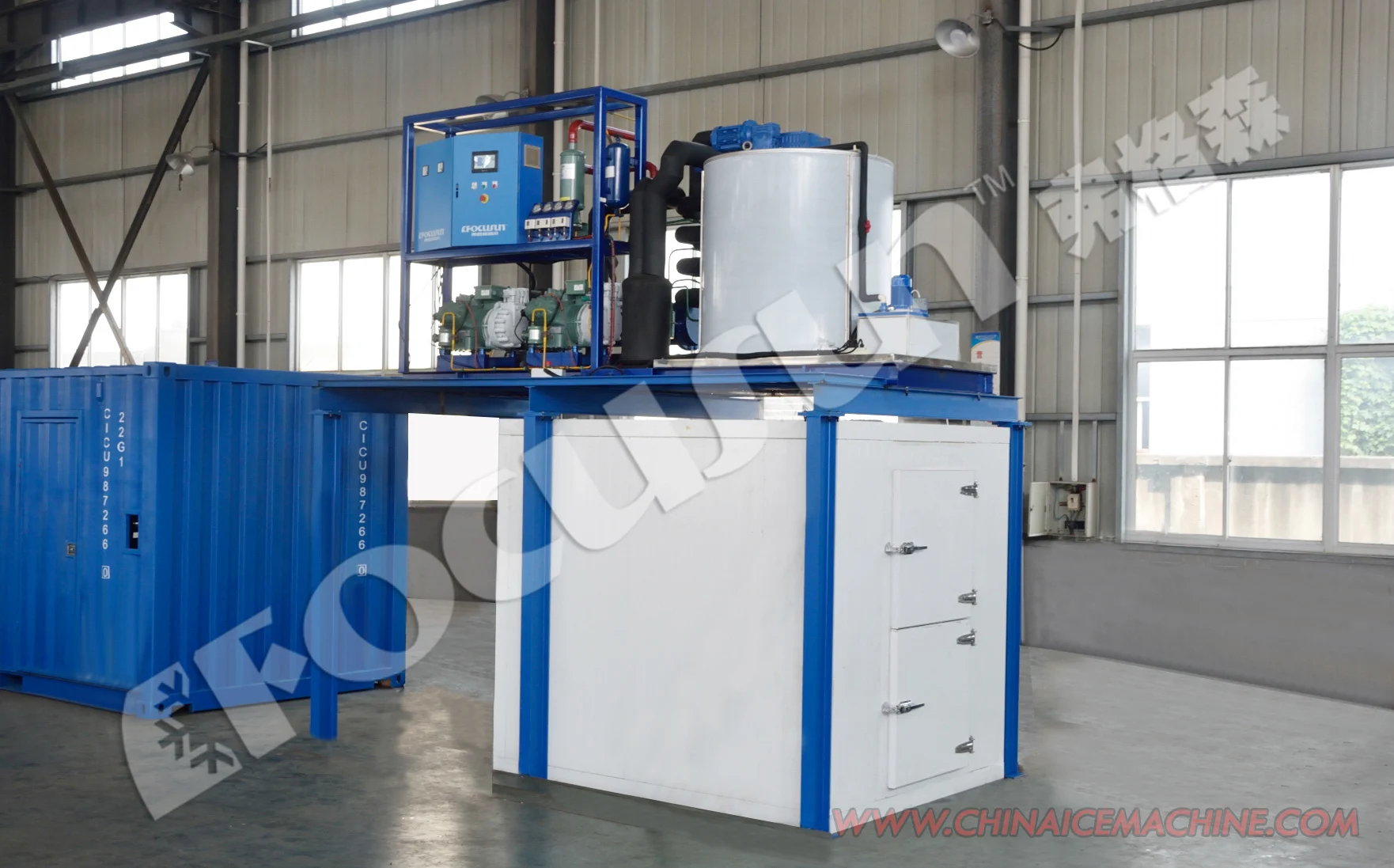

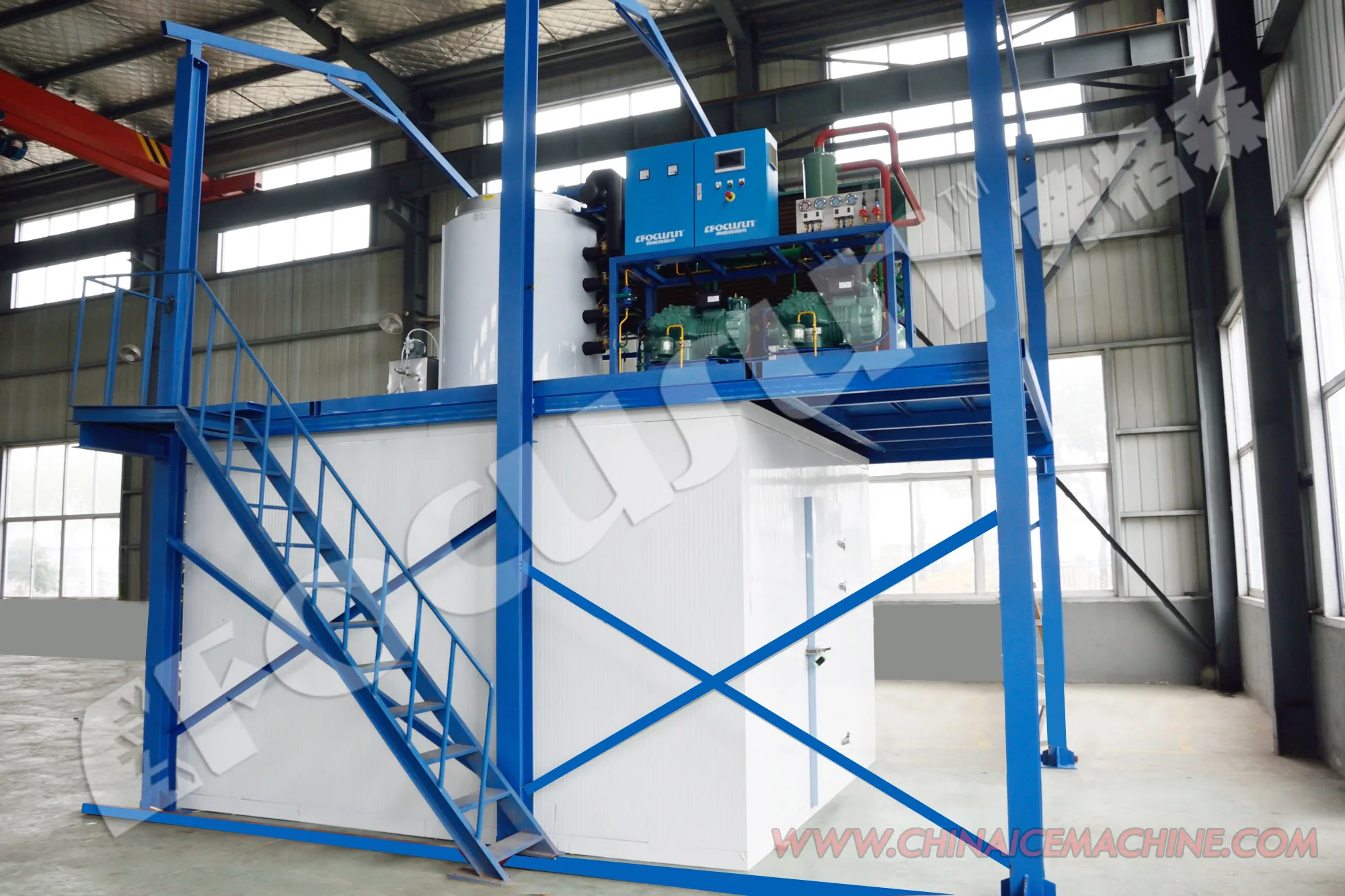

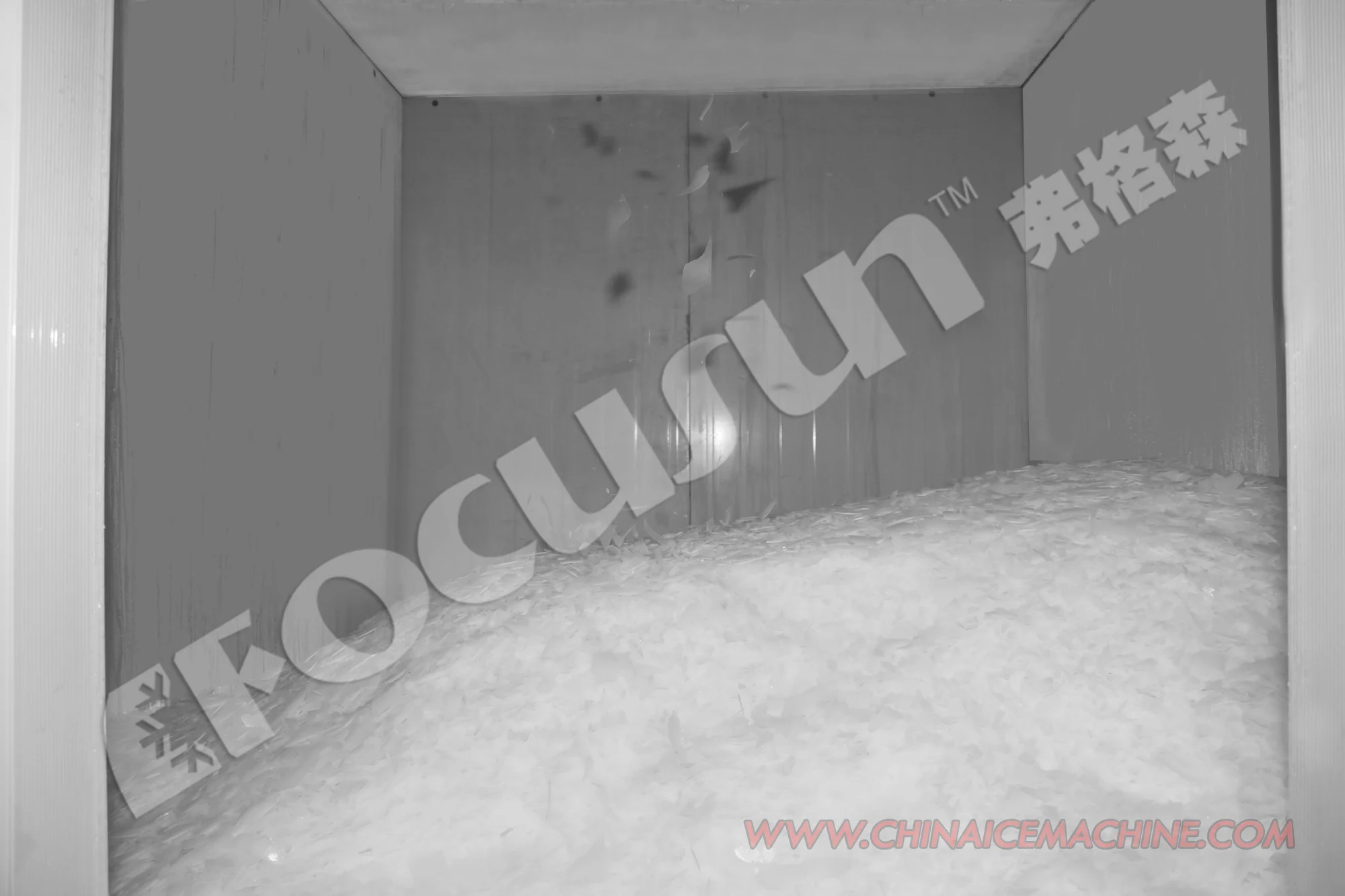

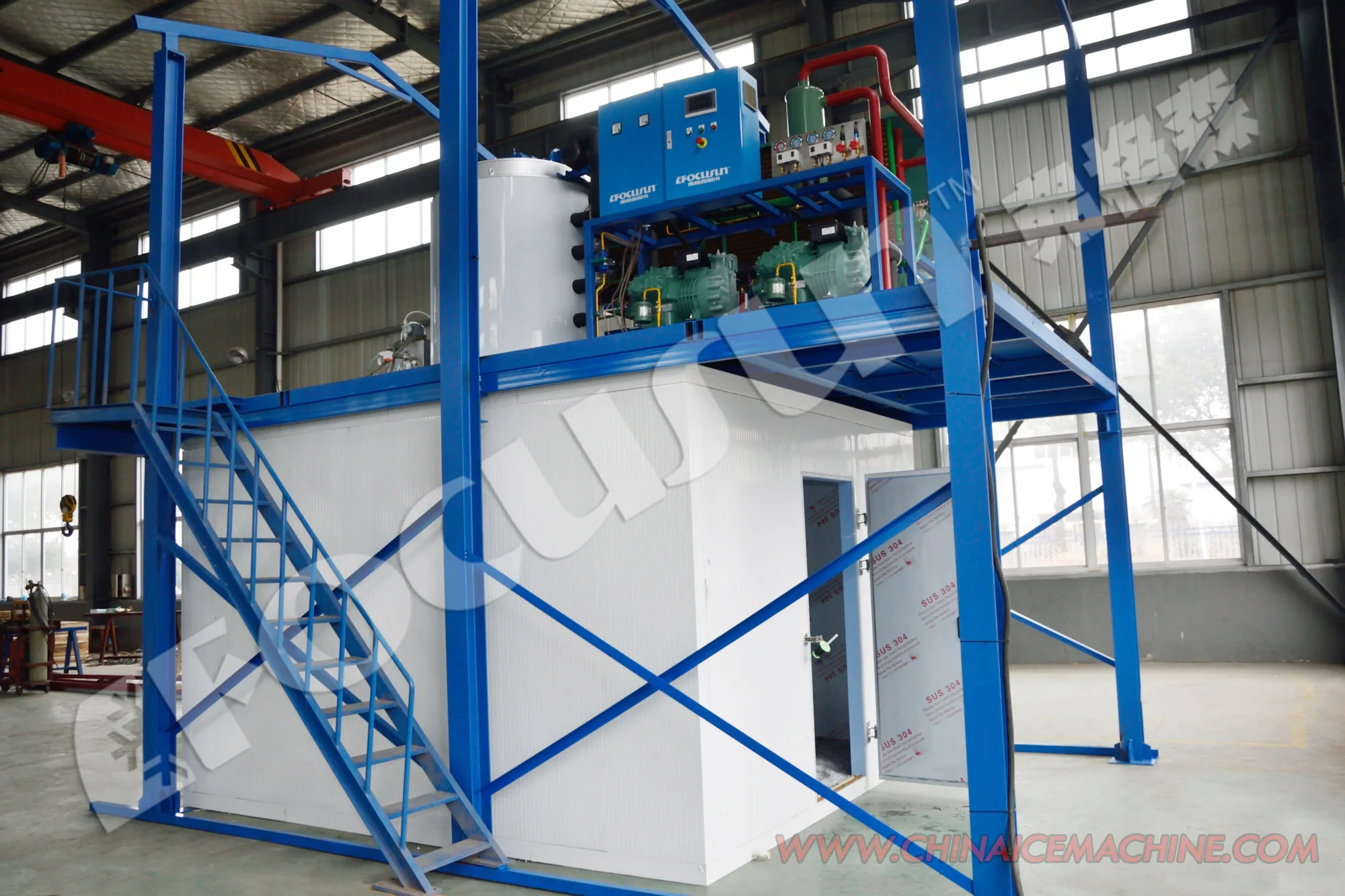

Advantages of flake ice machine matched with cold storage
Focusun good design of flake ice machine with cold storage, equipped with a steel frame and a ladder for convenient access. The steel frame provides
structural support, and the ladder allows personnel to walk safely on top to operate the flake ice machine situated above the cold
storage. This design facilitates the ice collection process on the first level of the cold storage.
structural support, and the ladder allows personnel to walk safely on top to operate the flake ice machine situated above the cold
storage. This design facilitates the ice collection process on the first level of the cold storage.

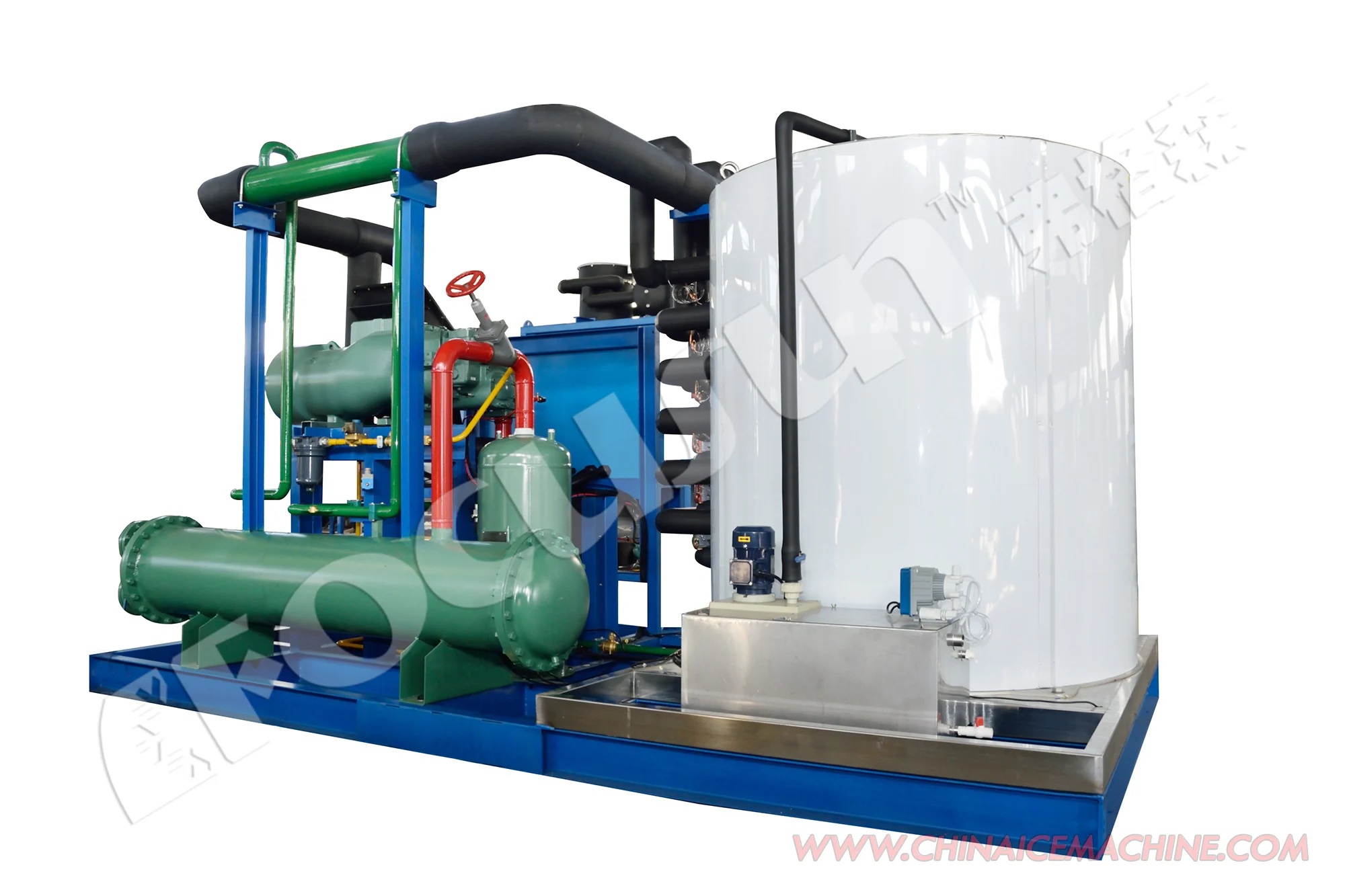

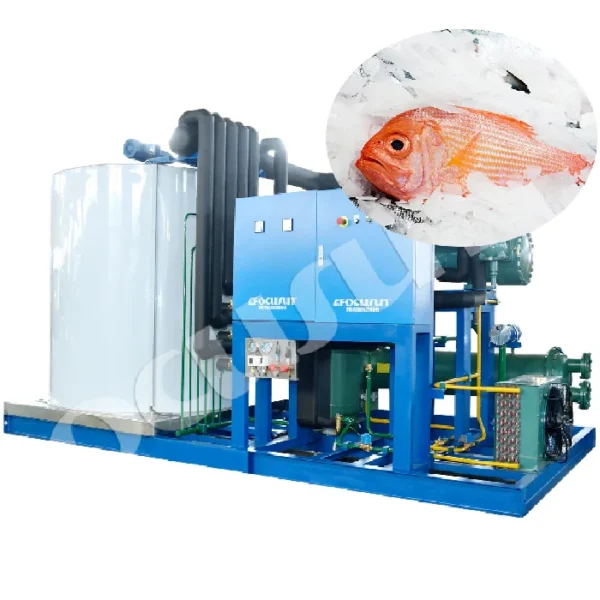

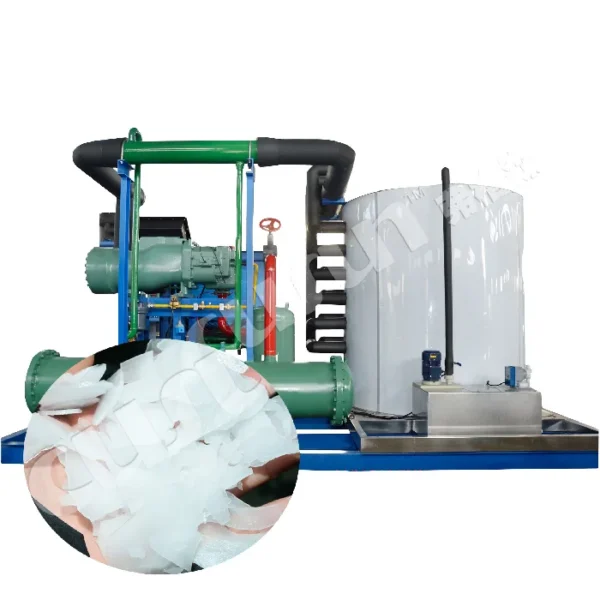

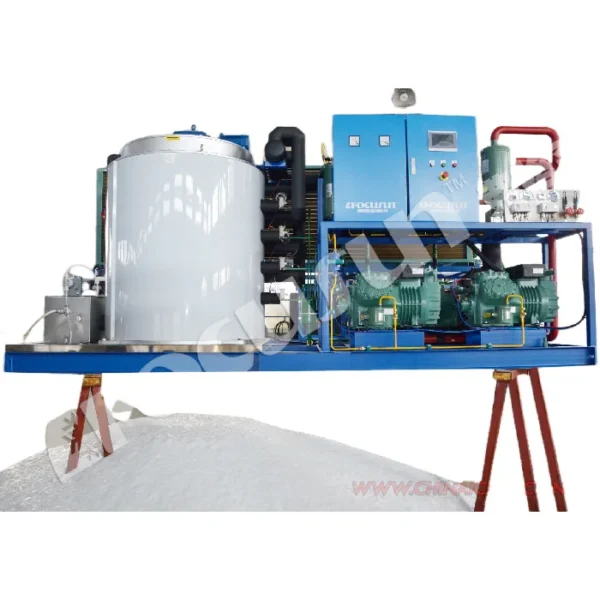

20Ton flake ice machine with air cooled condenser
Here are some key features and specifications of the Focusun 20-ton flake ice machine:
1. Capacity: The machine has a production capacity of 20 tons (20,000 kilograms) of flake ice per day. This high output makes it
suitable for large-scale applications where a significant amount of ice is required.
2. Flake Ice Type: This machine produces flake ice, which is characterized by its thin, flat, and irregularly shaped ice flakes.
Flake ice has a wide range of applications, including rapid cooling, preservation, and transportation of perishable goods.
1. Capacity: The machine has a production capacity of 20 tons (20,000 kilograms) of flake ice per day. This high output makes it
suitable for large-scale applications where a significant amount of ice is required.
2. Flake Ice Type: This machine produces flake ice, which is characterized by its thin, flat, and irregularly shaped ice flakes.
Flake ice has a wide range of applications, including rapid cooling, preservation, and transportation of perishable goods.
Why Focusun flake ice machine?

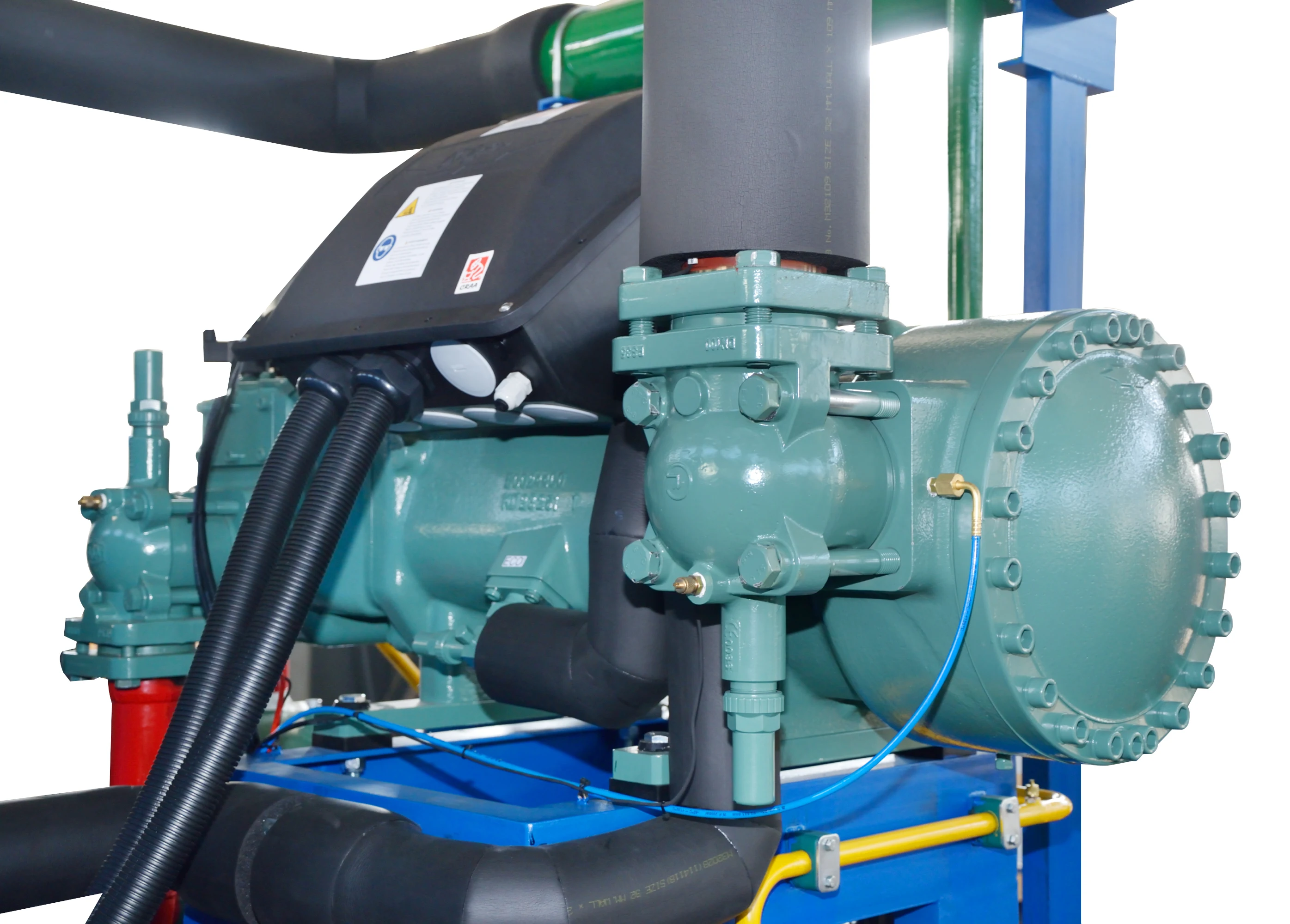

The most important part of an ice machine is its compressor, we adopt Bitzer The compressors are
world-famous for their reliable, durable and excellent performance. They have long service life and need low maintenance.
Other parts also have high quality, Danfoss refrigeration parts, electric parts, Siemens PLC, Emerson filer and so on.
world-famous for their reliable, durable and excellent performance. They have long service life and need low maintenance.
Other parts also have high quality, Danfoss refrigeration parts, electric parts, Siemens PLC, Emerson filer and so on.

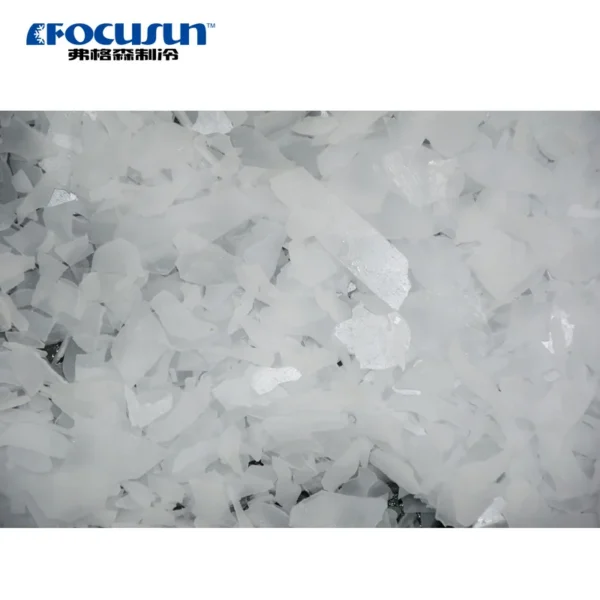

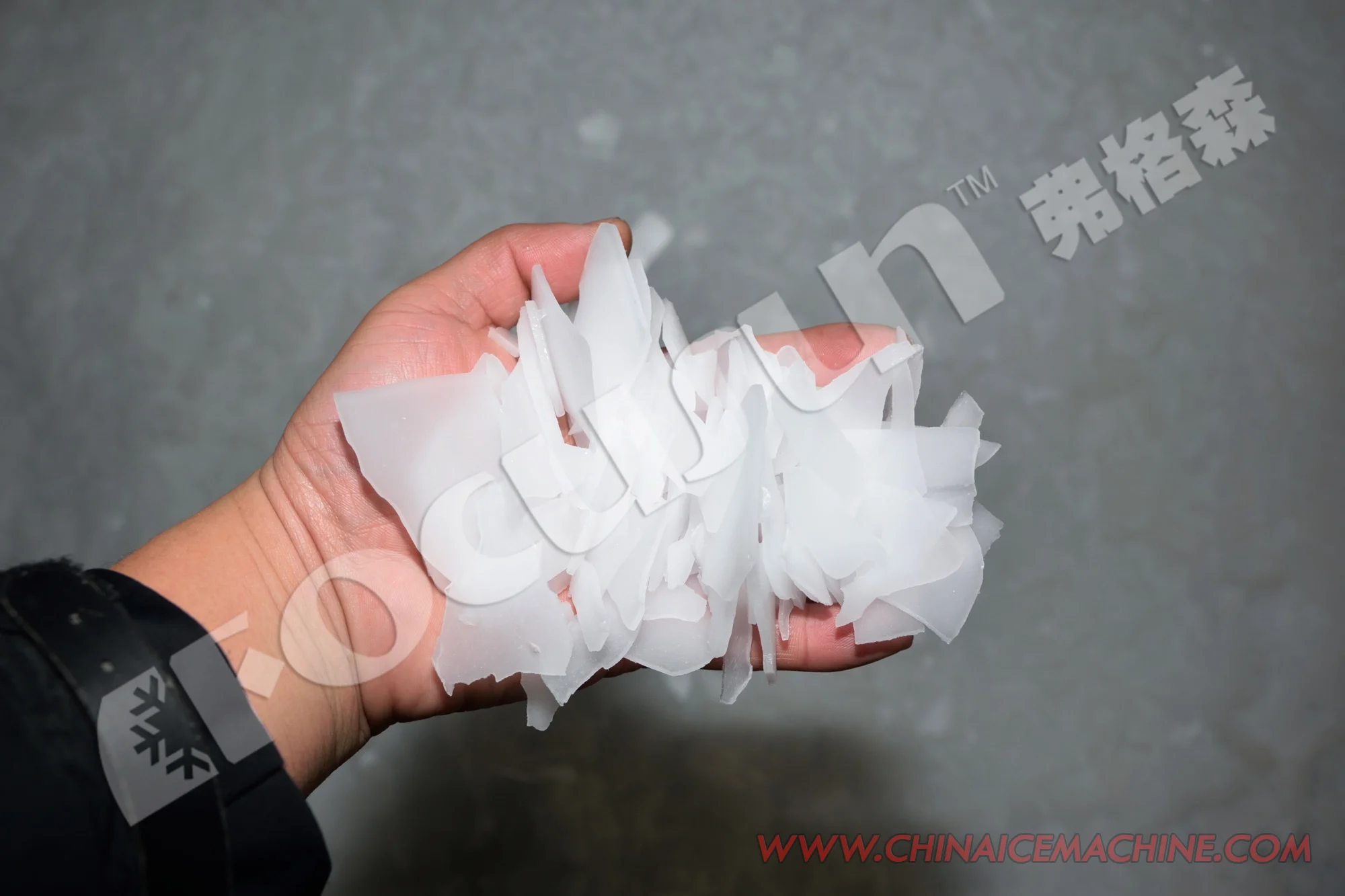

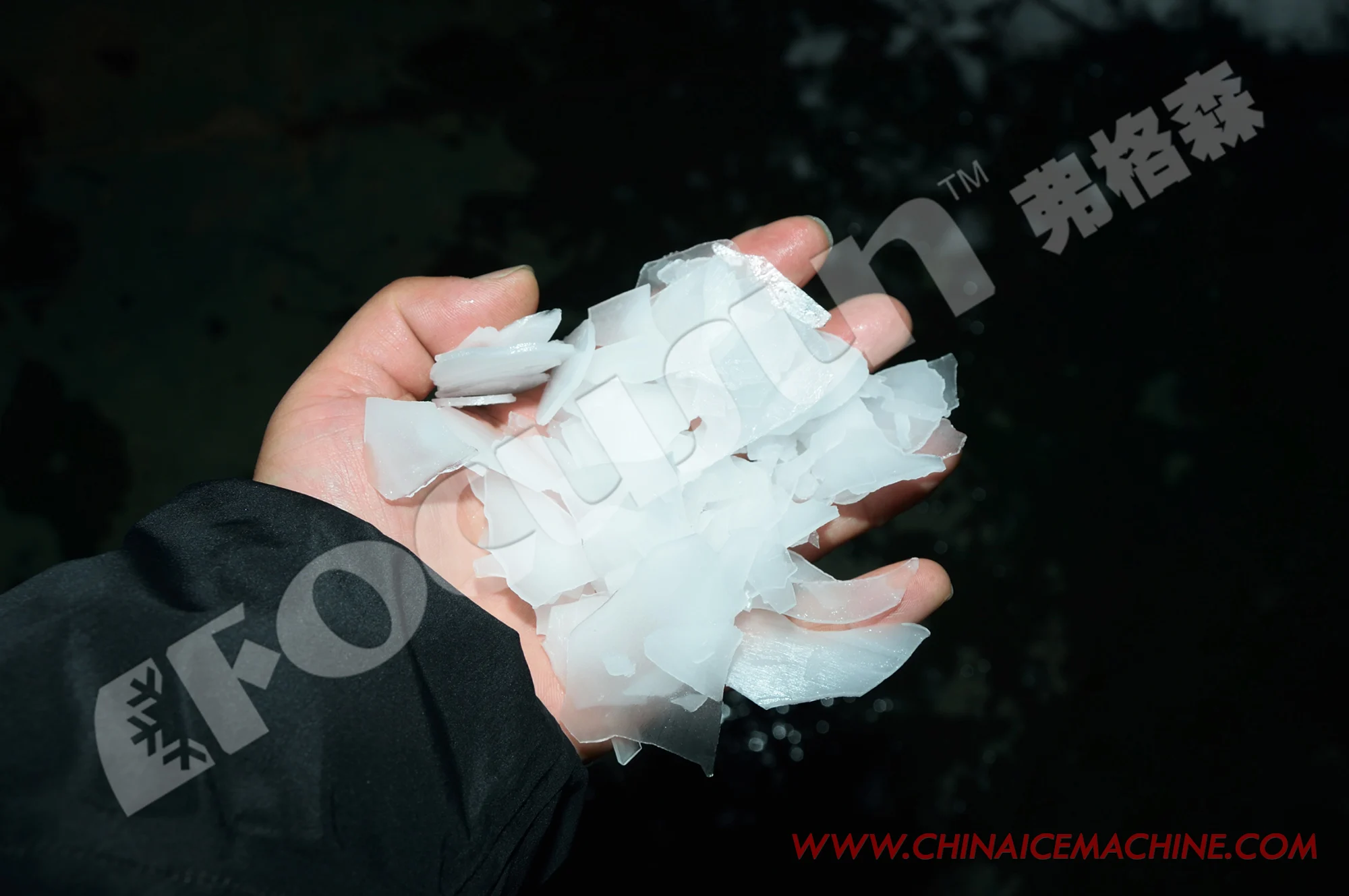

Flake Ice Introduction:
1. Flake ice also called scale ice, hielo en escama, shell ice, crushed ice, it's irregular shaped,thickness 1.5 to 2.2mm, about 40 X 40mm dimensions.
2. It's thin but has no acute edge, it wouldn't hurt the surface of product
3. Large contact area, fast cooling effect
4. Crash easily, can mix with product to direct cool
5. Application: Fishing preservation, Chemical Plant, Mine or factory cooling, concrete mixing cooling.
1. Flake ice also called scale ice, hielo en escama, shell ice, crushed ice, it's irregular shaped,thickness 1.5 to 2.2mm, about 40 X 40mm dimensions.
2. It's thin but has no acute edge, it wouldn't hurt the surface of product
3. Large contact area, fast cooling effect
4. Crash easily, can mix with product to direct cool
5. Application: Fishing preservation, Chemical Plant, Mine or factory cooling, concrete mixing cooling.
6. Focusun flake ice machine for fishing also have ice storage bin provided.
Product Description
The 20-ton flake ice machine is built with robust materials and components to ensure durability and long-term performance.Focusun is known for manufacturing high-quality and reliable ice machines.
Proper installation and regular maintenance are crucial for optimal performance. Focusun provides guidelines and support for installation, as well as recommendations for routine maintenance to keep the machine in good working condition.
Proper installation and regular maintenance are crucial for optimal performance. Focusun provides guidelines and support for installation, as well as recommendations for routine maintenance to keep the machine in good working condition.
Focusun project pictures of flake ice making machine comerical ones and industrial ones,Flake ice is also perfect for bakeries because it dissipates heat and adds moisture to the dough without clumping. It also blends better and doesn't damage the finished product.
Characters of Flake ice machine:
-Produces flake ice using regular fresh water, size of flake ice machine Focusun make is 1.5mm ~2.2mm in thickness.
-Operates smoothly under tropical conditions.
– 24/7 non-stop operation. – All equipment comply with EU standards. – Ice generator with air-cooled condenser as standard – Chassis is made of anti-corrossive painted steel. – High condenser and fan capacities are tested under extreme conditions
Industry | Application Of Focusun Flake ice making machines | ||||||
Food and Beverage | Ideal for cooling and preserving perishable items, such as seafood, fruits, and vegetables. | ||||||
Hospitality | Perfect for use in hotels, restaurants, and bars to enhance the presentation of food and beverages. | ||||||
Fisheries | Commonly employed to keep fish fresh during processing, storage, and transportation. | ||||||
Supermarkets | Used for display purposes and to maintain the freshness of produce and seafood. | ||||||
Concrete Cooling | Essential in the construction industry for temperature control in concrete mixing | ||||||
Snow Parks and Ski Resorts | Flake ice maker machine utilized for creating artificial snow. | ||||||
Poultry Farming | Used to cool and maintain the temperature in poultry houses for optimal bird comfort and health. | ||||||
Bakery and Confectionery | Enhances dough consistency in baking processes and extends the shelf life of confectionery products. | ||||||
Meat Processing | Facilitates the rapid cooling of meat products during processing, ensuring quality and safety | ||||||
FOCUSUN STANDARIZED MODELS
Model | Daily Capacity | Refrigerant | Machine weight | Machine Size(LXWXH) |
FIF-10AS | 1tons/24hours | R22/R404A | 380KG | 1200X740X780mm |
FIF-20AS | 2tons/24hours | R22/R404A | 480KG | 1560X1200X960mm |
FIF-30AS | 3tons/24hours | R22/R404A | 550KG | 1560x1200x1150mm |
FIF-50AS | 5tons/24hours | R22/R404A | 1250KG | 2200x1050x1550mm |
FIF-100WS | 10tons/24hours | R22/R404A | 2200KG | 3550x1550x2100mm |
FIF-120WS | 12tons/24hours | R22/R404A | 3000KG | 3720x1650x2050mm |
FIF-150WS | 15tons/24hours | R22/R404A | 3200KG | 4000x1850x2400mm |
FIF-200WS | 20tons/24hours | R22/R404A | 3600KG | 4200x2000x2914mm |
FIF-250WS | 25tons/24hours | R22/R404A | 4500kg | 4200×2000×2450mm |
FIF-300WS | 30tons/24hours | R22/R404A | 7400KG | 5200x2200x3000mm |
FIF-350WS | 35tons/24hours | R22/R404A | 9000KG | 5200x2200x3200mm |
FIF-400WS | 40tons/24hours | R22/R404A | 9500KG | 5600x2400x3600mm |
FIF-500WS | 50tons/24hours | R22/R404A | 9700KG | 5800x2500x4500mm |
FIF-600WS | 60tons/24hours | R22/R404A | 11000KG | 6400x2500x4500mm |
STAINLESS STEEL AIR COOLED CONDENSER
1. Energy Efficiency: The machine is designed to be energy-efficient, helping to reduce operational costs. It incorporates
advanced technology to optimize energy consumption and minimize waste.
2. Control System: The Focusun 10-ton flake ice machine features an intelligent control system that allows for easy operation and
monitoring. It may include features such as temperature control, automatic ice-making cycle, and alarms for system
malfunctions.
advanced technology to optimize energy consumption and minimize waste.
2. Control System: The Focusun 10-ton flake ice machine features an intelligent control system that allows for easy operation and
monitoring. It may include features such as temperature control, automatic ice-making cycle, and alarms for system
malfunctions.

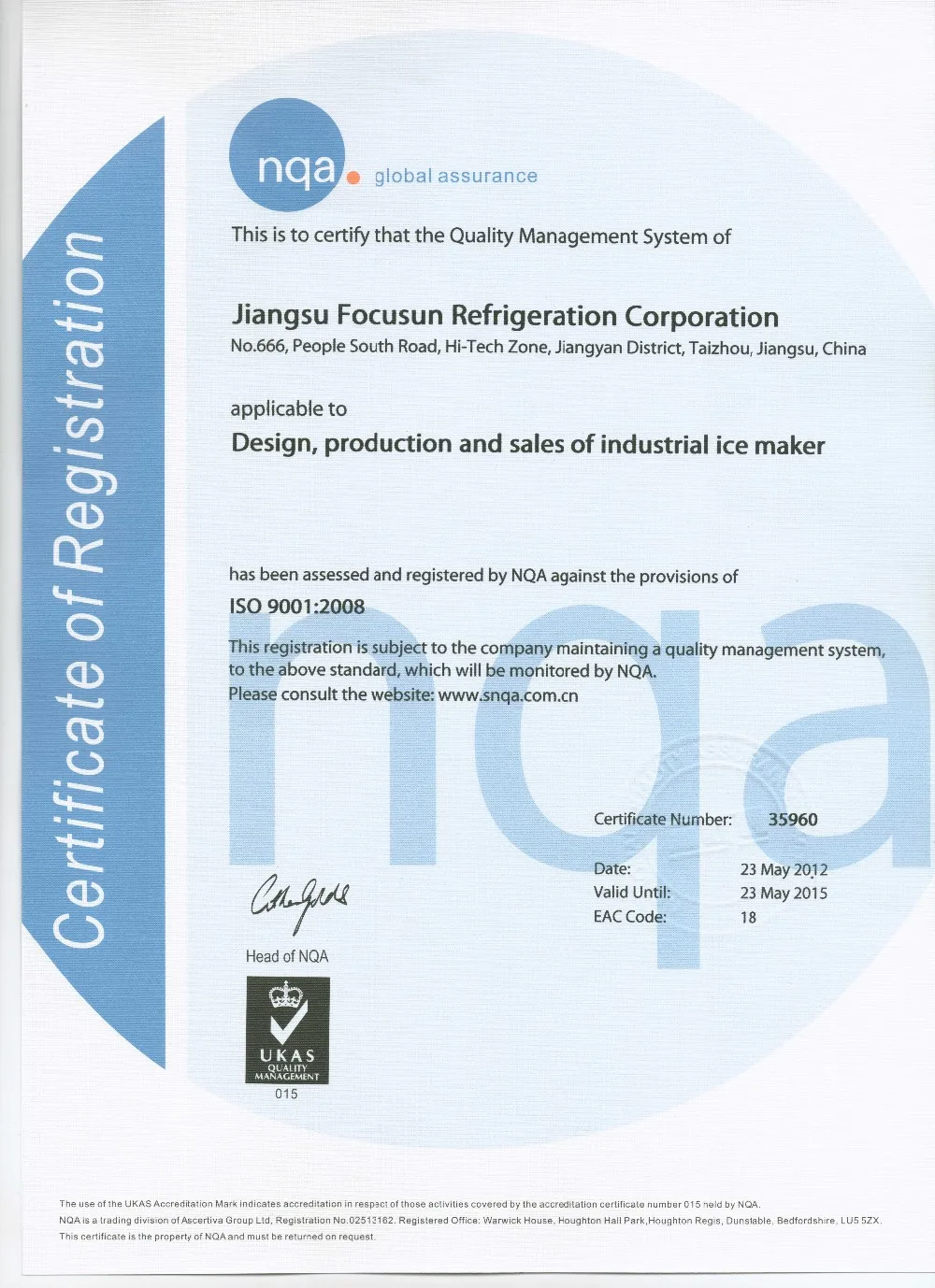

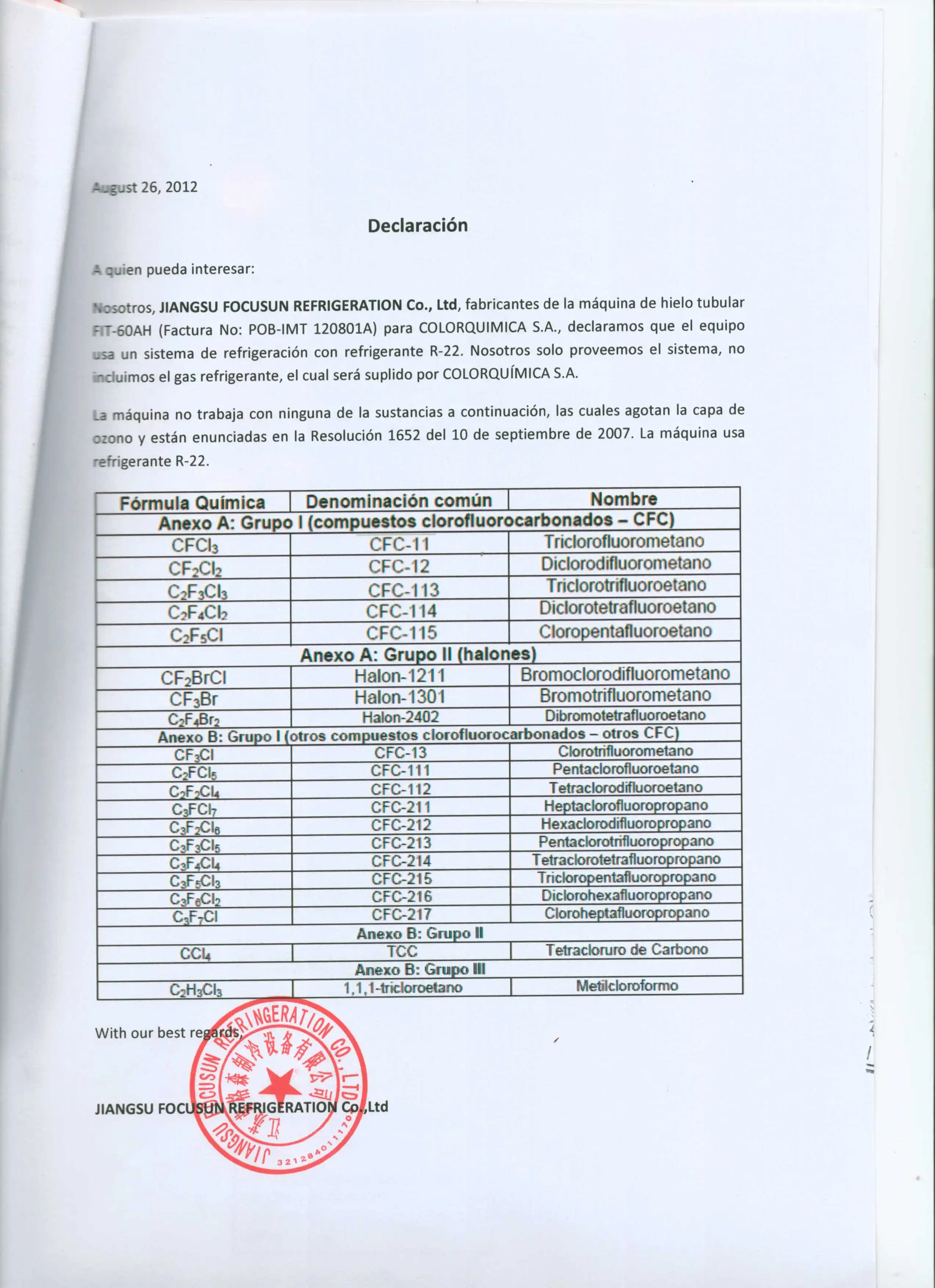

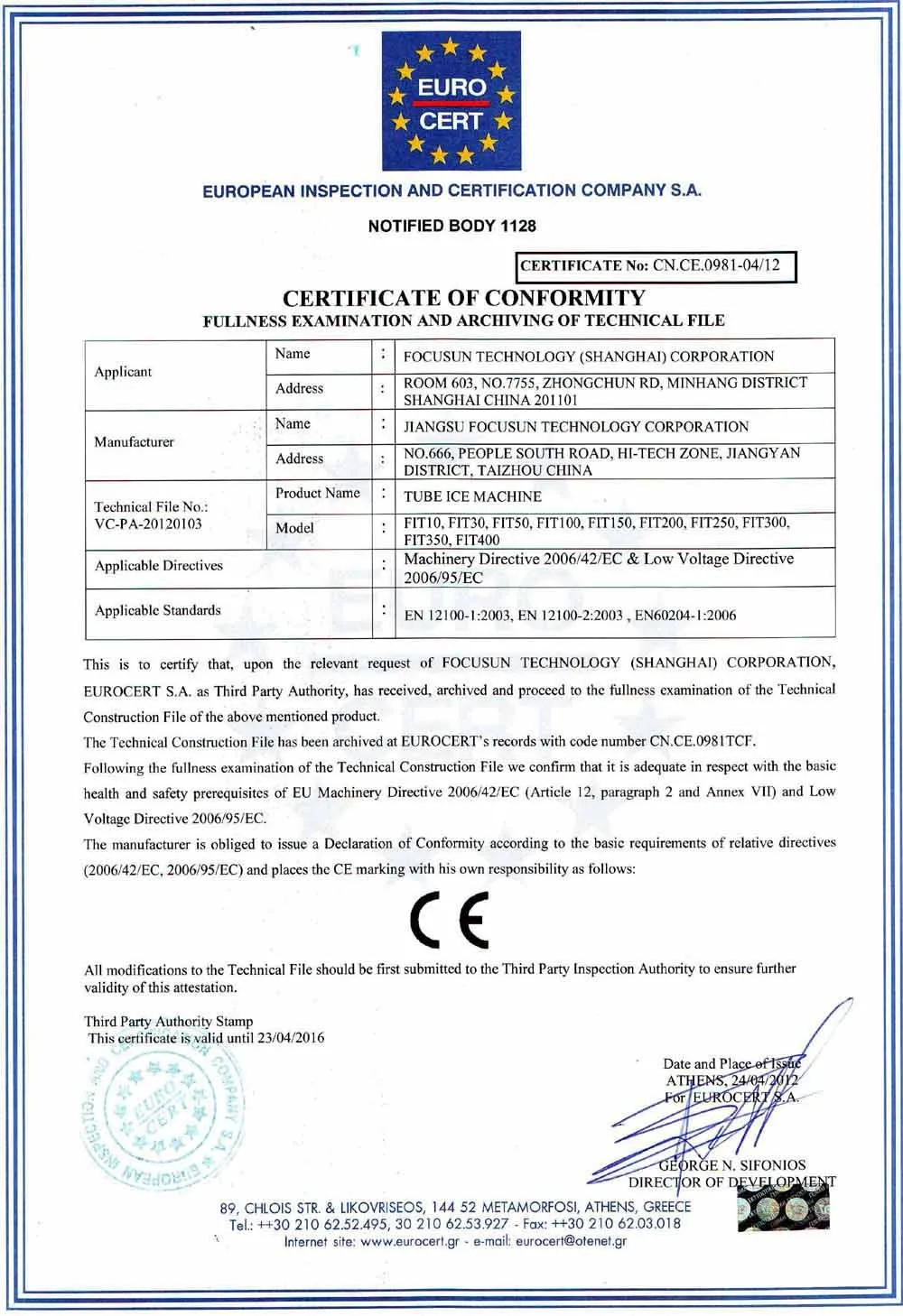

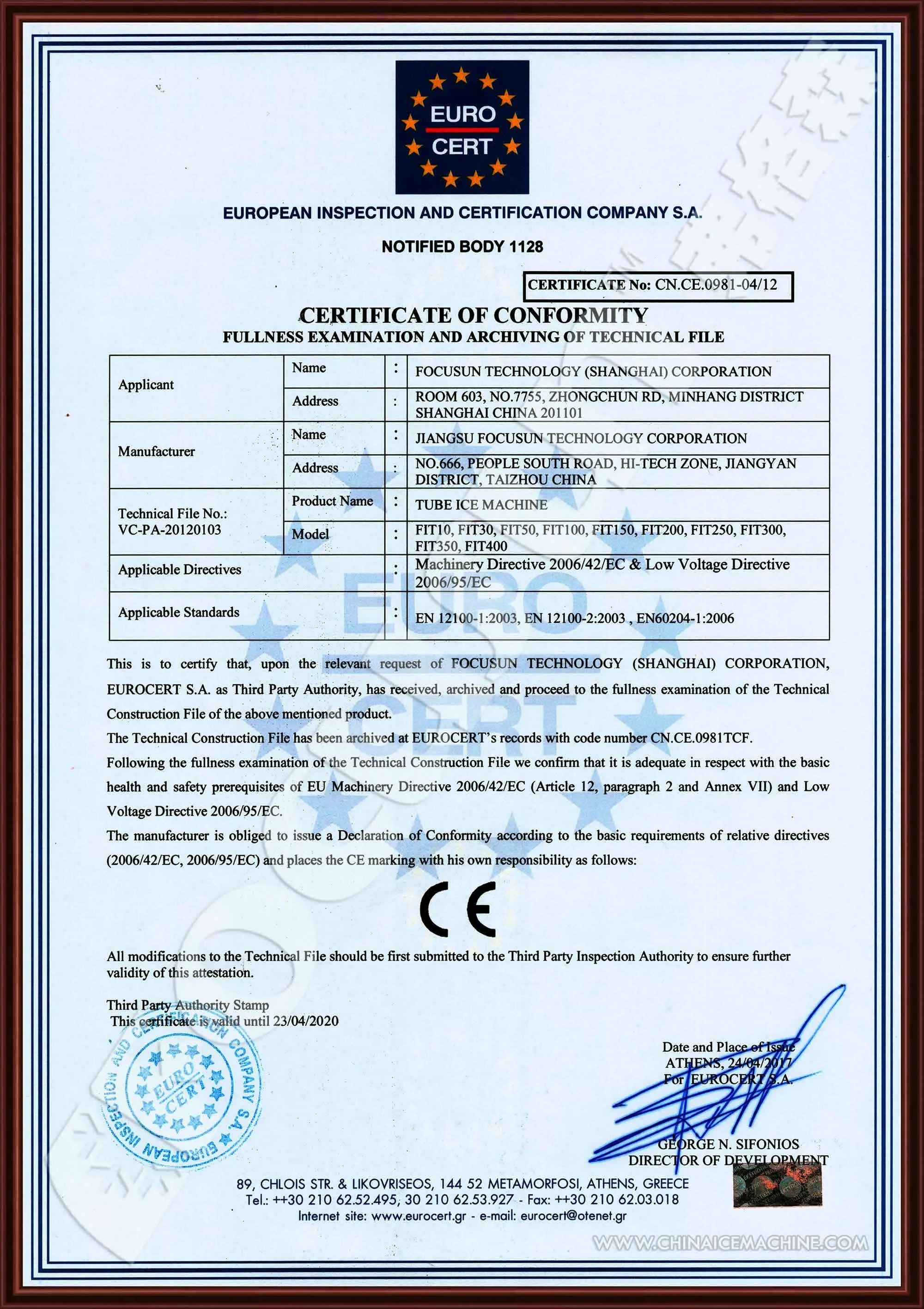

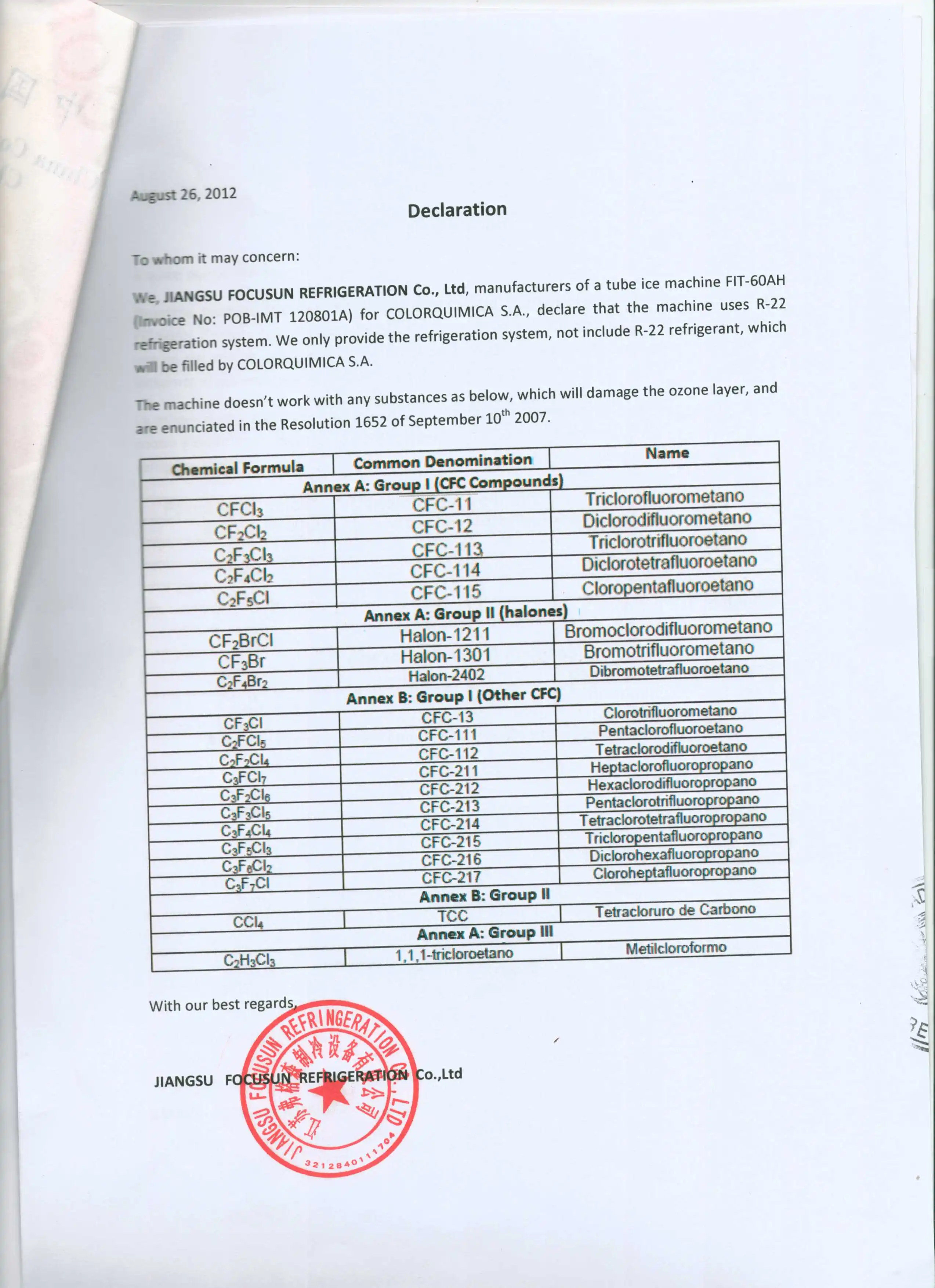

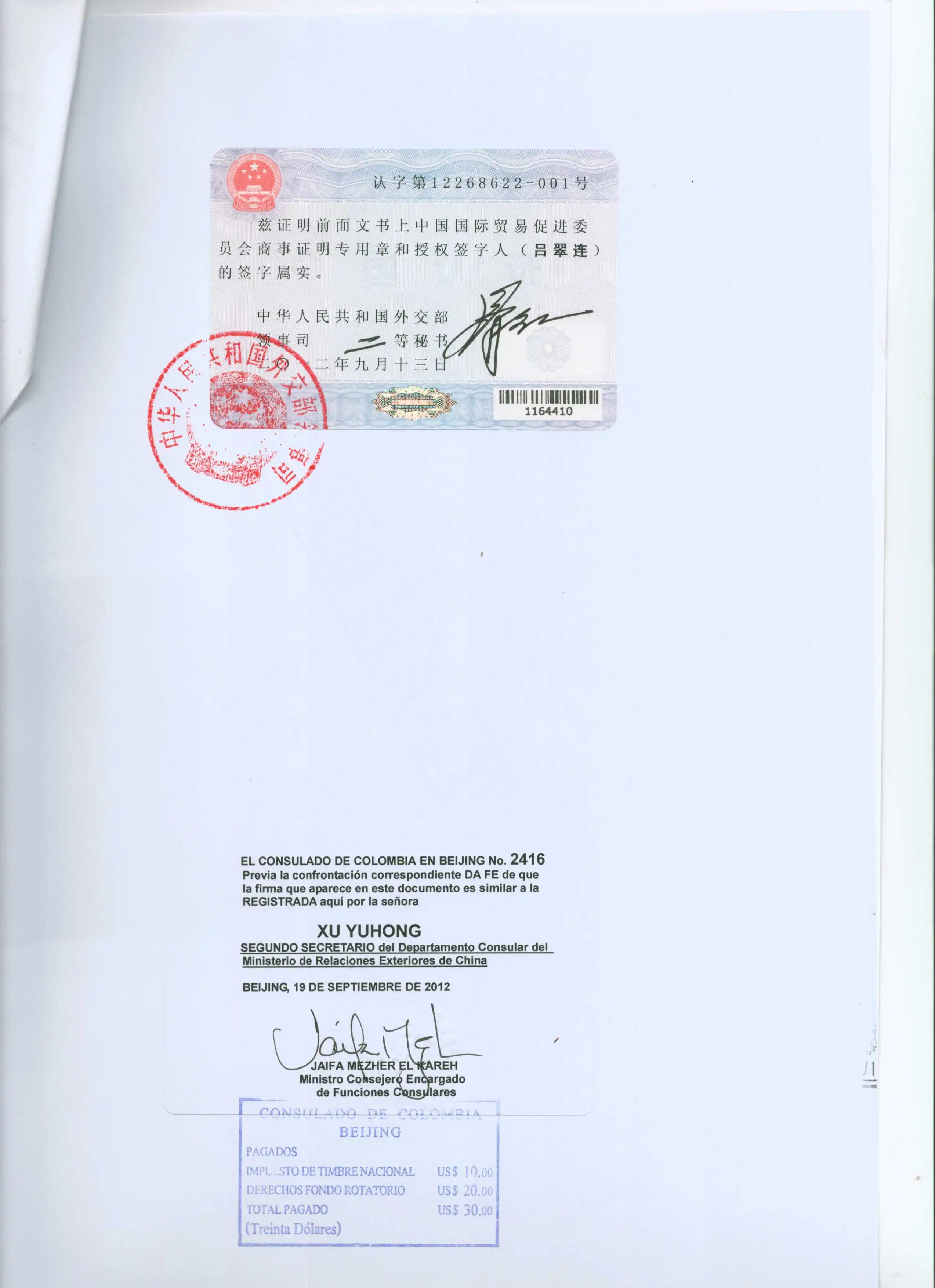

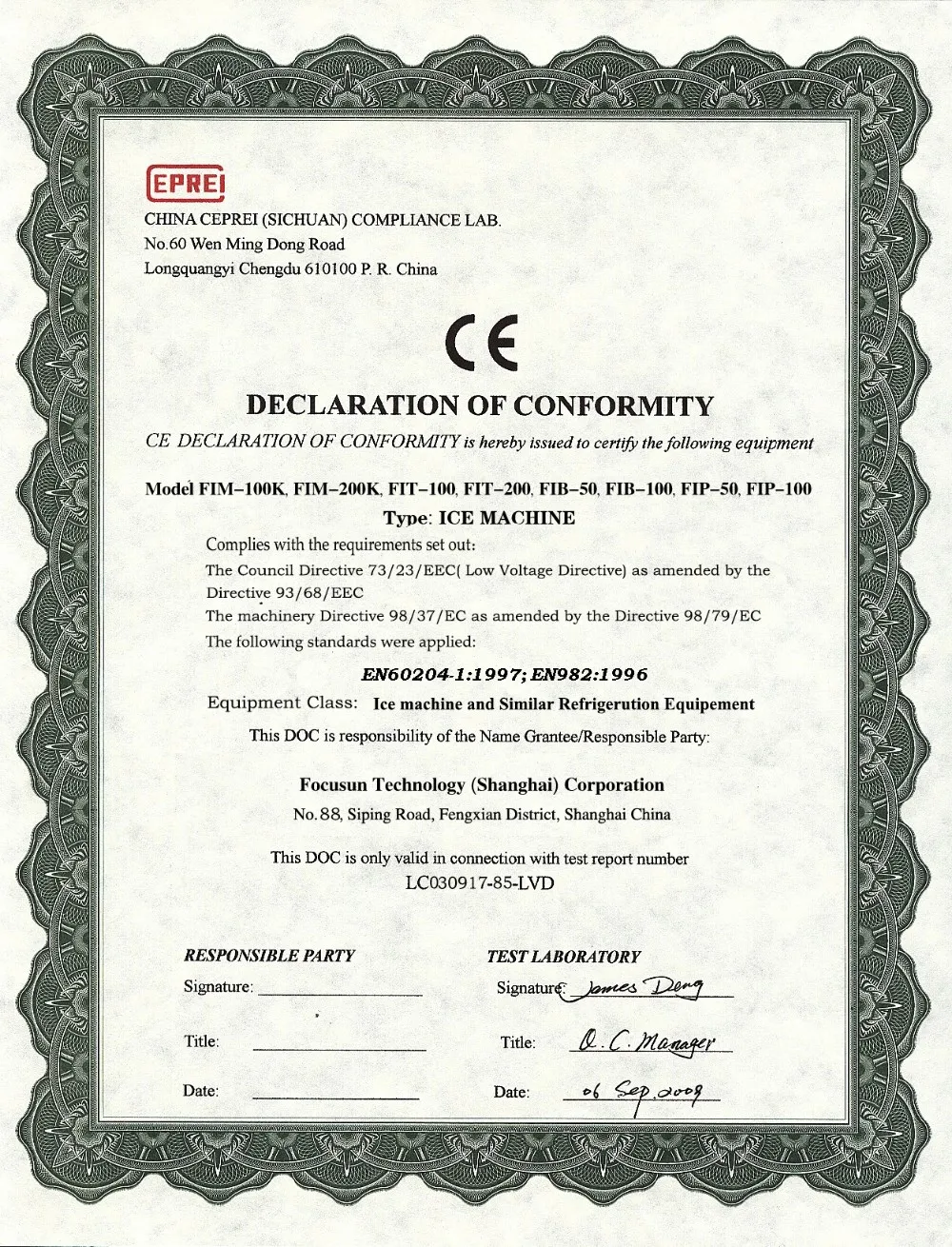

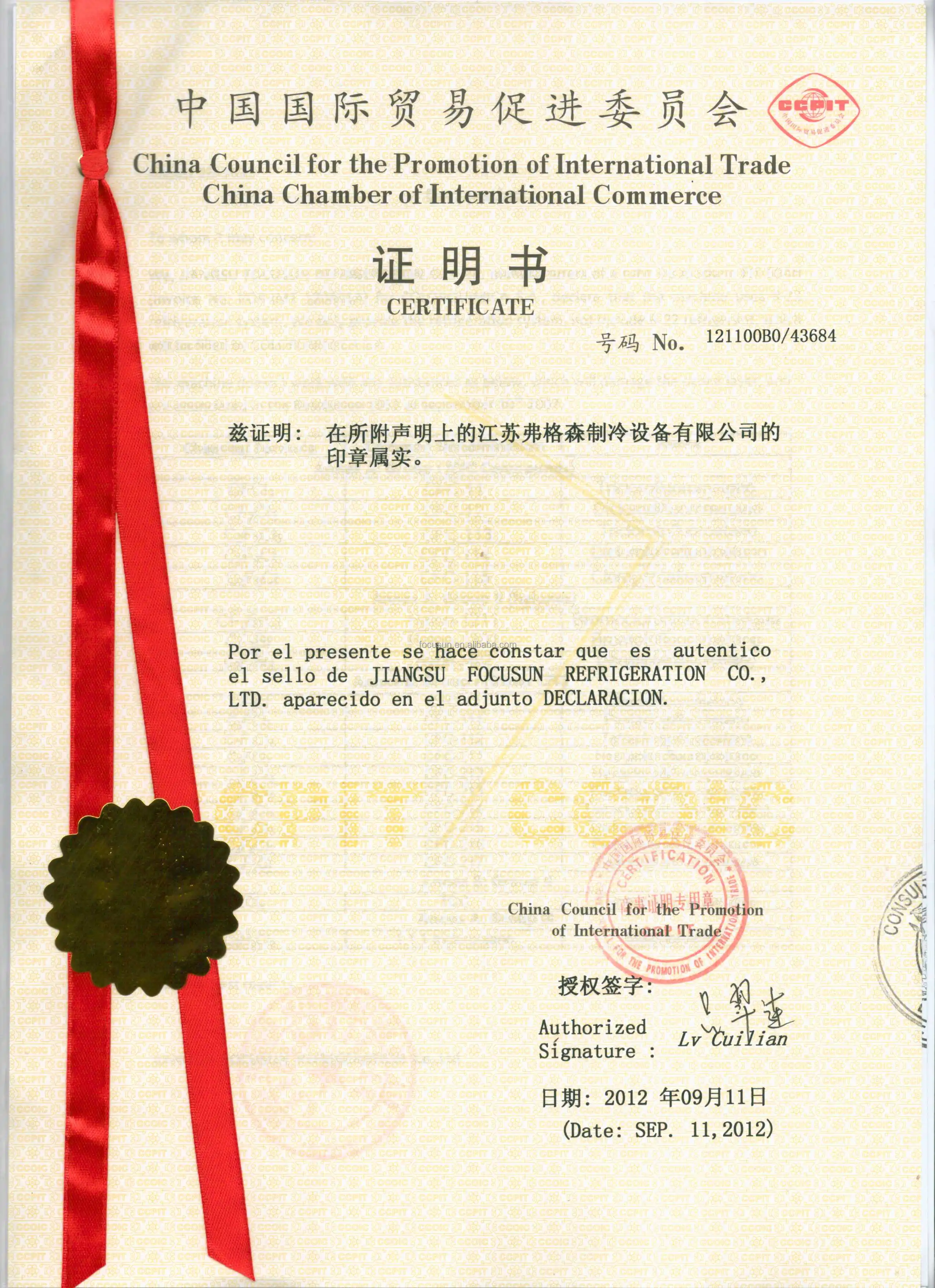

Certifications
FAQ
1. How about the after-sales services?
Focusun provides 1.5 years warranty for our machine. For after sales service, once any breakdown occurred,you only need to send us pictures or
video about the fault , we will mail you the solution to solve problems, we give online guidance at the same time.
2. What about the standard conditions?
The technical data based on 35°C ambient temp 25°C water inlet temp.If your local condition is higher, we will use bigger compressor and condenser system.
3. What about your refrigeration system?
Experienced engineer will design Refrigeration System with optimization
*Superb Stability and reliability, long use life.
*Energy-efficient and cost saving
*PATENTED H-M Control System
4. What about your ice making system?
FOCUSUN FLAKE ice making system with its unique technology and get much better performance.
TOP-Quality Ice Making Evaporator (Drum)
*UNIQUE Strict FOCUSUN quality control system (crm system controlled)
*Delicate welding Technics with X-RAY. / Never leak
*SS 304 (stainless steel) Ice making drum (generator)
*All the material meet the International standards request.
*Stainless steel cutters.
*Energy-efficient & high-sufficiency for ice production
Focusun provides 1.5 years warranty for our machine. For after sales service, once any breakdown occurred,you only need to send us pictures or
video about the fault , we will mail you the solution to solve problems, we give online guidance at the same time.
2. What about the standard conditions?
The technical data based on 35°C ambient temp 25°C water inlet temp.If your local condition is higher, we will use bigger compressor and condenser system.
3. What about your refrigeration system?
Experienced engineer will design Refrigeration System with optimization
*Superb Stability and reliability, long use life.
*Energy-efficient and cost saving
*PATENTED H-M Control System
4. What about your ice making system?
FOCUSUN FLAKE ice making system with its unique technology and get much better performance.
TOP-Quality Ice Making Evaporator (Drum)
*UNIQUE Strict FOCUSUN quality control system (crm system controlled)
*Delicate welding Technics with X-RAY. / Never leak
*SS 304 (stainless steel) Ice making drum (generator)
*All the material meet the International standards request.
*Stainless steel cutters.
*Energy-efficient & high-sufficiency for ice production

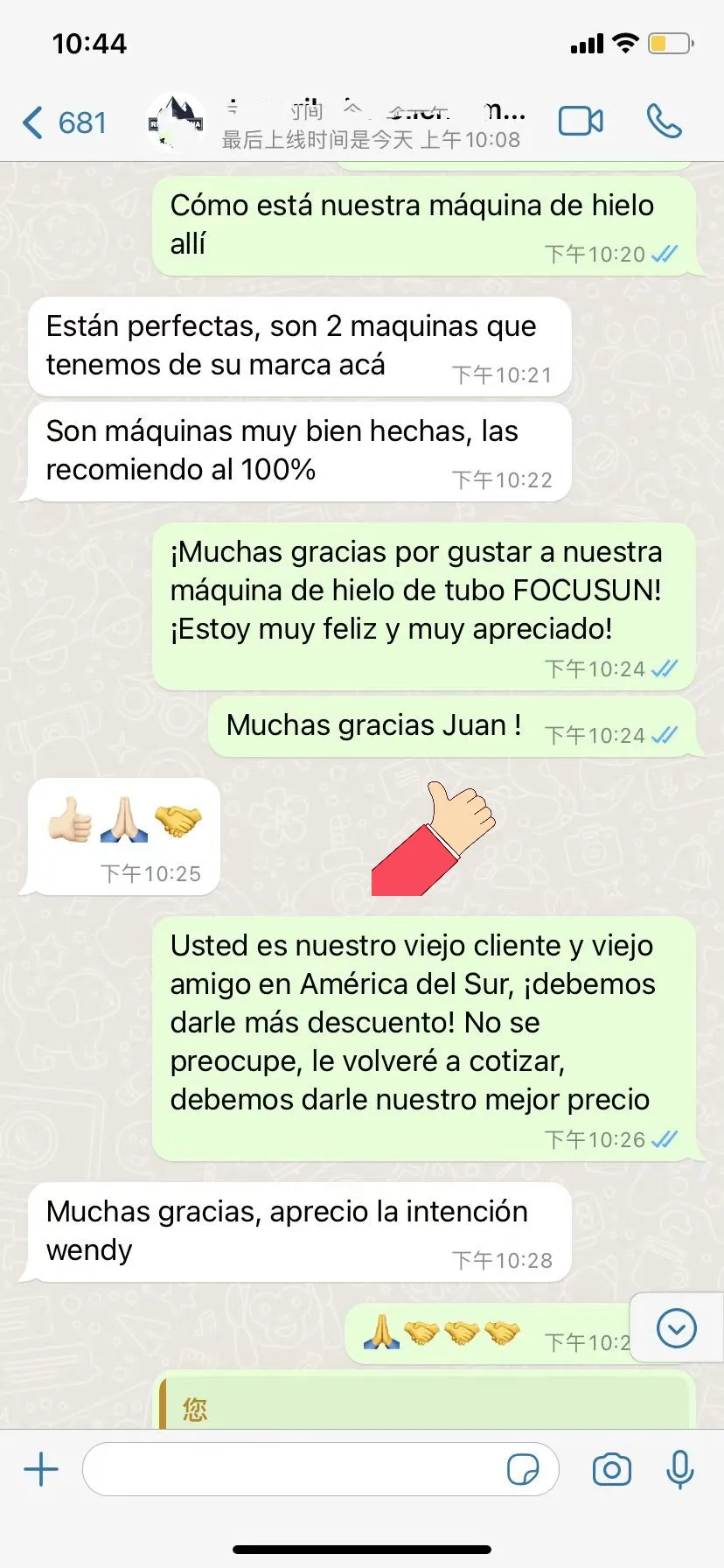

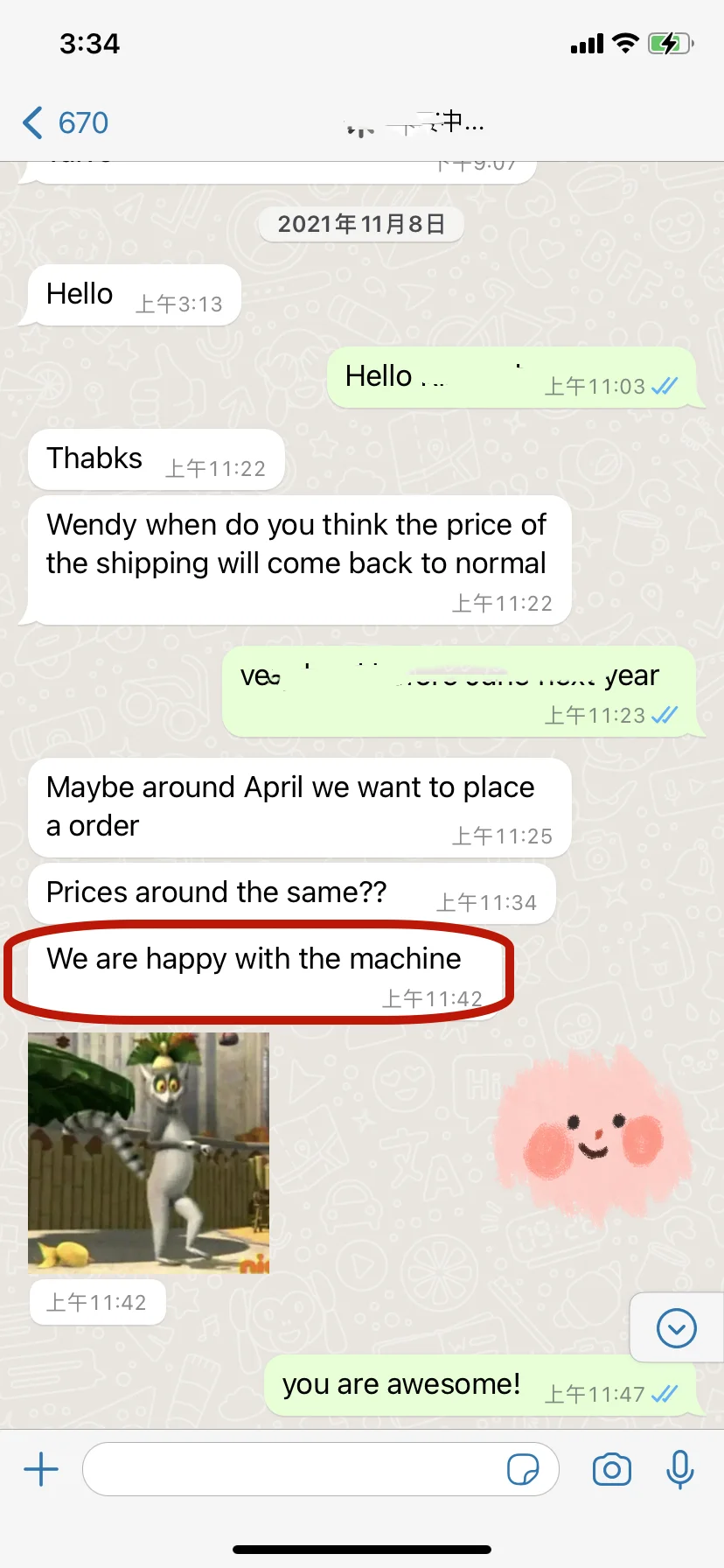

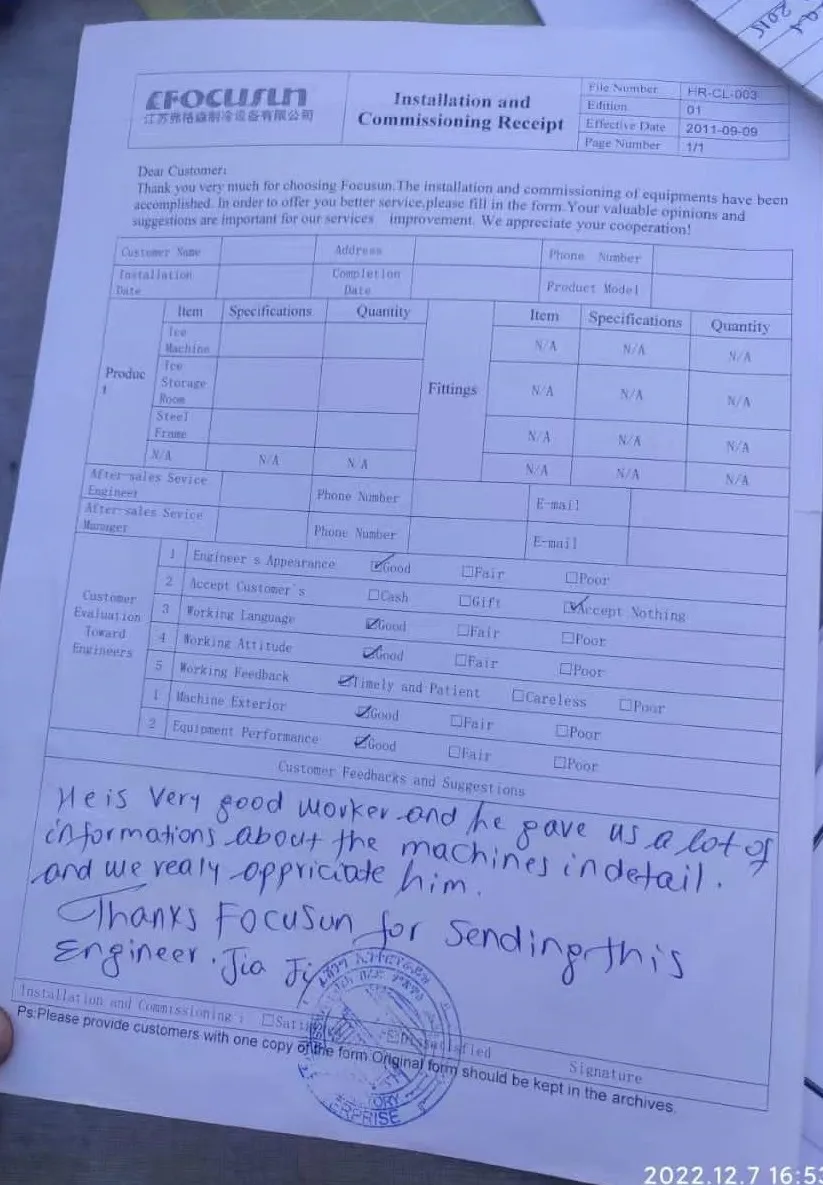

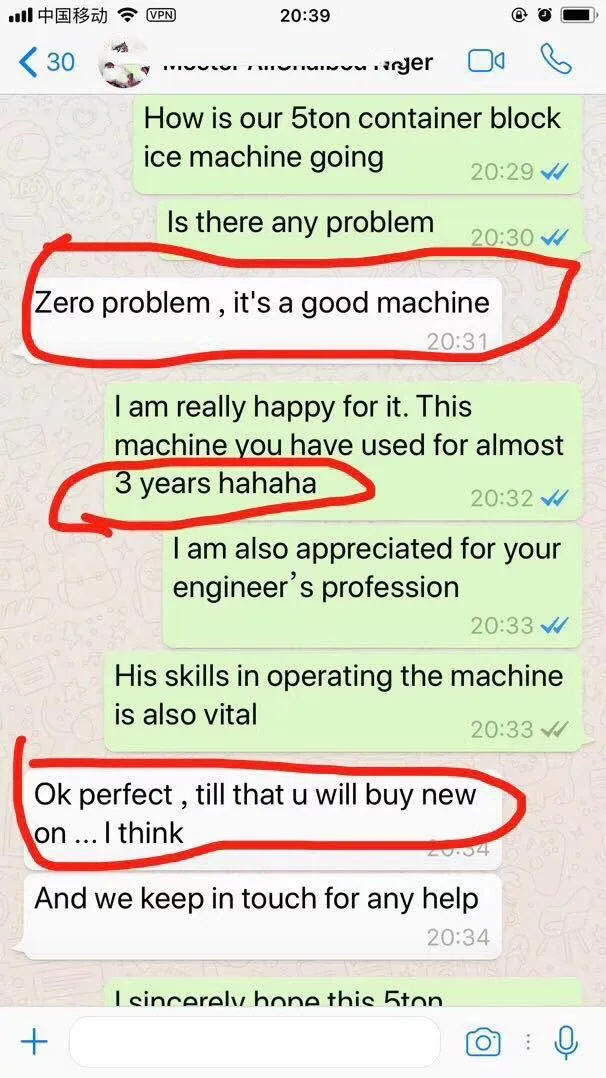

Good Comments
FOCUSUN AFTERSALES SERVICE
All Focusun ice machines are backed by a comprehensive 15-month full warranty. In the event of a breakdown within this period,Focusun commits to providing free replacement parts and, if necessary, dispatching a technician to address the issue. Beyond the warranty period, Focusun offers parts and services at factory cost.
Process: To initiate support, kindly furnish a copy of the Sales Contract and provide a detailed description of the encountered problems, or directly contact your salesman via whatsapp, wechat or facebook video.
Problem Confirmation: For slight issues, please submit proof to our After-Sales Department, and we assure you of a response within 1 hour.
In the case of serious problems:
Process: To initiate support, kindly furnish a copy of the Sales Contract and provide a detailed description of the encountered problems, or directly contact your salesman via whatsapp, wechat or facebook video.
Problem Confirmation: For slight issues, please submit proof to our After-Sales Department, and we assure you of a response within 1 hour.
In the case of serious problems:
A. Our Quality and Problems Appraisers will be promptly dispatched to conduct a thorough confirmation.
B. We will engage in negotiations regarding compensation and proceed to sign agreements.
C. Our After-Sales Department will diligently execute the specified duties as outlined in the agreement.
How to Contact Focusun?
With years of industry experience and innovative technology, FOCUSUN takes pride in delivering products widely used across various sectors. We believe that our professional team and high-quality offerings can not only meet but exceed your expectations.Please feel free to reach out to us at any time，we are here to serve you wholeheartedly, you can click to send enquiry or chat with us directly. Thank you.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $49000 / set
- 2+ set: US $48000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machines carry?
It is supplied with Provided documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machines be supplied for my local voltage?
The standard configuration is 380V/3P/50HZ/440v/3p/60hz/220V/3P/60HZ/480V/460V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

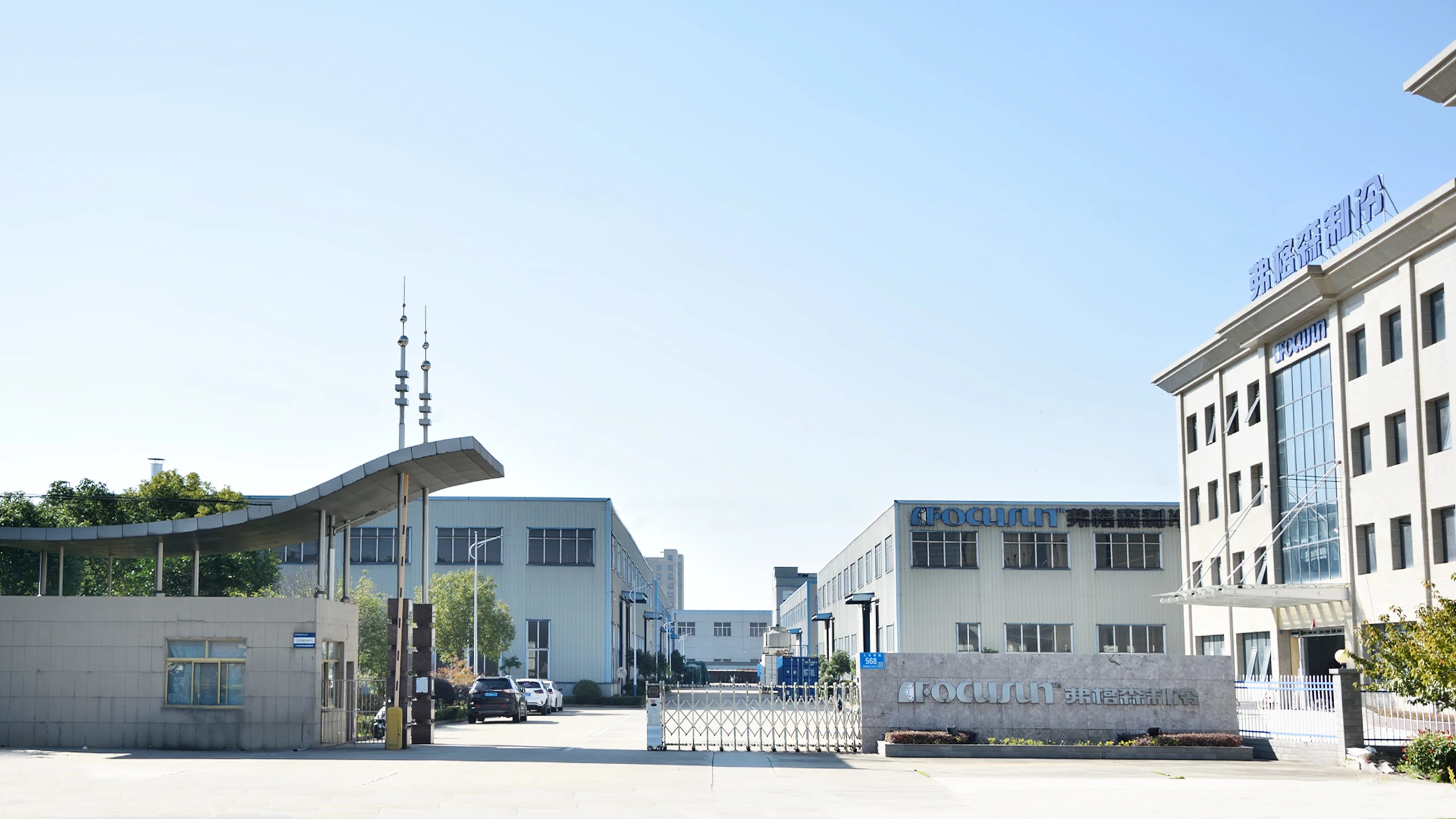

About the Manufacturer
This product is produced by Focusun Technology (Shanghai) Corporation, based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Focusun Technology (Shanghai) Corporation range on HVACR Nexus.
