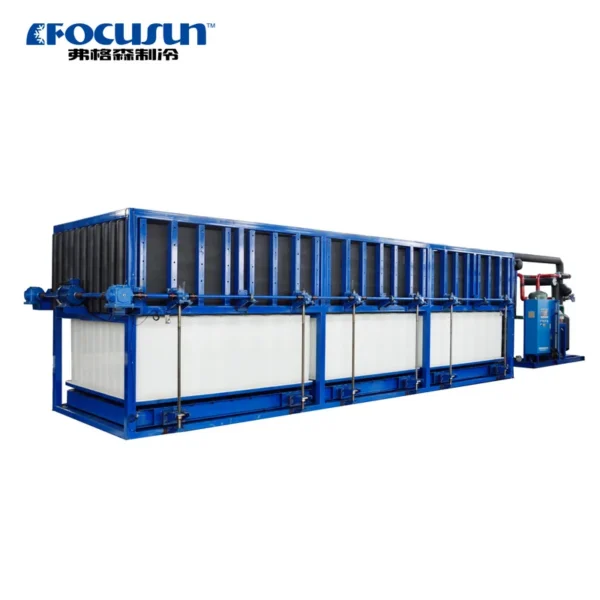

Key specification for this ice machine: 220V 380V 440V 460V, 125KW. Everything below is reproduced from the factory data sheet. Made by Focusun Technology (Shanghai) Corporation (19 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machine
- Model Number: FIB-250ES
- Power: 125KW
- Voltage: 220V 380V 440V 460V
- Ice Storage Capacity: 25000KG
- Daily Capacity: 30T 25T 20T 15T 10T 5T 3T 2T 1T/day
- Material Of Ice Molds: Alluminum Alloy Plate
Technical Specifications
| Ice Shape | Block Ice Slab Ice |
|---|---|
| Ice Size(Kg) | 20kg 25kg 50kg |
| Ice Storage Capacity | 25000KG |
| Voltage | 220V 380V 440V 460V |
| Power | 125KW |
| Refrigerant | R404A R507A |
| Compressor Brand | BITZER CARRIER HANBELL |
| Key Selling Points | CE/Certified: Compliant with international safety |
| Application | Seafood Fishery Industry Outdoor Event Cooling |
| Warranty | 1.5 year |
| Core Components | Refrigeration compressor, block ice molds, evapora |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 25200 |
| Brand Name | FOCUSUN |
| Model Number | FIB-250ES |
| Dimension(L*W*H) | 15000 X 2400 X 2300mm (L X W X H) |
| Ice Block Size | 5KG 10KG 15KG 20KG 25KG 50KG |
| Daily Capacity | 30T 25T 20T 15T 10T 5T 3T 2T 1T/day |
| Material Of Ice Molds | Alluminum Alloy Plate |
| Control System | Siemens PLC Control |
| Customization Option | OEM/ODM Available |
| Water Source Requirement | Edible Water (Direct Block Ice Produce Edible Block Ice) |
| Ambient Temperature Range | 5C to 55C can perform perfectly under high temperature |
| Installation Type | Skid-mounted / Stationary / Containerized |
| After-Sales Service | Online Support / Engineers Available |
| Selling Units | Single item |
Product Details
Specification
Model | Capacity/24H | Operating Weight | Dimensions (L*W*H) mm | Refrigerant | ||||
FIB-10 | 1T | 960kg | 3600*1100*2250 | R404A/R507A | ||||
FIB-20 | 2T | 2100kg | 4700*1100*2250 | R404A/R507A | ||||
FIB-30 | 3T | 3050kg | 5200*1750*2250 | R404A/R507A | ||||
FIB-50 | 5T | 5200kg | 5400*2000*2250 | R404A/R507A | ||||
FIB-100 | 10T | 11500kg | 6500*1850*2500 | R404A/R507A | ||||
FIB-150 | 15T | 16200kg | 8500*2000*2500 | R404A/R507A | ||||
FIB-180 | 18T | 18200KG | 8900*2200*2500 | R404A/R507A | ||||
FIB-200 | 20T | 19800kg | 9200*2250*2500 | R404A/R507A | ||||
FIB-250 | 25T | 25200kg | 10300*2250*2500 | R404A/R507A | ||||
FIB-300 | 30T | 29200kg | 11500*2250*2500 | R404A/R507A | ||||
FIB-400 | 40T | 30180kg | 16800*3400*2950 | R404A/R507A | ||||
Notes: we can customize power supply such as 380V/30/50HZ, 220V/3P/50HZ, 380V/3P/60HZ, 440V/30/60HZ, 480V/3P/60HZ, 220V/3P/60HZ | ||||||||
FIB-10DC | 1T | 960kg | 6058*2438*2591 | 20ft container (standard) | ||||
FIB-30DC | 3T | 3050kg | 6058*2438*2591 | |||||
FIB-50DC | 5T | 5200kg | 6058*2438*2591 | |||||
FIB-100DC | 10T | 11500kg | 12192*2438*2895 | 40HQ container (40ft high cube, more space) | ||||
FIB-150DC | 15T | 16200kg | 12192*2438*2895 | |||||
FIB-180DC | 18T | 18200kg | 12192*2438*2895 | |||||
FIB-200DC | 20T | 19800kg | 12192*2438*2895 | |||||
Why Choose Focusun Direct Refrigeration Block Ice Machine
#First Designer of Direct Cooling Technology Block Ice Machine in China Tracing Back to 20 Years Ago!
#Providing Real Solutions: The Modern Alternative to Traditional Brine Block Ice Machines!
#Not a Trader，Own a Factory with 36,000 Square Meters More Than 20 years!
#Focusun Engineer Speak Good English, Good Aftersales Service Provided!
#Quality 100% You Could Trust Focusun!
# Welcome Customers Visit Focusun Factory to See In Person, We Value Every Cooperation with Our Customers!
Our CO₂ Block Ice Machine adopts an environmentally friendly CO₂ (R744) refrigeration system with Siemens PLC control and Bock compressor, ensuring high efficiency, safety, and long service life.
Main Advantages:
✅ Eco-friendly Refrigerant: Uses natural CO₂ (R744), zero ozone depletion and very low GWP.
✅ High Cooling Efficiency: Faster ice formation and stable performance even in hot climates.
✅ Energy Saving: Lower power consumption compared with traditional Freon systems.
✅ Reliable Components: Equipped with Bitzer compressor, Danfoss valves, and Siemens PLC control system for intelligent operation.
✅ Easy Maintenance: Simple structure, automatic defrost, and easy to operate through touch screen.
✅ Durable Ice Quality: Produces dense, crystal-clear block ice with long storage time.
With CO₂ technology, our block ice machines offer green, efficient, and intelligent ice production for industrial and commercial
use.
Main Advantages:
✅ Eco-friendly Refrigerant: Uses natural CO₂ (R744), zero ozone depletion and very low GWP.
✅ High Cooling Efficiency: Faster ice formation and stable performance even in hot climates.
✅ Energy Saving: Lower power consumption compared with traditional Freon systems.
✅ Reliable Components: Equipped with Bitzer compressor, Danfoss valves, and Siemens PLC control system for intelligent operation.
✅ Easy Maintenance: Simple structure, automatic defrost, and easy to operate through touch screen.
✅ Durable Ice Quality: Produces dense, crystal-clear block ice with long storage time.
With CO₂ technology, our block ice machines offer green, efficient, and intelligent ice production for industrial and commercial
use.

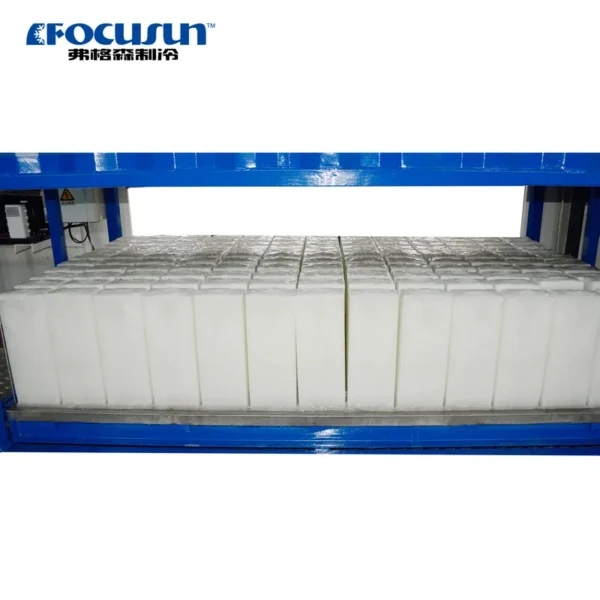

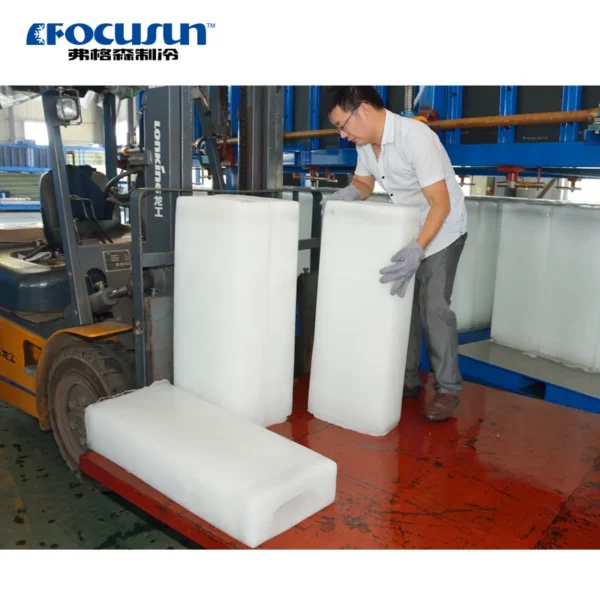

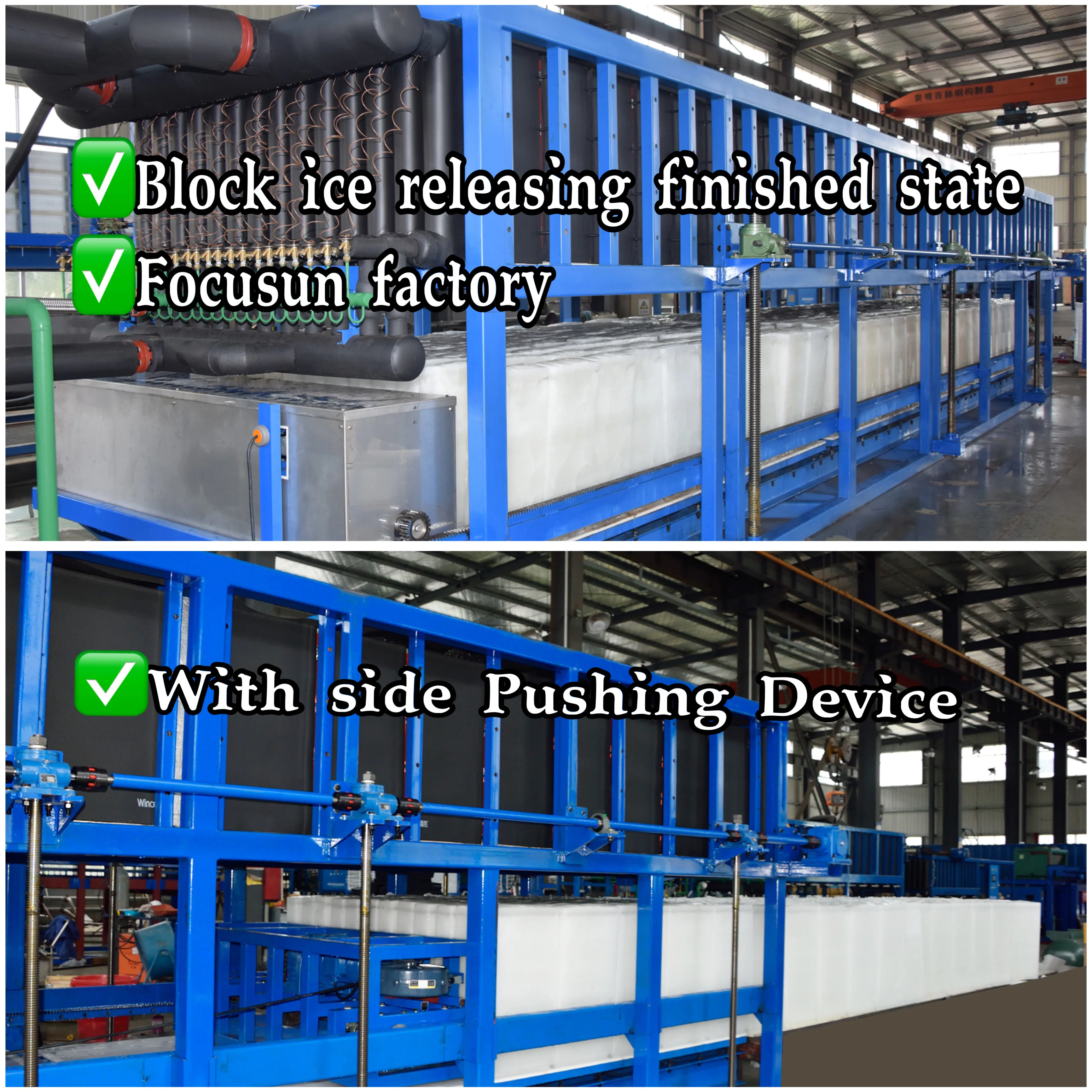

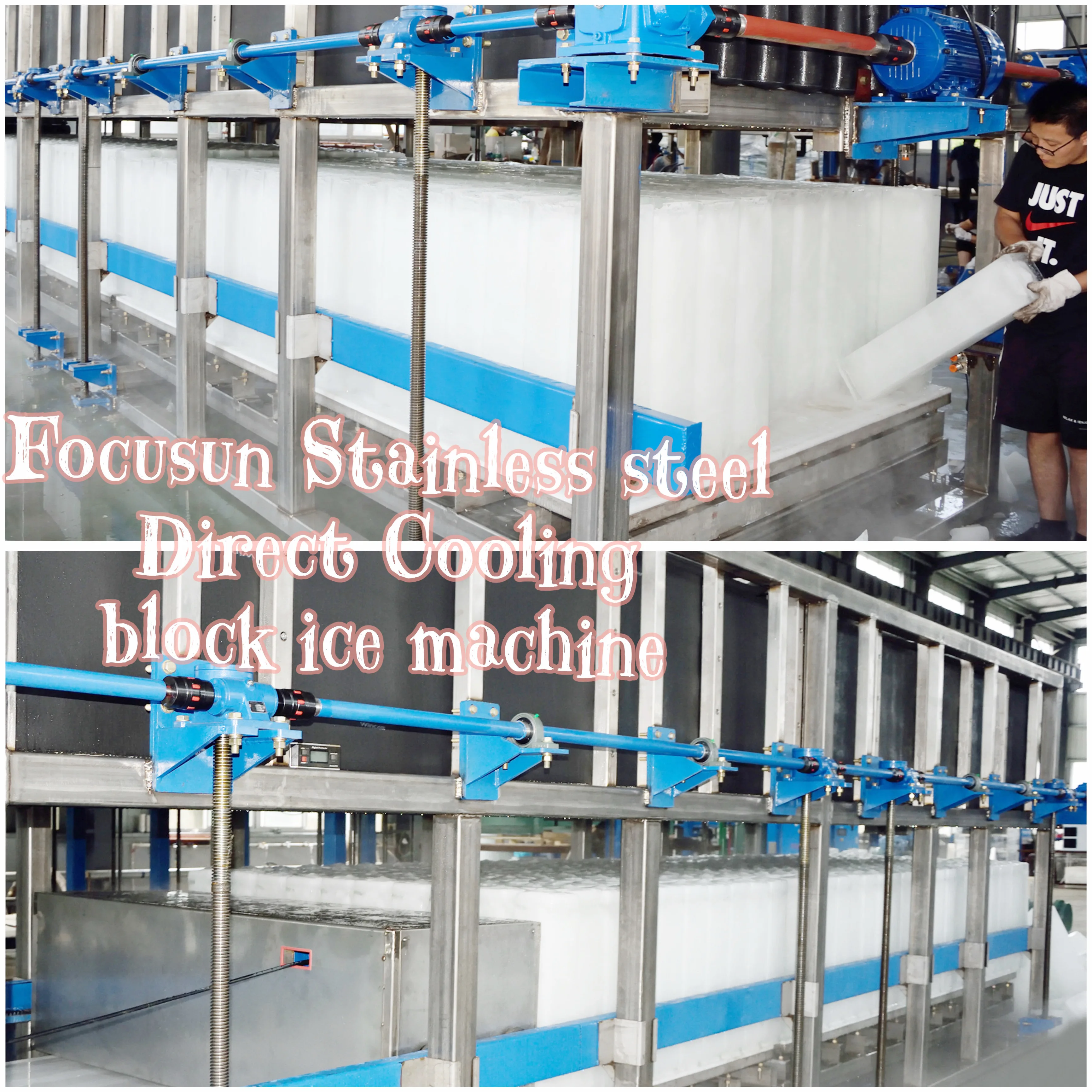

Product Showcase
Steel Frames Material Option 1
Steel Frames Opetion 2
Offshore Fishing Preservation with Block Ice
Block ice is the most trusted solution for preserving fish freshness on long voyages. With its slow melting rate and excellent cooling capacity, block ice is widely used by offshore fishing fleets worldwide.
Key Advantages:
* Slow-Melting & Durable – Stays solid for a long time, ensuring consistent cooling during extended trips.
* Perfect for Large Catches – Effectively covers and cools big fish such as tuna, swordfish, and mackerel.
* Flexible Use – Can be used as whole blocks or crushed into smaller pieces (1 cm × 1 cm) for faster chilling.
* Ideal for Offshore Fishing Fleets – Reliable solution for maintaining fish quality from sea to shore.
* Keeps Fish Moist & Shiny – Prevents dehydration and maintains natural freshness.
* Custom Sizes Available – Different block weights and dimensions (10kg, 20kg, 25kg, etc.) to meet various needs.
* Compatible with Ice Crushers & Storage Systems – Easily combined with automatic conveyors, crushers, and cold rooms for a full ice handling solution.
Applications:
* Offshore fishing vessels
* Fish markets and seafood distribution
* Cold chain logistics
* Industrial seafood processing
With block ice, you can achieve long-lasting preservation, reduced spoilage, and higher product value, making it the best choice for large-scale fishing operations.
Key Advantages:
* Slow-Melting & Durable – Stays solid for a long time, ensuring consistent cooling during extended trips.
* Perfect for Large Catches – Effectively covers and cools big fish such as tuna, swordfish, and mackerel.
* Flexible Use – Can be used as whole blocks or crushed into smaller pieces (1 cm × 1 cm) for faster chilling.
* Ideal for Offshore Fishing Fleets – Reliable solution for maintaining fish quality from sea to shore.
* Keeps Fish Moist & Shiny – Prevents dehydration and maintains natural freshness.
* Custom Sizes Available – Different block weights and dimensions (10kg, 20kg, 25kg, etc.) to meet various needs.
* Compatible with Ice Crushers & Storage Systems – Easily combined with automatic conveyors, crushers, and cold rooms for a full ice handling solution.
Applications:
* Offshore fishing vessels
* Fish markets and seafood distribution
* Cold chain logistics
* Industrial seafood processing
With block ice, you can achieve long-lasting preservation, reduced spoilage, and higher product value, making it the best choice for large-scale fishing operations.
Block Ice More Applications
Block ice serves diverse purposes across industries and daily life:
1. Industrial & Logistics
* Cold Chain Transport: Keeps seafood, meat, and pharmaceuticals fresh during long – haul shipping. Ideal for refrigerated trucks/large containers lacking powered cooling.
* Concrete Cooling: Lowers concrete temperature in construction (e.g., dams, bridges), preventing thermal cracks during curing.
2. Commercial & Retail
* Food Preservation: Used in markets, restaurants, and catering for displaying/chilling seafood, fruits, and drinks. Ensures freshness at stalls or events.
* Beverage Service: Chills large – batch drinks (juices, beer) at parties, festivals, or bars—slower melting than crushed ice, maintaining coolness longer.
1. Industrial & Logistics
* Cold Chain Transport: Keeps seafood, meat, and pharmaceuticals fresh during long – haul shipping. Ideal for refrigerated trucks/large containers lacking powered cooling.
* Concrete Cooling: Lowers concrete temperature in construction (e.g., dams, bridges), preventing thermal cracks during curing.
2. Commercial & Retail
* Food Preservation: Used in markets, restaurants, and catering for displaying/chilling seafood, fruits, and drinks. Ensures freshness at stalls or events.
* Beverage Service: Chills large – batch drinks (juices, beer) at parties, festivals, or bars—slower melting than crushed ice, maintaining coolness longer.
3. Recreational & Animal Care
* Public Cooling: Deployed in public spaces (squares, parks) during heatwaves. Creates temporary cool zones for residents to beat
the heat.
* Zoo & Aquarium Use: Cools animal habitats (e.g., pandas, penguins). Mimics natural cold environments, helping animals regulate body temperature.
4. Emergency & Disaster Relief
* Power Outage Backup: Provides temporary refrigeration for homes/hospitals when AC/powered fridges fail. Preserves medicines, vaccines, and perishables.
From industrial cold chains to summer cooling fun, block ice delivers reliable, long – lasting low – temperature solutions.
* Public Cooling: Deployed in public spaces (squares, parks) during heatwaves. Creates temporary cool zones for residents to beat
the heat.
* Zoo & Aquarium Use: Cools animal habitats (e.g., pandas, penguins). Mimics natural cold environments, helping animals regulate body temperature.
4. Emergency & Disaster Relief
* Power Outage Backup: Provides temporary refrigeration for homes/hospitals when AC/powered fridges fail. Preserves medicines, vaccines, and perishables.
From industrial cold chains to summer cooling fun, block ice delivers reliable, long – lasting low – temperature solutions.

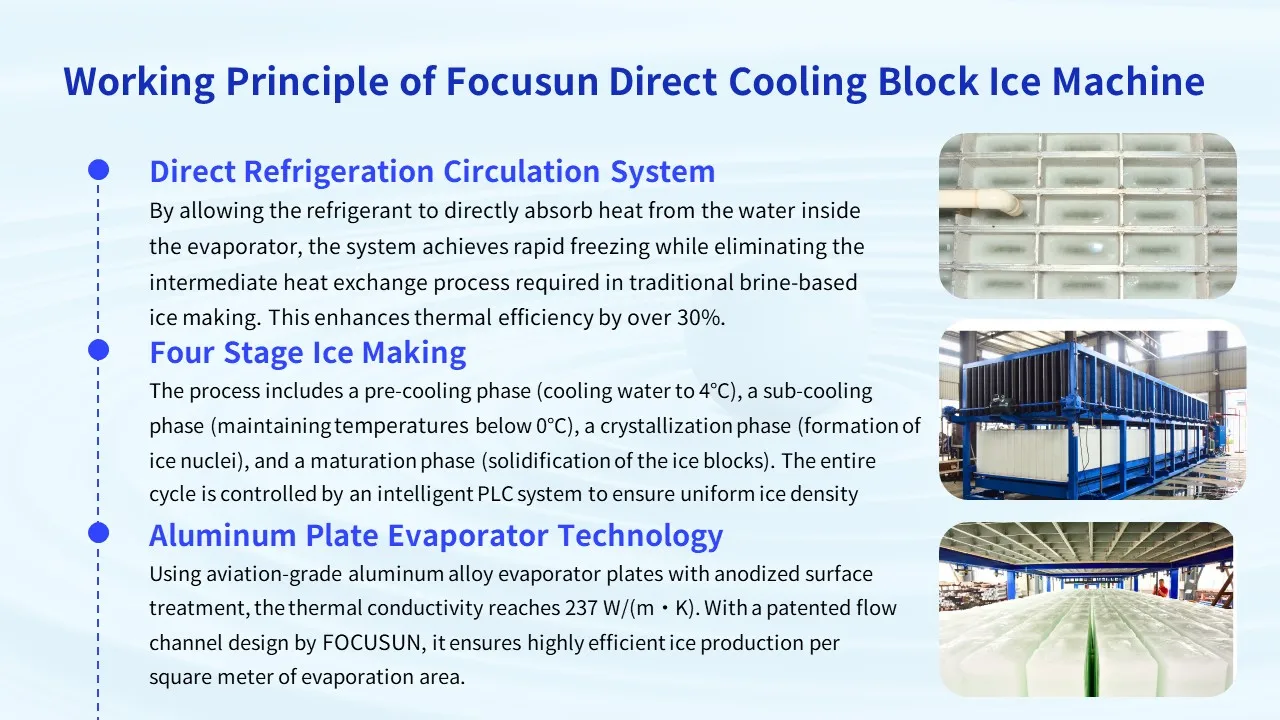

Ice-Making Process
1. Water Injection: Water is automatically introduced into aluminum ice molds (cans) within the evaporator unit.
2. Direct Refrigeration: The refrigerant circulates through the evaporator, absorbing heat and lowering the surface temperature of the molds. This causes the water to freeze into ice.
3. Ice Formation: As the freezing continues, the water film on the mold surface gradually solidifies into ice blocks.
4. Ice Harvesting: Once the ice is fully formed, the system switches to the defrost mode, using hot refrigerant gas to loosen the ice blocks from the molds. The entire harvesting process takes approximately 25 minutes.
Key Technological Features
* Aluminum Ice Molds: High thermal conductivity ensures rapid and uniform freezing, producing clear and sanitary ice blocks suitable for direct consumption.
* Modular Design: The system is divided into three main modules: the machine unit, the evaporator, and the cooling tower. This modular approach enhances flexibility and efficiency, allowing for easy scaling and maintenance.
* PLC Control System: A Siemens PLC controller automates the entire ice-making and harvesting process, reducing labor costs and minimizing human error.FOCUSUN REFRIGERATION+6Focusun+6Focusun Refrigeration Co., Ltd.+6
* Energy Efficiency: The direct cooling method eliminates the need for brine, reducing maintenance and ensuring cleaner ice production.
2. Direct Refrigeration: The refrigerant circulates through the evaporator, absorbing heat and lowering the surface temperature of the molds. This causes the water to freeze into ice.
3. Ice Formation: As the freezing continues, the water film on the mold surface gradually solidifies into ice blocks.
4. Ice Harvesting: Once the ice is fully formed, the system switches to the defrost mode, using hot refrigerant gas to loosen the ice blocks from the molds. The entire harvesting process takes approximately 25 minutes.
Key Technological Features
* Aluminum Ice Molds: High thermal conductivity ensures rapid and uniform freezing, producing clear and sanitary ice blocks suitable for direct consumption.
* Modular Design: The system is divided into three main modules: the machine unit, the evaporator, and the cooling tower. This modular approach enhances flexibility and efficiency, allowing for easy scaling and maintenance.
* PLC Control System: A Siemens PLC controller automates the entire ice-making and harvesting process, reducing labor costs and minimizing human error.FOCUSUN REFRIGERATION+6Focusun+6Focusun Refrigeration Co., Ltd.+6
* Energy Efficiency: The direct cooling method eliminates the need for brine, reducing maintenance and ensuring cleaner ice production.

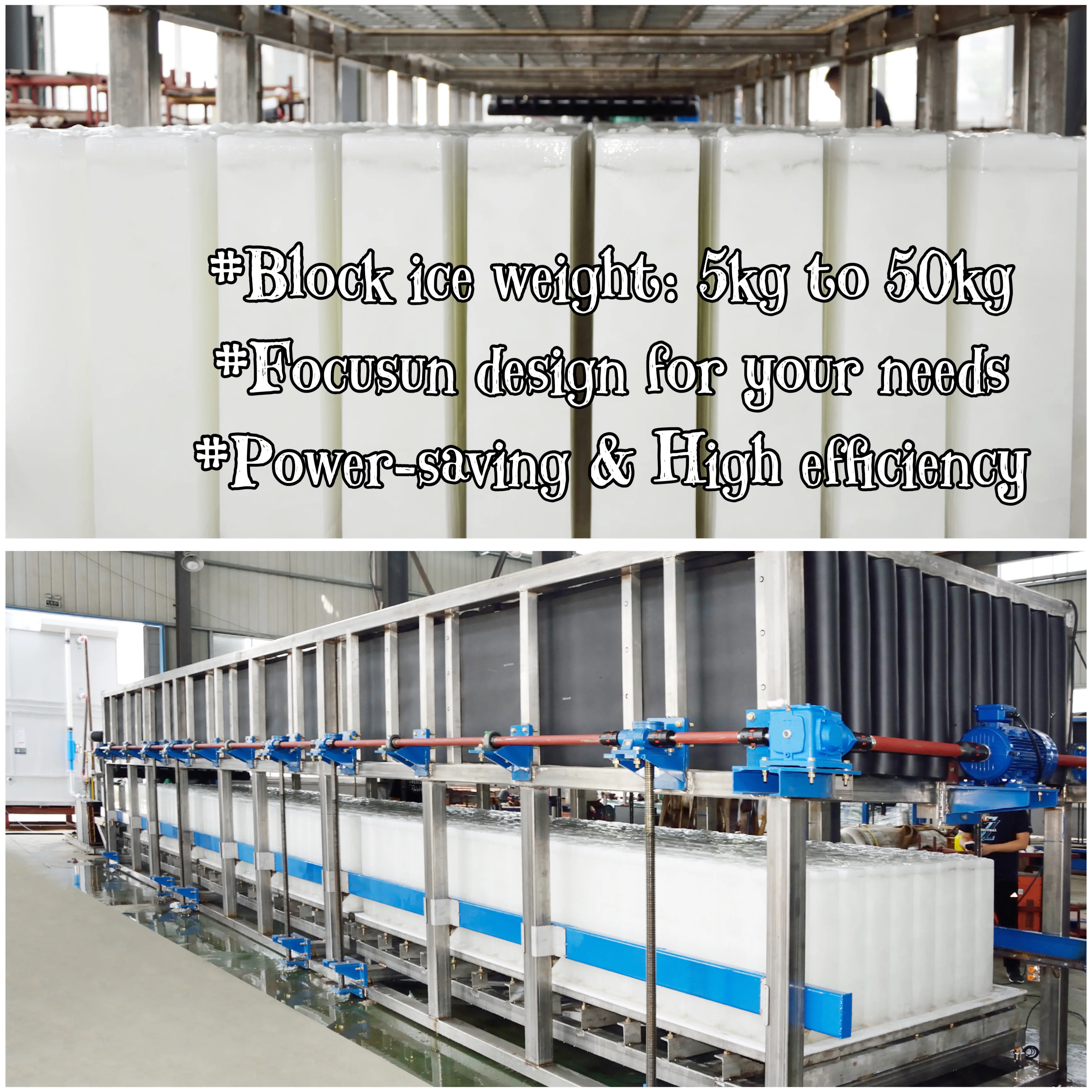

Ice Block Weight & Cpacity All Can Be Customized
FOCUSUN offers fully customizable solutions for block ice machines. Both the production capacity and the size or weight of the ice blocks can be tailored to meet the specific needs of each client. Whether you require a small-scale machine for local use or a high-capacity system for industrial applications, FOCUSUN can design and manufacture a machine that fits your exact requirements.Our flexible approach ensures that every ice block is produced efficiently and consistently, providing high-quality ice suitable for seafood preservation, food logistics, ice sculpting, and other applications.
Our certificate

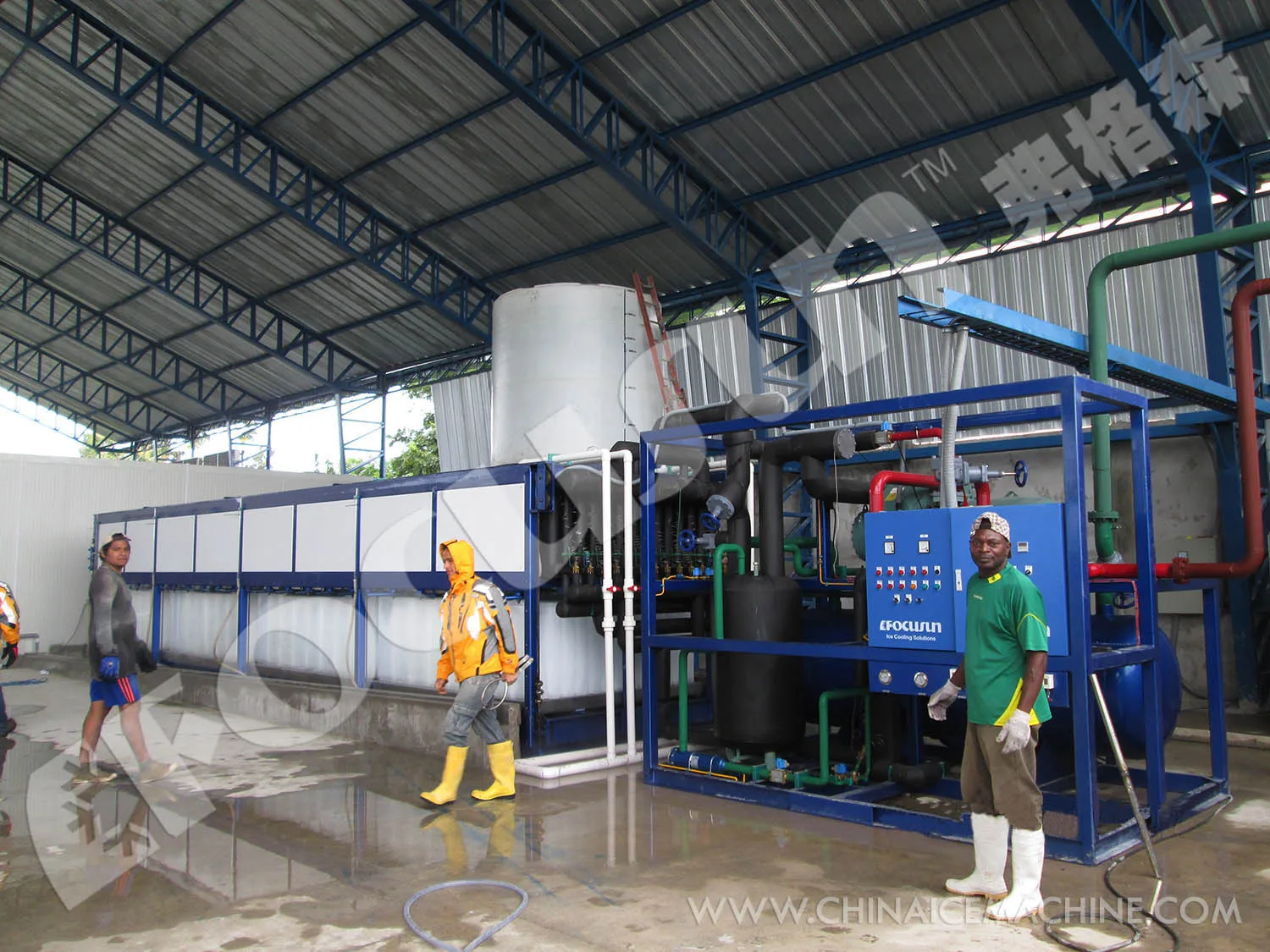

Our Exhibition & Customers
Cold Room & Block Ice Cutter & Block Ice Crusher & Ice Conveyor

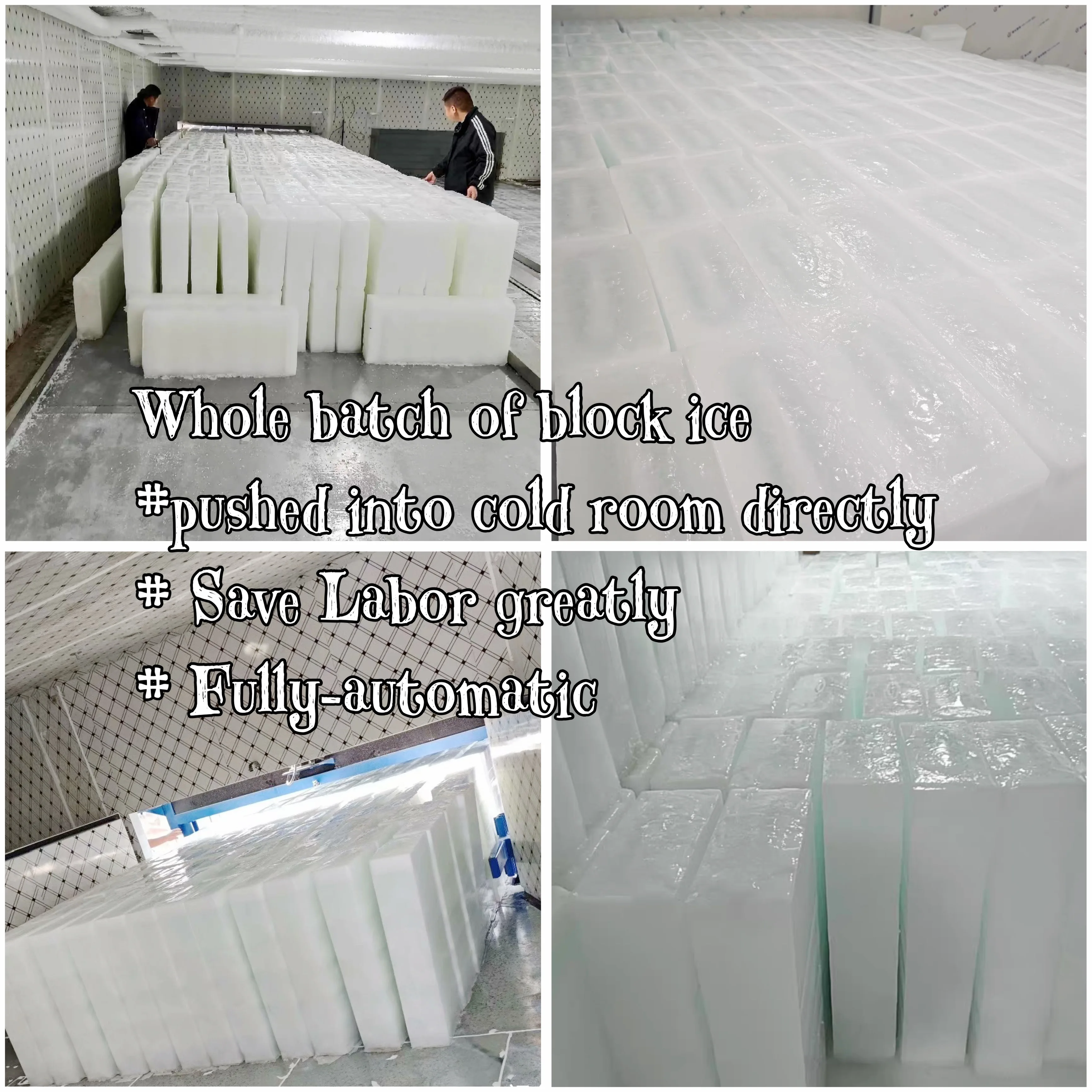

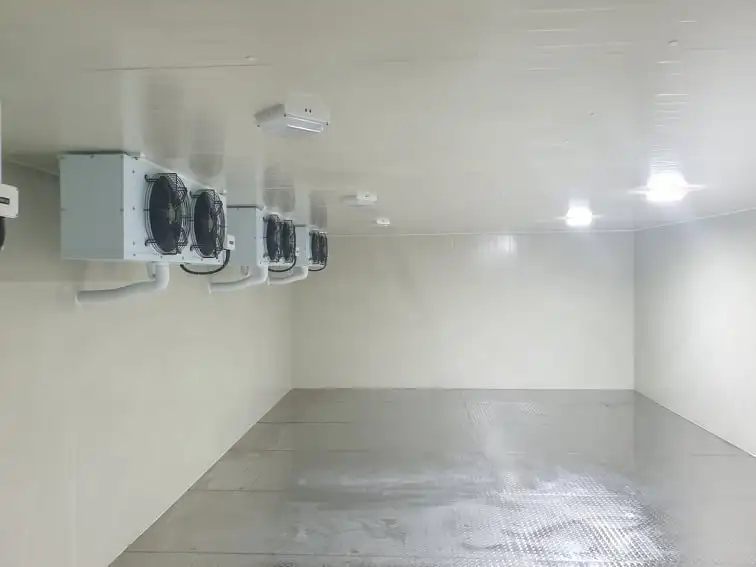

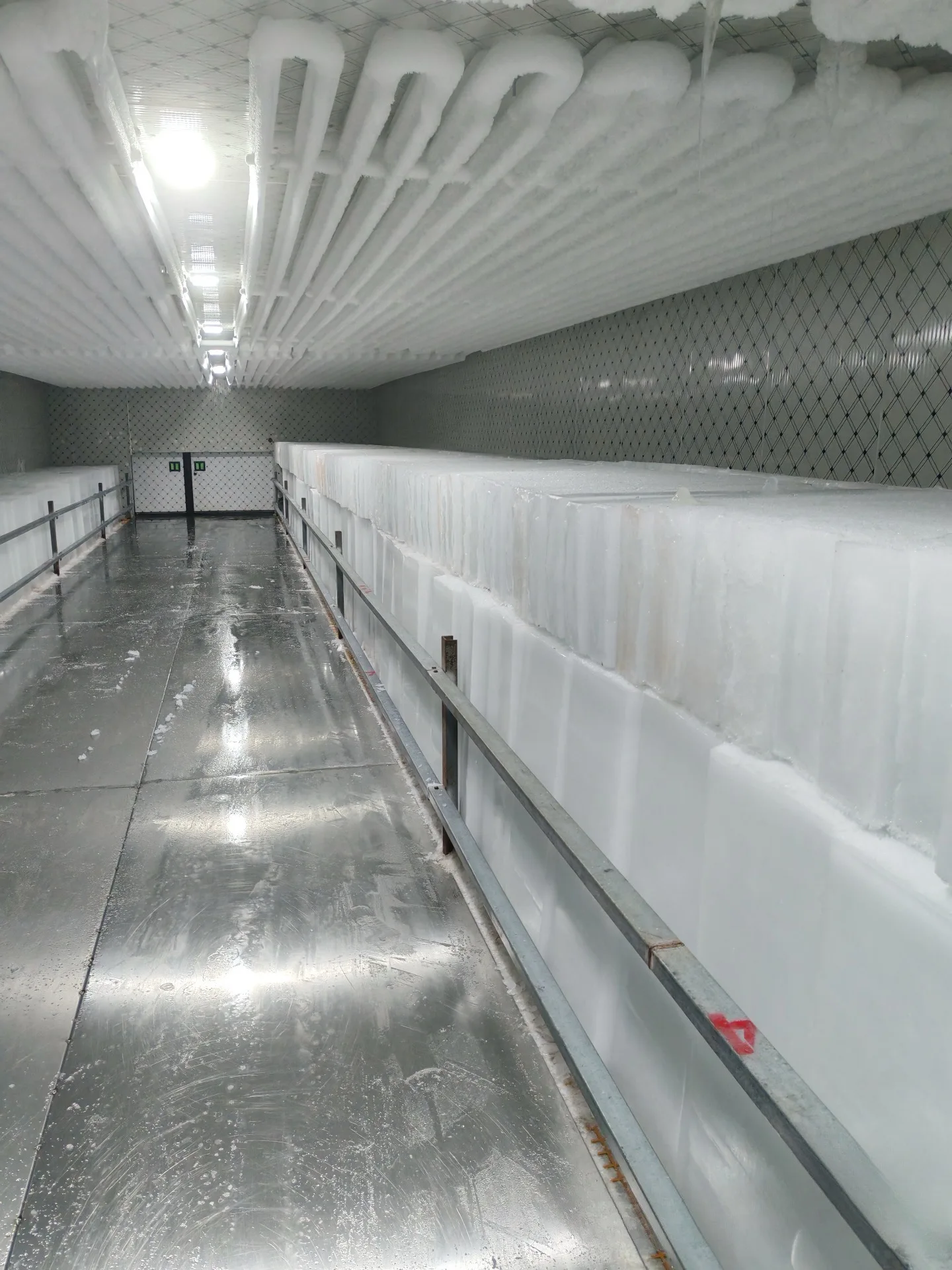

Cold Room for Block Ice Storage
The cold room is used to store block ice at low temperatures to prevent melting. It keeps the ice solid and ready for use over along period. The room is insulated and equipped with efficient refrigeration units.
Block ice can be pushed into the cold room smoothly by an automatic pushing device. This system saves labor and makes the process faster and safer.
Automatic Block Ice Storage Cold Room with Conveyor System
Our fully automatic block ice storage cold room is designed for high efficiency and convenience. The large cold room features two side doors for easy access. Once the block ice is produced, it is pushed into the cold room automatically in one batch, without manual handling.
A central walkway allows operators to enter the cold room safely, while the middle is equipped with an automatic conveyor. This conveyor system transfers the ice blocks directly to the external ice crusher, where the blocks are crushed into small pieces. The
crushed ice can then be delivered straight to trucks for distribution and sale.
This solution provides a fully automated, labor-saving, and hygienic process — from ice production to storage, crushing, and loading.
A central walkway allows operators to enter the cold room safely, while the middle is equipped with an automatic conveyor. This conveyor system transfers the ice blocks directly to the external ice crusher, where the blocks are crushed into small pieces. The
crushed ice can then be delivered straight to trucks for distribution and sale.
This solution provides a fully automated, labor-saving, and hygienic process — from ice production to storage, crushing, and loading.

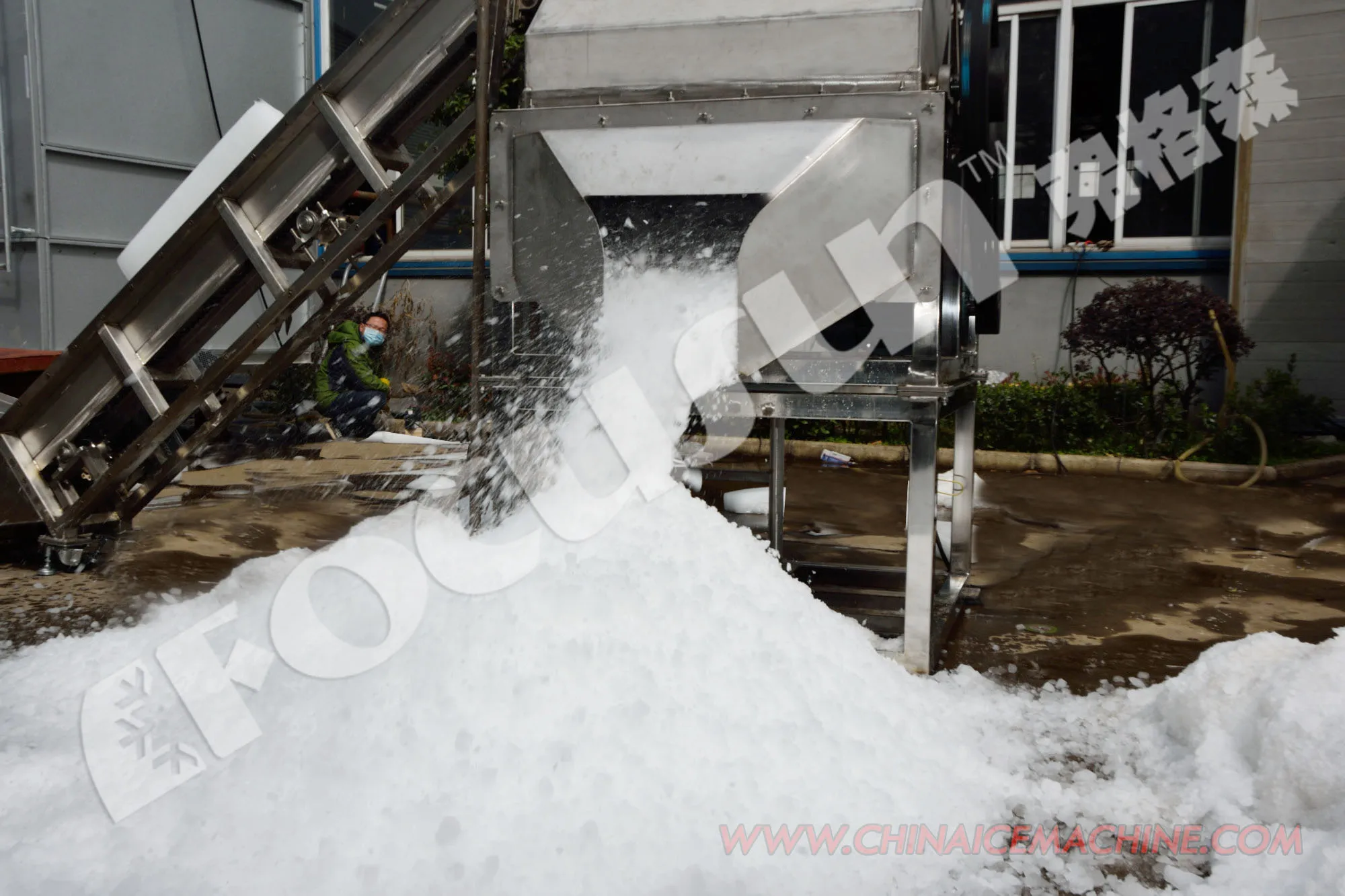

Stainless Steel Block Ice Crusher
Our Focusun block ice crusher is specially designed to crush large ice blocks into small, uniform pieces quickly and efficiently. Built
with heavy-duty stainless steel blades and a powerful motor, it ensures high output and long service life.
Crushed ice can be directly conveyed to trucks or storage bins, making it convenient for distribution and sale.
with heavy-duty stainless steel blades and a powerful motor, it ensures high output and long service life.
Crushed ice can be directly conveyed to trucks or storage bins, making it convenient for distribution and sale.

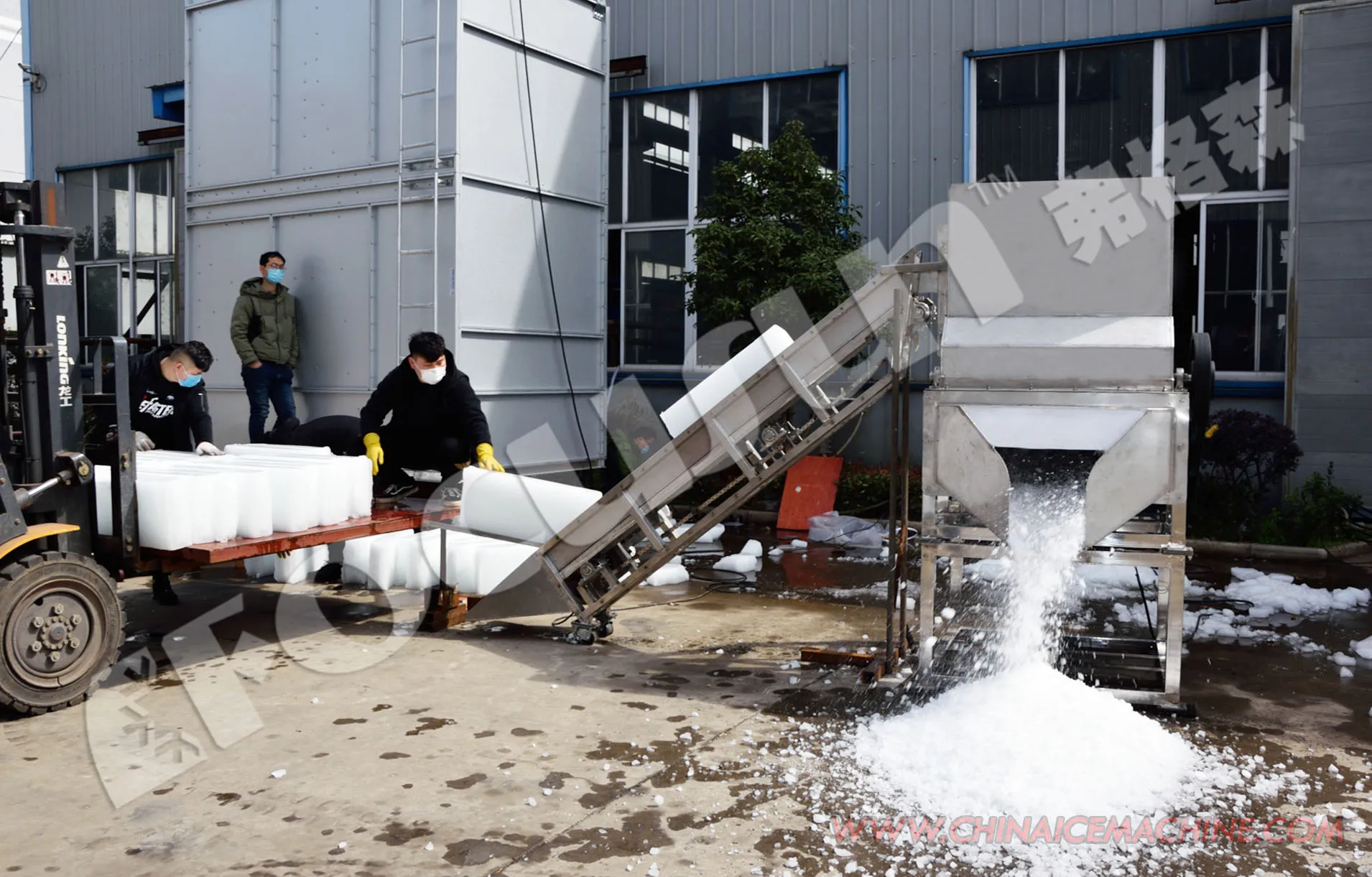

Block Ice Crusher with Conveyor
Our Focusun block ice crusher with conveyor is designed for a fully automated ice handling process. The conveyor automatically transfers
block ice to the crusher, where it is crushed into uniform pieces quickly and efficiently. After crushing, the ice can be directly connected to an automatic packaging system for bagging.
block ice to the crusher, where it is crushed into uniform pieces quickly and efficiently. After crushing, the ice can be directly connected to an automatic packaging system for bagging.

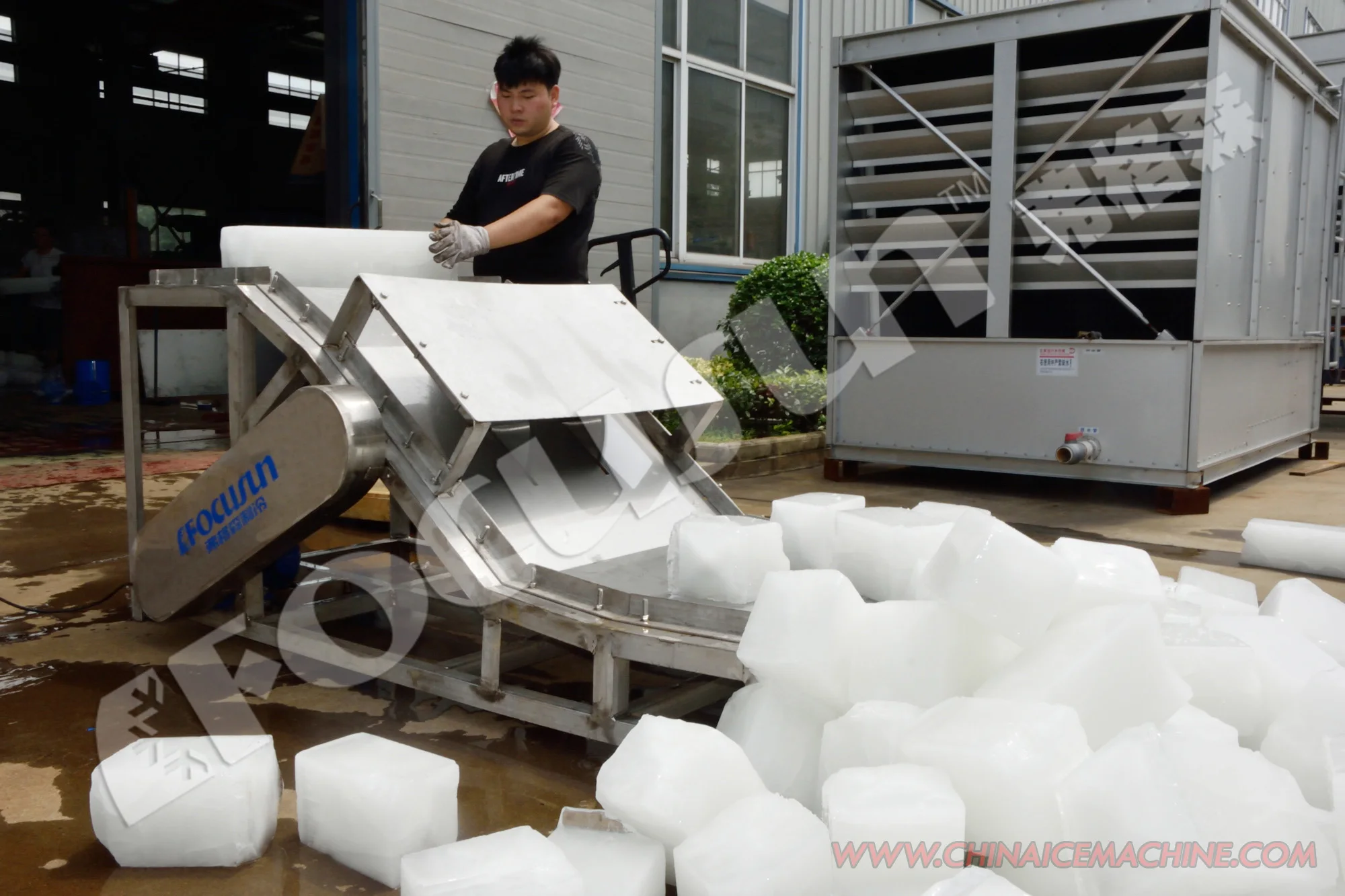

Block Ice Cutter
Our high-speed block ice cutter quickly slices large ice blocks into smaller pieces of uniform size and weight. The precise and durable blades ensure fast, consistent cutting, making the ice ready for various applications. Ideal for ice factories, seafood preservation, food processing, and commercial distribution. Easy to operate, safe, and built for
long-term use.
long-term use.

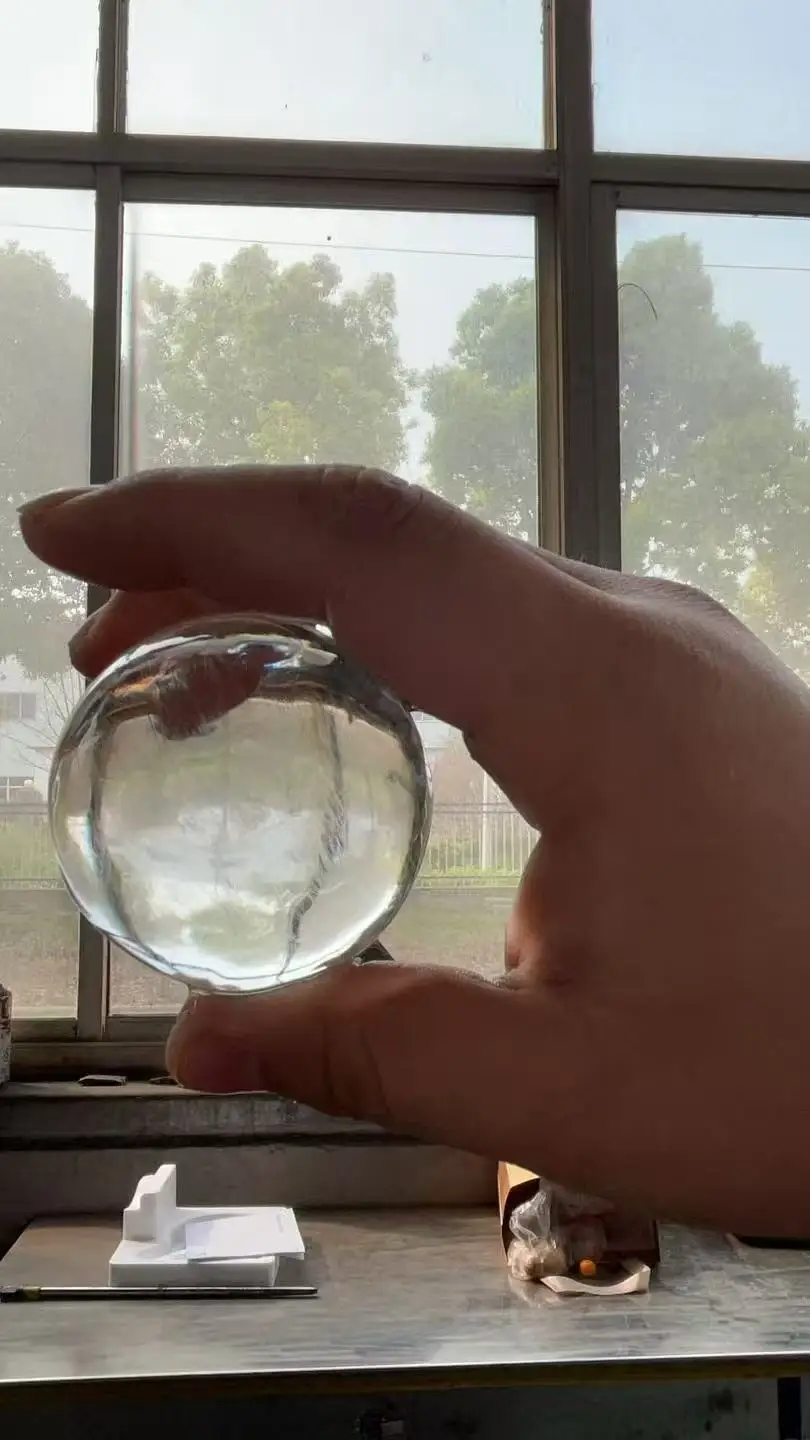

Ball Ice Cutter for Perfect Ice Spheres
Our Focusun ball ice cutter is specially designed to transform large ice blocks into uniform, high-quality ice spheres quickly and efficiently. Equipped with precise cutting blades and a robust frame, the machine ensures smooth, perfectly round ice balls every time, with consistent size and weight. This machine is ideal for bars, restaurants, cocktail lounges, hotels, beverage industries, and commercial ice suppliers. The ball ice cutter can be integrated with other systems, such as conveyors or automated packaging, for a fully streamlined ice production line.
With our ball ice cutter, you can produce attractive, professional ice spheres that enhance drinks presentation and customer experience, while maintaining high productivity.
With our ball ice cutter, you can produce attractive, professional ice spheres that enhance drinks presentation and customer experience, while maintaining high productivity.
Good Comments
Our After-sales Service
Pre-Sales Services
◆To elaborate functions and features of inquired machines.
◆To help customers study and understand market situation.
◆To provide economical and practical cooling solutions.
◆To design and tailor as per customers' requirements.
◆To provide transportation and accommodations for customers' visit.
◆To supply raw materials free of charge for witness testing.
◆To help customers study and understand market situation.
◆To provide economical and practical cooling solutions.
◆To design and tailor as per customers' requirements.
◆To provide transportation and accommodations for customers' visit.
◆To supply raw materials free of charge for witness testing.
After-Sales Services
◆To test repeatedly before packing and shipping to ensure its functional operation.
◆To ship and deliver as agreed and scheduled with customer.
◆To assign experienced technicians for machine installation on-site if required so.
◆To provide promptly trouble-shooting solutions by telephone or email if any questions.
◆To provide 1.5 years warranty and lifetime maintenance for all products.
◆To ship and deliver as agreed and scheduled with customer.
◆To assign experienced technicians for machine installation on-site if required so.
◆To provide promptly trouble-shooting solutions by telephone or email if any questions.
◆To provide 1.5 years warranty and lifetime maintenance for all products.
◆To provide english, spanish, french, arabic, multiple language service
FAQ

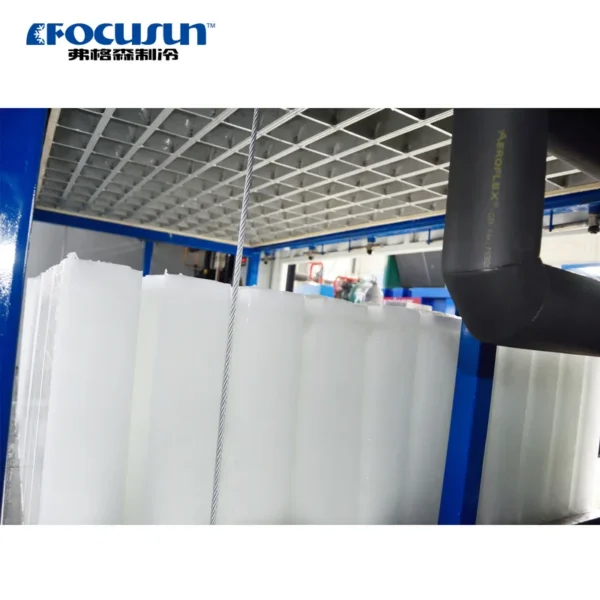

1. Can the size of block ice produced by FOCUSUN be customized? Yes. FOCUSUN offers standard block ice sizes such as 5kg, 10kg, 20kg, and 25kg. We can also customize the block ice size and weight according to your specific application requirements. 2. How is the block ice machine installed at our site? A detailed installation manual and instructional videos will be provided with the machine. We also offer 24/7 online technical support. If needed, our experienced engineers can be dispatched to your location for on-site installation and commissioning. 3. Can FOCUSUN send an engineer to my country for on-site installation? Yes. We can dispatch professional engineers from China to your site for installation and commissioning. Customers are responsible for visa costs, round-trip airfare, accommodation, and a service fee of USD 100 per person per day. Currently, our engineers are working on installations in Tanzania, the USA, Dubai, the Philippines, and Saudi Arabia. 4. Does FOCUSUN have local engineers for support? In some countries and regions, FOCUSUN has authorized local service partners or engineers available. If preferred, we can help arrange local installation or maintenance services for your convenience. 5. What should I do if the machine breaks down or shows an error? All FOCUSUN block ice machines come equipped with a smart touchscreen control system that displays real-time fault alerts and error codes. Once you report the issue, our technical team will provide a step-by-step troubleshooting solution promptly. 6. What is the standard delivery time for a FOCUSUN block ice machine? For machines with a capacity of 1–5 tons/day: approximately 30 working days after deposit confirmation. For 5–20 tons/day capacity: around 45 working days. For block ice machines over 25 tons/day: around 50 working days. Note: Delivery time may vary depending on specific voltage or special design requirements. 7. What payment terms does FOCUSUN support? We accept payment via T/T (bank transfer), Alibaba Trade Assurance, L/C (letter of credit), Western Union, or cash. A deposit of 30% to 50% is required to confirm the order. The balance is usually settled before shipment, after customer satisfaction is confirmed. 8. What is the warranty period for FOCUSUN block ice machines? All FOCUSUN ice machines include a 15-month warranty from the date of delivery. Extended warranty and spare parts support are available upon request.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $4900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 220V 380V 440V 460V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Focusun Technology (Shanghai) Corporation, based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Focusun Technology (Shanghai) Corporation range on HVACR Nexus.
See more in Ice Machines on HVACR Nexus.
