Impeller, 230V, 40mm, Aluminum, Tangential

Impeller — voltage 230 VAC, 123.00 CFM / 209 m3/H. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.

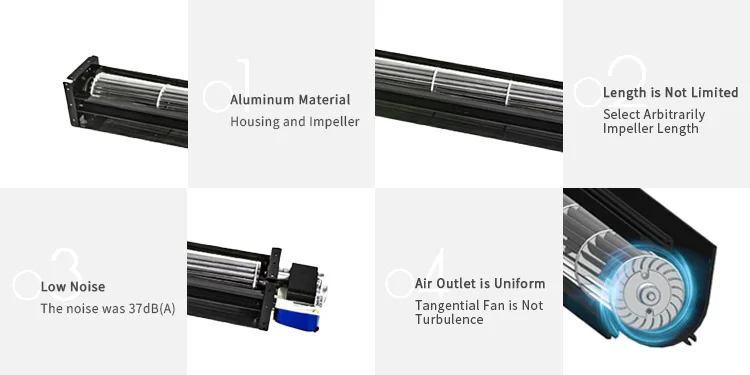

Key Features of This Impeller

• Model Number: PC40B2A854L
• Voltage: 230 VAC
• Air Flow: 123.00 CFM / 209 m3/H
• Blade Material: Aluminium alloy
• Material: Aluminum Alloy
• Warranty: 5 year

Technical Specifications

Product Details

PRODUCT SPECIFICATIONS

1.General Characters

Rated Voltage	230 VAC	Life Expectance	30,000 Hours
Frequency	50 Hz	Direction of Rotation	Clockwise seen on rotor
Rated Speed	2200 RPM	Dimension	See dimension drawing
Input Current	0.14 A	Material of Impeller	Aluminum alloy
Input Power	16 W	Air Flow	123.00 CFM / 209 m³/H
Acoustical Noise	37 dB(A)	Static Pressure	1.84 mmH₂O / 18 Pa

2. Environmental Characters

Operating Temperature

-20℃ to 70℃

Storage Temperature

-40℃ to 80℃

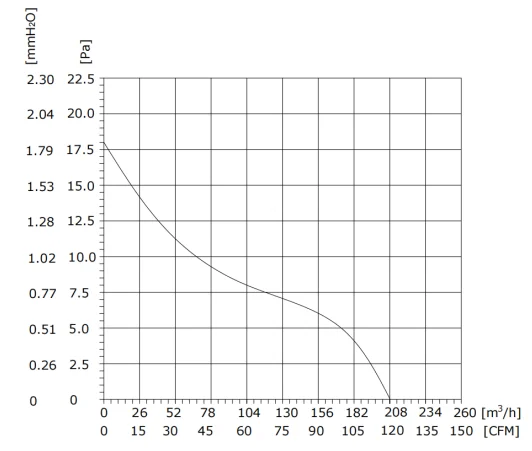

3. Performance Curve

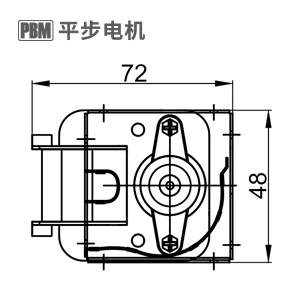

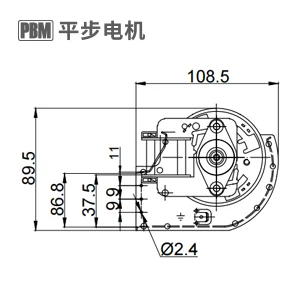

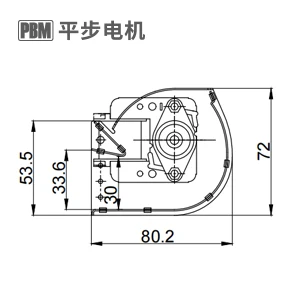

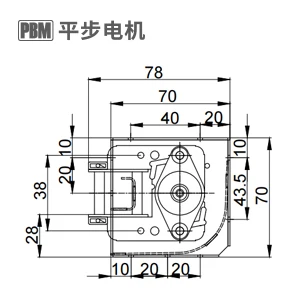

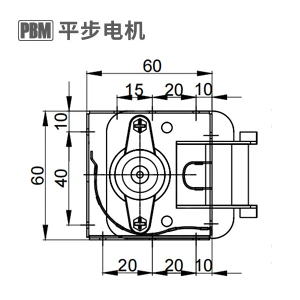

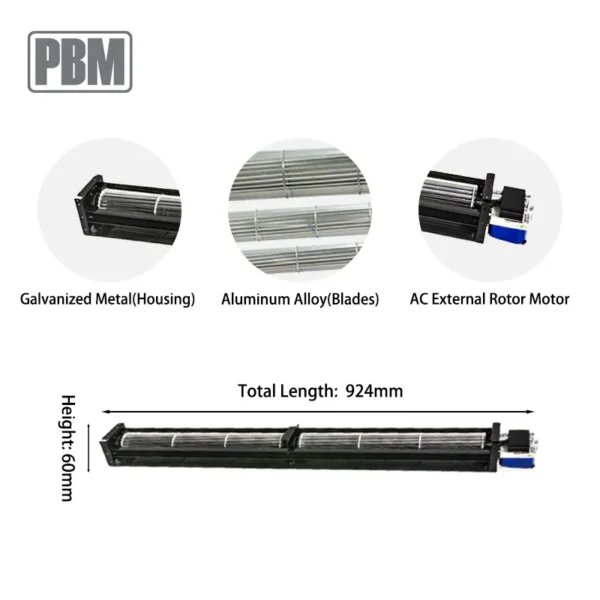

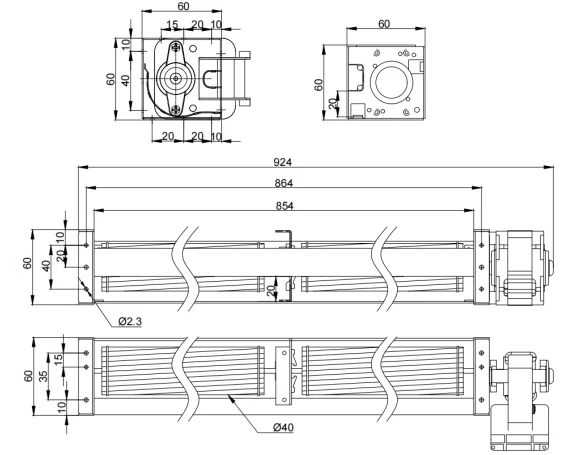

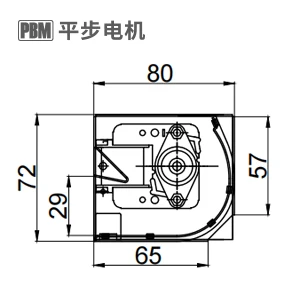

4. Outline Drawing

Certifications

Application Scopes

Recommend Products

Model Part No.	Rated  Voltage VAC	Air  Flow m³/H	Air  Pressure Pa	Rated  Speed RPM	Sound  Level dB(A)	Total  Length mm
PC40B2A530L	230	140	19	2000	36	600
PC40B2A610L	230	150	19	1950	35	680
PC40B2A700L	230	155	18	1750	34	770
PC40B2A800L	230	205	18	2300	36	870
PC40B2A854L	230	209	18	2200	37	924
PC40B2A920L	230	222	18	2100	37	990
PC40B2A1055L	230	255	18	2100	38	1125

PBM AC Tangential Blowers with Different Impeller Sizes

PBM Cross Flow Fan 30mm Blades

Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.

PBM Cross Flow Fan 40mm Blades

Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.

PBM Cross Flow Fan 45mm Blades

Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.

PBM Cross Flow Fan 48mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 50mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 60mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 65mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Product Overview

Exhibition Show

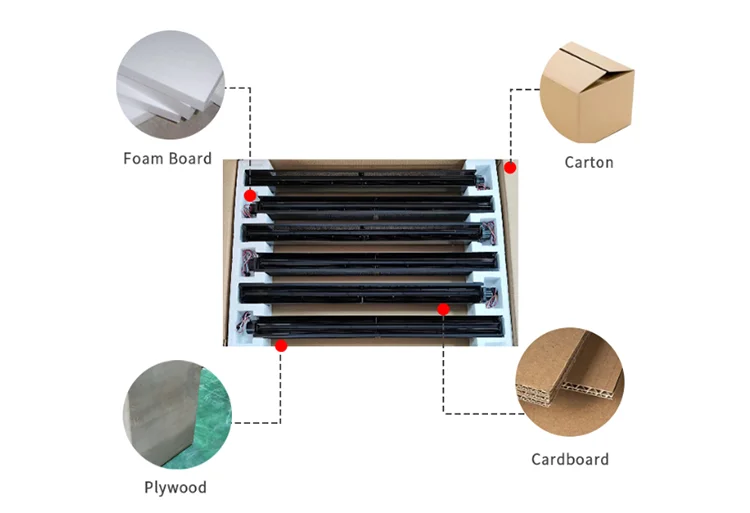

Packing Detail

FAQ

Q: What are the typical applications for these cross-flow blowers?

A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors, air curtains, air conditioners, and heaters.

Q:How about the delivery time ?
A:Within 25 days after we receive the order.

Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.

Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.

Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–499 piece: US $28.57 / piece
  • 500–999 piece: US $26.98 / piece
  • 1000+ piece: US $26.25 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this impeller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the impeller be supplied for my local voltage?

The standard configuration is 230 VAC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
