Key specification for this indirect fired room heater: voltage 220-240V / 50-60Hz, heating capacity keeping warm. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.
This indirect fired room heater is listed with the manufacturer’s full published specification — voltage 220-240V / 50-60Hz, heating capacity keeping warm, power source Diesel. It is produced by Qingdao Ruixinda Technology Group Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Indirect Fired Room Heater
- Power Source: Diesel
- Voltage: 220-240V / 50-60Hz
- Heating Capacity: keeping warm
- Material: Stainless Steel
- Warranty: 1 year
- Place Of Origin: Shandong, China
Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Diesel |
| Voltage | 220-240V / 50-60Hz |
| Material | Stainless Steel |
| Core Components | Motor |
| Key Selling Points | Easy To Operate, Competitive Price |
| Machinery Test Report | Provided |
| Heating Capacity | keeping warm |
| Place Of Origin | Shandong, China |
| Weight (KG) | 28 |
| Brand Name | Ristar or OEM |
| Dimension(L*W*H) | 1820X790X1210 |
| Working Temperature Range | 0 – 60 |
| After-Sales Service Provided | Overseas third-party support available |
| Product | Diesel Forced Air Heater |
| Warranty | 1 year |
| Overheating Protection Device | Yes |
| Fuel Medium | Diesel,kerosene |
| No Smell | Yes |
| Packing | Carton Box |
| Others | accept OEM |
| Control Panel | LCD digital control |
| Application | Greenhouse, workshop,big space room |
| Selling Units | Single item |
| Single Package Size | 118X48X54 cm |
| Single Gross Weight | 28.0 kg |
Product descriptions from the supplier
Report abuse

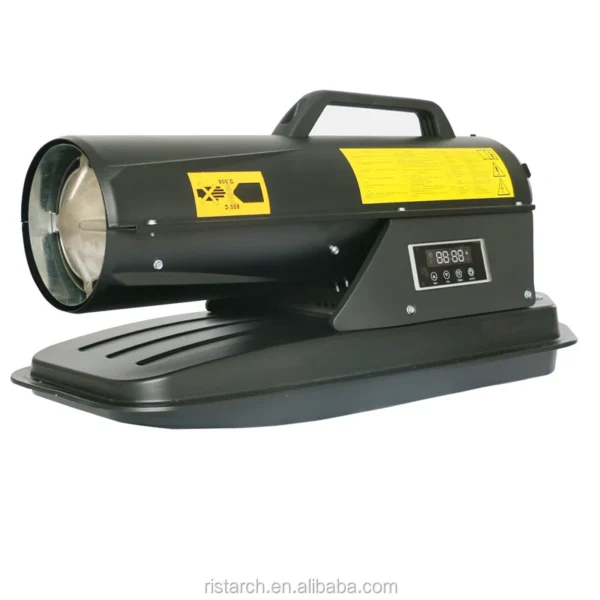

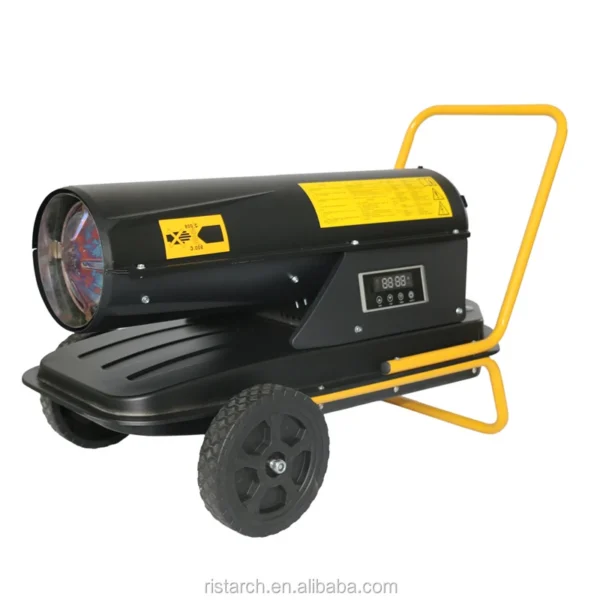

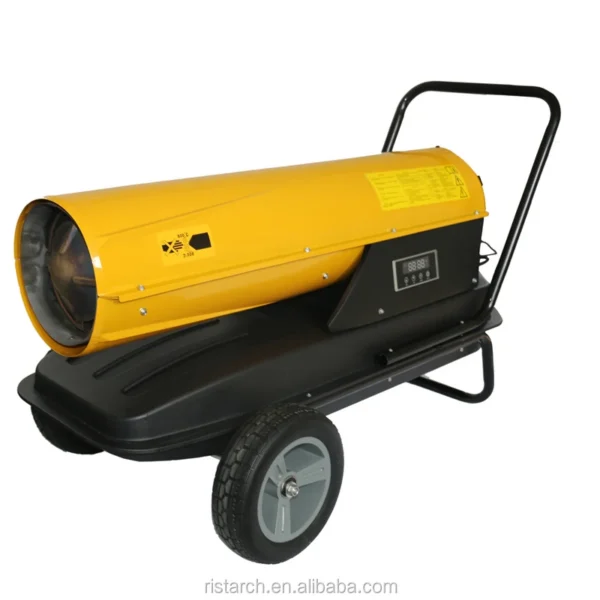

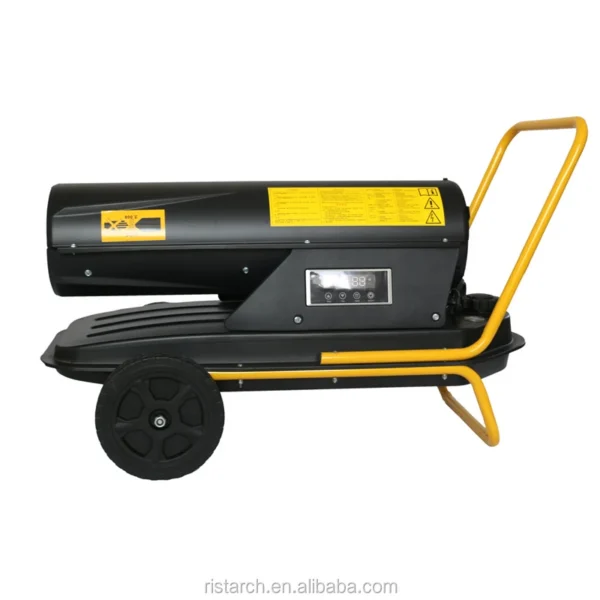

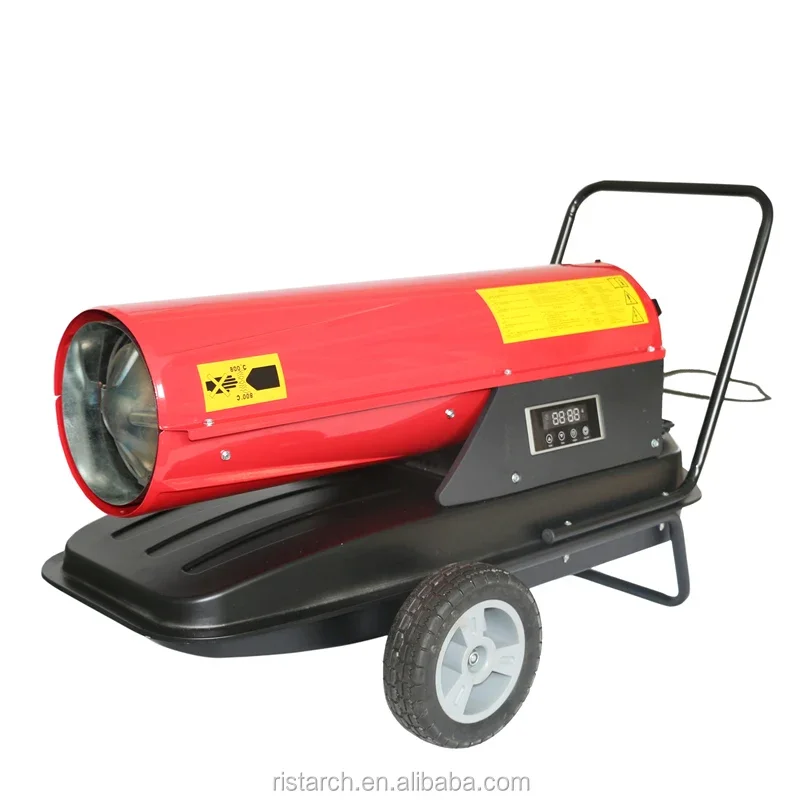

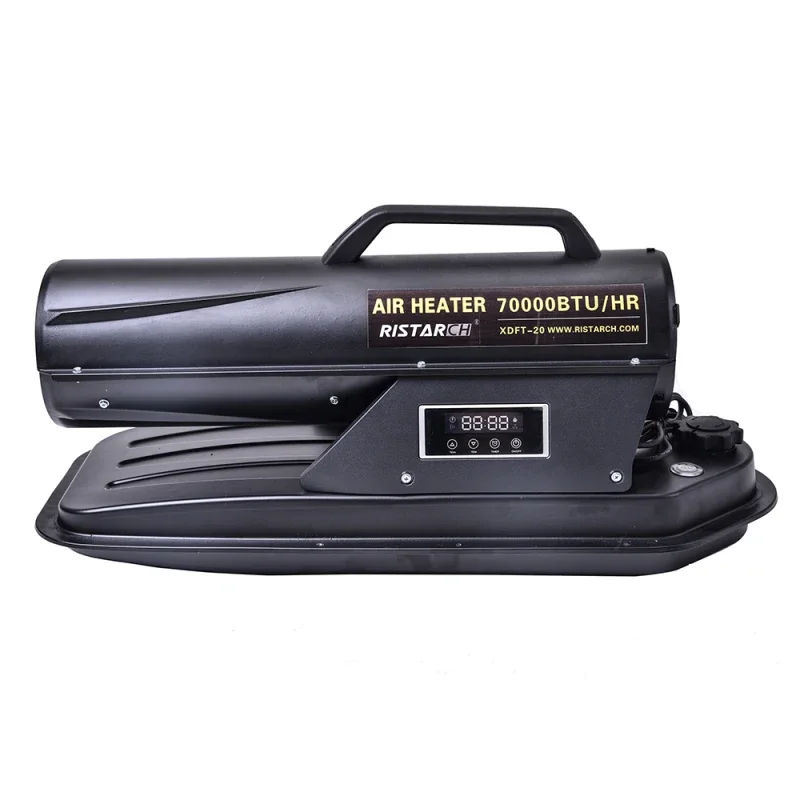

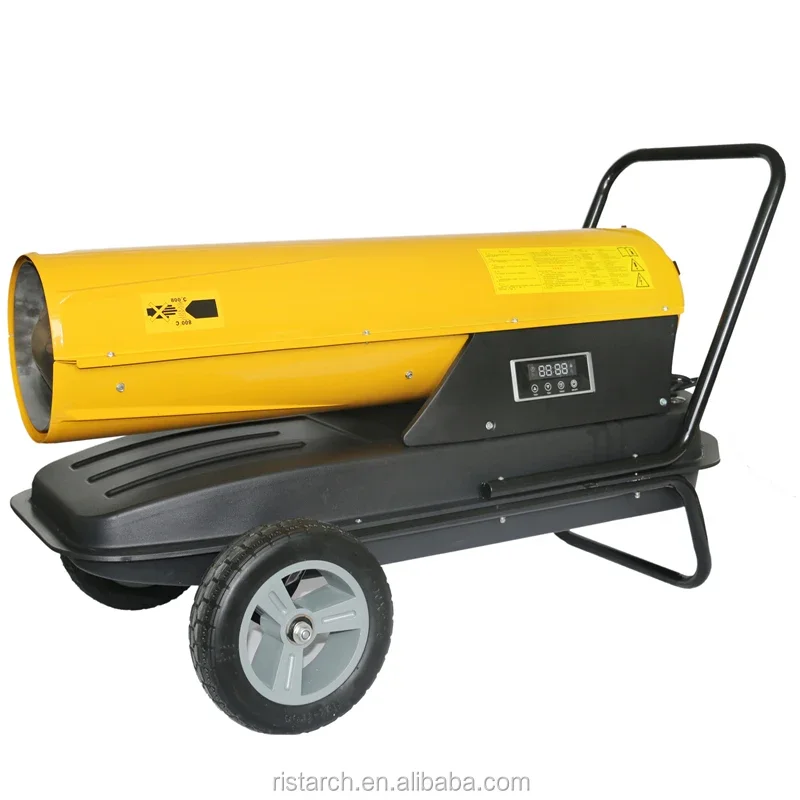

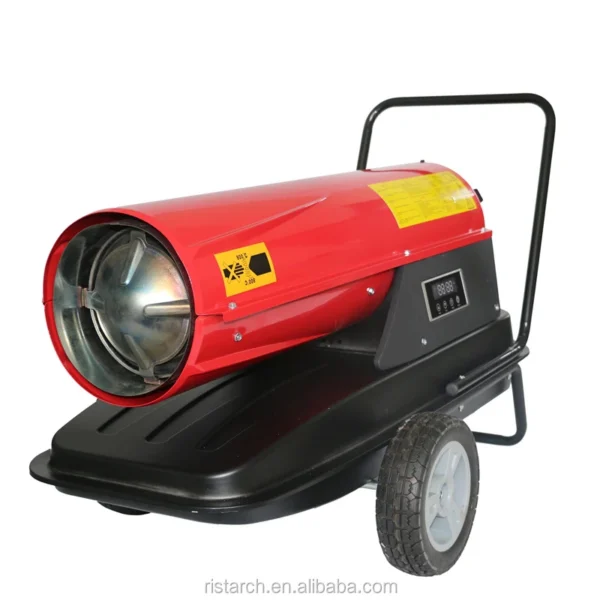

Indirect fired room heaters Diesel and kerosene fan heater
Specification of our Diesel Forced Air Heater
| Power | 20KW | 30KW | 50KW | 60KW |
| Model | XDFT-20 | XDFT-30 | XDFT-50 | XDFT-60 |
| Electric Supply | 220-240V-50HZ | 220-240V-50HZ | 220-240V-50HZ | 220-240V-50HZ |
| Output | 17200Kcal/h | 25800Kcal/h | 43000Kcal/h | 60200Kcal/h |
| Output | 69000Btu/h | 105000Btu/h | 170600Btu/h | 238840Btu/h |
| Motor Power | 250W | 250W | 340W | 430W |
| Air Displacement | 595m3/h | 720m3/h | 1100m3/h | 1300m3/h |
| Heatted Area | 100-200m2 | 200-300m2 | 300-400m2 | 500-600m2 |
| Fuel Consumption | 1.7Kg/h | 2.5Kg/h | 4.0Kg/h | 5.8Kg/h |
| Fuel Tank Capacity | 19L | 38L | 56L | 69L |
| Products Size | 850*350*340mm | 970*385*370mm | 1140*415*415mm | 1310*430*430mm |
| Packing Size | 950*400*420mm | 1070*435*450mm | 1240*465*495mm | 1410*480*510mm |
| N.W. | 16.2Kg | 22.0Kg | 30kg | 39.5kg |
| G.W. | 18.5Kg | 24.5Kg | 32.5kg | 42kg |

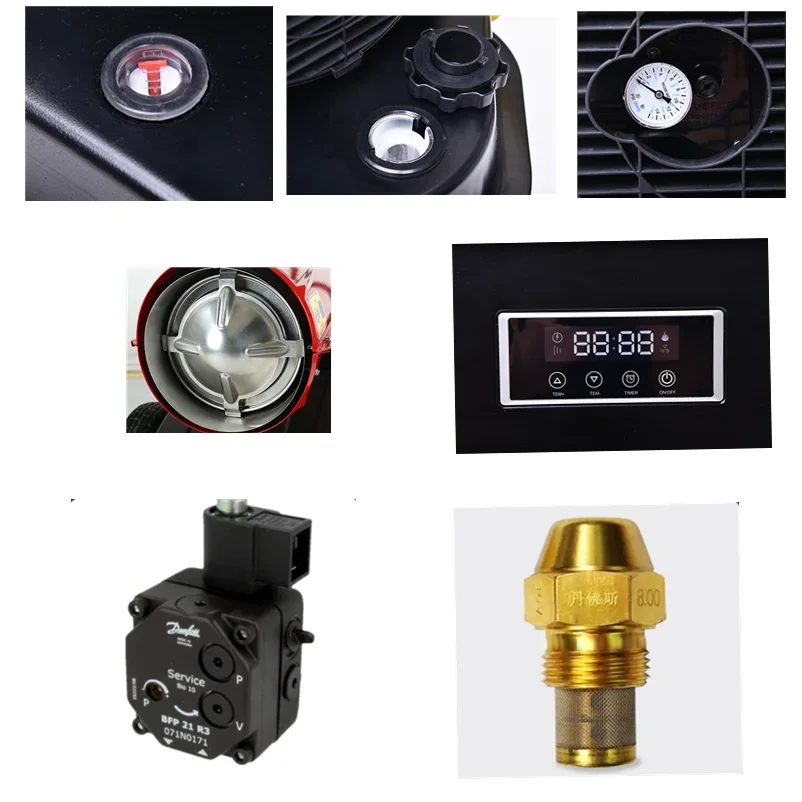

Product Features
1.Unique ,tough and portable design,high quality wheel.
2. Fuel burning more sufficiently,no smell.
3. Stainless steel combustion chamber with fan cooling
4. LCD digital control panel,there’s time switch
5. If no oil , heater will cut off the power
6. Fuel gauge
7.Cut-off protection,re-plugged in will not work automatically
8.Low pressure atomization,combustion completely,made by Danfoss Brass oil burner nozzle
9.Dump cut-off protection device.
10.Built-in thermostat,can be connected with external temperature controller
11.Overheating protection device.
12.Can be used -40 degree.
More Products
Application
To warm in warehouse,workshop,barns,garages and building area
Concrete curing,to dry the road
To warm during field operation
To dry the paint coating
To warm in mining
To dry in large area,construction sites,outdoor winter sporting events
To warm in temporary tent and exhibition area
To warm in greenhouse,chicken house,poultry farm and animal husbandry farm etc..
About Us

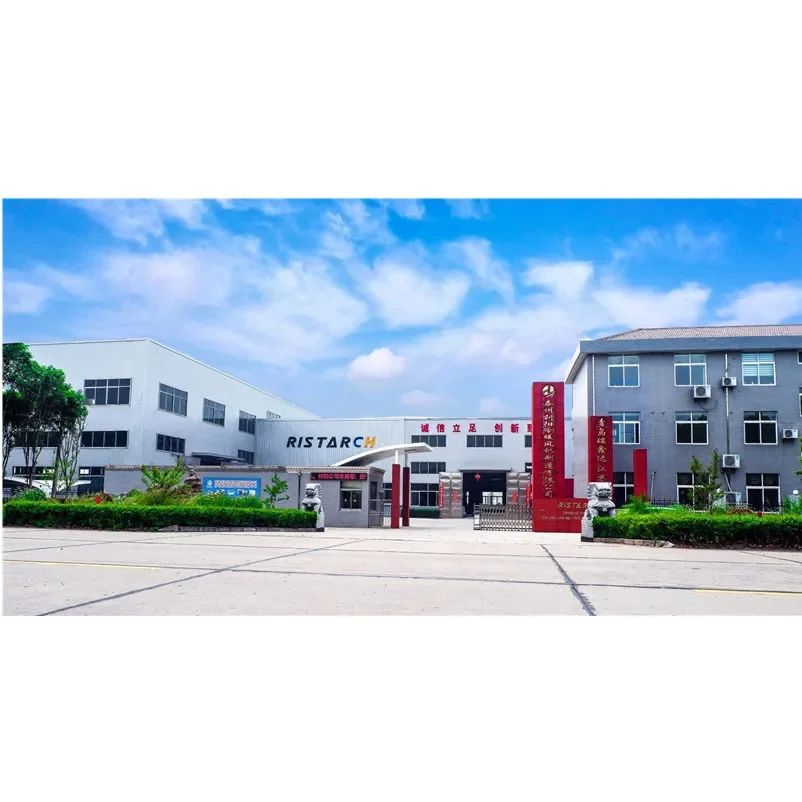

Qingdao Ristar own 2 factories located in Shandong province( Qingdao) and Jiangsu province(taizhou).
- Quality certification:GS,CE (EMC, LVD), RoHS, ISO9001
- Over 20000 square meters workshop
- 2 production lines with 20000 heater production capacity each month
- Quality first,every heater should be passed strict test before delivery
- Experienced Design & Technical Team

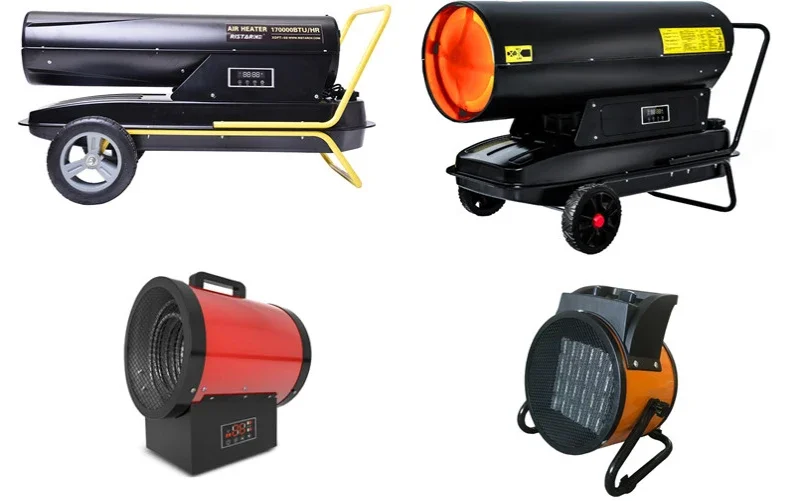

We are professional and experienced manufacturer of
Diesel /Kerosene Forced Air Heater
Industrial Electric Fan Heater
LPG/Gas Forced Air Heater
PTC electric heater
Our Certificates
Contact Us
window.__global_config__ = {
version__map: {
‘magicEditLoaderVersion’: ‘0.0.75’,
},
};
window.detailData = {“crossDomainToken”:”V1pSHv43OTRW4+FRd8AsBiAzdctiOqGDuz6zie+3DsmyZEaWFm/QW7qAvwHb5onbwX”,”language”:”en”,”productId”:”60696762399″,”shopLibVer”:”3.2.13″};
Frequently Asked Questions
What is the minimum order quantity for this indirect fired room heater?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this indirect fired room heater?
A 1 year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220-240V / 50-60Hz. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This indirect fired room heater is produced by Qingdao Ruixinda Technology Group Co., Ltd.. Browse the full Qingdao Ruixinda Technology Group Co., Ltd. range on HVACR Nexus.
