This kerosene heater is published with the manufacturer’s full specification — 220v-240v, power source Electric. Quantity and destination market determine the final price — tell us both for a firm quote.
This kerosene heater is listed with the manufacturer’s full published specification — voltage 220v-240v, power source Electric, type Air Heater. It is produced by Qingzhou Gongle Electric Fan Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Kerosene Heater
- Power Source: Electric
- Voltage: 220v-240v
- Material: Stainless steel, Cold-roll steel,Stainless steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China

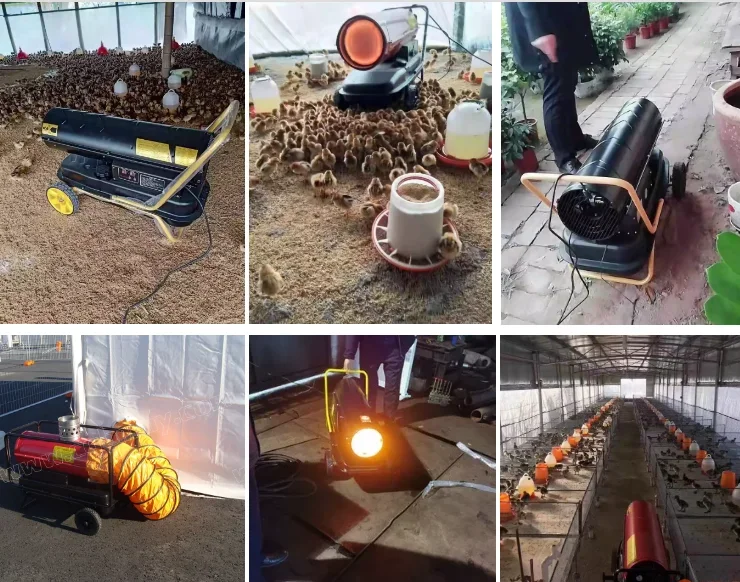

- Application: Animal husbandry, greenhouse planting, heating
Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Electric |
| Core Components | Motor, Bearing, Pump, Engine |
| Key Selling Points | Easy To Operate |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shandong, China |
| Weight (KG) | 35 |
| Brand Name | Gongle |
| Dimension(L*W*H) | 1050*490*615MM or Customized |
| Working Temperature Range | -5 – 55 ℃ |
| Product Name: | Chinese Industrial Workshop Electric Diesel Air Heater |
| Voltage | 220v-240v |
| Material | Stainless steel, Cold-roll steel,Stainless steel |
| Fuel: | Diesel/kerosene/gas/LPG |
| Ignition Type | Continuous spark ignition |
| Color | Black,Yellow,Green,Red customized |
| Air Output: | 550m3/h |
| Oil Consumption: | 1.0-1.7L/h |
| Application | Animal husbandry, greenhouse planting, heating |
| Heating Output | 15KW to 120KW |
| Selling Units | Single item |
| Single Package Size | 120X20X20 cm |
| Single Gross Weight | 30.0 kg |

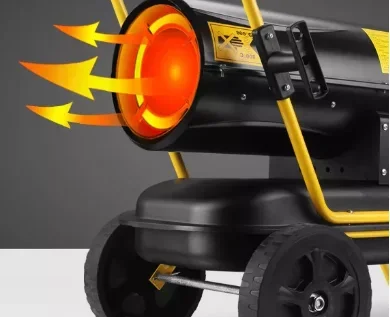

The main use is to heat industrial or commercial places.Heater is to heat the air, the current rise of oil heating.In a variety of
heating methods, air heating is more comfortable, and the heater is the most common way of air heating.Heater can provide clean
and dry hot air, heating the whole space, the temperature is uniform.
Intelligent constant temperature control, more fuel saving, automatic stop when the temperature reaches the set ideal temperature,
fuel consumption stops, when the temperature is lower than the set temperature, the equipment automatically start heating system,
energy saving, environmental protection and more safety.
Power off and restart, the set temperature remains unchanged, to avoid unexpected losses.
After shutdown, the fan will continue to run for 3 minutes to dissipate the residual temperature in the machine, protect the
machine and improve its life.

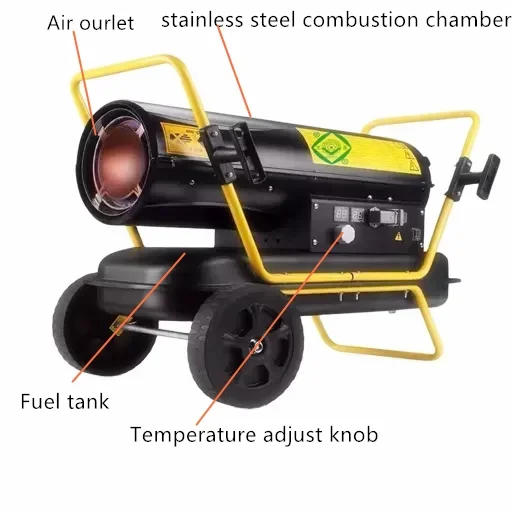

High quality steel paint shell, high temperature resistance, corrosion resistance, galvanized paint body rust resistance and
impact resistance.Heater protection frame,safer use.
Visible oil gauge,8mm thick steel tank.

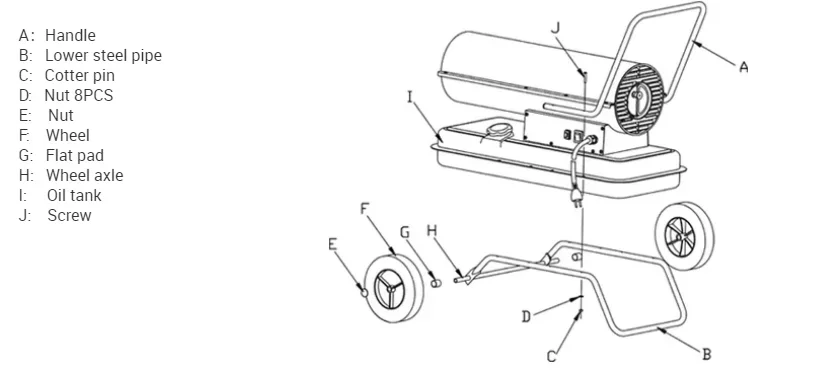

Roller design, easy to move, save flexible use.
Aluminum alloy fan blade is formed once, ventilation dynamic design.Strong wind power, improve efficiency.
Imported nozzle, stable quality
High efficiency motor, durable bottom noise, fan and motor match, more accurate balance.
Adopt high quality photosensitive eye, intelligent photosensitive, lack of oil, lack of oxygen, lack of power and no fire will
automatically cut off the oil, safe and reliable
|
Model No.
|
Voltage/Hz
|
Air volume
(m3/h) |
Tank capacity
(L) |
Fuel consumption
(L/H) |
Product size /
Packing size (MM) |
N.W/G.W
(KG) |
|
GLH-10
|
220-240V/50
|
450
|
19
|
0.8
|
750*315*415/
795*370*440 |
13.6/15.2
|
|
GLH-20
|
220-240V/50
|
550
|
19
|
1.6
|
750*315*415/
795*370*440 |
14/15.6
|
|
GLH-30
|
220-240V/50
|
720
|
38
|
2.4
|
880*456*590/
905*420*490 |
21/23
|
|
GLH-50
|
220-240V/50
|
1100
|
56
|
4.0
|
1090*490*585/
1045*465*570 |
27/31.8
|
|
GLH-70
|
220-240V/50
|
1300
|
69
|
5.4
|
1215*580*705/
1110*505*680 |
21/23
|
|
GLH-100
|
220-240V/50
|
1300
|
69
|
7.9
|
1215*580*705/
1110*505*680 |
40.8/45.8
|
|
GLH-120
|
220-240V/50
|
4000
|
120
|
9.3
|
1723*651*1025/
1086*712*1185 |
90/150
|
maintenance period need to be shortened to 250 hours2.Inspection items
2.1.Clean or replace the filter sponge inside the air pump(Inlet/Outlet)
2.2.Clean or replace the oil suction filter
2.3.Clean the ignition pin(Brush off the accumulated carbon on the needle due to ignition)
2.4.Clean the oil tank, open the drain nut at the bottom of the oil tank, discharge the internal residue, and clean the inside of
the oil tank with clean diesel or kerosene
Remarks:
Filter sponge, oil suction filter and oil nozzle are vulnerable parts, not within one year free warranty period
equipment and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international
standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got
perfect inspection report.
Frequently Asked Questions
What is the minimum order quantity for this kerosene heater?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this kerosene heater?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220v-240v. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
