This push pull exhaust fan is published with the manufacturer’s full specification — voltage 110-576V customized, 50/60hz, blade material SS430/304/aluminized zinc. Made by Qingzhou Gongle Electric Fan Co., Ltd. (18 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Push Pull Exhaust Fan
- Model Number: 9FJ
- Voltage: 110-576V customized, 50/60hz
- Frame Material: galvanized steel 275g zinc/ aluminized zinc
- Blade Material: SS430/304/aluminized zinc
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Warranty | 1 Year |
|---|---|
| Model Number | 9FJ |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 85 |
| Brand Name | gongle |
| Product Name | Centrifugal Push Pull Cooling Fan Square Wall air Extractor |
| Application | Industrial,poultry house,greenhouse |
| Type | push pull fan, hammer fan |
| Frame Material | galvanized steel 275g zinc/ aluminized zinc |
| Blade Material | SS430/304/aluminized zinc |
| Blade Size | 750-1400mm |
| Motor Brand | Chinese motor, XIZI, Siemens |
| Voltage | 110-576V customized, 50/60hz |
| Packing | paper cartons |
| MOQ | 1 PCS |
| Selling Units | Single item |
| Single Package Size | 81X81X45 cm |
| Single Gross Weight | 40.0 kg |
Product Details
Product Description

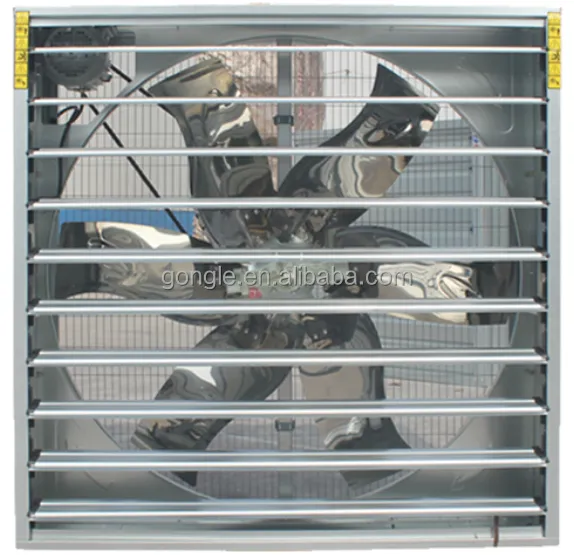

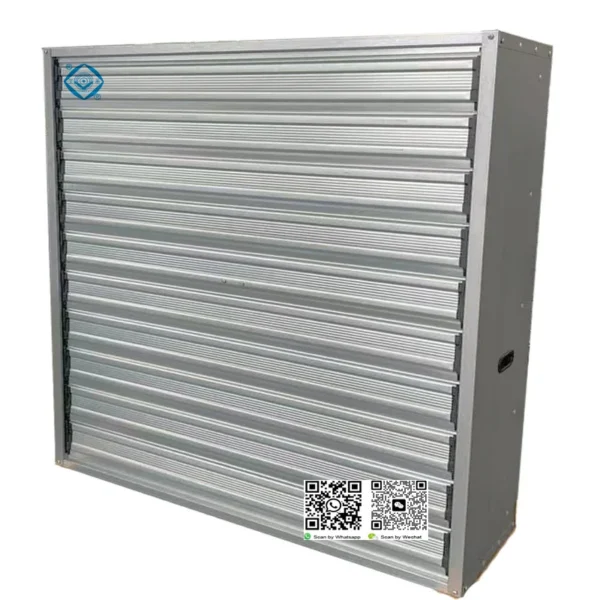

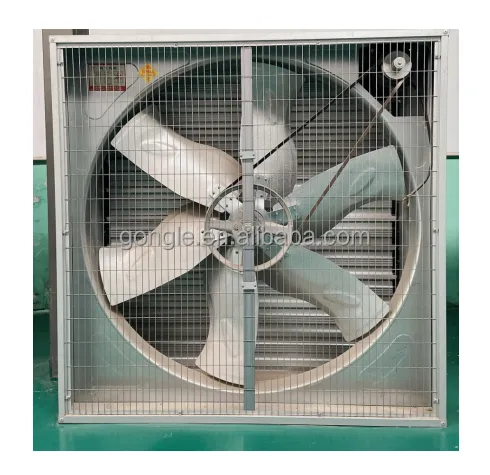

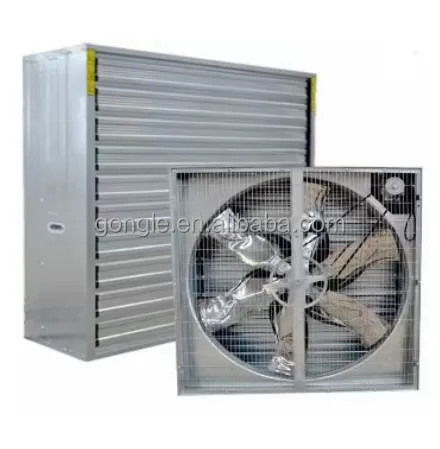

50'' 1380mm belt/ direct driven centrifugal push pull exhaust fan air Extractor for greenhouse poultry house ventilation
Advantages :
1) Blade is made of the stainless steel 430/304/aluminized zinc material, molded, big air volume, no distortion, no broken.
2) Fan house adopt double-mesh design, light weight, elegant appearance, easy to install.
3) Round protection grill, heavy duty, protect fan blades, safety and steady.
4) Adopt the handle as new inset design from our engineer, easy for carry, transport and installation. Also it has no effect on
the appearance.
Features :
1)Open system:Unique push-pull centrifugal opening system to ensure open the shutters open and close smoothly.
2)Fan frame:Made of high-quality galvanized steel in order to assure the highest strength and strong resistance to corrosion.
3)Blades:6 pieces of stainless steel blades and the fan has passed the experiment of homeostasis,large air flow,low noise,no
distortion and no blending.
4)Bearing:High speed bearing,high strength,low noise,and long service life.
5)Belt pulley:The V-belt pulley is molded by aluminium magnesium alloy injection,light weight,high strength.
1) Blade is made of the stainless steel 430/304/aluminized zinc material, molded, big air volume, no distortion, no broken.
2) Fan house adopt double-mesh design, light weight, elegant appearance, easy to install.
3) Round protection grill, heavy duty, protect fan blades, safety and steady.
4) Adopt the handle as new inset design from our engineer, easy for carry, transport and installation. Also it has no effect on
the appearance.
Features :
1)Open system:Unique push-pull centrifugal opening system to ensure open the shutters open and close smoothly.
2)Fan frame:Made of high-quality galvanized steel in order to assure the highest strength and strong resistance to corrosion.
3)Blades:6 pieces of stainless steel blades and the fan has passed the experiment of homeostasis,large air flow,low noise,no
distortion and no blending.
4)Bearing:High speed bearing,high strength,low noise,and long service life.
5)Belt pulley:The V-belt pulley is molded by aluminium magnesium alloy injection,light weight,high strength.
Frame: Hot Galvanized sheet with zinc thickness of 275g/m2, aluminized zinc, high anti-corrosion performance Plastic Handle, easy to carry , Convenient to load
Advantage:
GONGLE has the advanced complete CNC machine and laser cutting machine. Auto punching and bending, the accuracy of the hole is
100%, easy to assemble.
Advantage:
GONGLE has the advanced complete CNC machine and laser cutting machine. Auto punching and bending, the accuracy of the hole is
100%, easy to assemble.
Push pull centrifugal system
easy to open shutters, energy savingMaterial: High quality Nylon PA66
Advantage:
It open shutters automaticly by less power, high efficiency.
It open shutters automaticly by less power, high efficiency.
Fan blades
1. Material : Krupp 430 stainless steel/ 304 S.S/ aluminized zinc, thickness 1.2mm, special design to ensure the high air volume.
2. Diameter: 1250mm or 1270mm
1. Material : Krupp 430 stainless steel/ 304 S.S/ aluminized zinc, thickness 1.2mm, special design to ensure the high air volume.
2. Diameter: 1250mm or 1270mm
3.it can be Nylon material blades
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:Blade material also have galvanized sheet, aluminum alloy , Nylon for option
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:Blade material also have galvanized sheet, aluminum alloy , Nylon for option
Chinese famous motor,
1. Brand: XIZI /NOSCH motor,Siemens motor, ABB motor and WEG motor or Laoyite brand
2. Motor Protection Grade: IP55
3. Insulation Class: F grade4.100% copper wire
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when
shortage of electricity.
2. Motor Protection Grade: IP55
3. Insulation Class: F grade4.100% copper wire
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when
shortage of electricity.
Motor Fixed Nuts and Washer
1. Hexagon Nuts
2. Stainless Steel Washer
Advantage:
More firmly, never loosen. Not rust, Easy to change Motor.
2. Stainless Steel Washer
Advantage:
More firmly, never loosen. Not rust, Easy to change Motor.
Belt pulley and angle
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration, attractive appearance.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration, attractive appearance.
Belt
Brand: Sanlux.Dongli,Mitsuboshi
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.

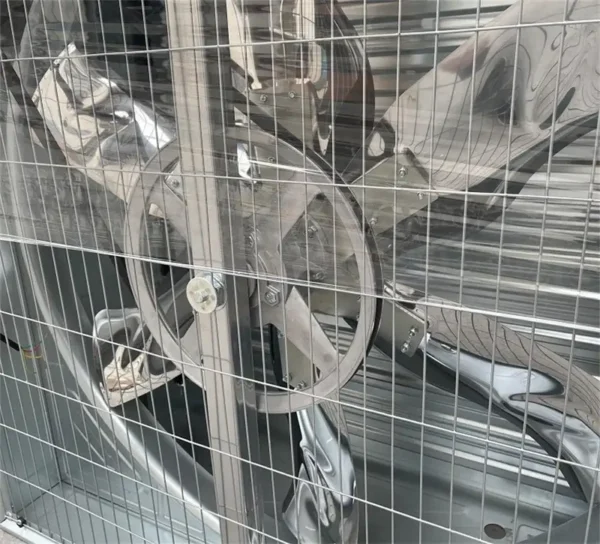

Protect nets
1.Material: Hot-dip galvanized wire is coated with Plastic 2.can also be two parts
Advantage:
Double Protection to ensure never rust.
Advantage:
Double Protection to ensure never rust.
Specification
Model | Blade dia (mm) | Blade speed (rpm) | Air flow (m3/h) | Total pressure (pa) | Noise (db) | Input power (KW) | Voltage (v) | Motor speed (rpm) | Size(mm) |
9FJ-710 | 710 | 700 | 20000 | 75 | ≤65 | 0.37 | 380/220 | 1400 | 800*800*450 |
9FJ-750 | 750 | 700 | 22000 | 75 | ≤65 | 0.37 | 380/220 | 1400 | 900*900*450 |
9FJ-900 | 900 | 650 | 25000 | 70 | ≤65 | 0.55 | 380/220 | 1400 | 1000*1000*450 |
9FJ-1000 | 1000 | 600 | 32500 | 70 | ≤65 | 0.55 | 380/220 | 1400 | 1100*1100*450 |
9FJ-1100 | 1100 | 480 | 38000 | 73 | ≤65 | 0.75 | 380/220 | 1400 | 1220*1220*450 |
9FJ-1250 | 1250 | 440 | 44000 | 65 | ≤65 | 1.5 | 380/220 | 1400 | 1380*1380*450 |
9FJ-1400 | 1400 | 440 | 55800 | 60 | ≤65 | 1.1 | 380/220 | 1400 | 1530*1530*450 |
Different model show
Application and install
Packing & Delivery
1.The fan can be assembled or disassembled,
2.Package is with cartons, if assembly, can be full package with cartons
3.The delivery can be by LCL or FCL
3.The delivery can be by LCL or FCL
Recommend Products
New PP materials Industrial Air Cooler
$120 – $220
Big air flow butterfly cone exhaust fan
$189 – $279
Color coated evaporative cooling pad
$63 – $70
Customized blades centrifugal exhaust fan $135 – $205
Fiberglass roof mounted exhaust fan $245 – $325
Direct motor hanging fan for cattle farm
$95 – $145
Automatic chicken house feeding line
$11 – $15.5
Greenhouse hanging air circulation fan
$45 -$89
Kerosene/Diesel/Gas forced air heater
$135 – $220
FAQ
Trade Information:
i.Trade Terms: FOB, CFR & CIF
ii.Payment Terms: T/T , L/C
iii. Payment Condition: 30% deposit in advance,70% balance against copy of B/L.
iv. Delivery Time: 15 days after the deposite.
v. Packing: By carton
vi.Shipping:By sea delivery
i.Trade Terms: FOB, CFR & CIF
ii.Payment Terms: T/T , L/C
iii. Payment Condition: 30% deposit in advance,70% balance against copy of B/L.
iv. Delivery Time: 15 days after the deposite.
v. Packing: By carton
vi.Shipping:By sea delivery
Contact us
Thanks again for your kind interests in our products. Welcome to contact us directly for more details, Thank You.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $150 / set
- 10+ set: US $125 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this push pull exhaust fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the push pull exhaust fan be supplied for my local voltage?
The standard configuration is 110-576V customized, 50/60hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Gongle Electric Fan Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Gongle Electric Fan Co., Ltd. range on HVACR Nexus.
