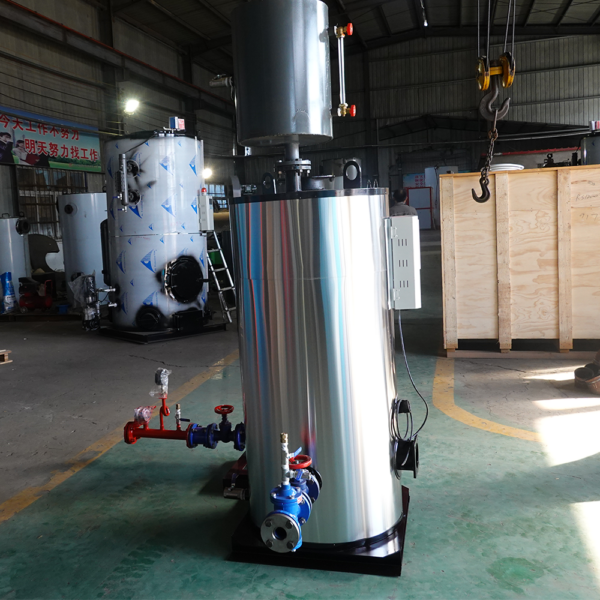

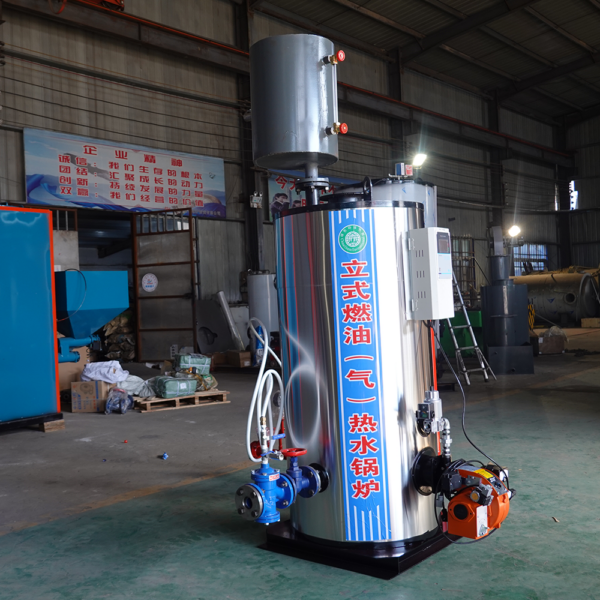

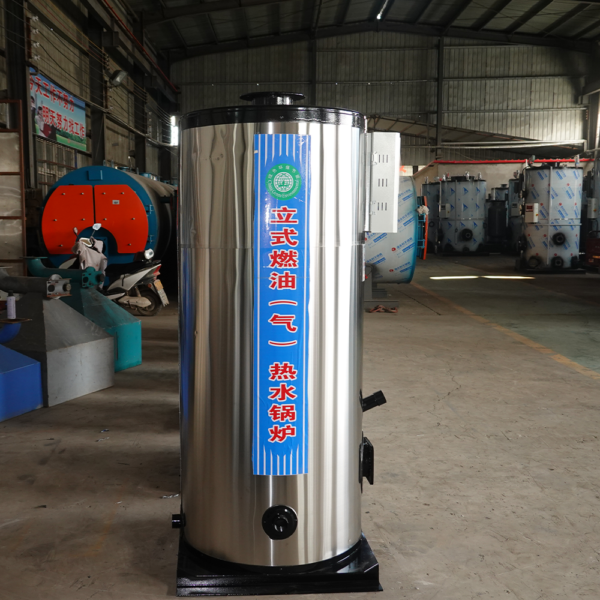

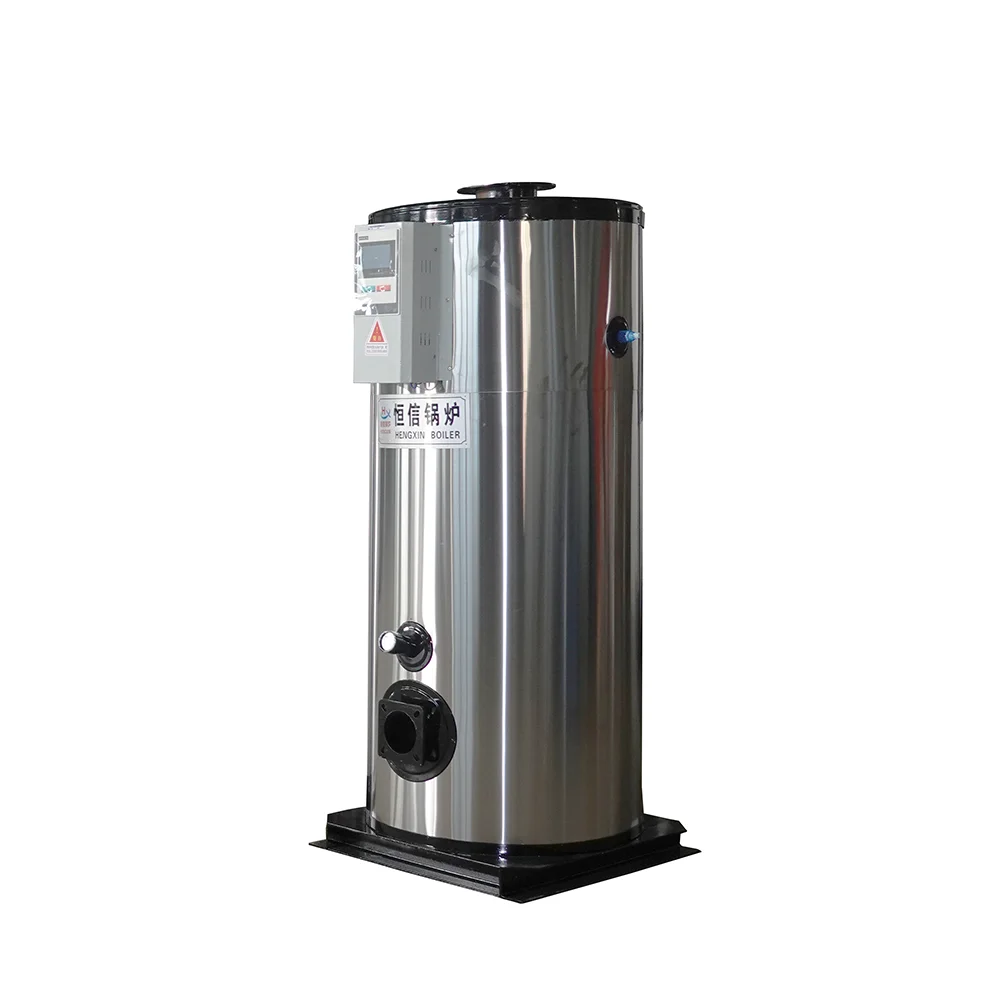

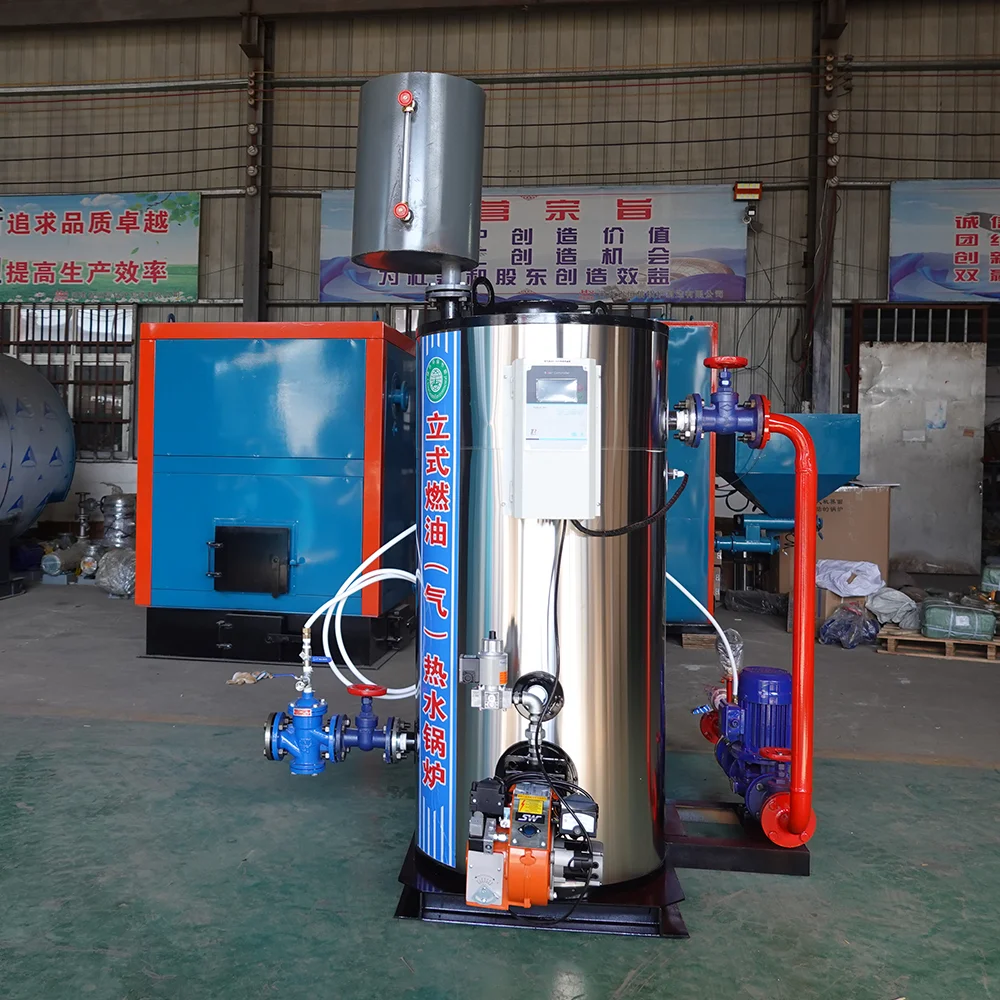

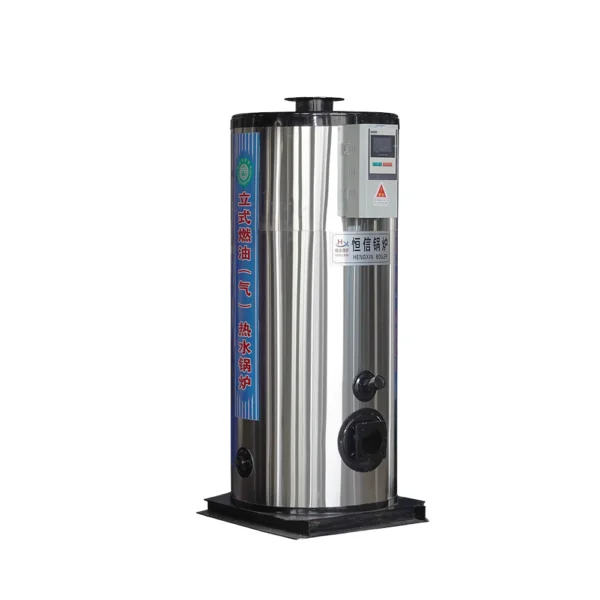

Dual fuel capability on a hot water boiler is an insurance policy against fuel supply and price volatility — a plant that can switch between gas and diesel without changing the burner is not held hostage by either market. This one also accepts liquefied gas and palm oil. Automatic operation with high safety instrumentation in vertical fire tube form, carbon steel with natural circulation and a two-year warranty.
Key Features of This Dual Fuel Hot Water Boiler
- Material: Carbon Steel
- Warranty: 2 Years
- Type: Natural Circulation
- Fuel: Diesel, natural gas, liquefied gas, palm oil,
- Pressure: Low Pressure
- Structure: Fire Tube
Technical Specifications
| Key Selling Points | Automatic, Easy To Operate, High Safety Level, High-Accuracy, Long Service Life, Energy Saving, Low Maintenance Cost, Accurate Temperature Control, Digital |
|---|---|
| Material | Carbon Steel |
| Fuel | Diesel, natural gas, liquefied gas, palm oil, |
| Pressure | Low Pressure |
| Structure | Fire Tube |
| Output | Hot Water |
| Usage | Industrial |
| Type | Natural Circulation |
| Style | VERTICAL |
| Warranty | 2 Years |
| Core Components | Boiler body |
| Machinery Test Report | Provided |
| Selling Units | Single item |
|
Boiler type
|
Boiler type
|
CLHS0.12
|
CLHS0.21
|
CLHS0.24
|
CLHS0.35
|
CLHS0.49
|
CLHS0.7
|
||||||
|
Rated heating capacity (10,000 kcal)
|
Rated heating capacity
(10,000 kcal)
|
10
|
15
|
20
|
30
|
40
|
60
|
||||||
|
Rated effluent temperature(℃)
|
Rated effluent temperature(℃)
|
85
|
|||||||||||
|
Rated return watertemperature(℃)
|
Rated return watertemperature(℃)
|
60
|
|||||||||||
|
Feed water temperature(℃)
|
Feed water temperature(℃)
|
20-70
|
|||||||||||
|
Thermal efficiency(%)
|
Thermal efficiency(%)
|
≥93
|
|||||||||||
|
Fuel consumption
|
Gas consumption(m³/h)
|
14.3
|
21.4
|
28.6
|
42.9
|
57.1
|
85.7
|
||||||
|
Liquefied gas consumption(m³/h)
|
11.4
|
17.1
|
22.9
|
34.3
|
45.7
|
68.6
|
|||||||
|
City gas consumption(m³/h)
|
30
|
45
|
60
|
90
|
120
|
180
|
|||||||
|
Light diesel consumption(Kg/h)
|
11.8
|
17.6
|
23.5
|
35.3
|
47.1
|
70.6
|
|||||||
|
Heavy oil consumption(Kg/h)
|
12.
|
18
|
24
|
36
|
48
|
72
|
|||||||
|
Maximum shipping weight(T)
|
Maximum shipping weight(T)
|
0.42
|
0.57
|
0.68
|
0.92
|
1.28
|
1.86
|
||||||

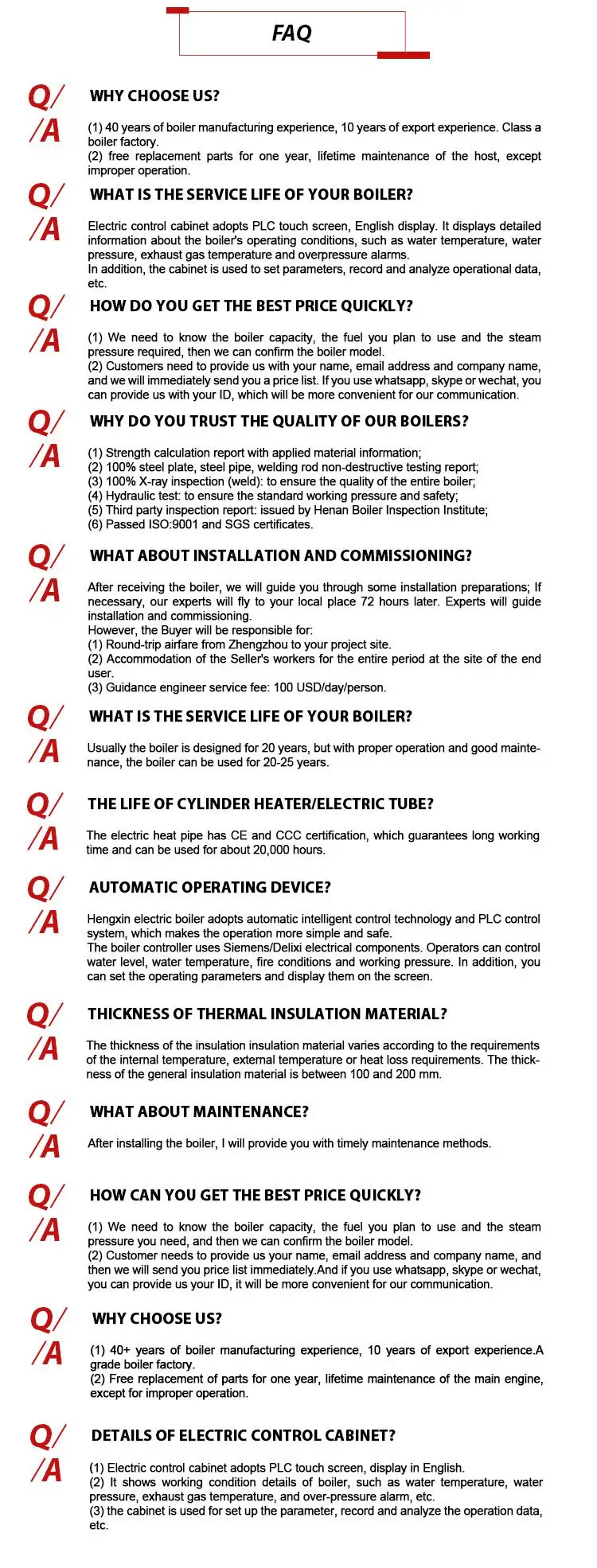

Frequently Asked Questions
What is the minimum order quantity for this dual fuel hot water boiler?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this dual fuel hot water boiler?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
