Industrial Centrifugal Exhaust Fan, 900mm, 1000mm, 1380mm

Industrial centrifugal exhaust fan — voltage 220-240V, 380 V, power source Electric. The complete factory specification follows. Made by Guangzhou Qixiang Industry Co., Ltd. (12 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Industrial Centrifugal Exhaust Fan

• Model Number: QX-900
• Power Source: Electric
• Voltage: 220-240V, 380 V
• Blade Material: galvanized Sheet
• Material: galvanized sheet
• Speed: 620r/min

Technical Specifications

Product Details

Qixiang 900mm 1000mm 1380mm Greenhouse Industrial Axial Flow Fan Galvanized Blade Centrifugal Exhaust Fan for Poultry OEM

The exhaust fan utilizes the principle of air convection and negative pressure ventilation for cooling. It is a machine that naturally draws in fresh air from the opposite direction of the installation location – such as a door or window – and rapidly forces the stuffy indoor air out of the building. It can improve any poor ventilation issues and achieve a cooling and ventilation effect of 90% to 97%.

Model	Size	Power	Speed	Noise	Material	Air volume
QX-900	900*900*350mm	0.37KW	620 r/min	≤55db	Galvanized sheet	25000m³/h
QX-1060	1060*1060*350mm	0.55KW	580 r/min	≤60db	Galvanized sheet	32000m³/h
QX-1220	1220*1220*350mm	0.75KW	520 r/min	≤63db	Galvanized sheet	37000m³/h
QX1380	1380*1380*350mm	1.1KW	450 r/min	≤65db	Galvanized sheet	44500m³/h
QX-1530	1530*1530*400mm	1.5KW	450 r/min	≤70db	Galvanized sheet	55800m³/h

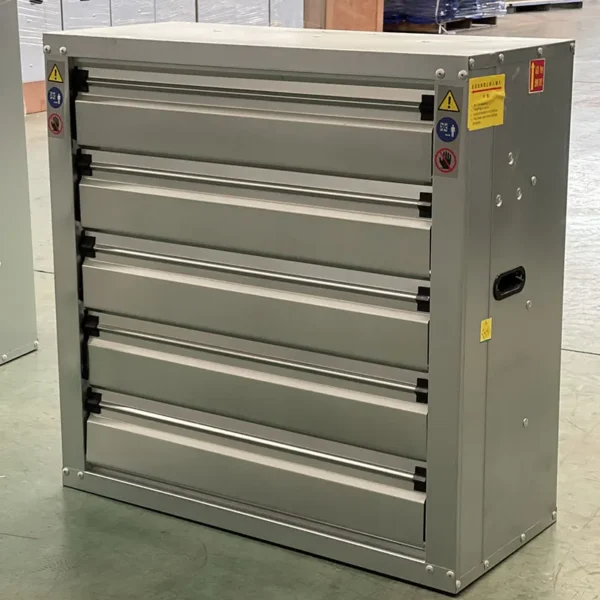

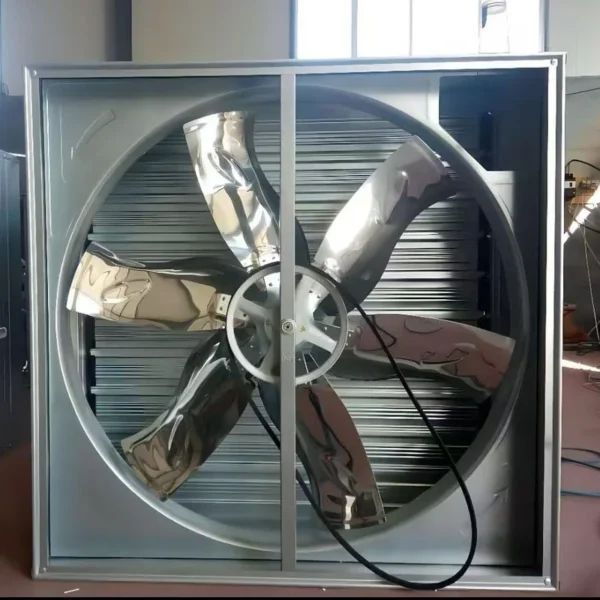

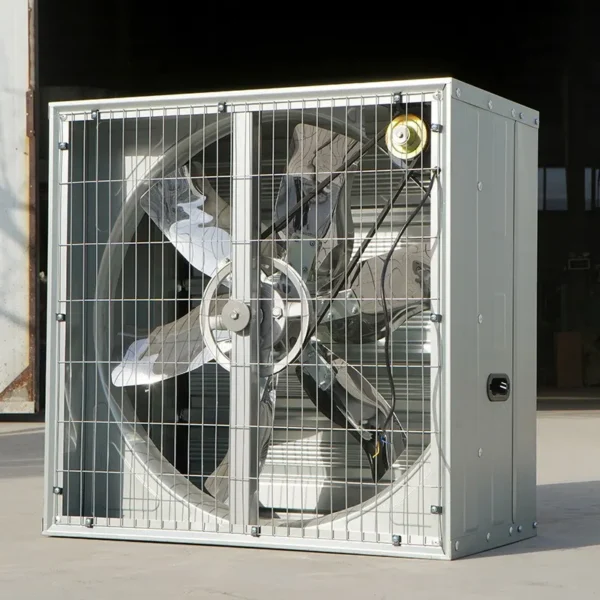

Rust-proof Material:

The frame of the louvered exhaust fan is made of galvanised steel, and the louvered blades are made of high-quality aluminium alloy, equipped with pure copper generator machine, which can maximise the airflow, anti-rust and anti-corrosion, solid and durable, long service time.

Easy Installation:

The louvered exhaust fan wall mounted is already assembled, just install the fan in the desired position, wide-angle suction that It can effectively ventilate and exhaust the air. Quality Performance: The aluminum blades fan has strong wind power, large displacement, low noise and low power consumption, which can help you save energy costs while creating a quiet and comfortable space for you.

Automatic Switch:

Our wall mounted shutter are equipped with automatic louvres that open and close as the fan runs. Wide Range of Uses: Ventilating shutters can be used in a variety of situations, whether in factories, car parks basements, warehouses sheds, it removes excess heat odour and improves air quality.

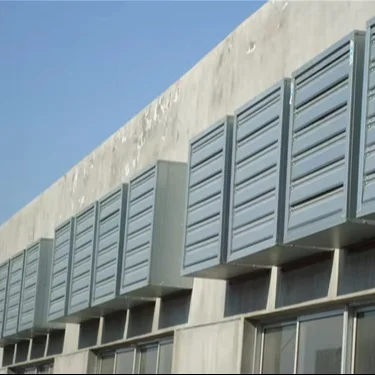

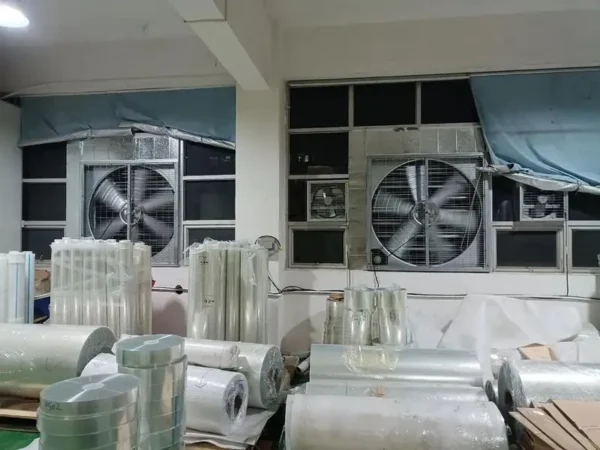

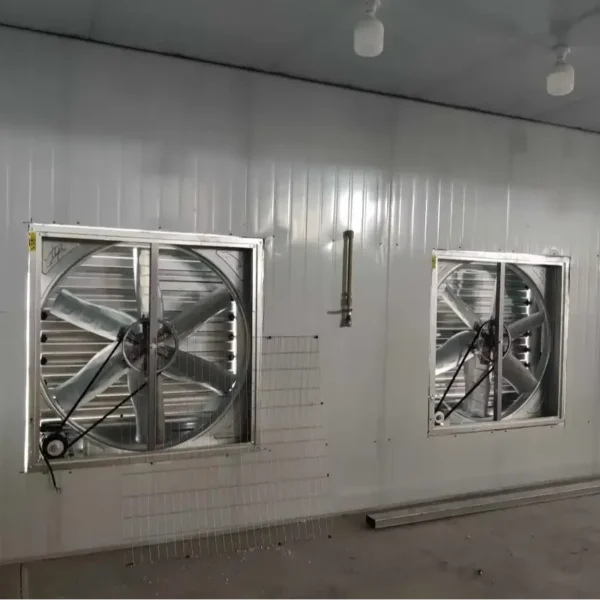

Application Scenario

Industrial production: In workshops with high temperatures or unpleasant odors, such as heat treatment plants, casting factories, plastic factories, aluminum profile factories, shoe factories, leather factories, electroplating plants, dyeing plants, various chemical plants, etc. Commercial buildings: In large shopping malls, supermarkets, entertainment venues, hotels and other places that require a large flow of people and air quality control. Agricultural facilities: In horticultural greenhouses, livestock farms, etc., which require temperature and humidity regulation in agricultural facilities. Office environment: In office buildings, offices, etc., where a comfortable and air-flowing working environment needs to be maintained. Public facilities: In public places such as waiting rooms, restaurants, and stadiums, negative pressure fans can help maintain air quality and a suitable temperature.

Certifications

Packing & Delivery

About us

Founded in 2 0 0 6 , Qixiang is an integrated manufacturer of energy saving equipment for R&D and sales of green tilation equipment industrial ceiling fans,exhaust fan, air compressor,various industrial doors, and  logistics handling equipment,  We have got the authorized trademark of Qixiang and passed the I S 0 9 0 0 1 quality management system certification. C E. R O H S and other certifications, and have a number of national practical patents, and at the same time obtained the national high-tech enterprise certification.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–19 piece: US $138 / piece
  • 20+ piece: US $125 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial centrifugal exhaust fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial centrifugal exhaust fan be supplied for my local voltage?

The standard configuration is 220-240V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
