Industrial Electric Fan, 220 V, 3000W

The industrial electric fan listed here carries 220 V, 230 V, 3000W, documented exactly as the manufacturer publishes it. Made by Chengdu Hop Technology Co., Ltd. (13 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Industrial Electric Fan

• Power Source: Electric
• Voltage: 220 V, 230 V
• Heating Capacity: 3000W
• Material: Stainless Steel
• Warranty: 1 Year
• Place Of Origin: Sichuan, China

Technical Specifications

Product Details

Products Description

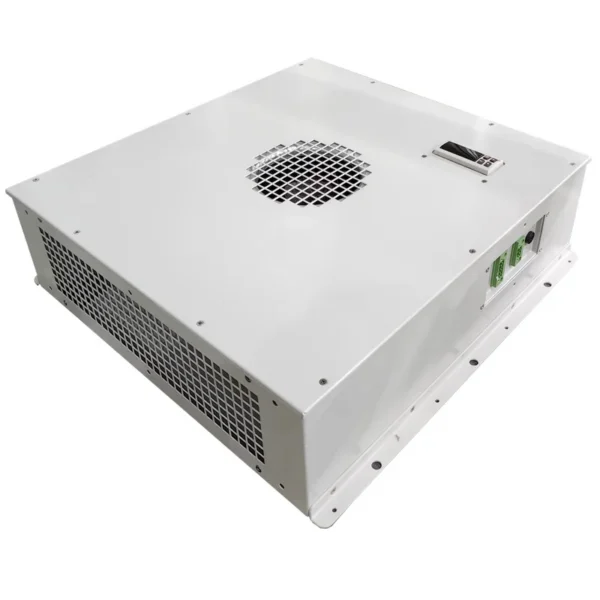

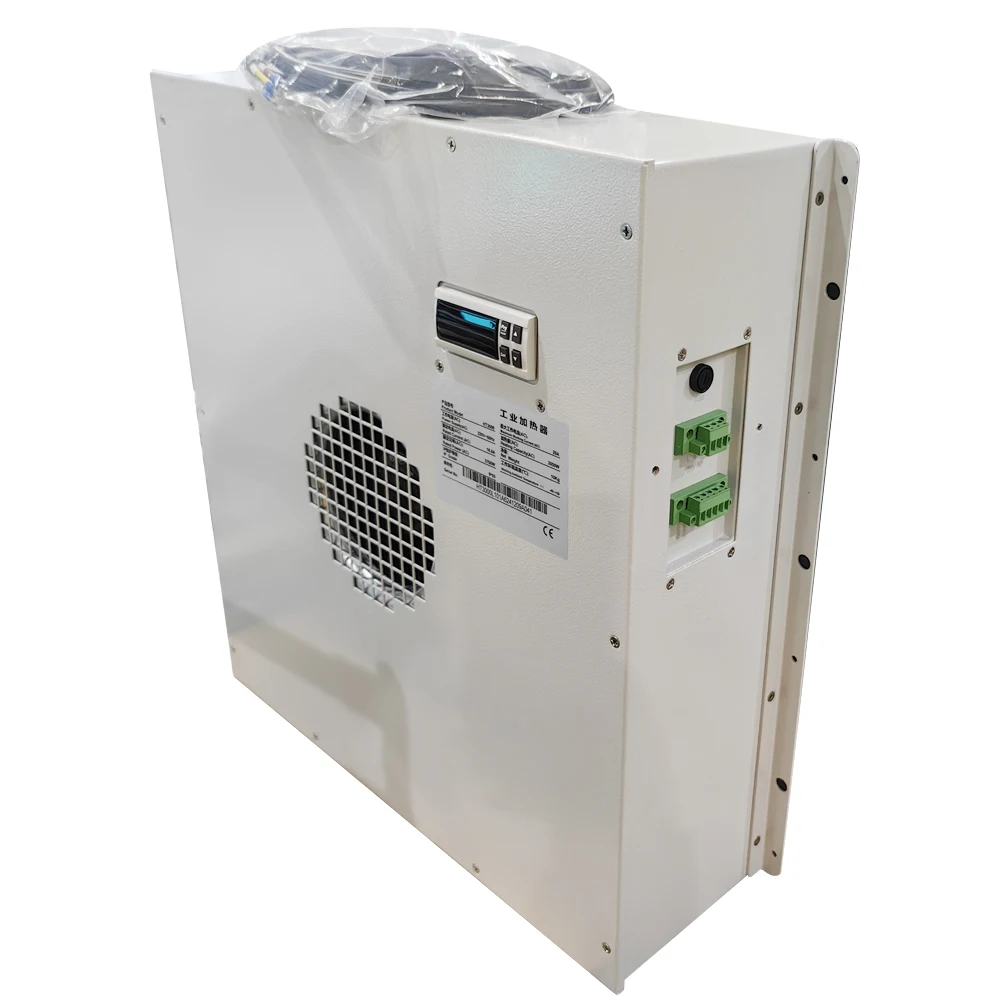

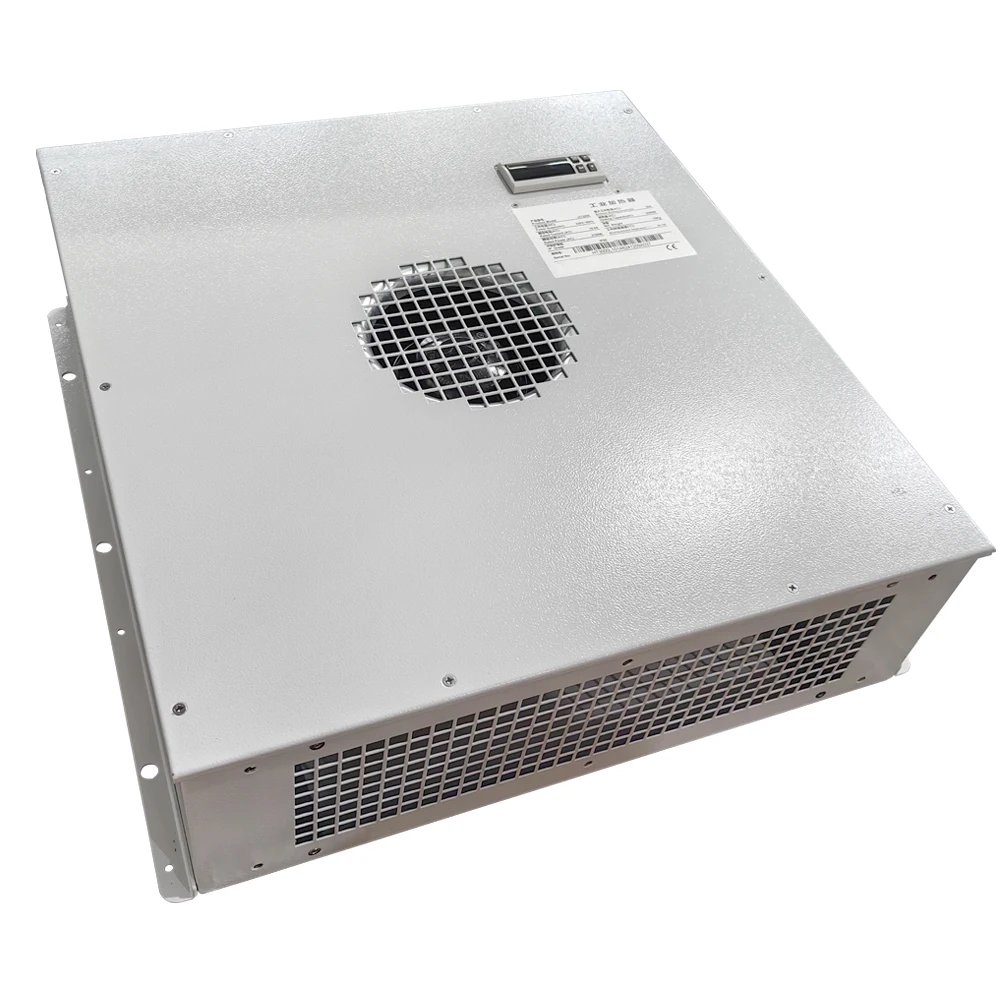

HP series electric heater is aimed at the cabinet and other application environment and development of a heating product. Equipment and products suitable for long-term application in low temperature environment Easy to install, It can work after power is turned on,and there is no need to debug.

Working environment temperature	-40 to +55℃
Rated AC input power	220±15%VAC(50HZ)
Rated AC input power (L35/L35)	3700W
Rated current (L35/L35)	16.8A
Heating capacity	3000W

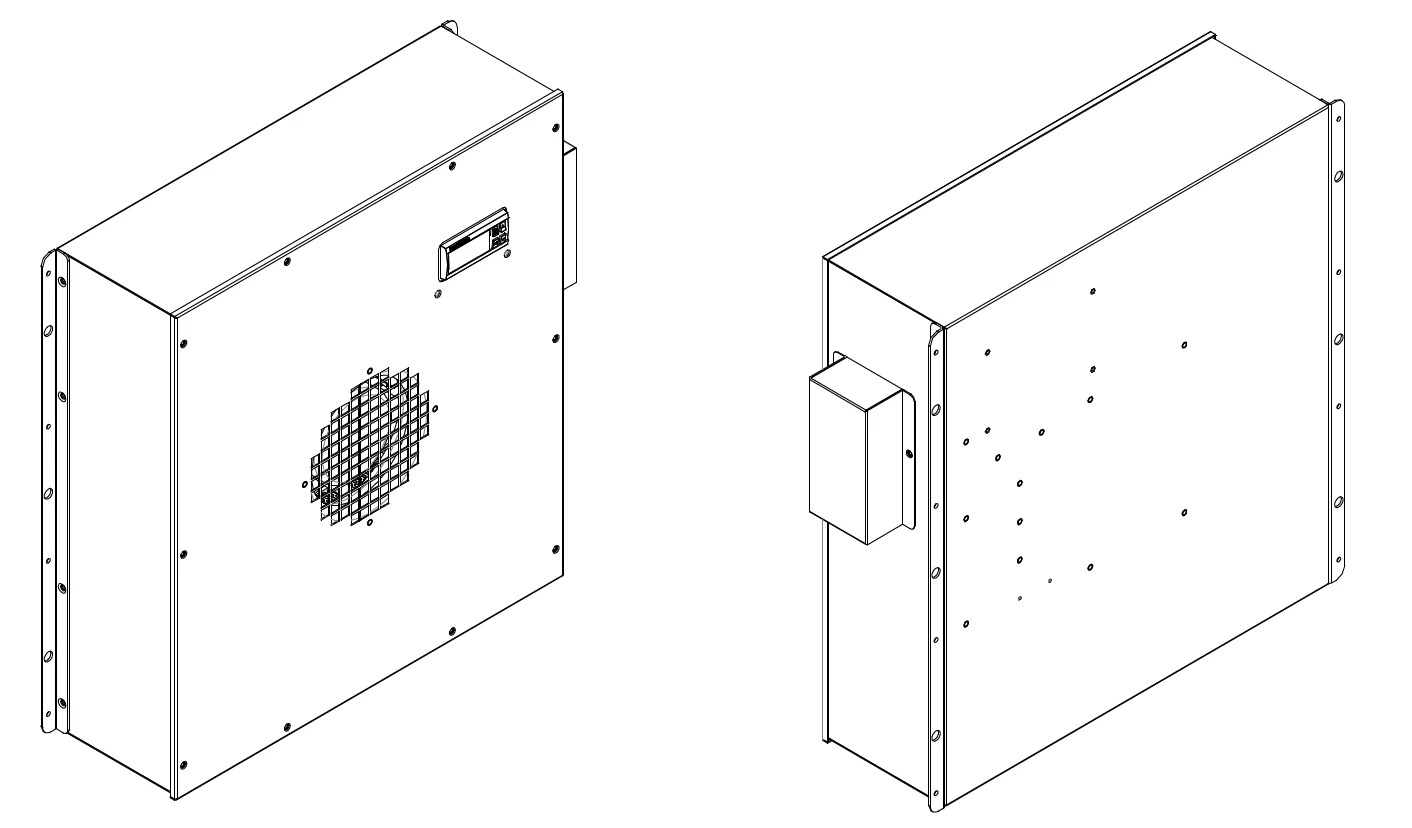

Box dimensions (height*width*depth)	470*505*147.5mm
Dimensions including flange (height*width*depth)	502*505*147.5mm
Weight	10KG
Installation method	Suspended
Waterproof and dustproof level	IP55
Surface treatment	Electrostatic spraying (RAL7035)

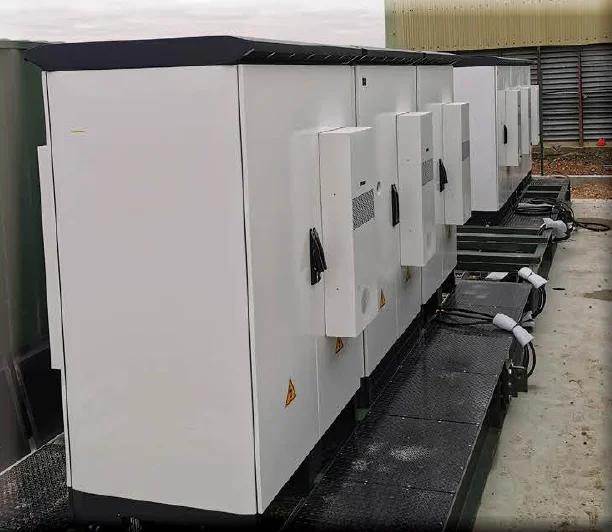

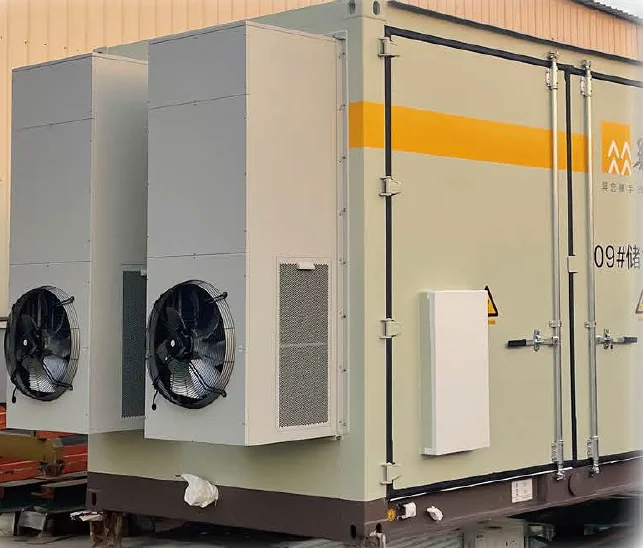

Application

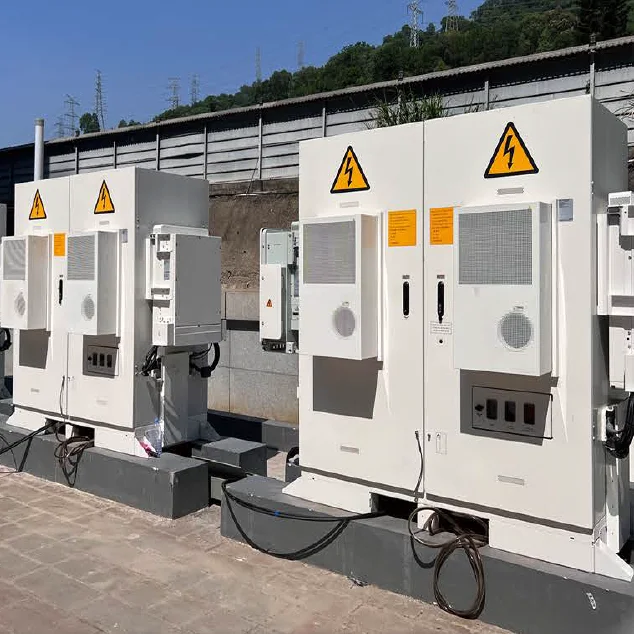

Cabinet and enclosure in low temperature environment.

Functions

1. FULLY AUTOMATED

The operation of the industrial heater is completely controlled according to the temperature inside the cabinet. The controller detects the return air temperature of the cabinet through the circulation temperature sensor, compares it with the set point, and controls the operation of the fan.

2. HEATING

Heating start point – heating stop point – heating sensitivity. When the internal temperature of the cabinet is lower than the heating start point, heating starts. When the internal temperature of the cabinet is higher than the heating stop point, heating stops.

3. DEHUMIDIFICATION (optional)

Dehumidification start point = dehumidification stop point + dehumidification sensitivity. When the humidity inside the cabinet is higher than the dehumidification start point, the dehumidification operation starts. When the humidity inside the cabinet is lower than the dehumidification stop point, the dehumidification stops.

4. MONITORING

The industrial heater communicates with the computer via the RS485 communication port, or the user can directly view the operating status of the industrial heater and change the operating parameters of the industrial heater through the display screen.

5. SELF-TEST The unit provides self-test for on-site testing.

Features

More Than 10 years Design Service Life

The all-metal body is designed by a professional cabinet air conditioner design team. Through decades of experience in manufacturing cabinet air conditioners, this new industrial heater with a service life of more than 10 years has been designed and manufactured.

Why Choose Us

Chengdu Hop Technology Co., Ltd was founded in 2010, a large state-owned enterprise. We have two manufacturing bases for cabinet air conditioners and smart energy meters. It is a professional communication base station equipment manufacturer and energy management solution provider. Its products include cabinet air conditioners, industrial heater and energy management software.

Certifications

Packing and Shipping

Usually, carton with anti-collision foam is used for air shipping. Carton + wooden box packing is used for sea shipping. We have stable and reliable cooperating shipping agents in Chengdu, Shenzhen, Shanghai which can offer you professional service and reasonable price.

FAQ

Q: How do you make sure the safe shipment? A: Strong individual carton box + outer wooden case(Optional) + special shipping channel. Q: What is the warranty? A: Usually we guarantee the warranty 12-18 months accordingly. Q: What is the advantages of DC generator compared with AC generator? A: The DC motor is small in size, light in weight, more intelligent, and greatly reduces fuel consumption and is more energy-saving. Q: What is your MOQ? A: The MOQ is 1 pc.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1+ piece: US $300 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial electric fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial electric fan be supplied for my local voltage?

The standard configuration is 220 V, 230 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Chengdu Hop Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Chengdu Hop Technology Co., Ltd. range on HVACR Nexus.
