The industrial grade hepa filter listed here carries material Aluminum-coated zinc sheet, type HEPA Filter, documented exactly as the manufacturer publishes it. Made by Guangzhou Sun Holy Wind Air Cleaning Products Co., Ltd. (17 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Grade Hepa Filter
- Material: Aluminum-coated zinc sheet
- Warranty: Unavailable
- Place Of Origin: Anhui, China
- Application: Industrial dust-free workshop/Electronic Cleanroom
- Feature: Sturdy and durable/leak-proof seal/high efficiency filtration
- Type: HEPA Filter
Technical Specifications
| Type | HEPA Filter |
|---|---|
| Maximum Flow Rate | Customization |
| Maximum Operating Pressure | Customization |
| Maximum Operating Temperature | 175 F |
| Air Inlet Size | Customization |
| Construction | FFU |
| Material | Aluminum-coated zinc sheet |
| Number Of Sections | Customization |
| Warranty | Unavailable |
| Condition | New |
| Place Of Origin | Anhui, China |
| Weight | 10 |
| Brand Name | SHWFILTER |
| Dimension | 22.6*22.6*9.6inch/57.5*57.5*24.5cm |
| Dimension(L*W*H) | 22.6*22.6*9.6inch/57.5*57.5*24.5cm |
| Efficiency | 85%-99.999% @0.3um |
| Porosity | 0.3 um |

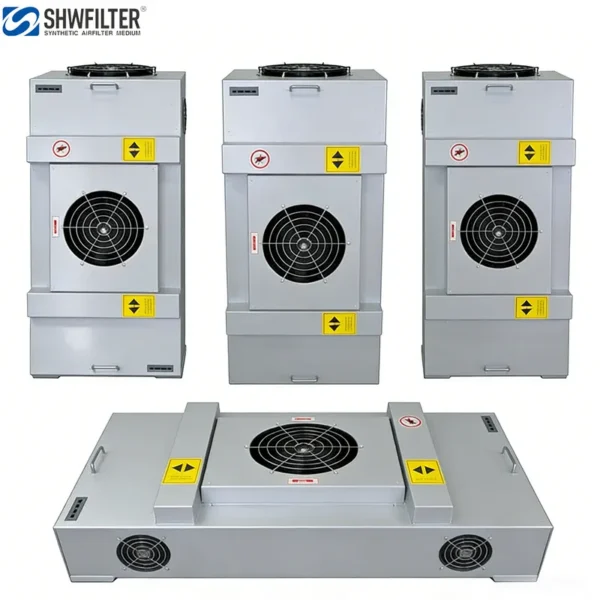

| Product Name | FFU (Fan Filter Unit/FFU Clean Air Fan Filter Unit |
| Application | Industrial dust-free workshop/Electronic Cleanroom |
| Keyword | Modular FFU System/Lab Cleanroom FFU/Plug-and-Play FFU |
| Usage | Direct hoisting / Modular assembly / Customized size adaptation |
| Frame | Aluminum Profile/Galvanized Steel/SUS304 |
| Feature | Sturdy and durable/leak-proof seal/high efficiency filtration |
| Advantage | Meet high cleanliness standards | Suitable for long-term industrial |
| Structure | H13/H14 HEPA/ULPA High-efficiency Filters |
| Shape | Box Air Filter Element |
| Selling Units | Single item |
| Single Package Size | 62.5X62.5X29.5 cm |
| Single Gross Weight | 18.0 kg |
Product Details
Product Paramenters
Type | FFU-2X2 | FFU-2X4 | FFU-4X4 | ||
Dimensions (mm) | W575*L575*H250 | W1175*L575*H250 | W1175*L1175*H250 | ||
Rated Airflow（m³/h） | 500 | 1000 | 2000 | ||
Efficiency | 99.995%@0.3μm（H14） | ||||
HEPA filter | W570*L570*H69 | W1170*L570*H69 | W1170*L1170*H69 | ||
Noise | sound pressure level(1.5m below the filter screen ≤56dB(A)(each set@0.45m/m/sOPa) | ||||
Box material | galvanized aluminum | ||||
Power supply | AC 1Ph 200-240V 50/60HZ | ||||
Motor type | Continuous Current dynamo | ||||
Power（W） | 50 | 60 | 160 | ||
Features
1.Multi-speed adjustment, multi-speed wind speed design, maintenance-free, Low vibration and low noise.
2.Multiple connection control: all units were tested according to the international standard ISO14644-1, use the dust particle counter to scan and test one by one to ensure the quality before leaving the factory, thousands of units can be connected and controlled, reducing the incidence of failure. 3.Low calorific value, high energy efficiency ratio, and the calorific value is very small, so that the calorific value in the additional working environment area can be further reduced.
4.The wind speed is large and can be used can be used in series. The DC fan filter unit (DC FFU) is a ceiling-mounted unit with a internal fan. It is used in turbulent and laminar flow clean rooms. It has the characteristics of modular connection and use, The average wind speed reaches 0.45m/s±20%.
Products Description
Galvanized aluminum material
Environmentally friendly, galvanized aluminum material, does not rust, resistant to corrosion, sturdy and durable.
The structure is compact, with a thickness ranging from 250 to 350mm. It can be directly installed on the ceiling joists or supports, thus saving space.
High-quality insulated handle
Humanized design, reliable installation, convenient use. The core function of the insulated handle is to block the path of electric current transmission by using insulating materials (such as epoxy resin, rubber, glass fiber, etc.).
Safety netting
The safety net can prevent larger foreign objects, such as insects, paper scraps, and small tools, from entering the interior of the wind turbine. If insects or paper scraps enter the fan, they may get tangled on the fan blades, affecting the normal operation of the fan and even causing damage to it.
Customized non-standard products
Customization is available according to customer requirements, including different sizes, spaces and Material.

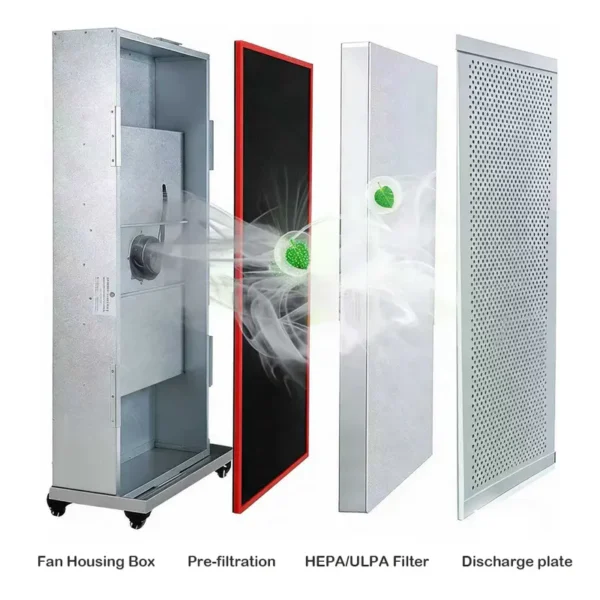

The structure of the FFU dust-free air supply unit is highly integrated, consisting of five main core components
1.Fan system: The mainstream adopts EC fans (electronic reversing fans), which are more energy-efficient by over 30% compared to traditional AC fans. They also support step less speed regulation (the air volume can be adjusted within the range of 30% to 100%), and are suitable for different cleanliness requirements.
2.High-efficiency filter: The core filtering components are usually H13/H14 grade HEPA filters (high-efficiency air filters), or U15/U16 grade ULPA filters (ultra-high efficiency air filters).
3.Static pressure box: Located between the fan and the filter, its function is to "buffer and equalize" the airflow sent by the fan, preventing excessive local wind speed from causing turbulence and ensuring uniform wind speed on the surface of the filter (with a deviation of ≤ ±20%).
4.Shell: The materials are usually cold-rolled steel (with surface powder coating for rust prevention), aluminum alloy (for light weighting), or stainless steel (resistant to corrosion, suitable for humid/clean environments such as food and medicine).
5.Control system: Air volume adjustment (0-10V signal, PLC control or remote control), operation status display (such as wind speed, fault alarm).
Details Images
Application

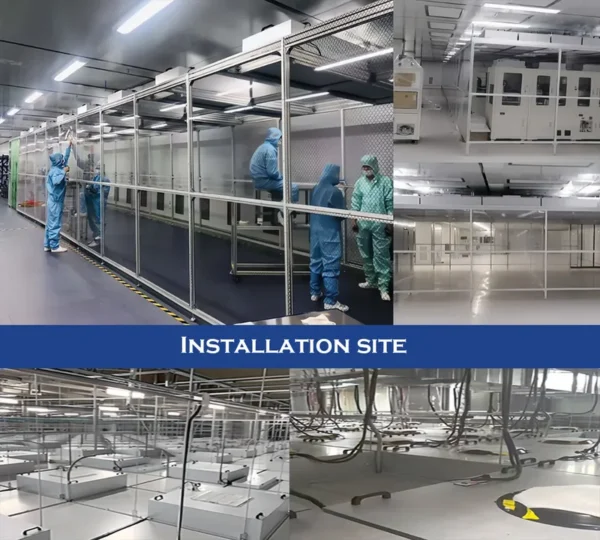

All production, experimental or medical scenarios that require controlling air particles (0.1 – 5 μm) or microbial contamination, and have clear grade requirements for cleanliness (such as ISO 3-8 grades)
The core application field of FFU is highly sensitive to particles smaller than 0.1 micrometers in chip manufacturing.
（Wafer manufacturing workshop, chip packaging and testing area）
Compliant with GMP (Good Manufacturing Practice for pharmaceuticals) or FDA standards, the core lies in controlling microbial (bacterial and viral) and particulate contamination.
（Aseptic preparation workshop, operating room and ICU, medical machinery production）
Accuracy depends on "no dust adhesion". The FFU needs to balance the air velocity and cleanliness to avoid air turbulence that may affect processing accuracy.
(LCD/OLED panel workshop, optical lens and sensor manufacturing)
Provide a stable and clean environment for high-precision experiments, and adapt to diverse scenarios. (Clean laboratory, biosafety laboratory, measurement and testing laboratory)
Company Profile
OUR PARTNERS
FAQ
Q: Can the product be customized? |
A: Yes, you are welcomed to email us your requirements, our professional technical department help to develop new product based on your requirements. |
Q: What information should I provide if I want to order your filters? |
A: Please provide us with your requirements as dimension, media, frame material, efficiency and application etc, so that we can quote the price as soon as possible. |
Q: What can I buy from you? |

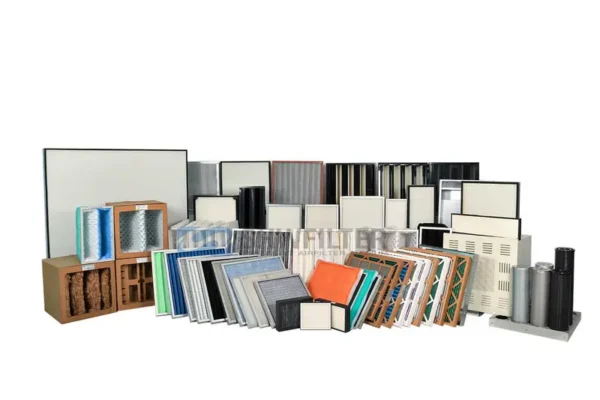

A: We are major in air purify products, can provide you with high quality Industrial primary, medium and high efficiency filters, chemical filters, home purifier filters, automotive air conditioning filters, humidifier filters, filter bags, melt-blown composite materials, and high performance filter materials. |
Q: Can I get a sample before ordering? |
A: Of course, just tell us your demand product model that you want, you need to afford the shipping fee. |
Q: Why should I buy from you? |
A: We have professional team tailored, diversified products with excellent product quality, competitive price, our vision is “With the power of Xin Hongyuan, we paint a new picture of breathing as clear as after a thorough wash”. |
Recommend Products
Ordering and Pricing
- Minimum order quantity: 10 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial grade hepa filter?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
