Key specification for this industrial heating equipment: 380 V, 110 V, 220 V, 440 V, type Resistance Furnace. Everything below is reproduced from the factory data sheet. Made by Henan Vulcan Furnace Co., Ltd. (3 years on the platform, typical reply ≤6h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Heating Equipment
- Voltage: 380 V, 110 V, 220 V, 440 V
- Working Voltage: 380V three phases 50/60Hz
- Chamber Material: aluminium oxide fiber (Al2O3 fiber)
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application: Laboratory Heating Test Equipment
Technical Specifications
| Usage | Heat Treatment Furnace, Muffle Furnace, Sintering Furnace |
|---|---|
| Voltage | 380 V, 110 V, 220 V, 440 V |
| Type | Resistance Furnace |
| Core Components | Gear |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Henan, China |
| Weight (T) | 0.2 |
| Brand Name | Vulcan |

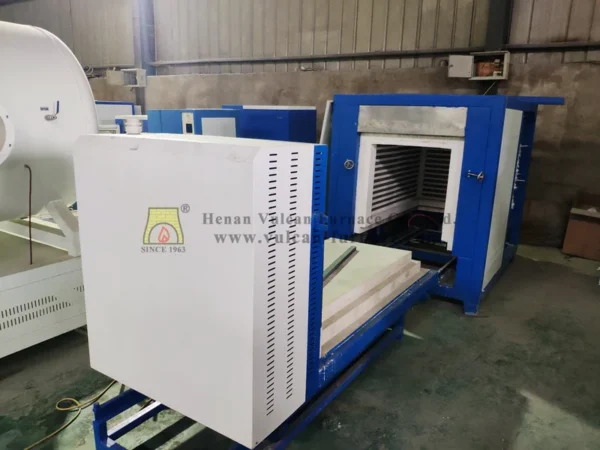

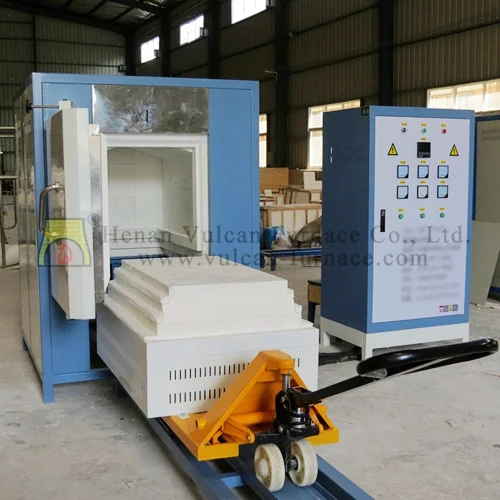

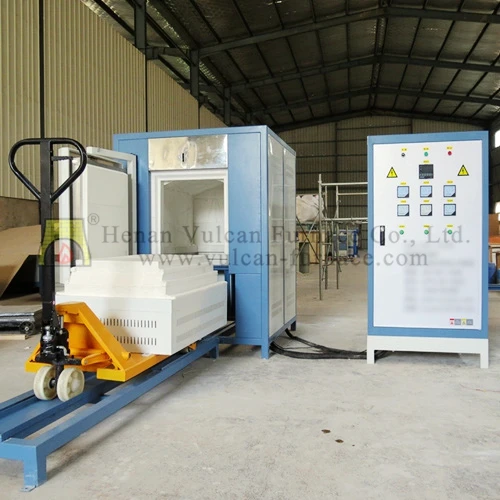

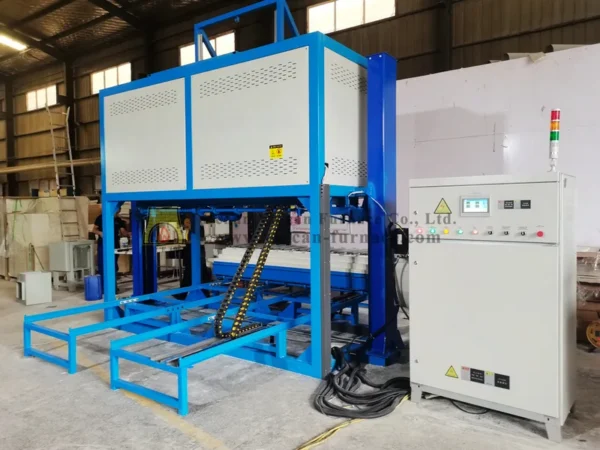

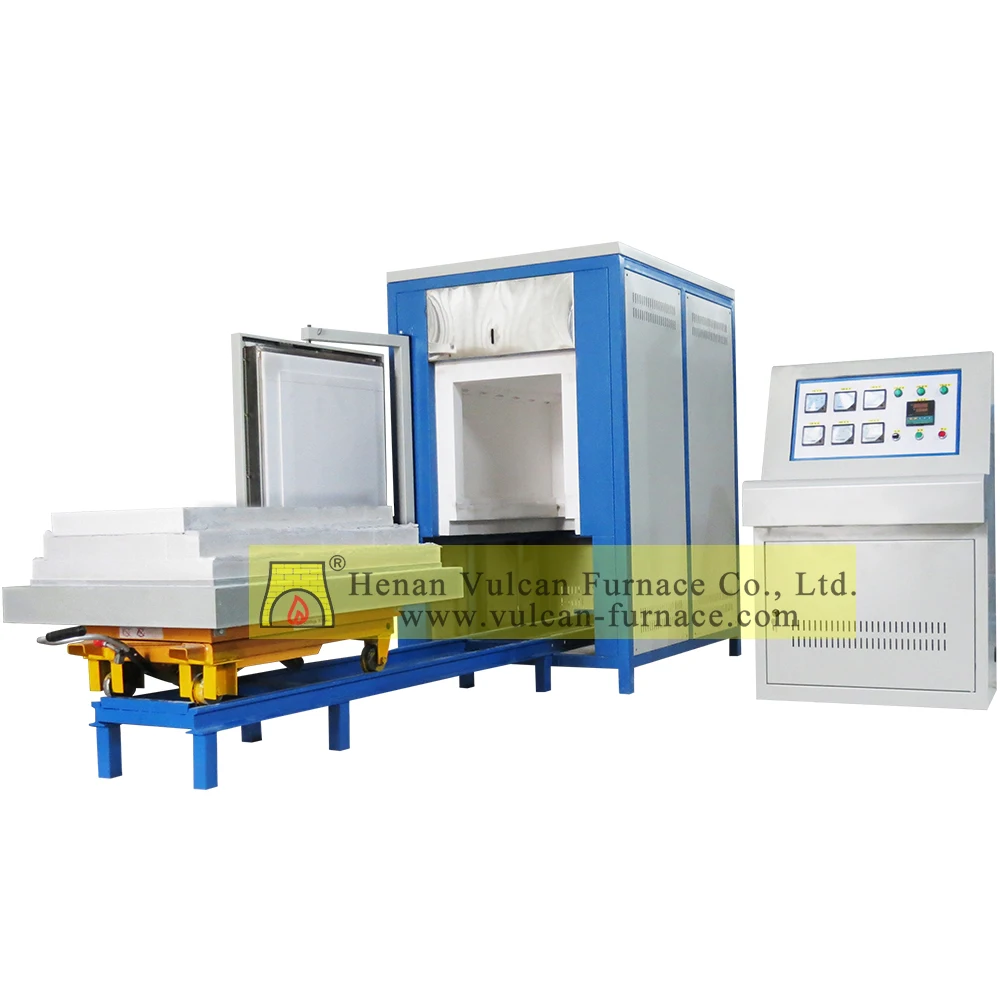

| Product Name | Trolley Furnace |
| Heating Rate | 0-30℃/min (Suggestion: 0-10℃/min) |
| Temp. Control | 16/30/50/100steps programmable and PID automatic control |
| Application | Laboratory Heating Test Equipment |
| Temp Accuracy | +/-1℃ |
| Chamber Material | aluminium oxide fiber (Al2O3 fiber) |
| Heating Element | Resistance wire,SiC rod,MoSi2 rod heating element |
| Working Voltage | 380V three phases 50/60Hz |
| Chamber Size | OEM is accepted for chamber size,temperature,voltage |
| Selling Units | Single item |
Product Details
Technical Characteristics
This equipment has introduced advanced technology, independent research and development of energy saving,environmentally friendly new electric furnace, the device has a scientific and rational design technology, elegant appearance, advanced and reasonable structure, easy operation, high-quality cold-rolled steel shell, the precision CNC machining, Luxury, beautiful two-color imported epoxy powder electrostatic spray process from processing, high temperature, corrosion-resistant, long-term from fade.
The furnace has a uniform temperature field, the surface temperature of the double-layer heat-resistant furnace body is close to room temperature, and the heating and cooling functions are adjustable. The furnace adopts imported high-temperature composite fiber materials and is constructed by a numerical control process. Chilling heat, corrosion resistance, non-collapse, no crystallization, no residue, no pollution, long service life.
The control system uses microcomputer intelligent adjustment technology, with PID adjustment, automatic control, self-tuning function,50 sections of programming, and the preparation of a variety of heating, thermostat, cooling program, temperature control accuracy.
Protection device using independent protection: (over-temperature, over-voltage, super-current, broken even, power, leakage, short circuit, etc.).
In addition, through our independent research and development of control software, electric furnace and computer associated single or multiple furnace can be achieved remote control, start the electric furnace, stop the electric furnace, set the temperature program, temperature program storage, view the history curve, print Historical curve and so on.
Honors: ISO9001: 2008, CE ，AAA certificate
Details Images
Application
Product Paramenters
Chamber size mm | Voltage V | Power kw | Temp precision | |||
300*300*300 | 380 | 12 | ±1 ℃ | |||
500*500*500 | 380 | 25 | ±1 ℃ | |||
700*500*500 | 380 | 30 | ±1 ℃ | |||
800*500*500 | 380 | 40 | ±1 ℃ | |||
800*800*800 | 380 | 90 | ±1 ℃ | |||
1200*800*800 | 380 | 100 | ±1 ℃ | |||
1000*1000*1000 | 380 | 120 | ±1 ℃ | |||
1500*1000*1000 | 380 | 150 | ±1 ℃ | |||
2000*1000*1000 | 380 | 180 | ±1 ℃ | |||
Temp：800°C,1200°C,1400°C,1600°C,1700°C,1800°C,2200°C | ||||||

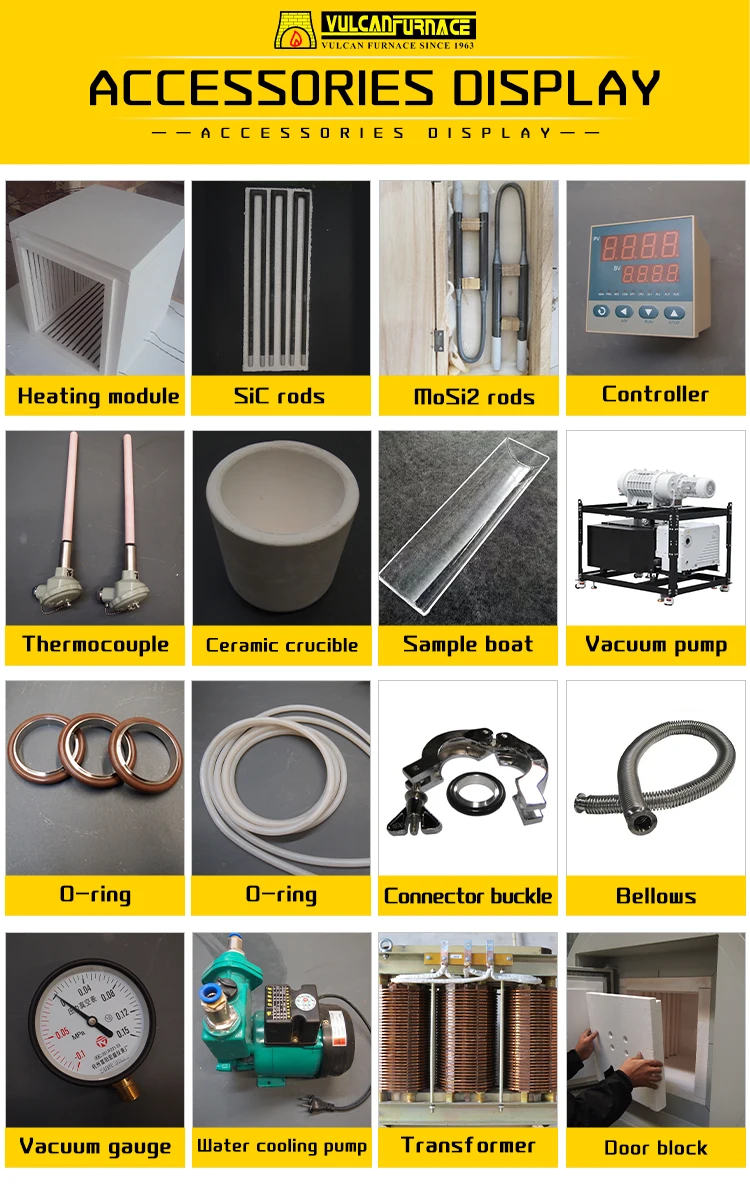

With Accessories
Production Process
01 AUTOMATIC CUTTING

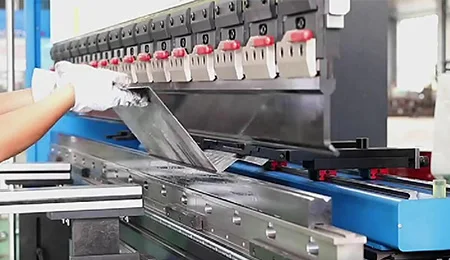

The CNC machine tool used for automatic cutting can cut out very precise shapes according to the drawings, with an error of no
more than 0.02mm, which ensures that the electric furnaces of Vulcan Furnace Industry have a beautiful appearance and are durable.Microcomputer control, safe production and protection. Set up the data sheet according to the drawing, then fold the steel plate
into the specified angle. All these components form the frame of the Vulcan electric stove.
into the specified angle. All these components form the frame of the Vulcan electric stove.

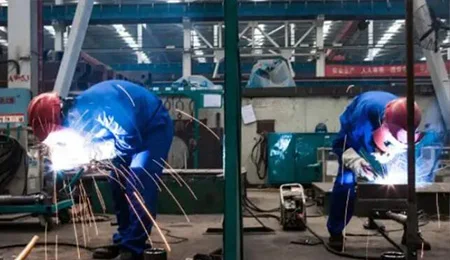

Precision welding, the different parts of the electric furnace are welded together, the weld seam is beautiful and reliable, and
all have been polished and polished many times.
all have been polished and polished many times.

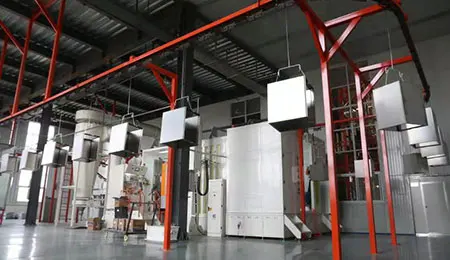

04 EPOXY RESIN SPRAYING
Epoxy resin spraying with thickness up to the standard can accept a variety of color customization, waterproof and anti-corrosion,
the surface is very good, and the color can be maintained for a long time.
the surface is very good, and the color can be maintained for a long time.

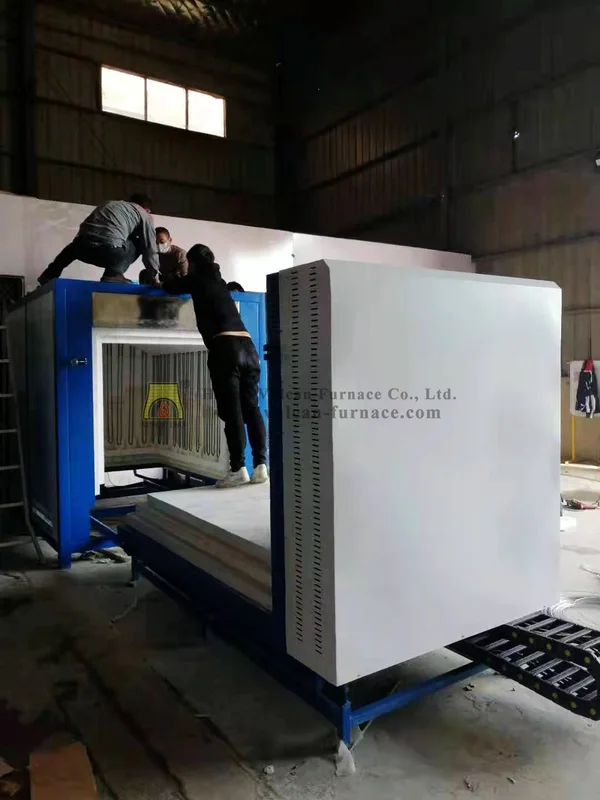

05 INSTALLATION & COMMISSIONING
Install high-quality heating elements, chambers, and wires into the furnace step by step according to the standard operating
procedure for electric furnace installation. The display screen can adjust the program to English or Chinese according to customer
needs.
procedure for electric furnace installation. The display screen can adjust the program to English or Chinese according to customer
needs.
06 COMPLETED

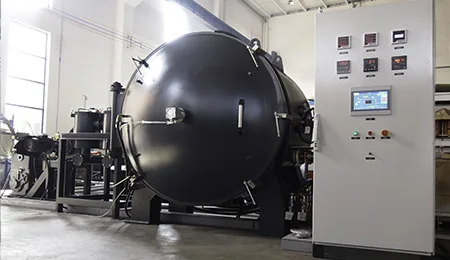

Vulcan furnace has a strong mass production capacity and design level, and can manufacture different types of furnaces from small
to large. The temperature is from 800-3600 degrees Celsius.
to large. The temperature is from 800-3600 degrees Celsius.

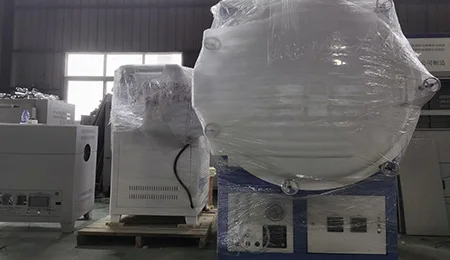

07 PACKAGE
Vulcan Furnaces has extensive experience in the packaging of electric furnaces. Heating elements that are too brittle will be
individually packaged to avoid damage during transportation. The packaging includes shock-absorbing air bubble pads, wooden
pallets, steel frame pallets, plywood wooden boxes, etc.
individually packaged to avoid damage during transportation. The packaging includes shock-absorbing air bubble pads, wooden
pallets, steel frame pallets, plywood wooden boxes, etc.

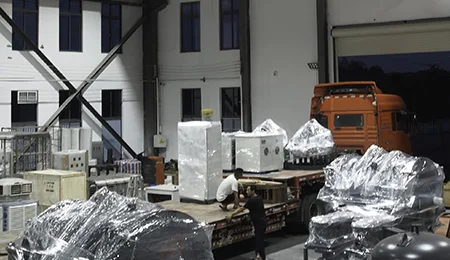

08 TRANSPORTATION
Vulcan Furnace Industry has its own transport fleet, which can safely transport electric furnaces to major ports in China,
ensuring the safety of the goods to the greatest extent. And we are the VIP of many global shipping companies, we can give
customers the best service and price, including transporting the electric furnace directly to the customer’s warehouse. (DDU/DDP).
ensuring the safety of the goods to the greatest extent. And we are the VIP of many global shipping companies, we can give
customers the best service and price, including transporting the electric furnace directly to the customer’s warehouse. (DDU/DDP).

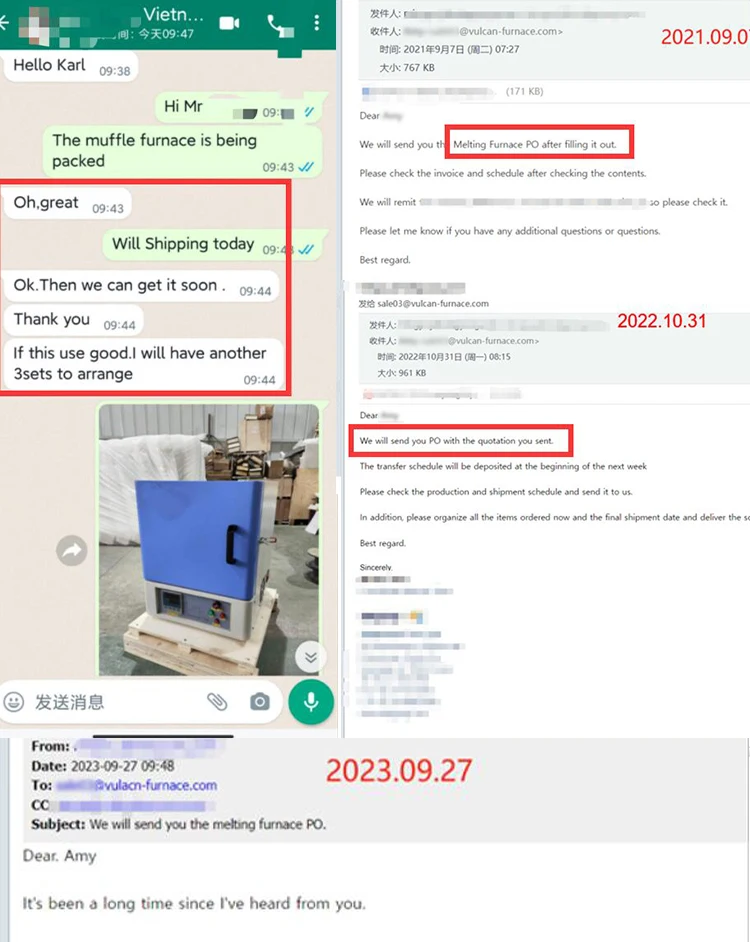

Customer Reviews
Company Profile
FAQ
FAQ
* A: 1 set for our standard furnace
* Q:Can I ask for special designs?
* A:Sure! And it's Free!
* Q: Can I get a lower price if I order large quantities?
* A: Yes, cheaper prices with more bigger size orders.
* Q: Can I send the sample to you to test the furnace before I buy it ?
* A: VULCAN FURNACE has a professional product test center,
which can provide perfect product testing.
* Q: When you ship my order?
* A: For conventional standard-sized experimental and industrial furnaces,
we usually have stock that we can ship in 2-3 days. Custom products are usually delivered in 10-30 days.
* Q: How about the quality guarantee period?
* A: One year!
* Q: How can you guarantee the production quality ?
* A: We have more than 60 years experience in this field.
We have strictly quality control system in our production process.
We have4 times inspection for each finished product before package.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial heating equipment?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial heating equipment be supplied for my local voltage?
The standard configuration is 380 V, 110 V, 220 V, 440 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Vulcan Furnace Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Vulcan Furnace Co., Ltd. range on HVACR Nexus.
