Industrial Heating Equipment, Onsite Condition, 350

Key specification for this industrial heating equipment: voltage Onsite Condition, power 350. Everything below is reproduced from the factory data sheet. Made by Wuxi Wondery Industry Equipment Co., Ltd. (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Industrial Heating Equipment

• Power (Kw): 350
• Voltage: Onsite Condition
• Warranty: 1 year
• Place Of Origin: Jiangsu, China
• Type: Gas Bogie Hearth Furnace
• Weight (T): 10 T

Technical Specifications

Product Details

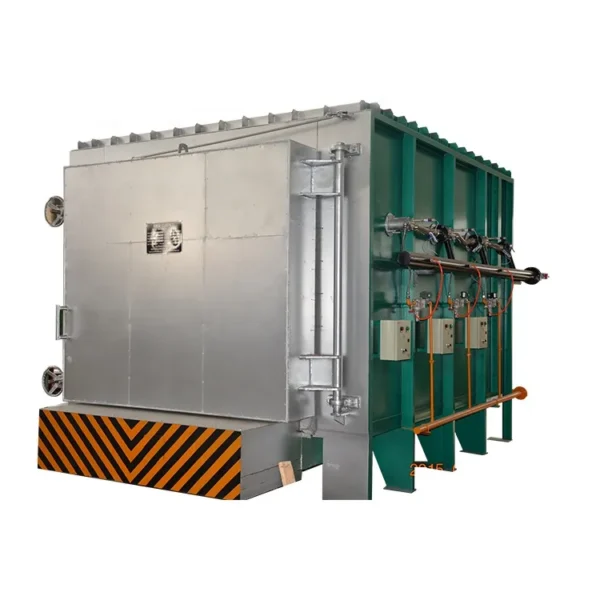

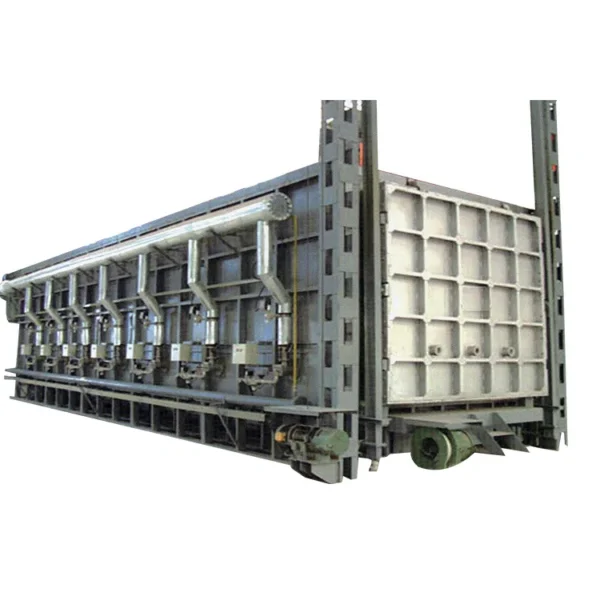

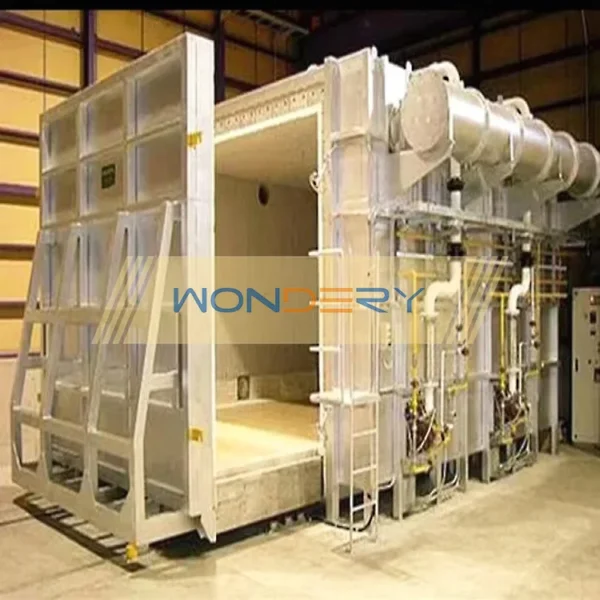

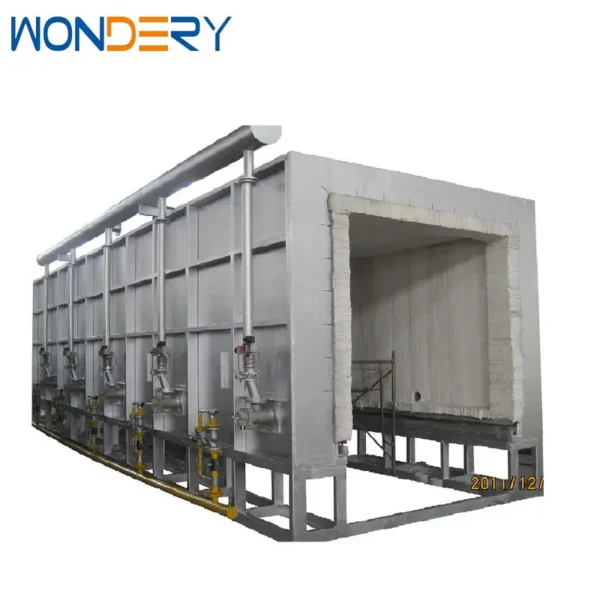

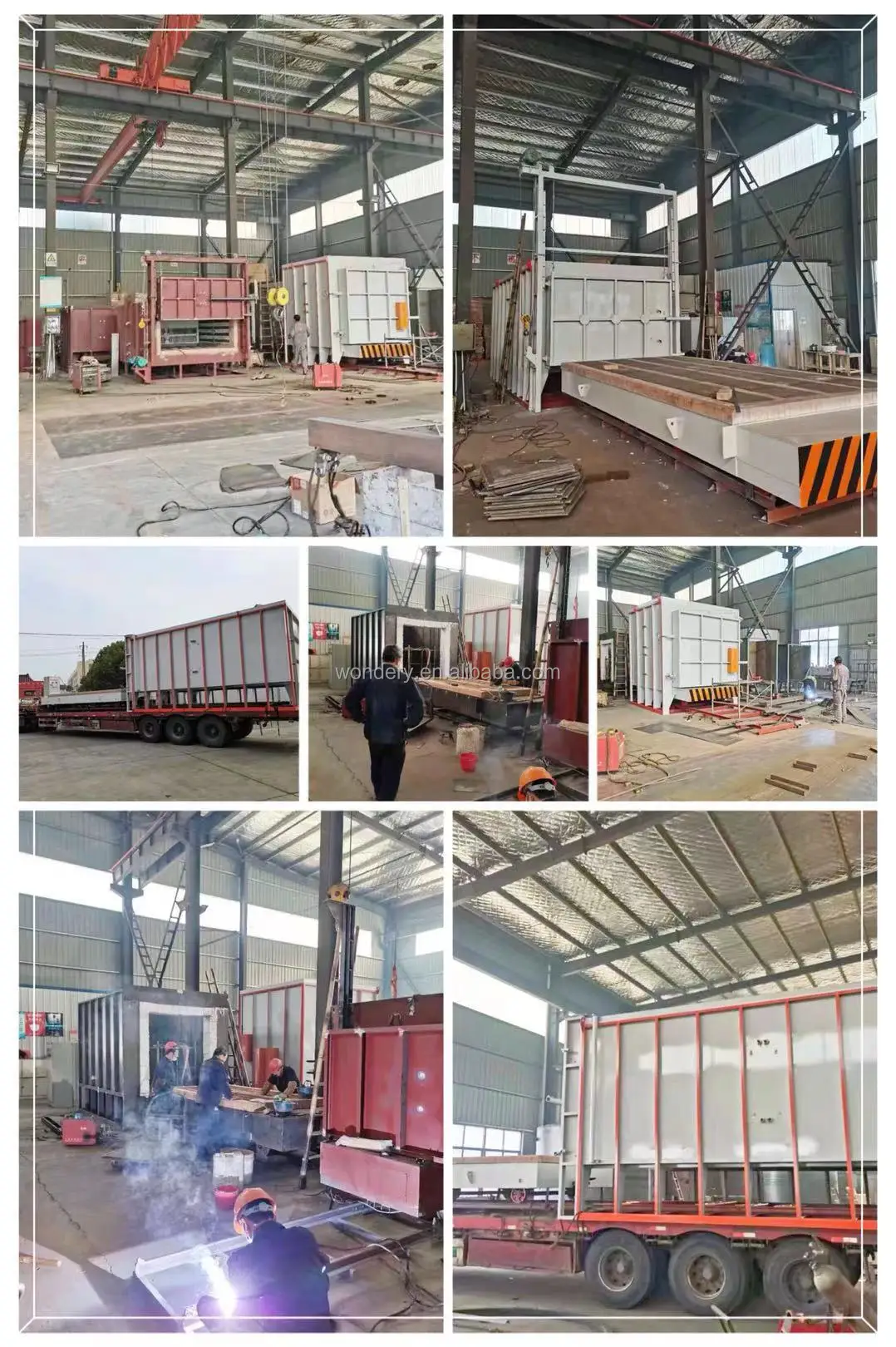

Industrial Furnace bogie hearth furnace for heat treatment car bottom furnace

Product Application

RTQ Series Trolley Type Resistance Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others

Specifications For Industrial Furnace bogie hearth furnace for heat treatment car bottom furnace
Effective working size	2300×1300×600mm(L×W×H)
Rated Temperature	600℃
Temperature control system precision	≤±2℃
Uniformity of furnace temperature	≤±5℃
Temperature Control Method	PID control
Components brand	Siemens, Schneider, CHINT(or other quality domestic or overseas brand)
bogie lifting mechanism	electric hoist
Furnace lining	Standard Refractory fiber
car bottom face plate	CrMnN 30mm thick heat resistant steel

Main Features

1) The trolley type furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.

3) Heating components: high temperature resistance alloy wires and strips.

4) Low noise, energy-friendliness, and stable performance.

5) Advanced CAD design.

6) Years of experiences in heat treatment process.

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.

1. What is the power supply of the industrial furnace?

The power supply of industrial furnace is to be decided by the customer's
side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial heating equipment?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial heating equipment be supplied for my local voltage?

The standard configuration is Onsite Condition. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Wuxi Wondery Industry Equipment Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Wuxi Wondery Industry Equipment Co., Ltd. range on HVACR Nexus.
