This industrial high-speed plastic radiator is published with the manufacturer’s full specification — voltage 110-220V, 36.63 CFM. Made by Dongguan Shengzhirong Electronics Co., Ltd. (4 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.

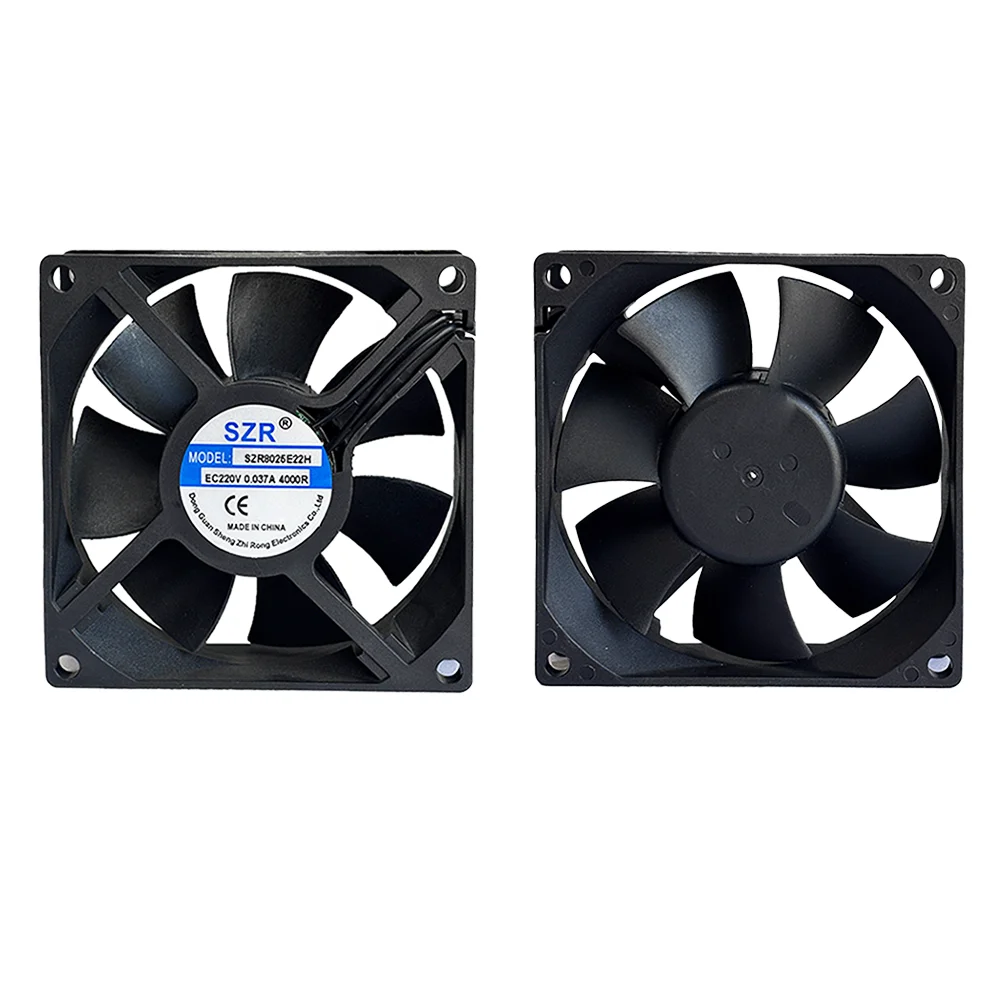

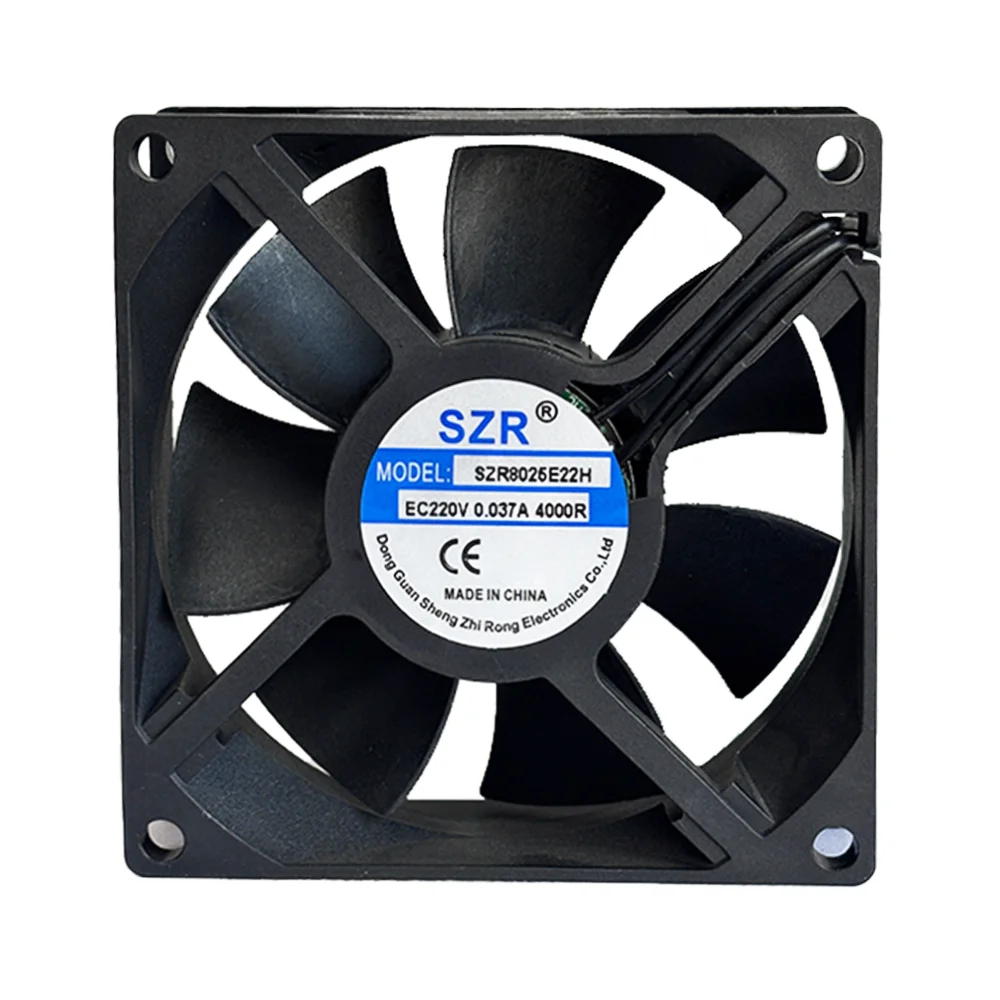

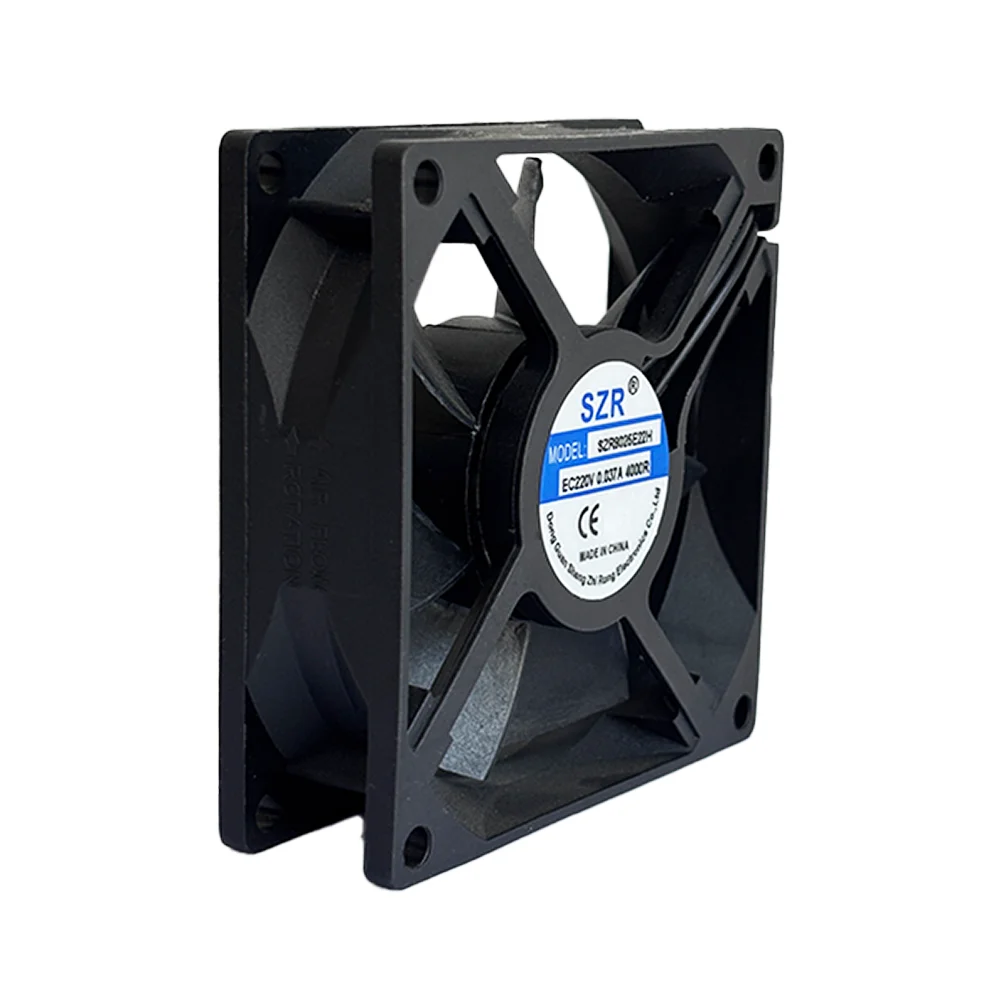

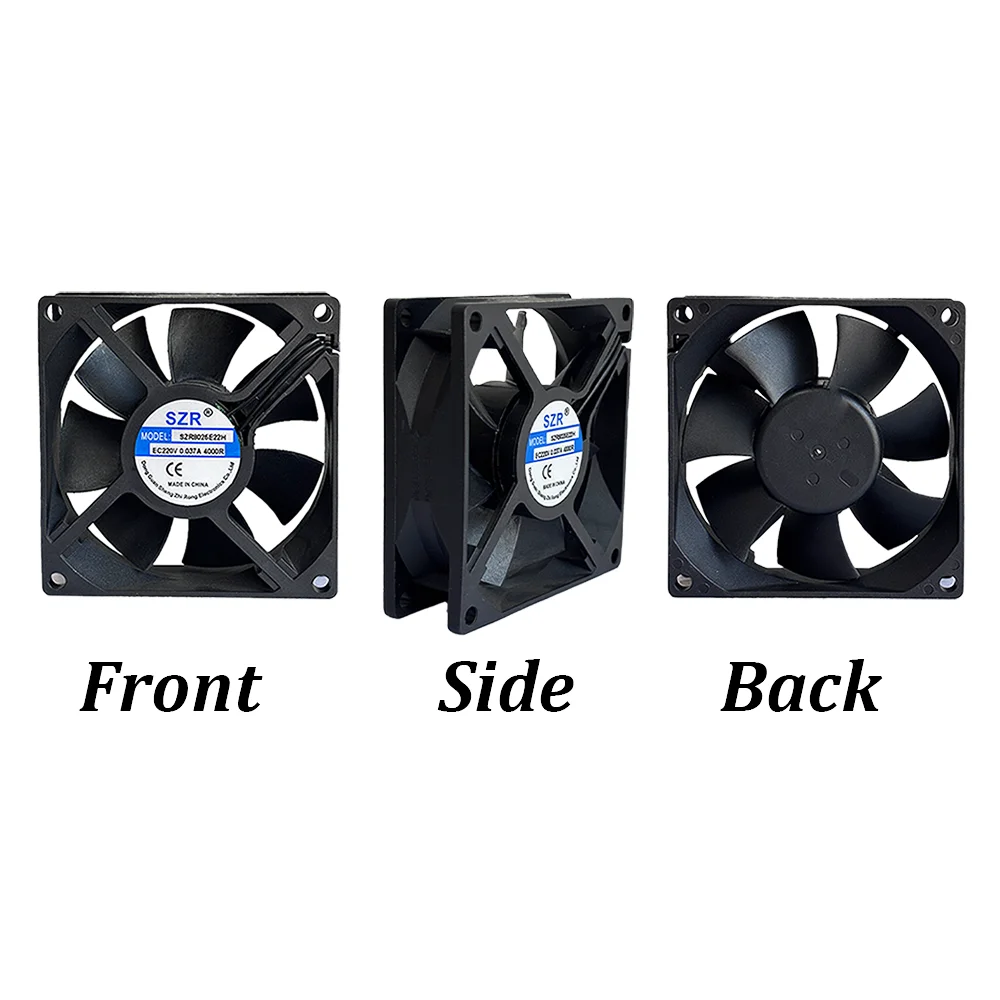

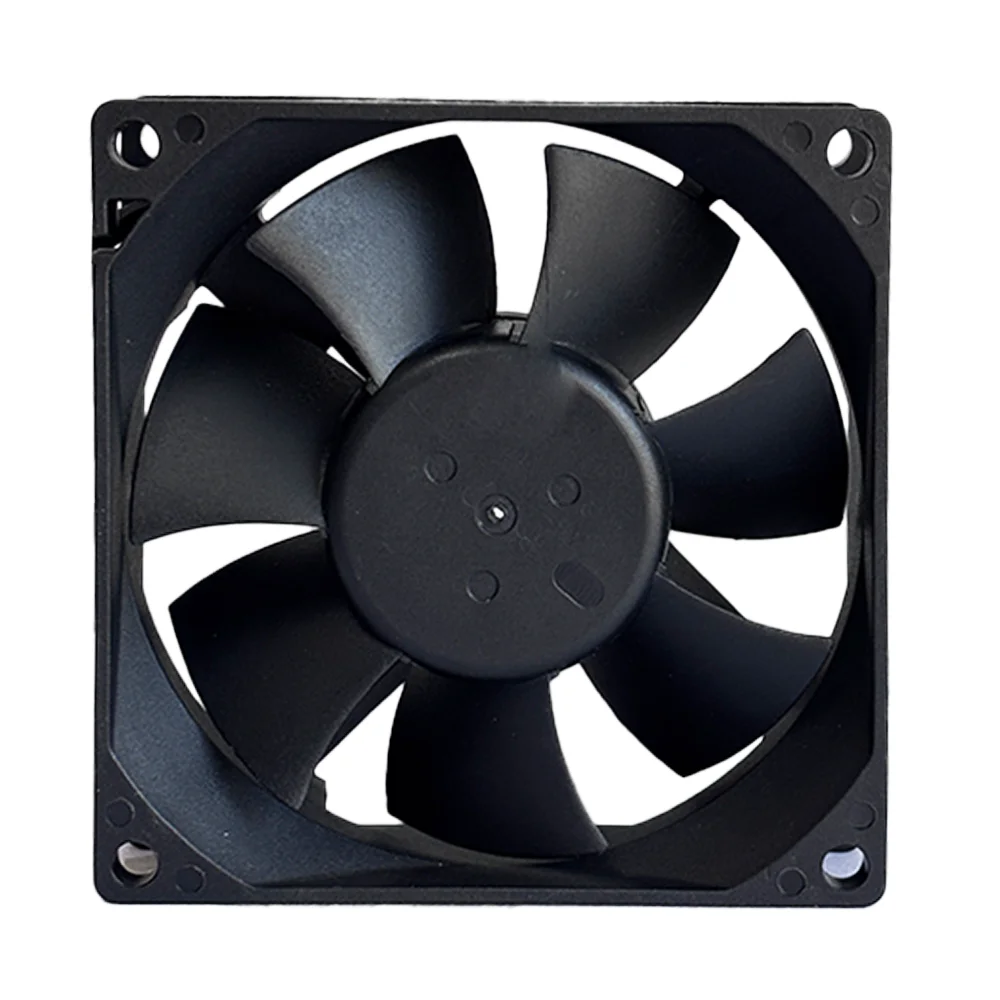

Key Features of This Industrial High-Speed Plastic Radiator
- Model Number: SZR8025 EC-B
- Power Source: Electric
- Voltage: 110-220V
- Airflow (CFM): 36.63 CFM
- Material: Plastic & Aluminum
- Blade Material: Plastic
Technical Specifications
| Voltage | 110-220V |
|---|---|
| Speed | 3 000 RPM |
| Type | exhaust fan |
| Material | Plastic & Aluminum |
| Blade Material | Plastic |
| Mounting Type | Screw mounting |

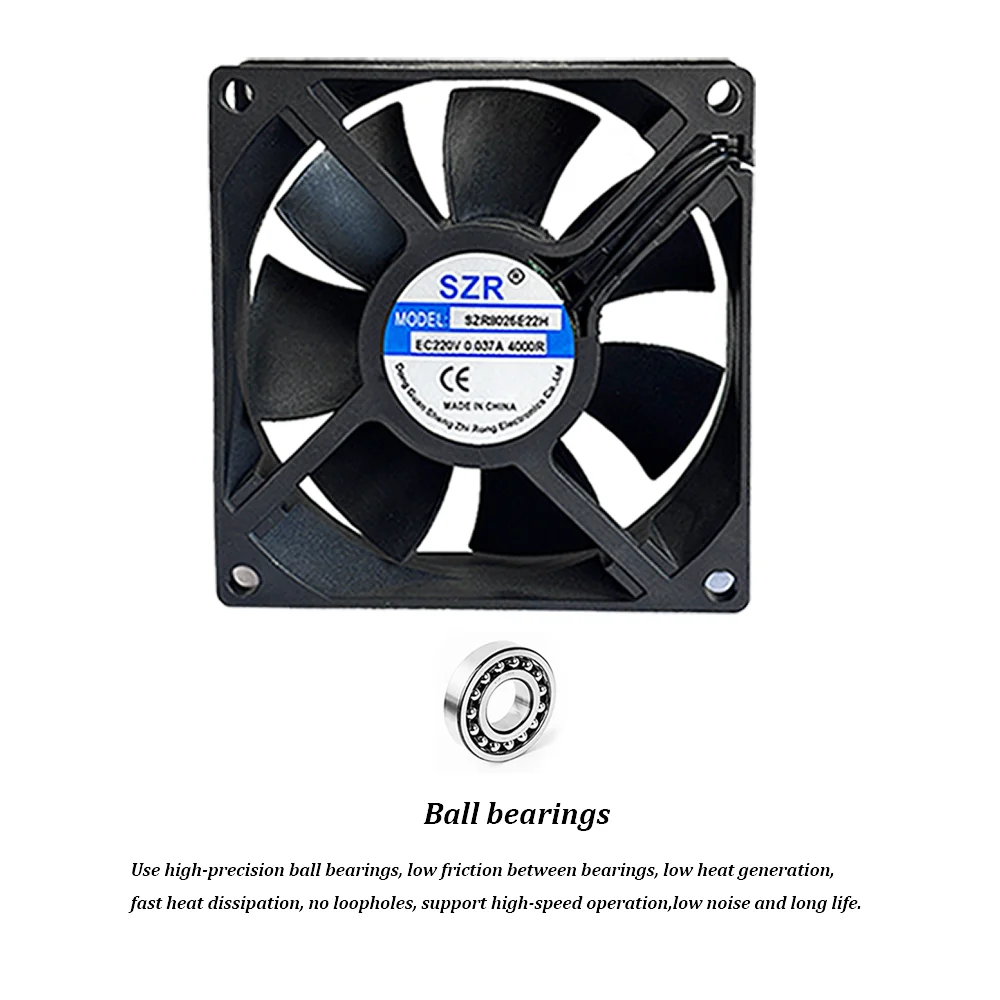

| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM, Custom Made |
| Place Of Origin | Guangdong, China |
| Brand Name | SZR |
| Model Number | SZR8025 EC-B |
| Category/Name | EC Axial Flow Fan |
| Application | Industrial/Commercial Fans and Blowers |
| Size/Dimension | 8025 80x80x25mm Square |
| Impeller / Frame | Plastic (UL94V-0) |
| Wires | 2 Wires Red Positive(+) Black Negative(-) |
| Speed (RPM) | 3000RPM |
| Airflow (CFM) | 36.63 CFM |
| Lifetime@Temp. | 30000hrs @40 Centigrade |
| Certification | CE, UL, RoHS, ISO9001 |
| Selling Units | Single item |
| Single Package Size | 6.5X6.5X1.5 cm |
| Single Gross Weight | 0.07 kg |

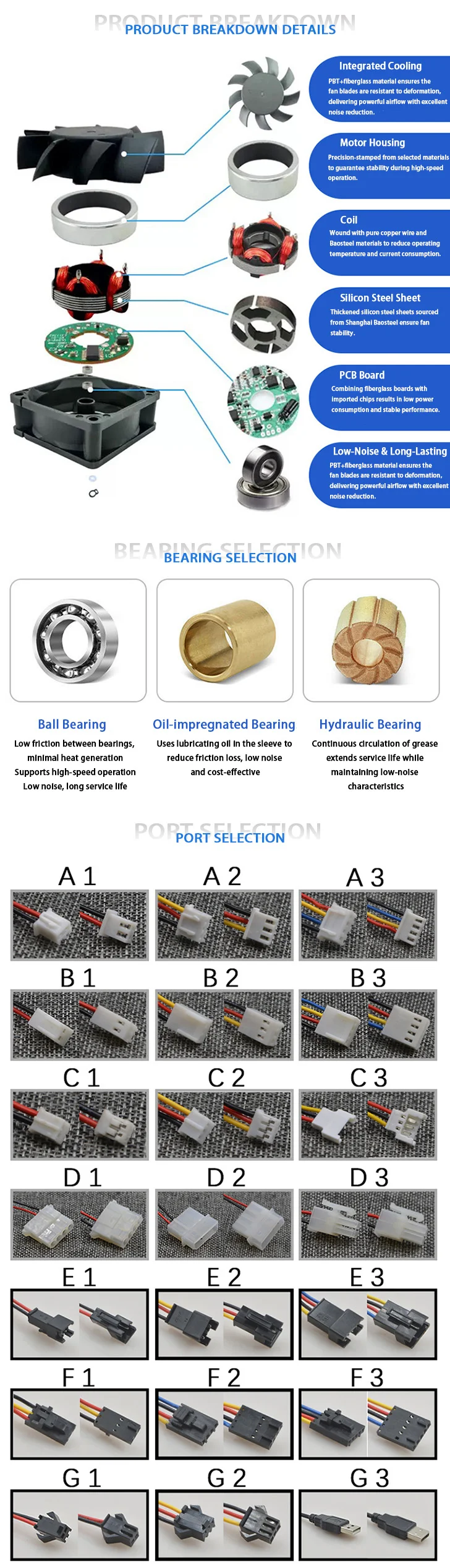

Product Details
Product Name
Brand | SZR | ||||||
Category | EC Booster Cooling Fan | ||||||
Frame Material | PBT Plastic,UL94V-0 | ||||||
Motor | EC Brushless Motor | ||||||
Bearing Type | Ball Bearing | Sleeve Bearing | Hydraulic bearing | ||||
Wire Length | 250mm AWG#26 UL1007 | (+)Red (-)Black | as requirement | ||||
IP Grade | IP55 | IP65 | IP68 | ||||
Operating Temperature | -10°C~70°C(35%~85%RH) | ||||||
Life Span | Ball Bearing | 50000hrs | |||||
Sleeve bearing | 30000hrs | ||||||
Available Function | 3PIN(FG) | 3PIN(PWM) | 4PIN(FG+PWM | ||||
Other Services | Sample Service | Available | $10/pc(Sample unit price) | ||||
OEM & ODM | Available | ||||||
Certifications | CE, ROHS, UL. TUV | ||||||
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–999 piece: US $2.89 / piece
- 1000–4999 piece: US $2.69 / piece
- 5000+ piece: US $2.45 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial high-speed plastic radiator?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this industrial high-speed plastic radiator carry?
It is supplied with CE, UL, RoHS, ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the industrial high-speed plastic radiator be supplied for my local voltage?
The standard configuration is 110-220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Shengzhirong Electronics Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Shengzhirong Electronics Co., Ltd. range on HVACR Nexus.
