This industrial scroll water chiller is published with the manufacturer’s full specification — voltage 3P-380v-50HZ, 9KW~4000KW. Made by Guangdong Soxi Intelligent Equipment Co., Ltd. (6 years on the platform, typical reply ≤11h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Scroll Water Chiller
- Power: 5.3KW
- Voltage: 3P-380v-50HZ
- Cooling Capacity: 9KW~4000KW
- Refrigerant: R134a/R407c/R410a
- Warranty: 1 Year
- Place Of Origin: China
Technical Specifications
| Voltage | 3P-380v-50HZ |
|---|---|
| Power | 5.3KW |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Safety Level |
| Core Components | PLC, Pressure Vessel, Pump, compressor, condenser, evaporator |
| Place Of Origin | China |
| Weight (Kg) | 300 |
| Brand Name | SOXI |
| Dimension(L*W*H) | 860*550*930mm |
| Working Temperature Range | 15-37 celsius degree |
| Product Name | air cooled industrial scroll chiller |
| After-Sales Service Provided | Spare Parts |
| Application | Industrial Cooling Solutions |
| Keyword | Air Cold Water Chiller |
| Function | Industrial Plastic Machine Recirculating Chiller Equipment |
| Cooling Capacity | 9KW~4000KW |
| Refrigerant | R134a/R407c/R410a |
| Compressor Type | Hermetic Scroll Type(piston) |
| Evaporator | Tank Coil |
| Cooling Type | Compressor Refrigeration |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

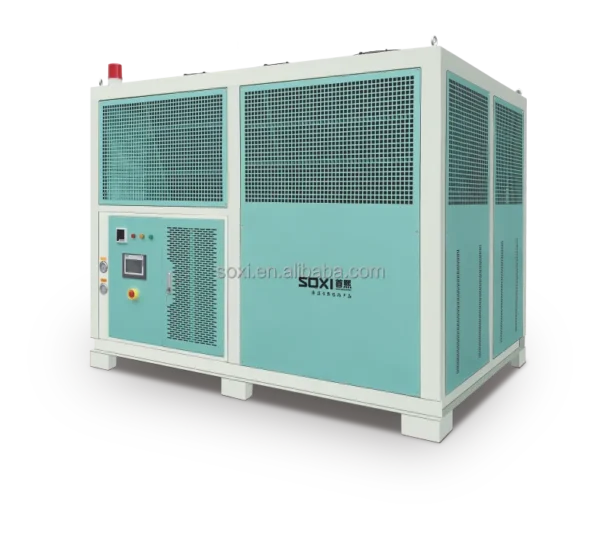

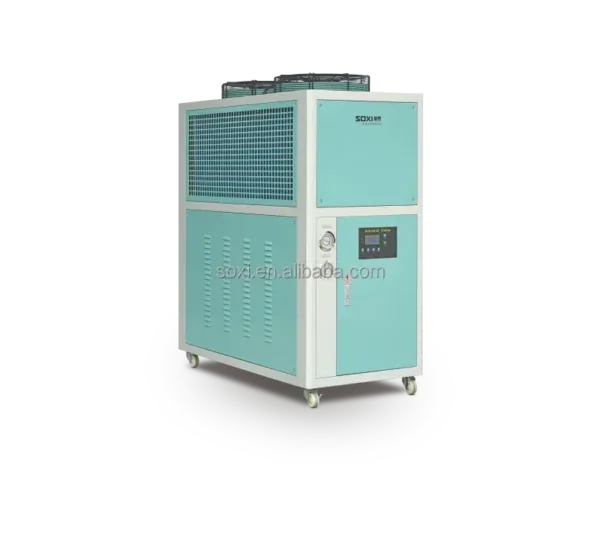

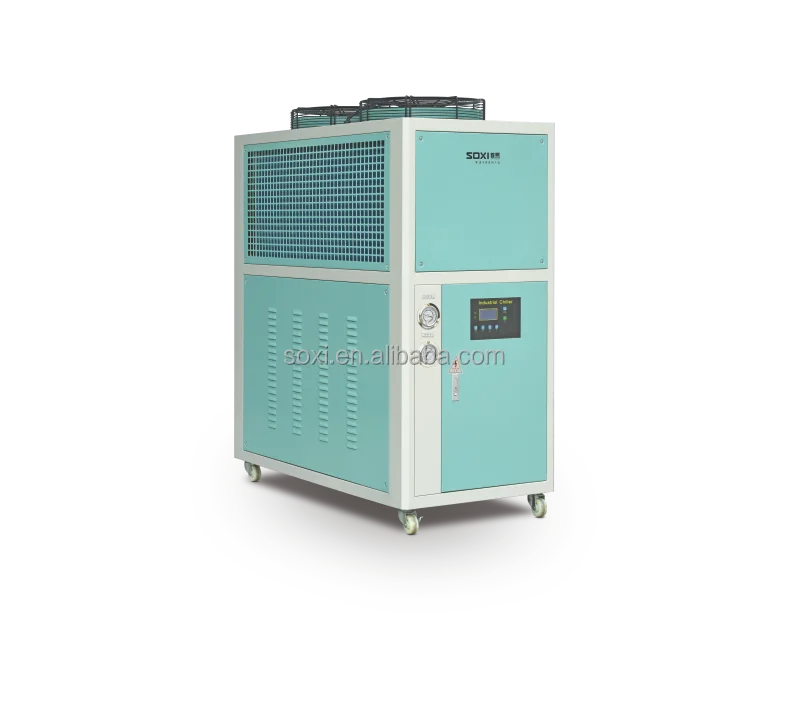

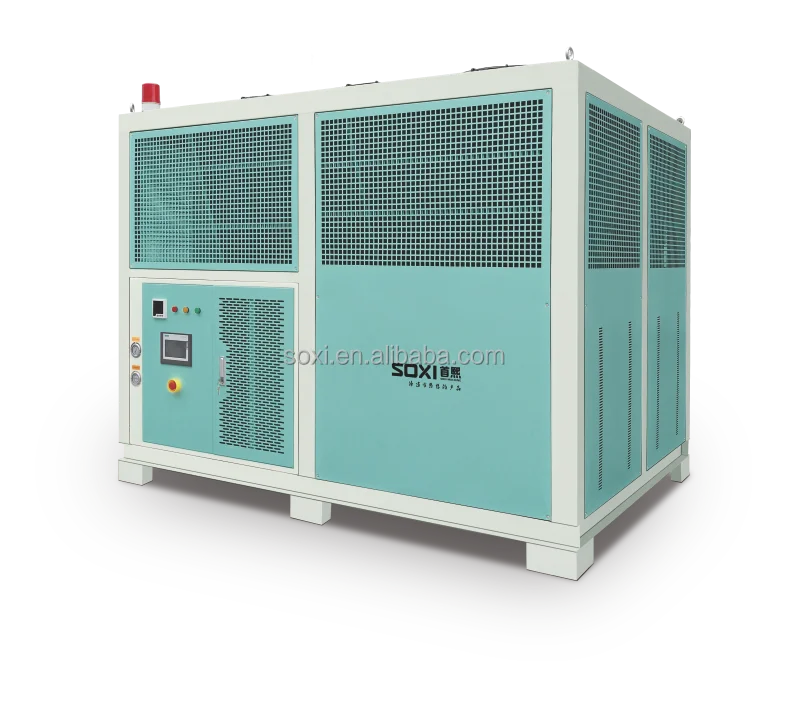

soxi Air-cooled industrial scroll water chiller for injection mold cooling
product description:
The air-cooled chiller adopts a finned condenser, which has fast heat conduction and good heat dissipation effect without the need to provide cooling water. It can provide ice water at 5~35℃, and the low temperature type can be as low as 3℃ (the temperature difference does not exceed ±1℃), the compressor power ranges from 40HP to 240HP, and the cooling capacity can reach 88924~581360 Kcal/hr.
Selling point:
1.Air-cooled scroll chiller with efficient refrigeration system
2.Adopt imported world-renownedcompressor
3.The copper tube is welded without oxygen
4.Efficient evaporator and condenser, energy saving
5.The higher power equipment adopts multi-group compressor, automatically adjust start and stop as needed
6.Equipped with communication interface, can undertake future industry 4.0
1. compressor: Panasonic/Danfoss /Copeland compressor
2. Liquid crystal display: Mitsubishi control system
3. Electric element: Schneider brand AC breaker, contactor and phase sequence relay
4. Filter: Emerson filter 20 micron
5. Pressure controller: world-renowned brand
6. Condenser: Aluminum Tube-finned condenser with high efficiency copper tubing
7. Evaporator:SS304 water tank& coiled tube type
8. Water tank: SS304, 16L
9. High/Low pressure gauge:
10. Water pump:SS304, hydraulic pressure:0.2Mpa
11. Piping:SS304
12. Temperature range: 5-35℃
13. Chilled water inlet and outlet:DN15/4”
14. Cooling ambient temperature≤45℃
15. Safety protection:(phase sequence, phase-missing, compressor overheat, overload, high and low pressure, liquid level, over temperature, anti-freezing)

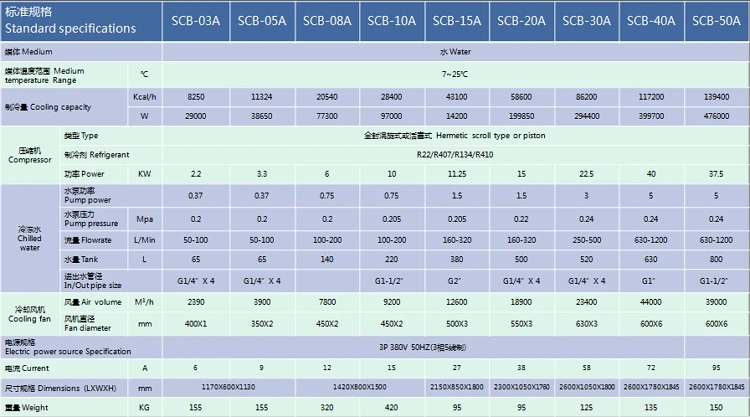

Air-cooled industrial scroll water chiller for mold injection machine SPECS

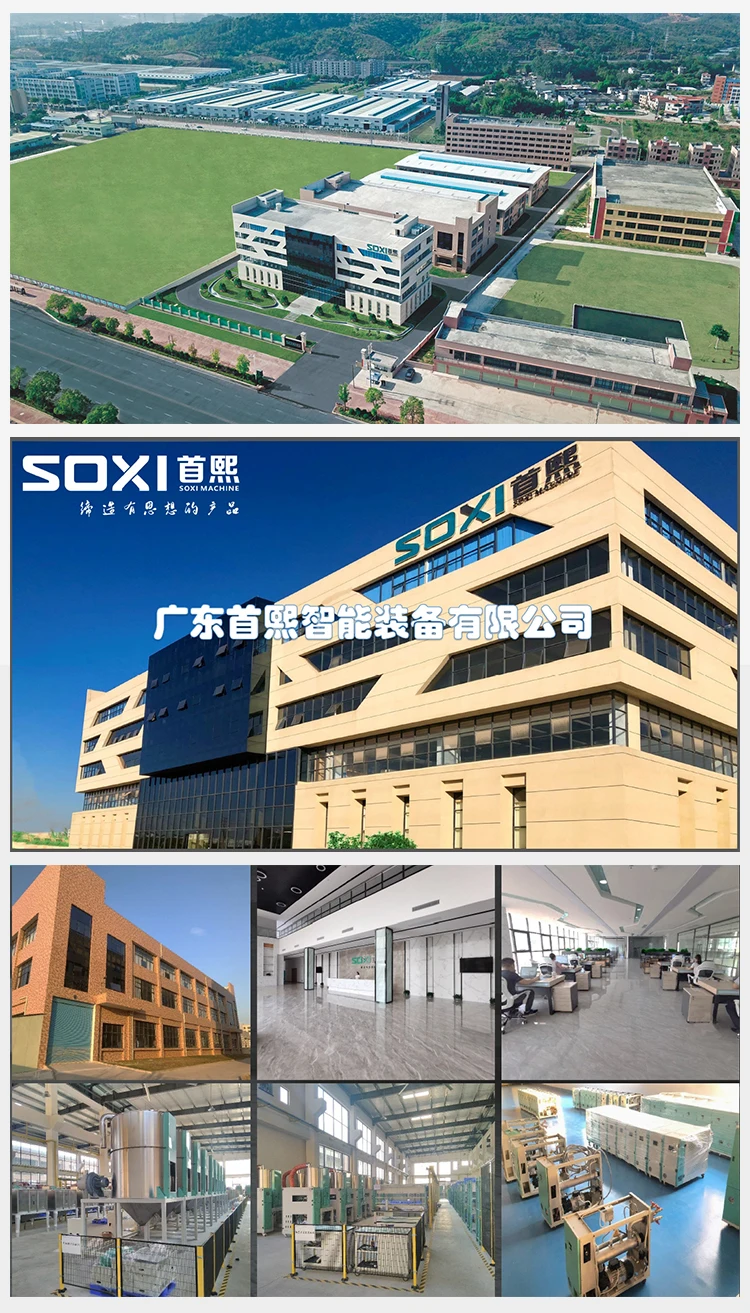

Company Profile

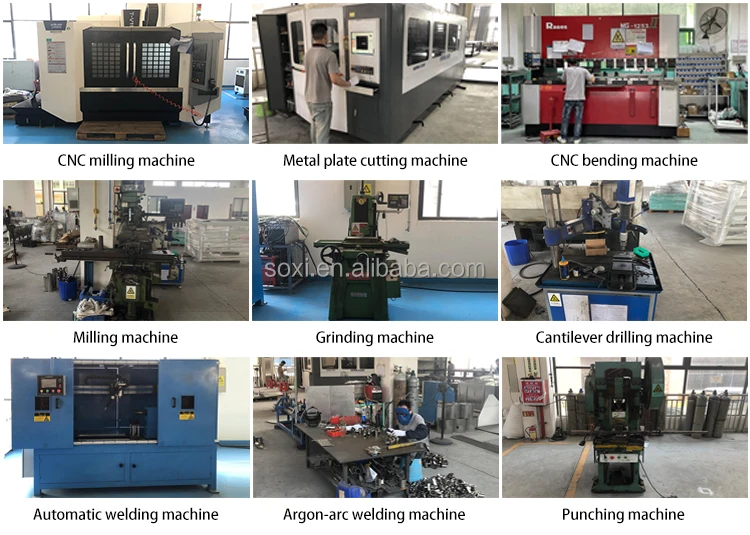

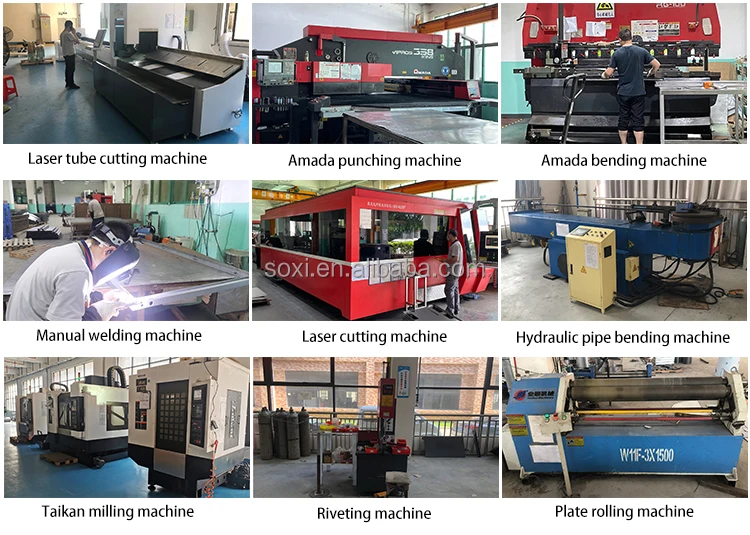

Manufacturing facility and Modernized Metal-processing workshop
all cabinet and metal plates are processed by our own sheet-metal workshop with first class quality control

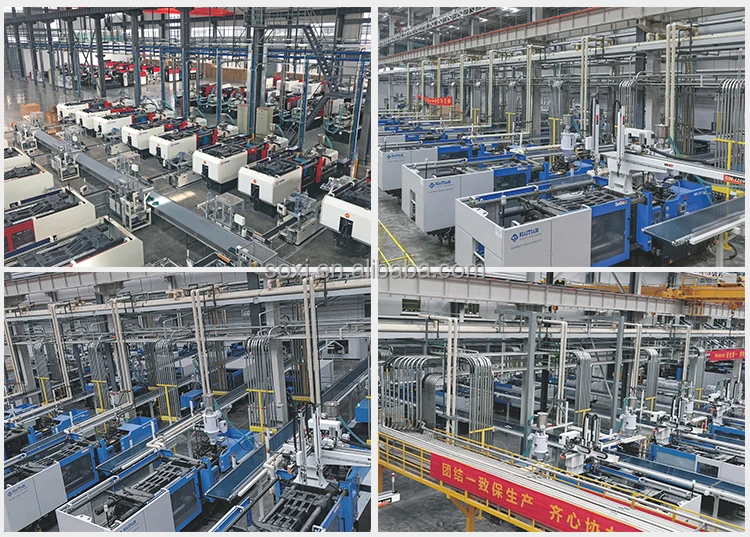

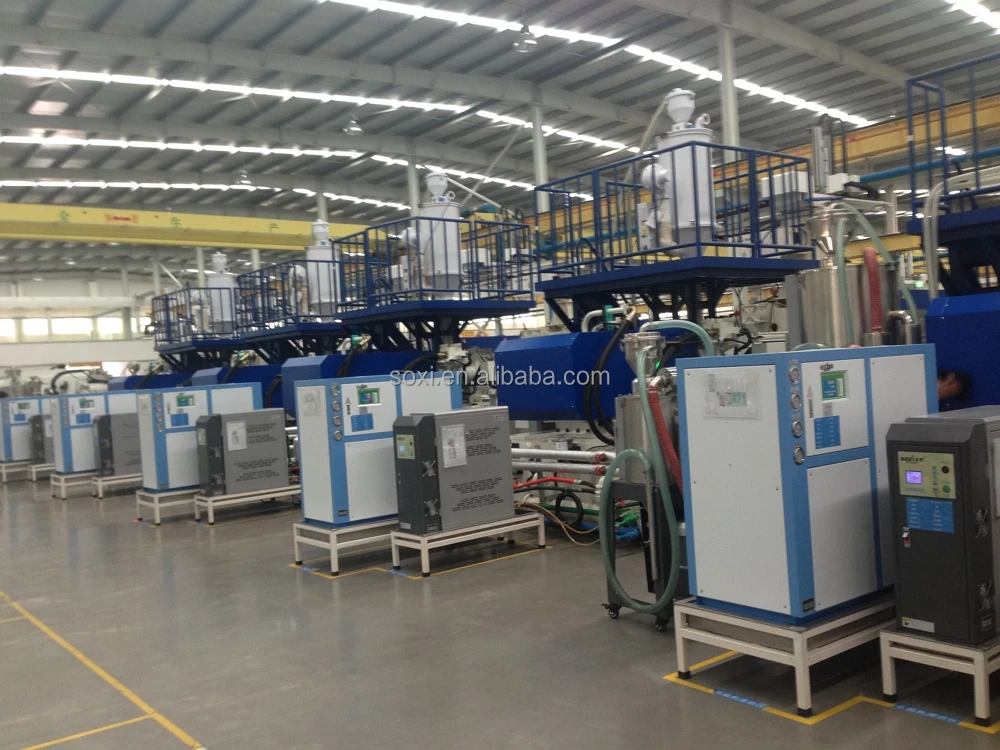

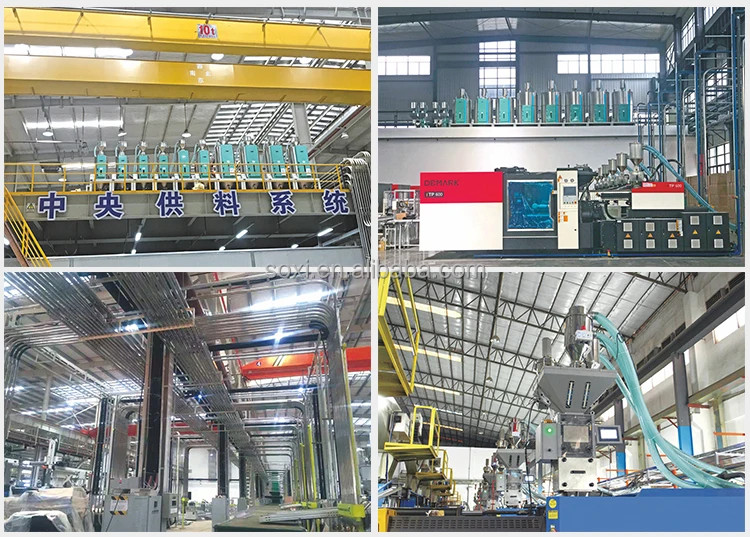

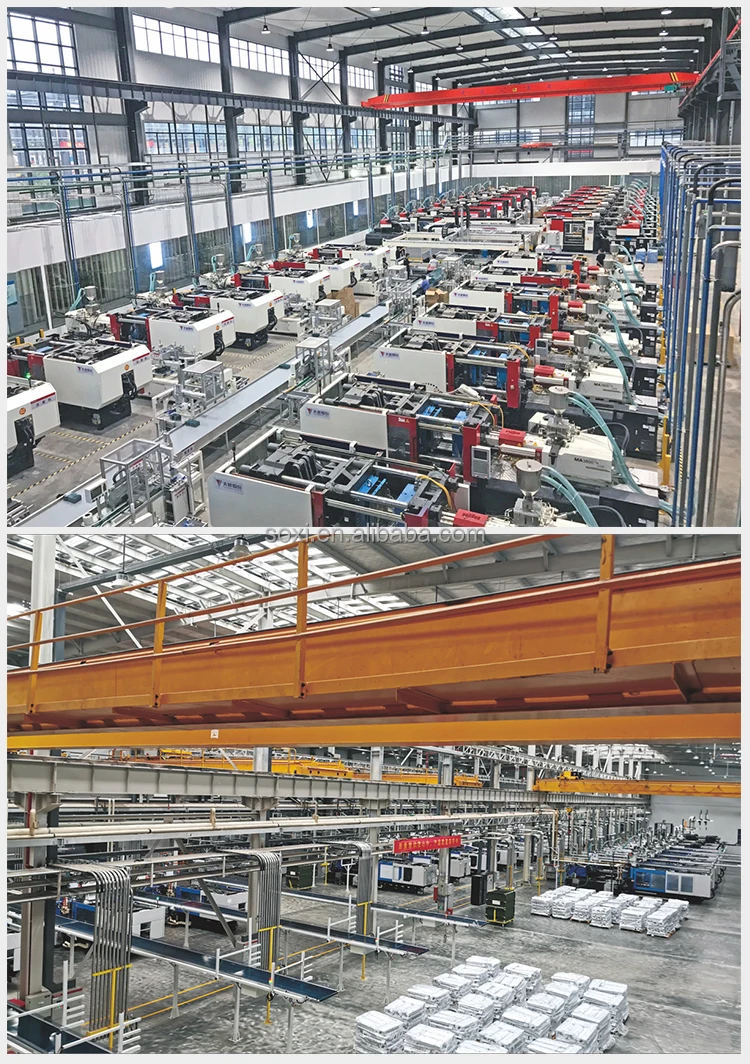

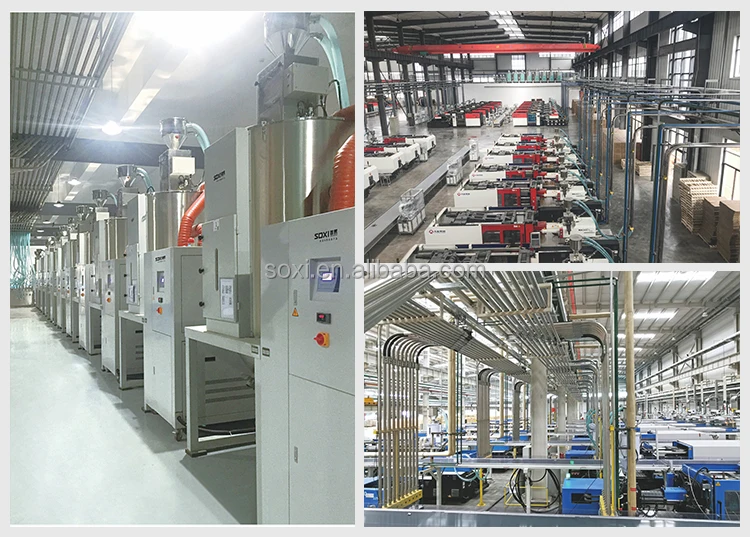

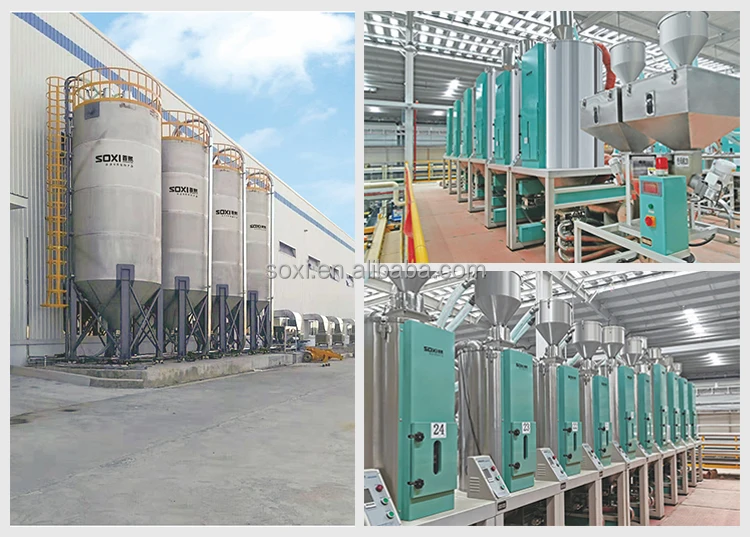

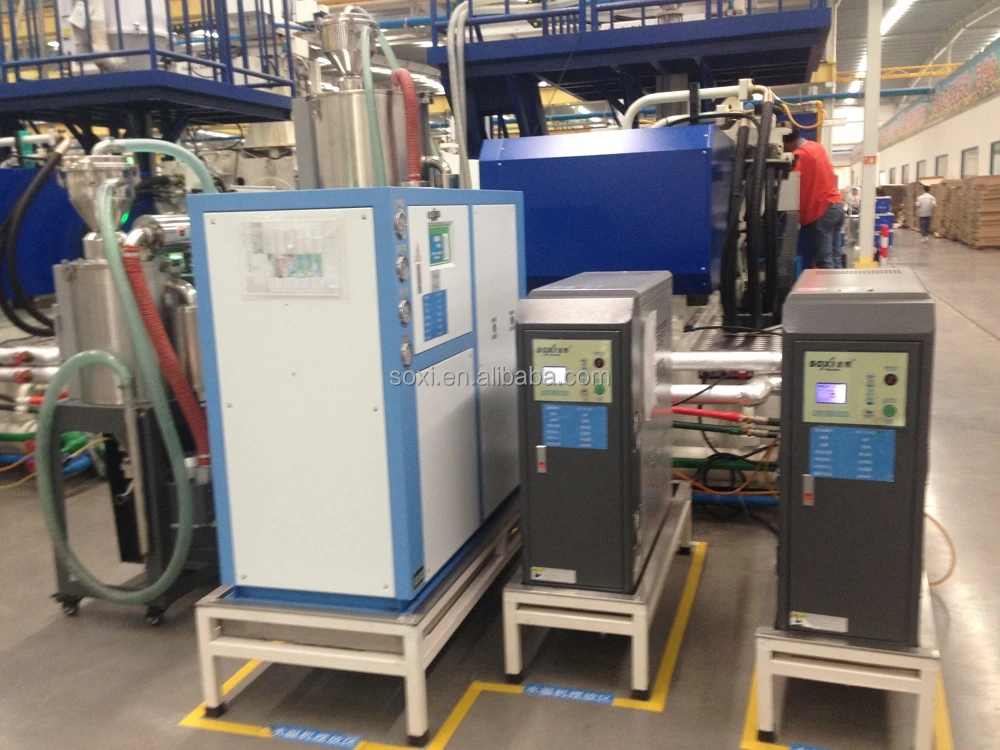

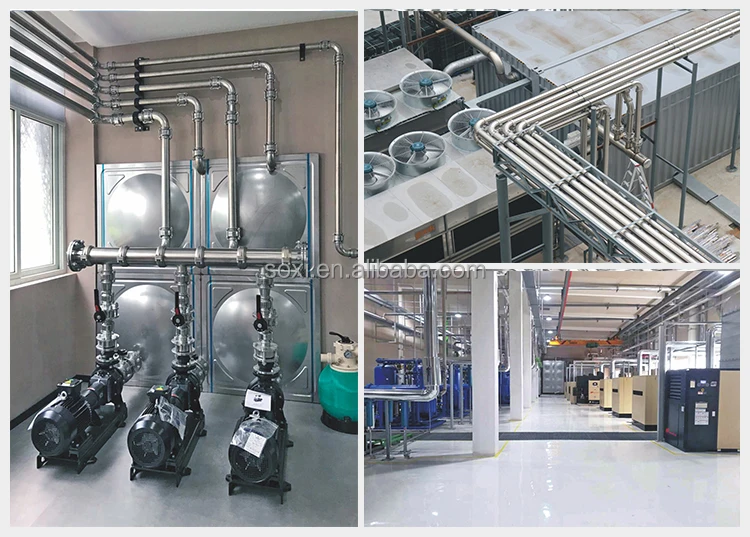

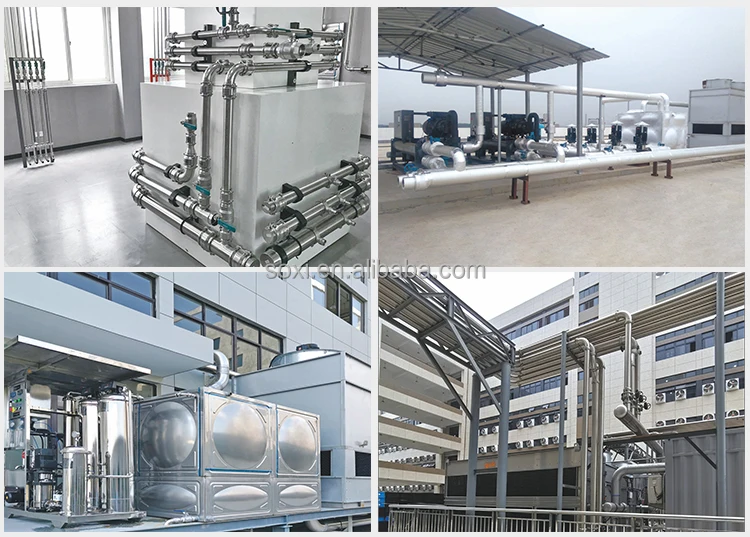

PROJECT CASES in Plastic Injection Industry
SOXI Certificates
SOXI Clients
Q: What differciate SOXI with hundreds of other water chiller manufacturer?
– there are two important procedures in the fabricating of water chillers, assembly and cabinet production.
soxi owns its own sheet metal workshop, which cut the transaction cost and have better quality control. the cabinet is sturdy and built to last.
Q: How large is SOXI manufacturing base?
A: SOXI manufacturing base is located in Heyuan,Guangdong province. it covers 12 acres of land area. the combined area of office and workshop is 22,000 square meters.
A: We have 180 staff members, the majority of staff are based on Heyuan city, while R&D and sales center are based in Shenzhen.
Q: How many years has the company been established?
A: The company was established in 2004 in Shenzhen, and in 2017, the company invested RMB128million in Heyuan to build modernized workshop. and changed company name from Shenzhen SOXI to Guangdong SOXI.
Q: Who are some of your reference customers?
A: F**W,To**ta, F**d, B*D….etc in automotive. H**er, T*L, A*X….etc in household electric. Sie***s, Xer*x, Fox***n,
Om**n….etc in electric supply.
Q: What is your standard delivery time?
A: For standard units with 230V/50Hz/1Phase or 400V/50Hz/3Phase, it's about 15~30 working days. Other voltages may take up to30~45 working days. For customize unit may take up to 40~50 working days.
Q: What is the standard port of loading?
A: Standard sea freight delivery is Shenzhen China.
Q: What is the standard warranty period?
A: One year on all the mechanical parts and three months of all consumable parts from the date of B/L.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial scroll water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial scroll water chiller be supplied for my local voltage?
The standard configuration is 3P-380v-50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
