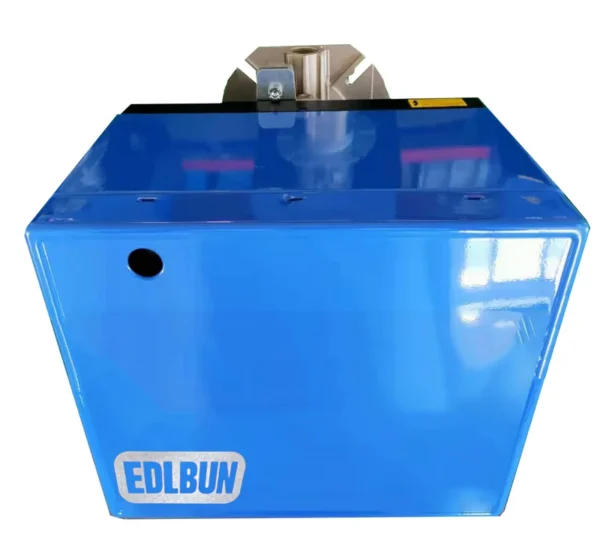

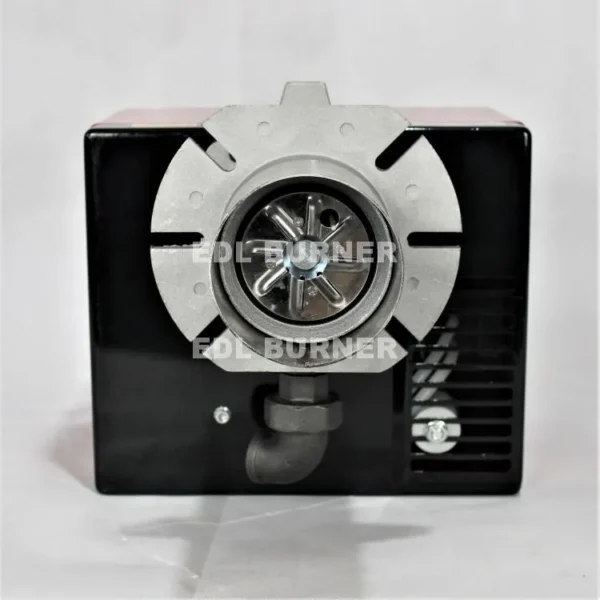

Industry burner for boiler — 250w, material Metal. The complete factory specification follows. Made by Zhejiang Edl Burner Co., Ltd. (11 years on the platform, typical reply ≤15h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Industry Burner For Boiler
- Power: 250w
- Thermal Power-Out Put: 81-220kw
- Material: Metal
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Application: heating boiler
Technical Specifications
| Type | Gas Burner |
|---|---|
| Material | Metal |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Weight (Kg) | 20.5 |
| Place Of Origin | Zhejiang, China |
| Brand Name | EDL |
| Name | EDLBUN FS20 |
| Application | heating boiler |
| Power | 250w |
| Fuels | gas |
| Thermal Power-Out Put | 81-220kw |
| Electrical Supply | Single phase ,230V ±10%~50Hz |
| Selling Units | Single item |
Product Details
FS series is mainly used for light industry, while RS series are mostly suitable for low temperature and medium temperature hot boiler, hot wind generator or steam boiler, oil guiding heating boiler, etc.
Power table | ||||||||||||||
Series | Model | Heating value(KW) | Control Means | GAS | Power source | Power （W） | ||||||||
Min | Max | |||||||||||||
EDLBUN 40 | FS20 | 81 | 220 | A fire | liquefied gas/ natural gas | 1ph*220v*50hz | 250 | |||||||
TECHNICAL DATA | ||
Thermal power – output | 81 – 220 kw — 70000 – 189000 kcal/h | |
Natural gas | Net heat value : 8 – 12 kwh/Nm3 – 7000 – 10340 kcal/Nm3 | |
Pressure : min. 20 mbar – max. 100mbar | ||
Electrical supply | Single phase , 230V + – 10% ~ 50 Hz | |
Motor | 230 V / 1.4 A | |
Capacitor | 5 uf | |
Ignition transformer | Primary 230v /1.8 A – Secondary 8kv / 30mA | |
Absorbed electrical power | 0.25KW | |
Reference conditions : Temp. 20'C – Barometric pressure 1013 mbar – Altitude 0 m above sea level. | ||
For gas family 3(LPG) ask for separate kit.
COUNTRY | DE | AT-GR | FR | ES-GB-IE | LU | NL |
GAS CATEGORY | || 2ELL3B/P | ||2H3B/P | ||2Er3P | ||2H3P | ||2E3B/P | ||2L3B/P |
Main features
1,Easy operation;
2,Convenient assembly for all parts;
3,Efficient maintenance, cleaning and inspection;
4,Critical spare parts adopt renowned brand;
Control process:
Our gas burners can be divided into two types which are single-stage and dual-stage according to regulating control method.
After single stage gas burner is ignited, only one stage heating power works, which cannot be adjusted. The heating power of four models ranges from 81kw to 220KW.
Ordering and Pricing
- Minimum order quantity: 12 set
- Volume pricing:
- 12–47 set: US $300 / set
- 48–95 set: US $250 / set
- 96+ set: US $220 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industry burner for boiler?
The standard minimum order quantity is 12 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Edl Burner Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Edl Burner Co., Ltd. range on HVACR Nexus.
