Inline duct fan — voltage AC 220V~240V, power source type Electric. The complete factory specification follows. Made by hangzhou beron motor co., ltd. (12 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Inline Duct Fan
- Model Number: YWFP2E-100-AA
- Power Source Type: Electric
- Voltage: AC 220V~240V
- Material: Galvanized Steel
- Blade Material: Galvanized Steel
- Noise Level: 58db

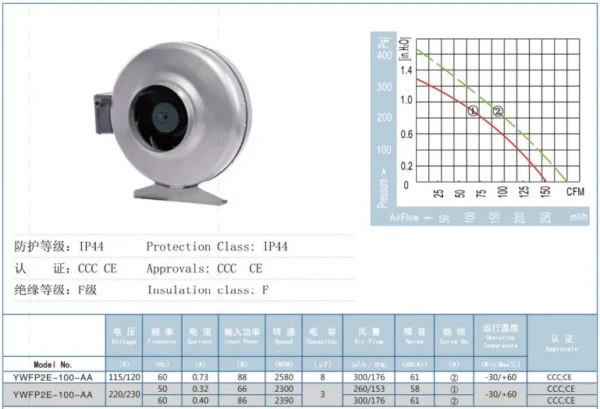

Technical Specifications
| Duct Diameter | 4 in |
|---|---|
| Mounting | Duct Fan |
| Voltage | AC 220V~240V |
| Motor Type | AC Motor |
| Speed | 2300RPM |
| Material | Galvanized Steel |
| Blade Material | Galvanized Steel |
| Power Source Type | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 58db |
| Place Of Origin | Zhejiang, China |
| Brand Name | BERON |
| Model Number | YWFP2E-100-AA |
| Color | Silver |
| Protection Class | IP44/IP54/IP55 |
| Approvals | CCC,CE |
| Insulation Class | F |
| Feature | Low Noise,Long Life,Energy Saving |
| Bearing Type | Ball |
| Temperature | -30/+60℃ |
| Air Volume (M3 /H) | 260 |
| Frequency | 50HZ |
| Current | 0.32A |
| Selling Units | Single item |
| Single Package Size | 31X31X24 cm |
| Single Gross Weight | 3.620 kg |
Product Details
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company. | ||||||
Customized support | OEM, ODM, OBM | ||||||
Electric Current Type | AC/DC/EC | ||||||
Voltage | 220V | ||||||
Warranty | 1 Year | ||||||
After-sales Service Provided | Online support | ||||||

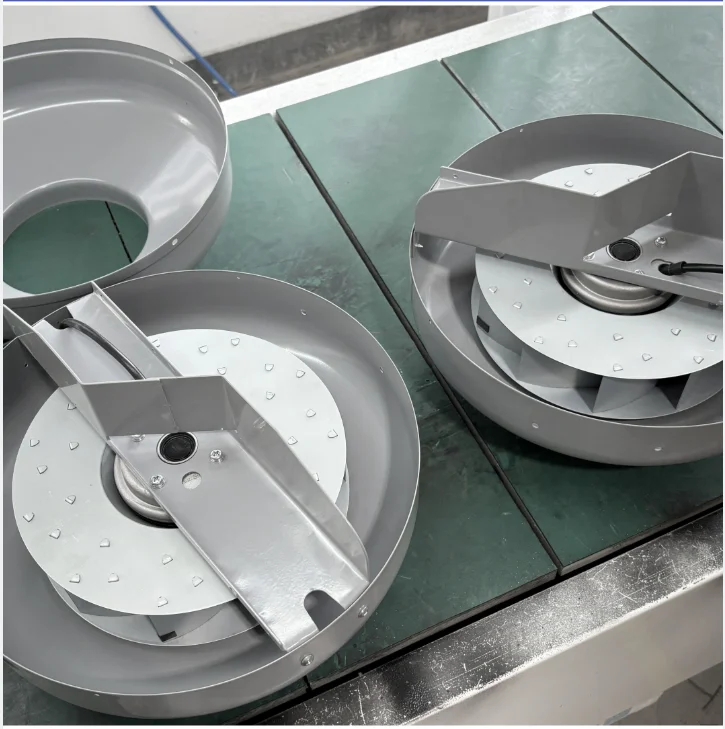

Core Components | Motor, Bearing, electric, mounting plate, copper wire, propeller, rotor, impeller, stator | ||||||
Product name | Inline Duct Fan | ||||||
Bearing | Ball Bearing | ||||||
Packing | Foam box/wooden box | ||||||
protection class | IP44 | ||||||
insulation class | F | ||||||
Motor | AC Motor/DC motor/EC fan motor/BLDC motor fan | ||||||
Application | Heating, ventilation and air conditioning (HVAC) systems, industrial ventilation and dust removal, commercial kitchen exhaust,data center and electronic equipment cooling, and fire smoke extraction,green house,basement,grow rooms. | ||||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $23.42 / piece
- 100–499 piece: US $22.52 / piece
- 500+ piece: US $21.62 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this inline duct fan carry?
It is supplied with CCC,CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the inline duct fan be supplied for my local voltage?
The standard configuration is AC 220V~240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by hangzhou beron motor co., ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full hangzhou beron motor co., ltd. range on HVACR Nexus.
