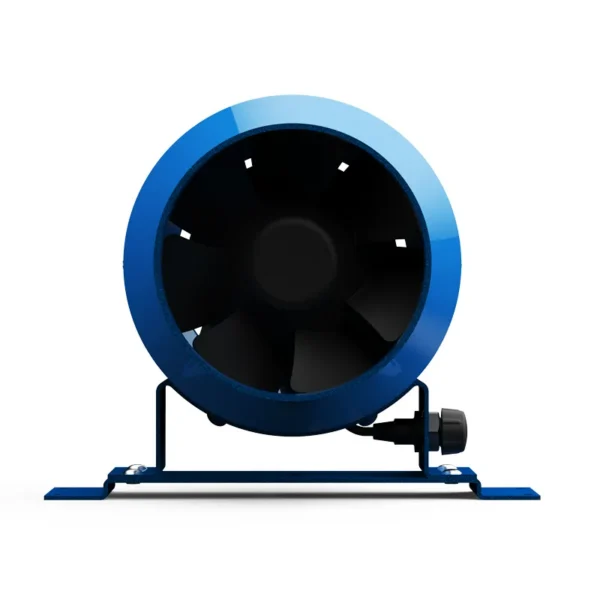

Inline Duct Fan, Brushless, 18w - view 3

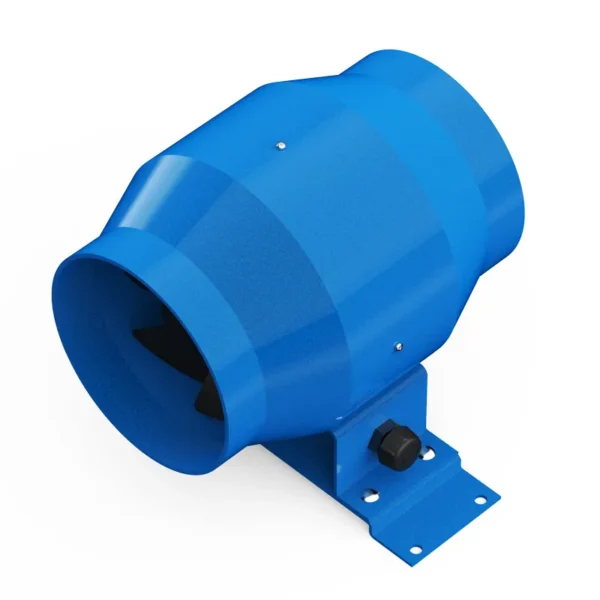

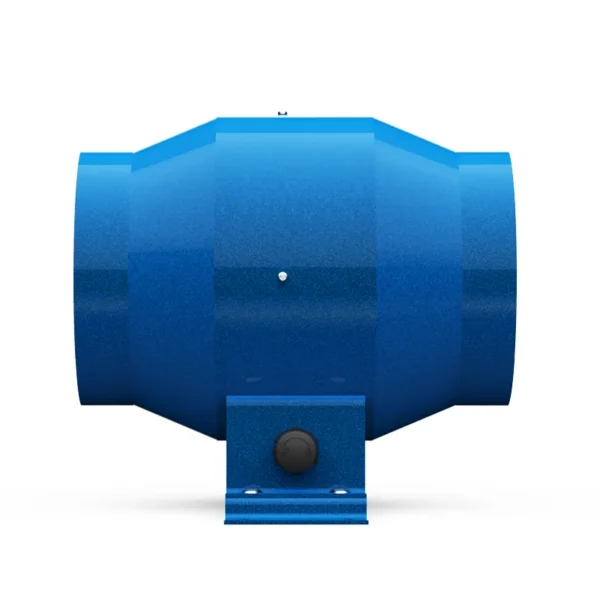

Inline Duct Fan, Brushless, 18w - view 4

ModelSE-A100

Inline Duct Fan, Brushless, 18w, 110V, Plastic, 50hz, SE-A100

$40.00

Inline Duct Fan: 110V/220V, blade material Plastic. Supplied direct from the factory with the complete specification. Model Number: SE-A100.

Voltage
110V/220V
Blade Material
Plastic
Mounting Type
Duct Fan
Warranty
2 Years
Place Of Origin
Guangdong, China
Model Number
SE-A100
  • Reply within one working day
  • Factory-direct pricing, OEM & ODM accepted
  • Full specification and test reports supplied

Get Factory Pricing

Price, MOQ and lead time direct from the manufacturer. Free, no account needed.

Enquiring about Inline Duct Fan, Brushless, 18w, 110V, Plastic, 50hz, SE-A100

Key specification for this inline duct fan: 110V/220V, blade material Plastic. Everything below is reproduced from the factory data sheet. Made by Shenzhen Shengshida Electronics Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Inline Duct Fan

  • Model Number: SE-A100
  • Voltage: 110V/220V
  • Blade Material: Plastic
  • Noise Level: 56.8 dBA
  • Warranty: 2 Years
  • Place Of Origin: Guangdong, China

Technical Specifications

Voltage 110V/220V
Blade Material Plastic
Electric Current Type AC
Mounting Type Duct Fan
Warranty 2 Years
After-Sales Service Provided Online support
Place Of Origin Guangdong, China
Brand Name Sensdar
Model Number SE-A100
Color blue
Motor Type EC Motor
Noise Level 56.8 dBA
IP Rating IPX4
Frequency 50Hz / 60Hz
Selling Units Single item
Single Package Size 25X25X24 cm
Single Gross Weight 2.000 kg

Product Details

Product Description

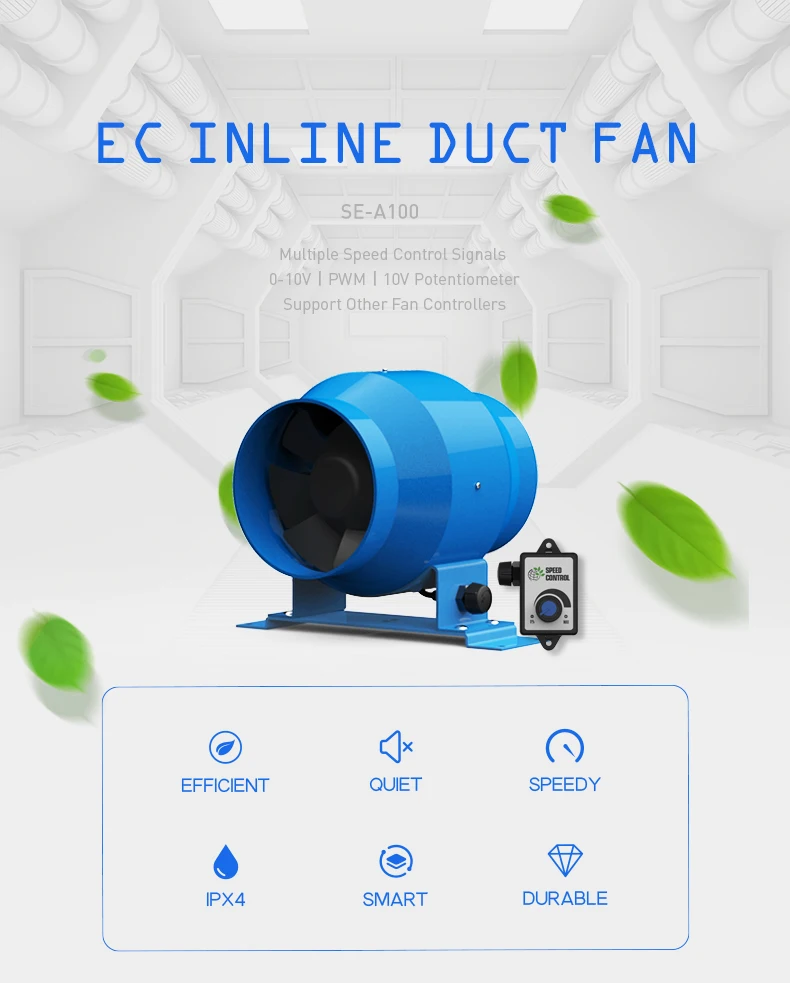

Inline Duct Fan, Brushless, 18w - detail 1Inline Duct Fan, Brushless, 18w - detail 2

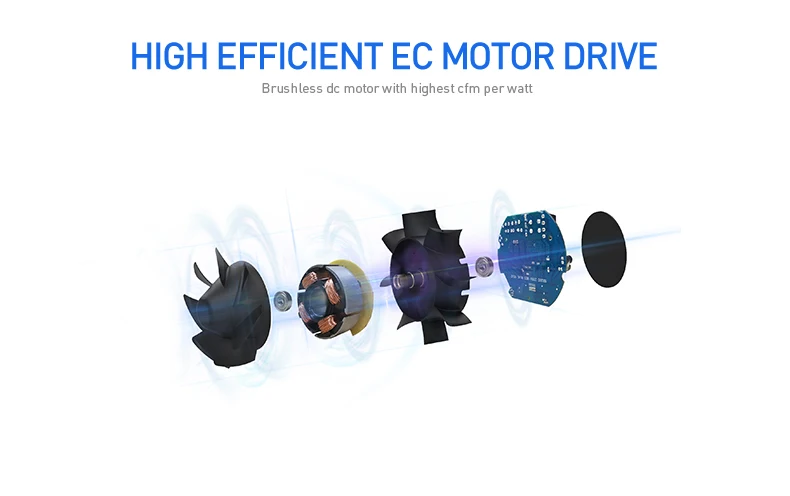

Inline Duct Fan, Brushless, 18w - detail 3Inline Duct Fan, Brushless, 18w - detail 4

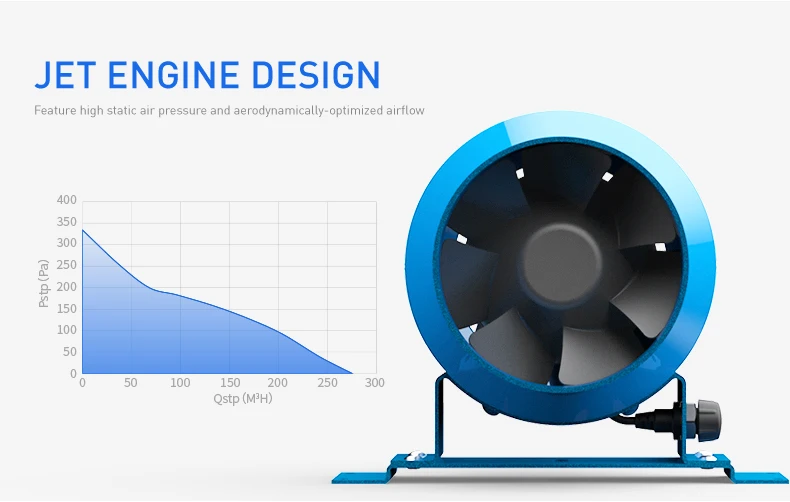

Inline Duct Fan, Brushless, 18w - detail 5Inline Duct Fan, Brushless, 18w - detail 6

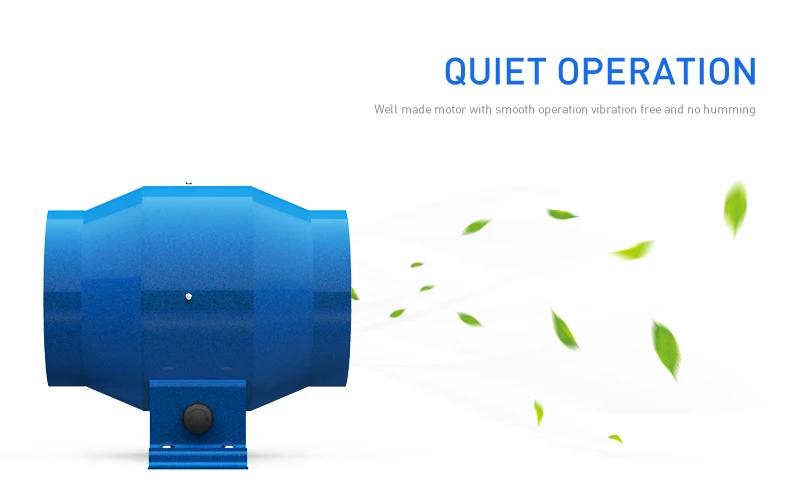

Inline Duct Fan, Brushless, 18w - detail 7Inline Duct Fan, Brushless, 18w - detail 8

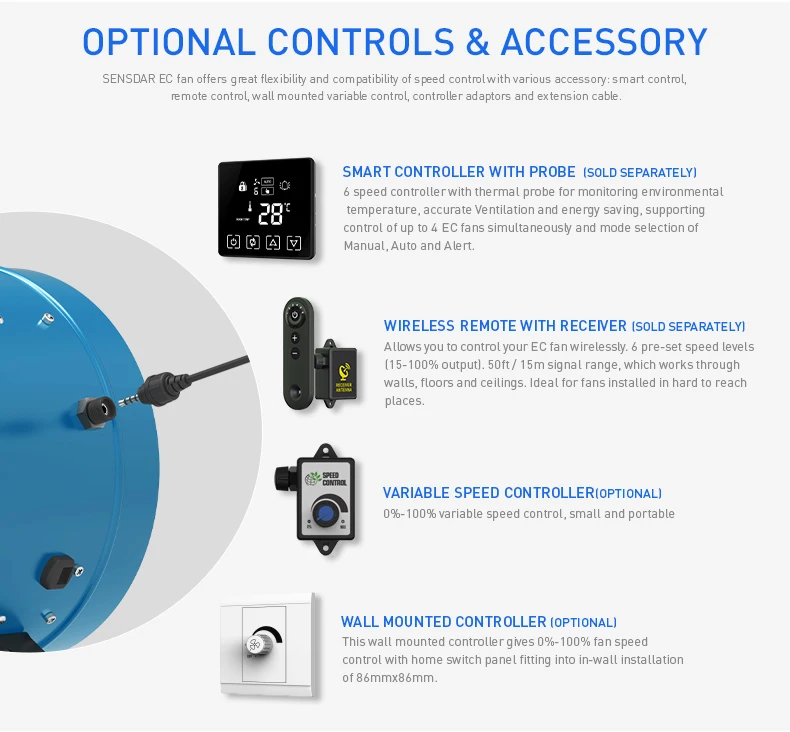

Inline Duct Fan, Brushless, 18w - detail 9Inline Duct Fan, Brushless, 18w - detail 10

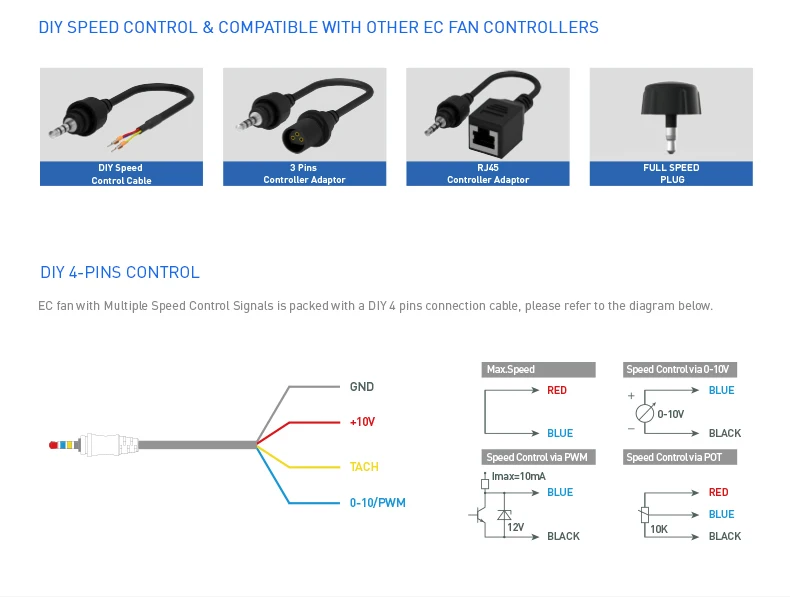

Inline Duct Fan, Brushless, 18w - detail 11Inline Duct Fan, Brushless, 18w - detail 12

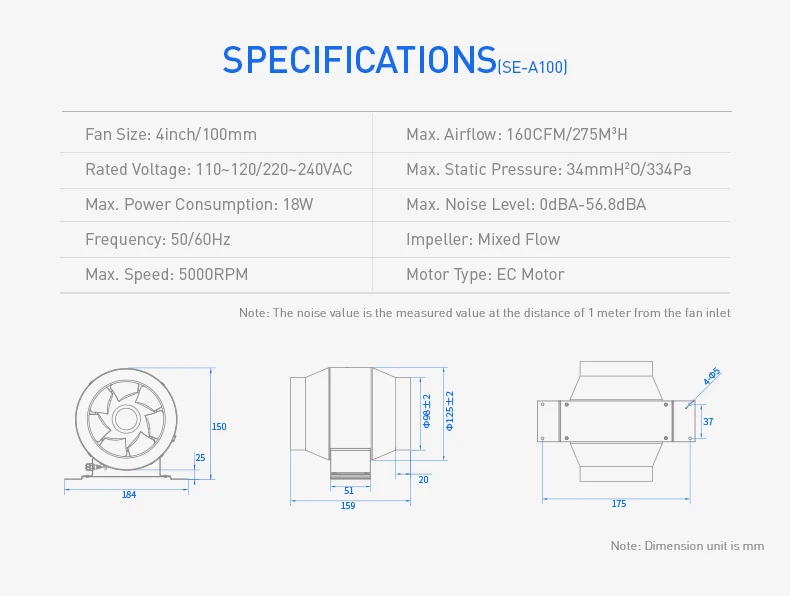

Inline Duct Fan, Brushless, 18w - detail 13Inline Duct Fan, Brushless, 18w - detail 14

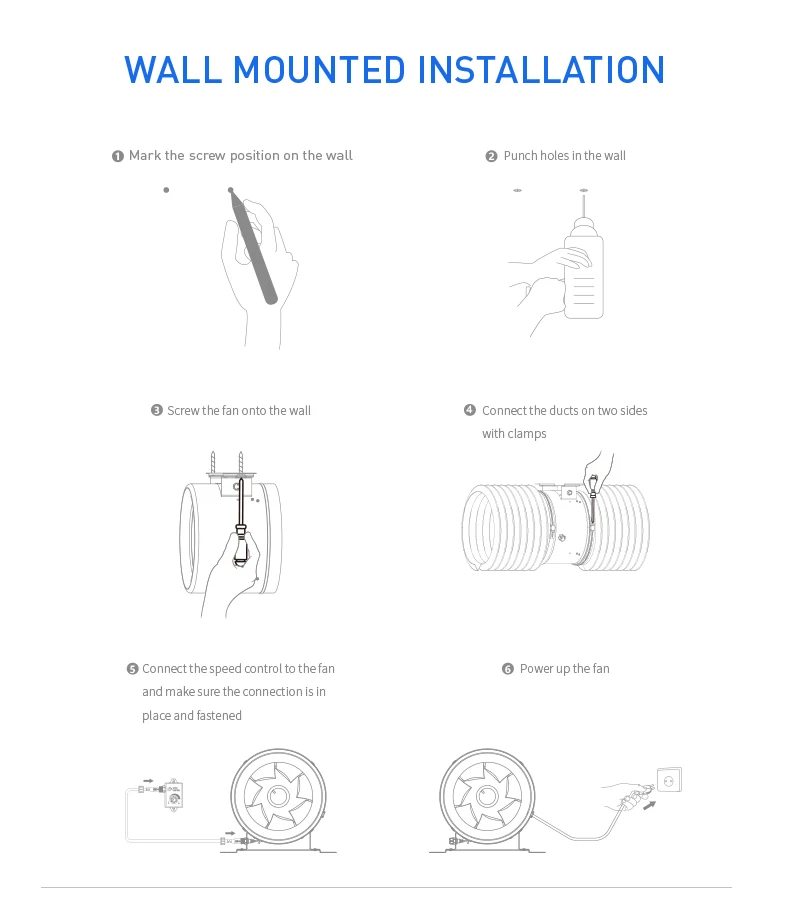

Inline Duct Fan, Brushless, 18w - detail 15Inline Duct Fan, Brushless, 18w - detail 16

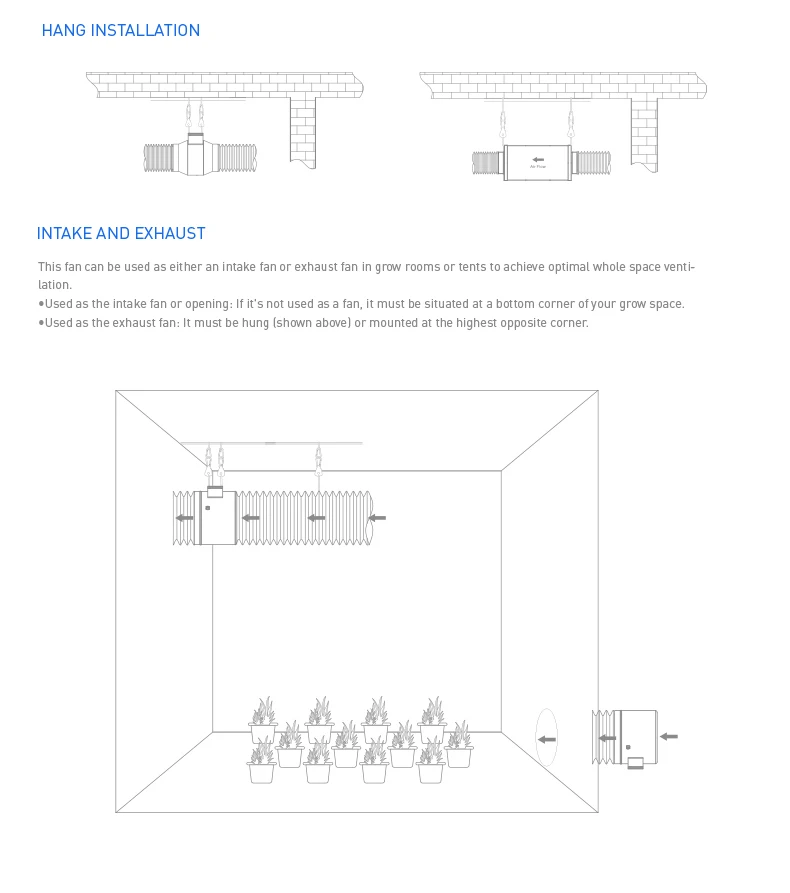

Inline Duct Fan, Brushless, 18w - detail 17Inline Duct Fan, Brushless, 18w - detail 18
Specification
item
value
Type
Axial Flow Fan
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail
Electric Current Type
AC
Mounting
Duct Fan
Blade Material
Plastic
Place of Origin
China
Guangdong
Brand Name
Sensdar
Model Number
SE-A100
Voltage
110V/220V
Warranty
2 years
After-sales Service Provided
Online support
Core Components
Motor, Bearing
Color
blue
Motor Type
EC Motor
Noise Level
56.8 dBA
IP Rating
IPX4
Frequency
50Hz / 60Hz
Company Profile
Our company, known as SHENGSHIDA or SENSDAR, is one of the leading manufacturers of DC fans, AC axial fans, EC axial fans and fan accessories in China, with more than a decade's experience in the research and development of all kinds of cooling fans. Headquartered in Longhua New District, Shenzhen in Southern China, our company operates 2 manufacturing plants and 1 marketing & research center that add up to nearly 53000 square feet, with monthly production capacity of 1 million units and distributing points around China, South Korea, North America, South America and Europe. Application Over the past decade, we have been giving support to end products of various famous brands in China, helping them to tackle thermal management difficulty by offering cooling solutions that meet their needs. Our fans are featured with low noise, low power consumption, long life-span and large airflow, etc. with a broad application in the industry of power supplies, IT & PC, communication equipment, household appliances, cooling rack, car refrigerator, water dispenser, induction cooker, stage equipment, LED lighting, hi-fi system, medical and more. Design and Development Our company has and continues to make huge investments in research and development, offering a customized service for different needs, including circuit analysis, design, molding, prototype build, and environmental testing. Modification or adjustment can be well made upon any specific case from the customers. To meet the global requirements on environmental protection and safety standard (like UL, CUL, CE and RoHS), we impose a strict control over the manufacturing material and processes. Quality Control We control production in strict accordance with ISO9001 quality standards. We produce core components, including leaf fan box, circuit board and motor development on our own. And we emphasize the implementation of a comprehensive quality control management (TQM) approach, focusing on improving the hardware, while also concerning about the growth of every employee. Thus comes monthly schedule of quality control worker training, and deepen awareness of product quality. Service Tenet Sincerity-oriented, Customer-oriented, Quality-oriented, Service-oriented
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Oceania(15.00%),Western Europe(15.00%),Domestic Market(7.00%),Eastern Asia(5.00%),South America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(2.00%),South Asia(1.00%),Central America(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
DC Axial Fan, EC Fan, EC Inline Fan, EC Silenced Fan

4. why should you buy from us not from other suppliers?
1. Specialized in EC inline fans development 2. Strong engineer team for providing customized cooling solutions; 3. Extra high airflow or speed fan series available; 4. Energy saving EC fan motor available, size from 60mm to 315mm

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese

Ordering and Pricing

  • Minimum order quantity: 1 piece
  • Volume pricing:
    • 1–20 piece: US $55 / piece
    • 21–99 piece: US $45 / piece
    • 100+ piece: US $40 / piece
  • Ships from: China
  • Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inline duct fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the inline duct fan be supplied for my local voltage?

The standard configuration is 110V/220V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Shengshida Electronics Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Shengshida Electronics Co., Ltd. range on HVACR Nexus.

Voltage

110V/220V

Blade Material

Plastic

Electric Current Type

AC

Mounting Type

Duct Fan

Warranty

2 Years

After-Sales Service Provided

Online support

Place Of Origin

Guangdong, China

Brand Name

Sensdar

Model Number

SE-A100

Color

blue

Motor Type

EC Motor

Noise Level

56.8 dBA

IP Rating

IPX4

Frequency

50Hz / 60Hz

Selling Units

Single item

Single Package Size

25X25X24 cm

Single Gross Weight

2.000 kg
