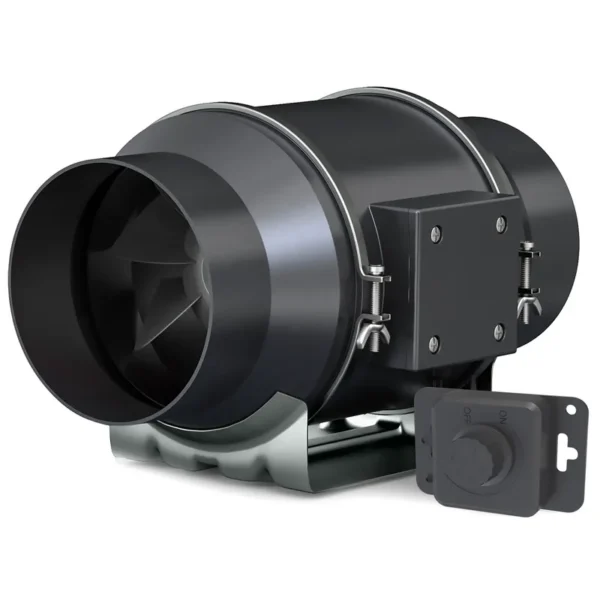

Inline Fan, 405, CFM, IP44, Waterproof

This inline fan is published with the manufacturer’s full specification — 220V/110V, 405 CFM. Made by Shenzhen Faithful Technology Co., Ltd. (6 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Inline Fan

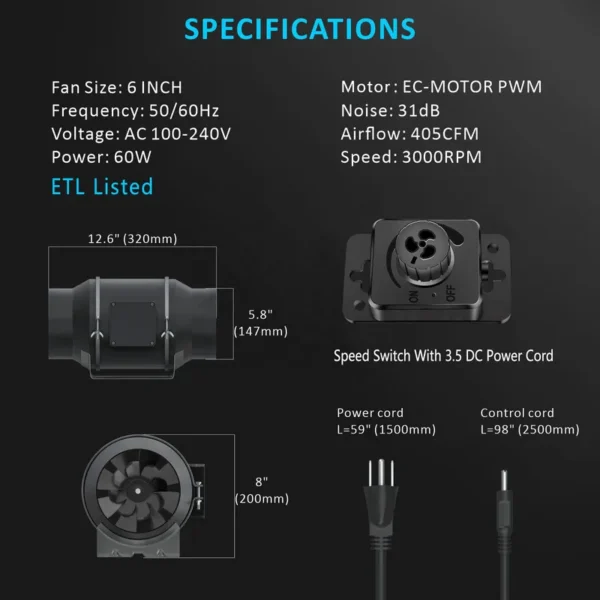

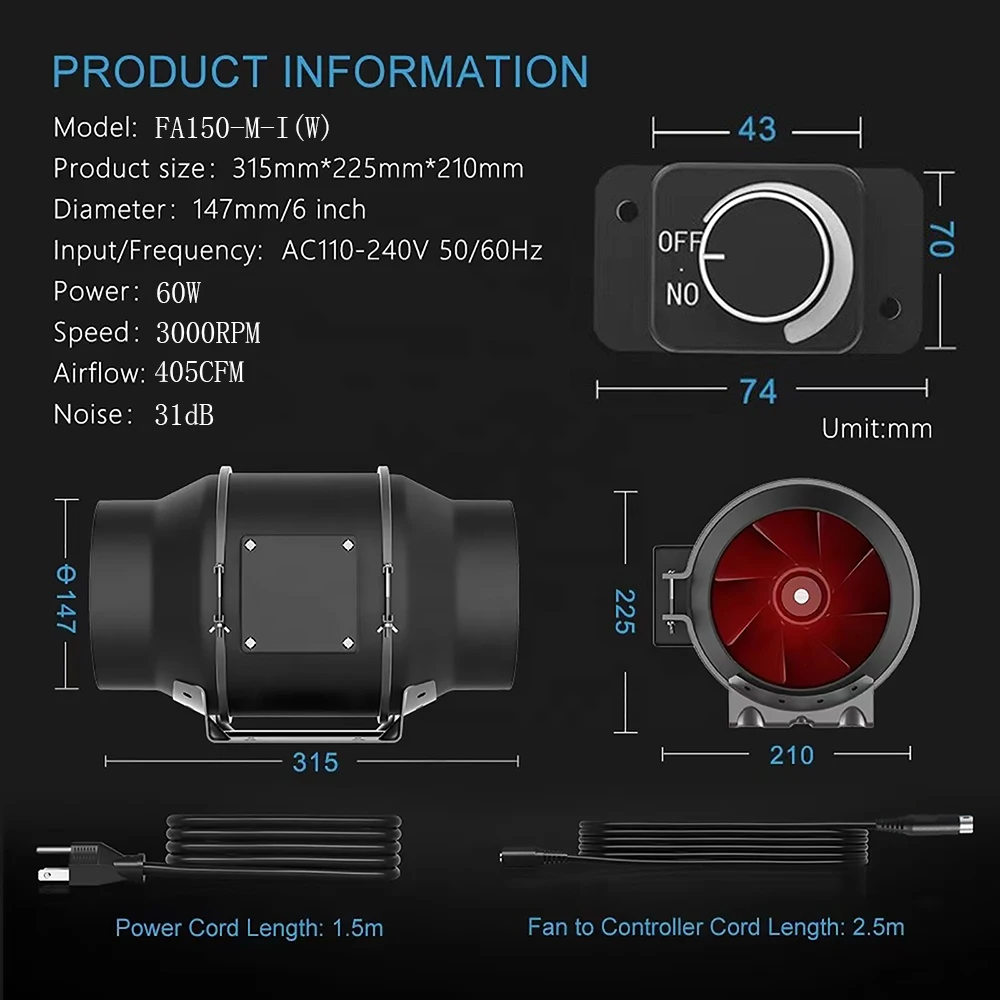

• Model Number: FA150-M-S(W)
• Power: 60W
• Voltage: 220V/110V
• Voltage/Frequency: 220~240V/50HZ and 100~120V/60HZ
• Airflow: 405 CFM
• Material: ABS

Technical Specifications

Product Details

Product Description

Specification

Specification:

1. Material of frame:Environmental protection material PP and casting iron mounting base

2. Working temperature range/Operating Temperature Range: -20°C~60°C

3. Protection class: IP44 protection level

4. Life: ball bear, Outer rotor motor with 67000hours working life

5. Setting Angle: Horizontal, vertical and others angle

Embedded duct fan

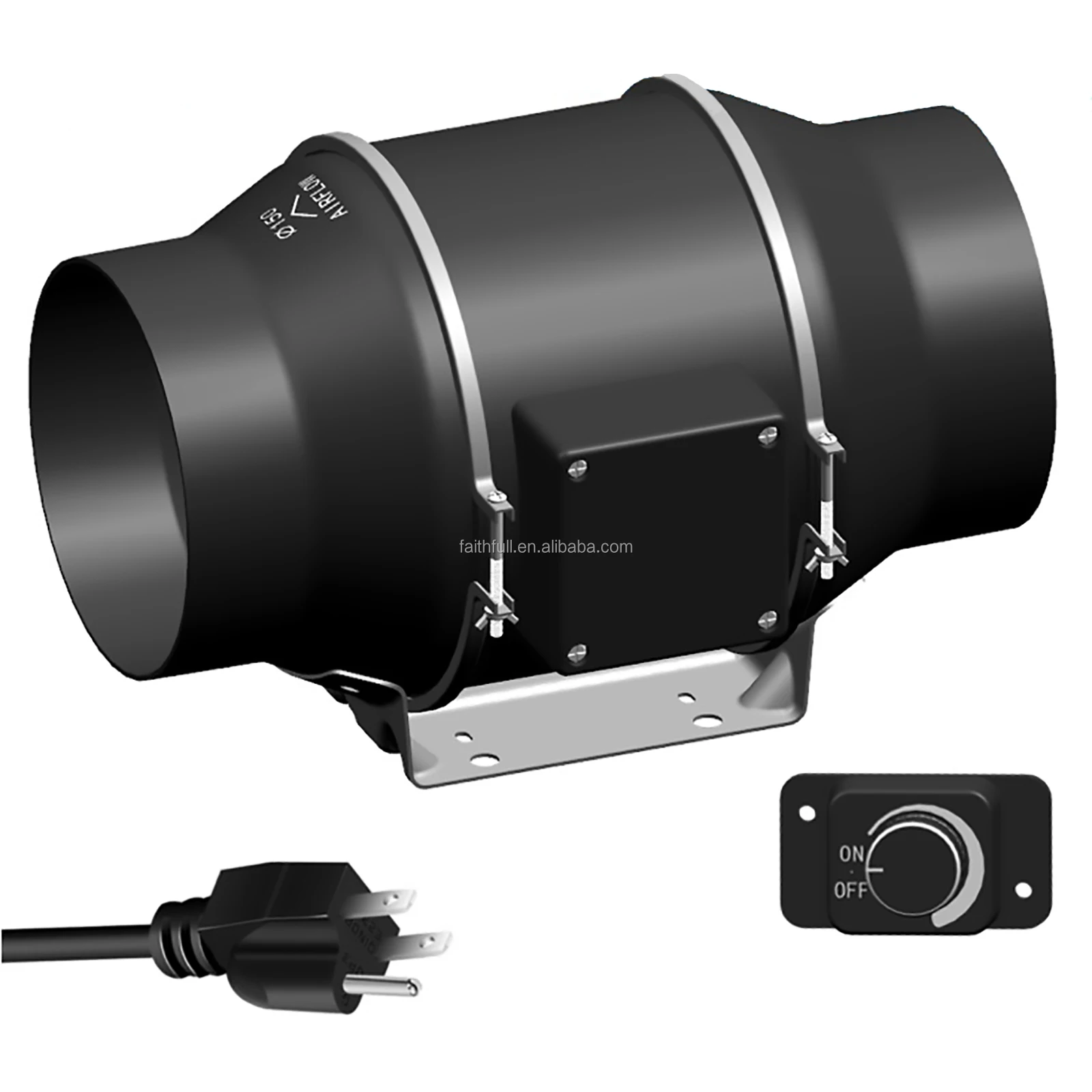

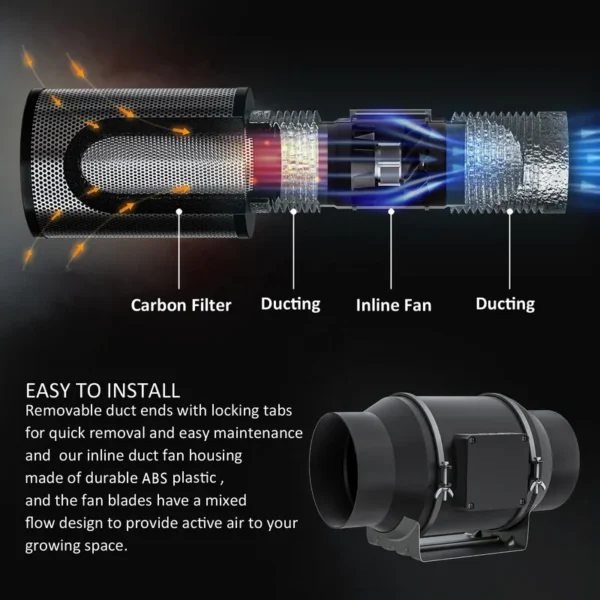

A powerful and quiet embedded duct fan is designed to quietly ventilate the hydroponic growth room, enhance the heating/cooling of the room, circulate fresh air, exhaust items, and cool the AV closet. The duct fan adopts a series mixed flow design, which can maintain airflow even in high static pressure applications. Contains an EC motor with PWM control to achieve quiet and energy-saving performance. The complete kit includes a duct fan unit, two duct clamps, installation manual, and all necessary installation hardware.

100% controllable silent EC motor

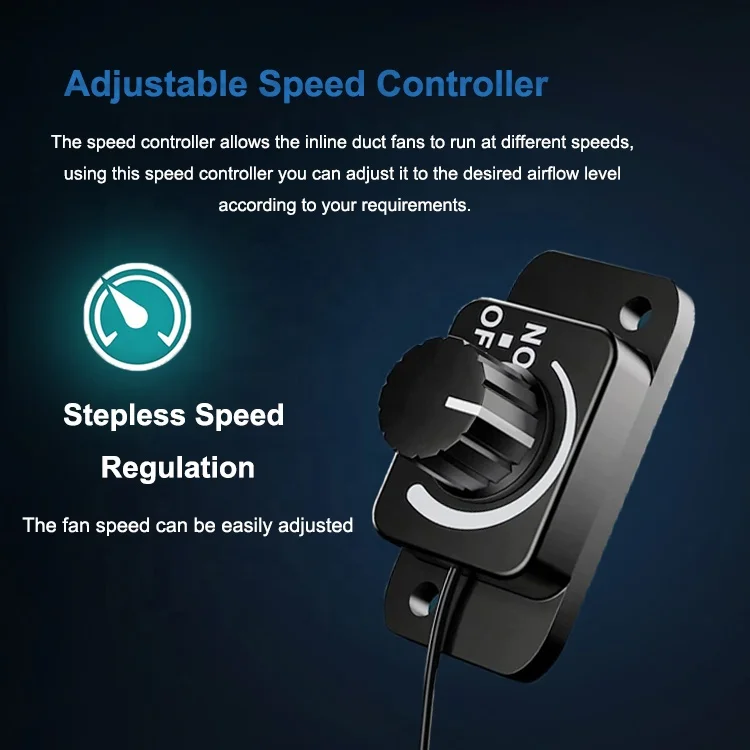

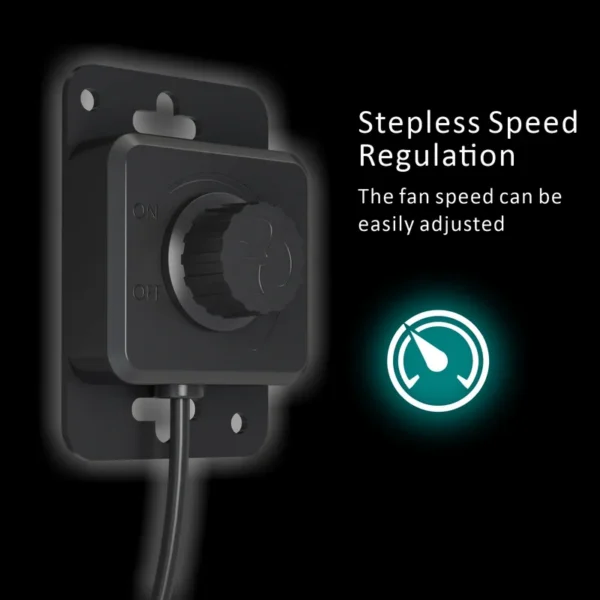

The fan body integrates a 0-100% variable speed dial, which is a continuously variable dial controller, allowing you to select any speed without any hum or noise. Compared with AC fans, its power is reduced by 40-75%, thus providing unprecedented airflow. These motors are controlled by a computer chip on the board, allowing precise speed adjustment without wasting energy and heat.

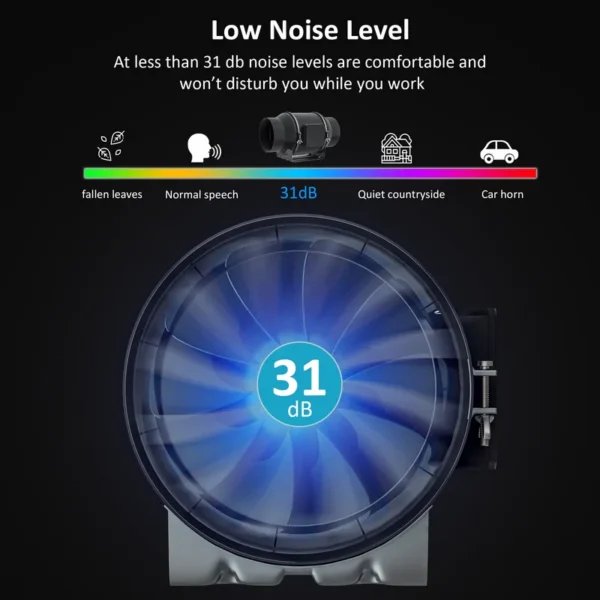

Quiet and Energy Efficient Design

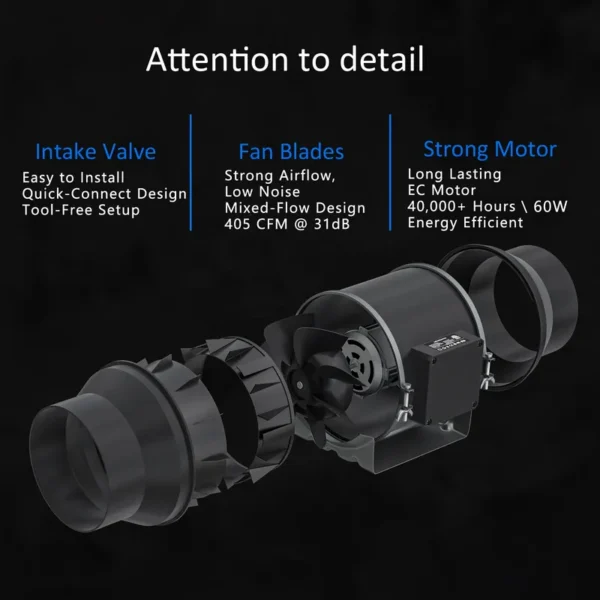

Features an EC-motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed-flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

Packing & Delivery

standard export packing. Can be customized according to customer needs

Company Profile

Our company is a manufacturer specializing in horticultural products,including indoor gardining products,hydroponic equipment and high -intensity grow lights

FAQ

1. who are we?
We are based in Guangdong, China, start from 2017,sell to North America(90.00%),Domestic Market(1.00%),South Asia(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Mid East(1.00%),Africa(1.00%),Southeast Asia(1.00%),South America(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
hydroponic,GORW LED,ROPE HANGERS,Soilless cultivation products

4. why should you buy from us not from other suppliers?
Our company is a manufacturer specializing in horticultural products,including indoor gardining products,hydroponic equipment and high -intensity grow lights

5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese

Ordering and Pricing

• Minimum order quantity: 51 piece
• Volume pricing:
  • 51–99 piece: US $40 / piece
  • 100–199 piece: US $38 / piece
  • 200–9999 piece: US $36 / piece
  • 10000+ piece: US $25 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inline fan?

The standard minimum order quantity is 51 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this inline fan carry?

It is supplied with ce CCC RoHS ETL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the inline fan be supplied for my local voltage?

The standard configuration is 220V/110V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Faithful Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Faithful Technology Co., Ltd. range on HVACR Nexus.
