Cross flow fan — 12V, power 8.4. The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
This cross flow fan is listed with the manufacturer’s full published specification — voltage – rated 12V, power (watts) 8.4, rpm 22000 RPM. It is produced by Shenzhen Innootec Electronics Co., Limited. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: SJ120428-L, SE121238-H, SJ120428-H, SJ120428-U, SJ120428-S
- Power (Watts): 8.4
- Voltage – Rated: 12V
- Place Of Origin: Guangdong, China
- Mounting Type: Panel / Side Screw Mount
- Size / Dimension: 40*40*28mm
Technical Specifications
| Place Of Origin | Guangdong, China |
|---|---|
| Brand Name | INNOOTEC |
| Model Number | SJ120428-L, SE121238-H, SJ120428-H, SJ120428-U, SJ120428-S |
| Application | 3D printers and laser engraving machines Small CNC equipment Compact electronics cooling (routers, set-top boxes, gaming consoles) Medical and laboratory instruments Inflatable or air circulation systems in portable devices |
| Description | SJ0428 High-Performance Miniature Centrifugal Blower |
| RPM | 22000 RPM |
| Power (Watts) | 8.4 |
| Voltage – Rated | 12V |
| Fan Static Pressure | 70.41 mmH2O |
| Size / Dimension | 40*40*28mm |
| Mounting Type | Panel / Side Screw Mount |
| Selling Units | Single item |
|
Parameter
|
Specification
|
||||||
|
Model
|
SJ0428
|
||||||
|

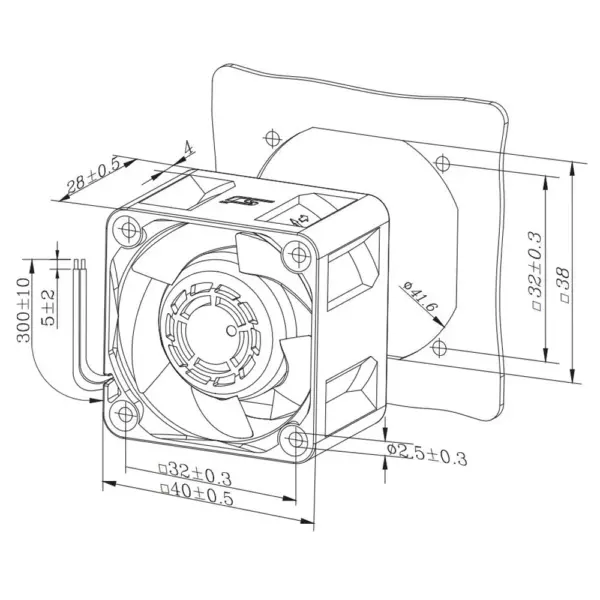

Dimensions (L x W x H)
|
40×40×28mm
|
||||||
|
Rated Voltage (VDC)
|
12 VDC
|
||||||
|
Material
|
Impeller & Frame Plastic (UL94V-0)
|
||||||
|
Lead Wires
|
UL 1061 AWG#26 or Equivalent
|
||||||
|
Impeller
|
5 Blades
|
||||||
|
Speed (RPM)
|
≤22000
|
||||||
|
Rated Current (Amp)
|
≤0.7
|
||||||
|
Rated Input Power (Watt)
|
≤8.4
|
||||||
|
Maximum Airflow
|
≤27CFM, ≤45.8m³/H
|
||||||
|
Maximum Static Pressure
|
70.41 mmH2O
|
||||||
|
Noise Level
|
59.4dB-A
|
||||||
|
Weight
|
47g
|
||||||
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Can it be built for my local voltage?
The standard specification is 12V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This cross flow fan is produced by Shenzhen Innootec Electronics Co., Limited. Browse the full Shenzhen Innootec Electronics Co., Limited range on HVACR Nexus.
