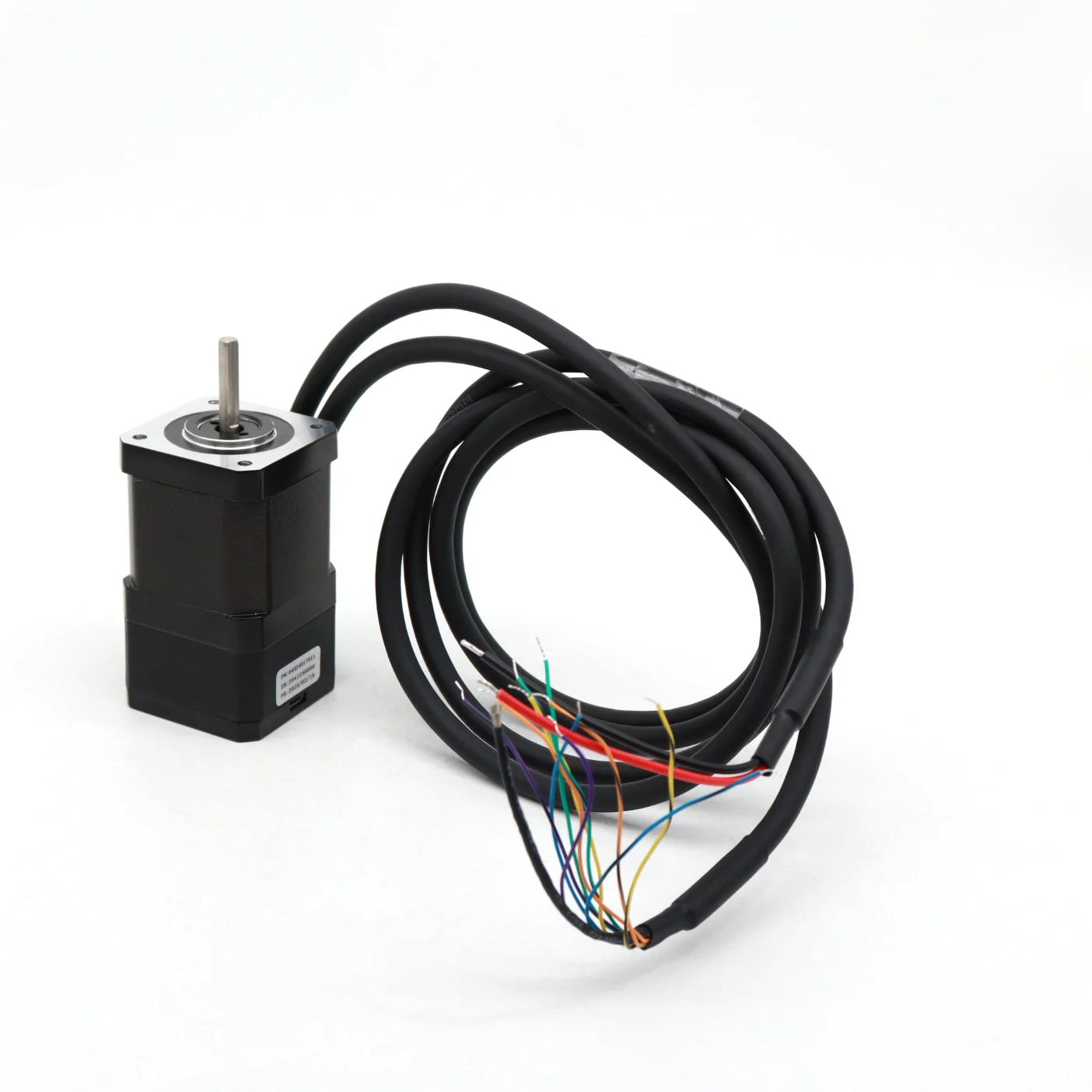

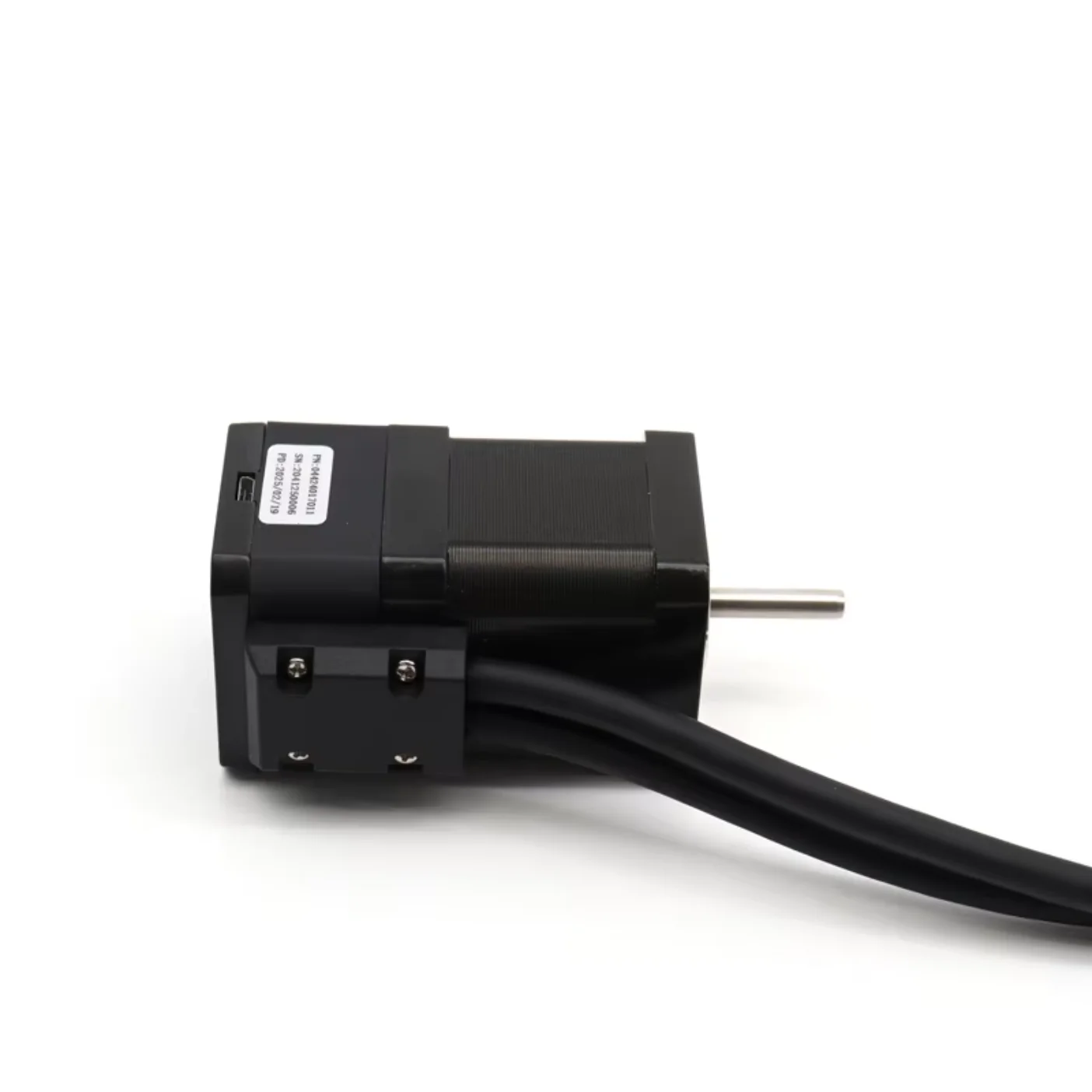

Integrated Motor, 2Phase, Nema23, 24-60VDC

This integrated motor is published with the manufacturer’s full specification — 48 V DC, type Hybrid. Made by Shenzhen Lisan Intelligent Control Co., Ltd. (1 year on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Integrated Motor

• Model Number: IP57E12
• Voltage: 48 V DC
• Input Voltage: 24-60VDC
• Warranty: 3 months ~ 1 year
• Certification: CE / RoHS
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

PRODUCT HIGHLIGHTS

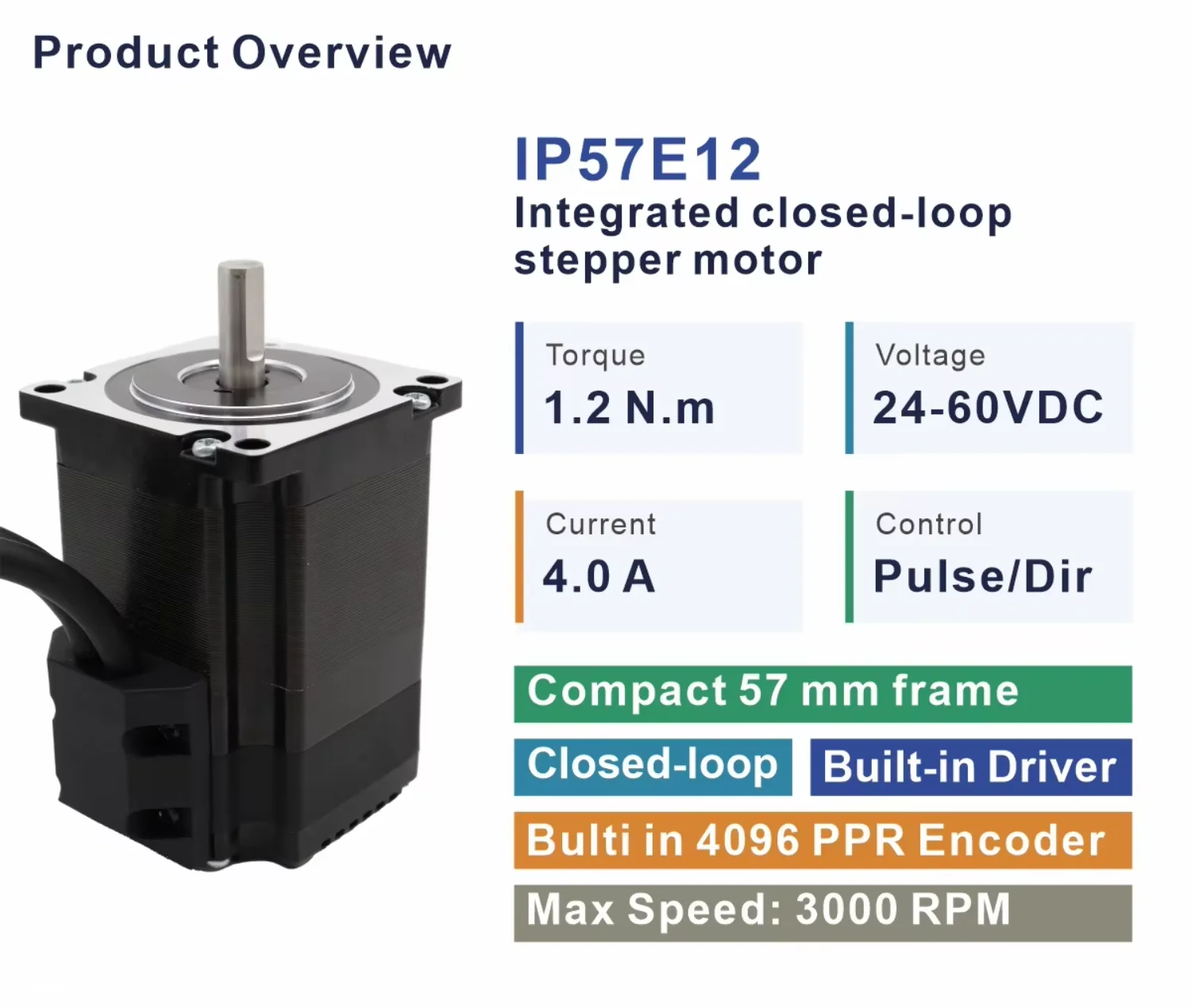

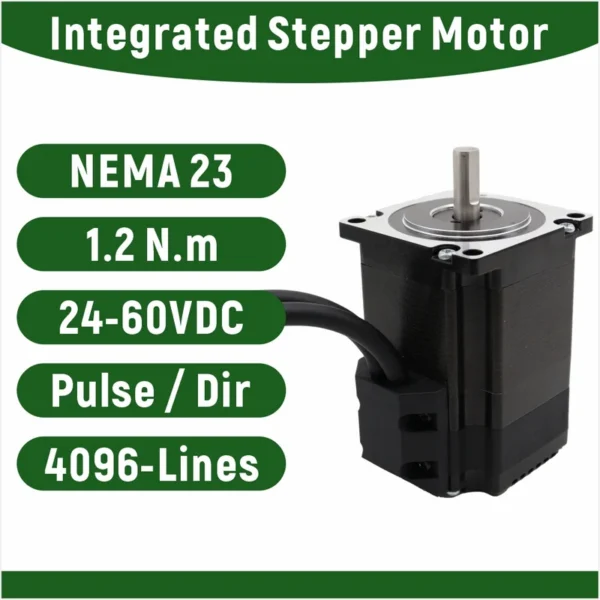

• Integrated motor + driver design closed up stepper servo motor
• 4096-line / 16384-count feedback
• 1.2 N.m NEMA23 torque class
• 24-60VDC wide DC input
• Pulse / direction control
• Closed-loop step servo performance
• ——————————————————————-

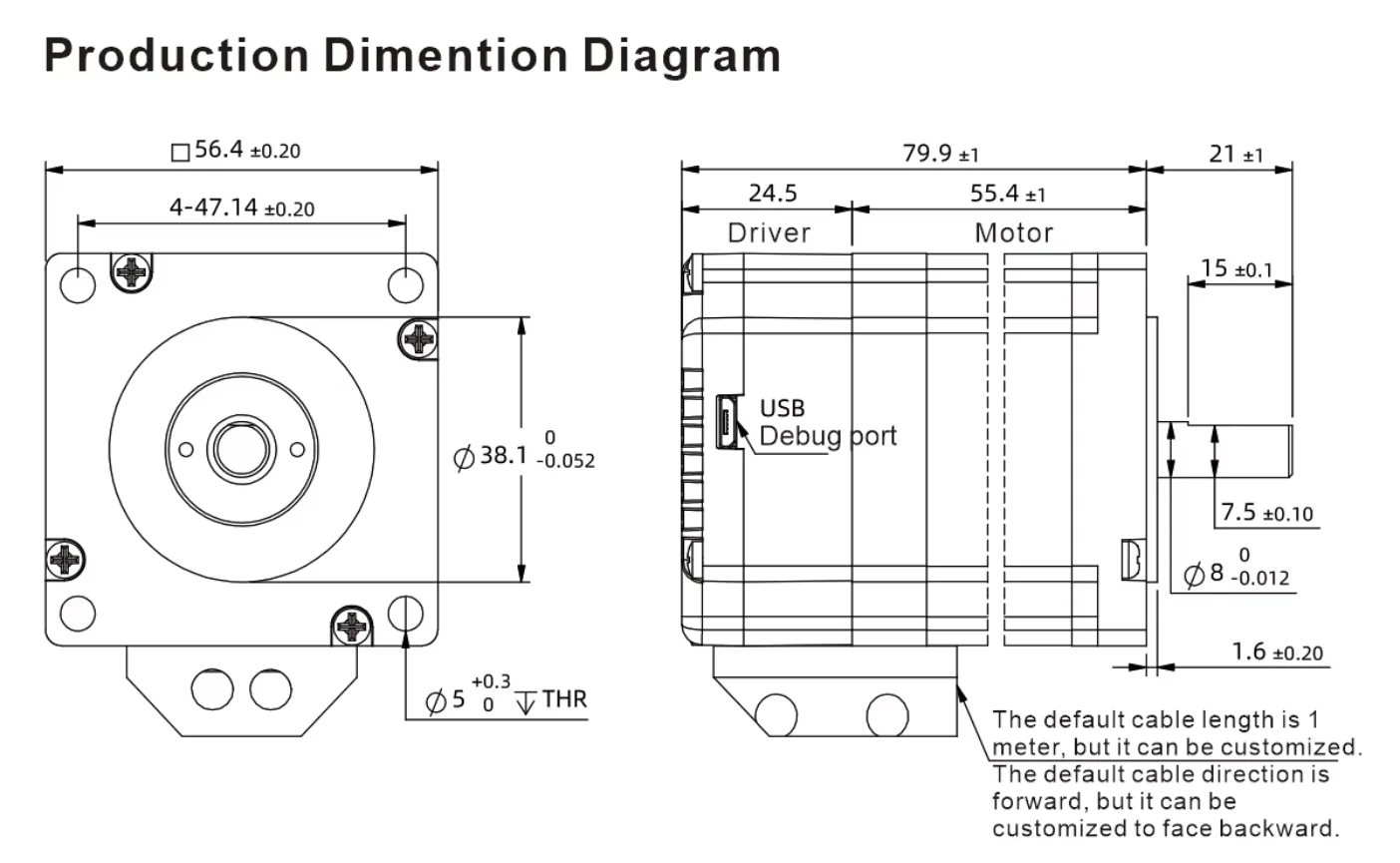

• Body Length : 79.9mm
• Shaft Length : 21mm
• Shaft Diameter : 8mm
• Current : 4.0A
• Supply Voltage : 24-60VDC
• Holding Torque : 1.2 N.m
• Phase Resistance 0.44Ω±20%
• Phase Inductance : 1.4 mH±20%
• Weight : 820g
• Rotor Inertia : 280g.cm
• Max Speed : 3000 RPM
• Encoder : 4096 Lines / 16384 Counts
• Protection : OV / UV / OC / open-phase / position error
• ——————————————————————————————
• Product Applications :
• Integrated stepper motor for compact automation equipment, packaging machines, labeling machines, dispensing machines, inspection equipment, multi-axis motion control systems
• ———————————————————————————————————————

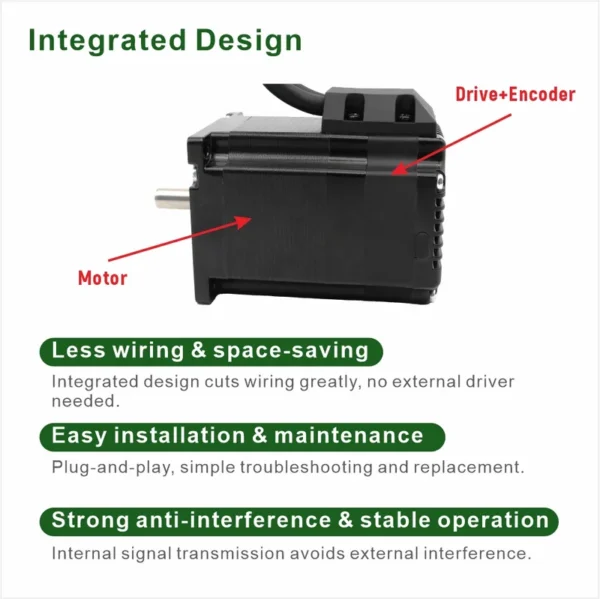

• Advantages of Integrated Closed Loop Stepper Motor:
• ✅ Space Saving – Driver integrated on motor back, saves 60% installation space compared with separate motor + driver solution
• ✅ Easy Wiring – Only power and communication cables needed, no complex motor/encoder wiring, reduces wiring errors by 80%
• ✅ Lower Total Cost – All-in-one design saves 15-30% total cost compared with buying motor and driver separately
• ✅ Better Anti-interference – Short internal connection, no long cable signal loss, more stable operation
• ✅ Easy Installation & Maintenance – Install like a normal stepper motor, no need to mount driver separately. Plug and play replacement
• ✅ Better Performance – Direct drive connection, less torque loss at high speed, higher efficiency

Brand	LEESN
Product Model	IP57E12
Body Length	79.9 mm
Shaft Length	21 mm
Shaft Diameter	8 mm
Current	4.0 A
Supply Voltage	24-60 VDC
Holding Torque	1.2 N.m
Phase Resistance	0.44Ω ± 20%
Phase Inductance	1.4 mH ± 20%
Weight	850g
Rotor Inertia	280g.c㎡
Temperature Range	0℃～40℃
Operating humidity	20%RH～90%RH
Speed Range	0.01～3000 RPM
Encoder Feedback	4096 lines / 16384 counts
communication mode	Pulse, TTL
Braud Rate	115200
Data Bit	8
Stop Bit	1
Check Digit	None
Protection	OV / UV / OC / open-phase / position error
Sub Setting	Host computer settings: any positive integer greater than 200, factory default 40000
Current Setting	0.5-6.5 adustable via software, factory-rated motor current：4.0A
Filter Frequency	Factory default: 400kHz, can be configured via sofrware
Non-volatile Memory	Configuration parameters are stored in the FLASH memory inside the MCU

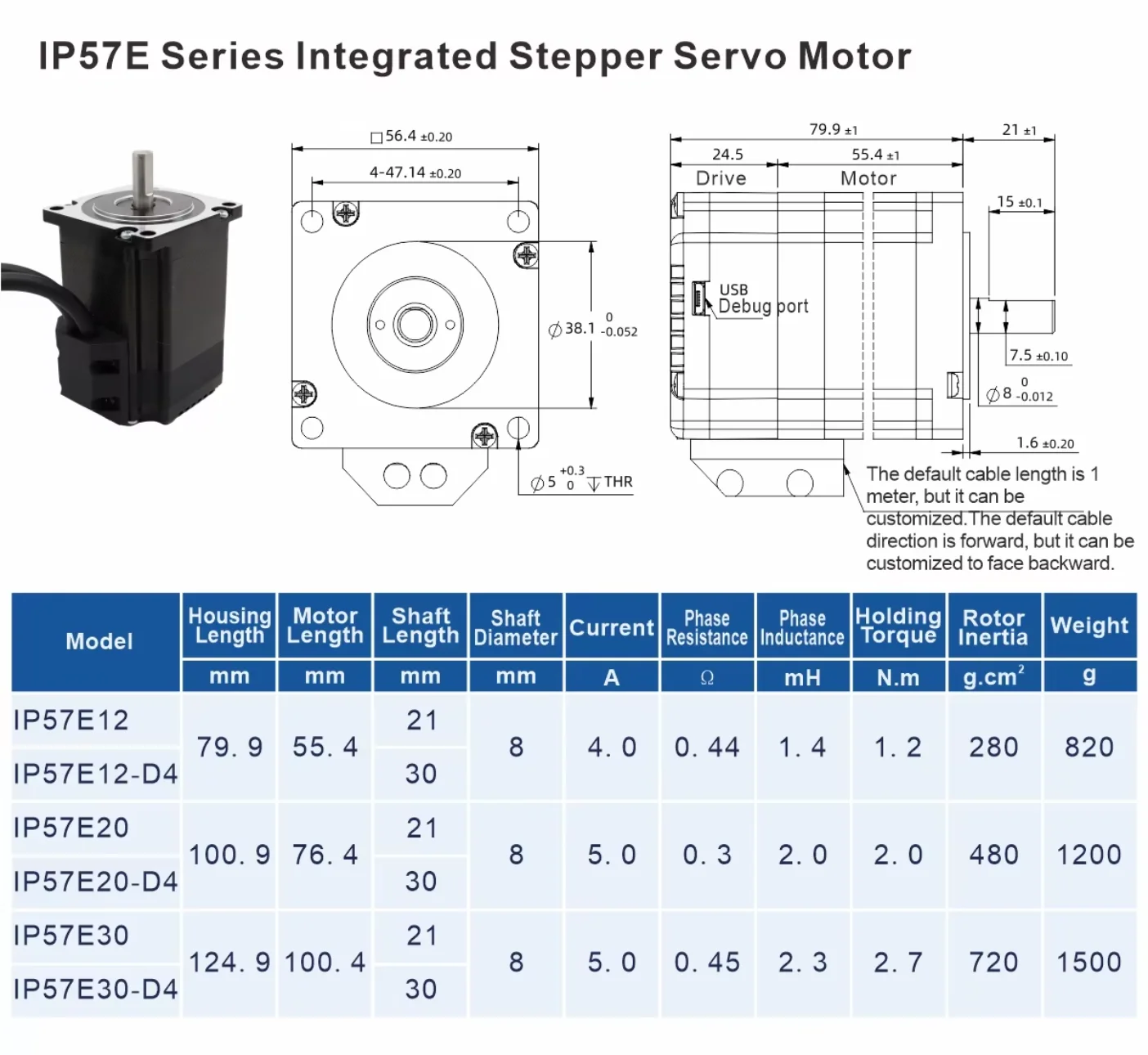

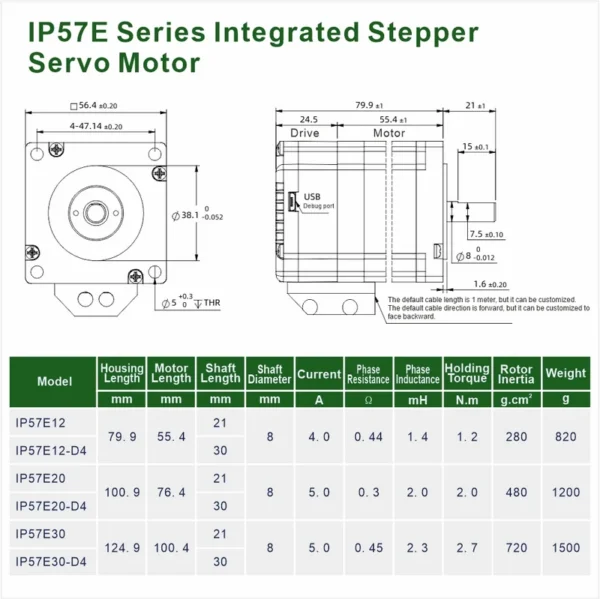

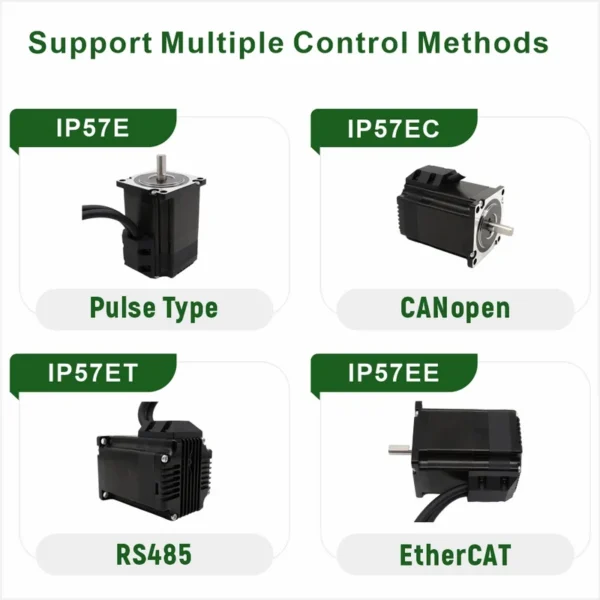

IP57E Model Selection – Control Parameters
Product Features
Operating Voltage Range	24-60 VDC
Drive Output Current	0.5-6.0 A
Control Modes
Position Mode	Pulse direction control
Speed Mode	I/O speed control mode
Communication Interface	MircoUSB ports are used for drive parameter configuration
Output Torque Range	0.8-3.0 N.m
● 4096-line encoder feedback,probiding 16,384 pulses per revolution, with a maximum resolution of 0.022º

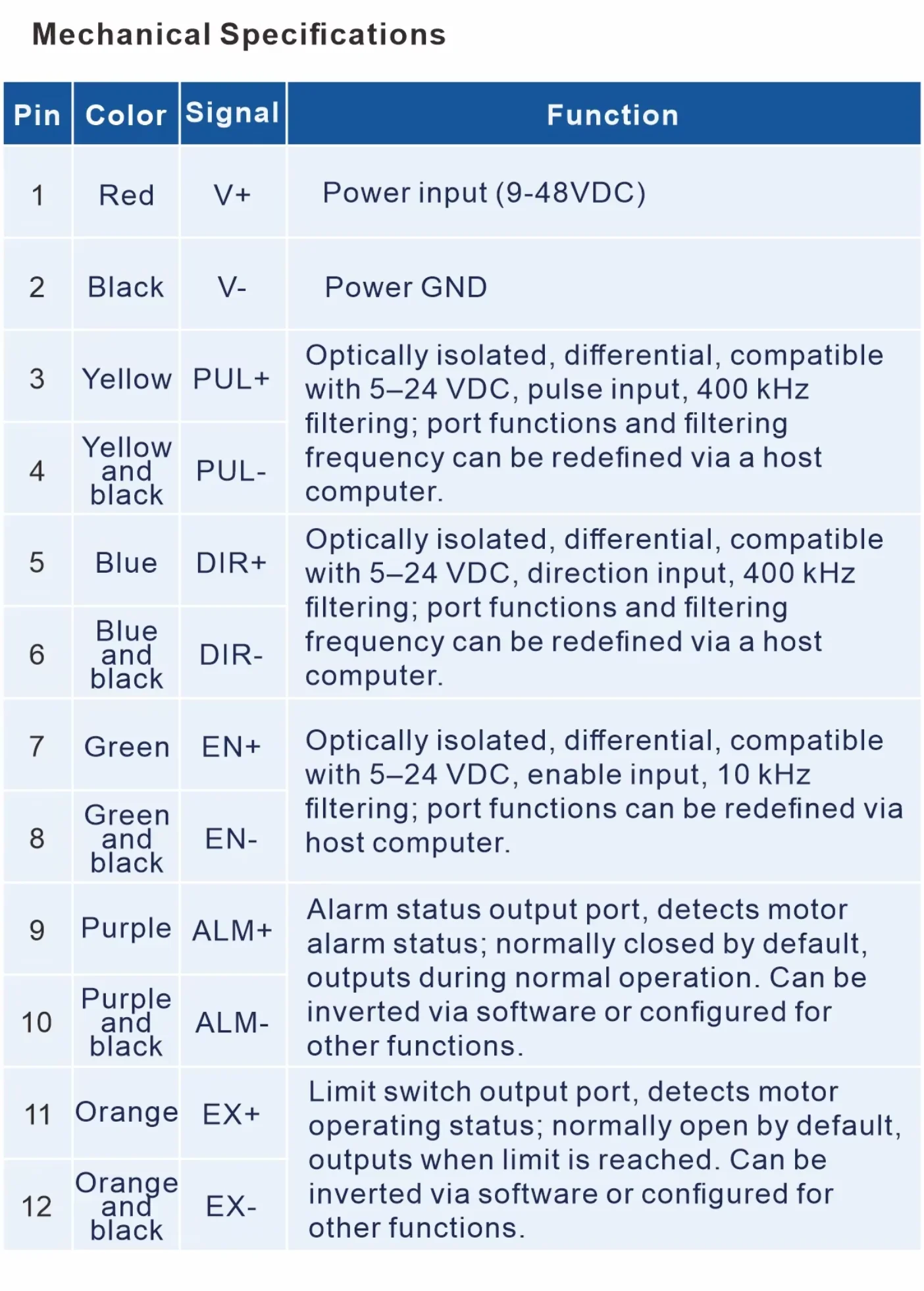

● 3 digital inputs, high level can directly accept 3.3-24V DC levels, default filtering frequency 400 kHz ● 2 sets of independent digital outputs, open-collectro(OC)output, maximum withstand voltage 30V,  maximum sink or source current 50 mA.
● Real-time monitoring and modification of parameters can be achieved using Step-Config software.

COMPANY OVERVIEW

标题

Founded in 2013 and based in Shenzhen, Leesn is a high-tech enterprise specializing in motion control solutions, integrating R&D,manufacturing, sales, and OEM/ODM services.

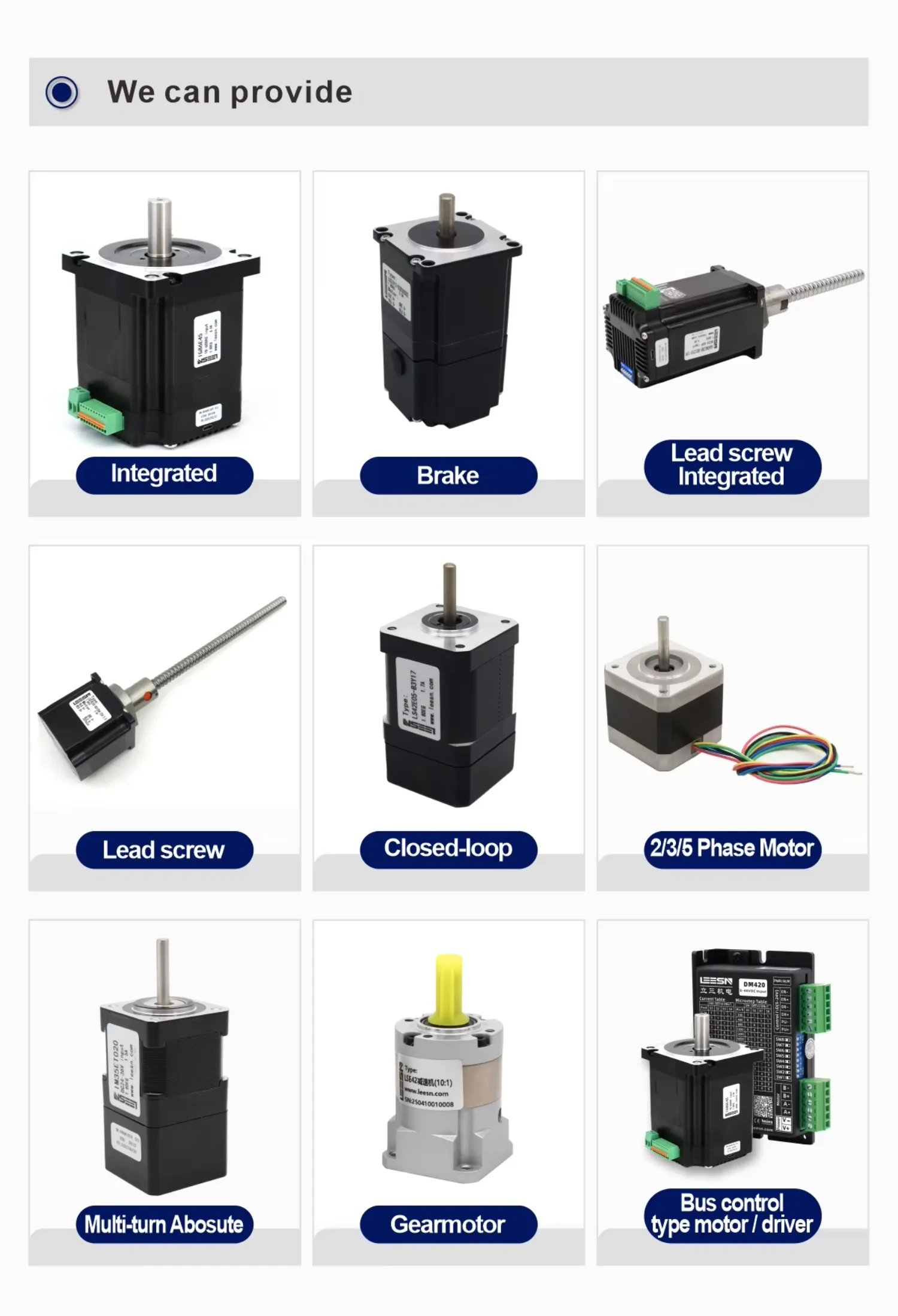

Our main products include stepper motor drivers, integrated stepper motors, multi-turn absolute value motors, lead screw motors,electric grippers, and planetary gearboxes.

All products are CE and RoHS certified with strict quality control. Our solutions are widely used in medical devices, robotics, 3C electronics, CNC machining, and new energy industries.

Exporting to Europe, Americas, Middle East, and Southeast Asia, we are trusted partners of Foxconn, Huawei, BYD, and Han's Laser.

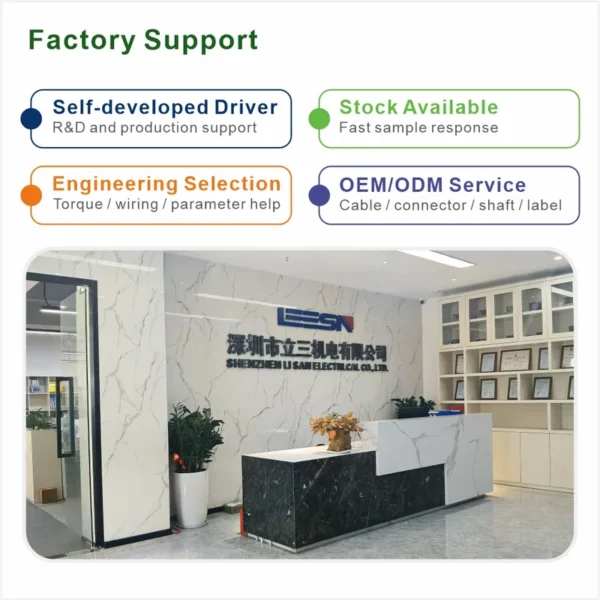

OUR FACTORY

FAQs

Do you offer OEM/ODM customization service?

Yes, we have our own factory and R&D team with over 15 years of experience. We provide full OEM/ODM services including custom winding, shaft modification, special voltage, logo printing on label, custom connector, and customized performance parameters.

What is your warranty policy?

All our products come with 12 months warranty from the date of shipment. If there is any quality problem under normal use within the warranty period, we will provide repair. Our technical team will respond to your after-sales questions within 24 hours.

Are you a factory or trading company?

We are a professional manufacturer with our own factory in Shenzhen, China, and in-house R&D team of 20+ engineers. We have been specializing in stepper motors and integrated motion control solutions for nearly 20 years. Welcome to visit our factory anytime.

Can you provide technical support and drawings?

Yes, we provide comprehensive technical support including: 2D/3D drawings (STEP, DXF, PDF format) Dimensional drawings and wiring diagrams Technical manuals and parameter tables Application guidance and troubleshooting Our engineers can help with model selection and solution design

Do you have products in stock? What is the lead time?

Yes, standard models are kept in stock and can be shipped within 1-3 working days. For customized products, lead time is 15-25 working days depending on the order quantity. We have a large warehouse to ensure fast delivery for regular orders.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $53 / piece
  • 10–49 piece: US $49 / piece
  • 50+ piece: US $45 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this integrated motor?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this integrated motor carry?

It is supplied with CE / RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the integrated motor be supplied for my local voltage?

The standard configuration is 48 V DC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
