Key specification for this inverter air conditioner: voltage 220, capacity 9000. Everything below is reproduced from the factory data sheet. Made by Foshan Sylon Electrical Appliance Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Inverter Air Conditioner
- Power Type: DC
- Power Source: Electric
- Power Supply: 220-240V/1Ph/50Hz/60Hz
- Voltage (V): 220
- Capacity (Btu): 9000
- Cooling Capacity: 7.2kw-15.5kw
Technical Specifications
| Type | Split Wall Mounted Air Conditioners |
|---|---|
| Capacity (Btu) | 9000 |
| Cooling/Heating | Cooling/Heating |
| Application | Hotel, Household |
| EER | 3.0 |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Power Type | DC |
| Power Source | Electric |
| App-Controlled | Yes |
| Remote Control | Yes |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Private Mold | No |
| Recommended Room Size（Square Feet） | 15m³ |
| Voltage (V) | 220 |
| Function | CoolingHeating |
| Cooling Capacity | 7.2kw-15.5kw |
| Color | White |
| Keyword | split air conditioner |
| Brand | OEM |
| Feature | 90% Energy Saving |
| NOISE LEVEL | 18-45dB |
| Power Supply | 220-240V/1Ph/50Hz/60Hz |
| Usage | Home+Hotel+Office |
| Mounting | Split Wall Mounted |
| Packaging Details | CARTON PACKAGE |
| Port Of Dispatch | FOSHAN |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 30000 pieces per Month |
Product Details

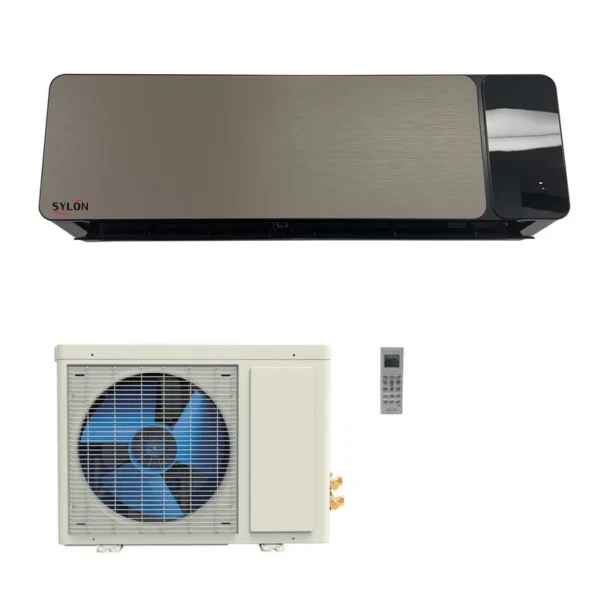

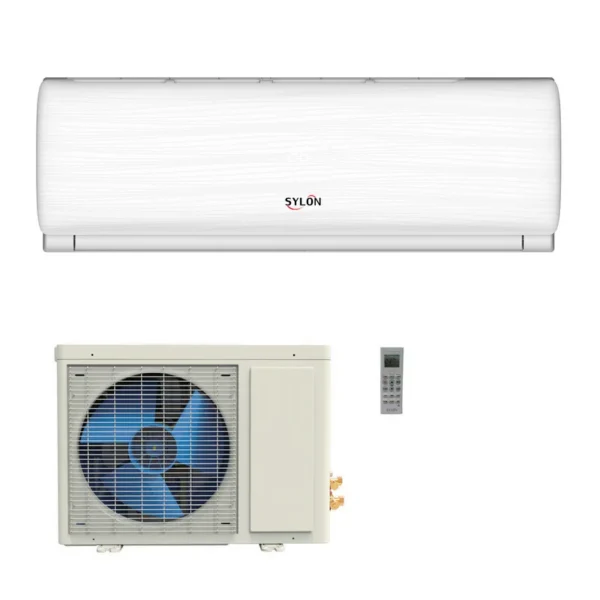

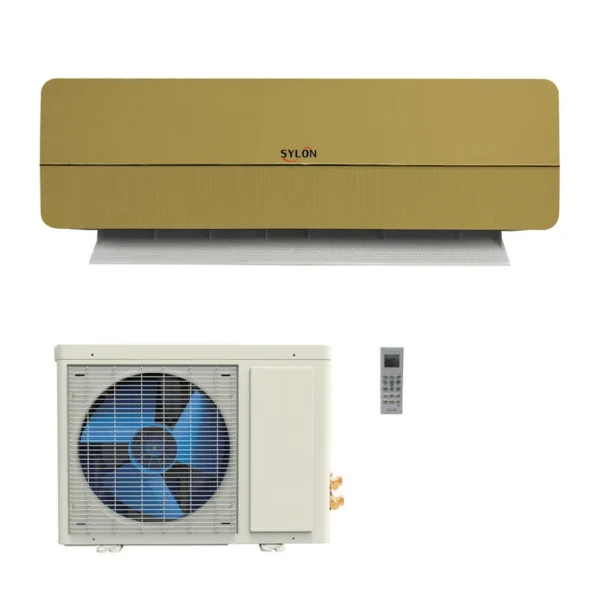

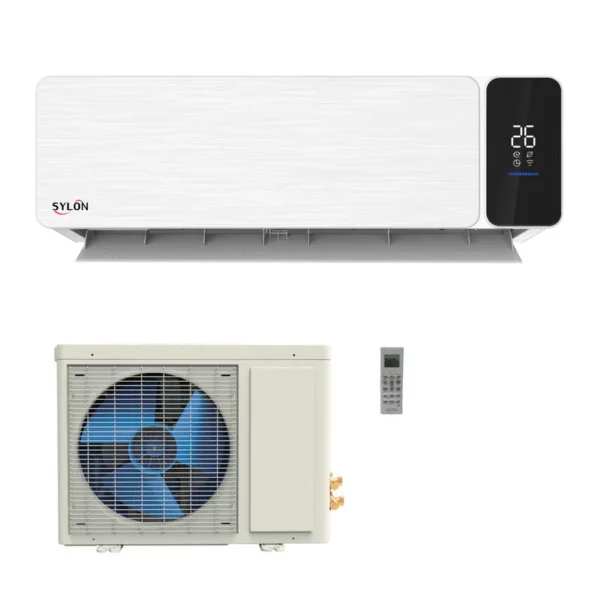

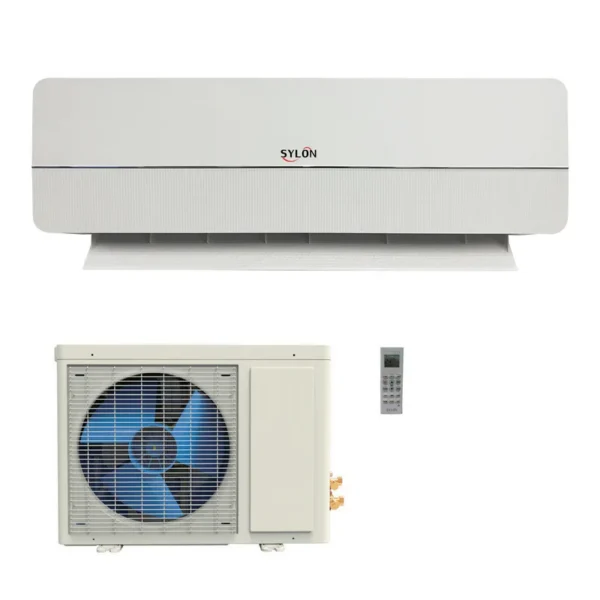

heating&cooling DC&AC inverter split aire acondicionado for home
Standard features:
Turbo cooling
Super low noise
Washable filter
Auto diagnosis
Sleep mode
L.E.D display
24-hopur timer
4-way air outlet
Removable&Washable panel
180V(220V) or 99V(110V) low voltage start up
golden fin for high anti-corrsive
Automatic clean and dry
Number of speed control(ex:Auto,1,2,3)
Number of working mode(ex:Cool/Heat/Smart/Fan/Dehumidify=5modes)
Formaldehyde prevention Filter
Optional features:
WiFi control
Heating and cooling
Silver ion filter
Healthy Negative ion
Active charcoal Filter
Auto restart
Anti cold air preventive function
Product parameters
| Model | CSH-9K(TA) | CSH-12K(TA) | CSH-18K(TA) | CSH-24K(TA) | |||
| Cooling capacity | 7000/9000BTU | 12000BTU | 18000BTU | 24000BTU | |||
| Type | 698X(φ7×2) | 777X(φ7×2) | 910X(φ7×2) | 1010X(φ7×2) | |||
| Cooling only | |||||||
| Control type | Remote | ||||||
| Power supply | Ph-V-Hz | 1Ph-220-240V~50Hz | |||||
| Voltage Range | V | 198~242 | 198~242 | 198~242 | 198~242 | ||
| Cooling | Rated power Input | W | 849 | 1079 | 1772 | 2015 | |
| Rated current | A | 3.9 | 5.0 | 8.6 | 9.4 | ||
| EER | W/W | 3.00 | 3.00 | 3.00 | 3.00 | ||
| Max power Input | W | 1105 | 1403 | 2303.6 | 2620 | ||
| Max current | A | 5.1 | 6.5 | 11.2 | 12.3 | ||
| Heating | Capacity | Btu/h | 9200 | 12000 | 18500 | 24500 | |
| Input Power | W | 870 | 1172 | 1500 | 1980 | ||
| Rated current | A | 3.9 | 5.10 | 7.7 | 9.3 | ||
| COP | 3.1 | 3.00 | 3.61 | 3.63 | |||
| Moisture removal | Liters/h | 1 | 1.3 | 1.8 | 2.4 | ||
| Indoor noise level | dB(A) | 36 | 39 | 42 | 49 | ||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 400 | 510 | 850 | 1100 | ||
| Indoor unit | FAN MOTOR | Brand | Broad-ocean/Welling/Tongde | WEILING | LT | Welling | |
| Model | RPG15(AL) | RPG25L | YKFG-35-4-94L | ||||
| Evaporator | a.Number of rows | 2 | 2 | 2 | 2 | ||
| e.Fin type (code) | Hydrophilic aluminium foil(Blue fin) | Hydrophilic aluminium foil | Hydrophilic aluminium foil | Hydrophilic aluminium foil | |||
| f.Tube outside dia.and type | 7 Inn. Grv. | 7 Inn. Grv. | 7 Inn. Grv. | 7 Inn. Grv. | |||
| Dimension(W*D*H) | mm | 698×255×190 | 777×250×201 | 910×294×206 | 1010x315x220 | ||
| Packing (W*D*H) | mm | 764×325×267 | 850×320×275 | 979×372×292 | 1096×390×312 | ||
| Net/Gross weight | Kg | 7/9 | 8/11 | 10/13 | 15/18 | ||
| Connecting pipe | Refrigerant Connection Type | R410A | R410A | R410A | R410A | ||
| Liquid side | mm | φ6 | φ6 | φ6 | φ6 | ||
| Gas side | mm | φ9.52 | φ12 | φ12 | φ15.88 | ||
Compressor model
Climate type:T1(If you need T3,please consult us)
| Model Referance | CSH-9K | CSH-12K | CSH-18K | CSH-24K | |||
| COPRESSOR | Brand | GMCC | GMCC | GMCC | GMCC | ||
| Model | PA185M2C-4FT2 | ASG135 | PA190M2AS-4KTL1 | PA250G2CS-4MUL | |||
| Type | ROTARY | ROTARY | ROTARY | ROTARY | |||
| outdoor | FAN MOTOR | Brand | Welling/Broad-ocean | Welling | Tongde | Welling | |
| Model | YDK40-6H-(AL) | YKT-45-6-238L | YDK68-6E1 | ||||
| Condenser | a.Number of rows | 1 | 2 | 2 | 2 | ||
| d.Fin type (code) | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | |||
| e.Tube outside dia.and type | mm | 7 Inn. Grv. | 7 Inn. Grv. | 7 Inn. Grv. | 7 Inn. Grv. | ||
| Noise level(HighMiddleLow) | dB(A) | 50 | 55 | 55 | 57 | ||
| Dimension (W*H*D) | mm | 660*530*240 | 780*542*256 | 782*580*272 | 860*720*320 | ||
| Packing (W*H*D) | mm | 782×587×337 | 900*600*340 | 905*640*365 | 1015*775*445 | ||
1.We guarantee that the inquiry will be replied within 24 hours on workday.
2.We are an integrated manufacturing and trading company for many years.

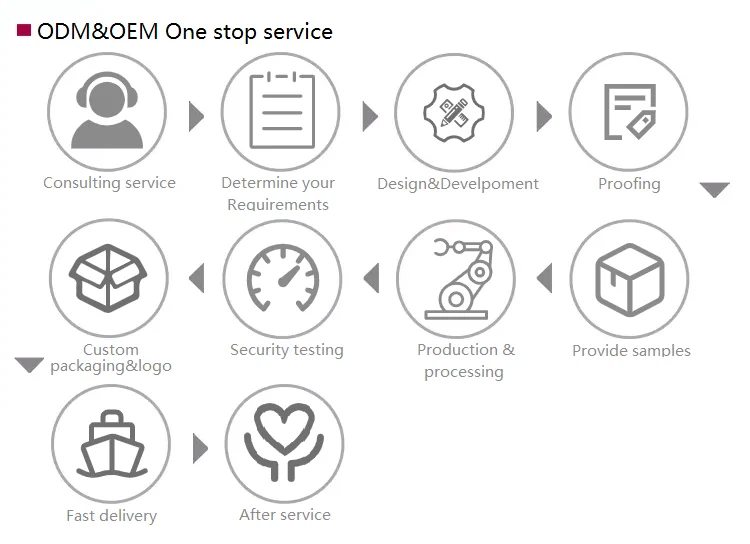

3.OEM available:
We can help you to design and put it into production according to your ideas.
ODM&OEM available:
Customized product specifications.
Customized logo and carton.
Provide samples.
4.We can offer CKD/SKD for products,the price normally 5-10% higher than normal one price only.
5.We can make the printing artworks(such as user manual/packing/rating label) in your language for free.
6.After-sale service:
All products have 12 months warranty for complete unit.
The main spare parts has 3-year warranty,We'll replace it for free.
The compressor has 5-year warranty.
We can guide installation and assembly online.
7.Fast delivery:
Sample order: 7~10 days
50~100pcs: 15~25 days
1 MOQ: 30~40days
>1000pcs: 50~75days
| 10 years experience in manufacturing air conditioner 2 joint venture factories produce household appliances $100 million total sales per year 500+ product for you to choose 70+ suppliers for all range 3500 Square meters of production area 10 production lines 100+ employees 5+ R&D team 5+ quality controll staff |
220V/50HZ& 110V/60Hz 220V/60HZare available, OR others as customer's requirement.
2.Can you do our country's plug?
Yes,we can.
3.Can you make the printing artworks(such as user manual/packing/rating label) in our language?
Yes,we can.
4.Can you offer CKD/SKD for your products?
Yes, price normally 5-10% higher than normal one price.
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–99 set: US $210 / set
- 100–499 set: US $188 / set
- 500+ set: US $169 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inverter air conditioner?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the inverter air conditioner be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

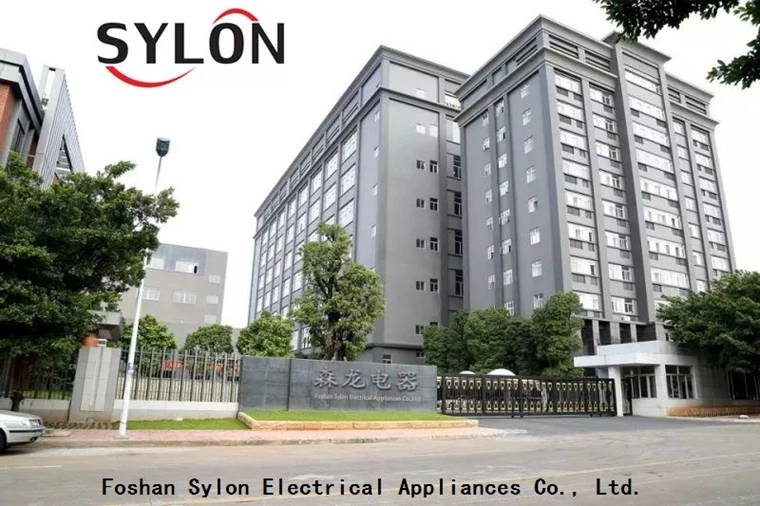

About the Manufacturer
